EGG 3P Circular Hybrid Aviation Pneumatic Medical Socket

EGG 3P  Circular Hybrid Aviation Pneumatic Medical Socket

The EGG 3P Airtight Hybrid Aviation Pneumatic Socket is an advanced circular female socket that supports integrated pneumatic and signal transmission. Engineered for environments requiring sterile and airtight interfaces, this hybrid socket is ideal for medical devices, fluid control systems, and compact industrial equipment.

LINKHIVE 3P Reliable Plastic Aviation Socket Overview

Straight plastic plug	fixed socket
FGG 3P plastic plug	EGG
Fluidic configuration
	ERY

Plastic aviation socket Key Features:

• Hybrid Design: Supports combined electrical and fluidic channels

• Pneumatic Ports: 3 dedicated fluidic contacts for precise gas or liquid flow

• Sealing: Airtight structure prevents leakage under 2-bar pressure

• Connection Style: Push-pull locking system for secure and easy mating

• Material: High-performance medical-grade plastic housing (PSU/PBT)

• Mounting: Panel mount circular socket with aviation-grade durability

• Operating Range: -40°C to +120°C, IP50 protection

• Fluidic Tube Compatibility: 4mm / 6mm OD tubing

• Leakage Rate: ≤ 0.4 kPa/min at 400 mmHg pressure difference

Plastic aviation socket Applications

• Medical ventilators and anesthesia systems

• Pneumatic control modules

• Laboratory sampling and fluid management

• Hybrid interface for “go with flow” operations

With a compact footprint and robust sealing performance, the PKG 3P socket ensures safe and efficient hybrid transmission in critical applications where space, sterility, and reliability matter most.

FGG 3P Plastic aviation socket Diamensions

How to Select the FGG 3P Plastic / Hybrid Medical Socket

Choosing the right plastic medical socket, plastic pneumatic socket, or plastic coaxial socket from the FGG 3P series involves evaluating the following factors:

1. Pin Count & Configuration for Plastic aviation socket

• Determine the required No. of Contacts based on your medical system’s signal or power needs (2–32 pins for electrical, fluidic, or coaxial hybrid configurations).

2. Connector Type for  for Plastic Hybrid socket with fluidic

• Select between plastic medical socket for pure electrical connections, plastic pneumatic socket for fluidic integration, or coaxial hybrid socket for combined signal and low‑voltage transmission.

3. Cable Diameter Compatibility

• Verify the Max Cable Ø (4.5–6.5 mm) to ensure a secure fit and strain‑free assembly.

4. Contact Size & Type

• Choose contact Ø based on current‑carrying capacity and application demands (0.7 mm–0.9 mm for medical signal integrity).

5. Application Environment

• Consider sterilization compatibility, whether for surgical tools, diagnostic instruments, or patient monitoring systems.

FGG 3P plastic medical  socket Selection

Mode	ZGG3P.M02.UGL.J	ZGG3P.M03.UGL.J	ZGG3P.M04.UGL.J	ZGG3P.M05.UGL.J	ZGG3P.M06.UGL.J	ZGG3P.M07.UGL.J	ZGG3P.M08.UGL.J	ZGG3P.M09.UGL.J	ZGG3P.M10.UGL.J	ZGG3P.M12.UGL.J	ZGG3P.M14.UGL.J
Insert
No. of Contacts	2	3	4	5	6	7	8	9	10	12	14
Description	Compact plastic medical socket for diagnostic tools	3‑pin plastic medical socket for lab equipment	4‑pin plastic medical socket for patient monitors	5‑pin socket for plastic medical connector use	6‑pin plastic socket for multi-signal medical devices	7‑pin plastic medical socket for imaging modules	8‑pin plastic socket for modular systems	9‑pin plastic socket for high-density medical interfaces	10‑pin plastic medical socket for modular diagnostic devices	12‑pin plastic medical socket for multi‑channel medical connectors	14‑pin plastic medical socket for high‑density medical systems
Application	Used in plastic medical connectors for portable monitors	For plastic medical connectors in diagnostic modules	Applied in plastic medical sockets for surgical devices	Suitable for plastic medical connectors in lab instruments	For plastic medical socket in diagnostic hubs	Applied to plastic medical connectors in imaging systems	Integrated in plastic medical socket setups	For plastic medical connectors in surgical consoles	Used in plastic medical connectors for imaging and monitoring hubs	Applied in plastic medical socket for surgical consoles	Suitable for plastic medical connectors in complex diagnostic instruments

FGG 3P  plastic medical  socket

Mode	ZGG3P.M16.UGL.J	ZGG3P.M18.UGL.J	ZGG3P.M20.UGL.J	ZGG3P.M22.UGL.J	ZGG3P.M24.UGL.J	ZGG3P.M26.UGL.J	ZGG3P.M32.UGL.J
Insert
No. of Contacts	14	18	20	22	24	26	32
Max Cable Ø (mm)	4.5	4.5	4.5	4.5	4.5	4.5	4.5
Description	14‑pin plastic medical socket for multi-channel devices	4‑pin plastic medical socket for modular connectors	6‑pin plastic socket for diagnostic modules	8‑pin plastic socket for medical instruments	10‑pin plastic medical socket for signal hubs	12‑pin plastic socket for surgical instruments	20‑pin plastic medical socket for high-signal integration
Application	Used in plastic medical connectors for complex modules	For plastic medical socket in diagnostic tools	Integrated into plastic medical connectors for labs	For plastic socket in modular patient monitors	Applied to plastic medical connectors for multi-signal hubs	Used in plastic medical socket systems	Suitable for plastic medical connectors in advanced diagnostic platforms

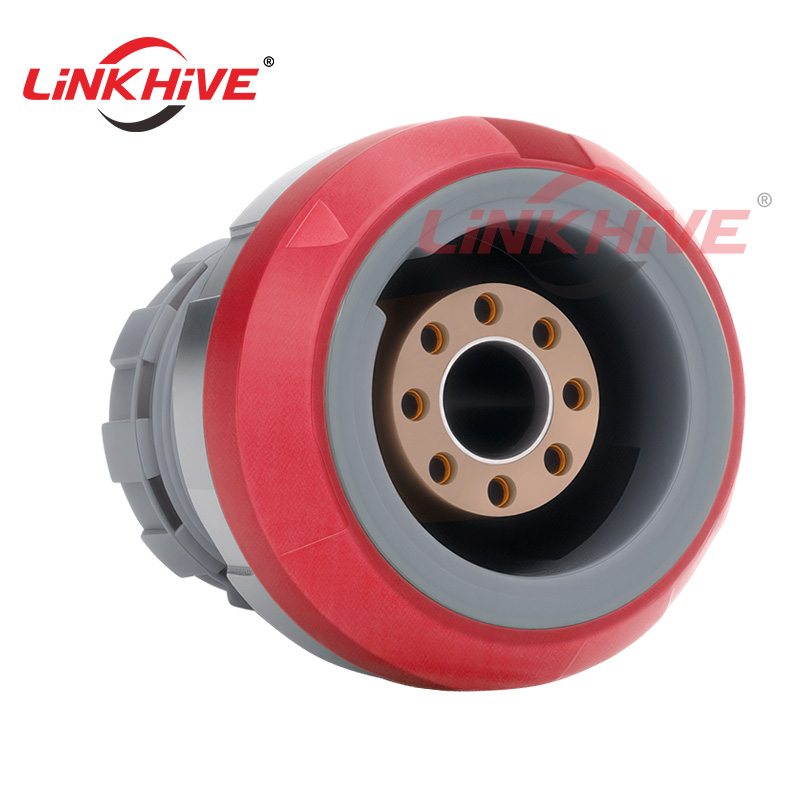

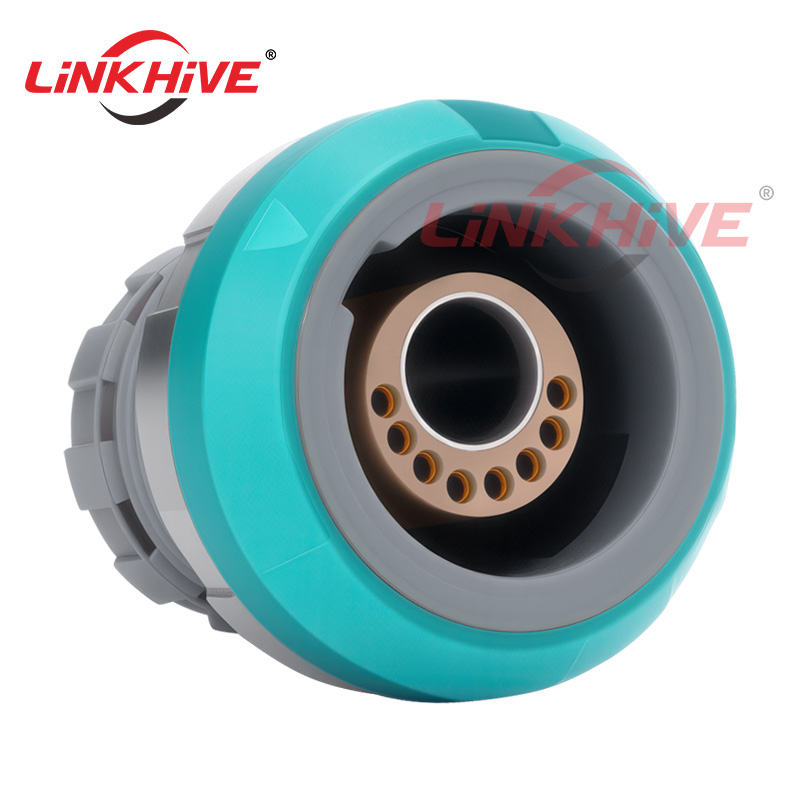

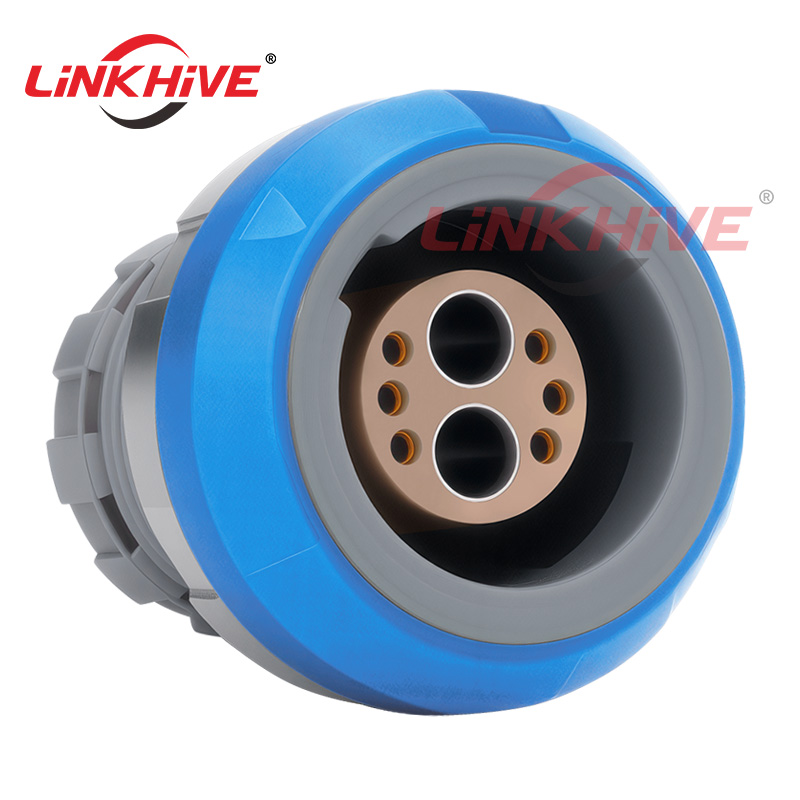

FGG 3P Plastic Hybrid socket with fluidic + Low Voltage

Mode	ZGG3P.108.UGL.R	ZGG3P.113.UGL.J	ZGG3P.206.UGL.A	ZGG3P.118.UGL.G
Insert
Code
No. of Contacts	8 +1  fluidic tube  pneumatic socket	13 +1  fluidic tube  pneumatic socket	6 +2  fluidic tube plastic pneumatic socket	8 +1  fluidic tube pneumatic socket
Contact Ø (mm)	0.9	0.7	0.9	0.7
Fluidic Tube Ø	OD6.0 × ID4.0 mm  Fluidic Tube	OD6.0 × ID4.0 mm Fluidic Tube	OD4.0 × ID2.0 mm Fluidic Tube	OD6.0 × ID4.0 mm
Description	8 +1 pin lastic Hybrid socket with fluidic for fluidic lines	13 +1 pin lastic Hybrid socket with fluidic for low‑pressure use	6 +2  plastic lastic Hybrid socket with fluidic  + low‑voltage	8 +1 plastic pneumatic socket for hybrid applications
Application	For plastic pneumatic socket use in diagnostic fluidics	Applied in quick connect socket setups for labs	Used in plastic pneumatic socket for patient monitoring	For plastic pneumatic connectors in hybrid medical tools

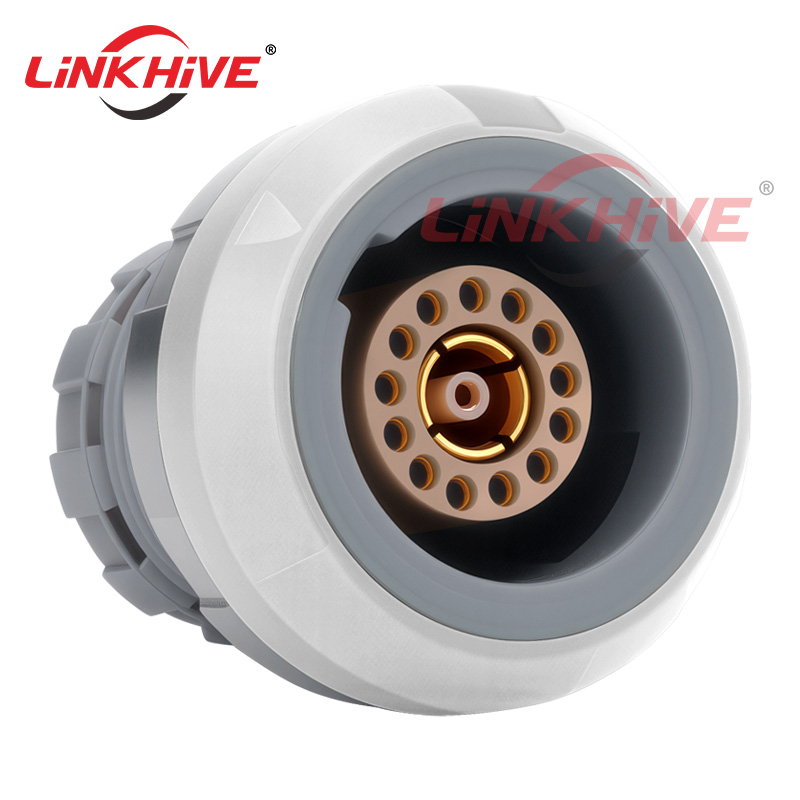

FGG 3P Hybrid socket: Coaxial + Low Voltage

Mode	ZGG3P.808.UGL.J	ZGG3P.813.UGL.J	ZGG3P.906.UGL.J
Inserts
No. of Contacts	8+1 plastic coaxial socket	13+1 plastic coaxial socket	6+2 plastic coaxial socket
Contact Ø (mm)	0.9	0.7	0.9
Max Cable Ø (mm)	4.5	4.5	4.5
Description	8+1 pin plastic coaxial socket for medical devices	13+1 pin plastic coaxial socket for multi‑signal use	6+2 pin plastic coaxial socket for diagnostic systems
Application	For plastic coaxial connectors in diagnostic instruments	Applied in plastic coaxial socket for modular hubs	Used in plastic coaxial connectors for medical imaging systems

Why Choose Our FGG 3P Plastic & Hybrid Sockets

1. Comprehensive Range – for
   From plastic medical sockets to fluidic hybrid and coaxial hybrid options, we provide a full portfolio for modular medical systems.

2. Medical‑Grade Reliability –
   Built with high‑quality plastic medical connectors ensuring biocompatibility, easy sterilization, and long‑term durability in demanding healthcare environments.

3. Quick Connect Design –
   Quick connect socket interface with secure push‑pull locking for fast and error‑free operation in surgical or diagnostic applications.

4. Precision Engineering –
   Tight manufacturing tolerances ensure high‑density contact arrangements without compromising electrical or pneumatic performance.

5. Customization & Support –
   Tailored configurations for plastic aviation socket or medical coaxial socket requirements, backed by technical support and rapid delivery.
