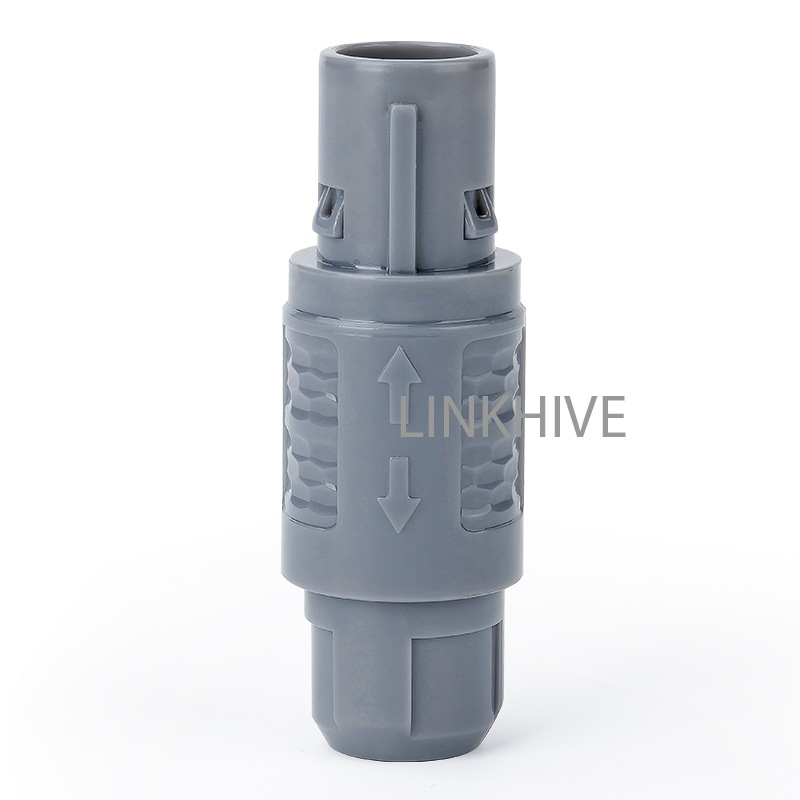

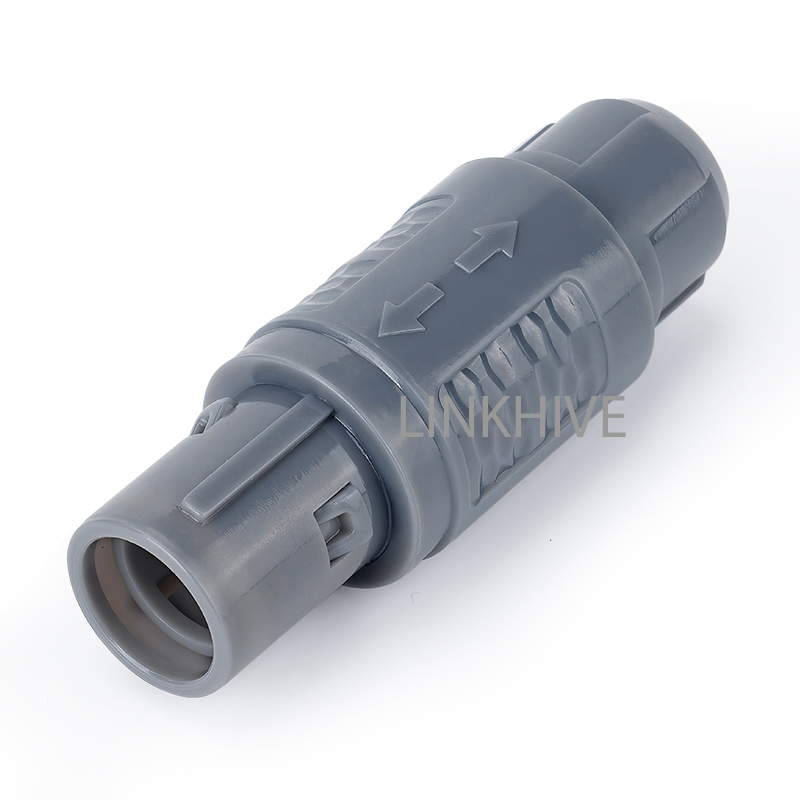

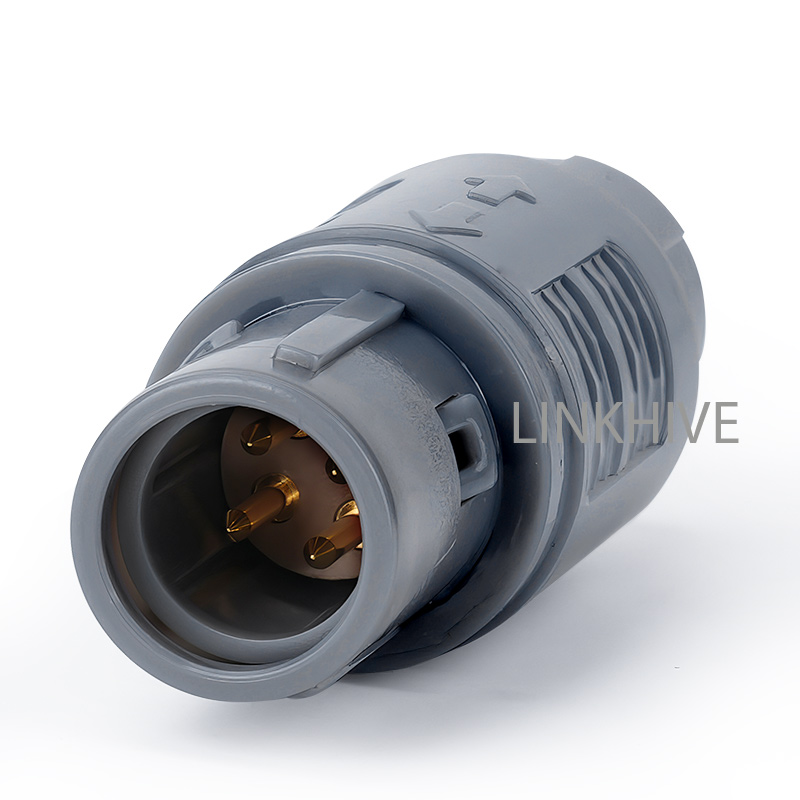

CAB 2P Plastic Medical Round Connector with Self-locking
The CAB 2P series offers a durable, medical-grade plastic connector tailored for applications requiring high reliability, easy handling, and repeated sterilization. It integrates a push pull self-locking system that ensures a secure and vibration-resistant connection—ideal for critical healthcare environments.

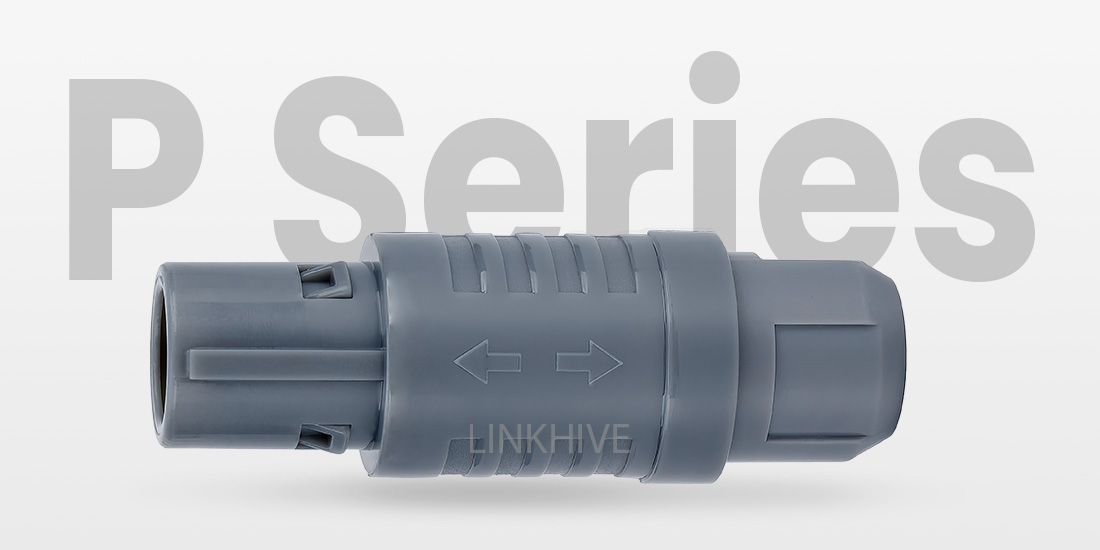

LINKHIVE 2P Plastic push pull connector overview

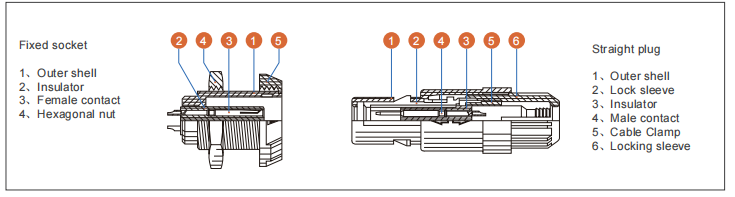

| Straight plastic plug | fixed socket |
|  |
| CAB plastic plug | CKG |
 |  |
| CAB plastic plug | CLG |
| Fluidic configuration | |
Key Feature
🔒 Self-locking push pull design for one-hand operation
⚕️ PPS housing with UL 94-V0 flammability rating
🔌 Up to 14 gold-plated contacts for signal, power, or fluidic use
🛠️ Cable assembly support with bend relief options
🌡️ Autoclavable and chemical resistant
🔄 Available in keyed variants for error-free mating
Standard plastic plug & Fluidic plastic plug
| Standard plastic plug | Fluidic plastic plug |
 |  |
 | |
1P vs 2P Differences
CAB 1P: Slim, lightweight, suitable for low-contact-count devices (e.g., probes)
CAB 2P: Larger shell, higher contact capacity (up to 14), suited for complex medical interfaces like ECG + fluidic or signal + power
Typical Applications
🫀 ECG cables and bio-signal monitoring
💉 Non-invasive blood pressure (NIBP) tubing
🦷 Dental and endoscopic handpieces
🧪 Patient monitoring systems
🖥️ Portable diagnostic or imaging devices
🌡️ Reusable sensor interfaces
 |  |

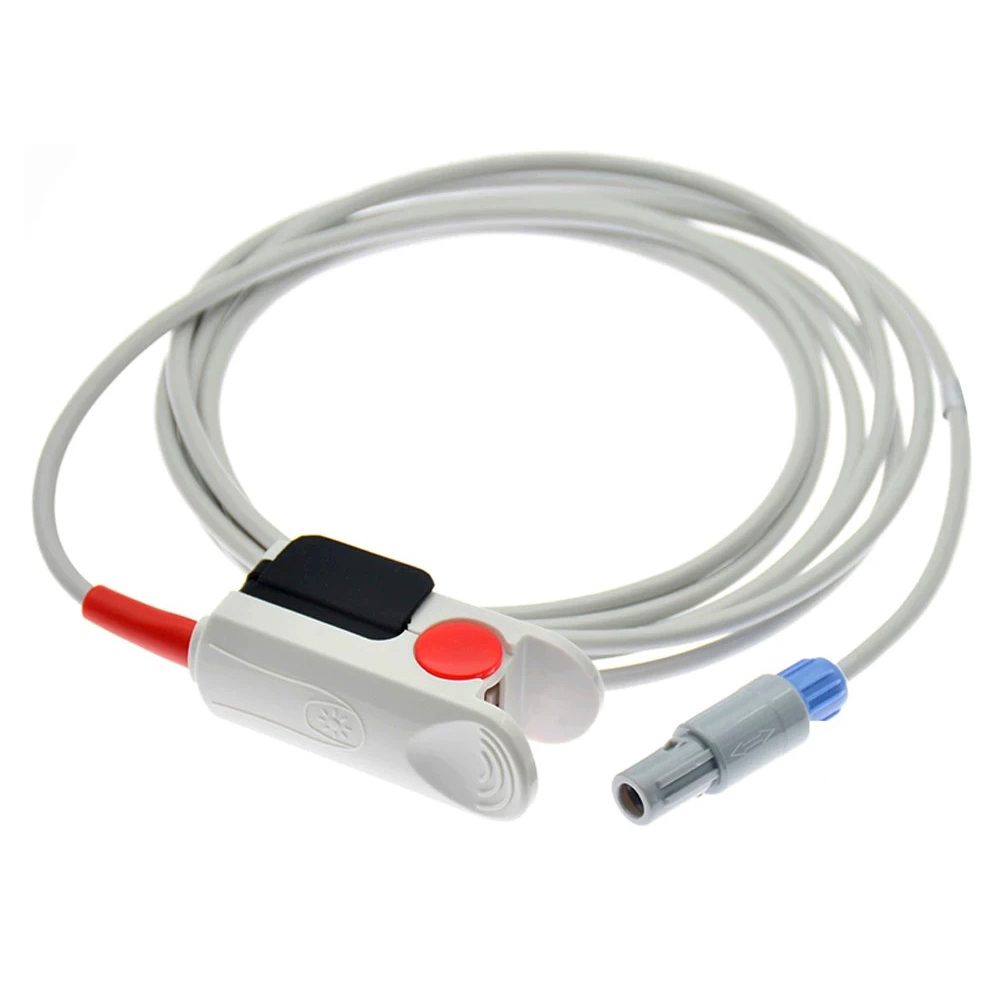

| Integrated 6-Pin SpO₂ Sensor – Adult Finger Clip Type Compatible with PM/MEC Series Monitors 1-Year Warranty Compatible and Adaptable | Multi-Parameter Patient Monitor with Full Set of Accessories This medical monitor includes: Main unit with LCD display and built-in printer ECG cable with lead wires SpO₂ sensor (finger clip type) NIBP cuff and tubing Temperature probes Power cable Mounting accessories and modules Suitable for clinical use in hospitals and clinics for continuous monitoring of ECG, SpO₂, NIBP, TEMP, RESP, and pulse rate. |

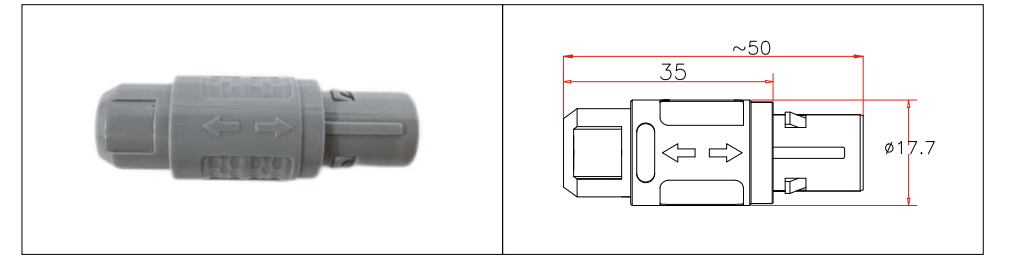

CAB 2P Reliable Medical Plastic push pull connector Diamenions
 CAB 2P straight plug, with cable collet |
How to Select CAB 2B Medical Device Connectors
Selecting the right medical device connectors ensures system compatibility, reliability, and patient safety. When choosing a medical device connectors,
Determine the Number of Contacts of custom medical connector– Select from 2 to 32 contacts depending on your device’s signal and power requirements.
Check Fluidic or Coaxial Requirements – For applications involving fluidic transfer or coaxial data transmission, opt for our Hybrid Connectors with integrated fluidic tubes or coaxial pins.
Plastic endoscope connector Assess Cable and Tube Size – Ensure your device accommodates the specified Max Cable Ø and fluidic tube dimensions.
Medical connectors plastic Match Application Needs – Choose push pull connectors for fast, secure mating and custom medical connectors for tailored diagnostic or surgical applications.
Consider Modular Expansion – Select high-pin-count (e.g., 19–32 pins) for advanced plastic medical round connector applications such as multi-channel diagnostic hubs or modular imaging systems.
Small size CAB 2B Reliable Medical Plastic push pull connector
| Mode | TGGPGAC2P.M02.UGL.A42J | TGGPGAC2P.M03.UGL.A42J | TGGPGAC2P.M04.UGL.A42J | TGGPGAC2P.M05.UGL.A52J | TGGPGAC2P.M06.UGL.A52J | TGGPGAC2P.M07.UGL.A62J | TGGPGAC2P.M08.UGL.A62J | TGGPGAC2P.M10.UGL.A72J | TGGPGAC2P.M12.UGL.A42J | TGGPGAC2P.M14.UGL.A42J | TGGPGAC2P.M16.UGL.A42J | TGGPGAC2P.M19.UGL.A52J | TGGPGAC2P.M26.UGL.A52J | TGGPGAC2P.M32.UGL.A52J |
| Insert |  |  |  |  |  |  |  |  |  |  |  |  |  |  |
| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | 26 | 32 |
| Max Cable Ø (mm) | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 6.5 | 6.5 | 6.5 | 7.5 | 7.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Description | 2-pin plastic medical connector with push pull locking for compact devices | 3-pin custom medical connector for multi-signal transmission | 4-pin round plastic push pull connector for medical diagnostics | 5-pin reliable medical connectors plastic for modular instruments | 6-pin custom medical connectors plastic for signal and power integration | 7-pin plastic medical connectors plastic for advanced diagnostics | 8-pin plastic endoscope connector for complex medical systems | 10-pin push pull medical connector for modular equipment | 12-pin custom plastic connector for multi-signal devices | 14-pin round plastic endoscope connector for surgical modules | 16-pin custom plastic push pull connector for high-density connections | 19-pin medical plastic endoscope connector for complex signal modules | 26-pin custom medical connector for large diagnostic devices | 32-pin high-density plastic endoscope connector for advanced medical systems |
| Application | Used in portable medical diagnostic devices and lab modules | For surgical equipment and compact patient monitors | Used in multi-signal medical lab devices | Applied in modular diagnostic instruments | For hospital-grade medical monitors | Used in advanced medical diagnostic systems | For imaging systems and medical instrumentation | Applied in modular monitoring hubs | For lab instruments and surgical systems | Used in surgical consoles and modular devices | For multi-channel medical diagnostic applications | Applied in multi-signal monitoring hubs | For large-scale diagnostic devices | Used in high-density modular medical equipment |
Small Size CAB 2B Hybrid Connectors: Fluidic + Low Voltage
| Mode | TGGPGAC2P.104.UGL.A42J | TGGPGAC2P.110.UGL.A42J |
| Insert |  |  |
| No. of Contacts | 4 +1 fluidic tube | 10 +1 fluidic tube |
| Max Cable Ø (mm) | 4.5 | 4.5 |
| Description | 4-pin hybrid plastic medical connector with fluidic flow channel | 10-pin hybrid medical push pull connector with fluidic integration |
| Application | For fluidic transfer and multi-signal diagnostic devices | Used in medical diagnostic systems combining signal and fluidic flow |
Small Size CAB 2B Hybrid Connectors: Coaxial + Low Voltage
| Mode | TGGPGAC2P.804.UGL.A42J | TGGPGAC2P.810.UGL.A42J |
| Insert |  |  |
| No. of Contacts | 4+1 coaxial | 10+1 coaxial |
| Max Cable Ø (mm) | 4.5 | 4.5 |
| Description | 4+1 coaxial plastic connector for medical imaging systems | 10+1 coaxial medical connector for high-resolution diagnostic devices |
| Application | Used in medical imaging modules and diagnostic hubs | For high-resolution diagnostic imaging and modular devices |
Technical Parameters
Why Choose Our CAB 2B Medical Device Connectors
Medical-Grade Reliability – Manufactured with biocompatible materials, ensuring safety for custom medical connector applications in diagnostic, surgical, and monitoring devices.
Quick and Secure Push-Pull Locking – Our plastic push pull connectors provide fast mating and demating, reducing downtime in clinical environments.
Hybrid Design Capability – Integrated fluidic and coaxial options enable combined signal, power, and fluid transfer, minimizing the number of connections needed in complex systems.
Customizable for Every Application – We provide custom medical connectors designed to meet the unique demands of your system, whether in modular surgical consoles, imaging equipment, or portable lab devices.
Global Quality Standards – Designed and tested according to international medical connector standards, ensuring superior performance and longevity.
1.C-TYPE cable clamp for 2P

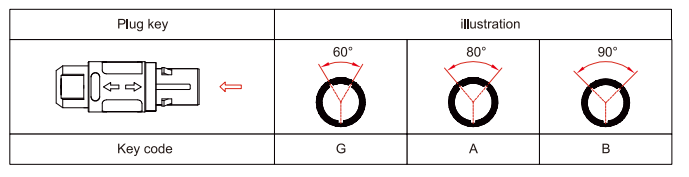

2.Alignment Key for 2P

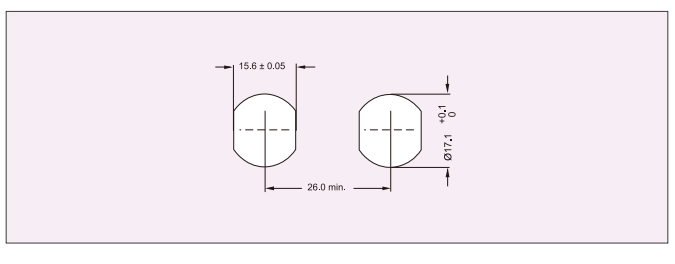

3.Panel Cut-out for 2P

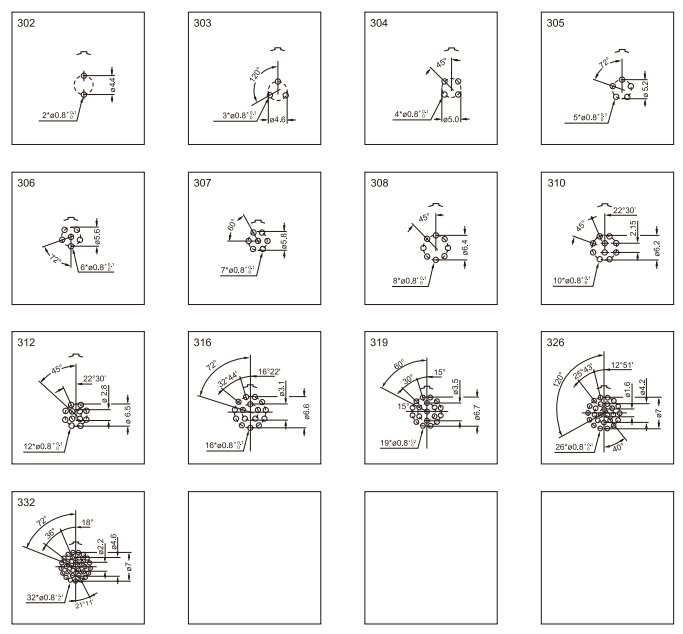

5.PCB Drilling Parameter
 |  |  |  |  |  | |
| Series | 2A | 0P | 1P | 2P | 3P | 4P |
| Size | small size | sub-minature | minature | small | medium | large |
| Environment | Indoor / Splash proof | Indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof |
| Ingress Protection | IP67 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 |
| Temperature Range | -50°C to +200°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C |
| Latching | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors |
| Insulator Type | Multipole | Fluidic | Multipole, Power, Fluidic | Multipole, Coaxial,Fluidic Hybrid | Multipole,Hybrid , Coaxial , Fluidic | Multipole,Hybrid , Coaxial, + Fluidic |
| Contact Type | Solder / Crimp | Solder / Crimp | Solder / Crimp | Solder / Crimp / PCB | Solder / Crimp | Solder / Crimp |
| Cable Diameter | 6.0mm-9.0mm | 1.5mm-4.2mm | 4.2 mm to 6.5mm | 5.2 mm to 9.2 mm | 8.5 mm to 11.2 mm | 9.5 mm to 13mm |
| Collet Sizes | 42/52/62/72mm | 42/52/62/72 | 42/52/62/72 | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) 125=(cable ⌀ 11.6 mm –12.5 mm) | |
| Keying Options | halfshell | G | 4 keyways | Cust | H |
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.

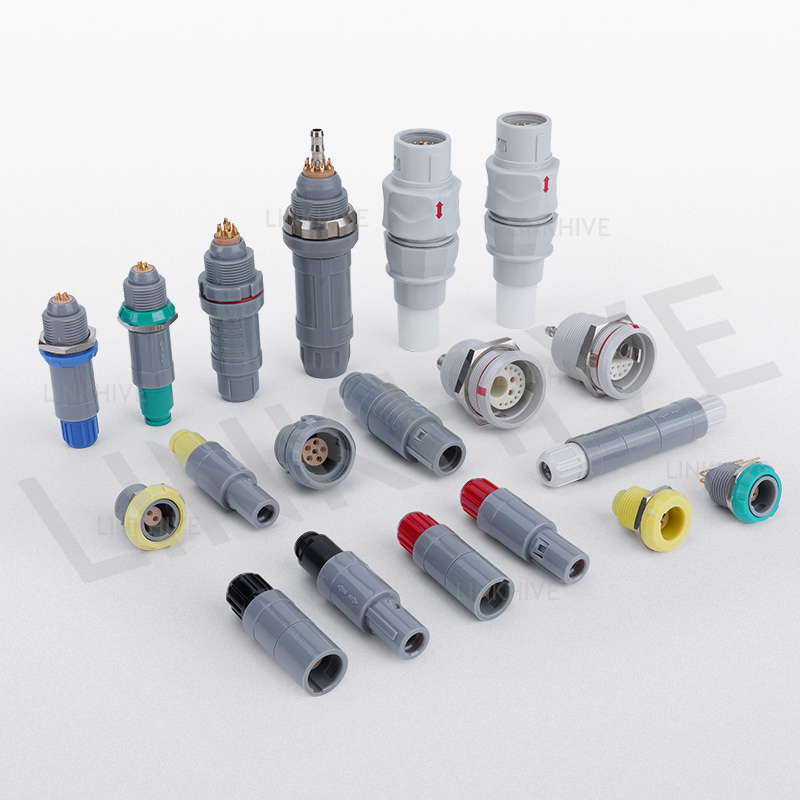

LINKHIVE's circular plastic push pull connectors offer a reliable and lightweight solution for demanding applications in medical, diagnostic, and industrial equipment. Designed with a robust self-latching mechanism, these plastic connectors ensure safe and secure connections while allowing quick and effortless disconnection. The housings are made from high-performance thermoplastic materials, providing excellent resistance to sterilization, chemicals, and mechanical stress. Available in multiple sizes, color codes, and contact layouts, our plastic push pull connectors are ideal for applications requiring frequent mating cycles and uncompromised electrical or fluidic performance. A trusted choice for modern circular plastic connectors and laboratory systems.
