This rugged miniature circular connector is engineered for extreme environments, offering a robust break away mechanism for quick disconnect. Waterproof when mated and unmated, it ensures reliable signal integrity and EMI shielding. Fully compatible with AMC Easy Clean systems.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.

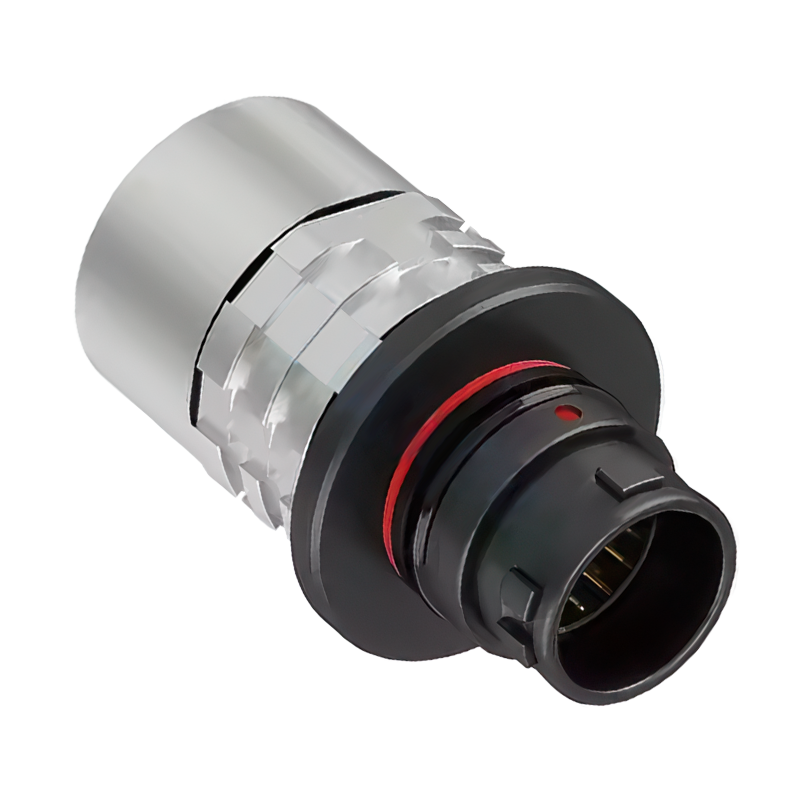

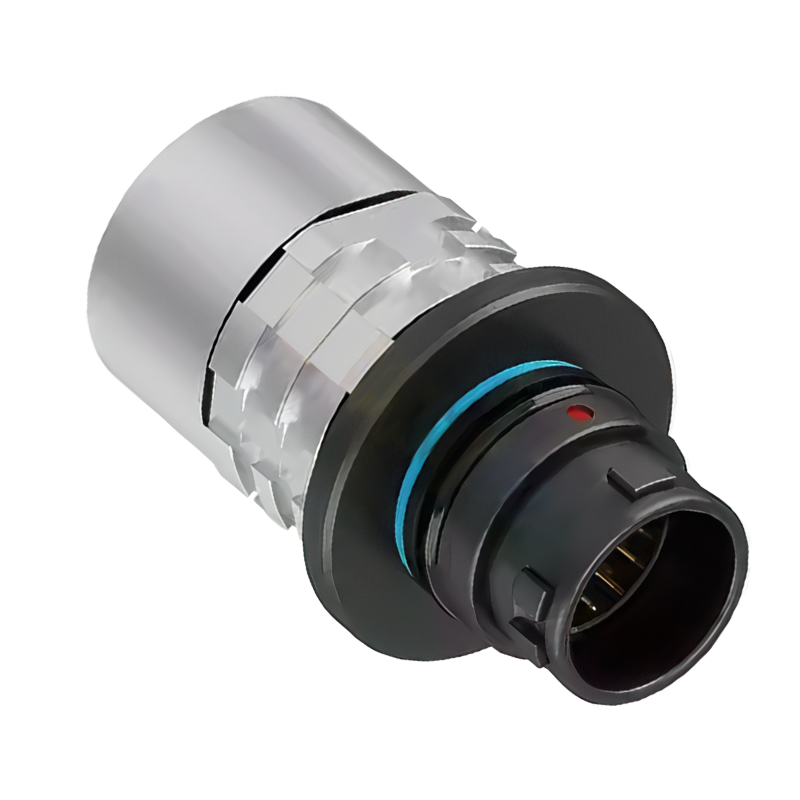

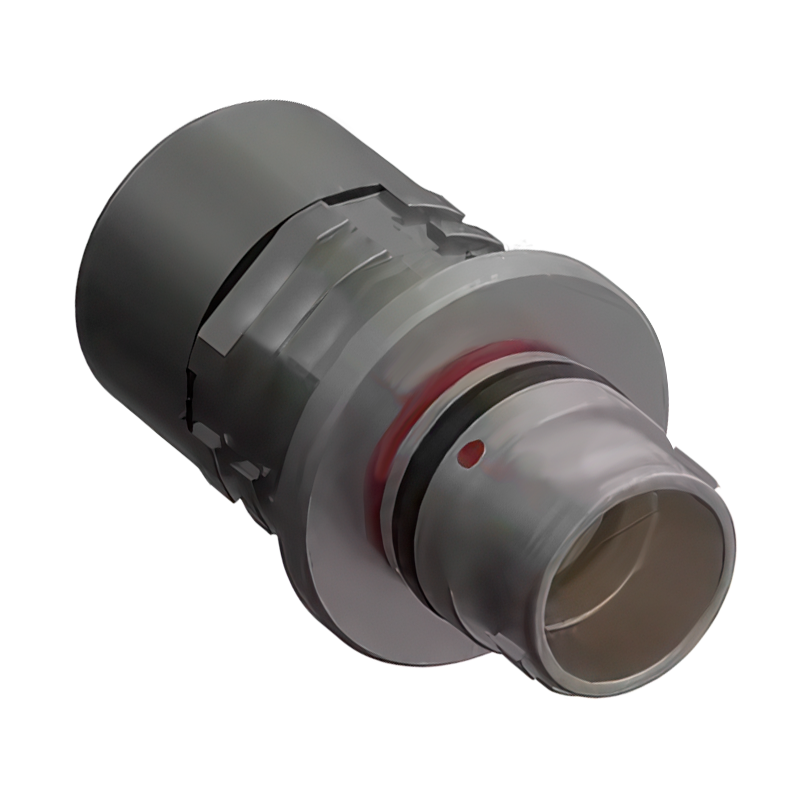

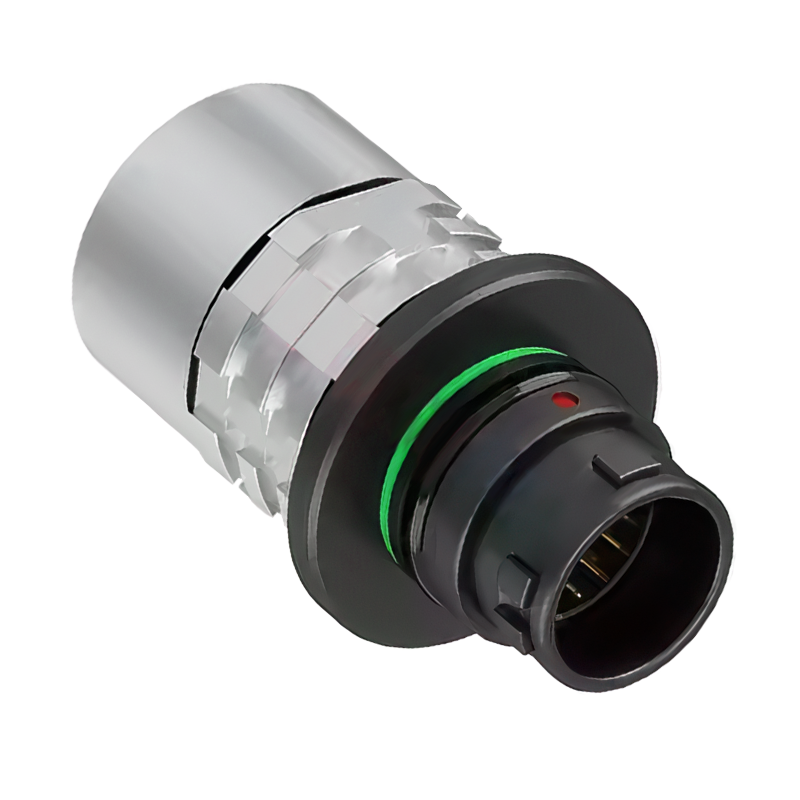

The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.
In modern applications—from defense and security to medical and industrial fields—Miniature connector is a growing demand. The AMC High-Density A1 connector series meets this challenge by delivering the highest contact density in the smallest possible form factor. With diameters ranging from 10 mm to 18.5 mm, and contact configurations supporting power, signal, and high-speed data, the connector fits perfectly into handheld or body-worn devices.
Supports up to 40 contacts (in Size 1.5 shell)
Offers configurations for USB 2.0, USB 3.0, and Power + Signal Combo
Sizes available: 00, 0, 1, 1.5, all compatible with the same PCB height
Shell diameter as small as 10 mm, saving up to 35% space compared to traditional connectors
| Size | L1 (mm) | L2 (mm) | L3 (mm) | D1 (mm) | SW A (mm) | Max Ø Cable (mm) |
| 00 | 20.5 | 1.2 | 12.8 | 9.8 | 8 | 5 |
| 0 | 21.5 | 1.2 | 14.2 | 12.8 | 10 | 7 |
| 1 | 25.5 | 1.2 | 18 | 14.8 | 12 | 8.5 |
| 1.5 | 29.5 | 1.2 | 22 | 16.8 | 14 | 10.5 |
AMC High density connector Series Overview

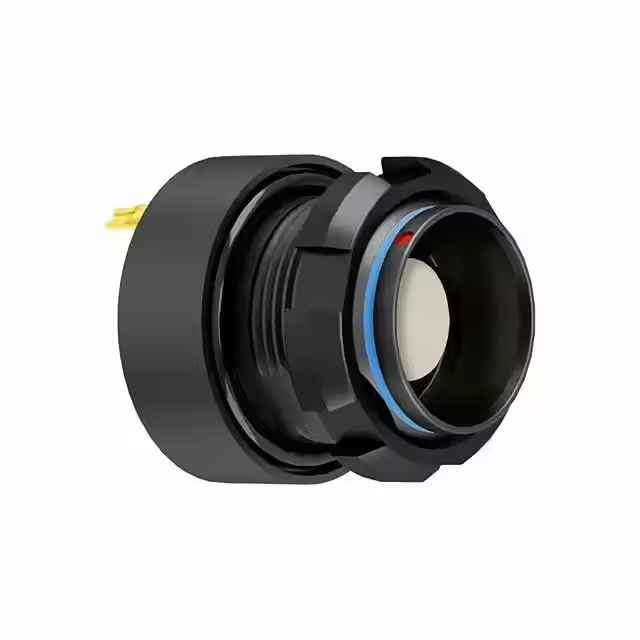

AMC High density connector Miniature Connector | AMC High density receptacle Miniature Connector | AMC High density IN-LINE receptacle Miniature Connector |

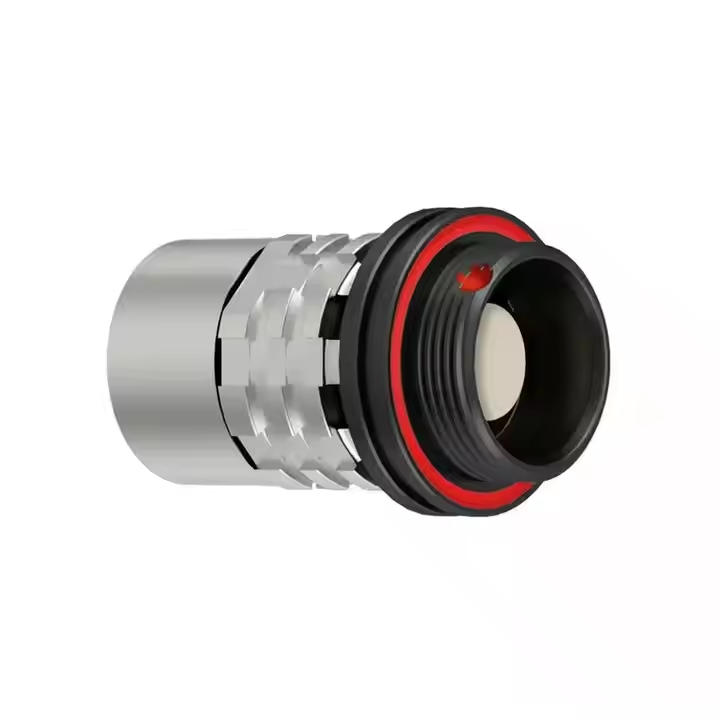

AMC High density A1 Break Away Connector | AMC High density GK | AMC High density K1 |
|
|
|
Specifications
| Parameter | Values |
Maximum Humidity: | up to 95% at 60°/140°F |
| Series | AMC high density A1 |
Locking type: | break away |
Endurance: | 5000 cycles |
Shock resistance: | 100g,6ms |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -55°~+200° |
Gender: | Break Away Connector |
| Series | AMC High Density |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Chrome-plated brass |
Test Voltage (contact-contact): | 1450 |
Test Voltage (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP68 watertight circular connector |
Key Advantages
Break-Away function enables fast disconnection during emergencies
IP68-rated watertight sealing (mated or unmated)
>5,000 mating cycles tested for long life in rugged use
Withstands salt spray, dust, temperature extremes, and mechanical shock
Fully tested to MIL-STD specifications
Optimized for data, power, and hybrid transmission
Ensures excellent EMI/RFI shielding
Low contact resistance and high signal stability
Suitable for high-speed data transfer (USB, Ethernet)
Mechanical and color coding for safe and intuitive blind mating
Compatible with cable assemblies, custom overmolded solutions, and PCB-mounted systems
Integrated strain reliefs and ruggedized shells prevent damage in the field
AMC High-Density A1 plugs are not just standalone products—they’re part of a full interconnect ecosystem. One PCB height supports all sizes, simplifying system design and improving assembly efficiency. Whether for a soldier’s communication unit, a medical imaging device, or a field monitoring controller, these connectors support high performance in compact spaces.
Military communication systems (wearables, radios, sensors)
Aerospace and UAVs
Medical devices and diagnostics equipment
Portable industrial testing instruments
Surveillance and control systems
Robotics and automation in harsh environments
AMC High Density A1 Solid Miniature Watertight Break Away military Connector Selection
| Coding | Mode | Plug Ø (mm) | Max Cable Ø (mm) | No. of Contacts | Application | |
 | A | TTA100WAM-P02XBC0-52 | 9.8 | 5 | 2 | Miniature military connector for portable radios |
| A | TTA100WAM-P04XBC0-52 | 9.8 | 5 | 4 | rugged miniature connector for rugged sensors | |
| A | TTA100WAM-PU4XBM0-52 | 9.8 | 5+2 | 2+2 | Break Away Connector for field instruments | |
| A | TTA100WAM-P07XBC0-52 | 9.8 | 5 | 7 | High-density military connector for avionics | |
| A | TTA10WAM-P09XBC0-52 | 10 | 7 | 9 | watertight circular connector for communication devices | |
| A | TTA10WAM-P12XBC0-52 | 10 | 7 | 12 | rugged miniature connector for industrial equipment | |
| A | TTA10WAM-P16XBC0-52 | 10 | 7 | 16 | Compact military connector for control systems | |
| A | TTA11WAM-P27XBC0-52 | 12 | 8.5 | 27 | High-contact connector for multi-signal devices | |
| A | TTA1AWAM-P40XBC0-52 | 14 | 10.5 | 40 | Miniature circular connector for high-speed data | |
 | B | TTA100WBM-P02XBC0-52 | 9.8 | 5 | 2 | Miniature military connector for portable radios |
| B | TTA100WBM-P04XBC0-52 | 9.8 | 5 | 4 | rugged miniature connector for rugged sensors | |
| B | TTA100WBM-PU4XBM0-52 | 9.8 | 5+2 | 2+2 | Break Away Connector for field instruments | |
| B | TTA100WBM-P07XBC0-52 | 9.8 | 5 | 7 | High-density connector for avionics | |
| B | TTA10WBM-P09XBC0-52 | 10 | 7 | 9 | Military watertight circular connectorr for communication devices | |
| B | TTA10WBM-P12XBC0-52 | 10 | 7 | 12 | rugged miniature military connector for industrial equipment | |
| B | TTA10WBM-P16XBC0-52 | 10 | 7 | 16 | Compact connector for control systems | |
| B | TTA11WBM-P27XBC0-52 | 12 | 8.5 | 27 | High-contact connector for multi-signal devices | |
| B | TTA1AWBM-P40XBC0-52 | 14 | 10.5 | 40 | Miniature circular connector for high-speed data | |
 | C | TTA100WCM-P02XBC0-52 | 9.8 | 5 | 2 | Miniature military connector for portable radios |
| C | TTA100WCM-P04XBC0-52 | 9.8 | 5 | 4 | Miniature connector for rugged sensors | |
| C | TTA100WCM-PU4XBM0-52 | 9.8 | 5+2 | 2+2 | Break Away Connector for field instruments | |
| C | TTA100WCM-P07XBC0-52 | 9.8 | 5 | 7 | High-density connector for avionics | |
| C | TTA10WCM-P09XBC0-52 | 10 | 7 | 9 | Military watertight circular connectorr for communication devices | |
| C | TTA10WCM-P12XBC0-52 | 10 | 7 | 12 | Rugged military connectorr for industrial equipment | |
| C | TTA10WCM-P16XBC0-52 | 10 | 7 | 16 | Compact connector for control systems | |
| C | TTA11WCM-P27XBC0-52 | 12 | 8.5 | 27 | High-contact military connector for multi-signal devices | |
| C | TTA1AWCM-P40XBC0-52 | 14 | 10.5 | 40 | Miniature circular connector for high-speed data | |
 | D | TTA100WDM-P02XBC0-52 | 9.8 | 5 | 2 | Miniature military connector for portable radios |
| D | TTA100WDM-P04XBC0-52 | 9.8 | 5 | 4 | Miniature connector for rugged sensors | |
| D | TTA100WDM-PU4XBM0-52 | 9.8 | 5+2 | 2+2 | Break Away Connector for field instruments | |
| D | TTA100WDM-P07XBC0-52 | 9.8 | 5 | 7 | High-density connector for avionics | |
| D | TTA10WDM-P09XBC0-52 | 10 | 7 | 9 | Military watertight circular connector for communication devices | |
| D | TTA10WDM-P12XBC0-52 | 10 | 7 | 12 | Rugged watertight circular connector for industrial equipment | |
| D | TTA10WDM-P16XBC0-52 | 10 | 7 | 16 | Compact connector for control systems | |
| D | TTA11WDM-P27XBC0-52 | 12 | 8.5 | 27 | High-contact watertight circular connector for multi-signal devices | |
| D | TTA1AWDM-P40XBC0-52 | 14 | 10.5 | 40 | Miniature circular connector for high-speed data |
Linkhive AMC Series Circular Miniature Connector Connector Selection
AMC (Y) |
AMC High Density(W) |
AMC EASY CLEAN(Y) |
MINI SNAP (F) |
- Pin-and-groove mechanical coding - Breakway / push pull - high-speed data transmission -IP68 rated for harsh environment protection -rugged circular miniature connector | - Extremly Minature connector and Compact - high-contact density design. - Supports high-speed data - Break-Away - optional dual-locking. - IP6K8 rated. | - Spring-loaded contacts for easy cleaning and dirt resistance. - Break-Away function. - Rated IP6K8 / IP6K9K for harsh environments. -rugged and solid miniature connector | - Push-pull self-latching connector with durable metal housing - Multiple contact configurations and custom combinations available - IP50/IP68 protection for harsh enviroment. - rugged circular miniature connector |
