This rugged miniature circular connector is engineered for extreme environments, offering a robust break away mechanism for quick disconnect. Waterproof when mated and unmated, it ensures reliable signal integrity and EMI shielding. Fully compatible with AMC Easy Clean systems.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.

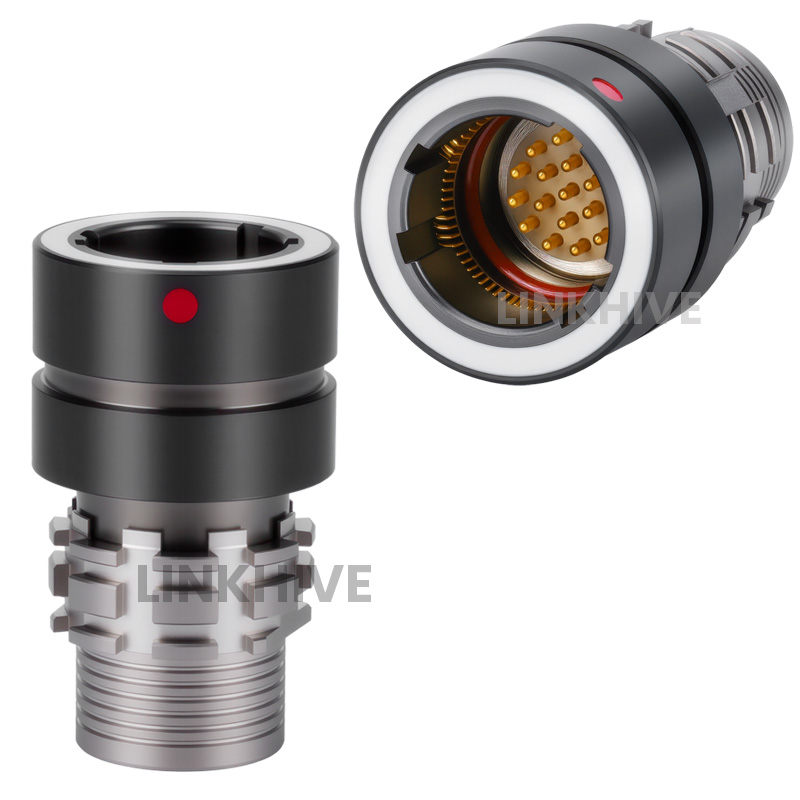

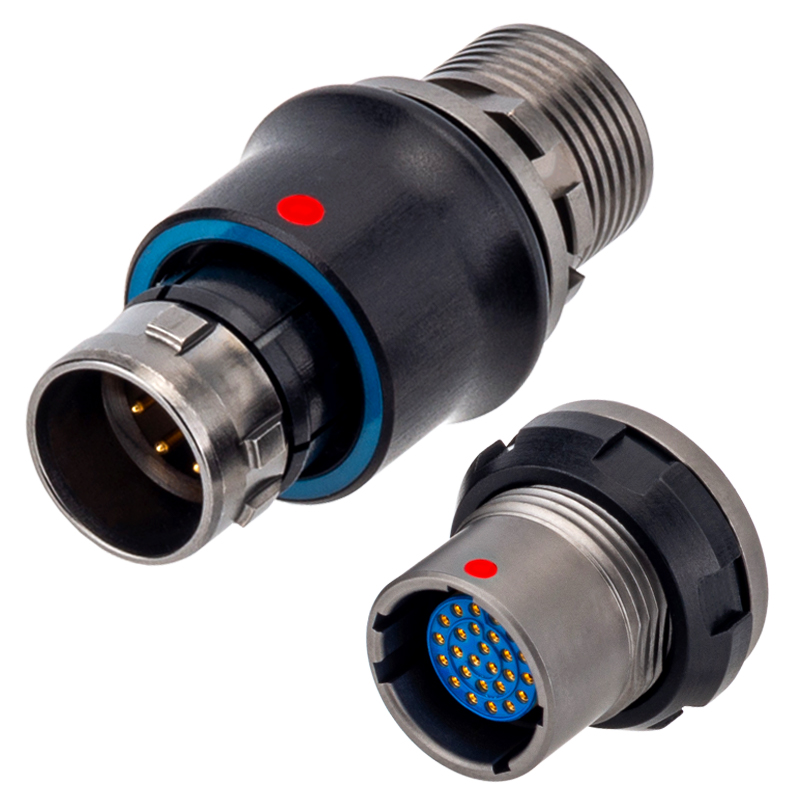

The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.

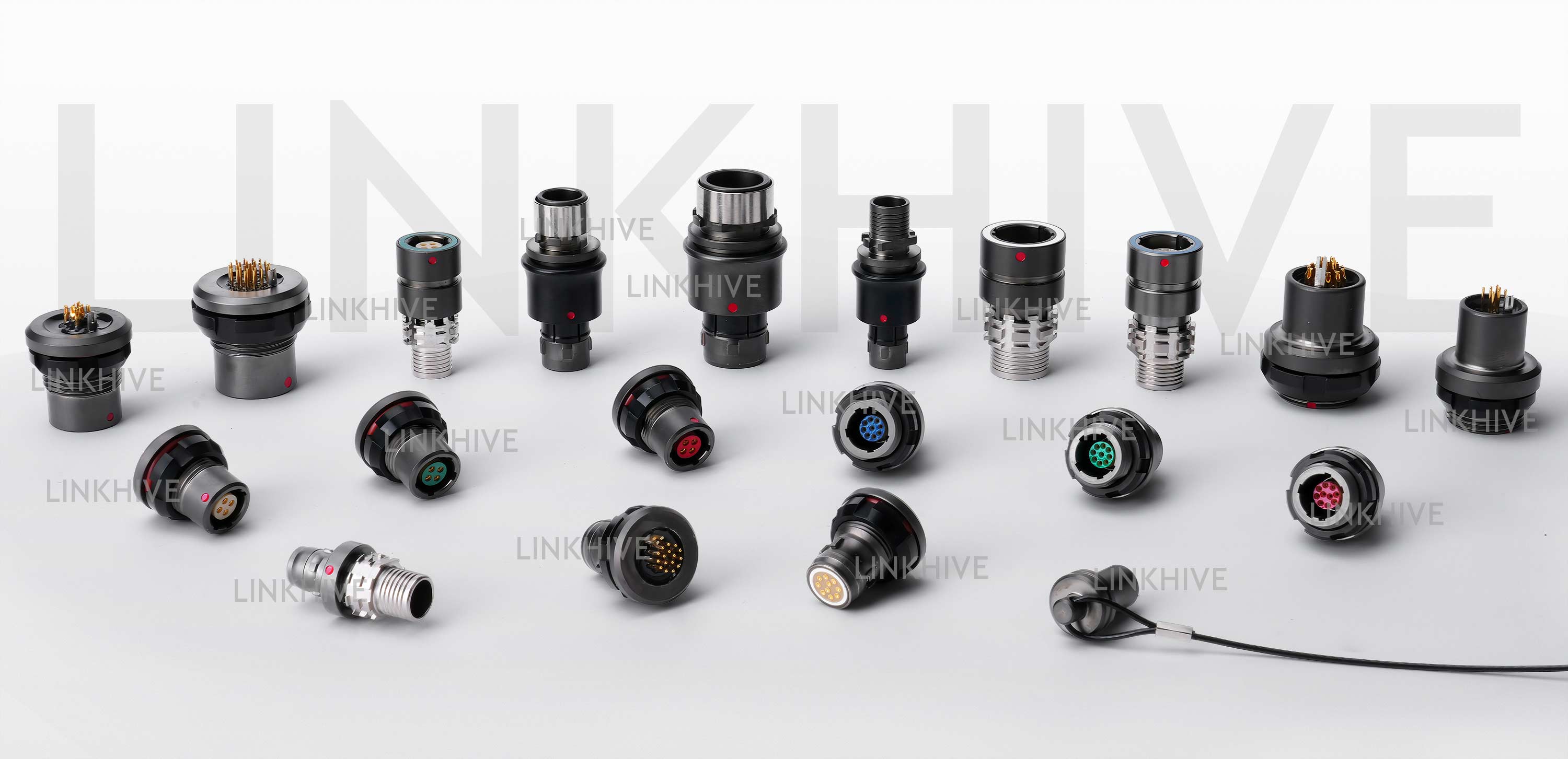

The AMC Easy clean A1 Series represents a new generation of ruggedized miniature circular connectors, designed for applications requiring quick disconnect, high reLAbility, and enhanced waterproof performance. These connectors are ideal for harsh outdoor environments, offering IP68-rated protection when mated, ensuring full dustproofing and long-term submersion resistance.
With a streamlined break-away mechanism, the A1 Series provides secure yet easy disconnection under emergency or maintenance conditions. The Easy clean interface ensures simplified cleaning and minimal downtime in field operations, making them a preferred choice for portable medical systems, industrial controls, and advanced communication devices.

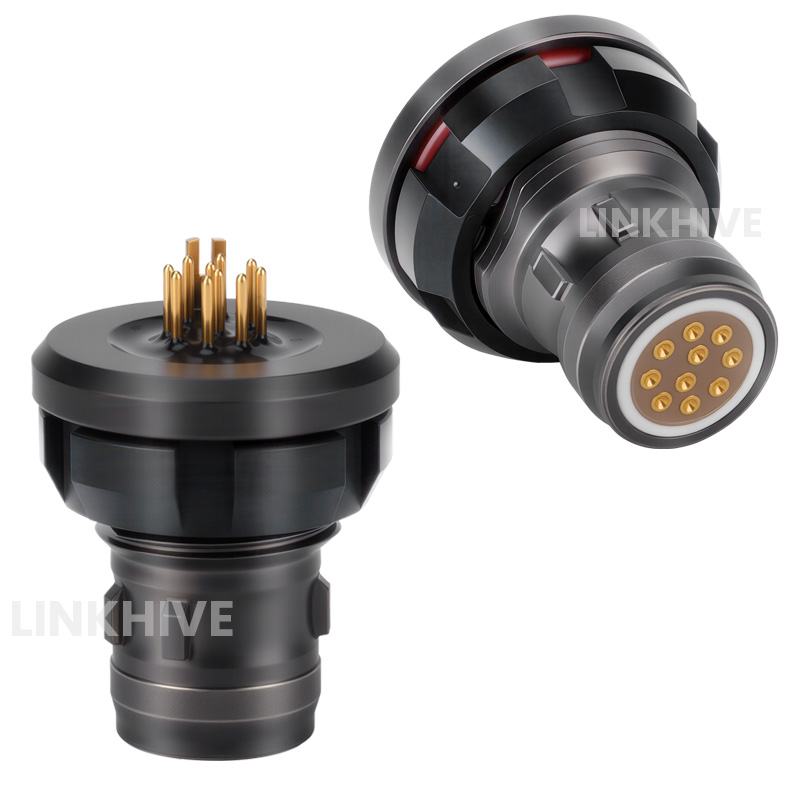

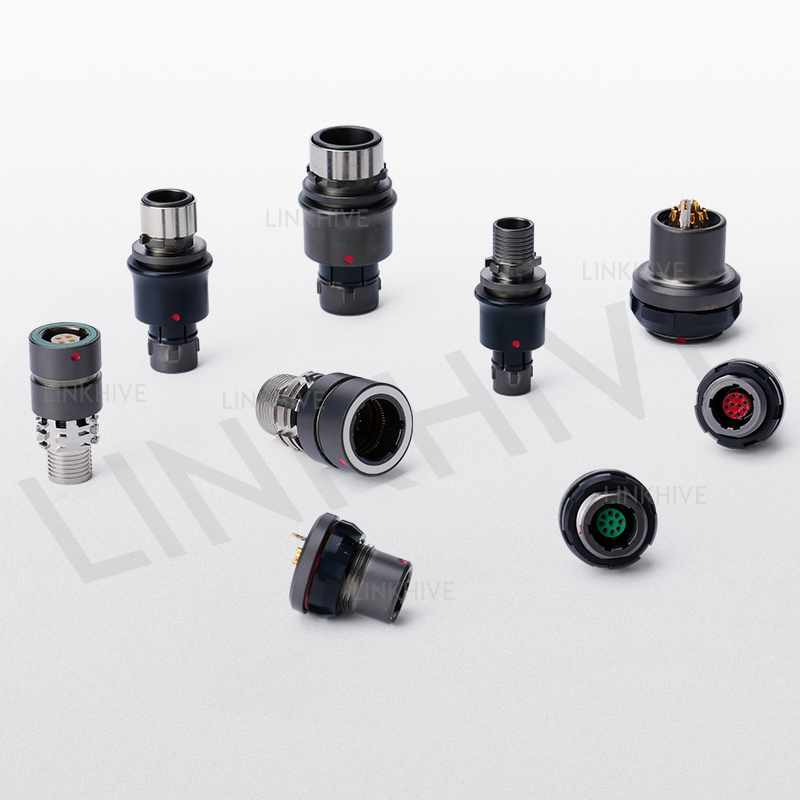

Easy Clean connector compatible with AMC easy Clean | Easy Clean receptacle compatible with AMC easy Clean | Easy Clean IN-LINE receptacle compatible with AMC easy Clean |

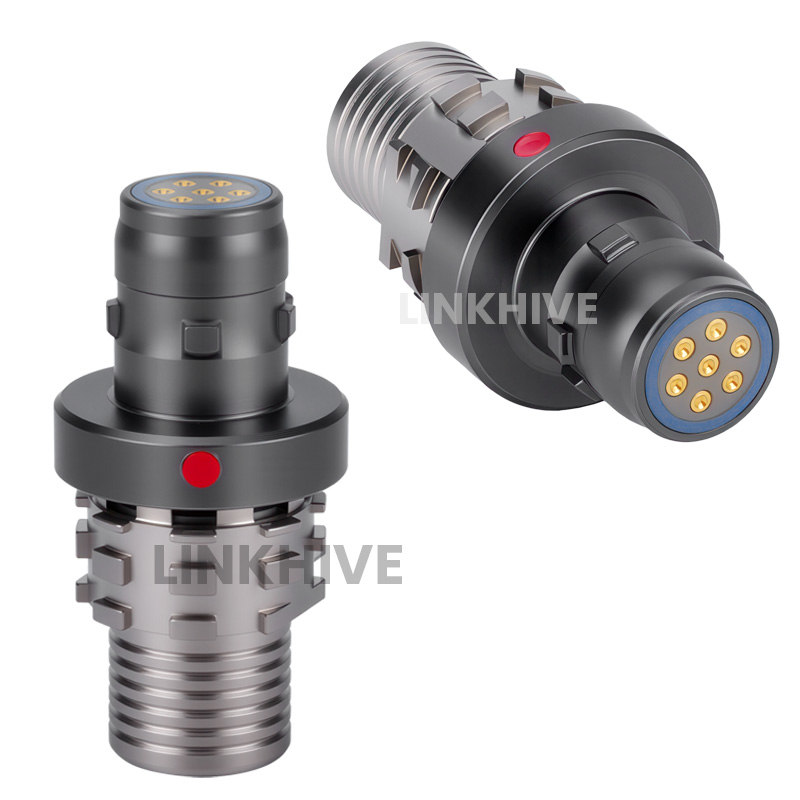

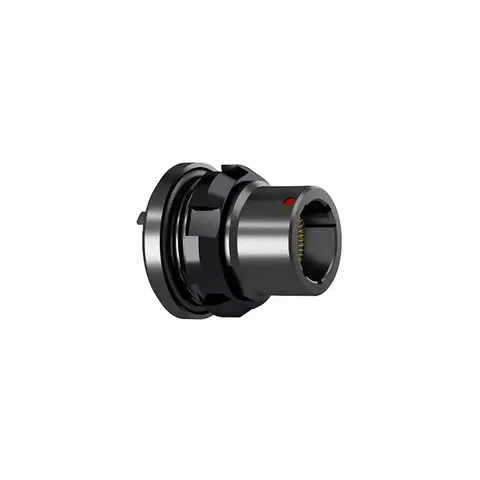

break away connector A1 | Easy Clean GK | Easy Clean K1 |
|
|
|

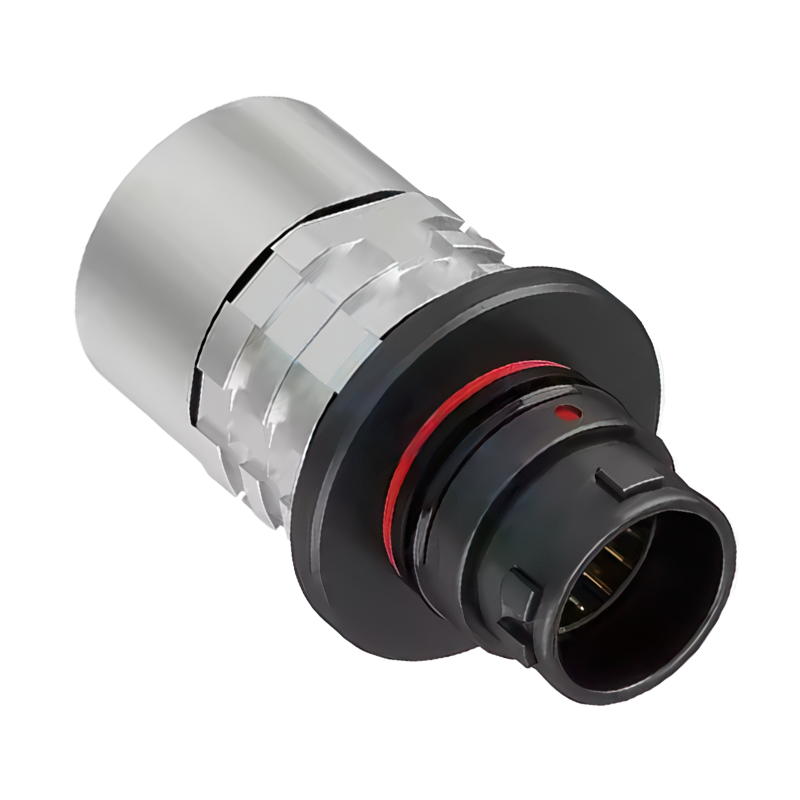

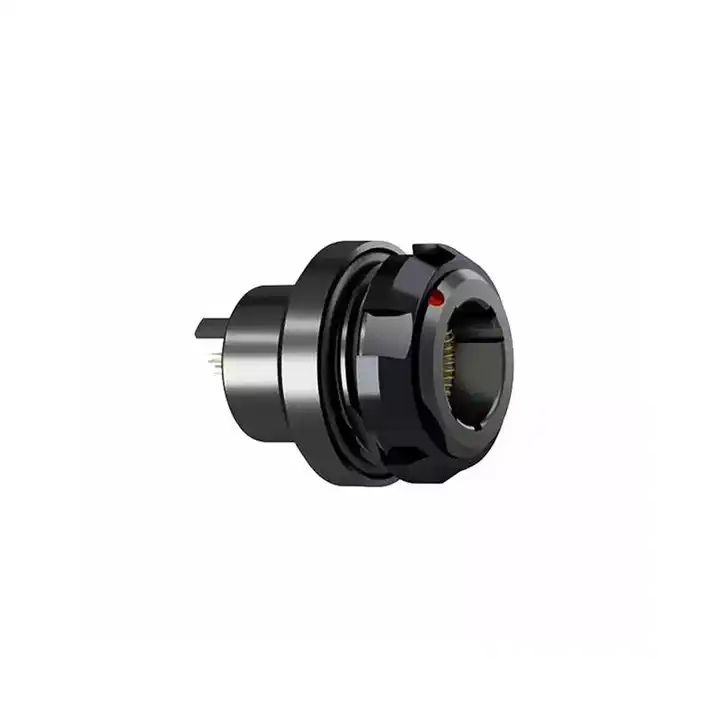

Panel plug rear mount GW | Easy Clean G8 | |
|
|
Key Features & Benefits
Comprehensive Size Options:
Available in multiple shell sizes with plug diameters from 11.9 mm to 15.9 mm and contact configurations up to 27 pins, supporting both low-voLAge signals and high-speed data transmission.
Superior Rugged Design:
Constructed from chrome-plated brass with PPS/PEEK insulation, providing high mechanical strength, impact resistance, and temperature stability across –40 °C to +200 °C.
Enhanced Waterproofing:
IP68 sealing prevents water ingress during full submersion, while corrosion resistance is validated by 96-hour salt spray testing, making them suitable for marine and outdoor industrial use.
Optimized Electrical Performance:
Supports high-speed Ethernet (CAT 6, 10 Gbit), USB 2.0, and HDMI transmission, ensuring low contact resistance (≤ 6.5 mΩ) and high signal integrity.
Fast Disconnect & Maintenance-Friendly:
The break-away function ensures reLAble engagement with quick-reLAse under pull force, while the easy-clean design allows simplified field servicing.
Quality & Testing
To ensure long-term performance, each connector undergoes rigorous testing:
Ingress Protection: IP68, fully waterproof and dustproof.
Mechanical Durability: Withstands 5,000+ mating cycles without performance loss.
Shock & Vibration: Tested for 100 g shock and 15 g vibration (10 Hz–2000 Hz).
EMI Shielding: 75 dB (10 MHz) to 40 dB (1 GHz).
Salt Spray: 96 hours for corrosion resistance.
VoLAge & Insulation:
Test VoLAge: 1450 V (contact-to-contact), 1000 V (contact-to-shell)
Insulation Resistance: ≥ 5000 MΩ at 600 V DC

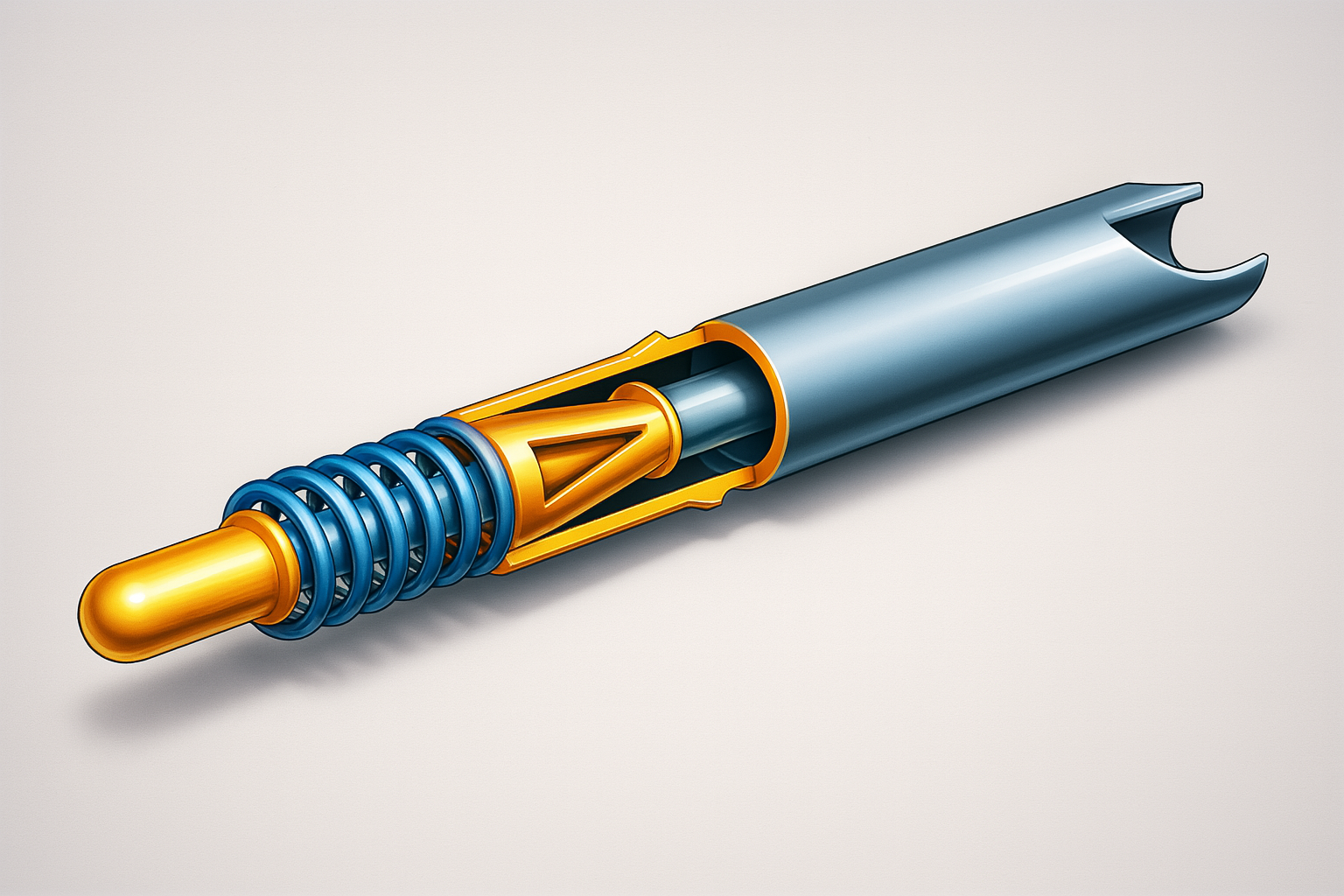

The spring-LAded / POGO PINS contacts used in LINKHIVE’s miniature connector series are precision-engineered components， Designed for harsh environments, these contacts ensure reLAble signal transmission and enhanced durability in mission-criticaLApplications.
| Mating Cycles | > 5,000 |
|---|---|
| Material |
|
| Piston | |
| Barrel | |
| Spring | |
| Clip |
How to Select the Right Pins
Define Requirements: Choose pin counts based on signal + power needs (e.g., 2–27 contacts).
Match Pin Diameter: Ensure proper current capacity and data rate (Ethernet, USB, HDMI).
Confirm Cable Compatibility: Select connectors that accommodate your cable’s outer diameter (up to 5.5 mm).
Consider Application Environment: Opt for break-away and easy-clean versions for rugged field use.
Verify CompLAnce: Ensure alignment with IEC, RoHS, and MIL-spec standards.
use the model selection tables below to quickly find the right connector. Each model includes insert layout, contact count, and recommended application, making it easy to match your requirements
Miniature AMC Easy clean 0Y A1 Waterproof Rugged Break Away Connector
| Mode | TTA1.0Y.P2.CLA.52 | TTB.0Y.P3.CGA.52 | TTC.0Y.P4.CLA.52 | TTD.0Y.P5.CLA.52 | TTA.0Y.P7.CLA.52 | TTA.0Y.P9.CLA.52 | TTA.0Y.P10.CLA.52 |
| Code | A | B | C | D | A | A | A |
| Contacts | 2 | 3 | 4 | 5 | 7 | 9 | 10 |
| Insert |
|
|
|
|
|
|
|
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Description | Break away connector with secure push pull locking | Miniature circular connector for compact systems | Rugged miniature connector for durable applications | Compact break away connector for portable devices | AMC easy clean compatible miniature connector | Miniature rugged connector for multi-signal use | Rugged waterproof circular connector with enhanced durability |
| Application | Suitable for instrumentation devices | Designed for handheld cameras | Ideal for field communication systems | Best for mobile communication units | Used in military-grade electronics | Suitable for medical diagnostic devices | Ideal for ruggedized industrial controls |
Small Size AMC Easy clean 01Y A1 Waterproof Rugged Break Away Connector
| Mode | TTA.1Y.P5.CLA.52 | TTB.1Y.P8.CLA.52 | TTC.1Y.P14.CLA.52 | TTD.1Y.P6.CLA.52 | TTA.1Y.P4.CLA.52 | TTA.1Y.PD8.CLA.52 |
| Code | A | B | C | D | A | A |
| Contacts | 5 | 8 | 14 | 16 | 4 | 8 |
| Insert |
|
|
|
|
|
|
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Description | Rugged miniature connector for handheld radios | Miniature circular connector for sensors | Waterproof connector with high pin density | Rugged connector for military electronics | High-speed 4 POS connector, CAT 5 up to 100 Mbit | High-speed 8 POS connector, CAT 5 up to 1 Gbit |
| Application | Used in tactical radios | Ideal for sensor networks | Suitable for avionics systems | Designed for rugged military gear | Suitable for Ethernet-enabled portable devices | Ideal for high-speed robotic interfaces |
Medium Size AMC Easy clean 0Y A1 Waterproof Rugged Break Away Connector
| Mode | TTA.AY.P10.CLA.50 | TTB.AY.P19.CLA.50 | TTC.1Y.PD8.CLA.52 |
| Code | A | B | C |
| Contacts | 10 | 19 | 8 |
| Insert |
|
|
|
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 |
| Description | Break away connector with high pin count | Waterproof circular connector for complex systems | High-speed 8 POS connector, Ethernet Class EA up to 80 m, 10 Gbit |
| Application | Used in control panels | Suitable for advanced communication hubs | Designed for industrial-grade high-speed applications |
Large Size AMC Easy clean 2Y A1 Waterproof Rugged Break Away Connector
| Mode | TTA.2Y.P6.CLA.52 | TTB.2Y.P19.CLA.52 | TTC.2Y.P26.CLA.52 | TTD.2Y.P4.CLA.52 | TTC.2Y.PD8.CLA.52 | TTA.2Y.PD1.CLA.52 | TTA.2Y.PD16.CLA.52 |
| Code | A | B | C | D | C | A | A |
| Contacts | 6 | 19 | 26 | 7 | 8 | 12 | 16 |
| Insert |
|
|
|
|
|
|
|
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Description | Miniature rugged connector for field use | High-density break away connector | Ruggedized push pull connector for multi-signal systems | High-speed 4 POS connector, CAT 6 up to 100 Mbit | High-speed 8 POS connector, Ethernet Class EA up to 80m, 10 Gbit | High-speed 12 POS connector, CAT 5 1 Gbit USB 2.0 | High-speed 16 POS connector, HDMI interface support |
| Application | Used in outdoor communication devices | Suitable for multi-line communication equipment | Ideal for ruggedized control stations | Used in Ethernet-enabled systems | Best for data-intensive robotics | Suitable for secure communication servers | Designed for HDMI-enabled field devices |
Specification
Maximum Humidity: | up to 95% at 60°/140°F |
Locking type: | break away |
Endurance: | 5000 cycles |
Shock resistance: | 100g,6ms |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -55°~+200° |
Gender: | circulr metal plug |
| Series | AMC EASY clean |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Chrome-plated brass |
Test VoLAge (contact-contact): | 1450 |
Test VoLAge (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP68 |
Linkhive AMC Series Circular Miniature Connector Connector Selection
