This rugged miniature circular connector is engineered for extreme environments, offering a robust break away mechanism for quick disconnect. Waterproof when mated and unmated, it ensures reliable signal integrity and EMI shielding. Fully compatible with AMC Easy Clean systems.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.
The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.

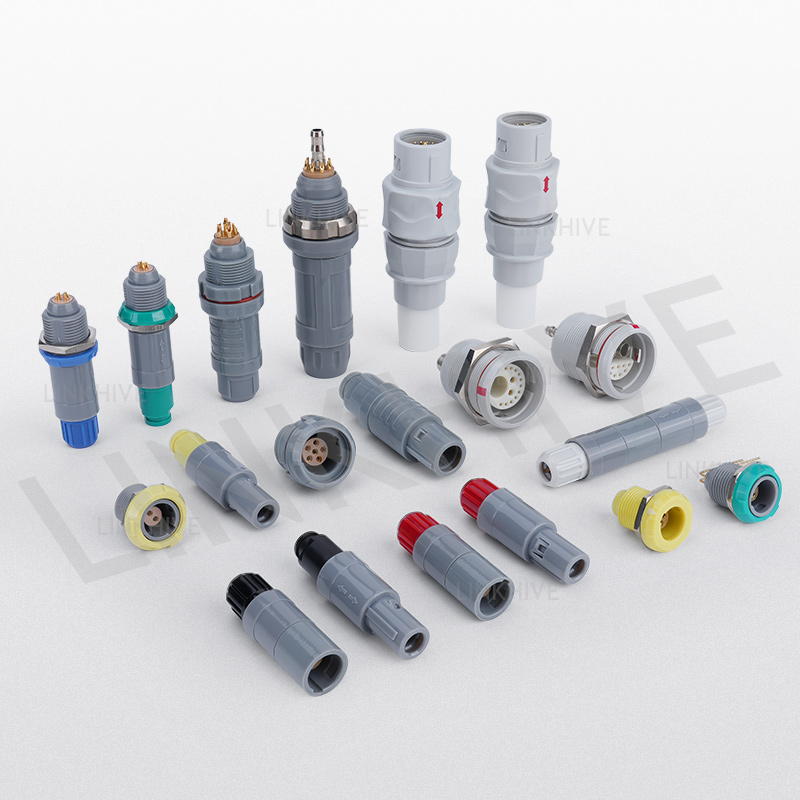

The LINKHIVE circular plastic push pull connectors are designed for high-reliability applications requiring lightweight construction and frequent mating cycles, especially in medical devices, testing instruments, and laboratory systems. Constructed from high-performance PSU or PEI material, these plastic sealed wire connectors offer excellent electrical insulation, high-temperature resistance, and chemical durability.
Featuring a robust push-pull self-latching system, the connectors ensure quick, secure mating in limited spaces and prevent accidental disconnection under vibration or stress. LINKHIVE’s plastic push pull range is available in various shell colors, insert configurations (signal, power, fluidic, high voltage), and shell sizes to accommodate complex multi-interface systems.
Fully compliant with CE and RoHS directives, the series supports steam sterilization and is available in single-use versions for medical applications. Also suitable for industrial electronics and automotive systems.
| push-pull self-latching system | |
 |
plastic Push Pull connectors |

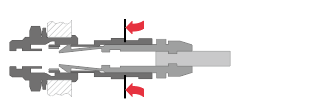

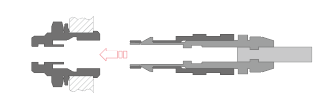

 | Easy-to-operate self-locking system, just push the plug axially into the socket to lock |

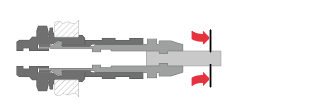

 | Once firmly locked, pulling the cable or any other part will not disconnect unless the outer release sleeve is pulled. |

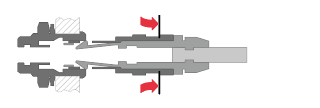

 | When necessary, the connector is disengaged by a single axial pull on the release sleeve, which first releases the locking latches and then whithdraws the plug from the socket. |

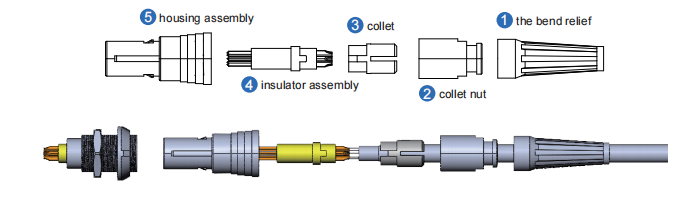

Exploded view of plastic sealed wire connectors
Features & Benefits
✔️ Lightweight plastic housing (PSU or PEI)
✔️ Sterilization-resistant (over 100 autoclave cycles)
✔️ Wide range of color-coded shells for easy identification
✔️ Excellent contact reliability and touch-proof safety
✔️ Secure push-pull latching, ideal for blind-mating
✔️ Multiple contact terminations: solder, crimp, PCB pins
✔️ Disposable models for medical use available
✔️ Aesthetically compact and modular design
✔️ Selected models compliant with IEC 60601-1 (3rd Ed.)
🏥 Medical electronics
🧪 Test and measurement systems
🔬 Laboratory instruments
⚙️ Industrial control equipment
🚗 Automotive electronics
 |  |  |  |  |  | |

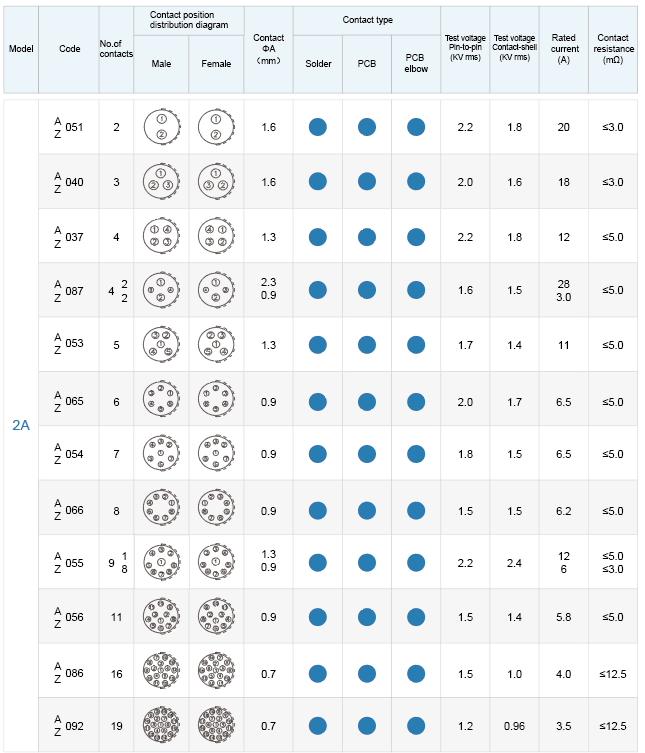

| Series | 2A | 0P | 1P | 2P | 3P | 4P |
| Size | small | sub-minature | minature | small | medium | large |
| Environment | Indoor / Splash proof | Indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof |
| Ingress Protection | IP67 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 |
| Temperature Range | -50°C to +200°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C |
| Latching | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors |

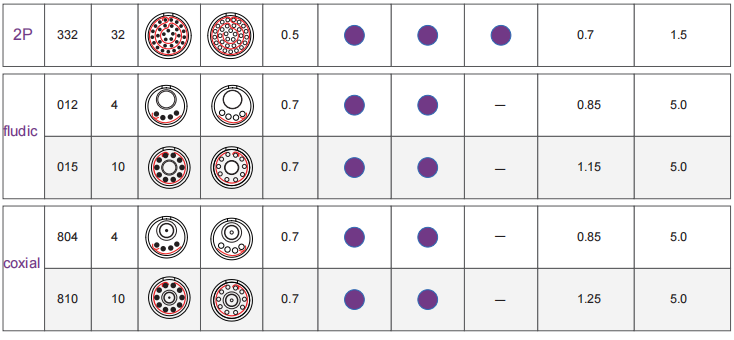

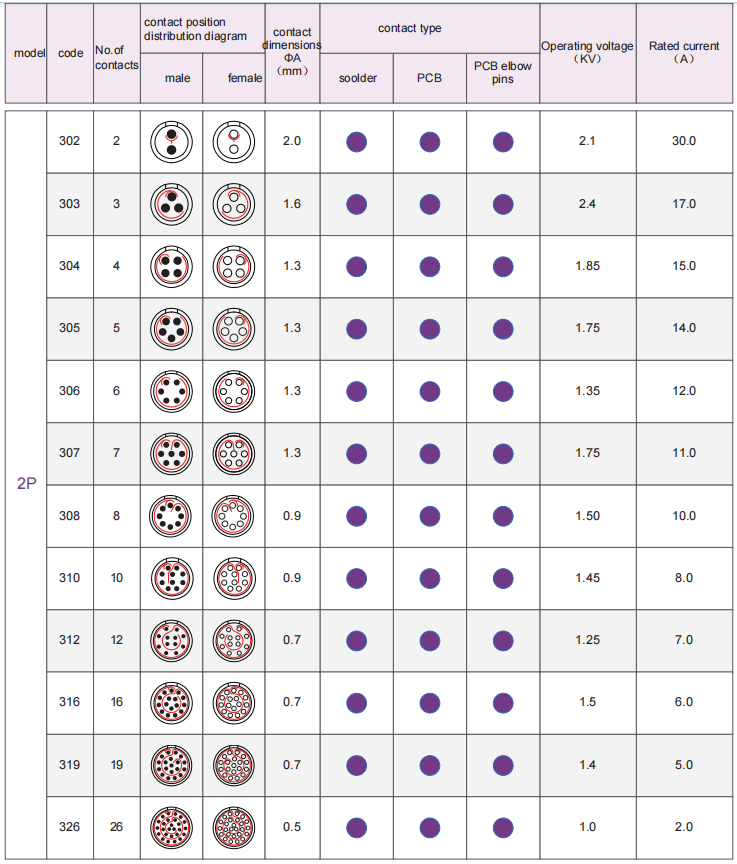

| Insulator Type | Multipole | Fluidic | Multipole, Power, Fluidic | Multipole, Coaxial,Fluidic Hybrid | Multipole,Hybrid , Coaxial , Fluidic | Multipole,Hybrid , Coaxial, + Fluidic |
| Contact Type | Solder / Crimp | Solder / Crimp | Solder / Crimp | Solder / Crimp / PCB | Solder / Crimp | Solder / Crimp |
| Cable Diameter | 6.0mm-9.0mm | 1.5mm-4.2mm | 4.2 mm to 6.5mm | 5.2 mm to 9.2 mm | 8.5 mm to 11.2 mm | 9.5 mm to 13mm |

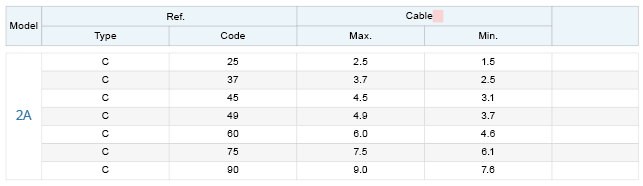

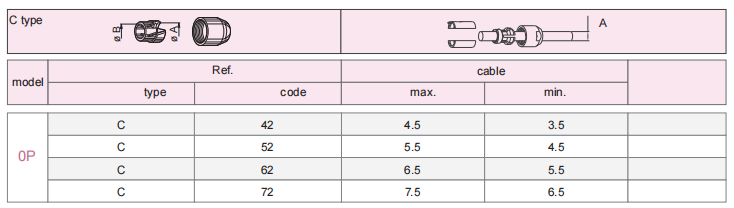

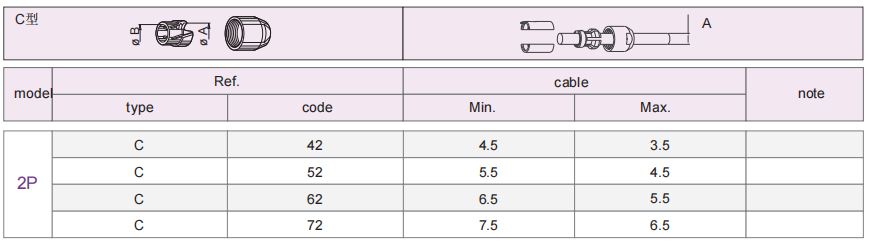

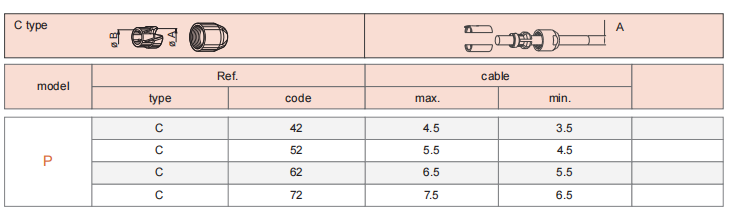

| Collet Sizes | 42/52/62/72mm | 42/52/62/72 | 42/52/62/72 | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) 125=(cable ⌀ 11.6 mm –12.5 mm) | |
| Keying Options | halfshell | G | 4 keyways | Cust | H |

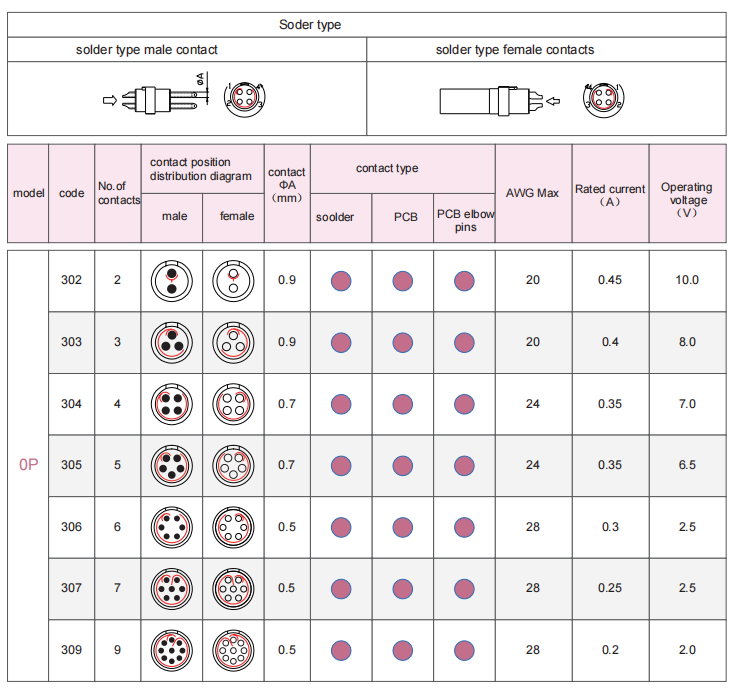

LINKHIVE 0P Reliable Medical Plastic push pull connector
▶circular plastic connectors Overview
| Straight medical micro connectors | fixed socket |
 |  |
| PAG 0P M0 medical micro connectors | PKG |
 |

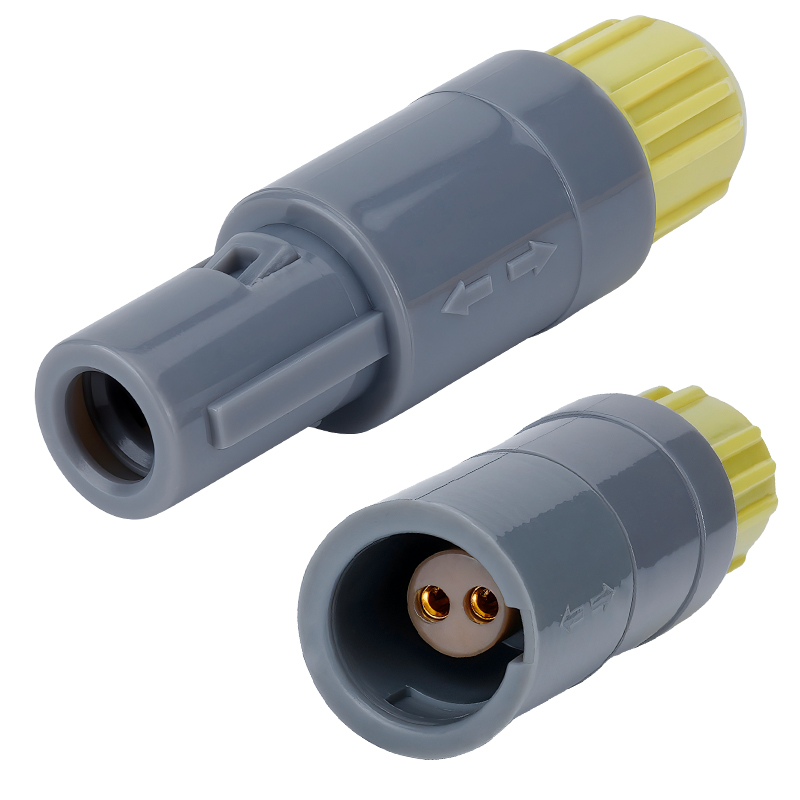

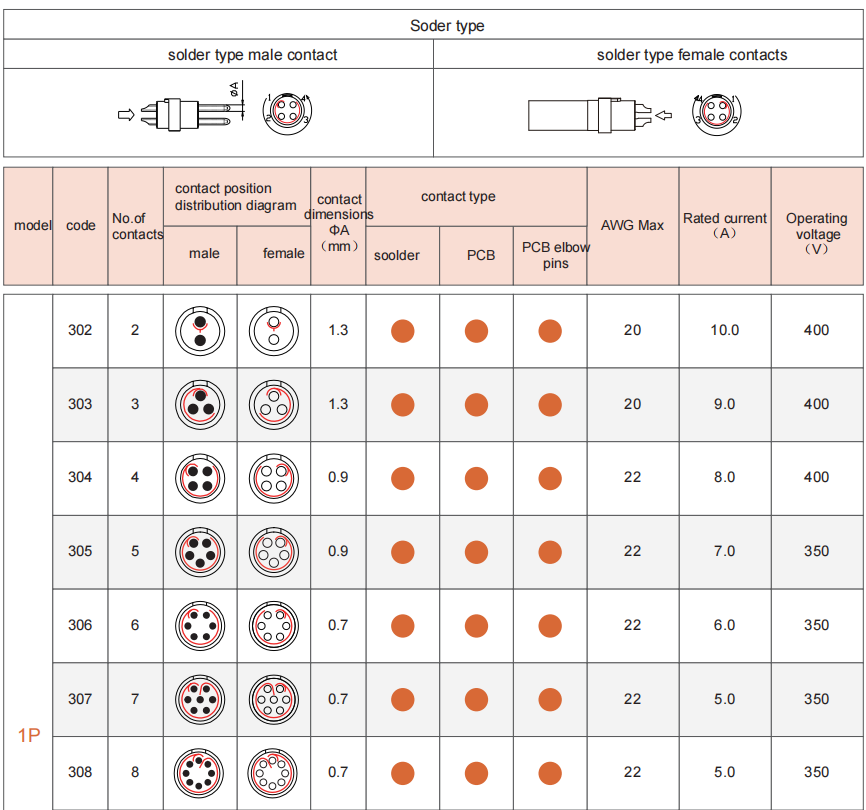

LINKHIVE 1P Reliable Medical Plastic Medical Micro Monnectors
| Straight medical micro connectors | fixed socket | Free socket |
|
|
|
PAG M0 1P medical micro connectors | ERA socket nut fixing | PRG Free socket,cable collet |
|
|
|
PAG M0 1P medical connectors | PKG nut fixing | PRG Free socket,cable collet with bend relief |
| Fluidic configuration | ||
LINKHIVE 2P Reliable Medical Plastic push pull connector
▶Circular plastic connectors Overview
| Straight medical micro connectors | fixed socket |
|  |
| CAB medical micro connectors | CKG |
 |  |
| CAB medical connectors | CLG |
| Fluidic configuration | |

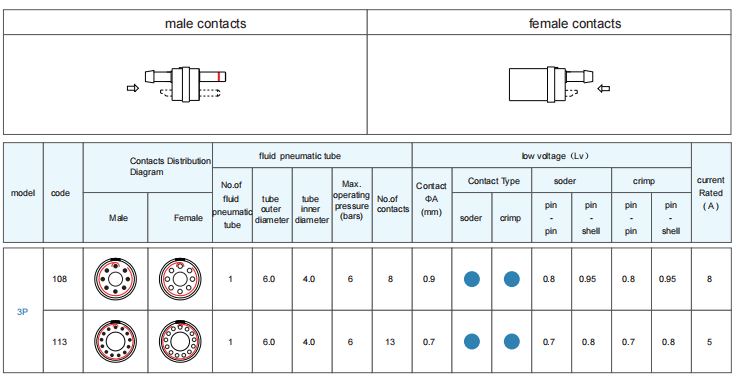

LINKHIVE 3P Reliable Medical Plastic push pull connector
▶circular plastic connectors Overview
| Straight medical micro connectors | fixed socket |
|  |
| FGG 3P medical connectors | EGG |
| Fluidic configuration |  |
| ERY |

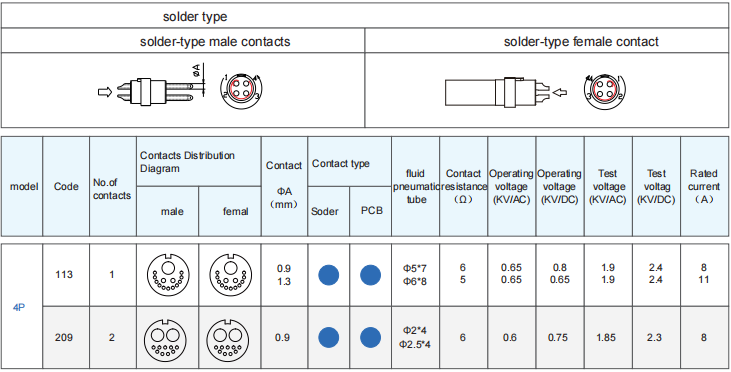

LINKHIVE 4P Reliable Medical Micro connectors
▶ circular plastic connectors Overview
| Straight medical connectors | fixed socket |
|  |
| PAG medical connectors | EGG |
 |  |
| PAG medical micro connectors | EGG |
| Fluidic configuration | |
LINKHIVE PC Series Reliable Medical Micro connectors
▶Overview
▶ Comapatbile with mini snap PC -2A series
| Straight medical connectors | Receptacle | INLINE Receptacle |
|  |  |
| PC 2A S1 medical micro connectors | PC G5 Receptacle | PC 2A K1 INLINE Receptacle |
🔷 Metal fluidic connector

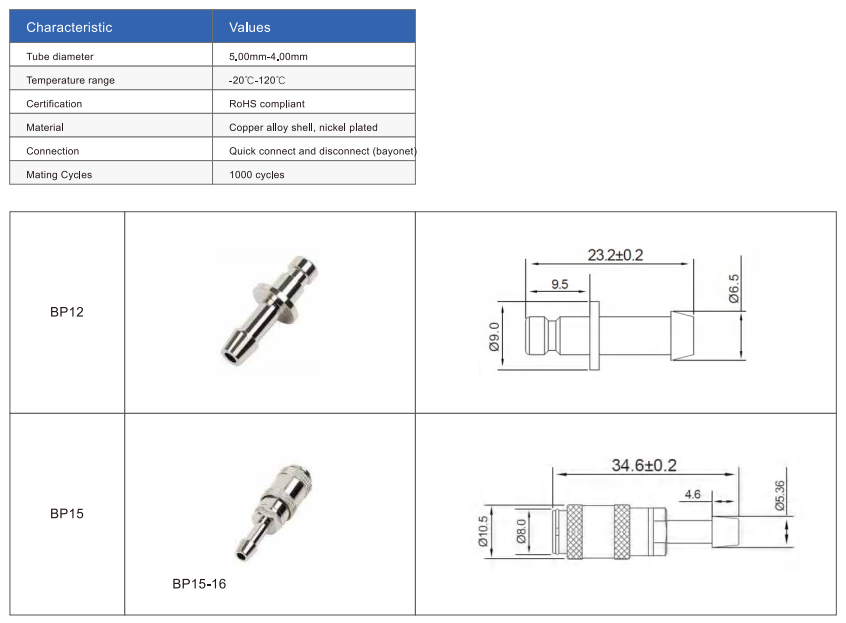

BP12 and BP15 are widely used in medical equipment, instrumentation and duct interconnection, etc., and can achieve quick connection and disconnection
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.

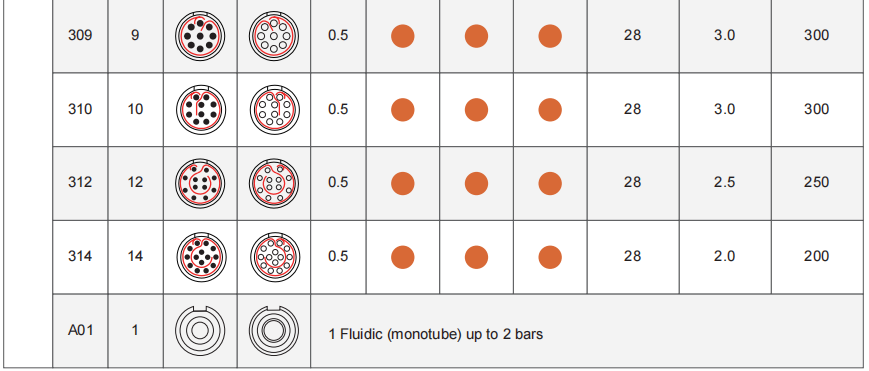

The LINKHIVE PAG M0 1P medical plastic connector features a self-latching push pull system and biocompatible housing. It supports custom A01 fluidic inserts (1 monotube, 2 bar), making it ideal for safe, sterile medical connections.
The PKG 1P is a compact, airtight plastic fluidic socket designed for pneumatic and fluidic interconnection in medical and laboratory applications. Featuring a secure push-pull locking system, it supports fast, leak-free quick-disconnect operations with up to 2-bar pressure tolerance.
The LINKHIVE CAB 2P plastic medical round connector combines a secure self-locking push pull mechanism with a lightweight, sterilizable plastic housing, ensuring safe and hygienic performance in critical medical environments. Designed for ECG monitors, blood pressure cuffs, endoscopes, and other reusable systems, it provides quick mating, reliable signal transmission. Compared to CAB 1P, the 2P version supports higher contact density, making it ideal for signal, power, or pneumatic hybrid interfaces.
The LINKHIVE FGG 3P is a high-performance plastic circular push pull connector designed for medical electrical applications. Fully compatible with connector ECG systems, it ensures secure, quick-release mating for plastic medical devices with high hygiene standards.
