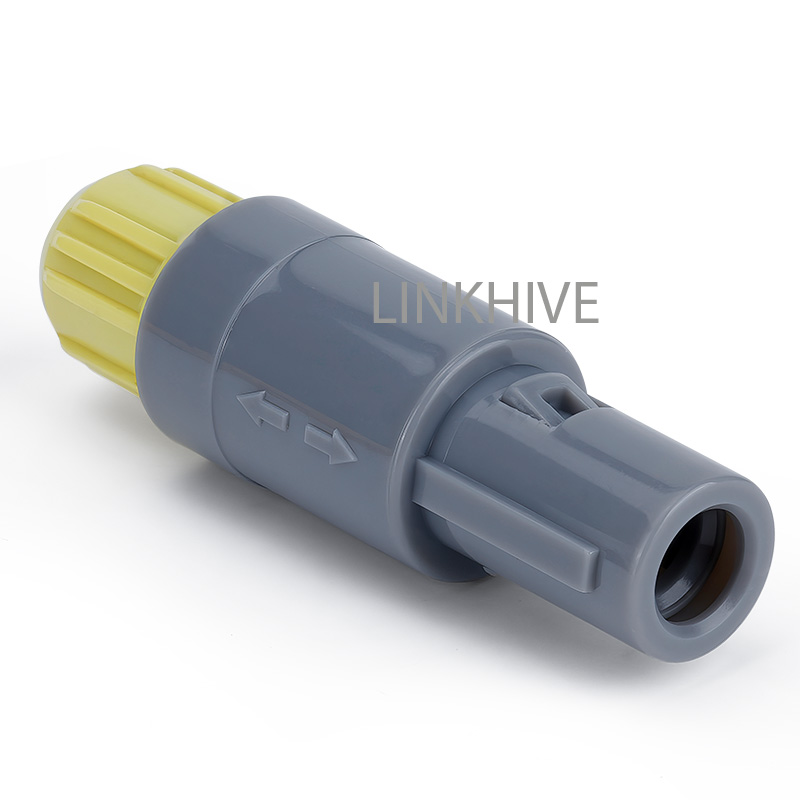

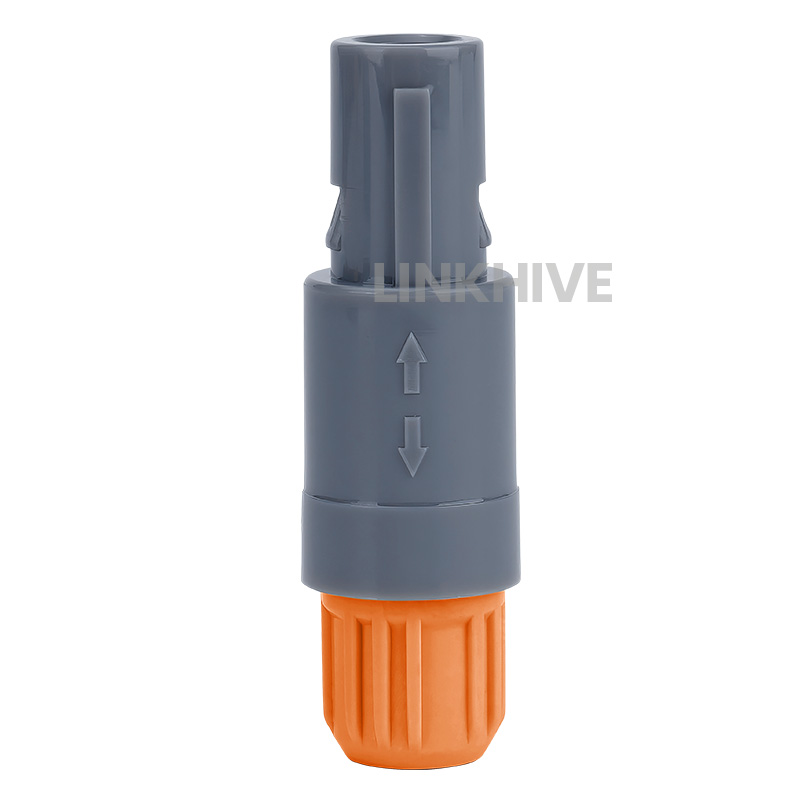

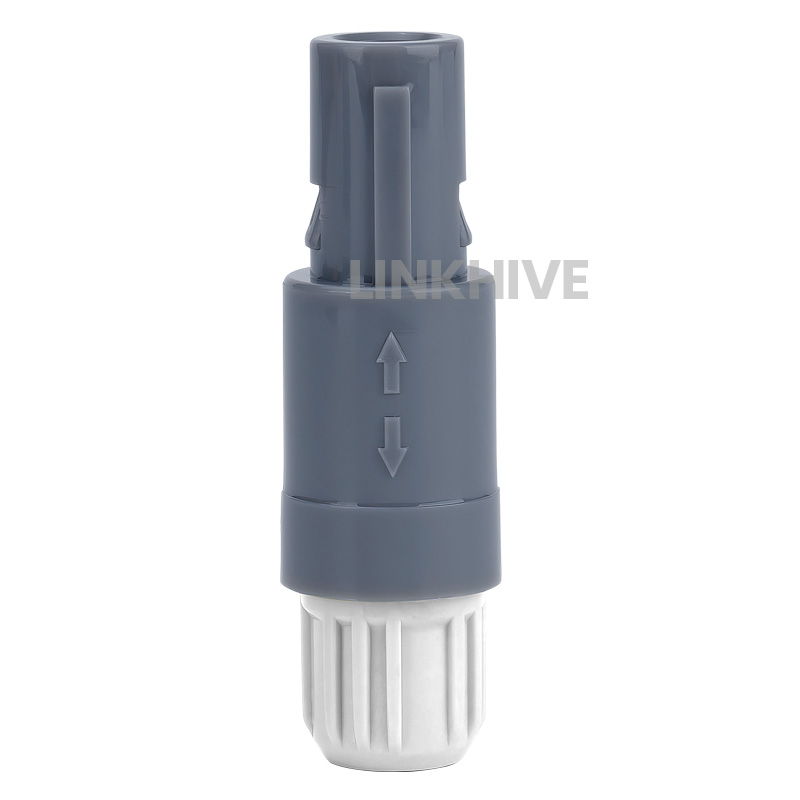

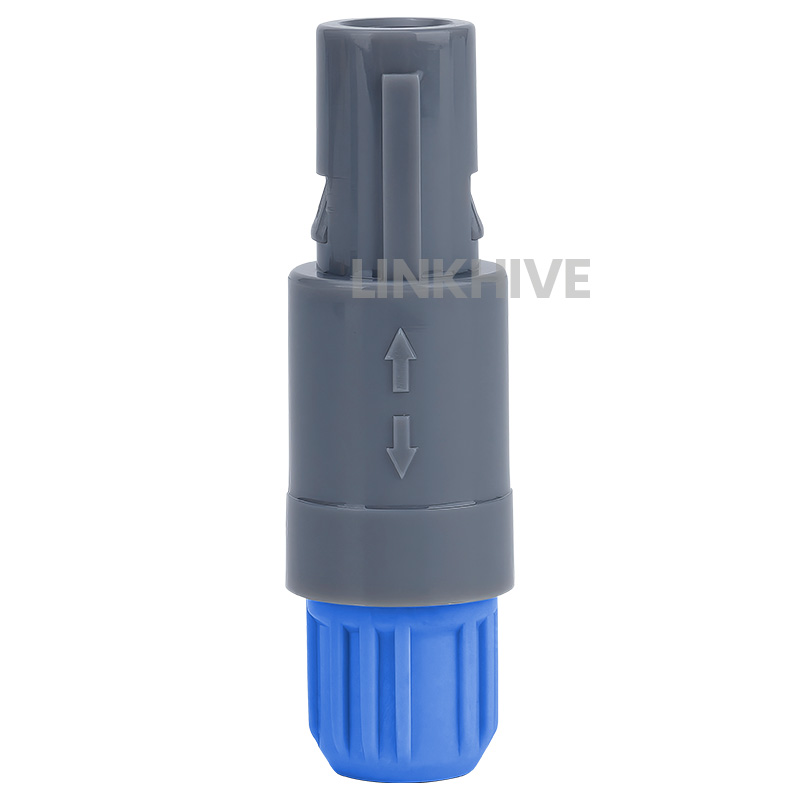

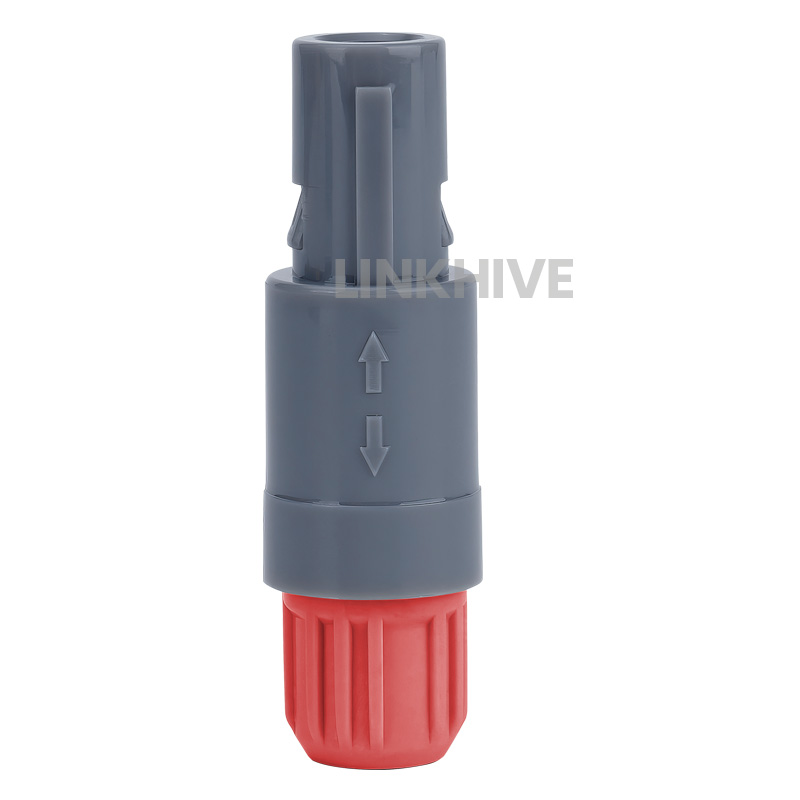

PAG M0 1P Reliable Medical Plastic push pull connector
The PAG M0 1P is a compact and premium plastic push pull connector specifically designed for medical device and medical electrical applications. It combines a lightweight biocompatible shell with a robust locking mechanism, ensuring safe and repeatable performance in demanding healthcare environments.
Minature size LINKHIVE 1P Reliable Medical Plastic connector Overview
| Straight plug | fixed socket | Free socket |
FFA plug straight plug,cable collet |
ERA socket nut fixing |
PCA Free socket,cable collet |
FFA plug straight plug, cable collet with bend relief |
ERD socket nut fixing |
PCA Free socket,cable collet with bend relief |
 | ||
Key Features
✅ Self-latching push pull locking for secure mating/unmating with tactile feedback
✅ Medical-grade PPSU or PBT housing, resistant to autoclave and gamma sterilization
✅ Support for electrical and fluidic configurations, including custom fluid channels
✅ Multi-Pin types 2 to 14 contacts
✅ High Packing density for space saving
✅ Color-coding and keying prevent misconnection
✅ Custom A01 insert available:
1 fluidic monotube channel,
Pressure rating: up to 2 bar,
Ideal for gas or low-pressure liquid delivery
Minature size PAG M0 1P Reliable fluidic Medical Plastic push pull connector

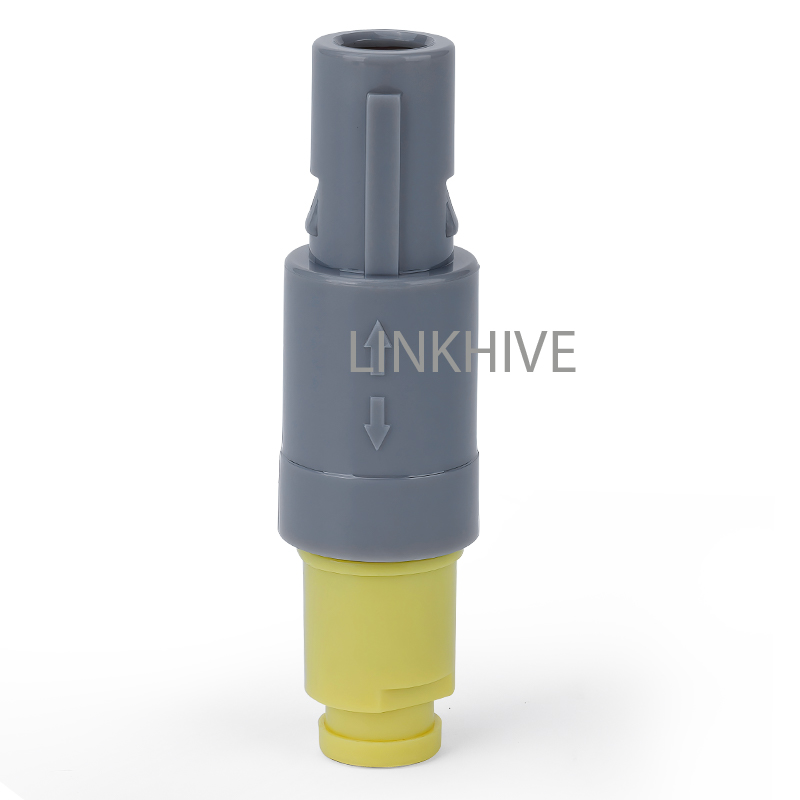

Standard plastic plug & Fluidic plastic plug
| Standard plastic plug | Fluidic plastic plug |
 |  |
Plastic Connector Diamensions
 |
| |||||||||||||||
Applications
plastic connector for Diagnostic and monitoring devices
Infusion and suction systems
Endoscopy and dental equipment
Wearable and portable medical devices
 |  |

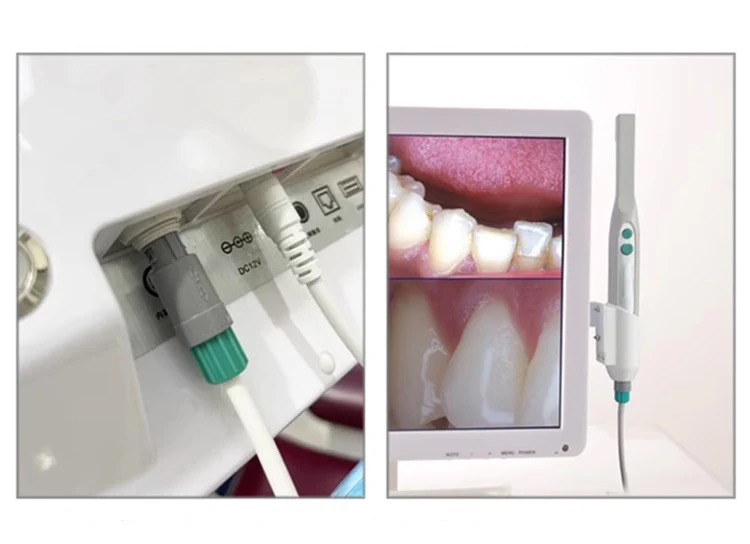

| This P Series plastic push-pull connector is widely used in dental imaging systems, offering lightweight, medical-grade connectivity for high-resolution intraoral cameras, with quick-release functionality, excellent durability, and easy sterilization compatibility. | Multi-Parameter Patient Monitor with Full Set of Accessories This medical monitor includes: Main unit with LCD display and built-in printer ECG cable with lead wires SpO₂ sensor (finger clip type) NIBP cuff and tubing Temperature probes Power cable Mounting accessories and modules Suitable for clinical use in hospitals and clinics for continuous monitoring of ECG, SpO₂, NIBP, TEMP, RESP, and pulse rate. |
How to Select PAG M0 1P Plastic Connector?
Choosing the right PAG M0 1P reliable medical plastic aviation plug requires considering:
Contact requirements – Select the number of contacts (2–14 pins) based on your signal and power needs for the medical connectors plastic
Medical connectors plastic Cable diameter compatibility – Match the Max Cable Ø (4.5–7.5 mm) with your cable size to ensure secure connection.
Medical plastic push pull connector Application environment – Choose sterile or hospital-grade options for medical and laboratory usage
Aviation plug Locking mechanism – Ensure push pull locking compatibility for easy yet secure connection and disconnection.
Minature size PAG M0 1P Plastic Connector Selection
| Parameter | TAGPAG.M02.UGL.A42J | TAGPAG.M03.UGL.A42J | TAGPAG.M04.UGL.A42J | TAGPAG.M05.UGL.A52J | TAGPAG.M06.UGL.A52J | TAGPAG.M07.UGL.A62J | TAGPAG.M08.UGL.A62J | TAGPAG.M09.UGL.A62J | TAGPAG.M10.UGL.A72J | TAGPAG.M12.UGL.A42J | TAGPAG.M14.UGL.A42J |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  | | | | |
 |  |  |  |  |  |  |  |  |  |  | |
| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 |
| Contact Ø (mm) | 1.3 | 1.3 | 0.9 | 0.9 | 0.7 | 0.7 | 0.7 | 0.5 | 0.5 | 0.5 | 0.5 |
| MaxCable Ø (mm) | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 6.5 | 6.5 | 6.5 | 7.5 | 7.5 | 7.5 |
| Description | 2-pin sterile aviation plug, compact and reliable for medical diagnostics | 3-pin sterile aviation plug for small medical modules | 4-pin sterile aviation plug for multi-signal medical applications | 5-pin medical plastic push pull connector | 6-pin plastic connector with push pull locking for hospital-grade devices | 7-pin medical connectors plastic for modular diagnostic interfaces | 8-pin high-density medical connectors plastic for medical instrumentation | 9-pin medical plastic push pull connector for lab & monitoring systems | 10-pin medical connectors plastic for modular diagnostic systems | 12-pin medical connectors plastic for complex medical signal modules | 14-pin medical connectors plastic for multi-channel medical interfaces |
| Application | Used in medical diagnostic devices, lab instruments, and portable monitors | For wearable medical devices and compact diagnostic tools | For surgical tools, patient monitoring, and lab modules | Suitable for compact hospital-grade medical systems | Suitable for hospital-grade monitoring equipment | Applied in advanced modular diagnostic devices | Used in advanced diagnostic and therapeutic devices | For multi-signal diagnostic & lab consoles | For imaging systems and multi-signal hubs | For complex medical hubs and communication modules | Applied in surgical consoles and multi-signal medical equipment |
PAG M0 1P Plastic Fluidic Connector Selection
| Mode | TAGPAG.A01.UGL.A42J |
| |
| Insert |  |
| No. of Contacts | 1 fluidic (monotube) up to 2 bars |
| Contact Ø (mm) | 0.9 |
| Max Cable Ø (mm) | 4.5 |
| Description | 1 fluidic plastic fluidic connector for fluidic lines |
| Application | For plastic fluidic connector use in diagnostic fluidics |
Why Choose Our Medical Medical Connectors Plastic?
Medical-grade materials – Biocompatible, sterilizable, and reliable for critical medical applications.
Wide configuration – Available from 2 to 14 contacts for signal, power, or hybrid applications.
Quick-connect push pull design – Ensures secure and easy connection/disconnection, saving time in medical settings.
Ample stock & fast delivery – No long wait times; ready for urgent projects.
PAG M0 1P Medical Connectors plastic Delivery Information
Lead time: 2 weeks (standard) of aviation plug
Stock: Ample stock available for most configurations
Shipping: Express worldwide shipping with secure packaging
MOQ: Flexible (supports small-volume orders for testing)
Plastic Connector Technical Specifications
| Parameter | Description |
| Shell size | PAG M0 |
| Insert option | A01 – 1 fluidic monotube (≤ 2 bar) |
| Electrical option | 1 contact (1P version) |
| Sterilization | Autoclave, Gamma irradiation |
| Color coding | Yes (upon request) |
Maximum Humidity: | up to 95% at 60°/140°F |
Locking type: | push pull self-latching type |
Endurance: | 5000 cycles |
Shock resistance: | 100g,6ms |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -20°~+125° |
Connector Series: | 1P TT |
Gender: | Plug |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Plastic |
Test Voltage (contact-contact): | 1450 |
Test Voltage (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP68 |
📊 LINKHIVE Plastic fluidic cable connectors – Series Overview
 |  |  |  |  |  | |
| Series | 2A | 0P | 1P | 2P | 3P | 4P |
| Size | small size | sub-miniature size | miniature size | small size | medium size | large size |
| Environment | Indoor / Splash proof | Indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof |
| Ingress Protection | IP67 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 |
| Temperature Range | -50°C to +200°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C |
| Latching | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors |
| Insulator Type | Multipole | Fluidic | Multipole, Power, Fluidic | Multipole, Coaxial,Fluidic Hybrid | Multipole,Hybrid , Coaxial , Fluidic | Multipole,Hybrid , Coaxial, + Fluidic |
| Contact Type | Solder / Crimp | Solder / Crimp | Solder / Crimp | Solder / Crimp / PCB | Solder / Crimp | Solder / Crimp |
| Cable Diameter | 6.0mm-9.0mm | 1.5mm-4.2mm | 4.2 mm to 6.5mm | 5.2 mm to 9.2 mm | 8.5 mm to 11.2 mm | 9.5 mm to 13mm |
| Collet Sizes | 42/52/62/72mm | 42/52/62/72 | 42/52/62/72 | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) 125=(cable ⌀ 11.6 mm –12.5 mm) | |
| Keying Options | halfshell | G | 4 keyways | Cust | H |
