The FGG 3P Medical Electrical Plastic Circular Push Pull Connector is a lightweight and sterilizable solution for ECG, patient monitors, and diagnostic devices. Designed with a self-latching push pull mechanism, it allows quick and secure connections in medical environments.
Made from medical-grade plastic, this connector is resistant to autoclave and chemical sterilization, ensuring durability in repeated use. It supports a cable diameter range of 5.2 mm to 9.2 mm, making it adaptable for various medical cable assemblies.
The FGG 3P supports multiple contact types, including multipole, coaxial, and fluidic layouts. With up to 11 insert polarization options and 3 keyways, it effectively prevents cross-mating.
Ideal for use in medical connectors plastic, ECG cables, and patient monitoring systems, this connector combines reliability, ease of use, and safety.

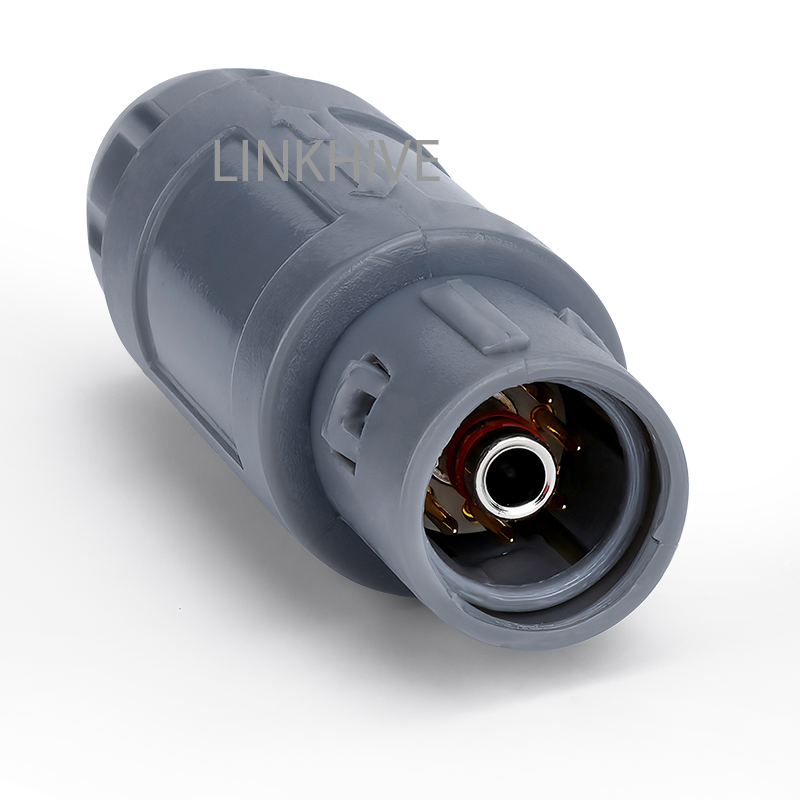

FGG 3P Medical Plastic Push Pull connector Overview

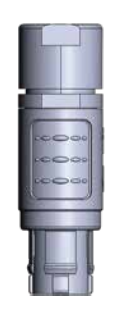

| Straight plastic plug | fixed socket |
|  |

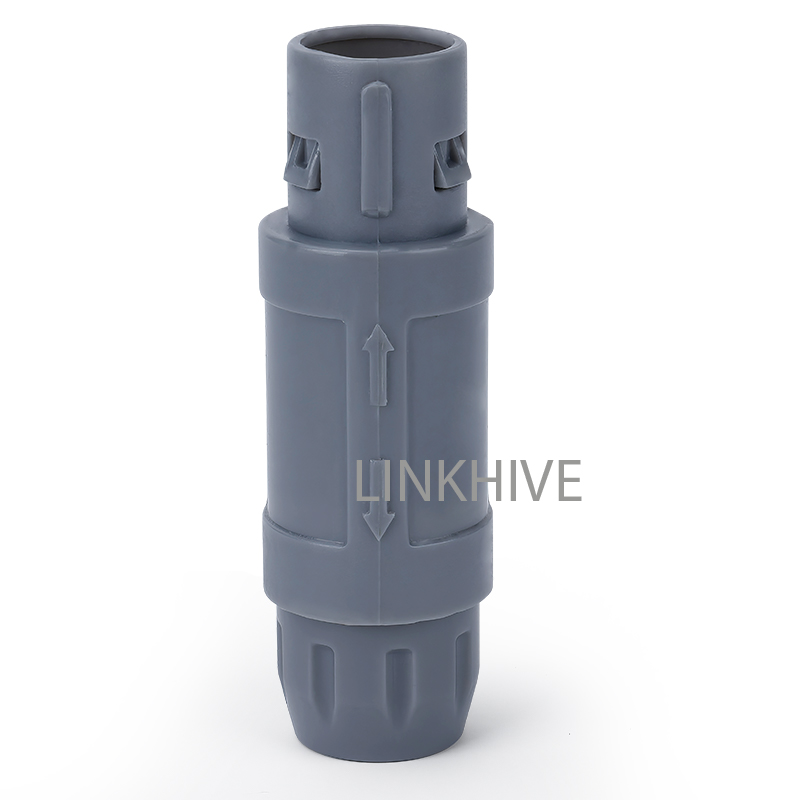

| FGG 3P plastic plug | EGG |
| Fluidic configuration |  |
| ERY |
Core Features
Locking Mechanism: Self-latching push-pull design for secure, quick one-handed operation
Material: PPS/PSU/PTEE/PEI/PEEK/ PC,Non-conductive, medical-grade plastic;
Cable Capacity: Supports cable diameters up to 9.5 mm
Contact Configurations: Available in multiple insert 2 to 32, hybrid types (electrical/coax/fluidic/fiber optic)
Electrical Performance: High insulation resistance, low contact resistance, suitable for low-voltage signal and sensor interfac
Pin Configuration: Supports multi-pin layouts for low-voltage signal and data
Insulation: Excellent electrical insulation PEEK /PPS and high mating cycle durability

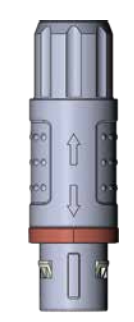

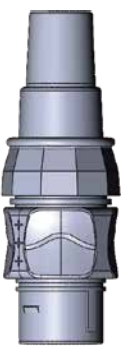

Standard plastic plug & Fluidic plastic plug
| Standard plastic plug | Fluidic plastic plug |
 |  |
Applications
ECG monitor cable assemblies
Patient vital sign monitors (SpO₂, TEMP, NIBP)
Portable diagnostic and imaging devices
Medical sensor interface connectors
OEM medical cable harnesses
Hospital bedside monitoring systems

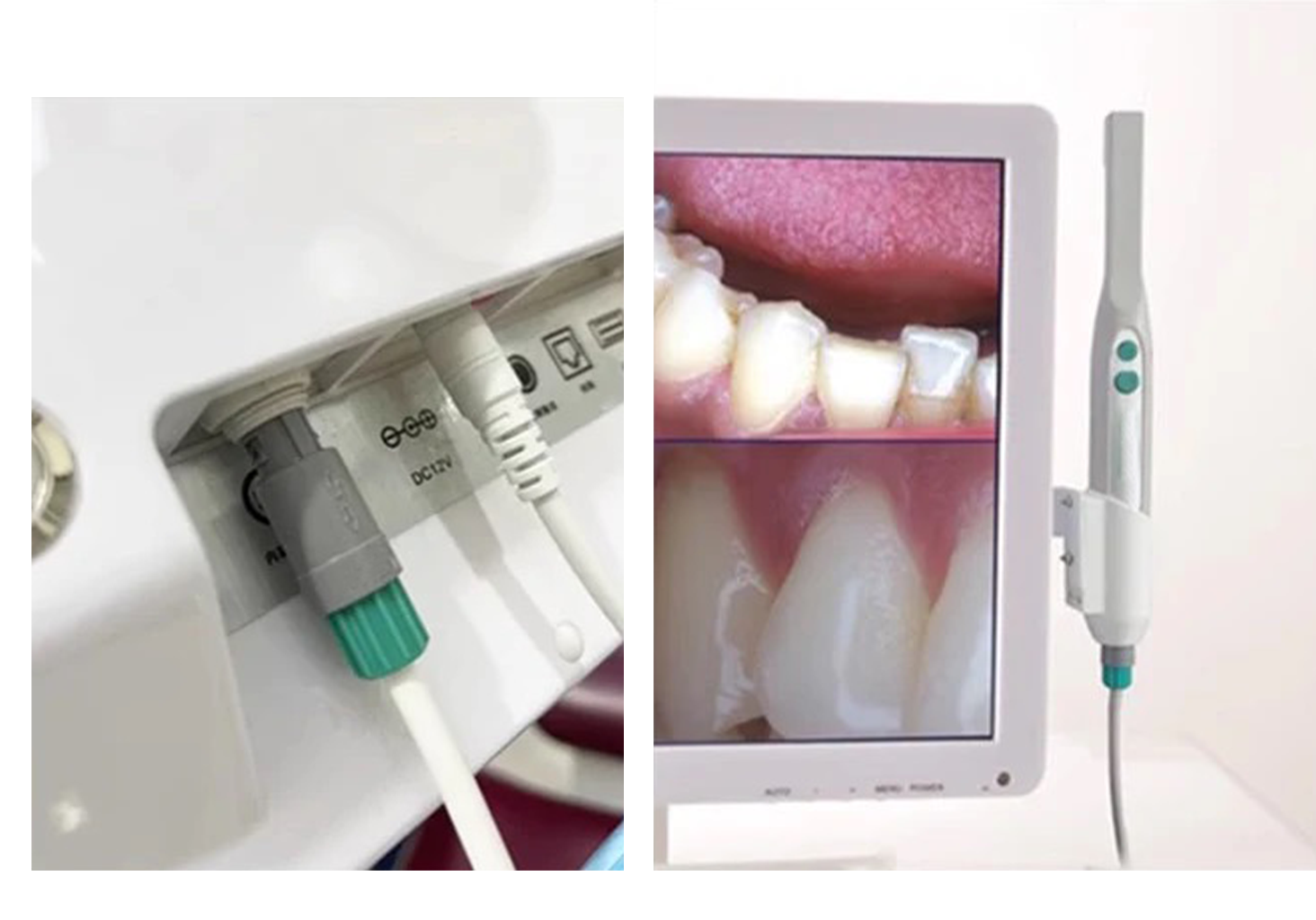

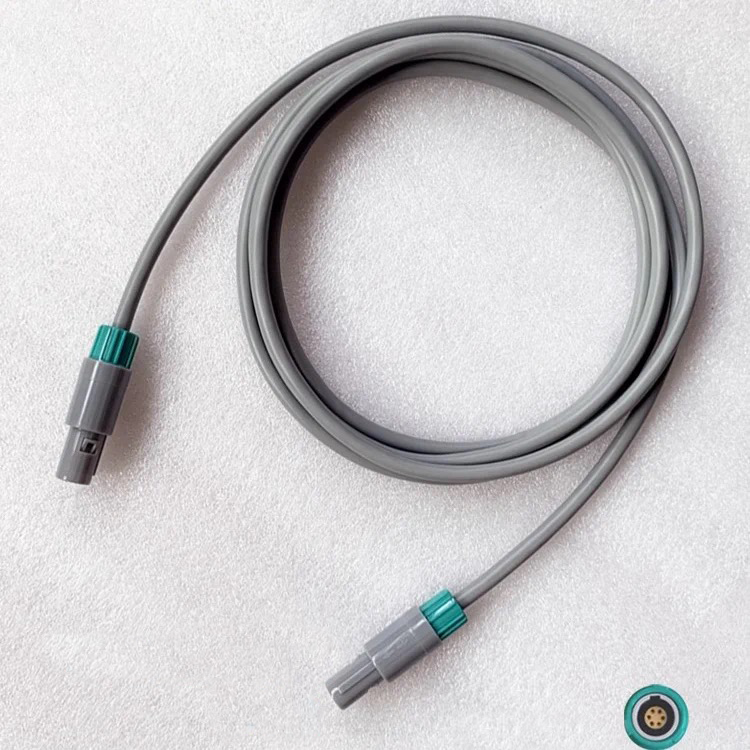

| Dental connector | Dental device cable plug |
 |  |

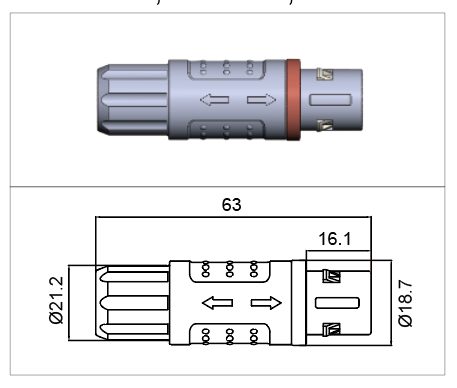

Dental ConnectorDiamensions
 |
|
How to Select FGG 3P Medical Plastic Push Pull connector
Selecting the right plastic medical circular connector involves evaluating both technical requirements and application-specific conditions. Here’s a step-by-step guide:
Determine the Number of Contacts of Dental Connector
Identify the number of signal or power lines needed (2–32 contacts available).
For hybrid connectors (fluidic + low voltage / coaxial), also consider fluid channels and coaxial transmission requirements.
Check Contact Size & Current Capacity
Choose the contact Ø (0.7–3.0 mm) based on current load and signal transmission needs.
Ensure the contact rating supports your equipment (up to 35A for high-power applications).
Define Cable Diameter & Strain Relief of Dental Connector
Match the Max Cable Ø (4.0–8.0 mm) with your cable assembly to ensure secure and durable connection.
Select Connector Type & Locking
Choose between push-pull or hybrid push-pull/fluidic versions for quick, secure mating.
For coaxial or fluidic applications, confirm integrated sealing & insulation meets your environment’s needs.
Consider Environmental & Sterilization Needs
For medical applications, ensure biocompatible plastic and autoclavable designs if required.
For diagnostic labs or dental systems, select connectors with chemical-resistant housings.
Evaluate Voltage & Testing Requirements
Confirm rated test voltage (up to 2.1 kV) meets device safety standards.
For sensitive medical electronics, choose connectors with low-contact resistance to ensure reliable signal transmission.
Medium Size Multi-contact FGG 3P Medical Plastic Push Pull connector Selection
| Mode | TGG3P.M02.UGL.A42J | TGG3P.M03.UGL.A42J | TGG3P.M04.UGL.A42J | TTGG3P.M05.UGL.A52J | TGG3P.M06.UGL.A52J | TGG3P.M07.UGL.A62J | TGG3P.M08.UGL.A62J | TGG3P.M09.UGL.A62J | TGG3P.M10.UGL.A72J | TGG3P.M12.UGL.A42J | TGG3P.M14.UGL.A42J |
| Insert |  |  |  |  |  |  |  |  |  |  |  |
| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 |
| Max Cable Ø (mm) | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 6.5 | 6.5 | 6.5 | 6.5 | 7.5 | 7.5 |
| Description | 2-pin medical plastic push pull connector, compact and reliable for diagnostic devices | 3-pin circular plastic connector for small medical modules | 4-pin circular plastic connector for multi-signal medical applications | 5-pin medical plastic push pull connector | 6-pin plastic connector with push pull locking for hospital-grade devices | 7-pin medical connectors plastic for modular diagnostic interfaces | 8-pin high-density connector for medical instrumentation | 9-pin medical connectors plastic for lab & monitoring systems | 10-pin Plastic Dental connector for modular diagnostic systems | 12-pin Plastic Dental connector for complex medical signal modules | 14-pin medical plastic push pull connector for multi-channel medical interfaces |
| Application | Used in medical diagnostic devices, lab instruments, and portable monitors | For wearable medical devices and compact diagnostic tools | For surgical tools, patient monitoring, and lab modules | Suitable for compact hospital-grade medical systems | For hospital monitoring & diagnostic equipment | Applied in advanced modular diagnostic devices | Used in advanced diagnostic and therapeutic devices | For multi-signal diagnostic & lab consoles | For imaging systems and multi-signal hubs | For complex medical hubs and communication modules | Applied in surgical consoles and multi-signal medical equipment |
Medium Size Multi-contact FGG 3P Medical Plastic Push Pull connector Selection
| Mode | TGG3P.M16.UGL.A42J | TGG3P.M18.UGL.A52J | TGG3P.M20.UGL.A52J | TGG3P.M22.UGL.A52J | TGG3P.M24.UGL.A52J | TGG3P.M26.UGL.A52J | TGG3P.M30.UGL.A52J | TGG3P.M32.UGL.A52J |
| Insert |  |  |  |  |  |  |  |  |
| No. of Contacts | 14 | 18 | 20 | 22 | 24 | 26 | 30 | 32 |
| Max Cable Ø (mm) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Description | 14-pin advanced medical connectors plastic for complex systems | 4-pin plastic medical push pull connector, compact and durable for diagnostic use | 6-pin high-density medical connectors plastic for modular devices | 8-pin circular plastic connector for multi-channel data transmission | 10-pin Plastic Dental connector | 12-pin circular plastic connector for advanced medical devices | 16-pin high-performance plastic push pull connector | 20-pin multi-signal Plastic Dental connector for modular diagnostic hubs |
| Application | circular plastic connector For complex modular medical systems | Used in diagnostic tools, portable monitors, and medical sensors | circular plastic connector For hospital-grade monitoring systems and modular lab devices | Applied in multi-signal imaging devices and therapeutic equipment | circular plastic connector For dental imaging devices and patient monitoring | circular plastic connector Used in advanced medical systems requiring multi-signal interfaces | Suitable for modular medical hubs and high-density diagnostic tools | Applied in complex medical systems and large-scale diagnostic consoles |
Medium Size FGG 3P Hybrid Connector: Fluidic + Low Voltage
| Mode | TGG3P.108.UGL.A42J | TGG3P.113.UGL.A42J | TGG3P.206.UGL.A42J | TTGG3P.118.UGL.A52J |
|---|---|---|---|---|
 |  |  |  |  |
| No. of Contacts | 8 +1 fluidic tube pneumatic socket | 13 +1 fluidic tube pneumatic socket | 6 +2 fluidic tube plastic pneumatic socket | 8 +1 fluidic tube pneumatic socket |
| Fluidic TubeØ | OD6.0 × ID4.0 mm Fluidic Tube | OD6.0 × ID4.0 mm Fluidic Tube | OD4.0 × ID2.0 mm Fluidic Tube | OD6.0 × ID4.0 mm |
| Contact Ø (mm) | 0.9 | 0.7 | 0.9 | 0.7 |
| Max Cable Ø (mm) | 4.5 | 4.5 | 4.5 | 5.5 |
| Description | Hybrid 2-pin plastic medical Hybrid connectors plastic for fluidic and electrical systems | 3-pin hybrid connector for fluidic and electrical integration | 4-pinplastic hybrid connector for diagnostic and monitoring devices | 5-pin high-density medical hybrid connector for complex fluidic-electrical systems |
| Application | Used in diagnostic instruments and portable medical devices | Applied in dental imaging systems and lab modules | Suitable for monitoring systems and fluidic diagnostic hubs | Integrated into surgical consoles and complex hybrid medical devices |
Medium Size FGG 3P Hybrid Connectors: Coaxial + Low Voltage
| Mode | TGG3P.808.UGL.A42J | TGG3P.813.UGL.A42J | TGG3P.906.UGL.A42J |
| Insert |  |  |  |
| No. of Contacts | 8+1 plastic coaxial socket | 13+1 plastic coaxial socket | 6+2 plastic coaxial socket |
| Contact Ø (mm) | 0.9 | 0.7 | 0.9 |
| Max Cable Ø (mm) | 4.5 | 4.5 | 4.5 |
| Description | 2-pin coaxial plastic medical connectors plastic with low-voltage shielding | 3-pin coaxial push-pull medical connectors plastic for instrumentation | 4-pin coaxial hybrid connector for advanced diagnostic devices |
| Application | Used in imaging devices and low-voltage medical systems | Applied in diagnostic hubs and lab modules | Integrated into high-end surgical and therapeutic instruments |
Medical-Grade Reliability for Medical Plastic Push Pull connector
Made with biocompatible, sterilizable plastic suitable for diagnostic and surgical equipment.
Designed for repeated mating cycles without loss of performance.
Flexible Hybrid Design of medical connectors plastic
Options for electrical + fluidic or electrical + coaxial integration.
Ideal for complex modular medical systems (e.g., imaging equipment, patient monitors, dental imaging systems).
Secure Push-Pull Locking
Quick and safe connections with one-hand operation, reducing connection errors in clinical environments.
Customizable Configurations
Wide range of contacts (2–32), contact sizes, and cable diameters for tailored solutions.
Enhanced Safety & Compliance
High dielectric strength (up to 2.1 kV) for patient safety.
Compliant with medical standards for diagnostic and therapeutic devices.
Versatility Across Medical Applications
Perfect for lab diagnostics, patient monitoring, dental imaging, surgical tools, and therapeutic devices.

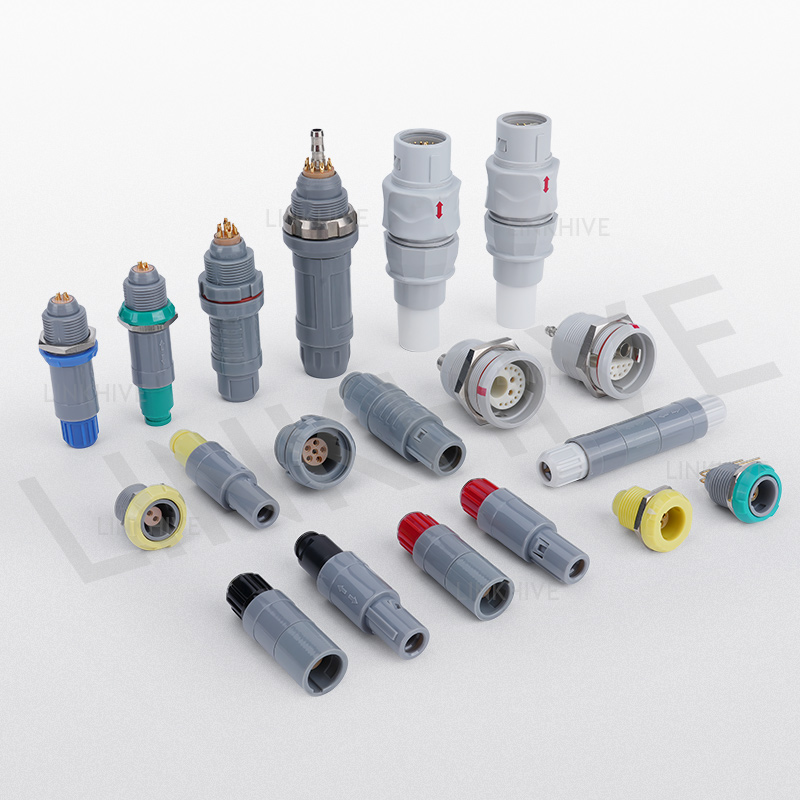

LINKHIVE Plastic fluidic cable connectors – Series Overview
 |  |  |  |  |  | |
| Series | 2A | 0P | 1P | 2P | 3P | 4P |
| Size | small size | sub-miniature size | miniature size | small size | medium size | large size |
| Environment | Indoor / Splash proof | Indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof |
| Ingress Protection | IP67 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 |
| Temperature Range | -50°C to +200°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C |
| Latching | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors |
| Insulator Type | Multipole | Fluidic | Multipole, Power, Fluidic | Multipole, Coaxial,Fluidic Hybrid | Multipole,Hybrid , Coaxial , Fluidic | Multipole,Hybrid , Coaxial, + Fluidic |
| Contact Type | Solder / Crimp | Solder / Crimp | Solder / Crimp | Solder / Crimp / PCB | Solder / Crimp | Solder / Crimp |
| Cable Diameter | 6.0mm-9.0mm | 1.5mm-4.2mm | 4.2 mm to 6.5mm | 5.2 mm to 9.2 mm | 8.5 mm to 11.2 mm | 9.5 mm to 13mm |
| Collet Sizes | 42/52/62/72mm | 42/52/62/72 | 42/52/62/72 | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) 125=(cable ⌀ 11.6 mm –12.5 mm) | |
| Keying Options | halfshell | G | 4 keyways | Cust | H |
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.

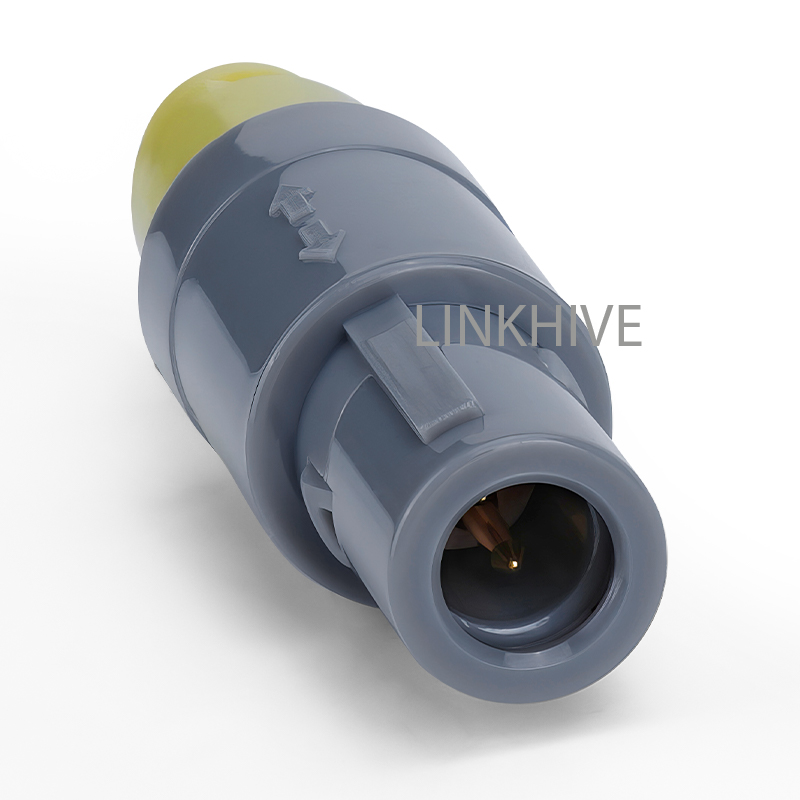

LINKHIVE's circular plastic push pull connectors offer a reliable and lightweight solution for demanding applications in medical, diagnostic, and industrial equipment. Designed with a robust self-latching mechanism, these plastic connectors ensure safe and secure connections while allowing quick and effortless disconnection. The housings are made from high-performance thermoplastic materials, providing excellent resistance to sterilization, chemicals, and mechanical stress. Available in multiple sizes, color codes, and contact layouts, our plastic push pull connectors are ideal for applications requiring frequent mating cycles and uncompromised electrical or fluidic performance. A trusted choice for modern circular plastic connectors and laboratory systems.

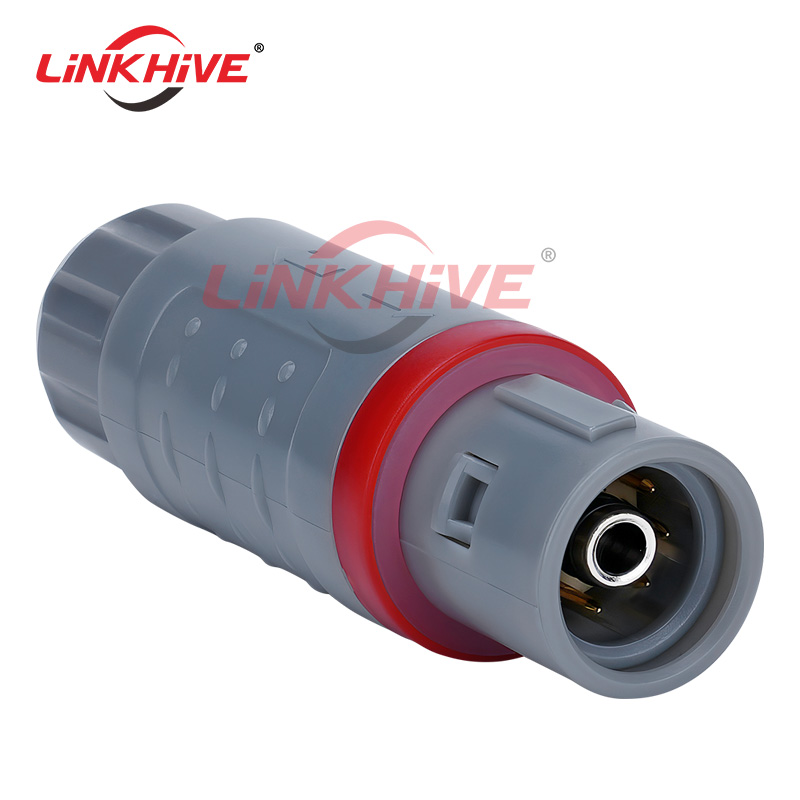

The LINKHIVE PAG M0 1P medical plastic connector features a self-latching push pull system and biocompatible housing. It supports custom A01 fluidic inserts (1 monotube, 2 bar), making it ideal for safe, sterile medical connections.

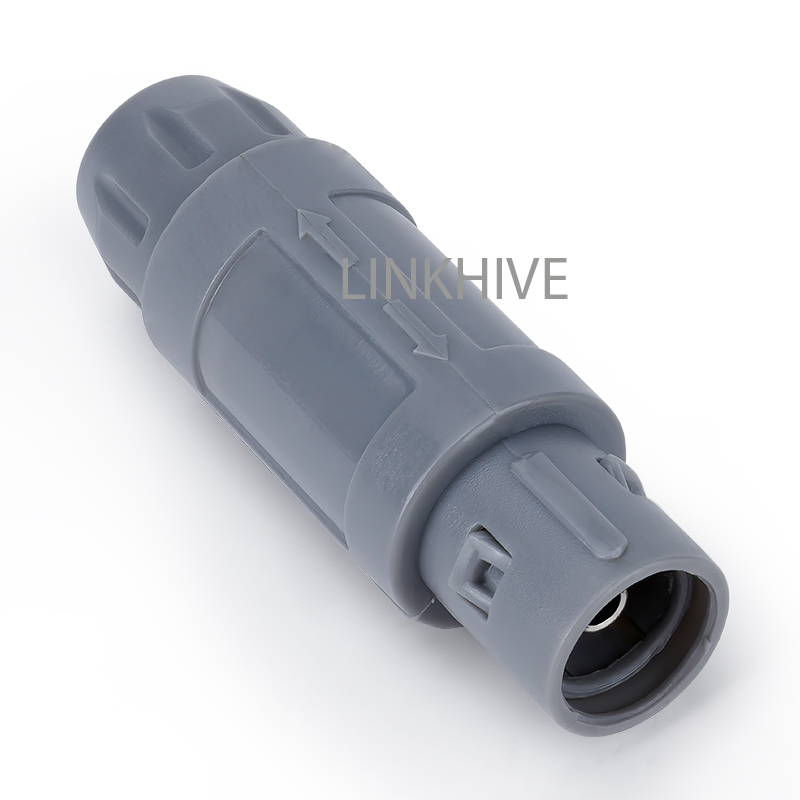

The PKG 1P is a compact, airtight plastic fluidic socket designed for pneumatic and fluidic interconnection in medical and laboratory applications. Featuring a secure push-pull locking system, it supports fast, leak-free quick-disconnect operations with up to 2-bar pressure tolerance.
