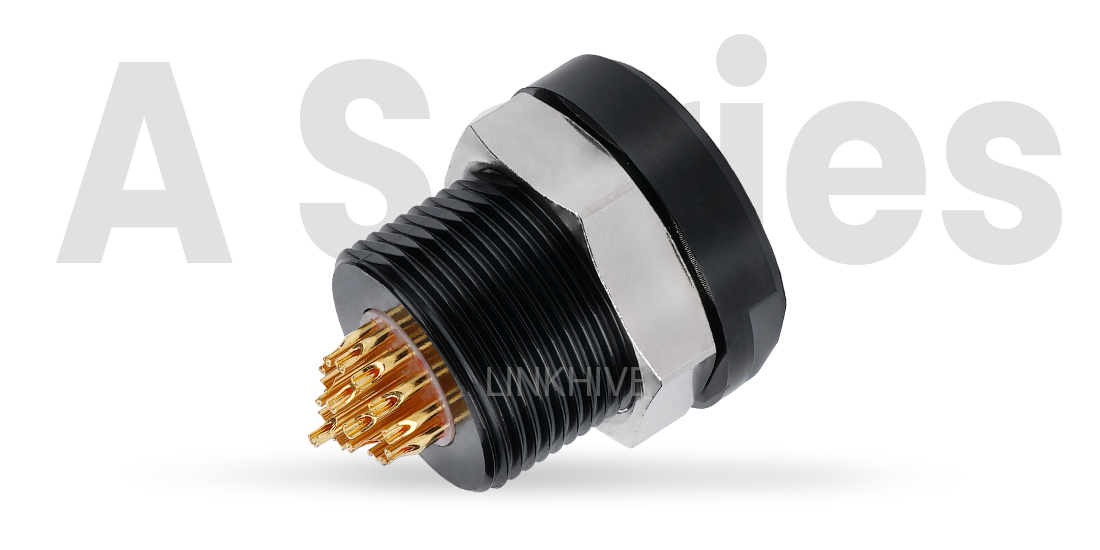

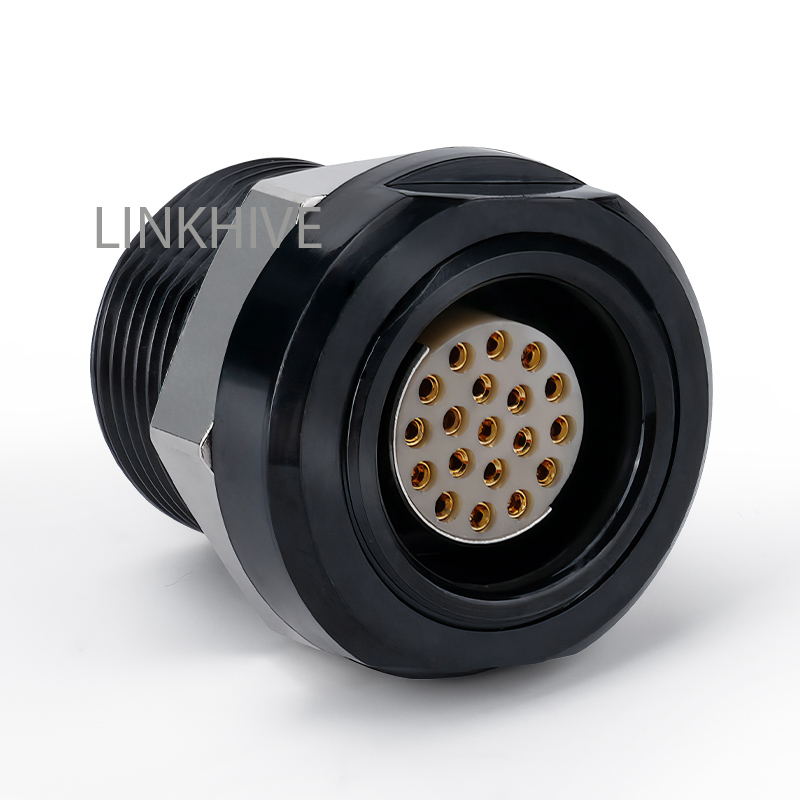

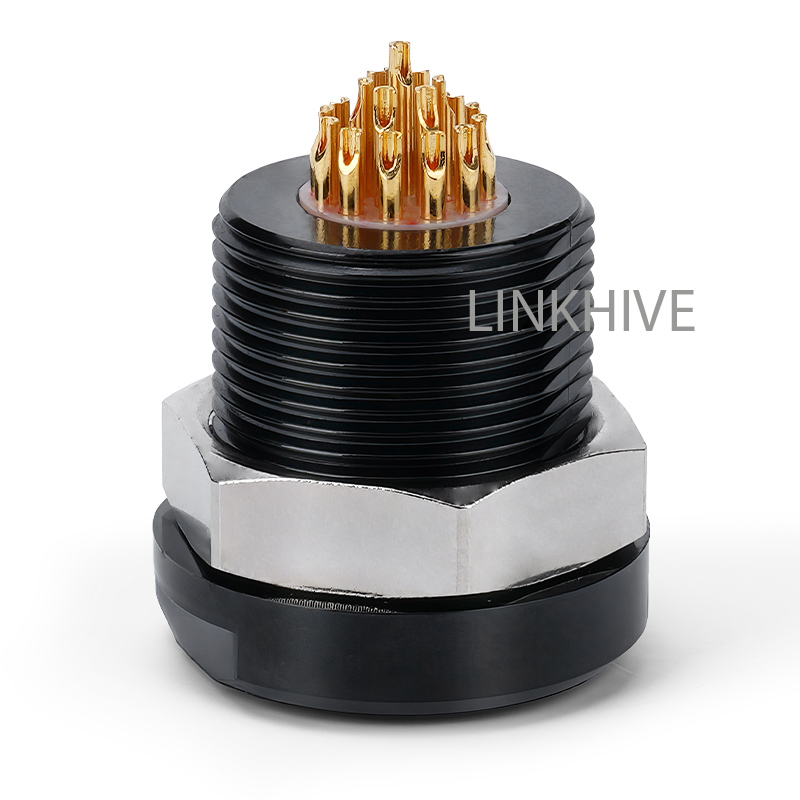

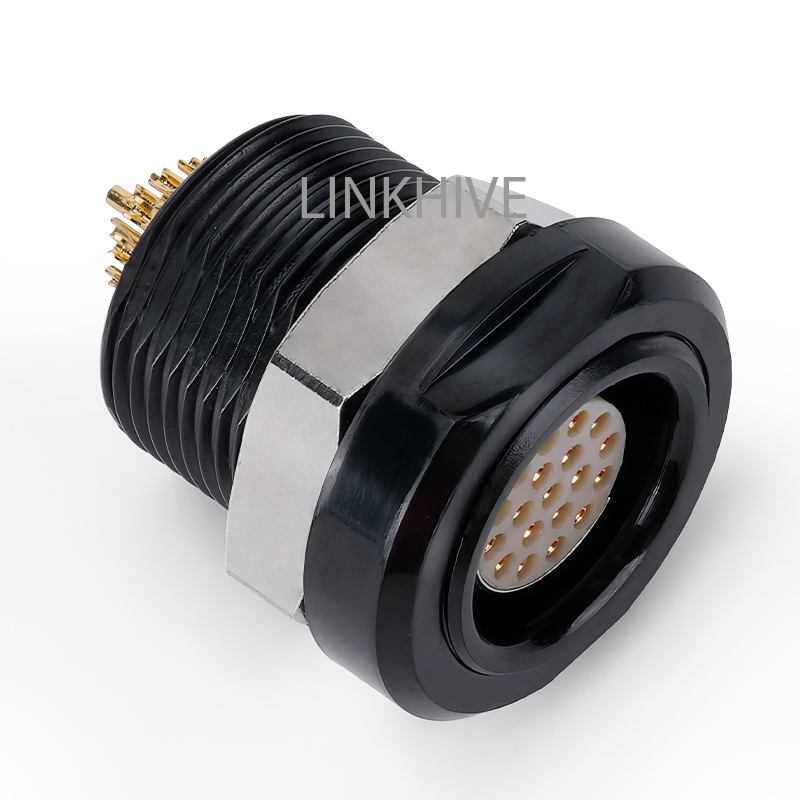

Plastic PC.2A.G5 Miniature Circular Connector Receptacle
The Plastic PC.2A.G5 miniature circular connector receptacle is engineered for space-constrained panel mount installations, delivering secure, quick connections with its self-latching push-pull locking system. As part of our plastic connector series, this model is fully intermateable with MINI-SNAP PC.2A.G5, providing an ideal alternative for medical, test & measurement, and portable equipment manufacturers.

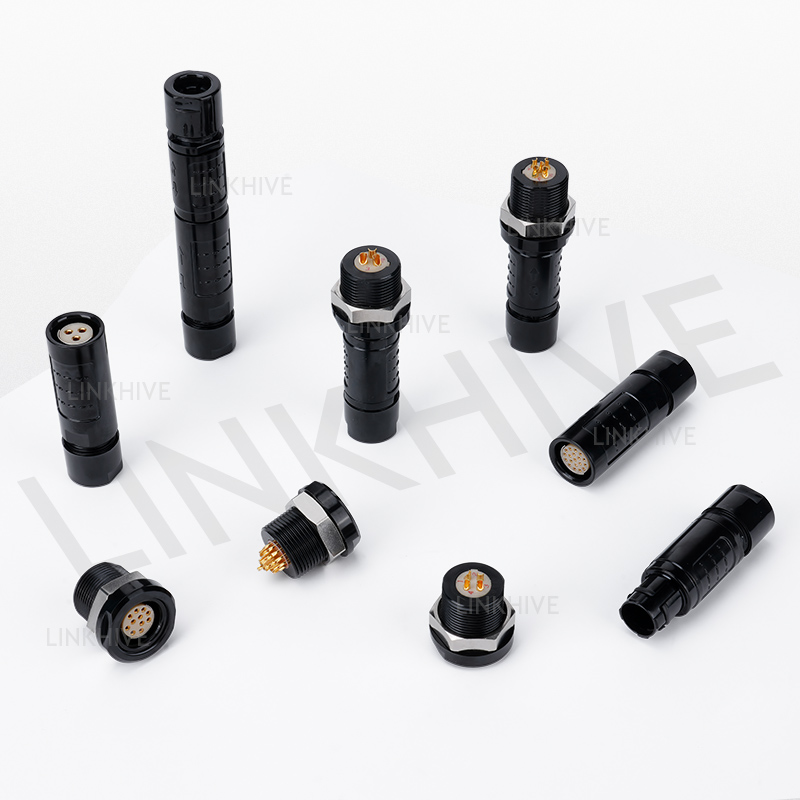

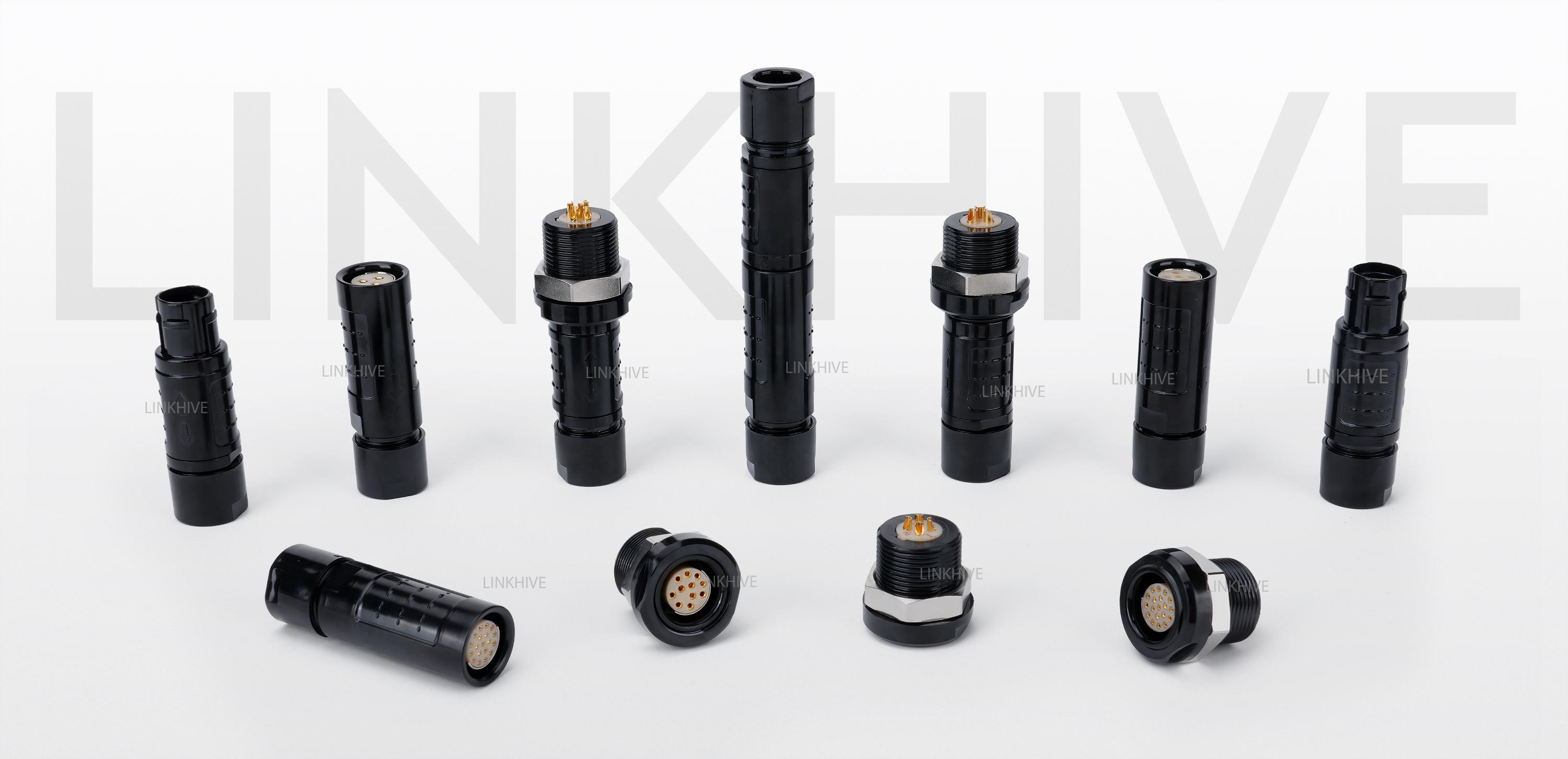

LINKHIVE PC Series Reliable Medical Plastic push pull connector overview
| Straight plastic plug | Receptacle | INLINE Receptacle |
|  |  |
| PC 2A S1 plastic plug | PC G5 Receptacle | PC 2A K1 INLINE Receptacle |
Key Features:
📏 Miniature size: Compact G5 housing for dense electronic systems
⚡ Quick connect/disconnect: Reliable push-pull mechanism minimizes mating time
🔒 Secure connection: Vibration-resistant locking prevents accidental unplugging
🔌 High contact density: Supports up to 5 contacts in 2A size shell
🛠️ Easy panel integration: Rear nut or front nut mounting options available
🔧 Polarized alignment: Ensures error-free mating
⚕️ Medical-grade plastic: Lightweight, autoclavable, and UL 94-V0 compliant materials
🌐 Compatible with MINI-SNAP PC series (e.g. PC.2A.G5.XX)
Typical Applications:
Medical connectors for surgical tools and diagnostic devices
Industrial sensor connectors and handheld testers
Panel-mount signal connectors in lab equipment
How to Select PC.2A.G5 Miniature Circular Connector Receptacle
Choosing the right receptacle from the PC.2A.G5 series (compatible with PC Series) requires balancing electrical, mechanical, and application-specific needs. Follow these steps:
Determine the Number of Contacts of Plastic Panel Mount Socket
Select based on your device’s signal and power requirements (e.g., 2–19 contacts available).
For hybrid applications (signal + power), choose mixed-contact inserts (e.g., 2+2, 1+8).
Check Contact Diameter & Current Load of Plastic quick connect receptacles
Contact sizes range from 0.9mm to 3.0mm, supporting signal and low-to-medium current power transmission.
Match contact size with your system’s voltage and current demands.
Cable Diameter Compatibility for Plastic connector receptacle
Each part number defines the maximum cable diameter (e.g., 2.5mm to 9.0mm).
Ensure the selected receptacle fits your cable for secure strain relief and optimal sealing.
Select Mechanical Configuration
Options include keyed, quick-connect, panel-mount, and multi-signal configurations.
Choose based on assembly style and accessibility in your equipment.
Consider Application Environment
Designed for medical, laboratory, communication, and light industrial environments.
For high-density wiring or multi-signal applications, prioritize compact, high-contact models.
Verify Compatibility
Intermateable with PC Series connectors, ensuring flexible integration into existing systems.
Use the cable below to help you to slect the right pins.
PC.2A.G5 Miniature Circular Connector Receptacle Selection
| Mode | TAG.2A.A051.USLA.25 | TAG.2A.A037.USLA.37 | TAG.2A.A087.USLA.45 | TAG.2A.A053.USLA.45 | TAG.2A.A065.USLA.49 | TAG.2A.A054.USLA.49 | TAG.2A.A066.USLA.60 | TAG.2A.A055.USLA.75 | TAG.2A.A086.USLA.90 | TAG.2A.A092.USLA.90 |
| Part No. | 105AZ051 | 105AZ037 | 105AZ087 | 105AZ053 | 104AZ065 | 105AZ054 | 105AZ066 | 105AZ055 | 105AZ086 | 105AZ092 |
 |  |  |  |  |  |  |  |  |  | |
| No. of Contacts | 2 | 4 | 2+2 | 5 | 6 | 7 | 8 | 1+8 | 16 | 19 |
| Contact Φ (mm) | 2.0 | 2.0 | 2.0 | 3.0 | 0.9 | 2.0 / 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| Cable Ø (mm) | 2.5 | 3.7 | 4.5 | 4.5 | 4.9 | 4.9 | 6.0 | 7.5 | 9.0 | 9.0 |
| Description | Miniature plastic circular connector receptacle | Plastic Panel Mount Socket | Hybrid plastic electrical connector receptacle (signal + power) | Miniature plastic circular connector | High-density plastic connector receptacle | mixed-contact plastic electrical connector receptacle receptacle | Miniature plastic electrical connector | Multi-pin Plastic quick connect receptacles | High-contact plastic circular connector | High-density miniature connector receptacle |
| Application | Medical diagnostic devices, sensor modules, lab instruments | Portable analyzers, signal control systems, indoor testing equipment | Medical equipment, multi-signal control systems, light industrial devices | Monitoring devices, instrument control panels, industrial automation modules | Data acquisition units, communication terminals, embedded control systems | Hybrid medical devices, diagnostic instruments, portable equipment | Industrial control systems, lab automation devices, communication modules | Complex medical analyzers, multi-signal testing systems, data interfaces | Robotic control units, communication hubs, instrument clusters | High-end medical devices, multi-channel communication systems, complex signal networks |
Why Choose LINKHIVE PC.2A.G5 Connectors?
Full Compatibility
Seamlessly compatible with PC Series connectors, allowing easy replacement and integration.
Medical & Industrial Grade
Designed for medical diagnostic equipment, lab automation, communication terminals, and precision control systems.
High-Density & Hybrid Solutions for Plastic Panel Mount Socket
Options for signal-only or hybrid power-signal contacts to meet multi-functional device needs.
Durability & Reliability of Plastic quick connect receptacles
Engineered for repeated mating cycles, ensuring stable electrical performance in demanding environments.
Customizable Configurations for Plastic connector receptacle
Available in keyed, panel-mount, and quick-connect styles with flexible contact counts for tailored applications.
Fast Delivery & Ample Stock for Plastic connector receptacle
2-week lead time with robust inventory support for urgent project timelines.
