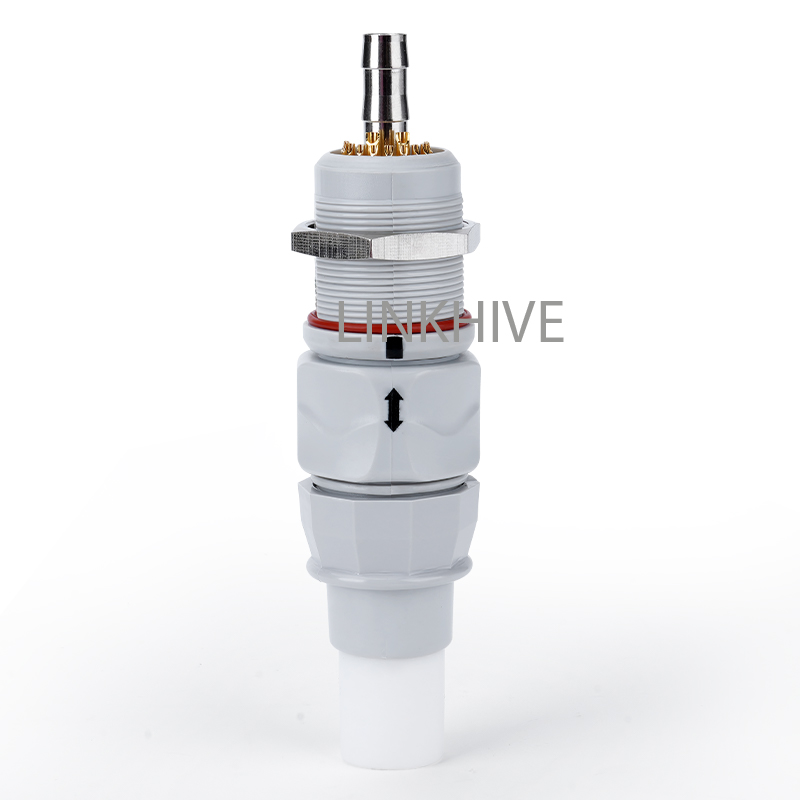

EGG 4P Plastic Hermetic Pneumatic Circular Socket With Fluidic Flow
Designed to meet the demands of modern medical and laboratory applications, this 4P plastic hermetic receptacle offers reliable fluidic and pneumatic performance in a compact circular form. The socket integrates 4 positions for fluid or air lines, allowing efficient multi-channel transmission without compromise on sealing integrity.
Manufactured using high-performance medical-grade materials, it is resistant to autoclaving, ETO, and gamma sterilization. Its push-pull locking system allows quick and secure mating, while color coding and mechanical keying prevent mismating during operation.
EGG 4P Plastic Hermetic Pneumatic Circular Socket Overview
| Plastic Connector | fixed socket |
|  |
| FGG Plastic plug | EGG |
 |  |
| FGG plastic plug | EGG |
| Fluidic configuration | |
Technical Features
Connector Type: Push Pull, circular
Contact Type: Multipole / Hybrid / Coaxial / Fluidic
Number of Channels: 4P (up to 4 fluid or pneumatic lines)
Ingress Protection: IP50 / IP64 (Splash proof)
Operating Environment: Indoor use
Temperature Range: -50°C to +150°C (PPSU material)
Termination Style: Solder or Crimp
Cable Diameter Compatibility: 8.5 mm to 11.2 mm
Key Features
Integrated Electrical & Fluidic Transmission – Combines electrical signal contacts with pneumatic channels in one circular plastic socket, reducing interface count and simplifying device design.
Hermetic Sealing – Designed with plastic hermetic receptacles, ensuring leak-free fluid flow and stable electrical performance in demanding environments.
Lightweight & Durable – Plastic pneumatic sockets provide significant weight reduction compared to metal connectors while maintaining high durability.
Modular Configuration – Supports multiple pin and fluidic flow combinations for customized solutions.
Quick & Secure Mating – Self-locking mechanism allows easy, fast connection and disconnection with high reliability.
Applications
This plastic socket with fluidic flow is ideal for medical devices
Dental systems, endoscopic equipment,
Patient monitoring, and other fluid-handling systems where sterility and compactness are essential.
Medical instruments (fluid management, blood pressure tubing, ECG)
Pneumatic and gas sampling devices
Coaxial signal + fluid hybrid applications
Laboratory equipment and diagnostic analyzers
Whether you're routing coaxial cable signals or delivering fluids through a controlled environment, the FGG 4P Plastic Push Pull Connector ensures long-term, sterile, and secure performance.

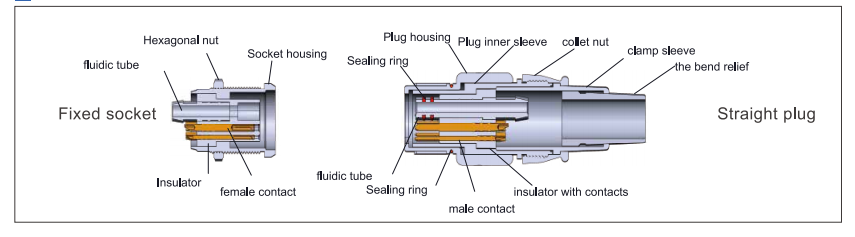

Diamensions
 |
|
How to Select the Right EGG 4P Plastic Pneumatic Socket
When selecting plastic hermetic receptacles for combined fluidic and electrical applications, consider:
Plastic socket Contact Configuration
Define the number of electrical contacts and fluidic tubes (e.g., 13+1 or 9+2 combinations) based on your device requirements.
Plastic socket Fluidic Tube Dimensions
Choose OD/ID (e.g., Ø0.8–Ø1.5mm or Ø0.4–Ø1.2mm) according to your fluid transfer needs.
Application Environment of hermetic receptacle
Select hermetic models with enhanced sealing for medical environments, ensuring resistance to cleaning agents, moisture, and sterilization processes.
Mounting Style of pneumatic socket
Low-profile connector receptacles for compact designs or panel-mounted versions for fixed installations.
Compliance & Reliability
Ensure the connector meets ISO 13485 (medical devices) and passes air-tightness & mechanical cycling tests for long-term reliability.
Use the selection table below to match pin layout, fluidic tube diameter, and application type to find your ideal connector.
| Model | Socket Contacts | Contact Ø (mm) | Socket Fluidic Tube | Type | Description | Application | |
|---|---|---|---|---|---|---|---|

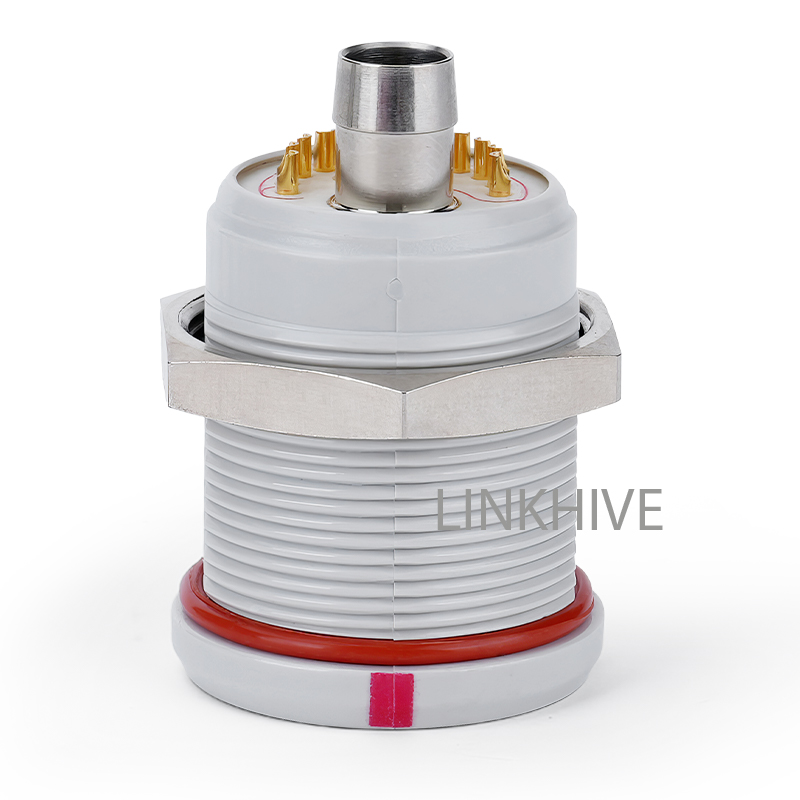

 | EGG.4P.113.UGLL.J | 13 contacts + 1 fluidic tube | 0.9 – 1.3 | OD 8.0mm / ID 6.0mm | 13+1 plastic pneumatic socket | Plastic hermetic circular socket with pneumatic flow, compact size, suitable for medical connectors and field applications | plastic socket Used in medical devices, portable testing equipment, and industrial automation |

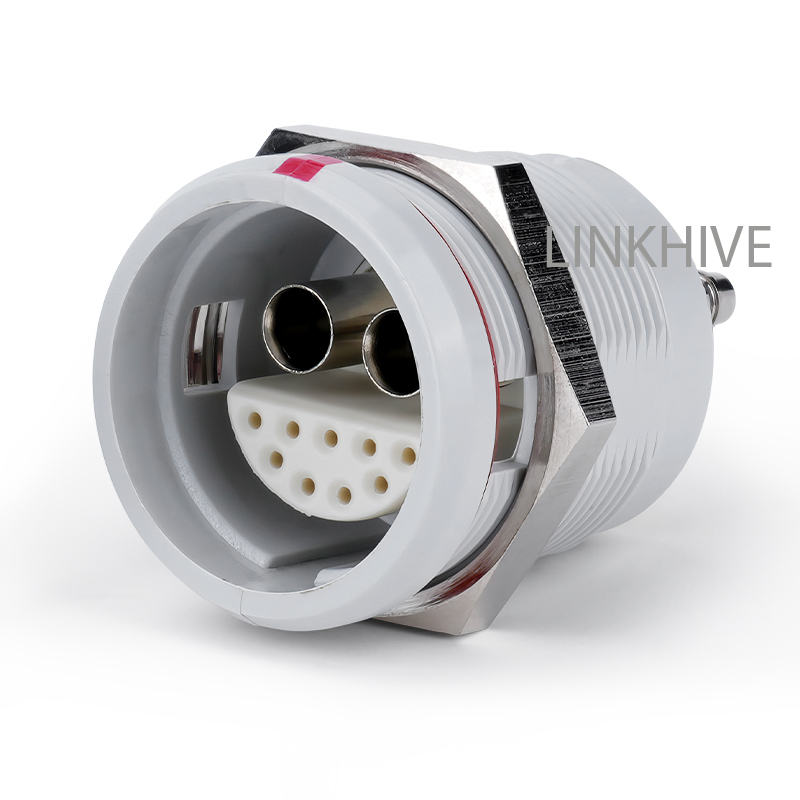

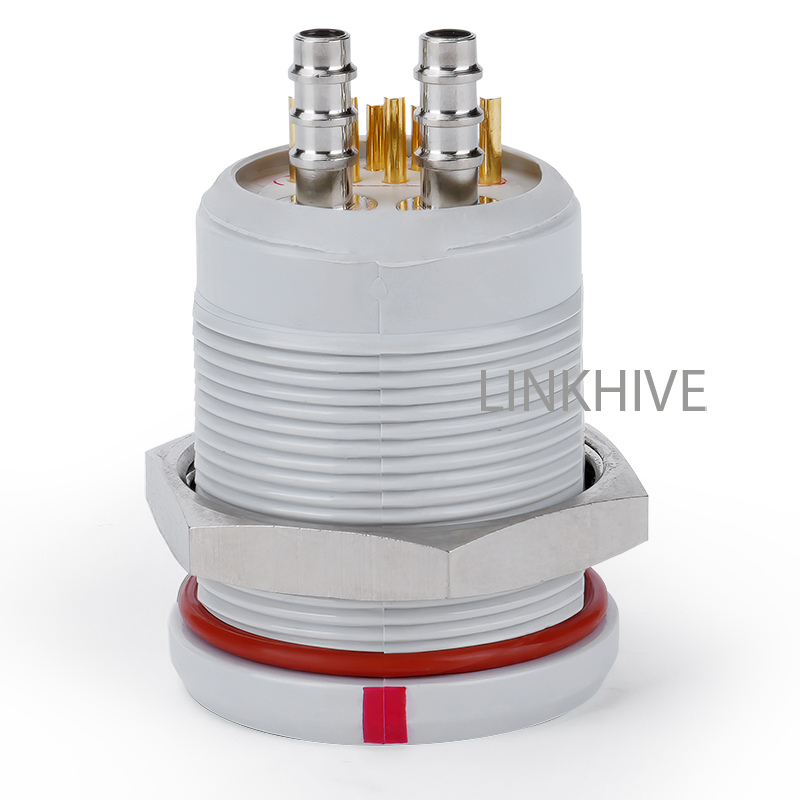

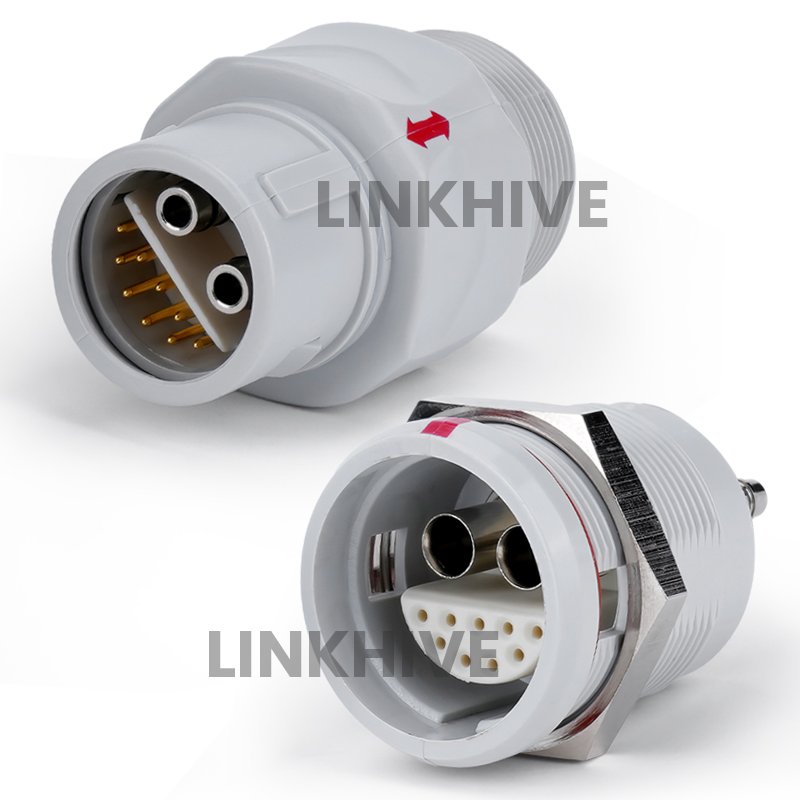

  | EGG.4P.209.UGLL.J | 9 contacts + 2 fluidic tubes | 0.9 | OD 4.0mm / ID 2.5mm | 9+2 plastic pneumatic socket | Ruggedized plastic socket with dual fluidic channels for high-reliability pneumatic and signal transmission | plastic socket Ideal for pneumatic control systems, instrumentation, and fluidic communication setups |
Expertise in Fluidic + Electrical Integration – Specialized in pneumatic and electrical hybrid connectors for complex medical and industrial systems.
Custom Engineering Solutions of medical connectors– Full customization for contact layout, fluidic tube dimensions, and material selection.
Reliable Performance of medical connectors – All connectors undergo rigorous hermetic sealing, durability, and cycling tests to ensure safety in critical applications.
Fast Delivery & Global Support of medical connectors– Two-week lead time and technical support for seamless integration into your systems.

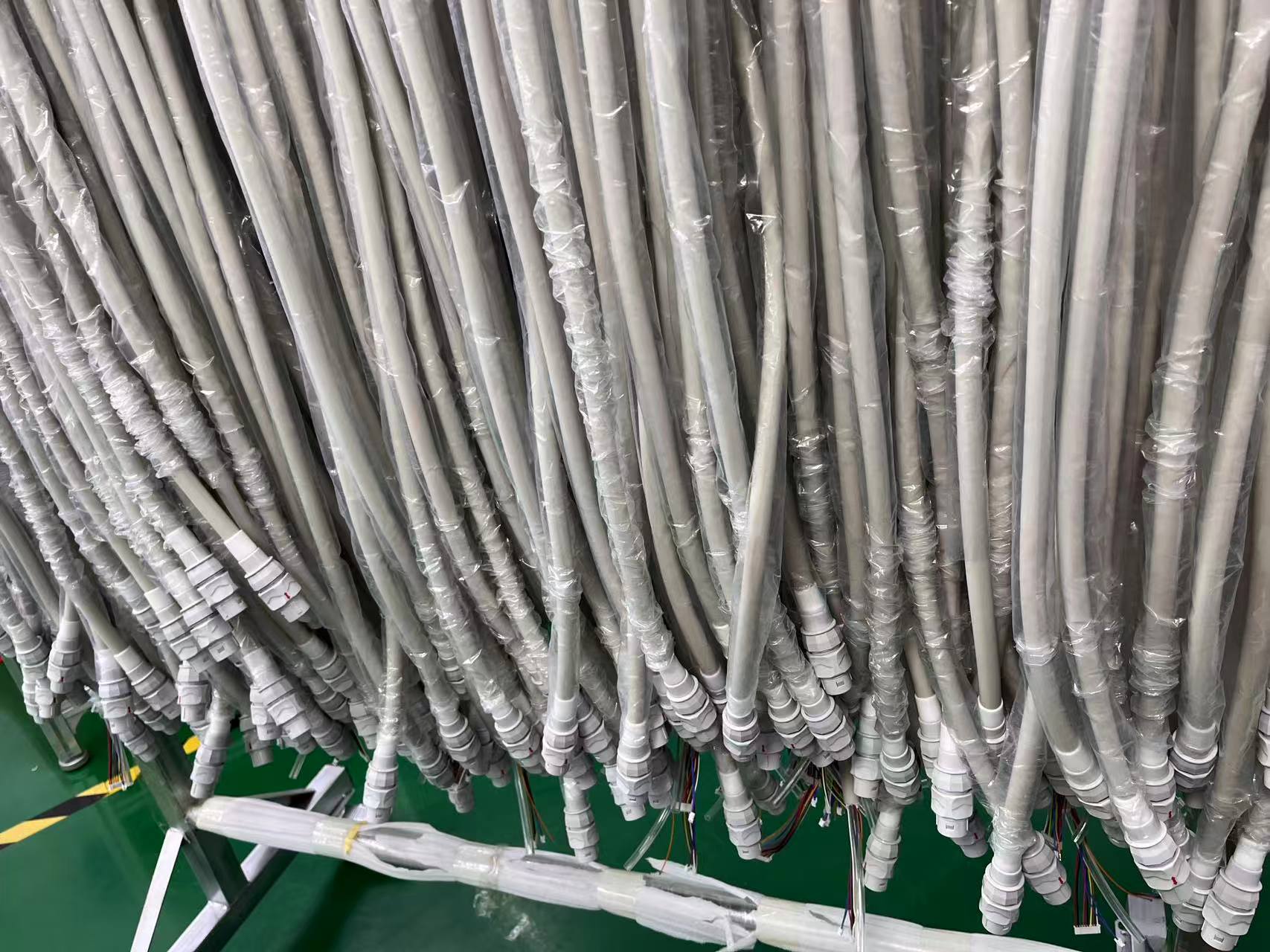

Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.

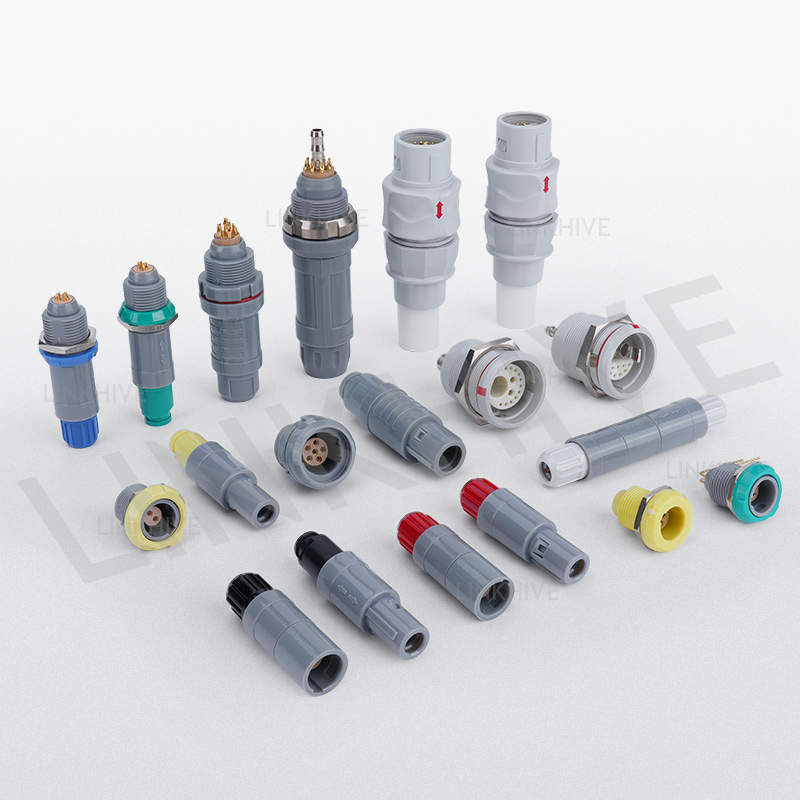

LINKHIVE's circular plastic push pull connectors offer a reliable and lightweight solution for demanding applications in medical, diagnostic, and industrial equipment. Designed with a robust self-latching mechanism, these plastic connectors ensure safe and secure connections while allowing quick and effortless disconnection. The housings are made from high-performance thermoplastic materials, providing excellent resistance to sterilization, chemicals, and mechanical stress. Available in multiple sizes, color codes, and contact layouts, our plastic push pull connectors are ideal for applications requiring frequent mating cycles and uncompromised electrical or fluidic performance. A trusted choice for modern circular plastic connectors and laboratory systems.
