W 108 8+1 Underwater Fluidic/Pneumatic circular connectors
Hybrid underwater fluidic circular connector and low-voltage design for extreme environments

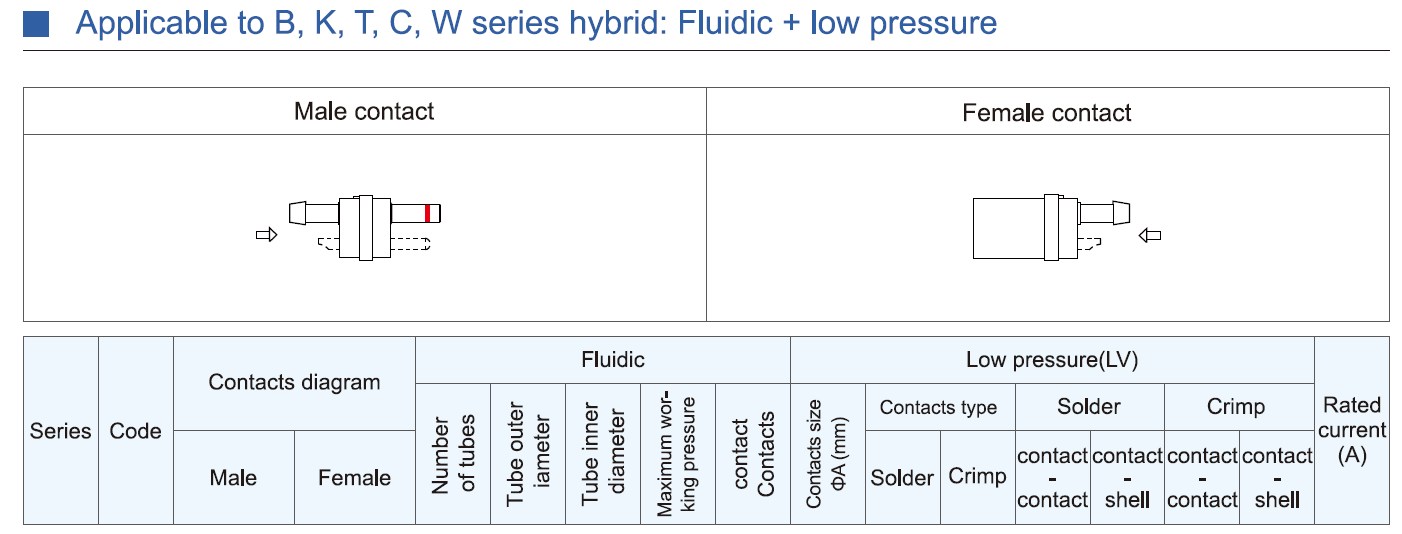

The W 108 8+1 Underwater Fluidic/Pneumatic circular connectors is a high-performance machinery connector designed for underwater, marine, and industrial environments where fluidic transmission and low-voltage signaling must coexist in one compact interface. As part of the hybrid series applicable to B, K, T, C, and W connector types, this solution provides seamless integration for demanding systems.
The connector includes one dedicated fluidic tube channel, making it ideal for pneumatic or hydraulic applications under low to medium pressure.
Tube outer diameter: 6.0 mm
Tube inner diameter: 4.0 mm
Maximum working pressure: 6 bar
Engineered for reliability, this underwater fluidic circular connector is validated through repeated pressure cycling tests and leak tests under submerged conditions. It is capable of handling real-time fluid or gas transfer underwater without failure.

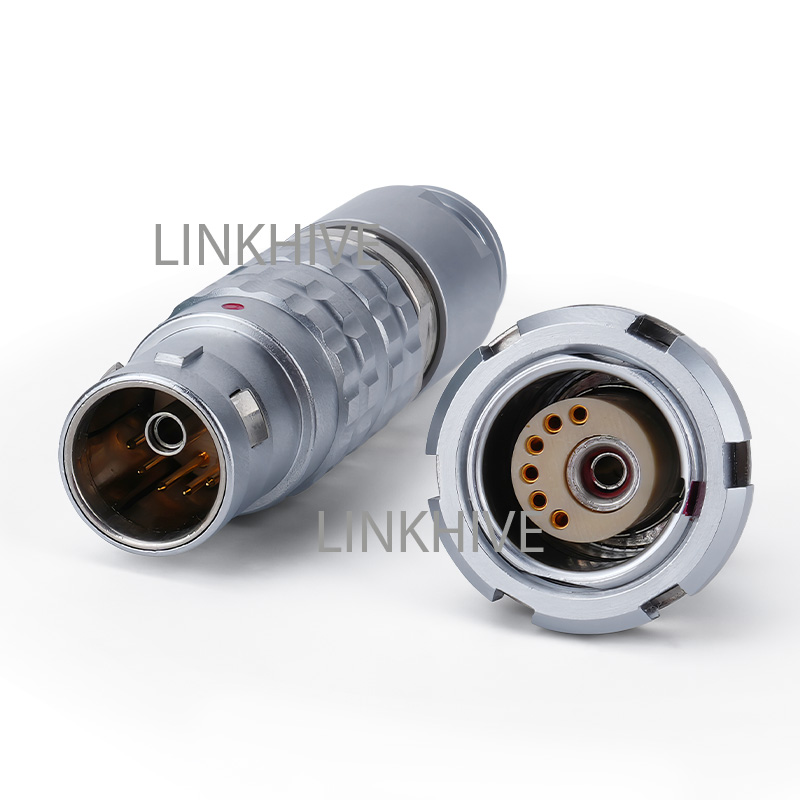

W 108 8+1 Underwater Fluidic/Pneumatic circular connectors inserts

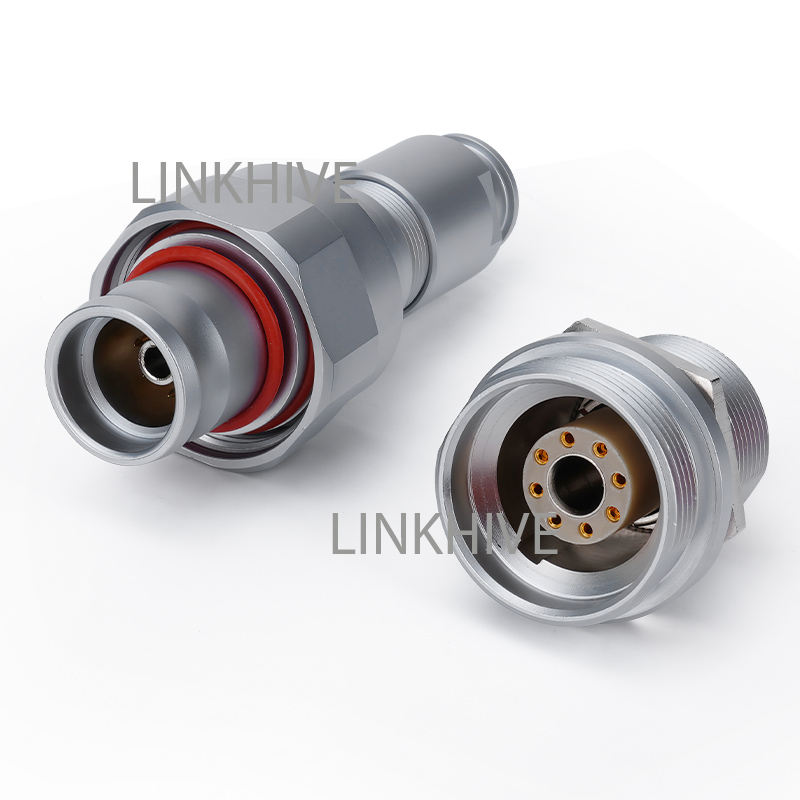

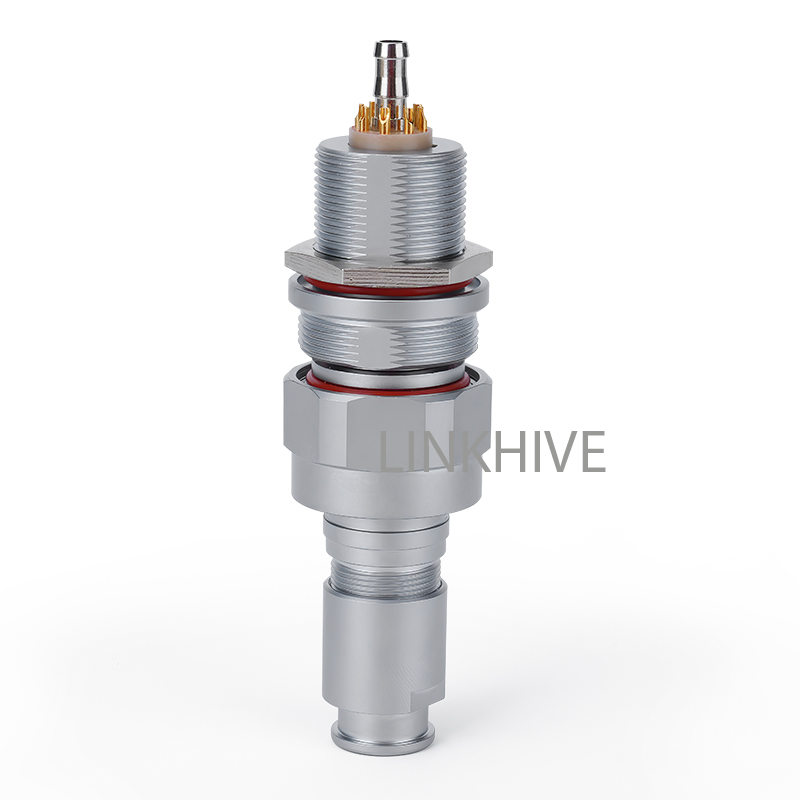

W 108 8+1 Underwater Fluidic/Pneumatic circular connectors

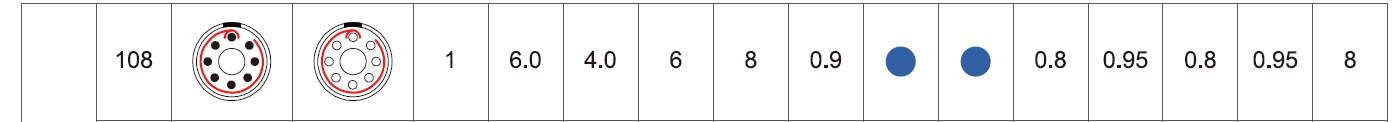

This hybrid connector contains 8 low-voltage contacts, all of which support soldering or crimp termination.
Contact size: 0.9 mm
Rated current: 8 A per contact
Insulation clearance:
Contact-to-contact: 0.8 mm
Contact-to-shell: 0.95 mm
Whether used in instrumentation, communication, or power circuits, the electrical portion of the machinery connector ensures uninterrupted signal integrity even in dynamic or vibration-heavy environments.
For enhanced control, the W 108 8+1 Underwater Fluidic/Pneumatic circular connectors supports shut-off valve configurations, allowing fluid flow to be automatically blocked upon disconnection. This prevents backflow and contamination during underwater maintenance or hot-swap operations.
Max airflow: 210 L/min
Max water flow: 4.2 L/min
This makes it an ideal solution not only for instrumentation panels but also for connectors for marine and underwater applications where rapid connection/disconnection without leaks is critical.
The underwater fluidic circular connector is widely used in:
Underwater drones and ROVs (Remotely Operated Vehicles)
Deep-sea scientific equipment
Submersible pumps and actuators
Shipboard pneumatic systems
Oil and gas inspection probes
Industrial robotics with combined air/electric tools
All these fields benefit from the durable screw-lock mechanism that ensures high retention force. As a result, the High water pressure screw locking connectors format supports extreme operating conditions without compromising sealing or electrical safety.

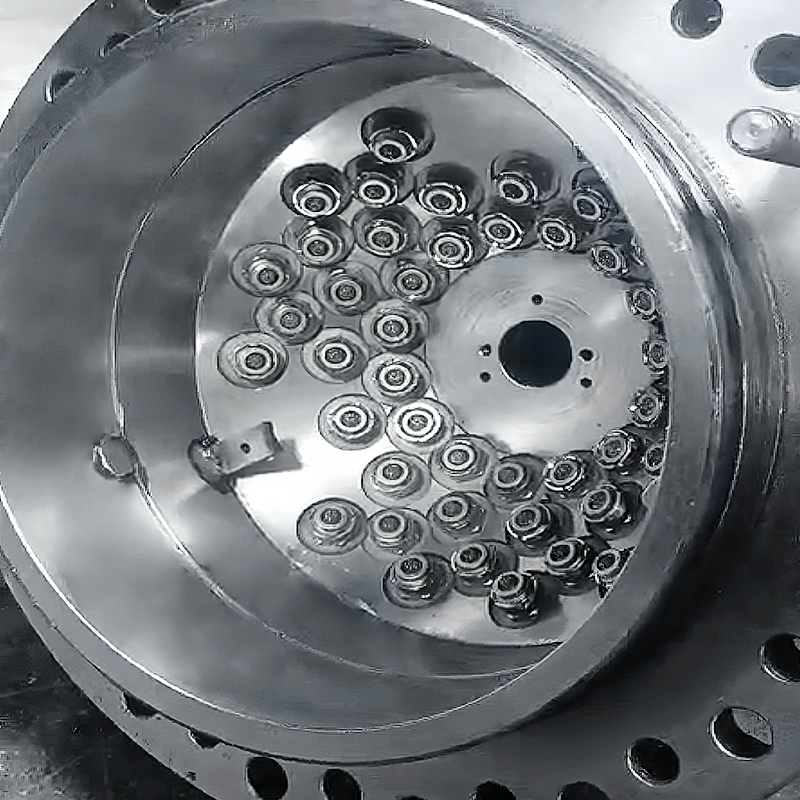

Marine-Grade W Series Connectors for Buoy and Underwater Systems
Marine Buoy Systems

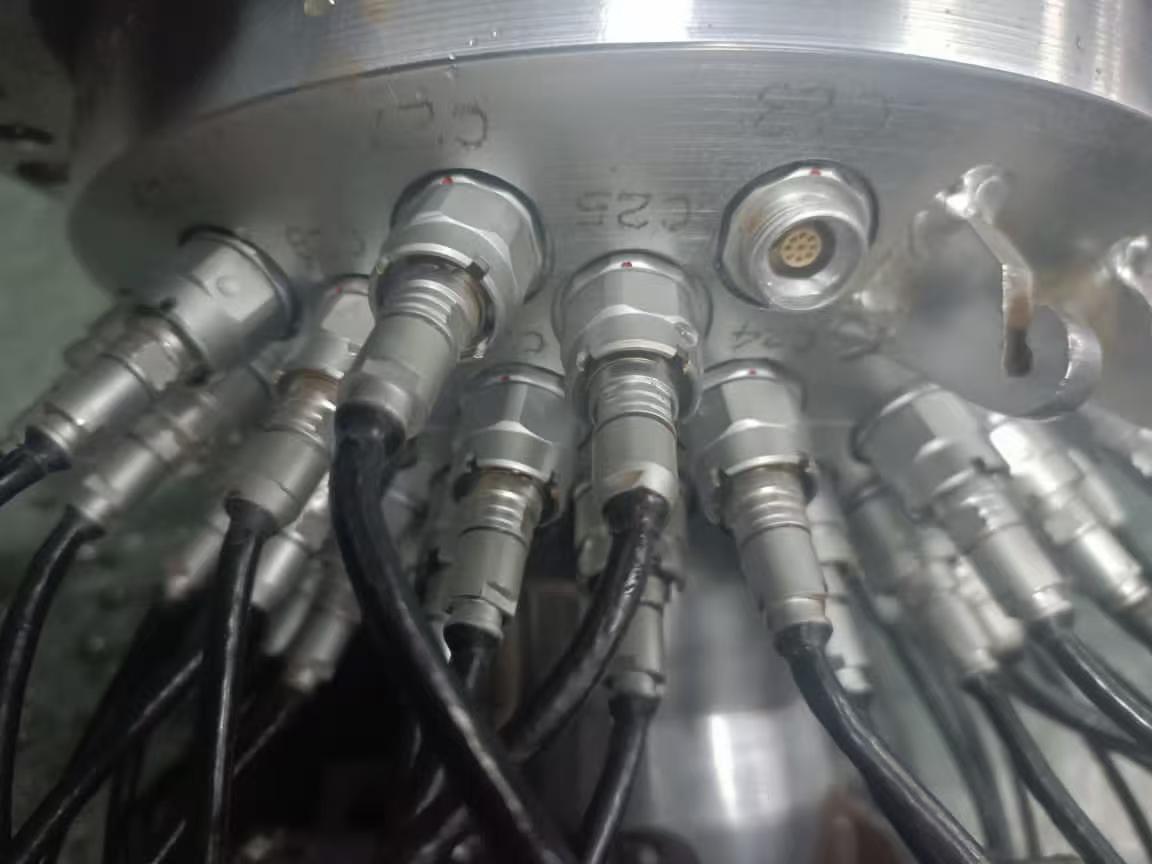

Underwater Sensor Arrays
Key Benefits
✅ Compact hybrid design: 8 electric + 1 fluidic
✅ Screw-locking mechanism for high-pressure environments
✅ Leak-proof fluidic transmission at 6-bar underwater
✅ Multiple series compatibility (B, K, T, C, W)
✅ Solder and crimp-ready terminals
✅ Support for shut-off valves (up to 210 L/min airflow)
Thanks to its design versatility and pressure performance, the W 108 8+1 Underwater Fluidic/Pneumatic circular connectors continues to set the standard among machinery connectors used in harsh outdoor and underwater environments.

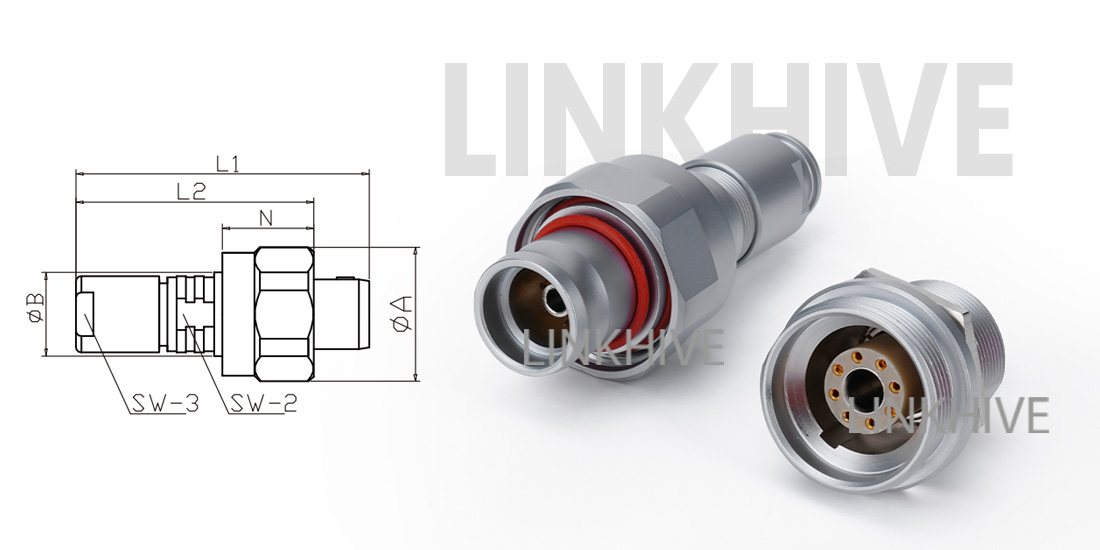

Dimensions(MM)
| Ref. | Dimensions(MM) | |||||||
| series | model | A | B | L1 | L2 | N | SW2 | SW3 |
| 0W | TVG | 17.2 | 10 | 36 | 30.8 | 16 10 | 8 | 8 |
| 1W | TVG | 19.3 | 12 | 43.2 | 35.1 | 18 | 9 | 10 |
| 2W | TVG | 23.5 | 16 | 52.5 | 43 | 22 | 12 | 13 |
| 3W | TVG | 27.5 | 17 | 61.5 | 48 | 26 | 15 | |
Available in panel-mount, inline plug, or cable-receptacle configurations, these connectors for marine and underwater tasks can be customized to meet application-specific needs, such as:
Custom fluid tube sizes (4–6 mm)
Color-coded electrical contacts
Metal or composite housings
Waterproof IP68-rated overmolding
This modular flexibility ensures that the underwater fluidic circular connector can be integrated into both legacy systems and cutting-edge designs.
the W 108 8+1 Underwater Fluidic/Pneumatic circular connectors is a powerful solution for industries requiring hybrid data and fluid transmission in rugged conditions. Whether it’s industrial automation, marine robotics, or field instrumentation, this connector meets performance expectations across multiple fronts.
By combining the robust sealing of High water pressure screw locking connectors, the versatility of hybrid contact layouts, and field-proven endurance in wet, underwater applications, it redefines what a modern machinery connector can achieve.
