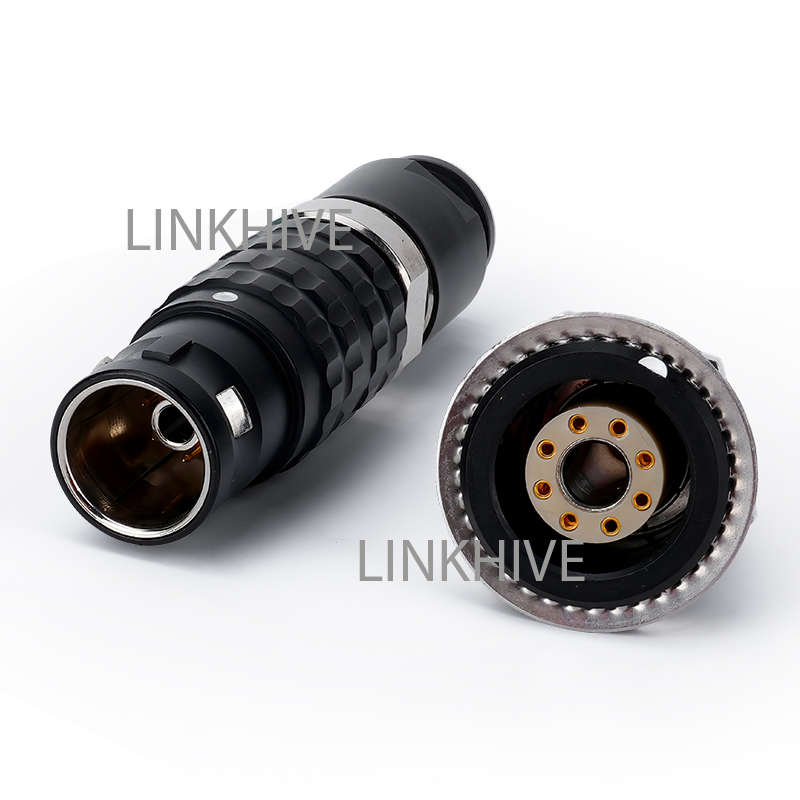

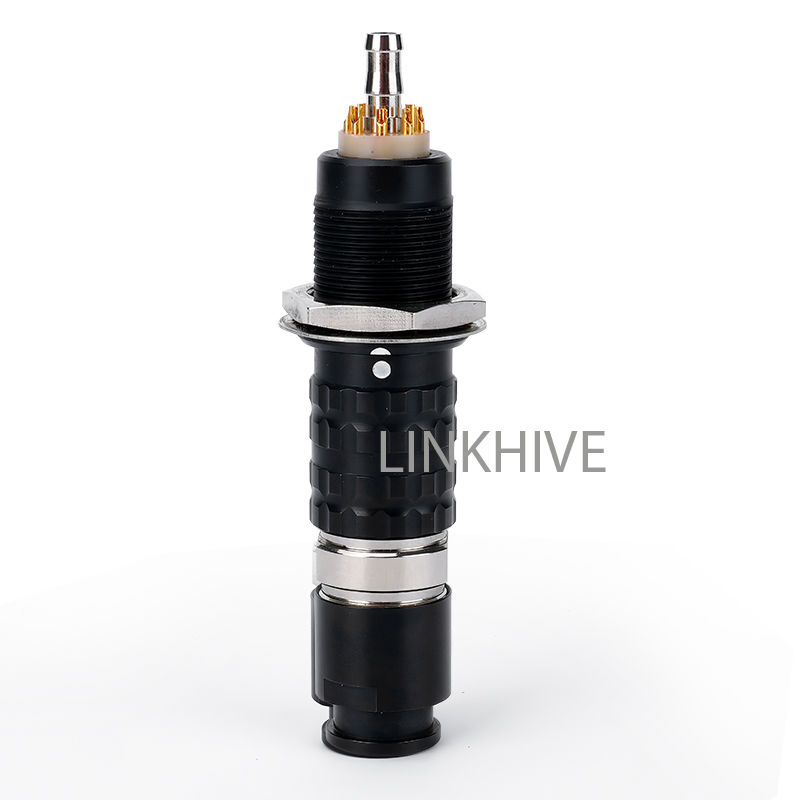

FGG B108 8+1 Fluidic / Pneumatic Circular Push Pull Connectors are designed for applications requiring integrated electrical and fluidic transmission in one compact solution. Featuring 8 power/signal contacts and 1 fluidic channel, these fluidic circular connectors deliver reliable performance for industrial machinery, mixed control equipment, and other complex systems. The push-pull locking mechanism ensures quick and secure mating, while the robust metal housing provides excellent resistance to mechanical stress and environmental challenges. With IP-rated sealing, these pneumatic circular connectors are suitable for demanding conditions where durability and leak-proof performance are critical. Designed for high efficiency and space-saving installations, they help reduce system complexity by combining multiple functions into a single connector. Ideal for applications requiring frequent connections, these hybrid push pull connectors are manufactured under strict quality standards, ensuring stable performance and long service life.
Main Features and Advantages
Secure push-pull self-locking system
Pneumatic and hybrid pin configurations available
3B108 8+1 insulator(8+1 fluidic circular connector):8 low-voltage electrical contacts+1 fluidic/pneumatic tube (2.5*4)
Options for solder or crimped contacts
360° shielding providing comprehensive EMC protection (anti-electromagnetic interference)
Multiple keying options to avoid cross-mating between connectors
High-density installation, space-saving
The "G" keying provides standard alignment

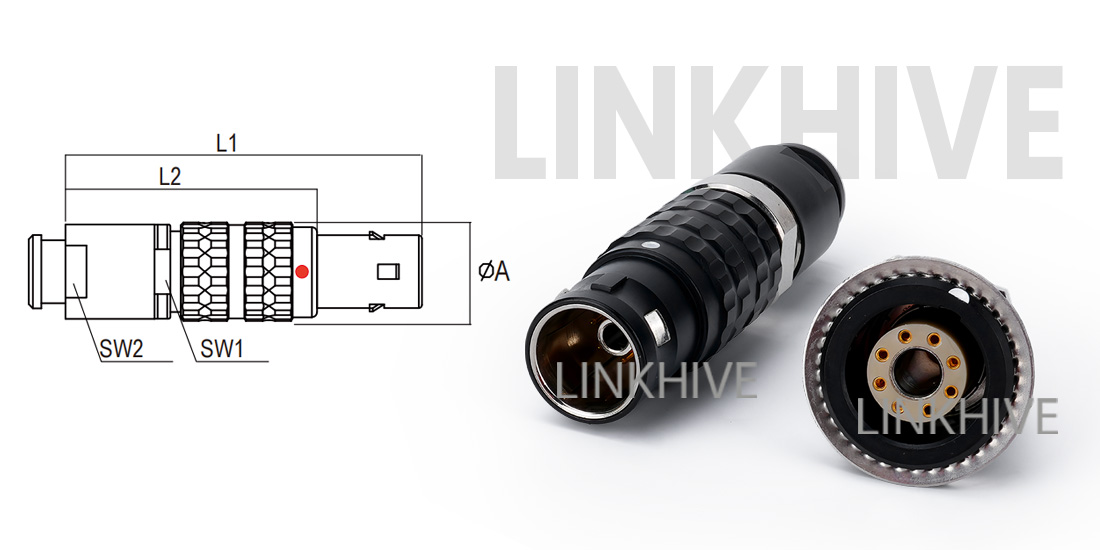

TGG Straight plug, key (G) or k keys (A---M),cable collet and nut for fitting a bend relief
Dimensions
| Reference | Dimensions (mm) | |||||
| Series | Model | A | L1 | L2 | SW1 | SW2 |
| 00B | TGG | 6.5 | 27 | 19 | 5 | 5 |
| 0B | TGG | 9.5 | 35 | 25 | 8 | 7 |
| 1B | TGG | 12 | 42 | 31 | 10 | 9 |
| 2B | TGG | 15 | 48 | 36 | 13 | 13 |
| 3B | TGG | 18 | 58 | 43 | 16 | 15 |
| 4B | TGG | 25 | 74 | 56 | 21 | 20 |
| 5B | TGG | 35 | 103 | 78 | 31 | 30 |
Technical Characteristics
| Technical Characteristics:Mechanical and Climatical | ||||
| Characteristics | value | Characteris | value | |
| Endurance | >5000 cycles | Climatical Category | 55/175/21 | |
| Humidity | up to 95%at 60℃ | Insulation resistance | ≥1000Ω | |
| Temprature Range | -55℃/+250℃ | shielding efficiency | at 10MHz | >75 dB |
| Resistance to vibrations | 10-2000Hz,15g | at 1GHz | >40 dB | |
| Shock Resistance | 100g,6ms | Note:the varies tests have been carried our with TGG and ZGG connectors pairs,with chrome-plated brass shelland PEEK insulater. | ||
| Salt Spray Corrosion test | >144h | |||
| Protection Index(mated) | IP50 | |||
High Reliability – Designed for long service life and consistent performance.
IP-rated Protection – Excellent sealing to withstand demanding environments.
Precision Engineering – Ensures low contact resistance and stable connection.
Strict QC – 100% tested for continuity, sealing, and mechanical endurance.
Trusted Brand – LINKHIVE delivers reliable interconnect solutions for global industries.
Customization Options – Flexible contact layouts, sizes, and housing materials available.
Fast Lead Time – 2-week production with ample stock for urgent needs.
Comprehensive Support – Technical guidance and after-sales service for seamless integration.
Hybrid Fluidic Connector Specs
| Series | Insert | Code | Fluidic Tube Inner Ø (mm) | Tube Ø Outer (mm) | Max Pressure (MPa) | Rated Current (A) |
| 1B / 1K |  | 102 | 3 | 1.8 | 0.7 | 3 |
| 2B / 2K |  | 104 | 3 | 1.8 | 0.7 | 6 |
| 2B / 2K |  | 106 | 3 | 1.8 | 0.7 | 6 |
| 2B / 2K |  | 110 | 3 | 1.8 | 0.7 | 6 |
| 3B / 3K |  | 108 | 3 | 1.8 | 0.7 | 7 |
| 3B / 3K |  | 113 | 3 | 1.8 | 0.7 | 7 |
| 3B / 3K |  | 206 | 3 | 1.8 | 0.7 | 8 |
| 3B / 3K |  | 118 | 3 | 1.8 | 0.7 | 8 |
| 4B / 4K |  | P410 | 3 | 1.8 | 0.7 | 9 |
| 4B / 4K |  | P33 | 3 | 1.8 | 0.7 | 9 |
Hybrid Coaxial Connector Specs
| Series | Inserts | Code | Impedance (Ω) | Cable Set | Contacts | Contact Ø (mm) | Test Voltage (KV rms) | Test Voltage (KV dc) | Rated Current (A) |
| 2B / 2K |  | 806 | 50 | 2001/2/3 | 6 | 0.7 | 0.75 | 1.05 | 7 |
| 2B / 2K |  | 810 | 50 | 2001/2/3 | 10 | 0.7 | 0.95 | 1.35 | 7 |
| 3B / 3K |  | 808 | 50 | 2001/2/3 | 8 | 0.9 | 1 | 1.5 | 8 |
| 3B / 3K |  | 813 | 50 | 2001/2/3 | 13 | 0.9 | 0.9 | 1.3 | 7 |
| 3B / 3K |  | 906 | 50 | 2001/2/3 | 6 | 0.9 | 0.9 | 1.3 | 10 |
