FGG Ip68 3K 110 10+1 Pneumatic/Fluidic Circular Connector

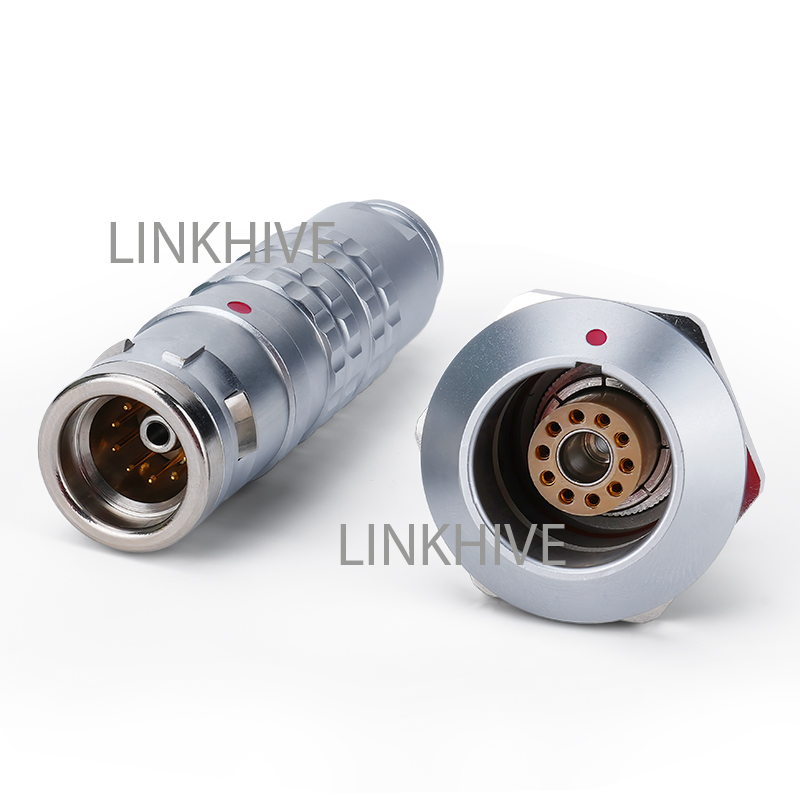

The FGG IP68 3K 110 10+1 Pneumatic Solution Push Pull Connector is designed to provide high-performance, reliable connections for applications where both electrical signals and fluidic systems are critical. Featuring the advanced 3K 10+1 fluidic circular connector configuration, this Push Pull Connector is ideal for industries requiring the simultaneous transmission of liquids, gases, and electrical signals. Whether in medical devices, industrial equipment, or beauty systems, the circular connector for beauty devices ensures seamless integration of power, signal, and fluid transfer in a single connector.
With 10 low-voltage electrical contacts and 1 pneumatic tube, the 3K 10+1 fluidic circular connector is versatile and designed to meet the diverse needs of modern applications. Its IP68 rating ensures waterproof protection, making the Push Pull Connector suitable for even the harshest environmental condition
💆♀️ Skin rejuvenation & facial therapy devices
🦷 Dental suction & air-polishing handpieces
🧪 Medical diagnostic and lab equipment
🤖 Compact fluidic control units in automation
Main Features and Advantages
Secure push-pull self-locking system
Pneumatic and hybrid pin configurations available
It integrates 10 low-voltage electrical contacts and 1 pneumatic tube
Waterproof connections (IP50/IP68)
Options for solder or crimped contacts
360° shielding providing comprehensive EMC protection (anti-electromagnetic interference)
Multiple keying options to avoid cross-mating between connectors
High-density installation, space-saving
he "G" keying provides standard alignment
Diamensions(mm)

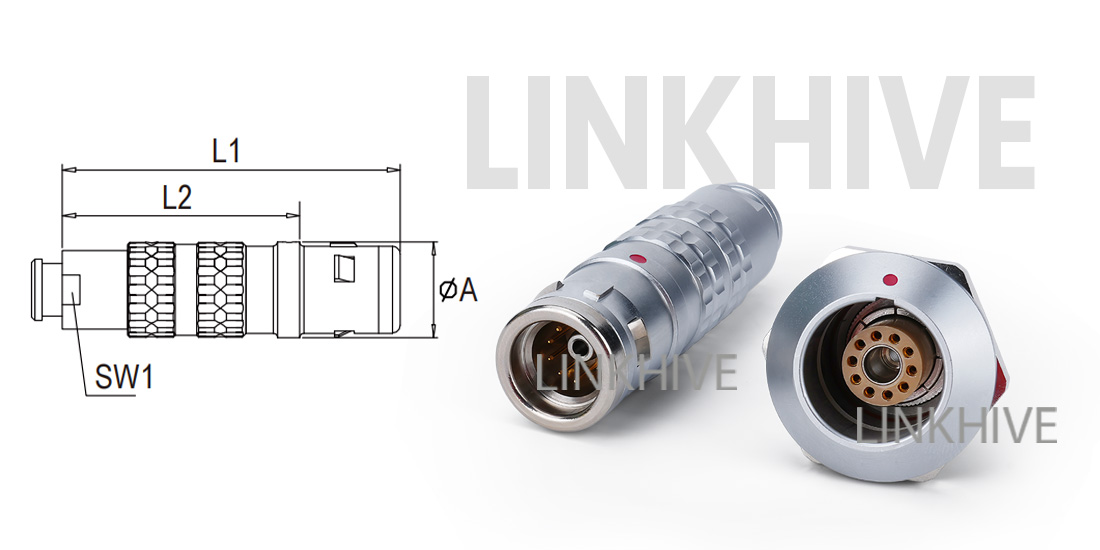

TGG Straight plug, key (G) or keys (A..M),cable collet and nut for fitting a bend relief
| Reference | Diamensions(mm) | ||||
| series | model | A | L1 | L2 | SW1 |
| 0K | TGG | 11 | 36 | 25 | 7 |
| 1K | TGG | 13 | 42 | 28 | 9 |
| 2K | TGG | 16 | 52 | 36 | 13 |
| 3K | TGG | 19 | 61 | 41 | 15 |
| 4K | TGG | 25 | 71 | 50.5 | 19 |
When choosing the FGG IP68 3K 110 10+1 Fluidic Pneumatic Circular Connector:
Environment – Select IP68-rated for waterproof, high-humidity, or fluidic applications.
Configuration – Choose 10 electrical contacts + 1 fluidic channel for combined power, signal, and pneumatic needs.
Locking – Opt for push-pull connectors for secure and quick mating.
Application – Ideal for medical devices, automation, and beauty equipment requiring hybrid connections.
IP68 Sealing – Ensures long-term reliability in wet and harsh conditions.
Hybrid Integration – Power, signal, and fluidic in one connector.
Push-Pull Safety – Fast, secure connections with minimal effort.
Durable Housing – High-quality metal shell for extended service life.
Customizable – Flexible contact & fluidic layouts for specific needs.
Hybrid Fluidic Connector Specs
| Series | Insert | Code | Fluidic Tube Inner Ø (mm) | Tube Ø Outer (mm) | Max Pressure (MPa) | Rated Current (A) |
| 1B / 1K |  | 102 | 3 | 1.8 | 0.7 | 3 |
| 2B / 2K |  | 104 | 3 | 1.8 | 0.7 | 6 |
| 2B / 2K |  | 106 | 3 | 1.8 | 0.7 | 6 |
| 2B / 2K |  | 110 | 3 | 1.8 | 0.7 | 6 |
| 3B / 3K |  | 108 | 3 | 1.8 | 0.7 | 7 |
| 3B / 3K |  | 113 | 3 | 1.8 | 0.7 | 7 |
| 3B / 3K |  | 206 | 3 | 1.8 | 0.7 | 8 |
| 3B / 3K |  | 118 | 3 | 1.8 | 0.7 | 8 |
| 4B / 4K |  | P410 | 3 | 1.8 | 0.7 | 9 |
| 4B / 4K |  | P33 | 3 | 1.8 | 0.7 | 9 |
Hybrid Coaxial Connector Specs
| Series | Inserts | Code | Impedance (Ω) | Cable Set | Contacts | Contact Ø (mm) | Test Voltage (KV rms) | Test Voltage (KV dc) | Rated Current (A) |
| 2B / 2K |  | 806 | 50 | 2001/2/3 | 6 | 0.7 | 0.75 | 1.05 | 7 |
| 2B / 2K |  | 810 | 50 | 2001/2/3 | 10 | 0.7 | 0.95 | 1.35 | 7 |
| 3B / 3K |  | 808 | 50 | 2001/2/3 | 8 | 0.9 | 1 | 1.5 | 8 |
| 3B / 3K |  | 813 | 50 | 2001/2/3 | 13 | 0.9 | 0.9 | 1.3 | 7 |
| 3B / 3K |  | 906 | 50 | 2001/2/3 | 6 | 0.9 | 0.9 | 1.3 | 10 |
