Transmit liquids, gases, and electrical signals effortlessly with LINKHIVE’s high-quality Push-Pull Fluidic Circular Connectors. Designed for precision, reliability, and ease of use, these fluidic circular connectors are ideal for medical cable assembly manufacturers, laboratory systems, and industrial environments where fast, secure connections are essential.
LINKHIVE’s fluidic circular connectors are engineered for hybrid connectors applications requiring compact transmission of electrical and fluidic signals. The FGG 3B 106 6+1 model offers a combined layout of 6 electrical contacts + 1 fluidic port—making it one of the most versatile hybrid connectors available to medical cable assembly manufacturers and automation engineers alike.
This circular hybrid connectors with shut-off valves allows safe, leak-free disconnectio of liquids and gases—an essential requirement for sensitive equipment used in operating rooms, ICUs, and diagnostics.

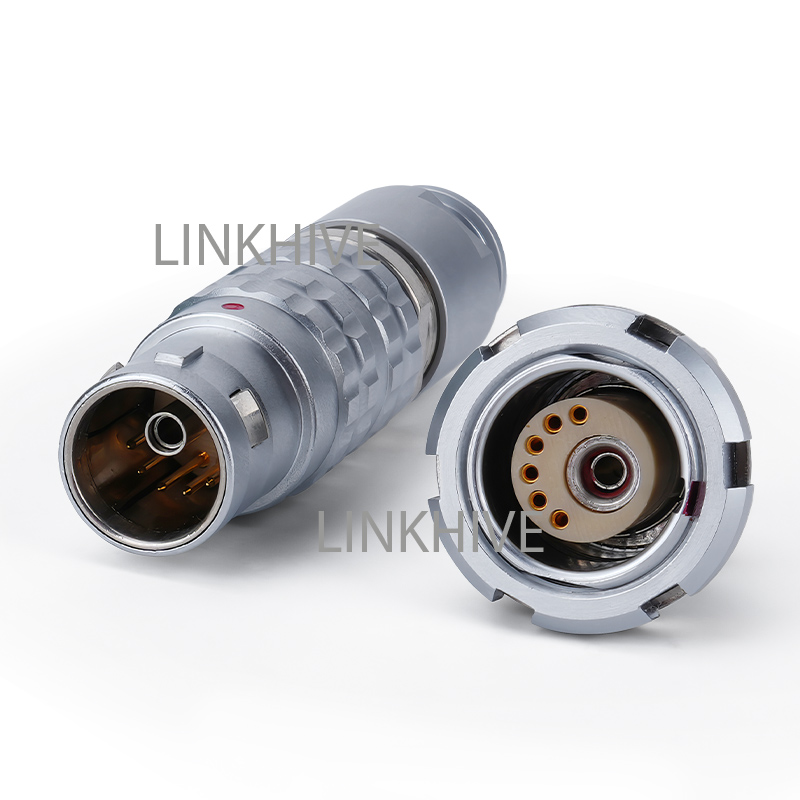

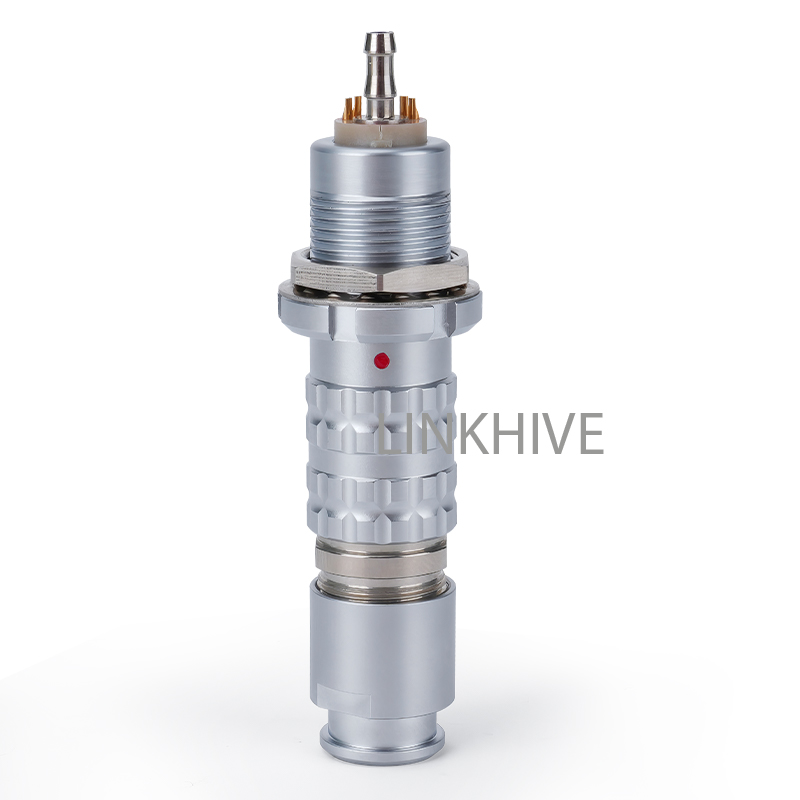

FGG 3B 106 6+1 Hybrid Connector with Shut-Off Valve
• Transmits electrical signals and fluids in one compact housing
• Integrated shut-off valves prevent leakage during unmating
• Designed specifically for medical cable assembly manufacturers
• Fully compatible with waterproof and sealed configurations
Both FGG 3B 106 6+1 Hybrid Connector models are equipped with LINKHIVE’s Push-Pull locking system, ensuring a fast and secure connection. This reduces setup time and minimizes risk during maintenance—especially important in clinical and lab environments where hybrid connectors must perform under sterile conditions.
LINKHIVE’s fluidic circular connectors FGG 3B106 6+1 fluidic circular connectors with Shut-off valves support various configurations to meet industrial and medical application demands:
FGG 3B 106 Small circular connectors with Shut-off valves Model (FGG 3B 106)
Max operating pressure: 6 bars•Max airflow: 50 L/min
Max water flow: 0.80 L/min
Large circular connectors with Shut-off valves Model
Max operating pressure: 6 bars
Max airflow: 210 L/min
Max water flow: 4.20 L/min
Multiple Key Options: Prevents cross-mating of similar connectors.FGG 3B 106
6 low-voltage electrical contacts for signal and low-power transmission
1 pneumatic channel/pneumatic tube for efficient air or liquid transmission
Secure Push-Pull Self-Latching System: Ensures a reliable and secure connection.

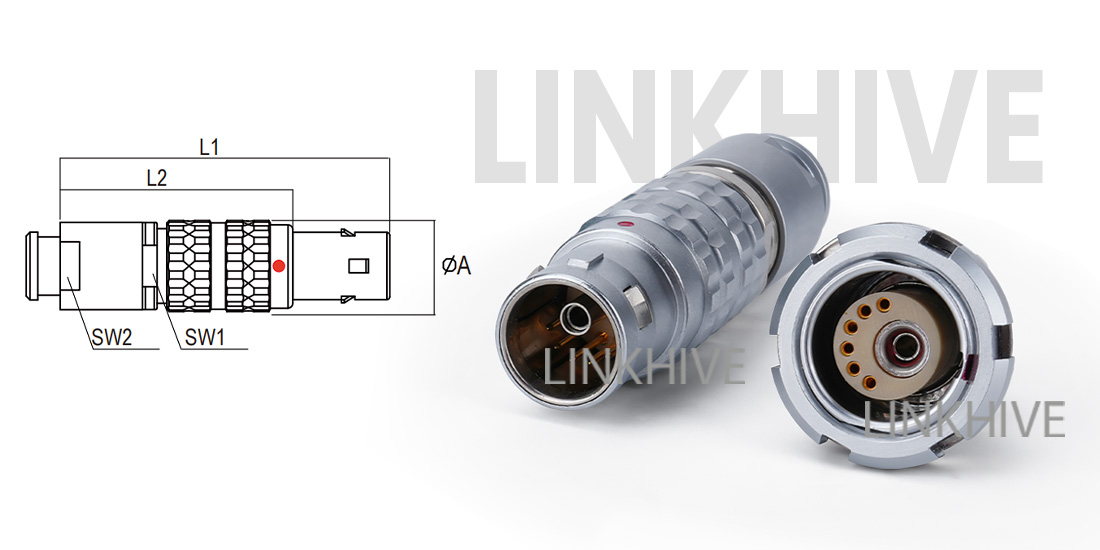

FGG 3B 106 6+1 Hybrid Connector Dimensions:
FGG 3B 106 TGG Straight plug, key (G) or k keys (A---M),cable collet and nut for fitting a bend relief )/FGG 3B106 6+1 fluidic circular connectors with Shut-off valves
FGG 3B106 6+1 fluidic circular connectors with Shut-off valves/hybrid connector
| Reference | Dimensions (mm) | |||||
| Series | Model | A | L1 | L2 | SW1 | SW2 |
| 00B | TGG | 6.5 | 27 | 19 | 5 | 5 |
| 0B | TGG | 9.5 | 35 | 25 | 8 | 7 |
| 1B | TGG | 12 | 42 | 31 | 10 | 9 |
| 2B | TGG | 15 | 48 | 36 | 13 | 13 |
| FGG 3B 106 | TGG | 18 | 58 | 43 | 16 | 15 |
| 4B | TGG | 25 | 74 | 56 | 21 | 20 |
| 5B | TGG | 35 | 103 | 78 | 31 | 30 |
| Series | Shell Materials | Contacts and Pressure Tolerance |
| B Series (3B Size) | Chrome-plated brass, SUS303/304 | |
| FGG 3B 106 6+1 model connector with shut-off valves: | ||
| • Air: 6 bars / 210 L/min | ||
| • Water: 6 bars / 4.20 L/min | ||
| • Fluidic contact (1 pole) + Electrical contacts (6 poles) — hybrid format ideal for medical cable assembly manufacturers | ||
LINKHIVE’s hybrid connectors are trusted by leading medical cable assembly manufacturers and system integrators worldwide. Key application examples include:
Medical devices using FGG 3B 106 6+1 hybrid connectors for combined electrical and oxygen line transmission
Dental and surgical equipment using FGG 3B 106 6+1 hybrid connectors requiring compact circular connectors with shut-off valves
Laboratory automation using FGG 3B 106 6+1 hybrid connector utilizing fluidic circular connectors for liquid chromatography and sample handling
Environmental sensors with sealed hybrid connectors for gas sampling
Industrial robots needing integrated signal + air lines with easy serviceability
Hybrid Fluidic Connector Specs
| Series | Insert | Code | Fluidic Tube Inner Ø (mm) | Tube Ø Outer (mm) | Max Pressure (MPa) | Rated Current (A) |
| 1B / 1K |  | 102 | 3 | 1.8 | 0.7 | 3 |
| 2B / 2K |  | 104 | 3 | 1.8 | 0.7 | 6 |
| 2B / 2K |  | 106 | 3 | 1.8 | 0.7 | 6 |
| 2B / 2K |  | 110 | 3 | 1.8 | 0.7 | 6 |
| 3B / 3K |  | 108 | 3 | 1.8 | 0.7 | 7 |
| 3B / 3K |  | 113 | 3 | 1.8 | 0.7 | 7 |
| 3B / 3K |  | 206 | 3 | 1.8 | 0.7 | 8 |
| 3B / 3K |  | 118 | 3 | 1.8 | 0.7 | 8 |
| 4B / 4K |  | P410 | 3 | 1.8 | 0.7 | 9 |
| 4B / 4K |  | P33 | 3 | 1.8 | 0.7 | 9 |
Hybrid Coaxial Connector Specs
| Series | Inserts | Code | Impedance (Ω) | Cable Set | Contacts | Contact Ø (mm) | Test Voltage (KV rms) | Test Voltage (KV dc) | Rated Current (A) |
| 2B / 2K |  | 806 | 50 | 2001/2/3 | 6 | 0.7 | 0.75 | 1.05 | 7 |
| 2B / 2K |  | 810 | 50 | 2001/2/3 | 10 | 0.7 | 0.95 | 1.35 | 7 |
| 3B / 3K |  | 808 | 50 | 2001/2/3 | 8 | 0.9 | 1 | 1.5 | 8 |
| 3B / 3K |  | 813 | 50 | 2001/2/3 | 13 | 0.9 | 0.9 | 1.3 | 7 |
| 3B / 3K |  | 906 | 50 | 2001/2/3 | 6 | 0.9 | 0.9 | 1.3 | 10 |
