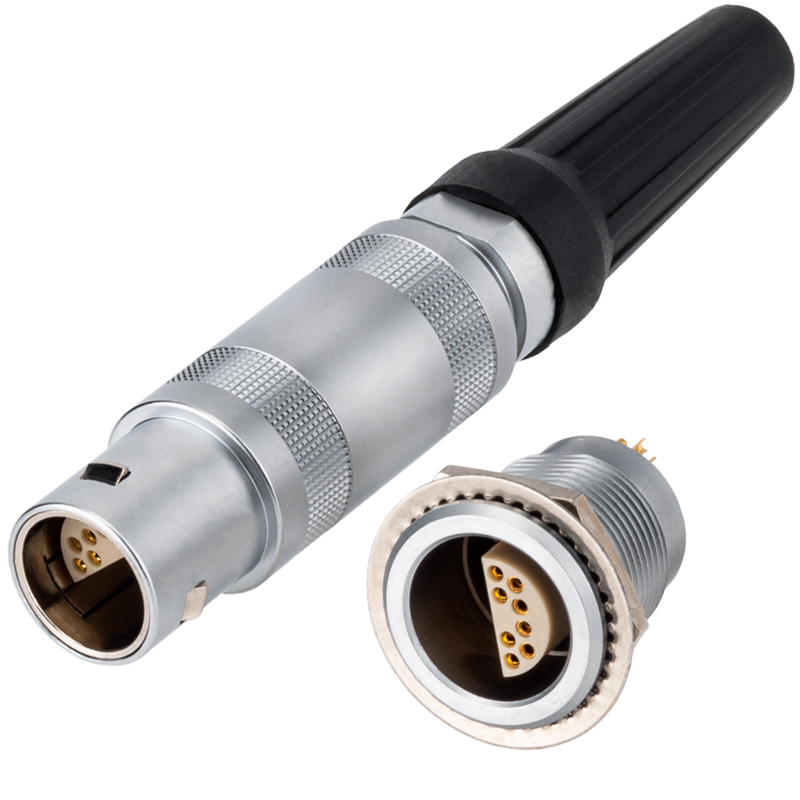

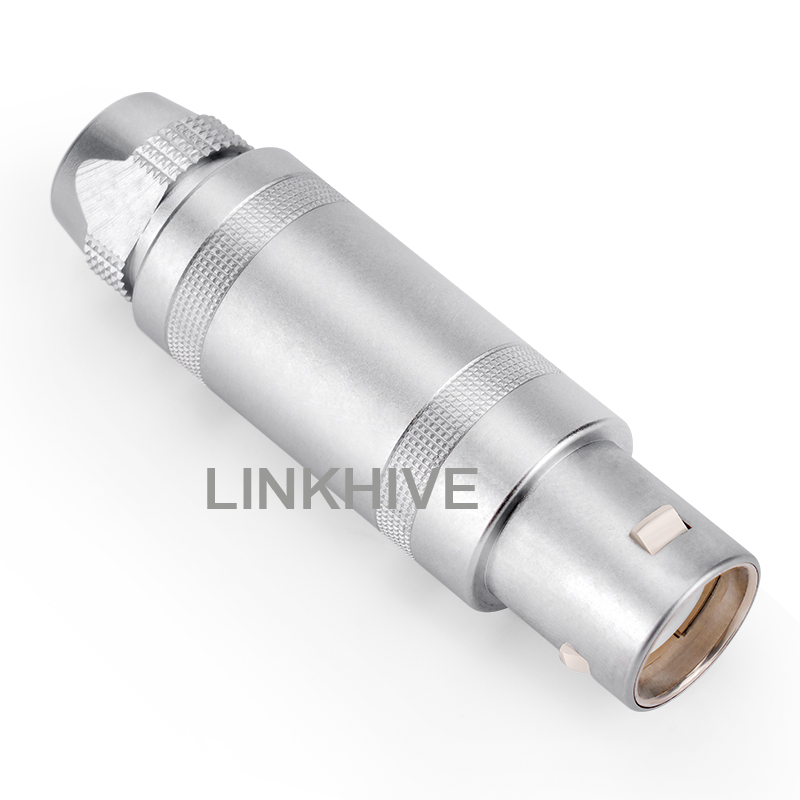

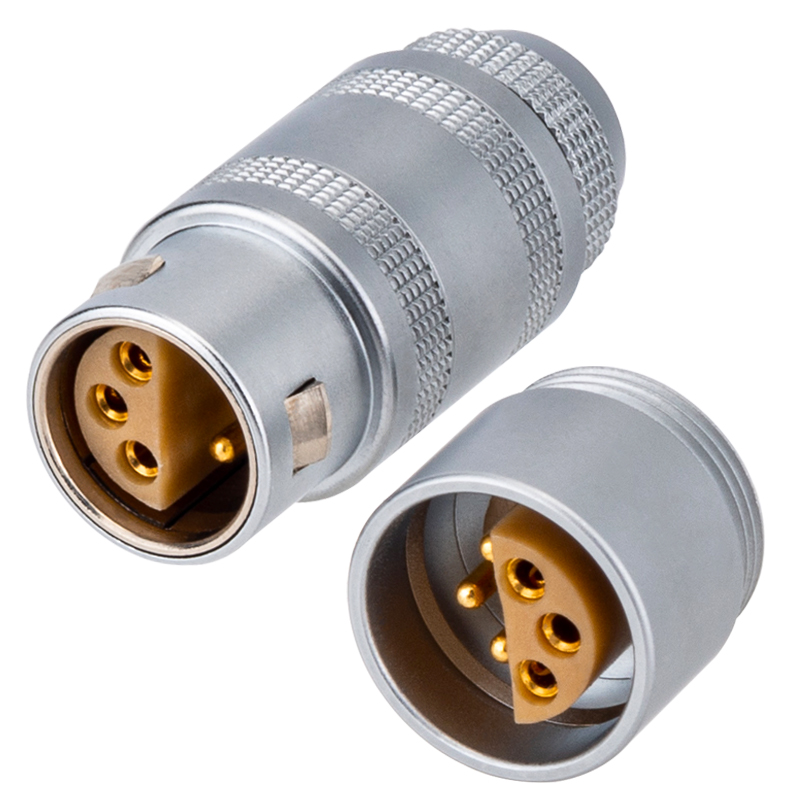

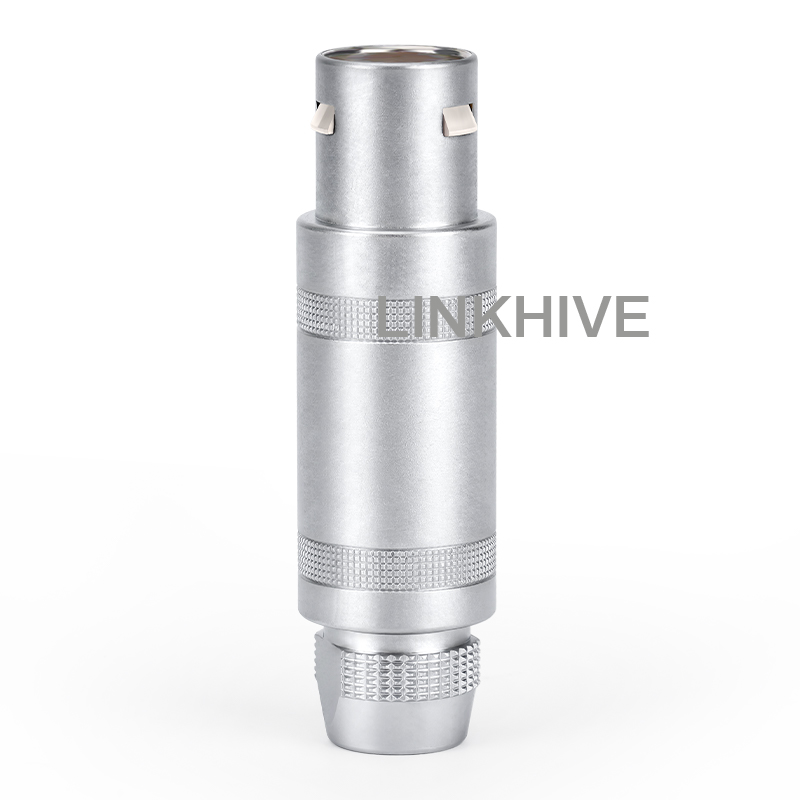

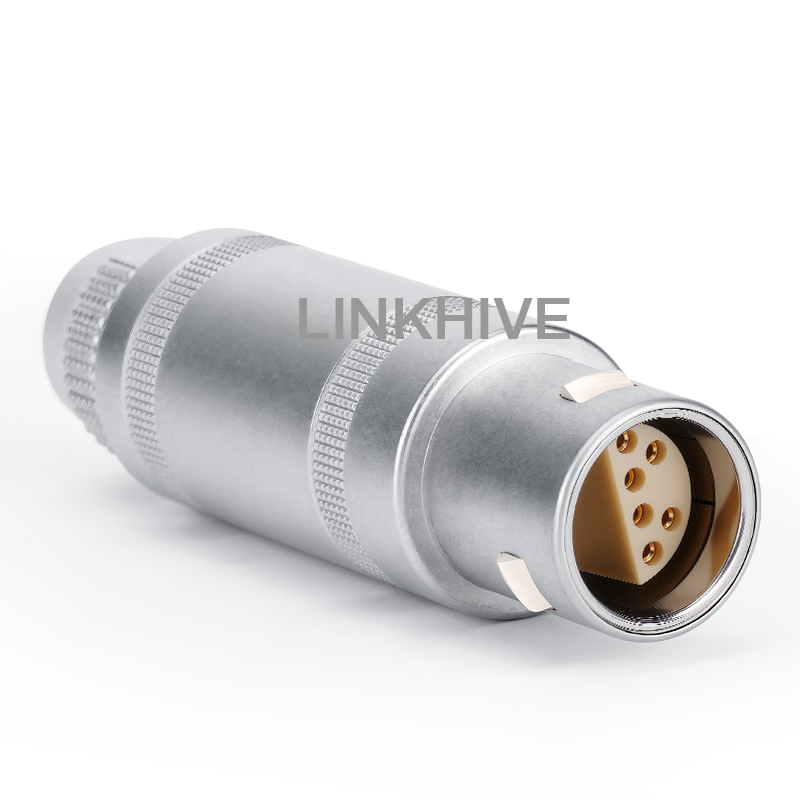

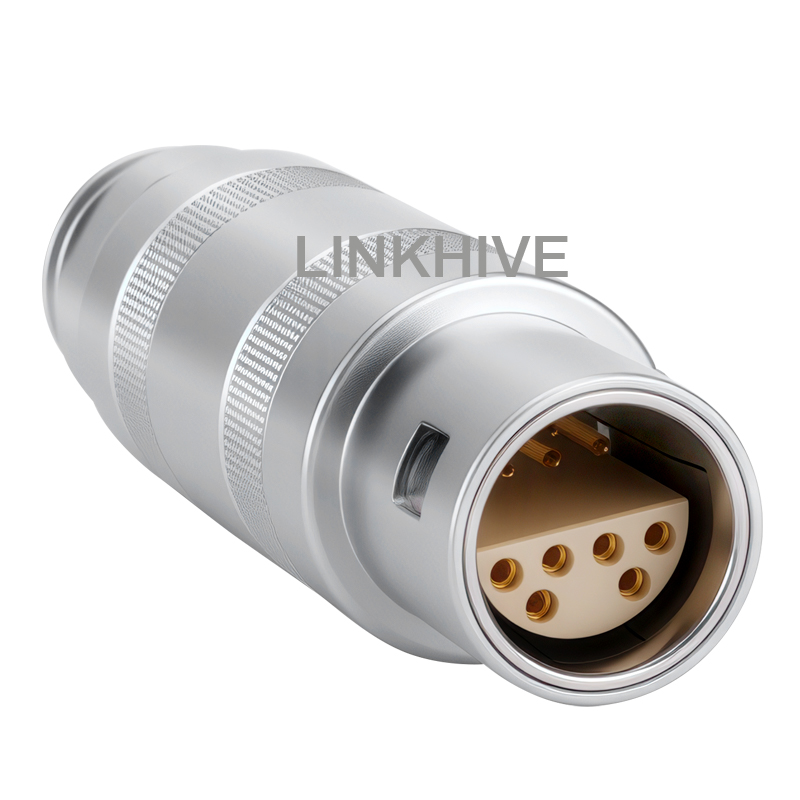

What is S Series ?
FFA circular metal push pull connector with stepped insert
Engineered for precision and durability, the S Series is adental connector solution designed for indoor and protected environments (IP50). Featuring stepped insert (half-moon keying), the connector allows intuitive alignment and secure blind mating, ensuring fast and error-free operation even in low-visibility applications.
This half moon connector with stepped insert comes in a wide range of configurations, including miniature models, elbow plugs, watertight and vacuum-tight receptacles. Built with a solid and compact construction, the S Series is ideal for applications that demand high reliability and frequent mating cycles.
All models are available in hermaphroditic connector versions for enhanced versatility in cable-to-cable or panel-to-cable configurations.
Suitable for signal, power, or hybrid applications, the S Series hermaphroditic connector delivers field-proven performance across industrial, medical, and instrumentation markets.
Our Advantages
LINKHIVE S Series half moon connector with stepped insert offers high-reliability indoor connections with a compact and ergonomic design. The stepped insulator provides intuitive alignment and secure mating. With multiple sizes and contact options, circular push pull connectorwith stepped insert suits a wide range of protected electrical applications.
half moon connector with stepped insert available in straight, elbow, and PCB plug/socket forms
IP50-rated for indoor use
Compact, reliable, and easy to install circular metal connector
Self-latching circular dental connector
Single to 106 Contacts
Welding and Printed Circuit Board Contacts (Straight and Angled)
High-Density Installation, Space-Saving
circular push pull connector with stepped insert fitted with male and female contact
360-Degree Shielding
Hermaphroditic connector with 8 sizes

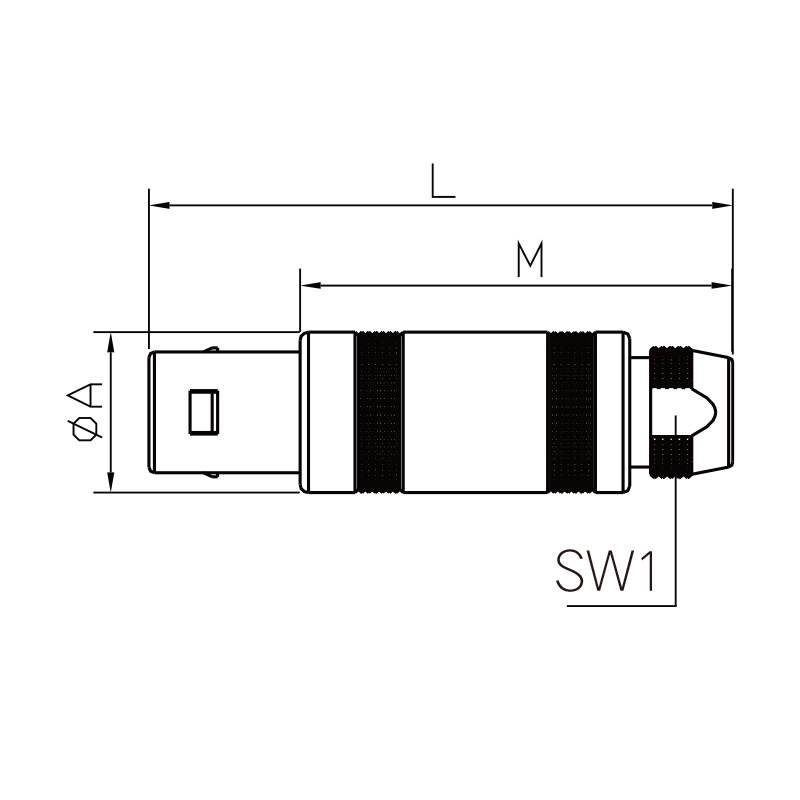

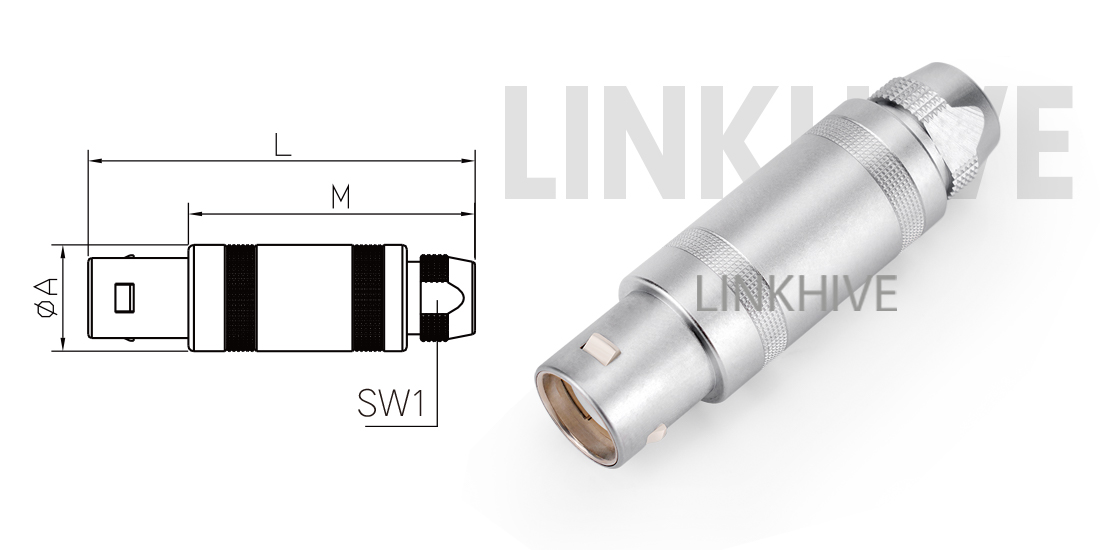

Half Moon Connector Model & Dimension Overview
| Reference | Dimensions (mm) | ||||
| series | Model | A | L | M | SW1 |
| 00S | FFA 00S | 6.4 | 26 | 18 | 4.5 |
| 0S | FFA 0S | 9 | 34.5 | 24.5 | 6.5 |
| 1S | FFA 1S | 12 | 42.5 | 31.5 | 8.5 |
| 2S | FFA 2S | 15 | 52 | 40 | 11 |
| 3S | FFA 3S | 17.8 | 61 | 46 | 14 |
Model Selection Table
00S Sub- Minature Size /0S Minature Size /1S Small Size – Selection
| Mode | TFA.00S.250.CLA.22 | TFA.0S.302.CLA.52 | TFA.0S.303.CLA.52 | TFA.0S.304.CLA.22 | TFA.1S.302.CLA.42 | TFA.1S.303.CLA.52 | TFA.1S.304.CLA.52 | TFA.1S.305.CLA.62 | TFA.1S.306.CLA.72 |
| Inserts |  |  |  |  | | | |  |  |
| key | coaxial insert | half moon connector | half moon connector | half moon connector | half moon connector | half moon connector | half moon connector | half moon connector | half moon connector |
| Contacts | 1 (coaxial) | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 4 |
| Clamp Ø A | Ø 4.2 mm | Ø 5.2 mm | Ø 5.2 mm | Ø 2.2 mm | Ø 4.2 mm | Ø 5.2 mm | Ø 5.2 mm | Ø 6.2 mm | Ø 7.2 mm |
| Description | Miniature self-latching coaxial circular connector with compact structure | Self-latching circular dental connector with 2-contact stepped insert | Self-latching circular dental connector with 3-contact stepped insert | Compact 4-contact circular connector with stepped insert | 2-contact circular push pull connector with stepped insert | 3-contact half moon connector with stepped insert design, IP50 sealed. | Compact 4-contact metal connector with stepped insert | 5-contact half moon connector with stepped insert | Robust 4-contact metal connector |
| Application | signal transmission in compact space applications | signal/power applications, test & measurement, | data and control signal transmission in industrial or lab settings. | board-to-board connection or multi-signal | signal and control lines in automation or testing devices. | smart equipment, robotic systems, and medical probes. | portable devices or measurement equipment | Used in laboratory devices, diagnostic tools, and control panels. | Ideal for signal or low-voltage hybrid lines in medical |
Medium size 2S Series – TFA Circular Push Pull connector With Stepped Insert Selection
| Mode | TFA.2S.302.CLA.27 | TFA.2S.303.CLA.32 | TFA.2S.304.CLA.42 | TFA.2S.305.CLA.52 | TFA.2S.306.CLA.62 | TFA.2S.307.CLA.72 | TFA.2S.308.CLA.82 | TFA.2S.310.CLA.87 |
| Inserts | | | | | |  |  |  |
| Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Clamp Ø A | Ø 2.7 mm | Ø 3.2 mm | Ø 4.2 mm | Ø 5.2 mm | Ø 6.2 mm | Ø 7.2 mm | Ø 8.2 mm | Ø 8.7 mm |
| Description | 2-contact miniature connector | ompact 3-contact circular push pull connector with stepped insert | Rugged 4-contact circular push pull connector with stepped insert | 5-contact circular half moon connector with stepped insert | 6-contact self-latching circular half moon connectorwith stepped insert | High-density 7-contact circular metal connector with stepped insert. | 8-contact circular half moon connector with stepped insert | 10-contact circular metal connector |
| Application | Used in precision sensors, probes, or diagnostic equipment. | Suitable for signal control and compact module interfaces. | Used in electronic assemblies, small instruments, and multi-signal lines. | Ideal for communication or sensor systems | Designed for instrumentation interfaces | Perfect for hybrid signal/power modules in lab | Common in measuring instruments, | Ideal for data-intensive, multi-channel equipment |
Large Size 3S Series – TFA Circular Push Pull Connector With Stepped Insert Selection
| Mode | TFA.3S.302.CLA.42 | TFA.3S.303.CLA.57 | TFA.3S.304.CLA.72 | TFA.3S.305.CLA.87 | TFA.3S.306.CLA.97 | TFA.3S.307.CLA.11 | TFA.3S.308.CLA.42 | TFA.3S.310.CLA.57 | TFA.3S.312.CLA 12 | TFA.3S.313.CLA 13 | TFA.3S.314.CLA.97 | TFA.3S.316.CLA 11 | TFA.3S.318.CLA.97 |
| Inserts | | | | | | | | |  |  |  |  |  |
| Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 13 | 14 | 16 | 18 |
| Clamp Ø A | Ø 4.2 mm | Ø 5.7 mm | Ø 7.2 mm | Ø 8.7 mm | Ø 9.7 mm | Ø 10.5 mm | Ø 4.2 mm | Ø 5.7 mm | Ø12.2 mm | Ø13.2 mm | Ø 9.7 mm | Ø 10.5 mm | Ø 9.7 |
| Description | 2-contact self-latching metal connector with stepped insert | 3-contact circular push pull connector with stepped insert robust and IP50 sealing | 4-contact stepped insert plug with half-moon keying, engineered | 5-contact hermaphroditic connector with metal shell | 6-contact circular push pull connector with stepped insert precision stepped | High-density 7-contact plug with stepped insert | 8-contact hermaphroditic connector stepped insert and fast self-latching design | 10-contact Self-latching circular metal connector and stepped insert | 12-contact hermaphroditic connector with stepped insert | 13-contact Self-latching circular metal connector and precision layout | 14-contact circular push pull connector with stepped insert with rugged housing and stepped insert | 16-contact hermaphroditic connector connector with solid latch mechanism, | 18- core circular push pull connector with stepped insert with rugged housing, |
| Application | Used in compact control systems, signal lines in medical or instrumentation equipment. | Ideal for signal control lines or portable devices requiring secure push-pull interface. | Used in multi-signal setups in medical diagnostics, test probes, and lab automation. | Suitable for measurement equipment, communication instruments, and control terminals. | Ideal for modular power/signal interfaces in devices with space constraints. | Used in signal or mixed-signal applications, including smart automation modules | Suitable for multi-line signal systems in compact medical or industrial instruments. | Common in test & measurement setups, electronic control units, and panel interfaces. | instrumentation control systems, signal multiplexing hubs, and electronic test boards. | Ideal for use in smart control panels, measurement units, and high-pin-count signal devices. | Suitable for automated test equipment, lab analysis tools, and robotics interfaces. | Common in high-channel-count modules for signal acquisition, communication or diagnostics. | Used in control units, power-distribution boards, and multi-signal routing modules in lab or factory systems. |
Quality Control & Keying Accuracy
To ensure the consistency and reliability of the circular push pull connector with stepped insert design:
Molded inserts are visually and dimensionally inspected
Tolerances are measured with precision gauges
Mating fit is functionally tested for every production batch
Material (PPS/PPSU/PTFE/PEEK) is verified for thermal and mechanical stability
Mechanical & Electrical Performance
Rated current: Up to 7 A (depending on contact size)
Contact resistance: ≤6.5 mΩ
Endurance: ≥5000 mating cycles
Shock resistance: 100g / 6ms
Vibration resistance: 15g (10Hz–2000Hz)
Insulation resistance: ≥5000 MΩ (600V DC)
Test voltage: 1450V (contact-contact), 1000V (contact-shell)
Working temperature: -40°C to +200°C
Humidity: ≤95% @ 60°C
Salt spray corrosion: 96 hours

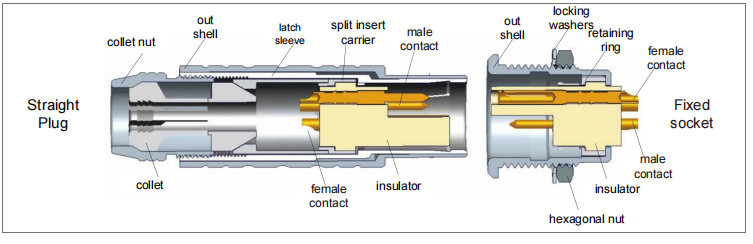

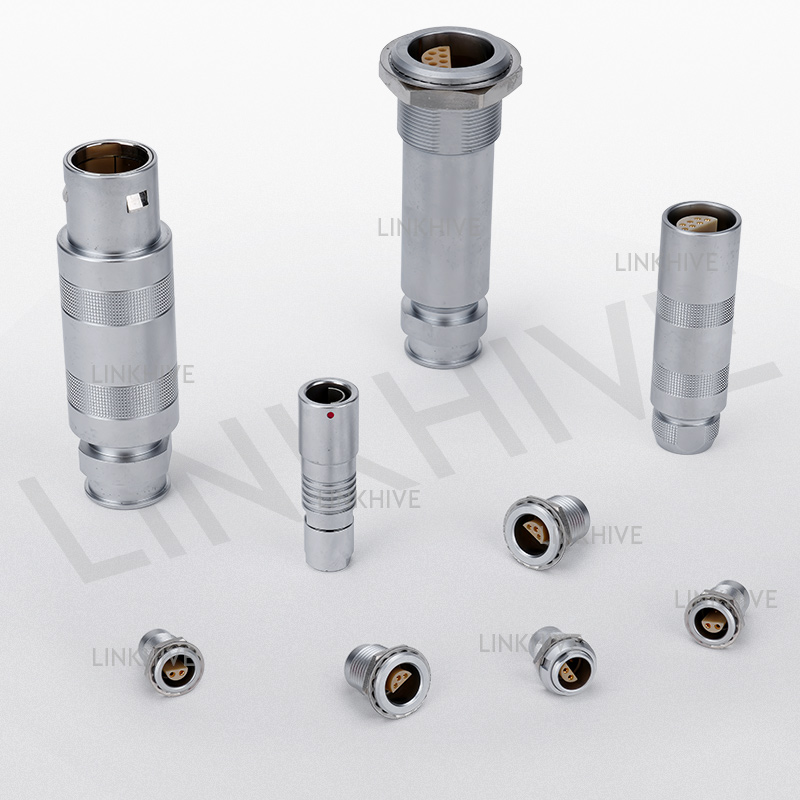

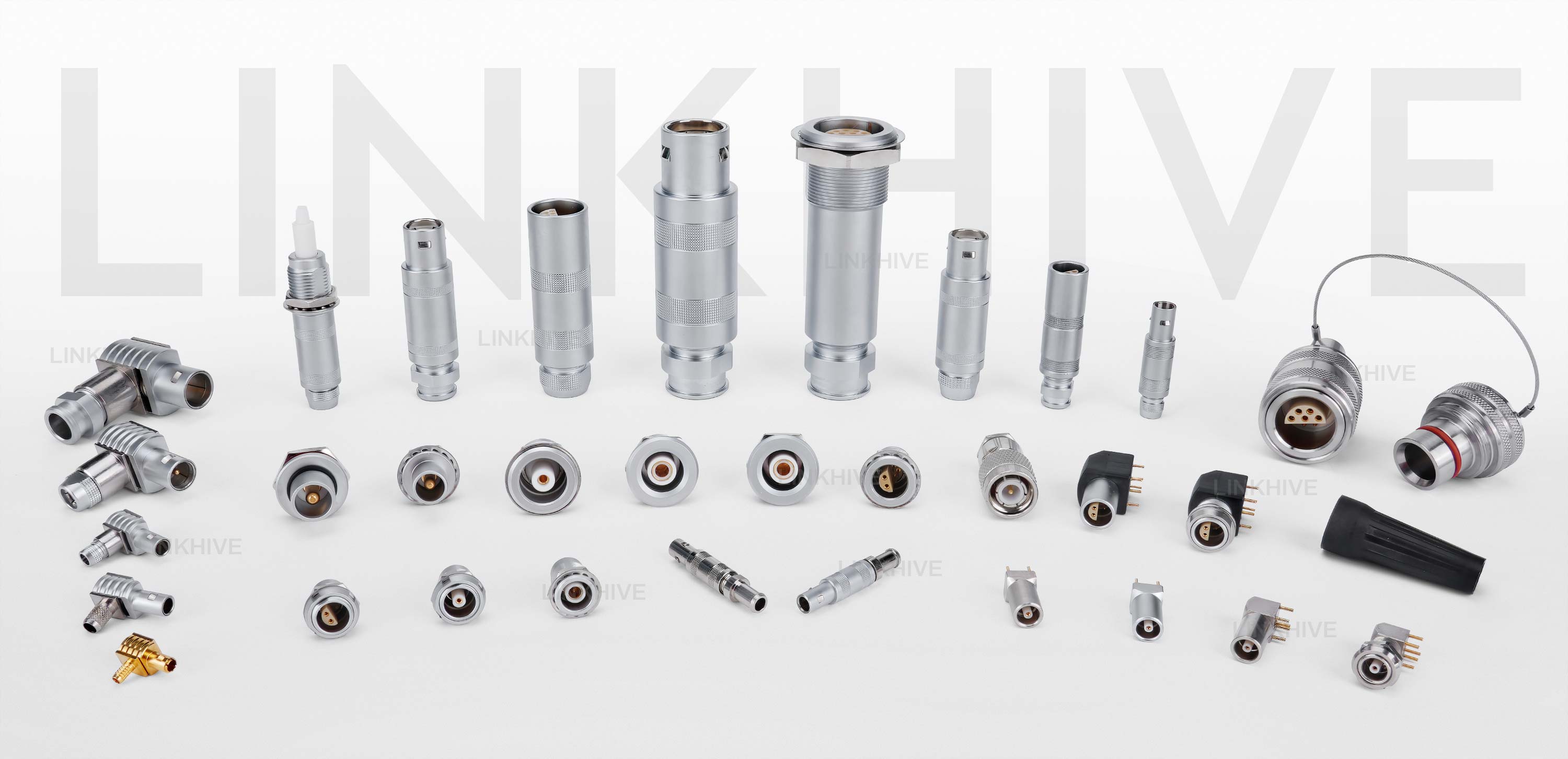

S Series Circular Push Pull Connrctor With Stepped Insert Overview
| Straight plug | fixed socket | Elbow socket | Free socket |
FFA plug straight plug,cable collet | ERA socket nut fixing | EPL socket Elbow socket for PCB | PCA Free socket,cable collet |
|
|
|
|
FFA plug straight plug, cable collet with bend relief | ERD socket nut fixing | EXP Elbow socket for PCB with 2 nut | PCA Free socket,cable collet with bend relief |
|
|
|
|
FFA plug straight plug with oversize cable collet | ERN socket nut fixing |  | |
|
| ||
FLA Elbow plug elbow 90 °plug.cable collet | EEP socket nut fixing,cable collet | ||
|
| ||
Linkhive Self-latching circular metal connector IP50 selection
Use the comparison table below to explore the three main self-latching push pull connector series in the IP50 indoor range and find the model best suited to your specific application needs.
B Series Indoor keyed -circular metal connector |
S Series Indoor keyed- circular metal connector with stepped connectors click for more info |
2C Series Indoor keyed- unltra short connector with stepped connectors click for more info | |
| Description | LINKHIVE Push Pull Connector for protected indoor environments | Indoor keyed -circular metal short plug with steped connector | LINKHIVE unltra short Push Pull connector for indoor environments |
| locking Mechanism |
1.Easy-to-operate self-locking system, just push the plug axially into the socket to lock |
2.Once firmly locked, pulling the cable or any other part will not disconnect unless the outer release sleeve is pulled. |
3.When necessary, the connector is disengaged by a single pull on the release sleeve, which first releases the locking latches and then whithdraws the plug . |
| Locking methods | self-latching Push pull connector | self-latching Push pull connector | self-latching Push pull connector |
| plug diameter | 8 sizes from ø 6.5 to ø 35.0 mm (plugs) | 8 sizes from ø 6.4 to ø 17.8.0 mm (plugs), | 7 sizes from ø 14.0 (plugs), to 31mm short length |
| Alignment Key | key G/A/B/C/D/E/F/J/K/L/M/Y/R | 1 (circular connector with half moon connector ) | 1 (circular connector with half moon connector ) |
| length | 8 sizes from 27mm to 103 | 8 sizes from 26 mm to 61mm | 7 sizes from 31mm short length |
| Insulator | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 |
| Shell Material | Chrome-plated Brass | Chrome-plated Brass | Chrome-plated Brass |
| Salt Spray Corrosion | 96hr | 96hr | 96hr |
| Cable ø | 1.4 to 25 mm | 1 to 30 mm | 1.7 to 7.9 mm |
| No.of PINS | 2 to 48 | 2 to 18 | 1 to 14 |
| Contact types | Multipole Contact /Coax Contact / Fibre Optic Contact/ Fluidic Contact/ High Voltage Contact/ hybrid Contact/ Thermocouple Contact | Mono Contact/ Multipole Contact / Coax /tri-coxial /Fluidic Contact / hybrid Contact | Multipole Contact/coxial Contact |
| Sealing | Silicone/Epoxy | Silicone/Epoxy | Silicone/Epoxy |
| Data Protocols | USB 2.0 / USB 3.1 / Eth Cat6 | ||
| Sealing Level | IP50 | IP50 | IP50 |
| Temperature Range | -55°C to 250°C | -55°C to 250°C | -55°C to 250°C |
| Mating Cycles | > 5000 | > 5000 | > 5000 |
