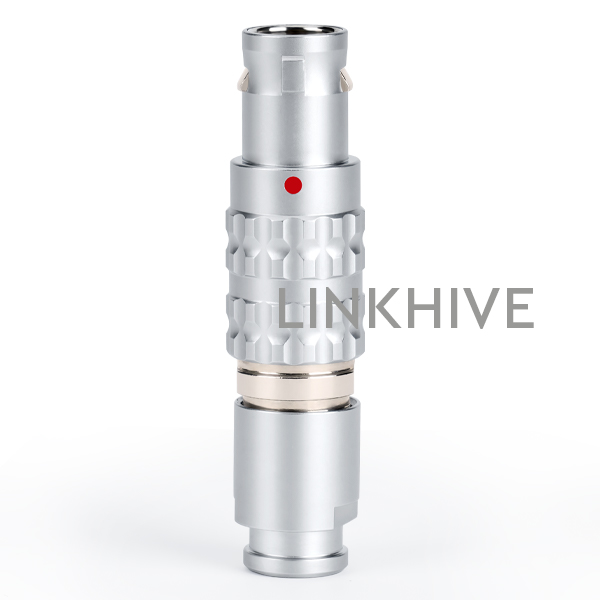

B Series FGG 00B 4B Push Pull Metal Circular Seal Connector

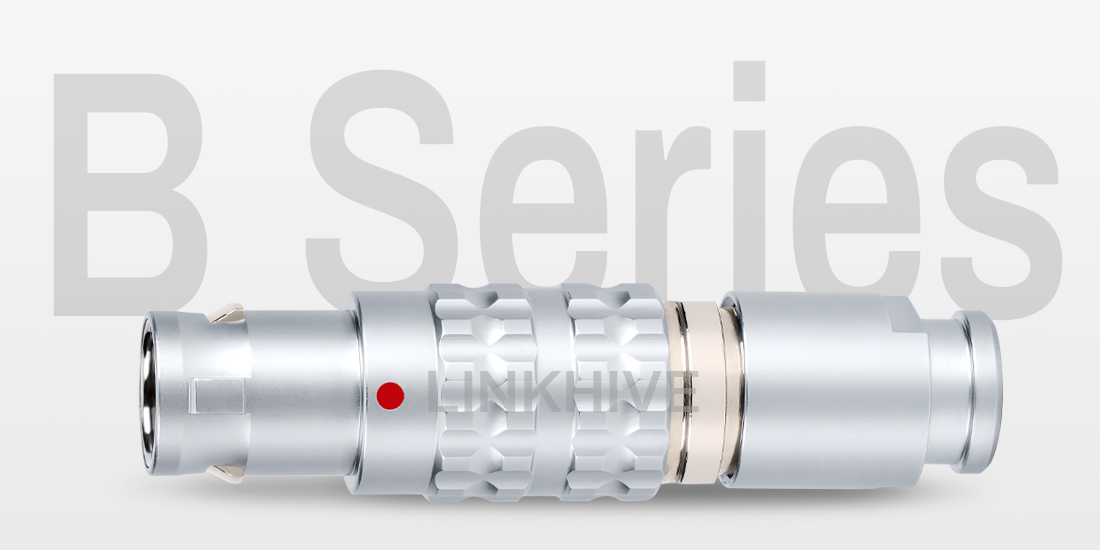

What is B series?

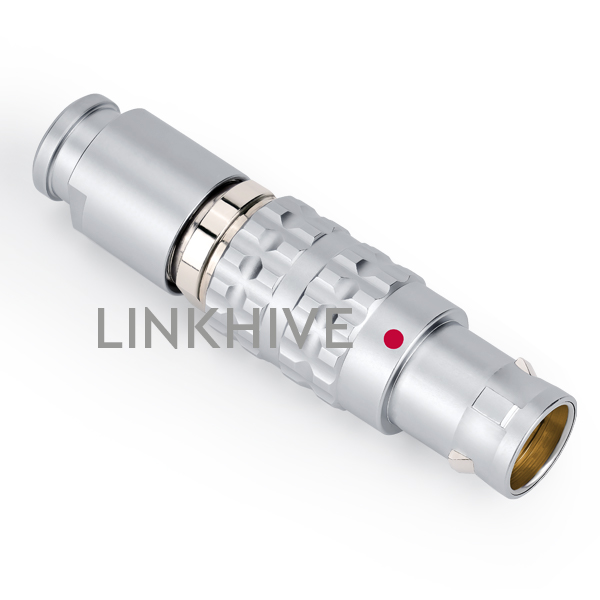

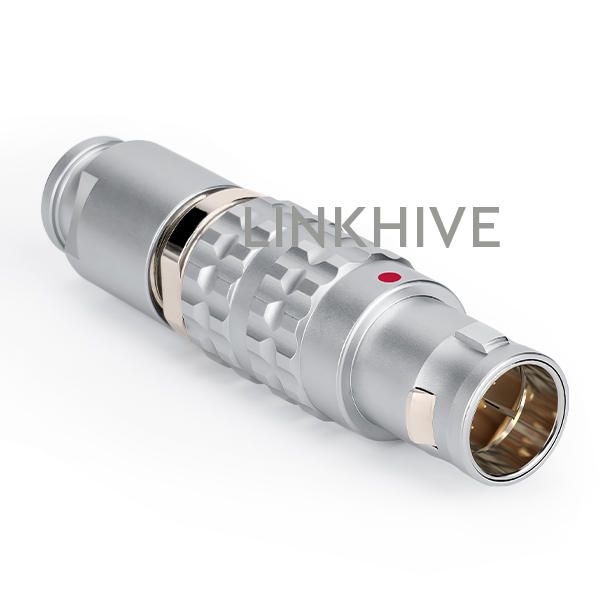

B Series FGG 00B 4B Push Pull  Metal medical connector

The B Series circular push pull connector is a high-performance metal medical connector designed for use in demanding applications. Each push pull seal connector offers secure mating and easy disconnection, making it ideal for environments where reliability and speed are essential.

These connectors for test and measurement applications are widely used in medical equipment, laboratory instruments, and audio/video systems. The circular push pull connector construction ensures robust performance and IP50 protection, suitable for indoor or protected environments.

The modular design of the B Series includes a variety of shell sizes and insert configurations, supporting push pull seal connector mechanisms across standard and hybrid models. Options include high-density low voltage, coaxial, fiber optic, fluidic, thermocouple, and high-voltage contact types.

Key Advantages:

metal circular connector Available in 8 shell sizes, supporting a broad range of contact layouts

Push-Pull self-latching system ensures secure mating and quick disconnection

Indoor IP50 protection – ideal for controlled environments and equipment enclosures

Compact connector  Supports up to 64 contacts, suitable for signal, power, or hybrid configurations

Compatible with B Series FFA plugs

B Series Circular Clug is widely used in measurement systems, medical devices, broadcast systems, and laboratory equipment.

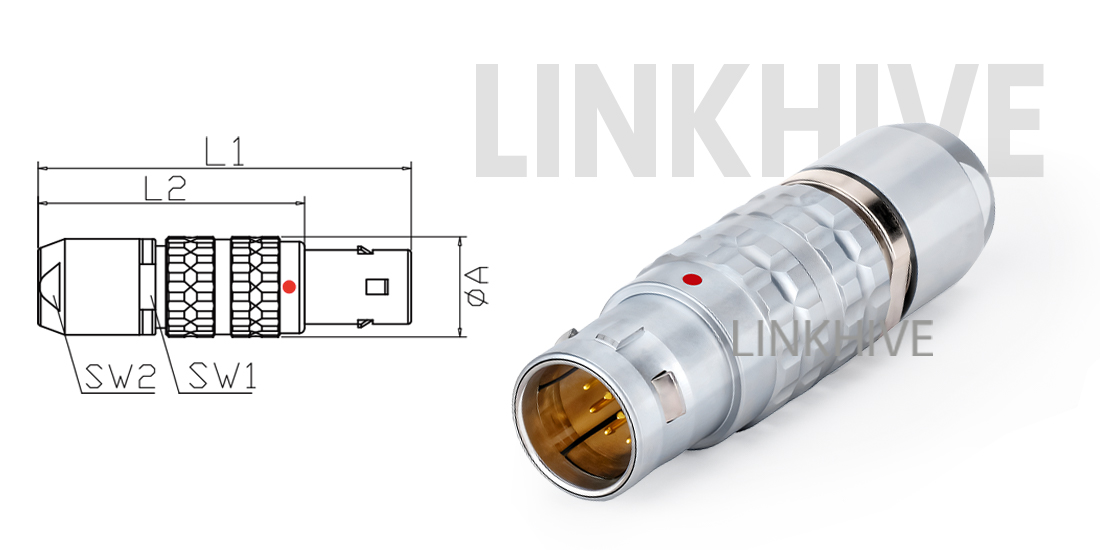

Dimension Overview:

Quality Assurance & Testing

To guarantee long-term durability and secure performance under repeated use, LINKHIVE applies rigorous quality control and validation tests to every B Series seal connector

Push pull seal connector  Quality Control Procedures

• 100% Visual & Dimensional Inspection
  Every medical connector  is checked for surface defects, plating consistency, and dimensional accuracy (keying, shell, contacts).

• Keying & Mating Precision
  Each shell undergoes tolerance inspection to ensure accurate alignment with multi-keying codes (G, A, B...).

• Material Certification
  Shells made of chrome-plated brass; inserts made from PPS/PBT/PEEK are verified for thermal and dielectric stability.

      metal circular connector  Electrical Testing

• Contact resistance: ≤6.5 mΩ

• Insulation resistance: ≥5000 MΩ (600V DC)

• Dielectric withstand voltage:

• 1450V between contacts

• 1000V between contact and shell

Circular plug Model Selection Table

2 PIN Push Pull Connector Selection

SIZE	MODE	Max. cable Ø [mm]	Contacts	Insert	Description
00B	TGG 00B 302 CLA 22	2.2 mm	2		2-pin sub-minature metal plug with push pull lock, ideal for miniature sensors and compact electronics
0B	TGG 0B 302 CLA 22	2.2 mm	2		2-pin minature compact medical connector, suitable for low-power signal lines in handheld or medical devices
1B	TGG 1B 302 CLA 27	2.7 mm	2		2-pin small size push pull medical connector for standard industrial control and instrumentation
2B	TGG 2B 302 CLA 21	2.1mm	2		2-pin  Medium circular aerospace connector for automation systems and general signal transmission
3B	TGG 3B 302 KLA 52	5.2 mm	2		2-pin  Large metal circular connector, suitable for power or robust industrial signal connections
5B	TGG 5B 302 CLA 11	11.8 mm	2		2-pin Oversized  plug, for high-current or robust power connection
3 PIN Push Pull Connector Selection
00B	TGG 00B 303 CLA 27	2.7 mm	3		3-pin sub-minature micro metal medical connector for compact signal transmission in miniature devices
0B	TGG 0B 303 CLA 32	3.2 mm	3		3-pin  minature compact medical connector， ideal for low-voltage signal and control lines
1B	TGG 1B 303 CGA 31	3.1 mm	3		small size 3-pin metal aerospace connector for instrumentation, automation, and compact control systems
2B	TGG 2B 303 CLA 32	3.2mm	3		Medium-size 3-pin circular plug for signal and sensor applications in industrial setups
3B	TGG 3B 303 KLA 52	5.2 mm	3		3-pin Largey push pull connector, suitable for robust signal transmission in equipment systems
4 PIN Push Pull Connector Selection
00B	TGG 00B 304 CLA 35	3.5 mm	4		sub-minature 4-pin metal circular connector for miniaturized medical or handheld devices
0B	TGG 0B 304 CLA 42	4.2 mm	4		4-pin minature Compact medical connector for signal or test interfaces in compact electronics
1B	TGG 1B 304 CLA 42	4.2 mm	4		small size 4-pin Standard circular plug for instrumentation and data signals
2B	TGG 2B 304 CLA 42	4.2 mm	4		Medium 4-pinmetal metal circular connector for industrial and control signals
3B	TGG 3B 304 KLA 52	5.2mm	4		Large 4-pin seal connector for test, monitoring, or power transmission
4B	TGG 4B 304 CLA 62	6.2 mm	4		Extra-large 4-pin large-size aerospace connectorfor high-current or multi-signal use
5B	TGG 5B 304 CLA 13	13.8 mm	4		Oversized  4-pin multi-signal circular plug, balanced for signal and low-voltage power
SIZE	MODE	Max. cable Ø [mm]	Contacts	Insert	Description
5 PIN Push Pull Connector Selection
00B	TGG 00B 305 CLA 35	3.5 mm	5		sub-minature  5-pin Miniature circular aerospace connector, ideal for signal routing in tight-space modules
0B	TGG 0B 305 CLA 52	5.2 mm	5		5-pin  minature compact medical connector for control circuits and small embedded platforms
1B	TGG 1B 305 CLA 62	6.2 mm	5		small size 5-pin Standard metal circular connector for low-voltage power and data combo lines
2B	TGG 2B 305 CLA 52	5.2mm	5		Medium 5-pin seal connector ideal for medical or industrial systems
3B	TGG 3B 305 KLA 62	6.2 mm	5		Large 5-pin robust large-size connector for control box or power equipment
6 PIN Push Pull Connector Selection
00B	TGG 00B 306 CLA 35	3.5 mm	6		sub-minature 6-pin Miniature circular plug for portable instruments and space-limited devices
0B	TGG 0B 306 CLA 52	5.2 mm	6		6-pin minature medical connector for modular signal control and data acquisition
1B	TGG 1B 306 CLA 72	7.2 mm	6		small size  6-pin Standard seal connector for test benches and multifunction signal systems
2B	TGG 2B 306 CLA 62	6.2 mm	6		Medium 6-pin Mid-size aerospace connector for measurement and embedded control units
3B	TGG 3B 306 KLA 62	6.2mm	6		6-pin  Large-size metal circular connector for robust industrial interfaces and signal transfer
4B	FGG 4B 306 CLA 62	6.2 mm	6		Extra-large 6-pin High-power  connector for automation systems and distributed signals
7 PIN Push Pull Connector Selection
0B	TGG 0B 307 CLA 56	5.6 mm	7		7-pin sub-minature medical connector  for embedded data systems and signal routing |
1B	TGG 1B 307 CLA 52	5.2 mm	7		small size 7-pin Standard seal connector for control panels and sensor wiring
2B	TGG 2B 307 CLA 72	7.2 mm	7		Medium 7-pin  Mid-size connector for robotics and communication hubs
3B	TGG 3B 307 KLA 52	5.2 mm	7		7-pin Large-size metal circular connector for modular devices and factory control lines
4B	TGG 4B 307 CLA 72	7.2 mm	7		Extra-large 7-pin High-density connector for power and signal in control networks
8/9/10 PINS Push Pull Connector Selection
1B	TGG 1B 308 CLA 52	5.2mm	8		small size 8-pin Compact medical connector (1B) for signal and power in space-limited devices
2B	TGG 2B 308 CLA 52	5.2mm	8		Medium  8-pin Mid-size seal connector (2B) for balanced signal and low-power control lines
3B	TGG 3B 308 KLA 32	3.2 mm	8		8-pin Reinforced aerospace connector (3B), ideal for rugged equipment and instrumentatio
0B	TGG 0B 309 CLA 52	5.2mm	9		9-pin  Miniature high-density plug (0B), optimized for compact signal routing
3B	TGG 3B 309 KLA 52	5.2 mm	9		9-pin robust connector (3B) for automation and data acquisition systems
1B	TGG 1B 310 CLA 52	5.2 mm	10		10-pin Compact medical connector (1B), designed for multi-signal transmission in medical or test devices
2B	TGG 2B 310 CLA 52	5.2 mm	10		10-pin standard push pull seal connector (2B), suited for industrial control or signal collection
3B	TGG 3B 310 KLA 52	5.2mm	10		Large 10-pin Rugged aerospace connector (3B), ideal for field equipment and modular setups
4B	TGG 4B 310 CLA 72	7.2 mm	10		10-pin Extra-large metal circular connector (4B) for high-density applications and power/data systems
5B	TGG 5B 310 CLA 15	15.8 mm	10		Oversized 10-pin high-density medical connector, suitable for multi-channel signal

B Series FGG push pull metal medical connector with  Application

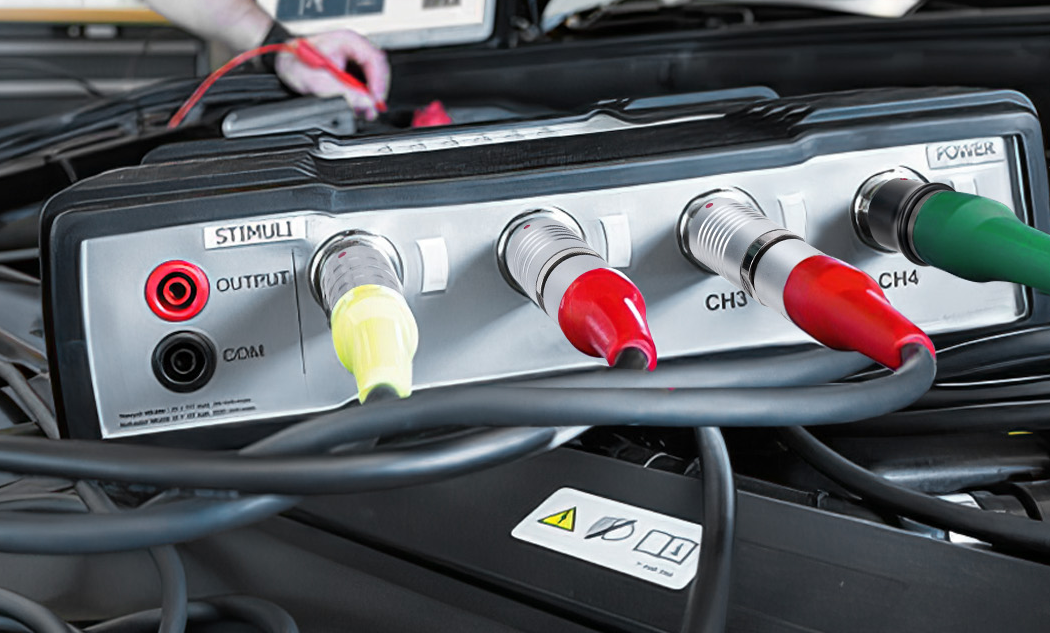

FGG FOR TEST

FGG FOR TEST

B Series FGG High Density connector with 12 to 48  Contacts selection

Mode	MODE	Max. cable Ø [mm]	Contacts	Insert	Description
12 PINS -14 PINS Push Pull Connector Selection
0B	TGG 0B 312 CLA 52	5.2mm	12		2-pin Compact medical connector for portable equipment and industrial interfaces
2B	TGG 2B 312 CLA 52	5.2mm	12		Medium 12-pin Mid-size connector for automation systems and medical signals
3B	TGG 3B 312 KLA 52	5.2mm	12		Large 12-pin Rugged aerospace connector for test systems and multi-channel data control
4B	TGG 4B 312 CLA 82	5.2mm	12		12-pin High-capacity connector for robotic and industrial modules
1B	TGG 1B 314 CLA 52	5.2mm	14		14-pin Standard medical connector for signal-rich control devices
2B	TGG 2B 314 CLA 62	6.2mm	14		14-pin  Mid-size seal connector for secure I/O and embedded medical systems
3B	TGG 3B 314 KLA 52	5.2mm	14		Large 14-pin Large-size metal circular connector for multi-circuit power and data systems
5B	TGG 5B 314 CLA 52		14		Oversized 14-pin multi-pin connector for complex control systems
16 PINS Push Pull Connector Selection
1B	TGG 1B 316 CLA 52	5.2mm	16		16-pin high-density aerospace connector for multi-signal transmission and control units
2B	TGG 2B 316 CLA 82	8.2mm	16		Medium 16-pin Mid-size metal circular connector for data acquisition and compact embedded units
3B	TGG 3B 316 KLA 52	5.2mm	16		Large 16-pin Large-size aerospace connector for signal routing in automation setups
4B	TGG 4B 316 CLA 82	8.2 mm	16		16-pin High-pin plug for industrial controllers and robotic systems
5B	TGG 5B 316 CLA 17	17.8 mm	16		Oversized 16-pin high-density plug for instrumentation
8/18 PINS Push Pull Connector Selection
1B	TGG 1B 106 CLA 52	5.2mm	6		6-pin Miniature medical connector for compact sensor integration
2B	TGG 2B 318 CLA 52	5.2mm	18		18-pin compact aerospace connector for dense signal wiring in limited space
3B	FGG 3B 318 KLA 62	6.2mm	18		Large  18-pin Rugged seal connector optimized for high-density I/O and control wiring
19/20 PINS  Push Pull Connector Selection
2B	TGG 2B 319 KLA 52	5.2mm	19		Medium 19-pin FGG seal connector (2B) for integrated medical and control equipment
3B	TGG 3B 320 KLA 72	7.2mm	20		Large  20-pin push pull connector (3B) for dense medical and industrial systems
4B	TGG 4B 320 CLA 92	9.2mm	20		20-pin high-density plug (4B), suitable for complex instrumentation layouts
5B	TGG 5B 320 CLA 13	13.8 mm	20		Jumbo size 20-pin multi-pin circular plug for large signal distribution
22/24/26 PINS  Push Pull Connector Selection
3B	TGG 3B 322 CLA 82	8.2mm	22		Reinforced 22-pin metal circular connector3B), ideal for signal-rich automation devices
3B	TGG 3B 324 CLA 92	9.2mm	24		24-pin rugged seal connector (3B) for data-heavy or sensor-integrated machinery
4B	TGG 4B 324 CLA 10	10.8mm	24		Extra-large Large 24-pin medical connector (4B), preferred for automation & robotics control
2B	TGG 2B 326 KLA 32	3.2mm	26		Mid-size 26-pin plug (2B), compact solution for data and control integration
3B	TGG 3B 326 CLA 10	10.8mm	26		Large 26-pin high-density connector (3B) for industrial signal transmission
30/32 PINS  Push Pull Connector Selection
3B	TGG 3B 330 CLA 11	11.8mm	30		Large 30-pin metal plug (3B), optimized for high-speed acquisition and processing
4B	TGG 4B 330 CLA 12	12.8mm	30		Large 30-pin FGG plug (4B), ideal for distributed control and DAQ systems
5B	TGG 5B 330 CLA 19	19.8mm	30		Jumbo size 30-pin ultra high-density connector for data-heavy applications
2B	TGG 2B 332 KLA 52	5.2mm	32		Compact 32-pin seal connector (2B), suited for medical instrumentation with space limits
3B	TGG 3B 332 CLA 52	5.2mm	32		Medium 32-pin metal circular connector (3B) for dense signal routing and control units
8/40/48 PINS  Push Pull Connector Selection
2B	TGG 2B 514 KLA 52	5.2mm	8		8-pin medical connector(2B) for signal and power in compact designs
4B	TGG 4B 340 CLA 13	13.8mm	40		Extra-large 48-pin large  FGG plug (4B), ideal for high-volume data and multi-signal channels
5B	TGG 5B 340 CLA 21	21.8mm	40		Jumbo size 40-pin multi-channel signal connector for complex instrumentation
4B	TGG 4B 348 CLA 15	15.8mm	48		Extra-large 48-pin large high-density plug (4B), perfect for multi-channel signal acquisition
5B	TGG 5B 348 CLA 25	25 mm	48		Oversized 48-pin maximum density multi-pin connector, ideal for multi-signal industrial systems

Electrical Configuration

Contact Termination: Solder

Maximum Contact Resistance (R): 4.8 mΩ

Insert Configuration: Low Voltage

Insulator Material: PEEK / PPS

Rated Current: 10 A

Test Voltage (DC): 1.6 kV

Wire Size Compatibility: AWG 30 – 22

Contact Range: 2 to 47 contacts

Material & Environmental Performance

Part No Description:TGG 00B 302 CLA 22 plug with key (G or A–L), cable collet, nut for bend relief.

Plug Material: Chrome-plated brass shell and back nut; nickel-plated brass latch sleeve and internal components

Locking Mechanism: Circular push pull connector

Keying Options: Key G / A / B / C / D / E / F / J / K / L / M / V / R

Contact Count: 2 to 47

Endurance: 5000 mating cycles

Temperature Range: -55°C to +250°C

Shielding at 10 MHz: >75 dB

Shielding at 1 GHz: >40 dB

Shock Resistance: 100 g / 6 ms

Vibration Resistance: 15g (10 Hz – 2000 Hz)

Climatic Category: 50/175/21

Humidity Resistance: ≤95% at 60°C (140°F)

Mating/Unmating Cycles: 5000

B Series Alignment key

B Series Panel cutouts

B Series Clamp

Plug	Elbow plug	Fixed socket	Straight socket	Watertight socket	Free socket
FGG	FSG	EGG	EZG	HGG	PHG
FGG	FHG	ECG	EZG	HHG	PHG
FGG	Fixed Plug	ECG	EYG	HCG	Angle socket
FEG	FAG	ECG	EYG	HEG	EPG
FNG	FWG	ENG	PKG	HMG	EXG
FFG	T-Plug	EEG	PFG		Fixed Couple
JGG		EHG			RGG
FDG		EDG			SGG

.
