What is FHG 90 Degree Circular Elbow Plug?

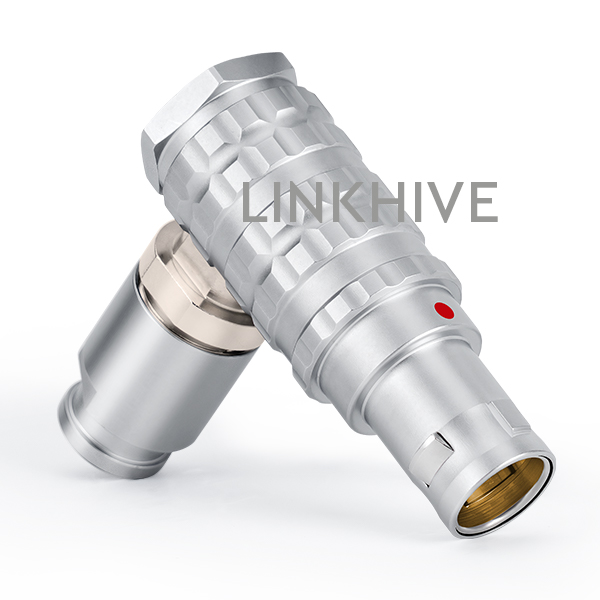

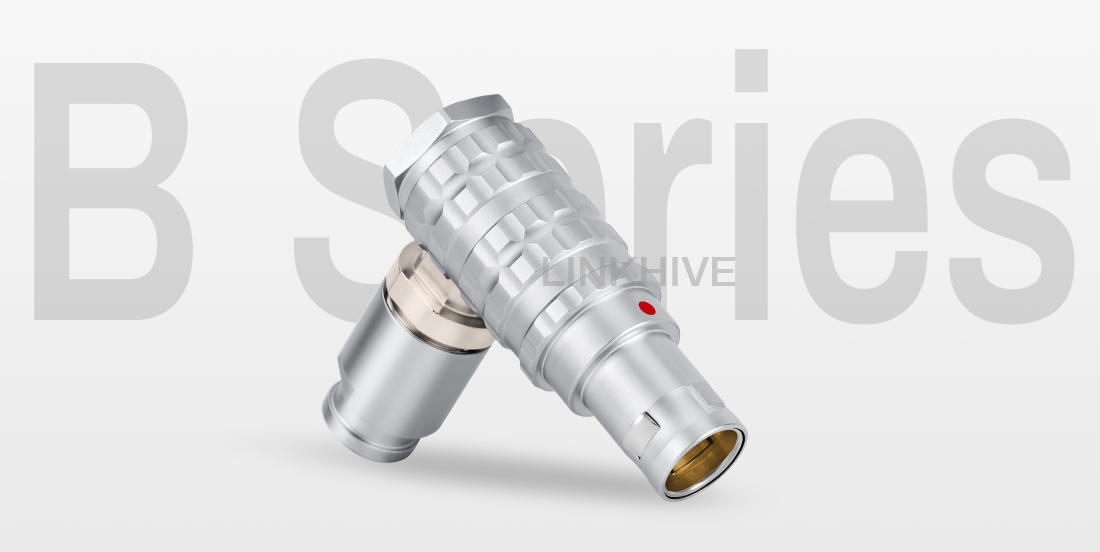

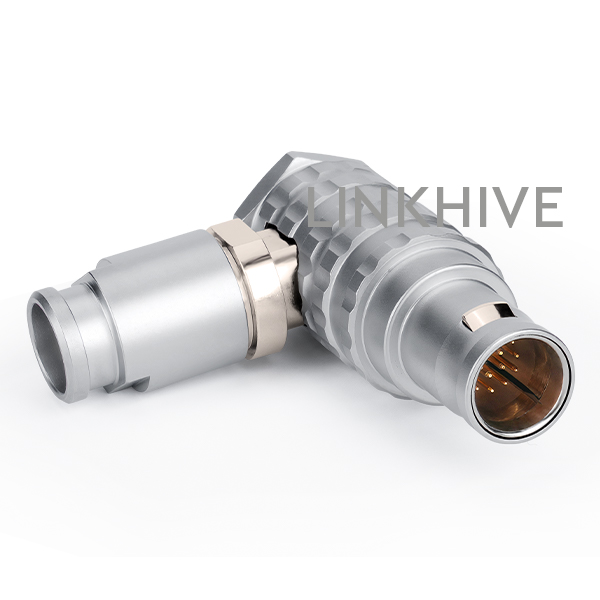

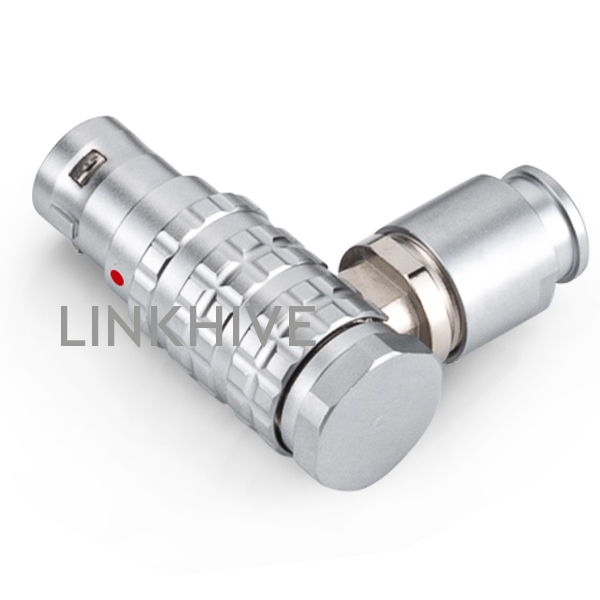

The FHG 90 Degree Circular Elbow Plug is a precision-engineered metal circular connector featuring a right-angle (90 degree) cable outlet, ideal for applications with limited space or complex routing requirements. Designed with a self-latching premium circular push pull connector mechanism, this elbow plug offers quick, secure, and vibration-resistant connections. available in sizes 00B to 4B, supporting a wide range of contact configurations for power, signal, and hybrid transmission.
Key Advantages

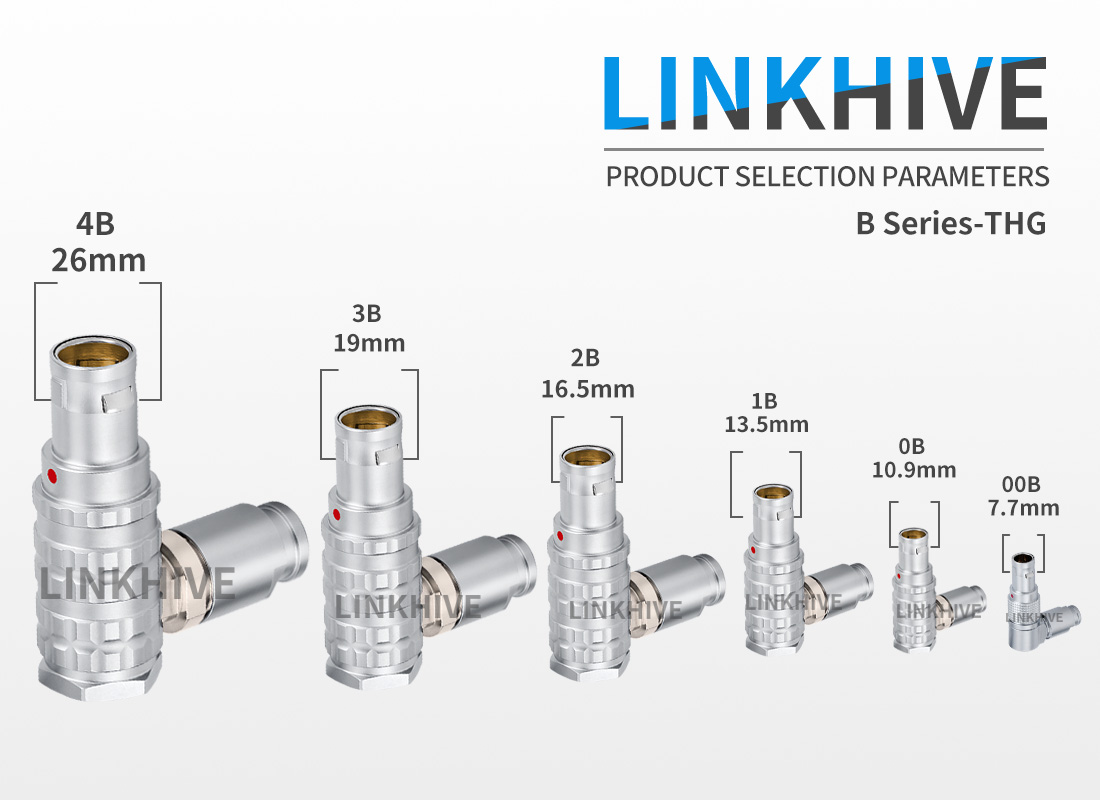

The FHG 90 degree circular elbow plug is available in sizes 00B, 0B, 1B, 2B, 3B, and 4B, offering flexible pin layouts and cable diameters. This metal circular connector ensures optimal fit in compact assemblies. When selecting an elbow plug, consider shell size, number of contacts, and cable outlet direction to match your system's space and signal requirements
90° Right-Angle Design：Optimized for space-constrained or angled cable routing installations
Push-Pull Locking Mechanism：Quick, secure, and vibration-resistant connection
Metal Circular Shell：Precision-machined brass with chrome plating for corrosion resistance
Multiple Sizes Available：Supports size 00B to 4B (miniature to large size)
High-Density Insert Options：Available in power, signal, coaxial, and hybrid configurations
360° EMI Shielding：Ensures signal integrity in high-interference environments
Diamenions:

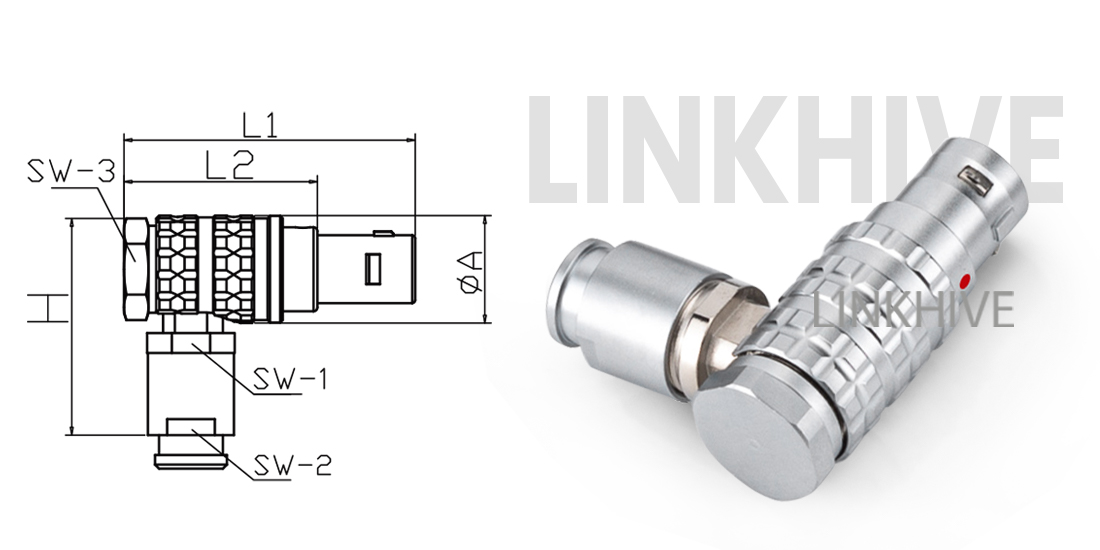

| Reference | elbow plug Dimensions (mm) | |||||||
| Series | Model | A | H | L1 | L2 | SW1 | SW2 | SW3 |
| 00B | THG | 7.7 | 18 | 24 | 16 | 5.5 | 5 | 7 |
| 0B | THG | 10.9 | 23 | 31.5 | 21.5 | 8 | 7 | 10 |
| 1B | THG | 13.5 | 27.5 | 37 | 27 | 10 | 9 | 12 |
| 2B | THG | 16.5 | 34 | 41.5 | 29.5 | 13 | 13 | 15.2 |
| 3B | THG | 19 | 37 | 50 | 35 | 16 | 15 | 17 |
| 4B | THG | 26 | 52 | 67 | 49 | 21 | 20 | 22 |
Quality & Test Control
Our FHG series connector right angles are manufactured under strict quality assurance systems:
In-house testing laboratory for full performance verification of elbow plug
100% visual inspection for metal circular connector and mating cycle test before shipment
Passed salt spray, vibration, and shock resistance tests for 90 degree industry connectors
Compliant with RoHS and REACH environmental standards for connector right angle
Batch traceability and customized test reports available upon request
Application Fields
FHG 90° circular connector right angle is ideal for:
Medical Devices：ECG monitors, infusion pumps, surgical consoles
FHG connector right angle in Industrial Automation：Robotic arms, control cabinets, PLC modules
FHG premium Circular push pull connector in Broadcast & Audio：Camera link systems, audio consoles, lighting panels
FHG Elbow plug in Test & Measurement：Handheld testers, oscilloscopes, calibration equipment
FHG 90 degree industry connectors in Aerospace & Military：Portable communication, GPS, avionics wiring
Electric Vehicles / Mobility connector right angle：Battery diagnostics, onboard sensor integration
FHG elbow plug Scientific Instruments：Laboratory analyzers, particle detectors
Electrical Configuration
| Contact Termination | Solder |
| R (max) | 4.8 mOhm |
| Insert configuration value | Low Voltage |
| Insulator | PEEK/PPS |
| Rated current | 10 A |
Test voltage(kV DC) | 1.6 |
| Wire Size | AWG30 - 22 |
| Contact | 2 to 47 |
Material&Environment
| Part No | THG , cable collet, - metal circular connector |
| Gender | circular elbow plug |
| Plug material | chrome plated brass shell and back nut. nickel plated brass inner latch sleeve and other pieces. |
| Push PULL | premium circular push pull connector |
| Keyways | Key G/A/B/C/D/E/F/J/K/L/M/Y/R |
| 90 degree industry connectors Contact | 2 to 47 |
| Endurance | 5000 mating cycles |
| Temperature range | -55°C / +250°C |
| Shielding at 10 MHz | >75 dB (10 MHz) |
| Shielding at 1 GHz | >40 dB |
| Shock Resistance | 100 g [ 6 ms] |
| Resistance to Vibration | 15g(10Hz-2000Hz) |
| Climatical Category | 50/175/21 |
| Humidity | <=95% [at 60 deg C /140 F] |
| Mating cycles | 5000 |
| Sealing | IP68 |
| Salt Spray Corrosion | >1000 hr |
B Series Industry Connectors Alignment key
B Series industry connectors Panel cutouts
B Series industry connectors Clamp
B Series Models

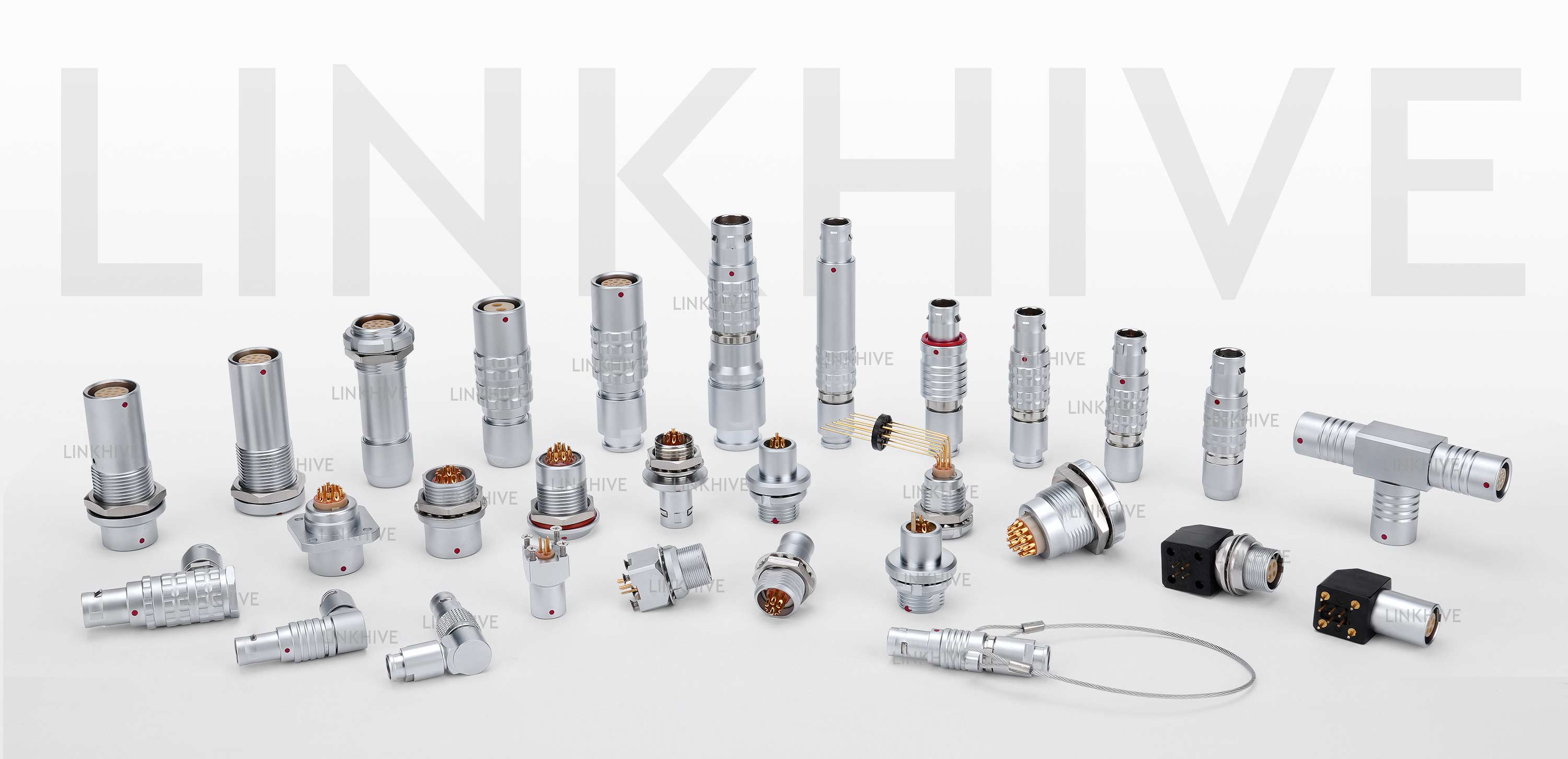

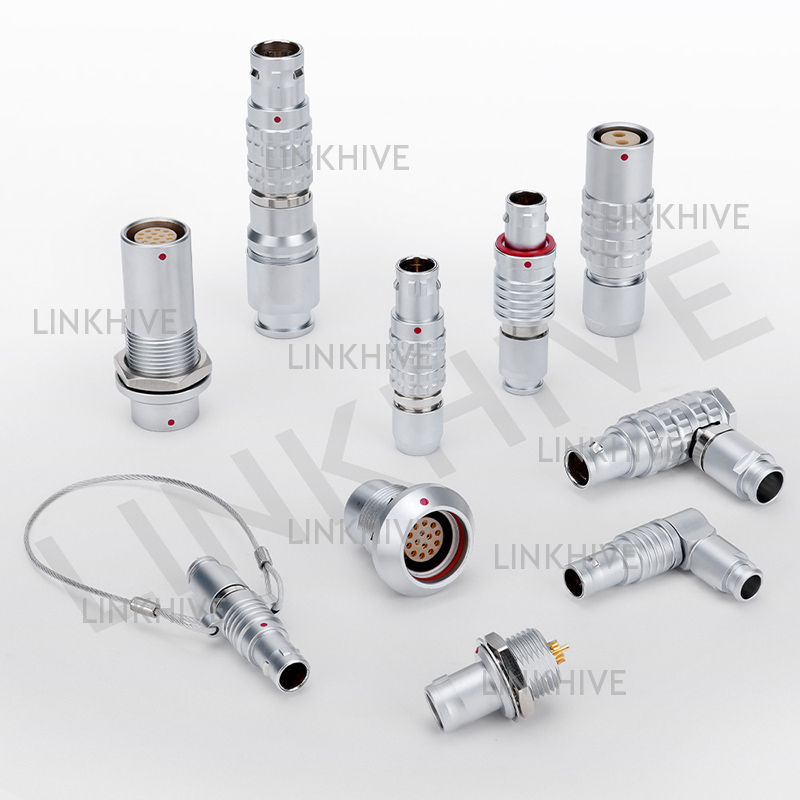

Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.
LINKHIVE B Series FGG 00B 4B metal circular push pull connectorsmetal circular push pull connectors are compact, self-latching solutions widely used in medical, industrial, and test systems. These metal circular push pull connectors offer stable performance, fast mating, and flexible size options for demanding environments. Designed for reliability, the FGG 00B 0B 1B 2B 3B 4B connectors are ideal for high-density signals, and are supported by strong production capacity and global stock.
The FEG 305 industrial plug is a high-reliability metal circular push pull connector designed for harsh environments in automotive, testing, and industrial applications. Featuring a robust seal plug structure and precision metal tube connectors, it ensures stable performance under vibration and moisture exposure. Widely used as automotive connectors, the FEG series is manufactured with strict quality control and large-volume stock for fast global delivery.
The FNG 0B/1B to 4B 304 circular push pull connector with lanyard is a reliable emergency disconnect connector designed for rapid cable release in mission-critical systems. As a avionics connector, it features a durable lanyard mechanism and is fully compatible with FGN connectors. Widely used in defense, medical, and aerospace fields, the FGN connector with lanyard release ensures secure mating with effortless emergency release. Backed by precision engineering and stable supply, this circular push pull connector with lanyard supports safety, efficiency, and field durability in high-stress environments.
The EGG socket is a reliable metal push pull connector socket designed for panel mounting in compact systems. Available in sizes 00B to 4B, this high-density panel socket is widely used in medical devices, test instruments, and industrial controls. As a circular socket fully compatible with B series, it features a self-latching mechanism for secure mating and quick release. With precision engineering and stable inventory, the EGG socket ensures consistent performance in critical environments.
