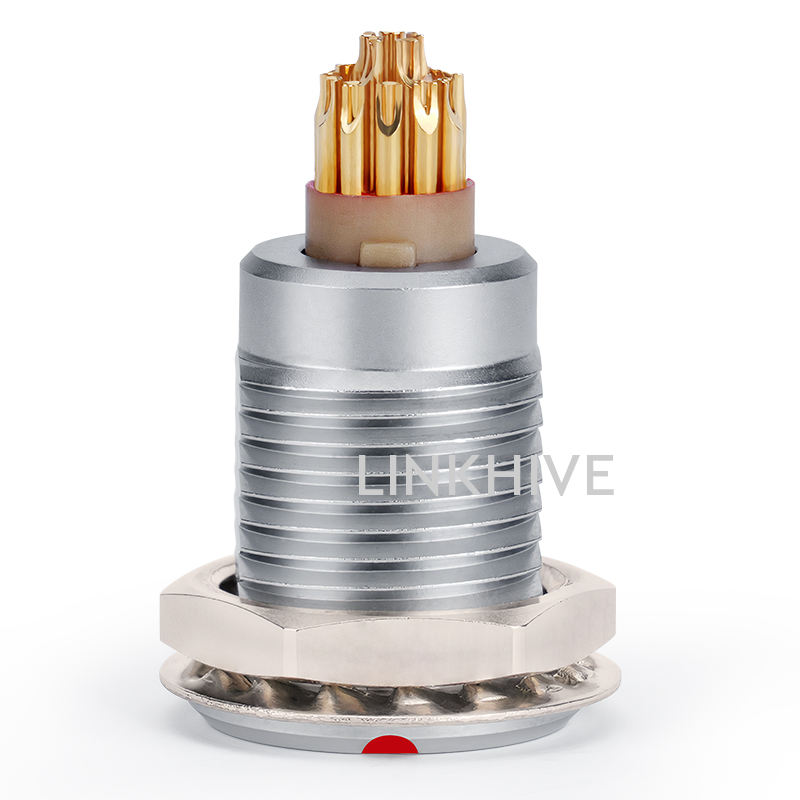

EGG 00B 4B Circular Metal Push Pull Connector Socket

  • EGG 00B 4B Circular Metal Push Pull Connector Socket
  • EGG 00B 4B Circular Metal Push Pull Connector Socket
  • EGG 00B 4B Circular Metal Push Pull Connector Socket
  • EGG 00B 4B Circular Metal Push Pull Connector Socket
  • EGG 00B 4B Circular Metal Push Pull Connector Socket
  • video
  • LINKHIVE
  • CHINA
  • 2 WEEKS
  • Ample Stock
The EGG socket is a reliable metal push pull connector socket designed for panel mounting in compact systems. Available in sizes 00B to 4B, this high-density panel socket is widely used in medical devices, test instruments, and industrial controls. As a circular socket fully compatible with B series, it features a self-latching mechanism for secure mating and quick release. With precision engineering and stable inventory, the EGG socket ensures consistent performance in critical environments.

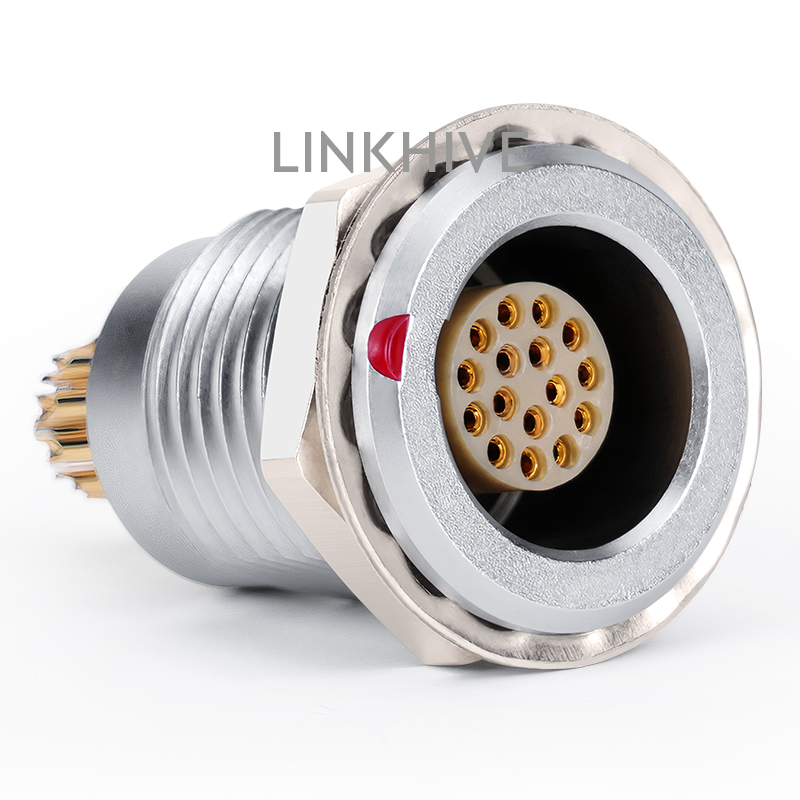

What is EGG 00B–4B Circular Metal Push Pull Connector Socket ?

The EGG circular metal socket is a precision-engineered compact socket designed for panel-mount installations in compact and high-reliability environments. As a push pull connector socket, it features self-latching system, offering secure mating, quick disconnection, and long-lasting durability. Available in shell sizes from 00B to 4B, the EGG push pull socket  supports multiple contact configurations, making it a versatile panel mount socket solution across industries.

 this EGG circular precision socket ensures seamless integration with other compatible plugs and systems. The circular metal socket design allows for smooth blind mating and alignment, while the robust metal shell offers protection in demanding environments.


industry socket



Our Advantages

Choosing the right ZGG push pull socket  involves identifying the appropriate shell size (00B to 4B), the number of contacts, and contact types (signal, power, coaxial, etc.). All models are compatible with  B series and are designed to fit standard panel cutouts. Whether used in medical, industrial, or research applications, this compact socket provides both mechanical stability and electrical reliability.

  • Push pull socket  Available in 8 shell sizes, supporting a broad range of contact layouts

  • Push-Pull self-latching system ensures secure mating and quick disconnection

  • Circular precision socket Indoor IP50 protection

  • Compact socket Supports up to 64 contacts, suitable for signal, power, or hybrid configurations

  • Multi-keying options (G, A, B, C, D, E, F, J, K, L, M, etc.) to prevent mismating

  • Compatible with LINKHIVE  B Series plugs (FFA)

B Series Circular Clug is widely used in measurement systems, medical devices, broadcast systems, and laboratory equipment.




Applications

The GG compact socket  is widely used in medical diagnostic devices, laboratory instruments, industrial automation, broadcast systems, and aerospace equipment. As a metal push pull connector socket, it is particularly ideal for use in systems requiring frequent mating cycles and reliable signal integrity. The panel mount socket layout makes it suitable for compact control panels and equipment interfaces.

push pull socket

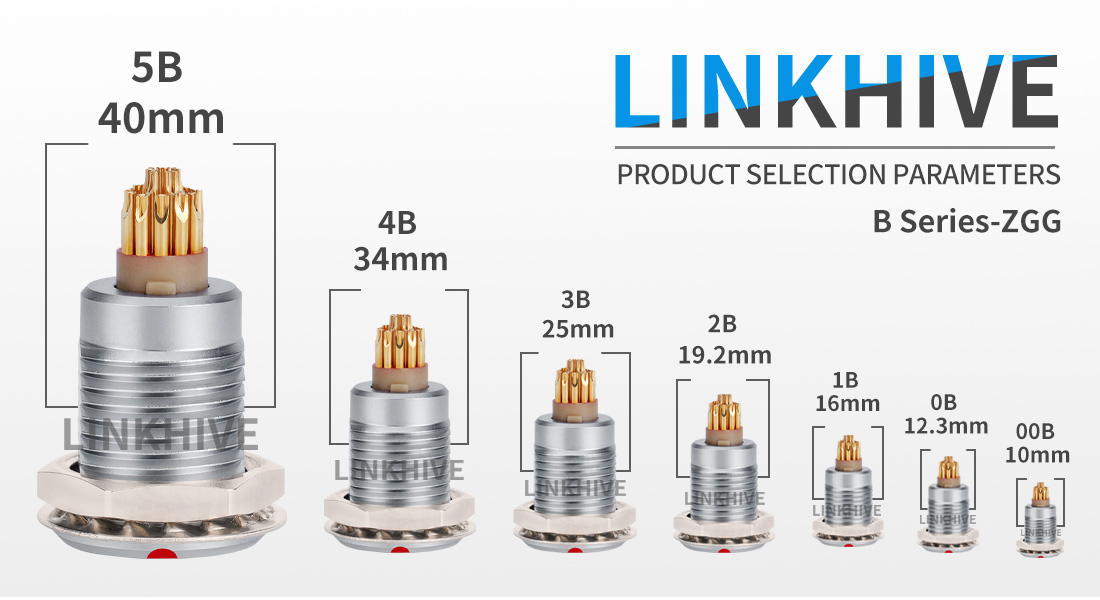

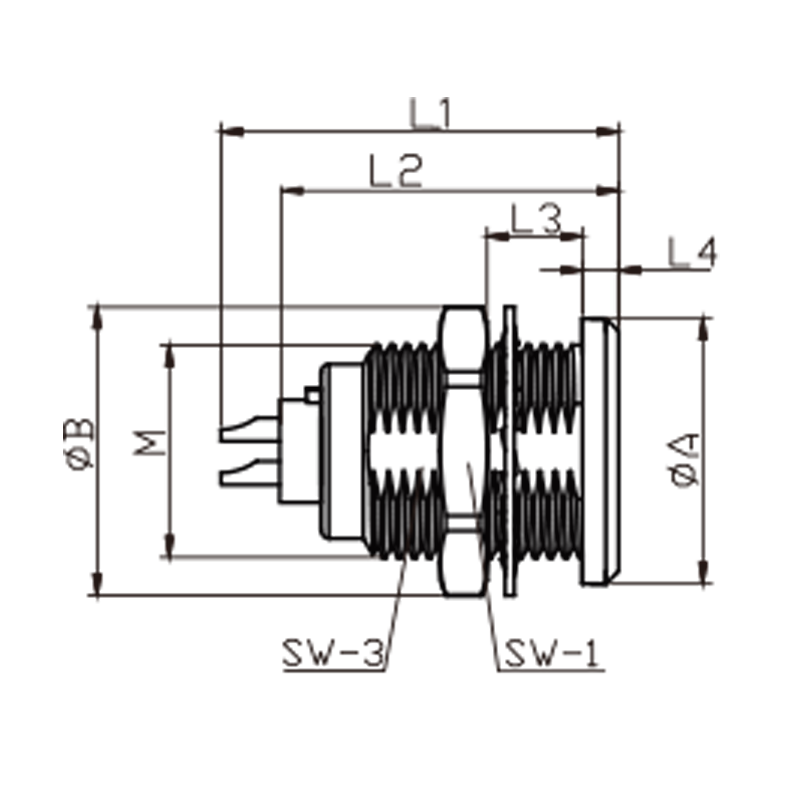

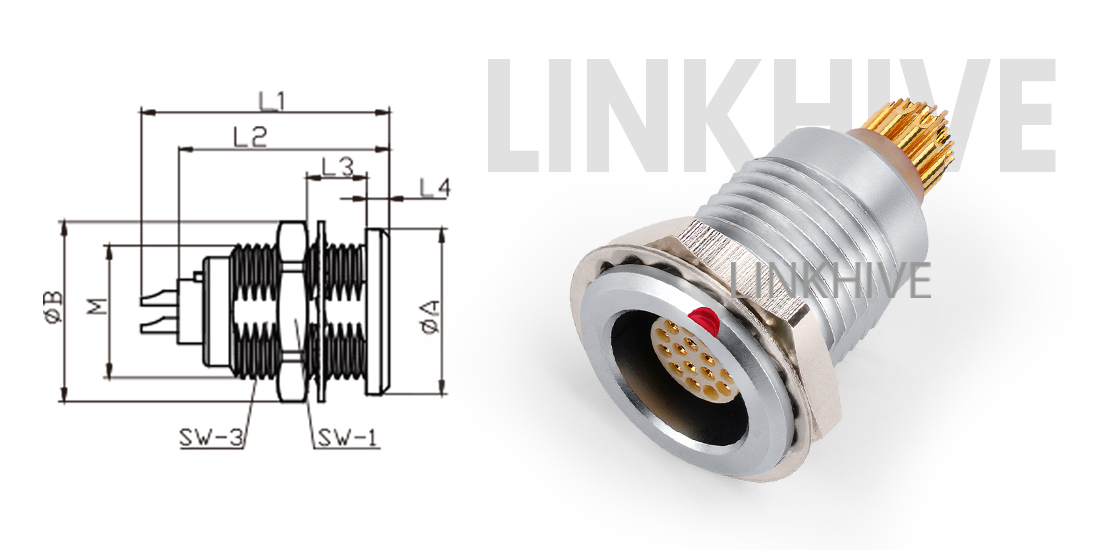

Model & Dimension Overview

panel mount socket


ReferenceDimensions (mm)
SeriesModelABML1L2L3L4SW1SW3
00BZGG8 10.0 M7*0.515.9 12 6 1.0 6.3 9
0BZGG10 12.3 M9*0.621.3 18 7 1.2 8.2 44
1BZGG14 16.0 M12*1.023.2 18.7 7.5 1.5 10.5 14
2BZGG18 19.2 M15*1.026.0 20 8.0 2.0 13.5 17
3BZGG21 25.0 M18*1.030.7 25 11 2.0 16.5 22
4BZGG28 34.0 M25*1.035.2 27 13 2.5 23.5 30
5BZGG40 40.0 M35*1.043.5 39.6 11 3.0 33.5






Model Selection Table


 00B Series Sub-miniature size  EGG 00B–4B Circular Metal Socket  Selection


Mode

ZGG.00B.302.CGL.M

ZGG.00B.303.CLL.M

ZGG.00B.304.CLL.M

ZGG.00B.305.CLL.MZGG.00B.306.CLL.M
Insertsindustry socketpush pull socketpanel mount socketindustry socketpush pull socket
Contacts2 contacts3 contacts 4 contacts 5 contacts  6 contacts
DescriptionUltra-miniature 2-pin circular precision  socket 3-pin compact circular socket Versatile 4-pin miniature socket5-pin mini push pull socket 6-pin micro panel mount socket
Application compact signal transmission in wearable electronics, mini sensors, and medical probes low-power control signals in precision instruments, portable detectors, and test probes.used for compact power and signal interfaces in mobile analysis or smart toointegrated multi-signal applications in lab sensors and portable test systems.compact multi-channel signal routing in diagnostic or industrial handheld devices.




 0B Series Miniature size EGG 00B–4B Circular Metal Socket  Selection


ModeZGG.0B.302.CLL.MZGG.0B.303.CGL.MZGG.0B.304.CLL.MZGG.0B.305.CLL.MZGG.0B.306.CLL.MZGG.0B.307.CLL.MZGG.0B.309.CLL.MZGG.0B.312.CLL.M
Insertspanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socket
Contacts2 contacts3 contacts 4 contacts 5 contacts  6 contacts7 contacts9 contacts12 contacts
Descrition2-pin panel mount socket3-pin precision socket4-pin power/signal combo socket Multi-channel 5-pin socket6-pin panel mount socket7-pin precision socket  9-pin panel mount socketHigh-density 12-pin panel mount socket
Application for signal transmission in compact sensors, audio lines, or test units.for basic control signals in lab test benches, automation modules, and wearable devices.for portable diagnostic systems and hybrid instrumentation setups. for test interfaces in sensor integration, compact medical analyzers, or robotics.for simultaneous signal and low-voltage transmission in field test equipment. widely used in IVD medical devices, control boxes, and lab instrumentation.

 for compact high-density data lines in automation modules and robotics control.

for signal-rich applications such as diagnostic analyzers, imaging systems, or measurement hubs.




1B Series Small size EGG 00B–4B Circular Metal Socket  Selection


ModeZGG.1B.302.CLL.MZGG.1B.303.CLL.MZGG.1B.304.CLL.MZGG.1B.305.CLL.MZGG.1B.306.CLL.MZGG.1B.307.CLL.MZGG.1B.308.CLL.MZGG.1B.310.CLL.MZGG.1B.314.CLL.MZGG.1B.316.CLL.MZGG.1B.106.CLL.M
Insertspush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socket

push pull socket

panel mount socket
Contacts2 contacts3 contacts 4 contacts 5 contacts  6 contacts7 contacts8 contacts10 contacts14contacts16 contacts6 contacts
Description2-pin circular socket3-pin metal socket4-pin hybrid socket5-pin high-density panel mount sockett1B 6-pin circular connector 1B 7-pin connector1B 8-pin panel mount socket1B 10-pin metal circular socket 1B 14-pin high-density high-density socket 16-pin high-pin-count high-density socket 1B Special 6-pin push-pull plug
Applicationfor low-voltage signal transmission in sensor modules designed for small-scale automation systems, control panelsfor signal and low-power transmission in lab test instrumentfor integrated signal systems in portable equipment sensor fusion modules /compact medical instruments designed for signal-rich medical testing units lab equipment, signal acquisition devices, and I/O modulesfor robotics, modular signal distribution, and automation boardsfor diagnostic interfaces, test fixtures, space-limited systems with extensive signal wiring for miniature control units and compact circuit modules


industry socket


2B Series Medium size EGG 00B–4B Circular Metal Socket Selection


ModeZGG.2B.302.CLL.MZGG.2B.303.CLL.MZGG.2B.304.CLL.MZGG.2B.305.CLL.MZGG.2B.306.CLL.MZGG.2B.307.CLL.MZGG.2B.308.CLL.MZGG.2B.310.CLL.MZGG.2B.314.CLL.MZGG2B.316.CLL.MZGG.2B.318.CLL.MZGG.2B.319.CLL.MZGG.2B.332.CLL.MZGG.2B.514.CLL.M

push pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socket
Contacts2 34 5 6 7 810 1416 18 19 32 8
Description2B compact 2-pin push pull socketStandard 3-pin precision socket4-pin industry socket

Standard 5 pin signal socket, medium shell

compact precision socket  for 6-core systems  7-pin insert circular metal socketStandard 8 pin circular precision socket

10  pin Medical grade precision socket

14-pin circular metal socket in standard shell


16-core compact industry socket, medium-sized interface


18-core push pull socket layout with stable connection


9 contacts high density panel socket

32-pin multi-signal circular precision socket

8 Core Color-coded industry socket
ApplicationMiniature size, ultra compact shell for 2-core signalsSmall form factor, commonly used in LED and audio

4-pin  socket for industrial sensors

instrumentation and testing

Medical and signal devices

Automation control modules

Multi-signal capacity for audio systemsMedical instrumentsHigh-density  for compact automationMulti-core 16-pin configuration for general signalsInstrumentation and automation signals

complex systems

Dense multi-channel signal transfer

Multi-core data transfer and instrumentation

Medical-grade color-coded circular metal socket



3B Series Large size ZGG 00B–4B Circular Metal Socket Selection


ModeZGG.3B.303.CLL.MZGG.3B.305.CLL.MZGG.3B.306.CLL.MZGG.3B.307.CLL.MZGG.3B.308.CLL.MZGG.3B.309.CLL.MZGG.3B.310.CLL.MZGG.3B.312.CLL.MZGG.3B.316.CLL.MZGG.3B.318.CLL.MZGG.3B.320.CLL.MZGG.3B.322.CLL.MZGG.3B.324.CLL.MZGG.3B.330.CLL.MZGG.3B.332.CLL.M
Insertpanel mount socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketpanel mount socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socket
Contacts3 5 6 7 8 9

10

14 16 1820 2224 3032
DescriptionCompact precision socket with precision 3-core layout5-core push pull socket with stable insertioncircular metal socket for 6-core signal transferprecision socket with 7-pin circular precision socketPush pull socket for balanced 8-core connectionprecision circular socket for signal+powerhigh density panel socket with 10 contactsHigh density circular metal socket with 14-pin configuration16-core precision socket layout18 pin Push pull socket 20 pins circular metal socket22-pin circular precision socket for automation24-core high density panel socket for I/O ports30-pin circular industry socket capacity 32-pin socket, precision and durability
ApplicationLED/audio systems with circular precision socketControl devices using 5-core push pull socketindustry socket Testing, signal routing, high density panel socketCommunication modules requiring circular precision socketAudio and medical push pull socket applications industry socketindustrial automation and equipment controlbalanced signal distribution in compact devices industry socket  for testing and diagnostic devicesUsed in control panels requiring compact socket designIdeal for automation wiring with medium pin countCommunication and sensor modules Factory automation, compact wiring, push pull connectionMachine interface using high density panel socketMilitary-grade multi-channel transfer automation systems and multi-channel equipment




4B Series  Extra-large size ZGG Circular Metal Socket Selection


ModeZGG.2B.303.CLL.MZGG.4B.305.CLL.MZGG.4B.306.CLL.MZGG.4B.307.CLL.MZGG.4B.308.CLL.MZGG.4B.309.CLL.MZGG.4B.310.CLL.MZGG.4B.312.CLL.MZGG.4B.316.CLL.MZGG.4B.318.CLL.MZGG.4B.320.CLL.MZGG.4B.322.CLL.MZGG.4B.326.CLL.MZGG.4B.330.CLL.MZGG.4B.332.CLL.M
Insertpanel mount socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketpanel mount socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socket
Contacts3 5 6 7 8 9 10 1216 1820 22263032
Description4B large size 2 pin push pull socket in circular metal shell4B 5-core precision socket size configuration4B  6-core High-performance circular precision socketLarge size 7-core circular precision socketLarge format 8-core push pull socketprecision circular industry socket for signal+power10-pin large size industry socket for automation12-core high density panel socket16-core circular metal socket in compact metal shellLarge size industry socket with 18-pin layout20-pin push pull socket for control systemsCircular socket with 22 dense contactsMulti-channel 26-core circular metal socket30-core High density  panel socket32-pin circular precision socket for automation
ApplicationFor signal and power combo useFor test equipment and data inputindustry socket Used in industrial controller I/OPanel-mounted multi-pin signal interfaceLarge size industry socket for audio and controlControl system wiring with 9 signalsAutomation device plug-in moduledense data signal applications, used in precision instrumentsFor industrial signal distributionSuitable for automation wiring harnessesStandard large size circular interfaceHigh density panel interface for control cabinetsFor sensor fusion and machine modulesWiring systems in automation controlPanel integration of high-core push pull socket




5B Series Oversize ZGG Circular Metal Socket Selection



ModeZGG.5B.302.CLL.MZGG.5B.304.CLL MZGG.5B.310.CLL.MZGG.5B.314.CLL.MZGG.5B.316.CLL.MZGG.5B.320.CLL.MZGG.5B.330.CLL.MZGG.5B.340.CLL.MZGG.5B.348.CLL.M
Insertsindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socketindustry socketpush pull socketpanel mount socket
Contacts2 4
1014 16 20304048
DescritionOversize 2‑pin compact circular metal socket.Oversize 4‑pin high‑density panel socket.Oversize 10‑pin precision push‑pull socket.Oversize 14‑pin circular precision socket.Oversize 16‑pin compact push‑pull socket.Oversize 20‑pin circular metal socket.Oversize 30‑pin high‑density panel socket.Oversize 40‑pin precision circular socket.Oversize 48‑pin high‑capacity push‑pull socket.
ApplicationFor compact signal and control lines.For medical and sensor connections.For multi‑signal instrumentation.For lab and communication devices.For robotics and control units.For automation and test systemsFor medical imaging modules.For aerospace communication units.For data‑intensive industrial systems



Industry Socket Material & Environmental Information

Part Number Example: ZGG 1B 306 CLL M, compact socket

Gender: circular metal socket

Plug Material: Chrome-plated brass shell and back nut, nickel-plated brass inner latch sleeve and other pieces

Locking Type: Push Pull

Keyways: Key options A, B, C, D, E, F, J, K, L, M, V, R

Contact Range: 2 to 47

Endurance: 5000 mating cycles

Operating Temperature: -55°C to +250°C

Shielding at 10 MHz: >75 dB

Shielding at 1 GHz: >40 dB

Shock Resistance: 100 g [6 ms]

Vibration Resistance: 15g (10 Hz–2000 Hz)

Climatic Category: 50/175/21

Humidity: ≤95% [at 60°C / 140°F]

Salt Spray Corrosion Resistance: >1000 hours

Contact Termination: Solder

Maximum Contact Resistance (R): 4.8 mOhm

Insert Configuration: Low Voltage

Insulator: PEEK / PPS

Rated Current: 10A

Test Voltage (DC): 1.6 kV

Wire Size: AWG30 – 22



Quality Assurance & Testing

To guarantee long-term durability and secure performance under repeated use, LINKHIVE applies rigorous quality control and validation tests to every B Series circular metal socket

EGG Push pull socket  Quality Control Procedures

  • 100% Visual & Dimensional Inspection
    Every push pull socket  is checked for surface defects, plating consistency, and dimensional accuracy (keying, shell, contacts).

  • Keying & Mating Precision
    Each compact socket shell undergoes tolerance inspection to ensure accurate alignment with multi-keying codes (G, A, B...).

  • Material Certification
    Circular metal socket Shells made of chrome-plated brass; inserts made from PPS/PBT/PEEK are verified for thermal and dielectric stability.

     Circular precision socket Electrical Testing


B Series Alignment key


industry socket


B Series Panel cutouts



push pull socket




B Series Clamp

panel mount socket
