Replacement ultimate Series UR50 IP68 Short Cable Receptacle

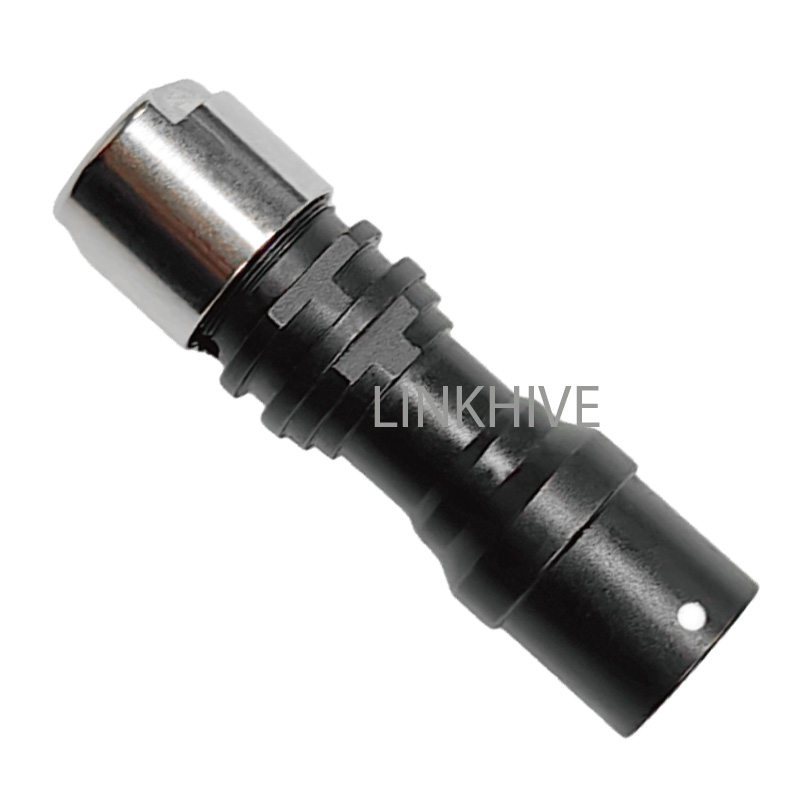

The UR50 IP68 Short Cable Receptacle from LINKHIVE is engineered as a high-reliability miniature connector solution, offering full compatibility with the Ultimate Series. This rugged aluminum alloy shell provides superior resistance to corrosion, shock, and vibration, while the push-pull locking mechanism ensures quick, secure connections. As a rugged connector designed for critical missions, the UR50 guarantees high performance in the harshest environments.

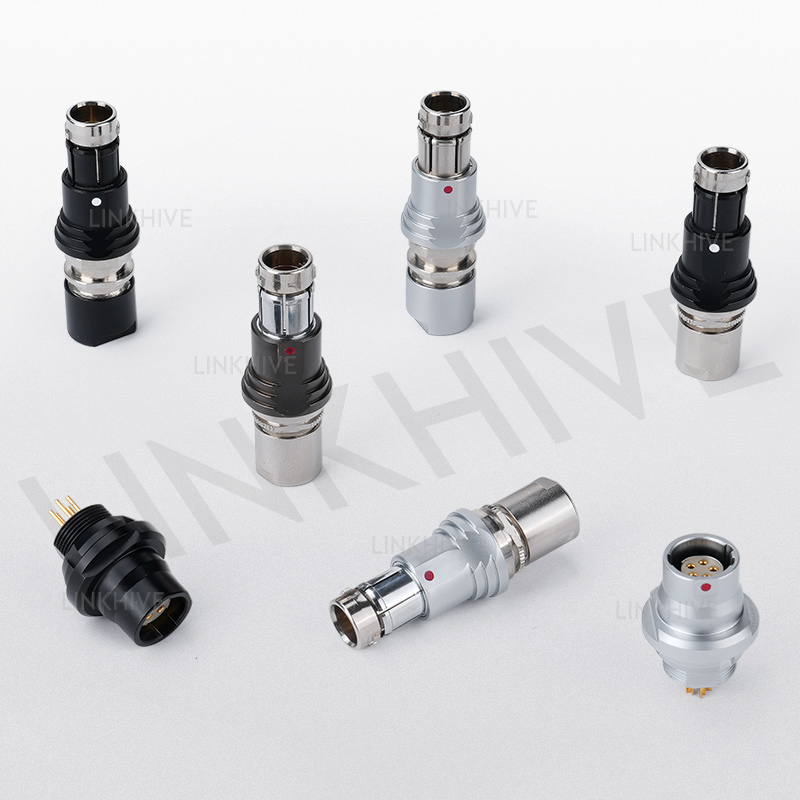

Miniature connector ultimate Series product range overview
| Style | UP01 Short Cable Plug Miniature connector |  | |
 | |||
UR01 Rear Mounted Low Profile Panel Receptacle rugged connector | UR03 Front Mounted Low Profile Panel Receptacle rugged connector | UR50 Short Cable Receptacle rugged connector | |
 |  |  | |
Key features
✅ Rugged and Compact: Designed for use in harsh environments with limited space.
✅ IP68 Watertight Sealing: Maintains full sealing performance even when unmated, capable of withstanding immersion up to 120m.
✅ Miniature Connector Design: Lightweight housing, ideal for mobile and wearable equipment.
✅ EMC 360° Shielding: Ensures signal protection and integrity in demanding electromagnetic environments.
✅ High Mating Durability: Rated for over 10,000 mating cycles.
✅ Wide Temperature Range: Operates reliably from -55°C to +135°C.
✅ Visual & Mechanical Coding: Prevents mismating and supports multiple configurations.
Whether for tactical communications, industrial sensors, or unmanned systems, the UR50 short cable receptacle is your go-to miniature connector solution for compact, rugged connector applications. It is fully compatible with Ultimate interfaces, ensuring seamless replacement and integration into existing systems.

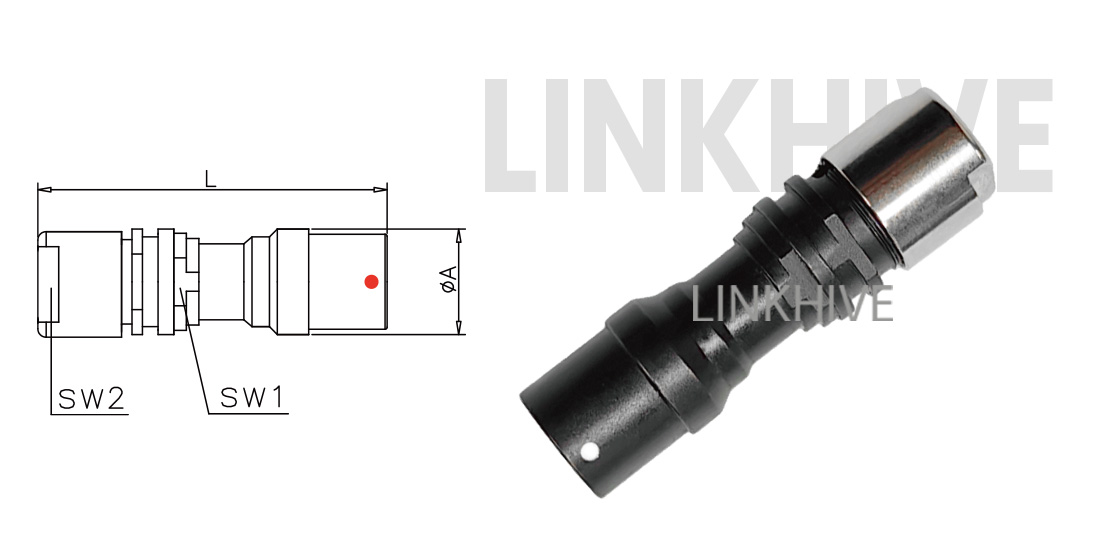

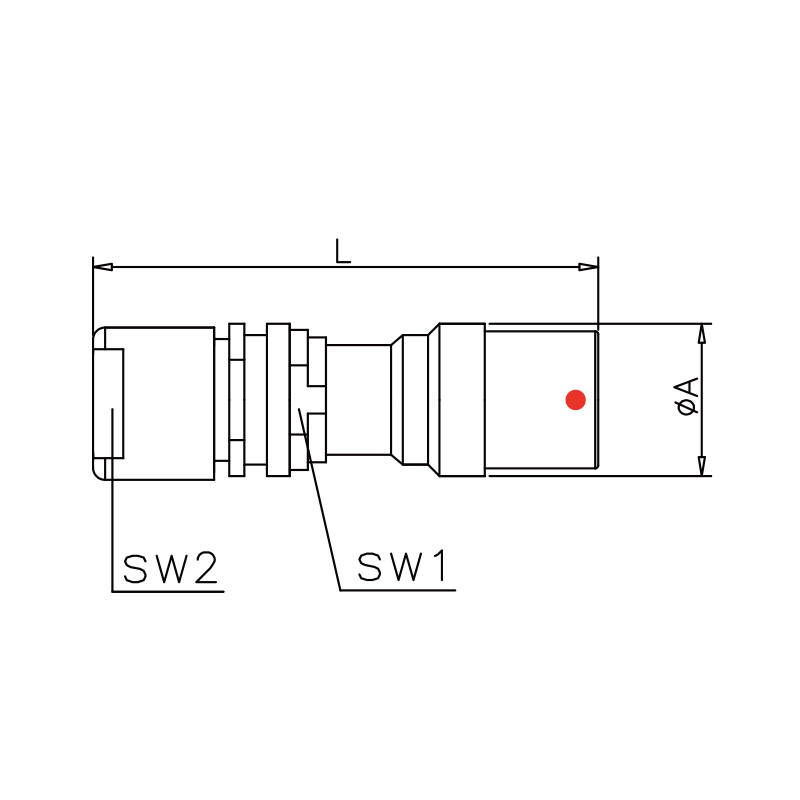

Dimensions
Size | rugged connector Dimensions(mm) | |||
A | L | SW1 | SW2 | |
0U | 9.8 | 33.6 | 8 | 7 |
Determine Environment – Choose IP68-rated rugged connectors for harsh or outdoor use.
Select Size & Contacts – Pick the suitable contact count (2–9 contacts) and cable diameter (2.2–5.6 mm) for your application.
Check Compatibility – Fully compatible with Fischer Ultimate Series for seamless replacement.
Consider Application – Ideal for military, medical, communication, and industrial systems.
Reliable Quality – IP68 sealing and robust construction for extreme environments.
Fischer-Compatible – Directly compatible with Fischer Ultimate Series connectors.
Flexible Options – Multiple sizes and contact layouts to meet diverse needs.
Fast Lead Time – 2-week delivery with ample stock for urgent projects.
Trusted Expertise – Proven supplier for ruggedized interconnect solutions

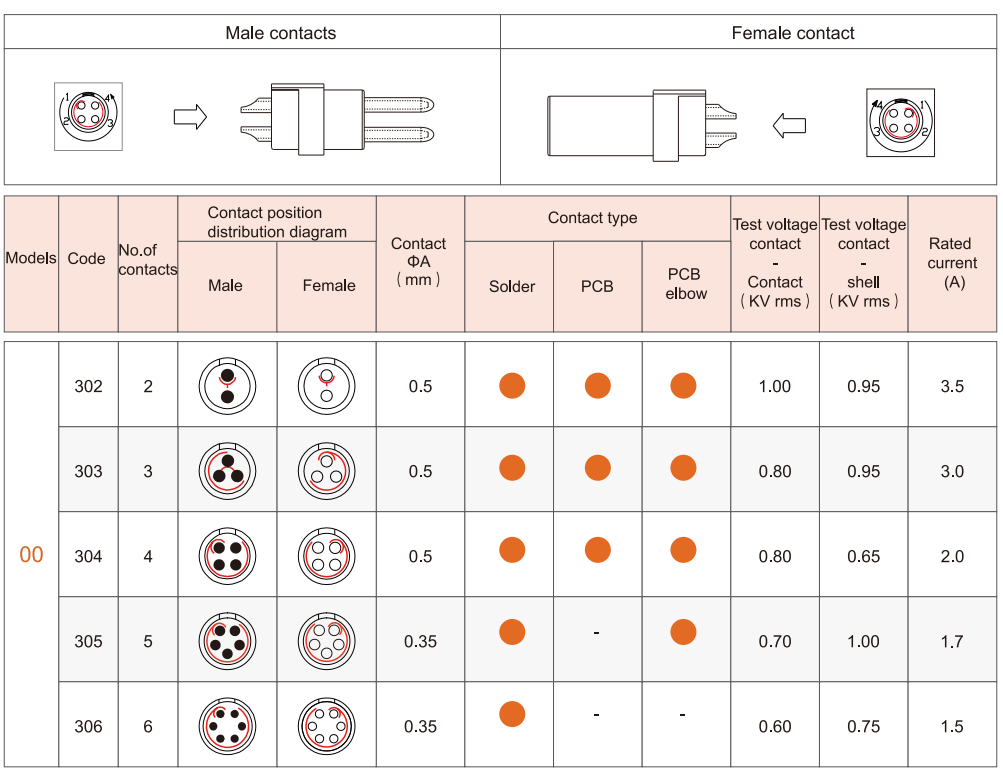

Replacement Ultimate Series UR50 00U IP68 Short Cable Receptacle
| Mode | MUG.0OU.302.CLL | MUG.0OU.303.CLL | MUG.0OU.304.CLL | MUG.0OU.305.CLL | MUG.0OU.306.CLL |
| Inserts |  |  |  |  |  |
| Cable Ø | 2.2 mm | 3.2 mm | 4.2 mm | 5.2 mm | 5.6 mm |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 5 contacts | 6 contacts |
| Description | Miniature rugged connector, IP68-rated short cable receptacle, compatible with Fischer Ultimate Series | Miniature circular connector with high sealing, robust housing for harsh conditions | Short cable receptacle with multi-contact layout, durable design | Miniature IP68 circular connector designed for reliable field performance | Rugged short receptacle, high durability, easy integration |
| Application | Military & defense electronics, portable devices, communication systems | Ruggedized handheld equipment, industrial controls | Field-deployable instruments, data acquisition devices | Harsh-environment sensors, medical devices | Aerospace, outdoor communication terminals |

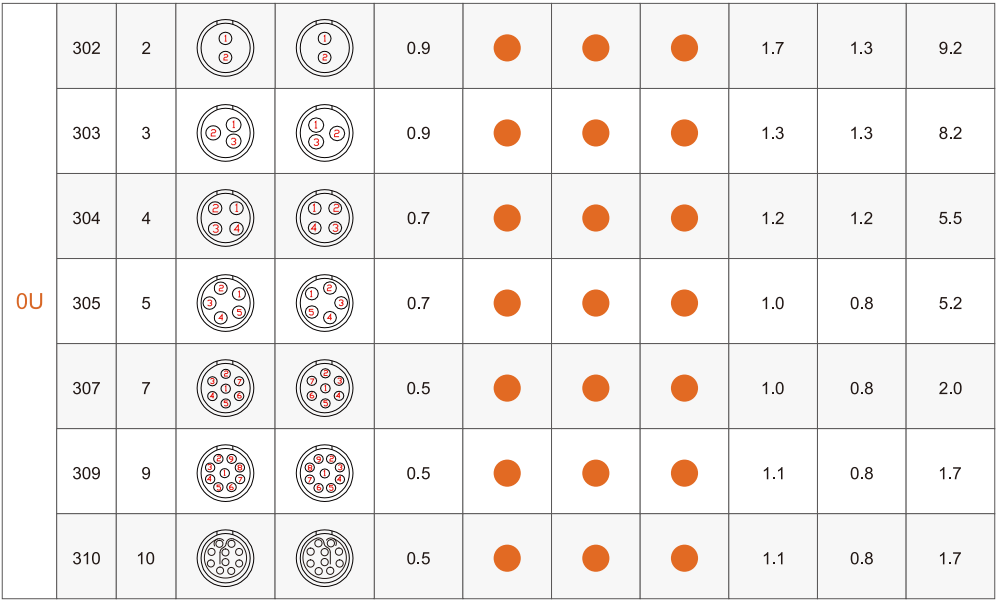

Miniature Size OU UR50 – Replacement Ultimate Series IP68 Short Cable Receptacle
| Specification | MUG.0U.302.CLA.22 | MUG.0U.303.CGL | MUG.0U.304.CLL | MUG.0U.305.CLL | MUG.0U.307.CLL | MUG.0U.309.CLL | MUG.0U.310.CLL |
| Inserts |  |  |  |  |  |  |  |
| Cable Ø | 2.2 mm | 3.2 mm | 4.2 mm | 5.2 mm | 5.6 mm | 5.6 mm | 5.6 mm |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 5 contacts | 6 contacts | 7 contacts | 9 contacts |
| Description | Compact rugged miniature connector, IP68 sealing | Sealed miniature connector for harsh environments | Multi-contact short cable receptacle, durable design | High-performance miniature connector | Rugged connector for portable devices | Multi-pin circular connector, compact design | High-density IP68 connector |
| Application | Wearable communication devices, rugged electronics | Military handheld terminals, control units | Industrial field instruments, data devices | Aerospace sensors, embedded electronics | Outdoor communication terminals | Harsh-environment controllers | High-density portable medical and defense equipment |

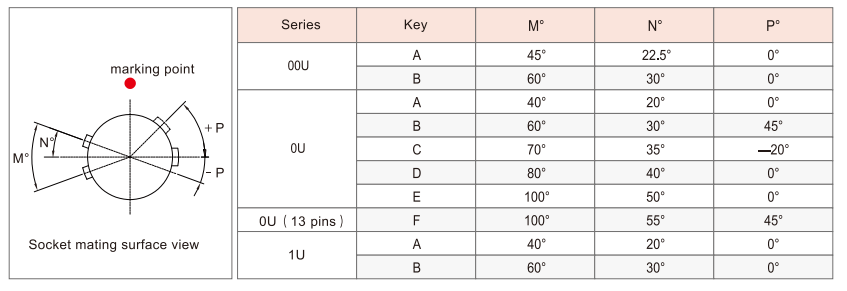

Circular Connector Keyways

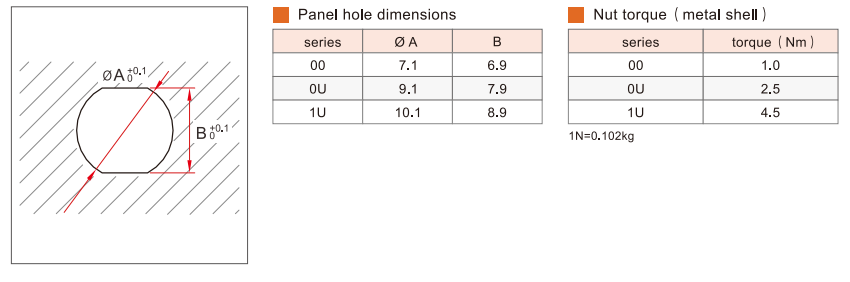

Circular Connector Panel Cut outs
Circular Connector Panel Pin Layout
Specification
Maximum Humidity: | up to 95% at 60°/140°F |
Locking type: | push pull |
Endurance: | 5000-10000 cycles |
Shock resistance: | 100g,6ms |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -55°~+125° |
Connector Series: | Ultimate UR50 Receptacle |
Gender: | Receptacle |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Chrome-plated brass |
Test Voltage (contact-contact): | 1450 |
Test Voltage (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP68 |
