The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.

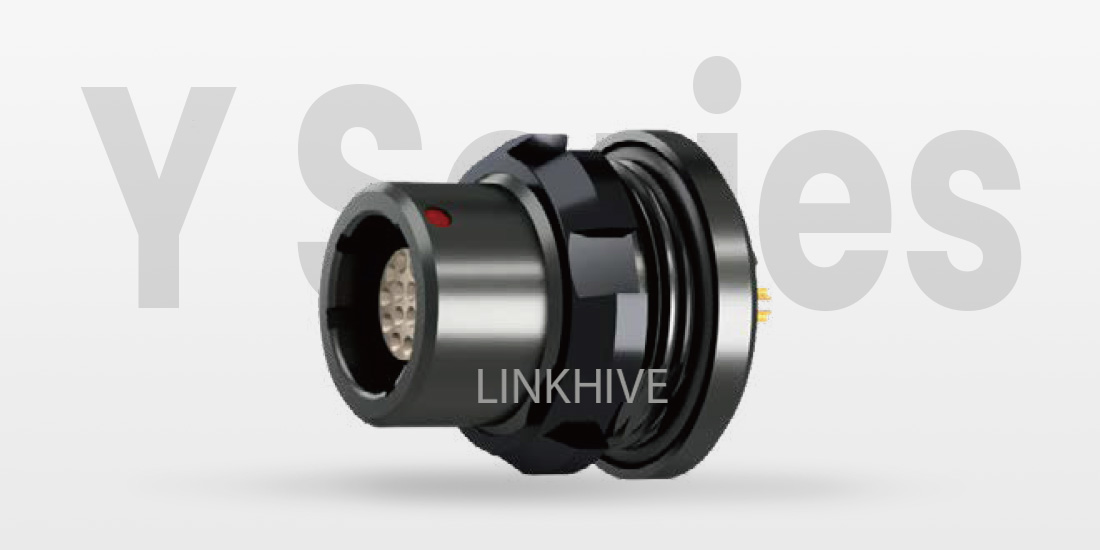

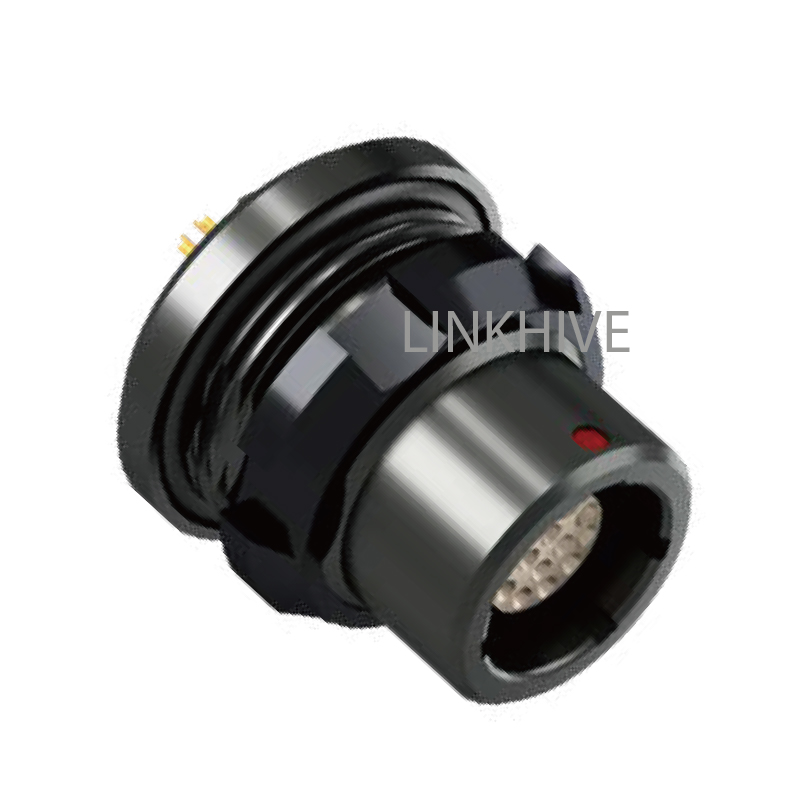

The AMC Series Y GK Style 8 Circular Connector Receptacle is a compact, high-reliability female receptacle connector designed for rugged military and industrial applications.
LINKHIVE AMC Waterproof Receptacle -Intermateable with amc
AMC connector | RECEPTACLES | IN-LINE RECEPTACLE |
AMC SERIES Y S1 push pull connector | AMC SERIES Y GK connector receptacle | AMC SERIES Y K1 |
|
|
|
SERIES Y A1 Break away connector | SERIES Y G8 female receptacle connector waterproof receptacle | |
| | |
AMC SERIES Y GW Panel connector | ||
|
Available in self-locking and break-away (quick-disconnect) styles
Miniature and lightweight design, easy to handle and install
Wide operating temperature range:
Silicone overmolding: –55°C to +200°C
Epoxy adhesive: –55°C to +125°C
PPS insulator (no adhesive): –55°C to +200°C
Dual anti-mismating design with mechanical keying and color-coded alignment
Supports POGO PIN customization and is easy to clean and maintain
Built with a robust metal housing for durability in field conditions
Hybrid configuration: supports signal, high/low voltage, coaxial, triaxial, fiber optic, and pneumatic lines in one connector
Offers complete system integration solutions, including cable assembly and component machining
Optimized for harsh environment applications, with blind mating capability
Excellent EMI/RFI shielding performance
IP68-rated waterproof protection
Stable and reliable data transmission
>5000 mating cycles for long service life
Ideal for use in:
Tactical communication systems
Soldier-worn electronics
UAVs, ground vehicles, and portable devices
Harsh-environment data and power connections
Manufactured by LINKHIVE with advanced CNC machining and strict quality control. Large inventory available for fast delivery, supporting both standard and custom connector needs.

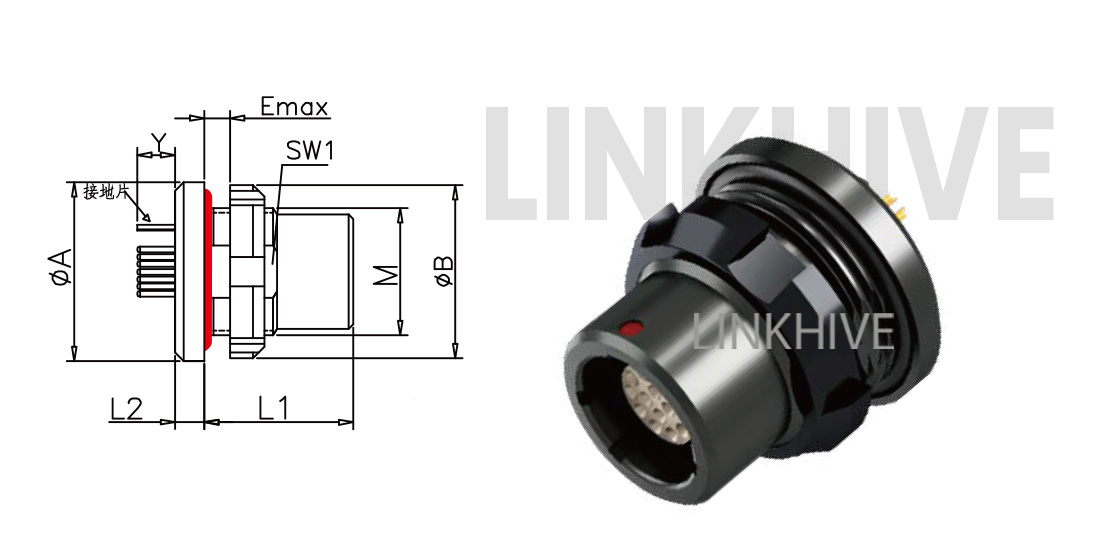

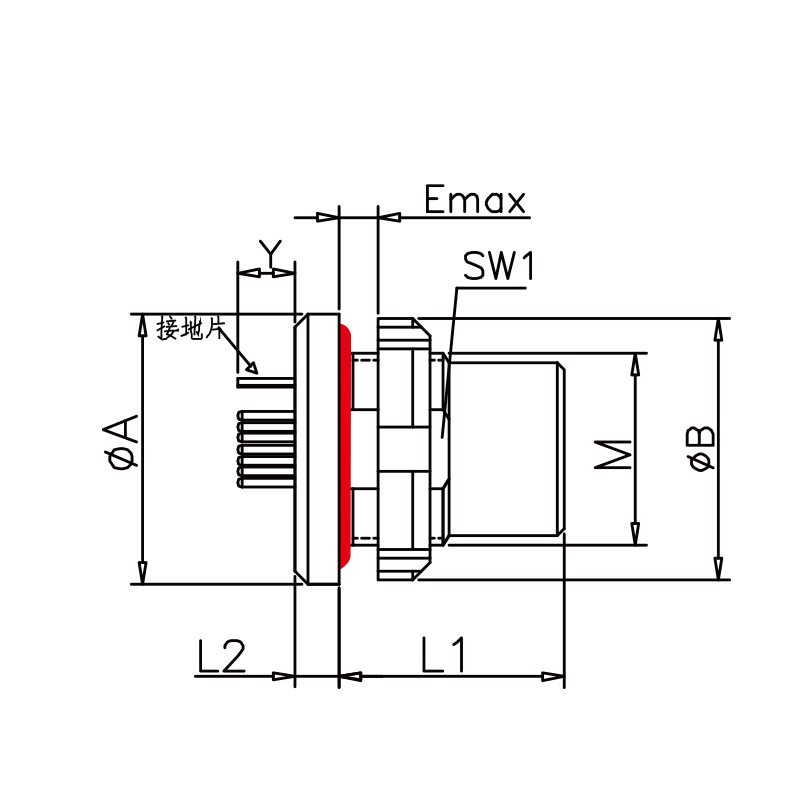

Dimensions
Size | Dimensions(mm) | |||||||
A | B | L1 | L2 | M | Y | E | SW1 | |
0Y | 15.5 | 15.0 | 13.0 | 2.5 | M11*0.75 | 35 | 5 | 10.1 |
1Y | 18.5 | 17.9 | 15.5 | 3.0 | M14*1.0 | 43 | 4 | 13.1 |
AY | 18.9 | 17.9 | 14.2 | 3.0 | M14*1.0 | 47 | 4 | 13.1 |
2Y | 20.8 | 21.9 | 17.5 | 3.0 | M16*1.0 | 49 | 4 | 15.1 |

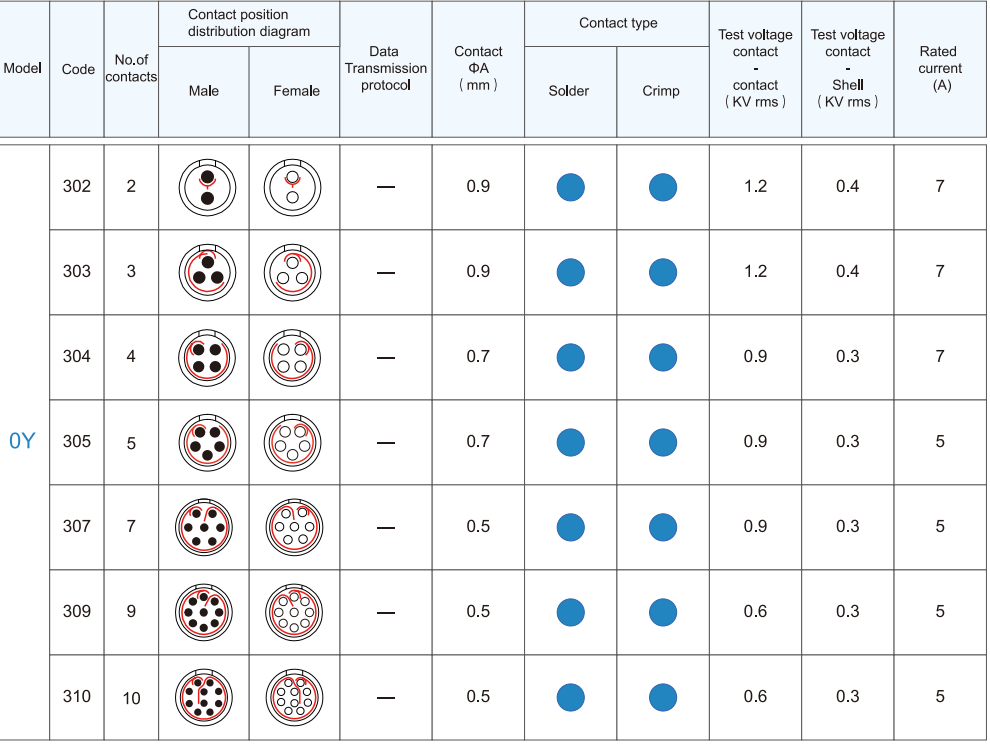

Contact Configuration for Y Series 0Y

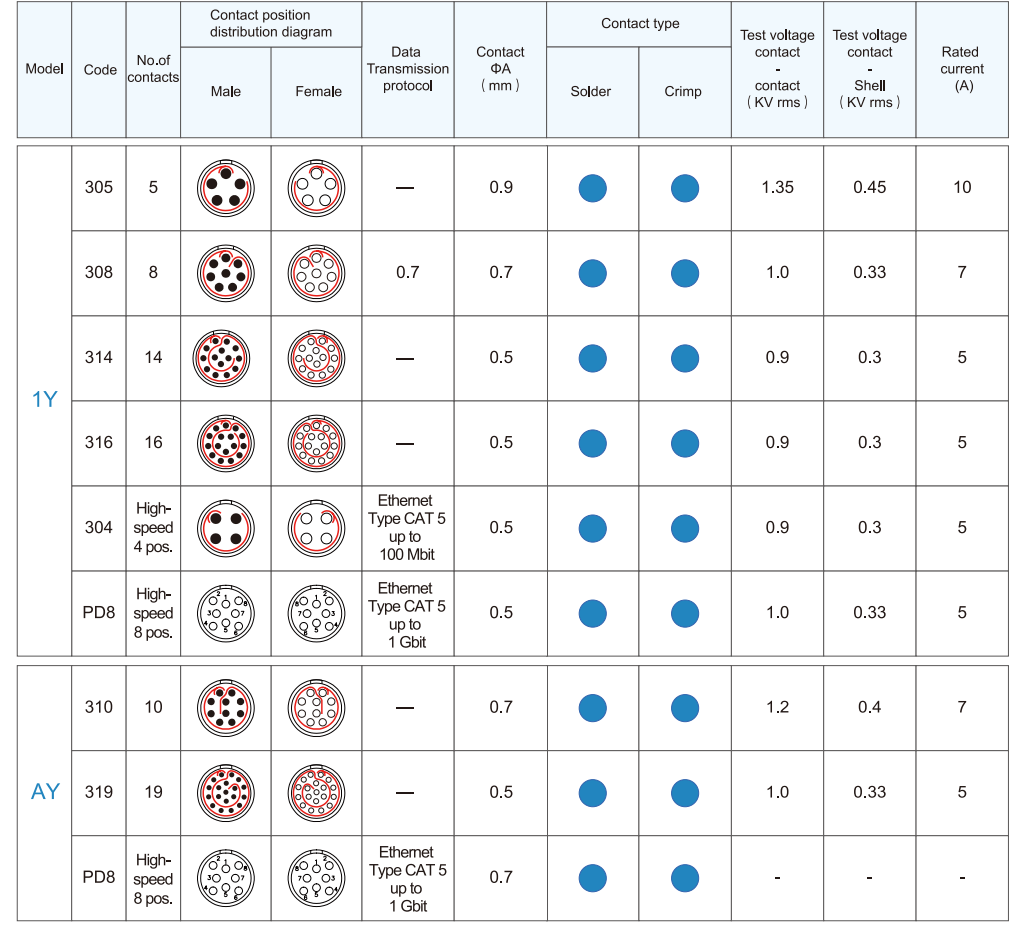

Contact Configuration for Y Series 1Y and AY

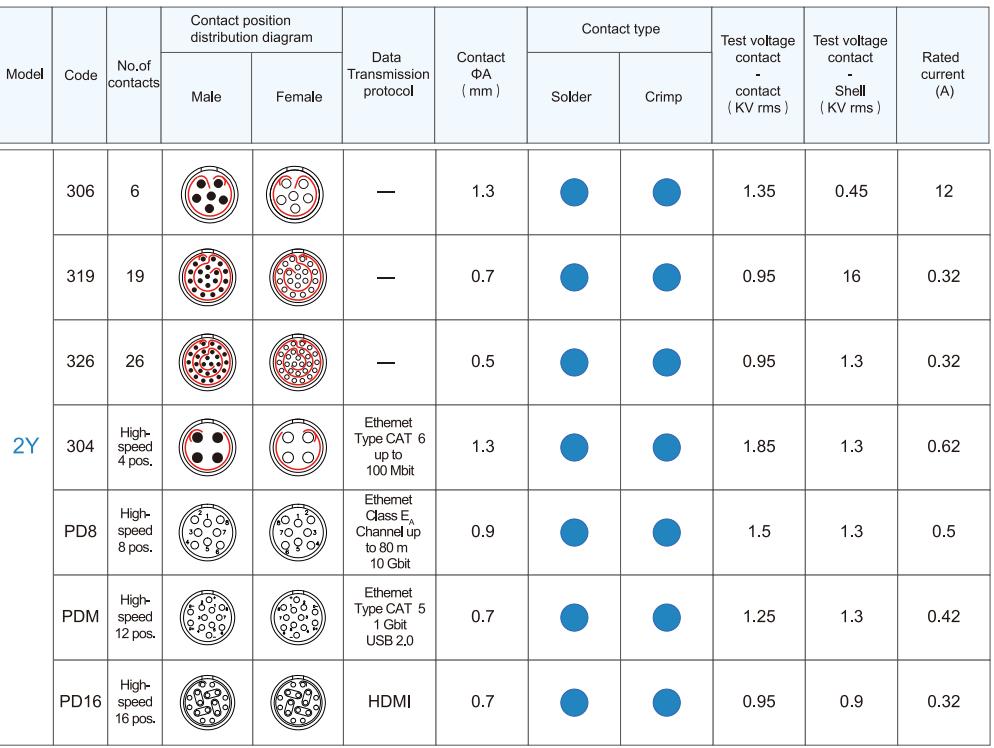

Contact Configuration for Y Series 2Y

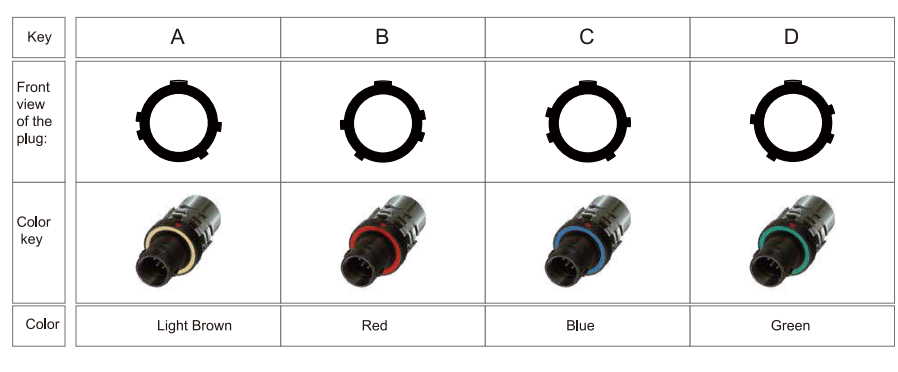

Alignment key
Specification
| Maximum Humidity: | up to 95% at 60°/140°F |
| Locking type: | push pull self-latching type |
| Endurance: | 5000 cycles |
| Shock resistance: | 100g,6ms |
| Salt spray corrosion test: | 96hr |
| Resistance to Vibration: | 15g[10Hz~2000Hz] |
| Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
| Working Temperature: | -55°~+200° |
| Connector Series: | AMC Series GK |
| Gender: | GK receptacle |
| Oreentation type: | Straight |
| Insulation material: | PPS/PEEK/PTFE/PPSU |
| Shell material: | aluminum |
| Test Voltage (contact-contact): | 1450 |
| Test Voltage (contact-shell): | 1000 |
| Insulation resistance: | ≥5000MQ 600V DC |
| Contact resistance: | 6.5 |
| IP rating: | IP68 |
Linkhive AMC Series Circular Miniature Connector Connector Selection
AMC (Y) |
AMC High Density (W) |
AMC EASY CLEAN( Y) |
MINI SNAP ( F) |
- Pin-and-groove mechanical coding - Breakway / push pull - high-speed data transmission -IP68 rated for harsh environment protection -rugged circular miniature connector | - Extremly Minature connector and Compact - high-contact density design. - Supports high-speed data - Break-Away - optional dual-locking. - IP6K8 rated. | - Spring-loaded contacts for easy cleaning and dirt resistance. - Break-Away function. - Rated IP6K8 / IP6K9K for harsh environments. -rugged and solid miniature connector | - Push-pull self-latching connector with durable metal housing - Multiple contact configurations and custom combinations available - IP50/IP68 protection for harsh enviroment. - rugged circular miniature connector |
