This rugged miniature circular connector is engineered for extreme environments, offering a robust break away mechanism for quick disconnect. Waterproof when mated and unmated, it ensures reliable signal integrity and EMI shielding. Fully compatible with AMC Easy Clean systems.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.
The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.
A circular connector you can rely on

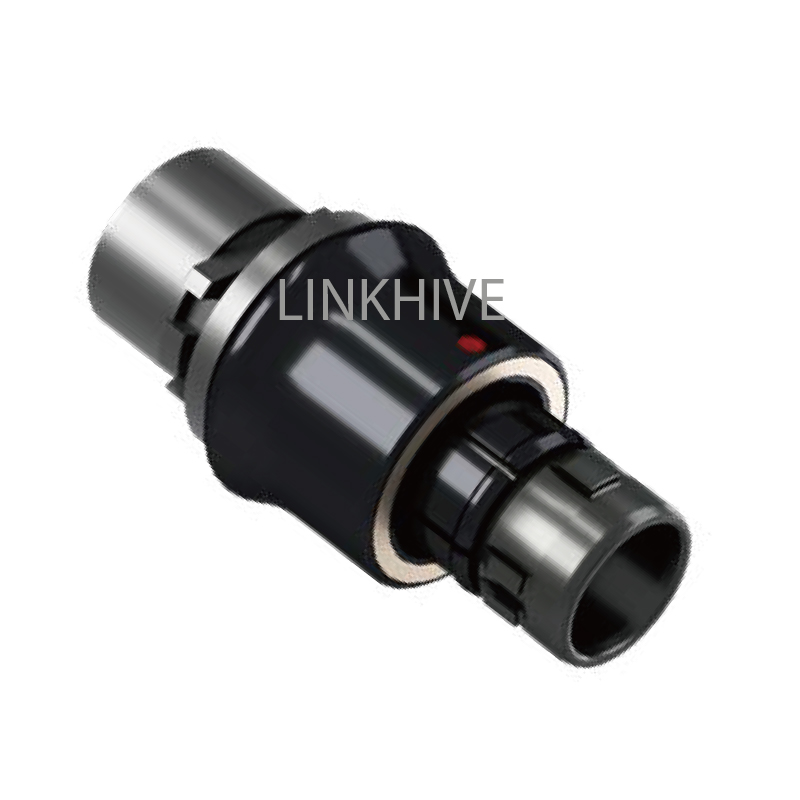

The Replacement AMC Y Series S1 Mil Spec Miniature Circular Connector is a compact and robust push pull connector built for harsh environments. This miniature circular connector is fully intermateable with AMC series Y S1 Push pull plug ,offering secure, high-performance connectivity in mobile and military systems. Its durable metal connector housing ensures reliability in field conditions.
This mil spec connector offers waterproof sealing whether mated or unmated. Designed with mechanical coding and visual guidance, the push pull connector ensures fast and safe operation. EMI shielding protects signal quality, while the miniature circular connector remains compact and field-ready for tactical electronics.
The Replacement AMC Y Series Mil Spec Miniature Circular Connector has been tested against dust, humidity, corrosion, vibration, and extreme temperatures. This rugged metal connector delivers stable performance under mechanical stress, meeting military reliability standards for mission-critical communication.
Available in various contact layouts and shell sizes, the miniature circular connector adapts to diverse system needs. The series includes push pull connector, break-away, and hybrid versions—all intermateable with AMC series Y —making this mil spec connector ideal for modern compact equipment.
AMC connector miniature circular connector | RECEPTACLES metal connector | IN-LINE RECEPTACLE metal connector |
| AMC SERIES Y S1 | AMC SERIES Y GK | AMC SERIES Y K1 |
 |  |  |
AMC SERIES Y A1 | AMC SERIES Y G8 RECEPTACLES | |
Break away connector
| mil spec connector
| |
| AMC SERIES Y GW | ||
| Panel connector | ||
mil spec connector
| ||
Key Advantages
• Small, light and easy to operate
• Easy handling
•IP68 rated for harsh environment protection
• Blind mateable
• Robust
• High data transmission,Signal, high/low voltage, coax/ triax, fiber optic, pneumatic, etc. can be mixed in one connector.
• EMC shielding
• Robust mechanical and optical coding
• Suitable for harsh environments: all kinds of extremes like dust, temperature,humidity,corrosion, radiation and shock vibration
• Customizable AMC easy-to-clean POGO-PIN.
•Support for 2 to 26 contacts with high-speed data transmission

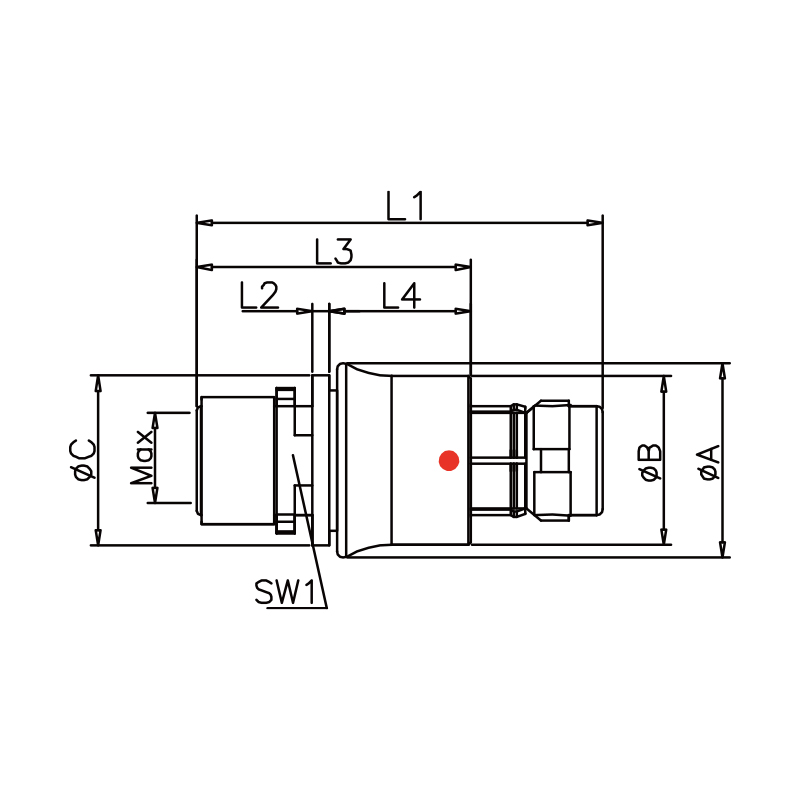

AMC Series Y S1 Mil Spec Connector Diamensions
| Series | mil spec connector Dimension (мм) | |||||
| A | L1 | L2 | L3 | Max | SW1 | |
| 0Y | 11.9 | 25.0 | 3.0 | 15.0 | 5.5 | 9 |
| 1Y | 13.9 | 29.2 | 3.5 | 18.4 | 6.5 | 11 |
| AY | 15.9 | 28.5 | 3.5 | 18.5 | 8.0 | 12 |
| 2Y | 17.6 | 31.0 | 4.0 | 19.0 | 10.0 | 14 |
How to Select the Right Pins for AMC Series Circular Connectors
Choosing the right pin configuration is critical for achieving optimal performance in high-speed, ruggedized applications.
Define Your Contact Needs
Determine the number of contacts required for your application (e.g., 2–26 contacts) based on signal, power, or high-speed data transmission requirements.
Consider Data & Speed Requirements
For high-speed applications (Ethernet, USB, HDMI), refer to the connector’s high-speed POS options to ensure compatibility with CAT 6, CAT 5, USB 2.0, or HDMI standards.
Match Cable Size & Type
Verify that the connector supports your cable’s outer diameter and conductor size (AWG) to ensure secure termination and maintain signal integrity.
Select the Proper Keying Code
Choose from available key codes (A–D) to prevent mismating and simplify assembly in multi-connector setups.
Check Environmental Ratings
Ensure the connector meets your required IP68 sealing level, vibration/shock resistance, and MIL-spec compliance for military or outdoor use.
Evaluate Application Fit
Select between standard signal, power, or hybrid configurations depending on whether your system requires mixed-signal or high-current capabilities.
By carefully evaluating these factors and cross-referencing with the selection tables below, you can confidently choose the ideal AMC Series Y or TTA 2Y connector for your application.
TTA 0Y Miniature Circular Push Pull Connector Selection
| Mode | TTA.0Y.302.CLA.52 | TTB.0Y.303.CGA.52 | TTC.0Y.304.CLA.52 | TTD.0Y.305.CLA.52 | TTA.0Y.307.CLA.52 | TTA.0Y.309.CLA.52 | TTA.0Y.310.CLA.52 |
| Code | A | B | C | D | A | A | A |
| Contacts | 2 | 3 | 4 | 5 | 7 | 9 | 10 |
| Insert |  |  |  |  |  |  |  |
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Application | Miniature circular connector for compact sensors | Metal connector for defense electronics | Push pull connector for portable devices | AMC Series Y connector for communication units | Mil spec connector for field equipment | Rugged connector for industrial tools | Miniature circular connector for control systems |
Small Size TTA 1Y Push Pull Connector
| Mode | TTA.1Y.305.CL.A.52 | TTB.1Y.308.CL.A.52 | TTC.1Y.314.CL.A.52 | TTD.1Y.316.CL.A.52 | TTA.1Y.304.CL.A.52 | TTA.1Y.PD8.CL.A.52 |
| Code | A | B | C | D | A | A |
| Contacts | 5 | 8 | 14 | 16 | 4 | 8 |
| Insert |  |  |  |  |  |  |
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 | 5.5 | High-speed 4 pos. Ethernet Type CAT 5 up to 100 Mbit | High-speed 8 pos. Ethernet Type CAT 5 up to 1 Gbit |
| Description | Rugged miniature connector for portable radios | High-density connector supporting ruggedized camera links | Multi-pin connector with enhanced EMI shielding for avionics | AMC connector for secure communication equipment | High-speed 4-pos connector for fast Ethernet transmission | High-speed 8-pos connector for Gigabit Ethernet and robotic systems |
| Application | Waterproof push pull connector for handheld radios | Metal connector for ruggedized cameras | Mil spec connector for avionics | AMC Series Y connector for secure communication systems | Compact connector for sensor networks | Push pull connector for robotic devices |
Medium Size TTA AY Push Pull Connector
| Mode | TTA.AY.310.CLA.50 | TTB.AY.319.CLA.50 | TTC.1Y.PD8.CLA.52 |
| Code | A | B | C |
| Contacts | 10 | 19 | 8 |
| Insert | |  | |
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 |
| Descrition | Multi-pin rugged connector for medium-density signal and power transmission | High-density connector for secure communication and data links | Highspeed 8 POS, Ethernet Class EA channel up to 80 m, 10 Gbit |
| Application | Rugged circular connector for control panels | Waterproof connector for communication systems | reliability communication systems IP68-rated push pull connector for high-speed industrial and automation applications |
Watertight Large Size TTA 2Y Series FGG IP68 Circular Push Pull Connectors
| Mode | TTA.2Y.306.CLA.52 | TTB.2Y.319.CLA.52 | TTC.2Y.326.CLA.52 | TTD.2Y.304.CLA.52 | TTC.2Y.PD8.CLA.52 | TTA.2Y.PDM.CLA.52 | TTA.2Y.PD16.CLA.52 |
| Code | A | B | C | D | C | A | A |
| Contacts | 6 | 19 | 26 | 7 | 8 | 12 | 16 |
| Insert |  | |  | | |  |  |
| Cable Ø (mm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Description | Waterproof 6-pin connector for communication systems | Rugged 19-pin connector for multi-signal transmission | IP68 watertight 26-pin connector for specialized equipment | Highspeed 4 POS, Ethernet Type CAT 6 up to 100 Mbit | Highspeed 8 POS, Ethernet Class EA channel up to 80 m, 10 Gbit | Highspeed 12 POS, Ethernet Type CAT 5, 1 Gbit, USB 2.0 | Highspeed 16 POS, HDMI interface support |
| Application | Waterproof circular connector for field communication devices | Push pull connector for industrial automation systems | Watertight connector for defense and avionics equipment | Miniature circular connector for data acquisition modules | High-speed push pull connector for server networking | Rugged connector for communication hubs | Watertight connector for multimedia transmission |
Alignment key
COMPLETE INTERCONNECT SYSTEM SOLUTION FROM LINKHIVE
Every Replacement AMC Y Series S1 Mil Spec Miniature Circular Connector requires a reliable cable assembly tailored to its specific application. At LINKHIVE, we provide complete mil spec connector and cable integration from a single trusted source—no intermediaries, no compromises.
Our in-house services include:
100% final inspection and electrical testing
ISO-certified clean room assembly upon request
Precision cable processing using automated equipment (cutting, stripping, crimping)
Wire welding and shield termination
EMI-shielded housing integration
Custom identification labels and serialization
Low-pressure and high-pressure overmolding
Multiple potting solutions for sealed or ruggedized assemblies
Overmolded Y-type and multi-branch cable transitions (1-to-2, 1-to-3, etc.)
By combining our miniature circular connector, push pull connector, and cable solutions into one optimized system, LINKHIVE metal connector ensures performance, durability, and field reliability. Fully intermateable with AMC series Y , our integrated assemblies are trusted in defense, aerospace, and high-stress communication environments.
Linkhive AMC Series Circular Miniature Connector Connector Selection
AMC (Y) |
AMC High Density (W) |
AMC EASY CLEAN( Y) |
MINI SNAP ( F) |
- Pin-and-groove mechanical coding - Breakway / push pull - high-speed data transmission -IP68 rated for harsh environment protection -rugged circular miniature connector | - Extremly Minature connector and Compact - high-contact density design. - Supports high-speed data - Break-Away - optional dual-locking. - IP6K8 rated. | - Spring-loaded contacts for easy cleaning and dirt resistance. - Break-Away function. - Rated IP6K8 / IP6K9K for harsh environments. -rugged and solid miniature connector | - Push-pull self-latching connector with durable metal housing - Multiple contact configurations and custom combinations available - IP50/IP68 protection for harsh enviroment. - rugged circular miniature connector |
