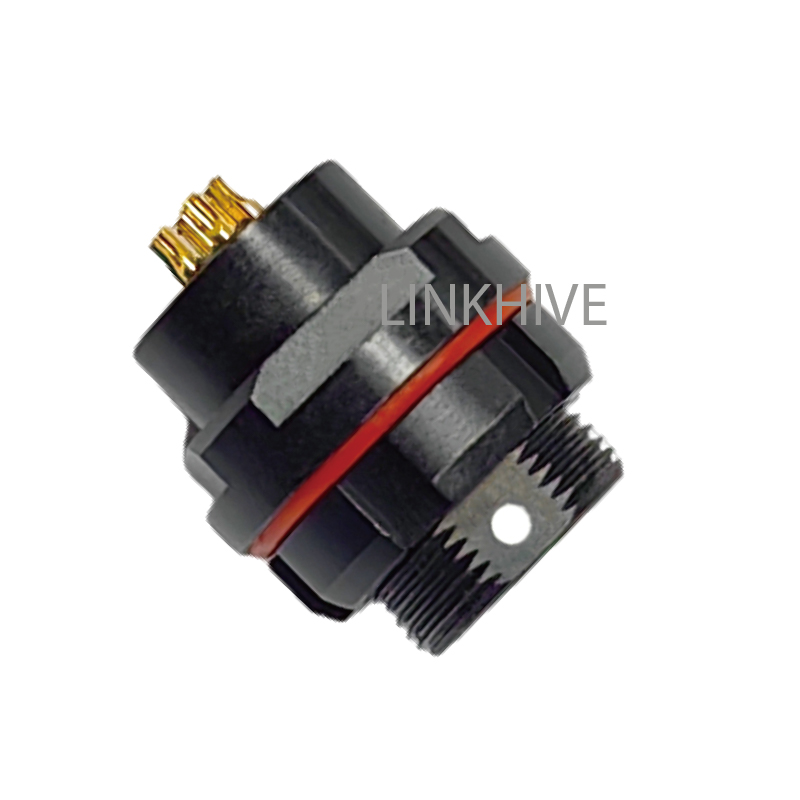

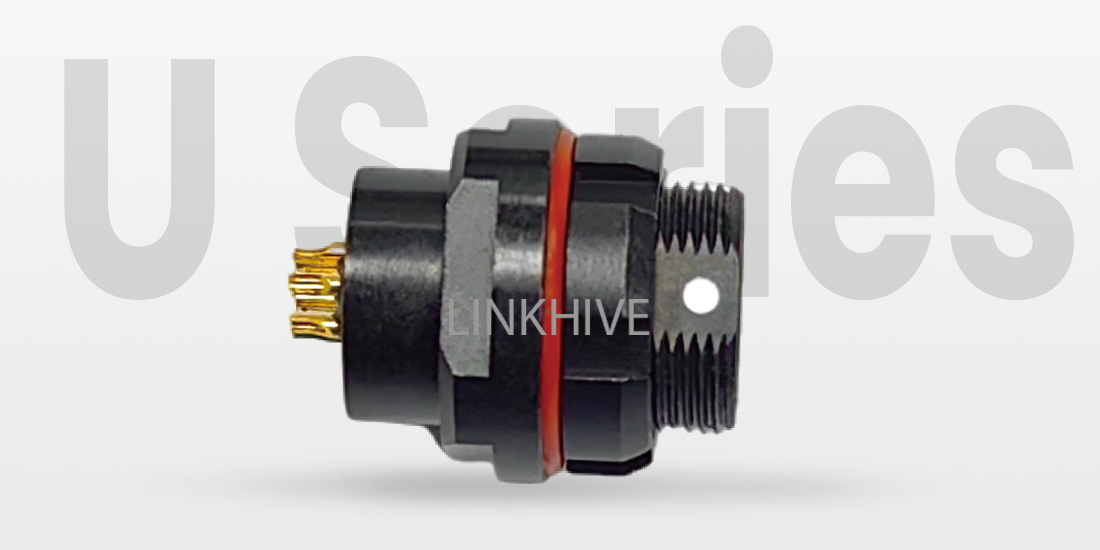

The LINKHIVE UR01 is engineered as a high-performance rear mounted metal receptacle for rugged environments where durability, sealing, and compact integration are essential. As a low profile receptacle, it features a reduced external footprint that allows for discrete, panel-level mounting—ideal for portable, wearable, or embedded military electronics.
Built with a corrosion-resistant chrome plated brass body and IP68-rated sealing, the UR01 performs flawlessly in harsh environmental conditions. low profile female connector provides a fully sealed receptacle structure even when unmated, supporting tactical use cases where water, mud, and dust intrusion must be prevented.
UR01 Low Profile Receptacle product range overview
| Style | UP01 |  | |
| Rugged connector for demanding field applications | |||
| Short Cable Plug | |||
 | |||
UR01 | UR03 | UR50 | |
| low-profile receptacle and Rear-mounted receptacle for compact installations | Front-mounted low-profile panel receptacle for space-constrained designs | Short cable receptacle for quick field connections | |
| military receptacle | military receptacle | military receptacle | |
 |  |  | |
✅ Low Profile Receptacle Design
✅ IP68 Sealed Receptacle
✅ Rear Mounted metal receptacle Installation
✅ EMC 360° Shielding fo low profile female connector
✅ Durable Military Receptacle
With over 10,000 mating cycles, shock resistance, and -55°C to +135°C operating range, the UR01 meets stringent military and industrial reliability requirements.
✅ Fully Compatible with Fischer Connectors
The UR01 is dimensionally and functionally compatible with Fischer connector systems, allowing direct replacement or system upgrades without redesign.
✅Secure Push-Pull Self-Latching System

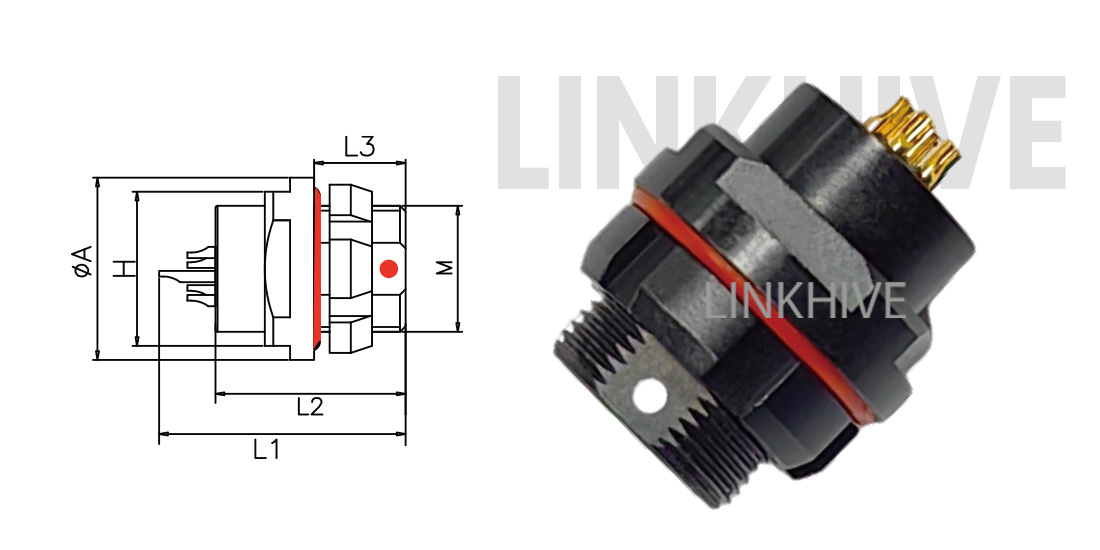

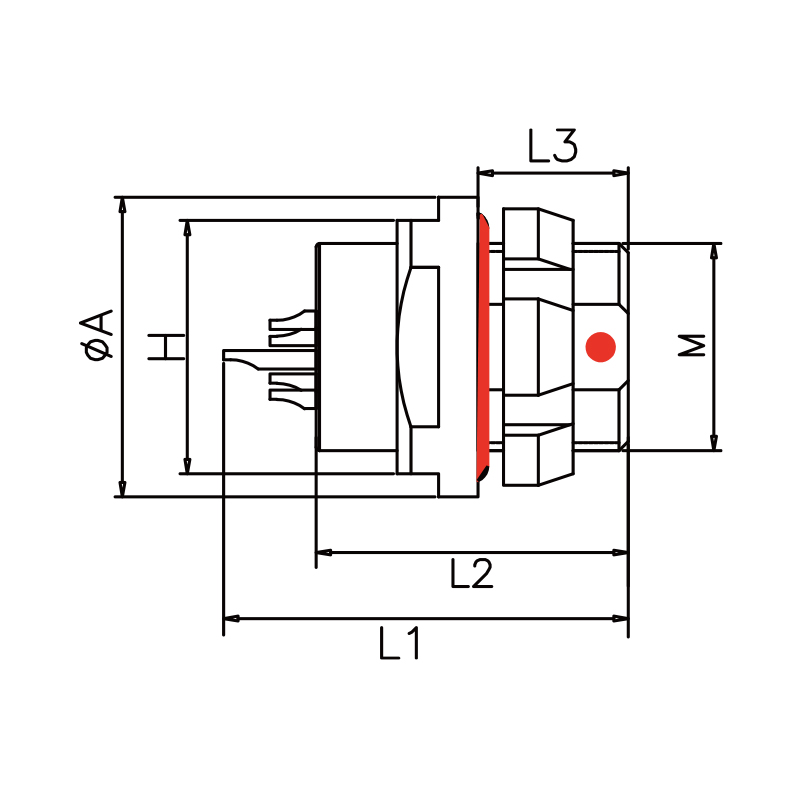

Dimensions
Size | military receptacle Dimensions(mm) | |||||
A | H | M | L1 | L2 | L3 | |
00U | 10 | 8 | M7*0.5 | 15 | 12.5 | 5.0 |
0U | 13 | 11 | M9*0.5 | 18.4 | 13.5 | 6.5 |
Ultimate Series Application Areas
Military receptacle Radios & Communication Panels
UAV and Ground Vehicle Electronics
Rugged Industrial Control Panels
Soldier-Worn Systems & Tactical Gear
Harsh-Environment Monitoring Devices
LINKHIVE’s UR01 combines precise mechanical design, fast delivery, and technical compatibility with Fischer UltiMate solutions. It supports quick deployment, system upgrades, and customized overmolded cable assemblies when needed. UR01 delivers both performance and value.
ultimate Series Specification
| Maximum Humidity: | up to 95% at 60°/140°F |
| Locking type: | push pull |
| Endurance: | 5000-10000 cycles |
| Shock resistance: | 100g,6ms |
| Salt spray corrosion test: | 96hr |
| Resistance to Vibration: | 15g[10Hz~2000Hz] |
| Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
| Working Temperature: | -55°~+125° |
| Connector Series: | Replacement ultimate Series UR01 |
| Gender: | rear mounted metal receptacle |
| Oreentation type: | Straight |
| Insulation material: | PPS/PEEK/PTFE/PPSU |
| Shell material: | Chrome-plated brass |
| Test Voltage (contact-contact): | 1450 |
| Test Voltage (contact-shell): | 1000 |
| Insulation resistance: | ≥5000MQ 600V DC |
| Contact resistance: | 6.5 |
| IP rating: | IP68 |
U series ultimate Series Key Alignment
ultimate Series U series Panel Cut out
Cable Clamp for ultimate Series U series
Contact Insert for ultimate Series U series
1U Contacts Inserts ultimate Series

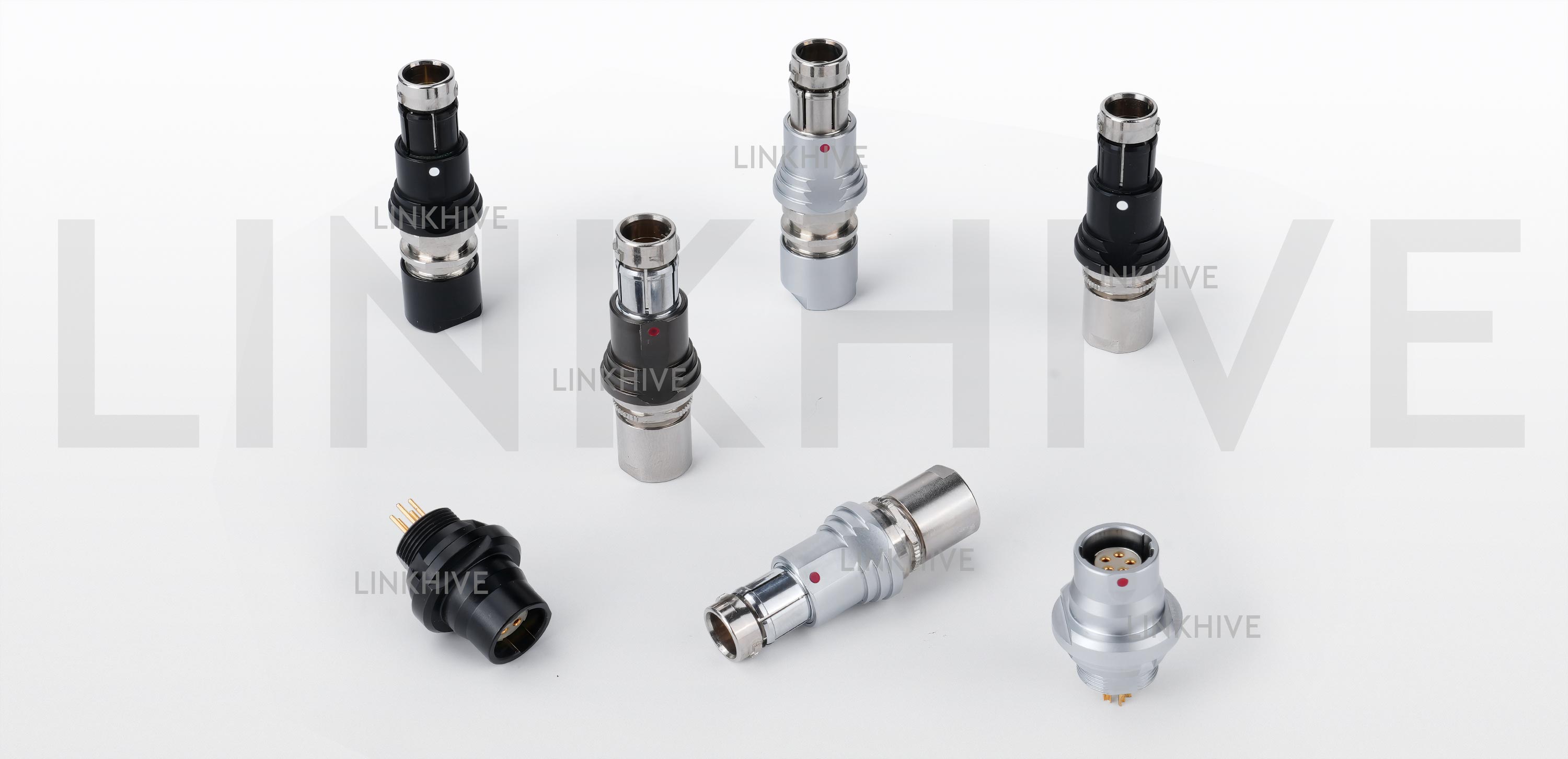

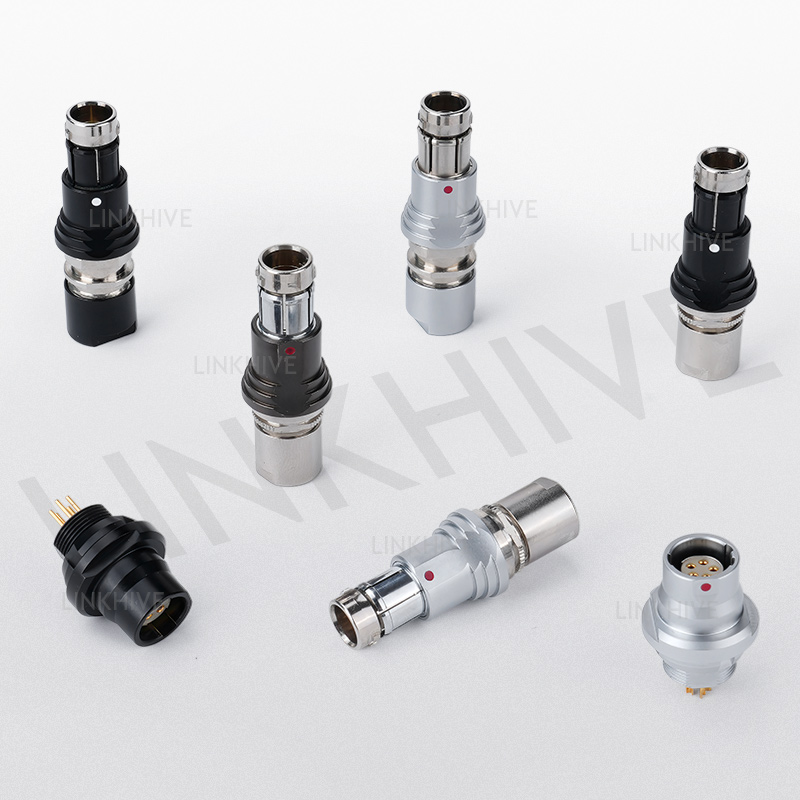

Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
