This rugged miniature circular connector is engineered for extreme environments, offering a robust break away mechanism for quick disconnect. Waterproof when mated and unmated, it ensures reliable signal integrity and EMI shielding. Fully compatible with AMC Easy Clean systems.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.
The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.

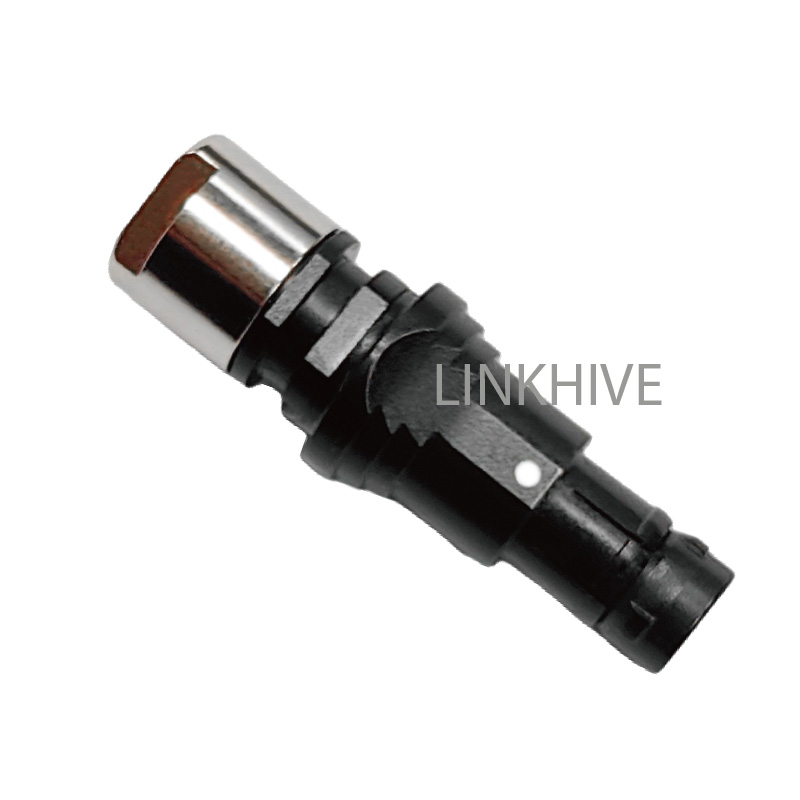

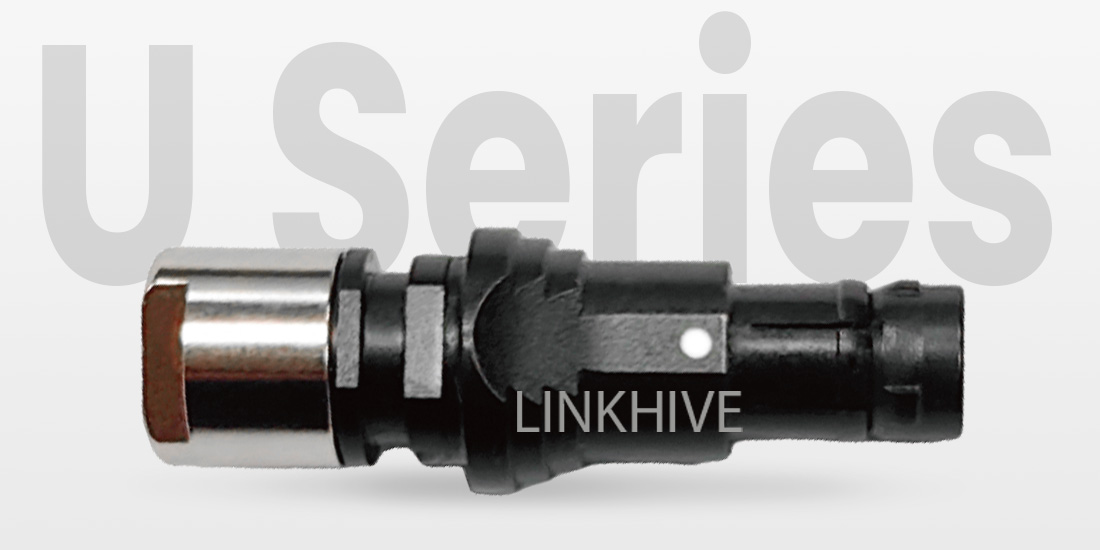

The LINKHIVE UP01 Short Cable Plug is a ruggedized, field-proven solution engineered for demanding outdoor and milit]ary-grade applications. As a fully compatible alternative to Fischer Ultimate UP01, this plug offers a compact and durable structure with IP68 sealing, ensuring consistent performance under extreme environmental and mechanical stress. Designed to withstand harsh conditions such as water immersion, dust exposure, shock, vibration, and electromagnetic interference, the UP01 is ideal for mission-critical communication and control systems.
With a lightweight connector body made from high-strength chrome plated brass, the UP01 achieves an optimal balance of durability and portability, making it the preferred choice for operators and integrators working with mobile, wearable, or unmanned platforms. Its compact design and cable-mounted configuration further allow for seamless integration into space-constrained devices without compromising electrical integrit

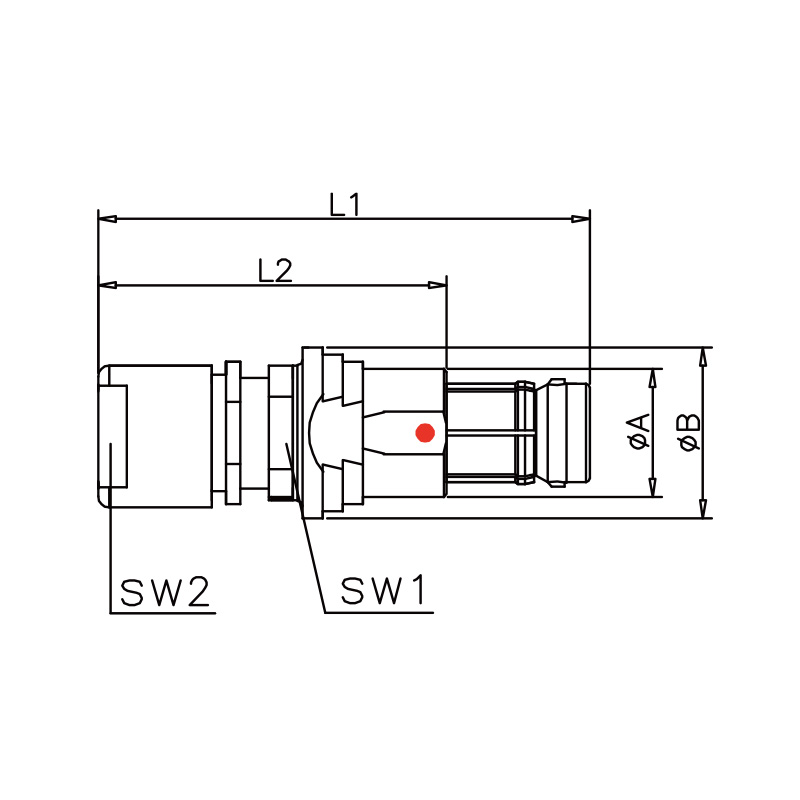

Dimensions

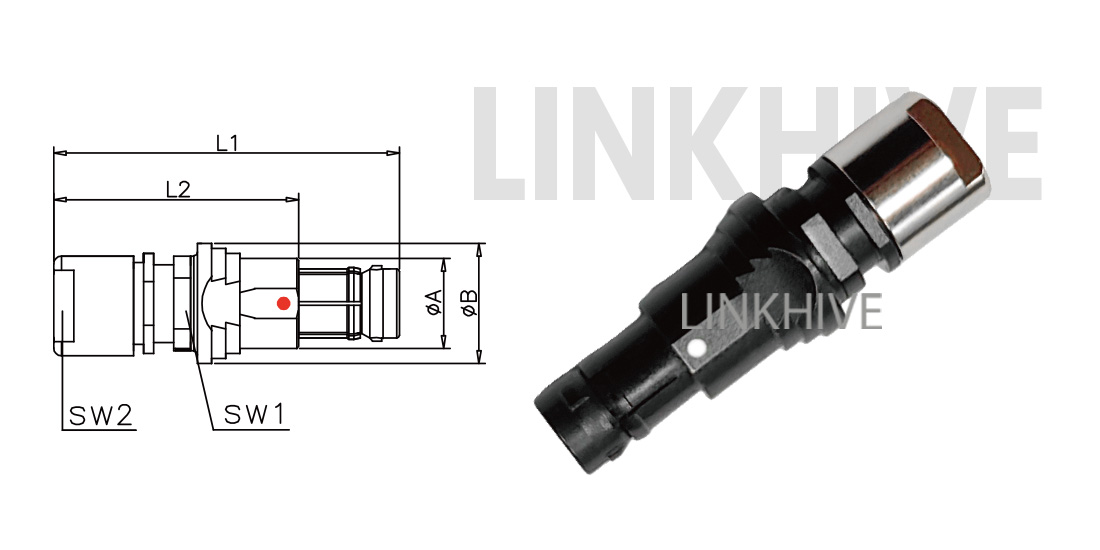

Size | Cable mounted lightweight connector Dimensions(mm) | |||||
| A | B | L1 | L2 | SW1 | SW2 | |
00U | 10 | 10.5 | 32.0 | 24.0 | 6.5 | 7.0 |
0U | 10 | 12.0 | 36.0 | 28.0 | 8.0 | 7.0 |
Applications
The UP01 Short Cable Plug is designed for the most demanding environments and use cases, including:
Defense and Tactical Communications
UAVs and Robotics:
Industrial Automation
Surveillance and Security Systems
Wearable Technology
Whether operating in deserts, jungles, deep underwater, or conflict zones, the UP01 delivers proven reliability where failure is not an option.
Key Features

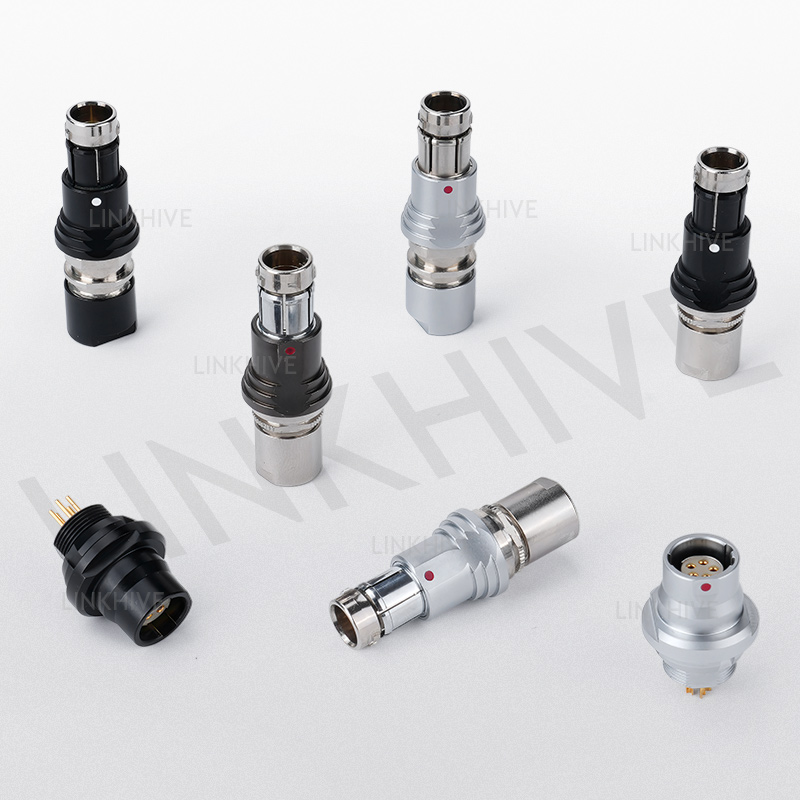

UR01 Rear Mounted Low Profile Panel Receptacle UR03Front Mounted Low Profile Panel Receptacle UR50Short Cable Receptaclerugged connector
✅ IP68-Rated Sealing (Even Unmated)
The plug is sealed to IP68 standards even when not connected, ensuring complete protection against water, mud, oil, and particulate ingress. It has been tested to resist water immersion up to 120 meters, making it suitable for marine, industrial, and tactical use cases.
✅ Compact and Lightweight Design
As a compact connector, the UP01 plug minimizes bulk without sacrificing mechanical strength. Its lightweight connector structure—up to 50% lighter than standard brass solutions—makes it ideal for use in soldier-carried equipment, robotics, drones, and hand-held instrumentation.
✅ Cable Mounted Configuration
The cable mounted plug design provides fast, secure field termination and allows flexible cable routing. Straight and right-angle versions are available to accommodate custom cable assembly requirements.
✅ EMC 360° Shielding
✅ Mechanical and Visual Coding
With up to four mechanical coding options and visual alignment features, the UP01 cable mounted lightweight connector eliminates the risk of mismating—an essential feature in multi-connector environments.
✅ High Mating Durability
Designed for over 10,000 mating cycles, this short cable plug withstands continuous connect/disconnect operations in field-deployed systems without degradation in contact performance.
✅ Wide Temperature Range
Operating reliably from -55°C to +135°C, the Cable mountedcompact connector can perform in arctic cold, desert heat, and chemically aggressive environments, supporting both civilian and military field missions.
✅secure Push-Pull Self-Latching System
How to Select the Right Pins for UP01 Series Lightweight Connectors
Choosing the correct pin configuration ensures reliable connectivity and performance.
Determine Contact Requirements: Define the number of contacts needed for your application (e.g., 2–9 contacts for power/signal transmission).
Check Contact Diameter (øA): Match pin diameter with the required current-carrying capacity and signal needs using the selection chart.
Match Cable Size: Ensure the chosen IP68 compact plug supports your cable’s outer diameter and conductor size (AWG range).
Application Fit: Choose between solder or crimp contacts based on your assembly and installation requirements.
Environment & Standards: Select Short cable plug rated for IP68 waterproofing and compliant with IEC/RoHS for your target environment.
Tip: Use the Model Selection Table below to quickly identify the correct mil spec plug configuration based on your contact count and cable size.
Sub-miniature Size Ultimate UP01 00U lightweight connector

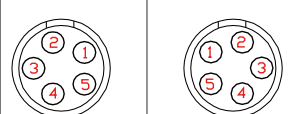

| Mode | TUG.00U.302.CLA.32 | TUG.00U.303.CLA.42 | TUG.00U.304.CLA.52 | TUG.00U.305.CLA.32 | TUG.00U.306.CLA.52 |
| Inserts |  |  |  |  |  |
| Cable Ø | 2.2 mm | 3.2 mm | 4.2 mm | 5.2 mm | 5.6 mm |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 5 contacts | 6 contacts |
| Application | Lightweight connector for compact devices, IP68 Short plug | Short plug for instrumentation, compact connector design | CompaIP68 cable-mounted connector mil spec plug for medical sensors | IP68 compact plug for portable equipment | Short plug for industrial applications |
Miniature Size Ultimate UP01 0U Lightweight Connector

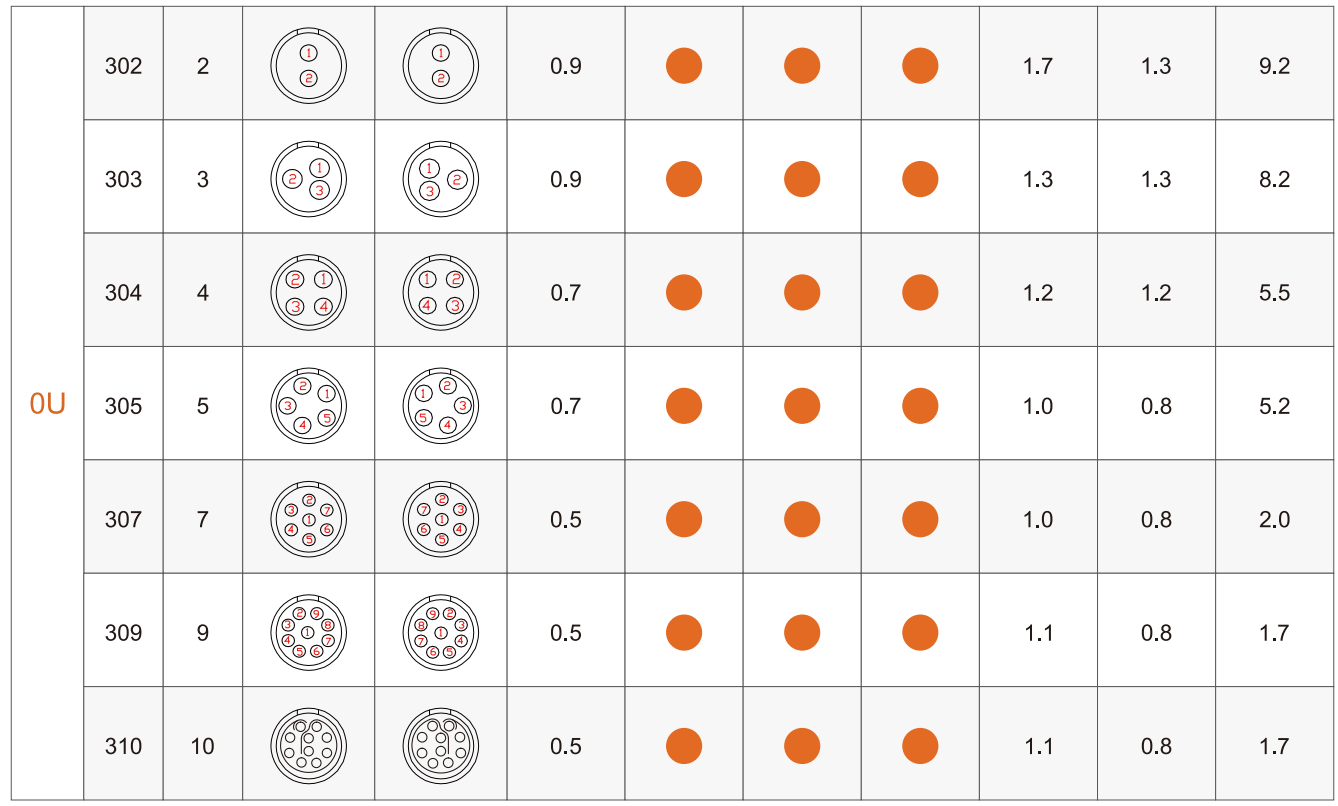

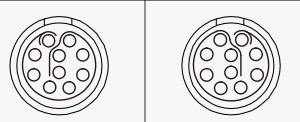

| Mode | TUG.0U.302.CLA.22 | TUG.0U.303.CGA.32 | TUG.0U.304.CLA.42 | TUG.0U.305.CLA.52 | TUG.0U.307.CLA.56 | TUG.0U.309.CLA.56 | TUG.0U.310.CLA.56 |
| Inserts |  |  |  |  |  |  |  |
| Cable Ø | 2.2 mm | 3.2 mm | 4.2 mm | 5.2 mm | 5.6 mm | 5.6 mm | 5.6 mm |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 5 contacts | 6 contacts | 7 contacts | 9 contacts |
| Application | IP68 compact plug for wearable devices, IP68 plug | Short plug for communication devices, compact connector | Cable-mounted lightweight connector for rugged medical tools | IP68 compact plug for outdoor sensors | Short plug for field testing devices | Lightweight connector for industrial control | IP68 compact plug for multi-signal transmission |
Specification
Maximum Humidity: | up to 95% at 60°/140°F |
Locking type: | push pull self-latching type |
Endurance: | 5000-10000 cycles |
Shock resistance: | 100g,6ms |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -55°~+125° |
Connector Series: | compatible with ultimate Series UP01 |
Gender: | Short plug |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Chrome-plated brass |
Test Voltage (contact-contact): | 1450 |
Test Voltage (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP68 |
Quality & Test:
Short plug Material: Chrome-plated brass shell, PPS high-temperature insulator.
IP68 compact plug Sealing: IP68-rated waterproof, dustproof, and corrosion-resistant.
mil spec plug Testing: 100% electrical continuity, insulation resistance test, sealing & pressure test, and mechanical endurance test.
Performance: Shock resistance (100 g / 6 ms), vibration resistance (15 g, 10 Hz–2000 Hz).
Compliance: Meets IEC & RoHS standards for safety and environmental reliability.
With in-house engineering, fast turnaround, and proven global shipping capability, LINKHIVE offers not only quality IP68 compact plugs but also reliable delivery and cost-effective customization. All UP01 mil spec plugare manufactured under strict quality control, including 100% outgoing inspection, salt spray resistance testing (≥1000 hours), and shock/vibration simulation.
Compared with the original, LINKHIVE provides:
✅ Faster delivery (standard parts in stock)
✅ Competitive pricing
✅ Full technical support

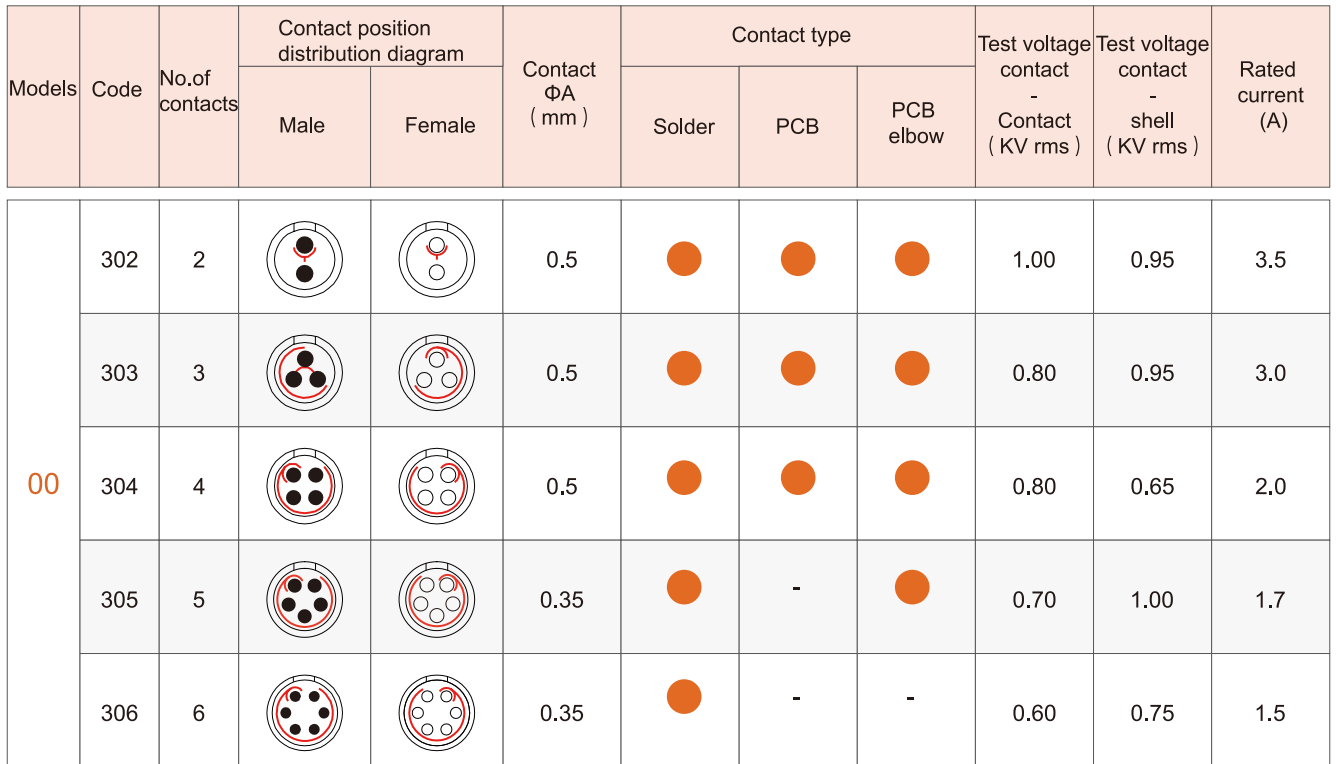

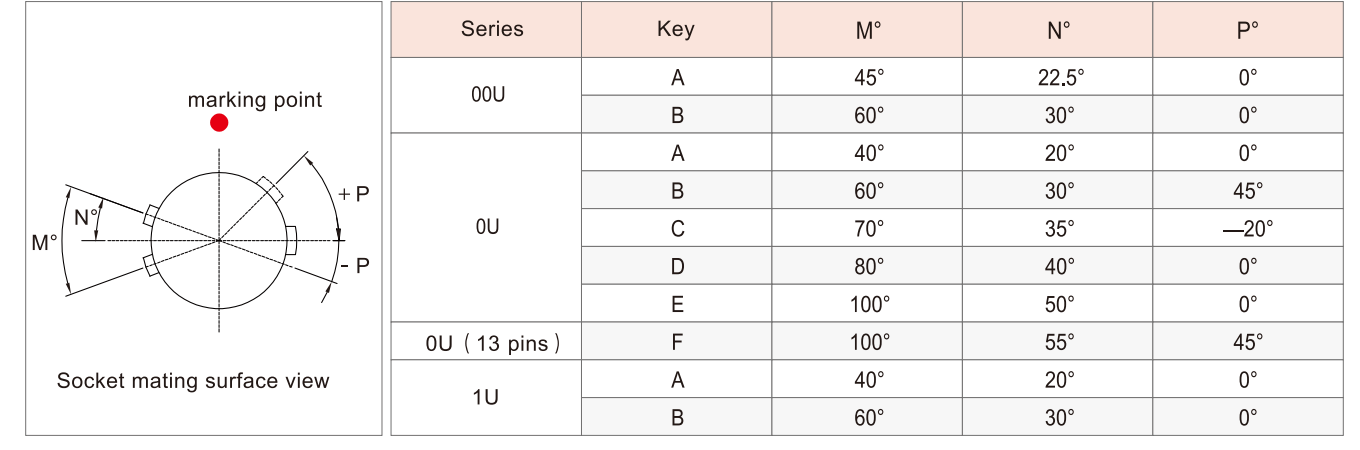

U series mil spec plug Key Alignment

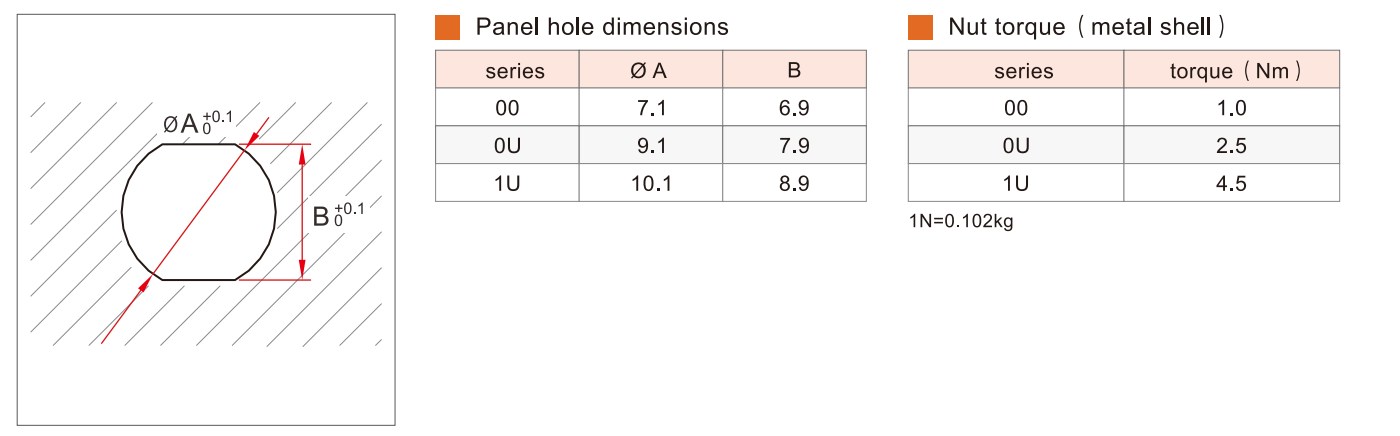

U series mil spec plug Panel Cut out

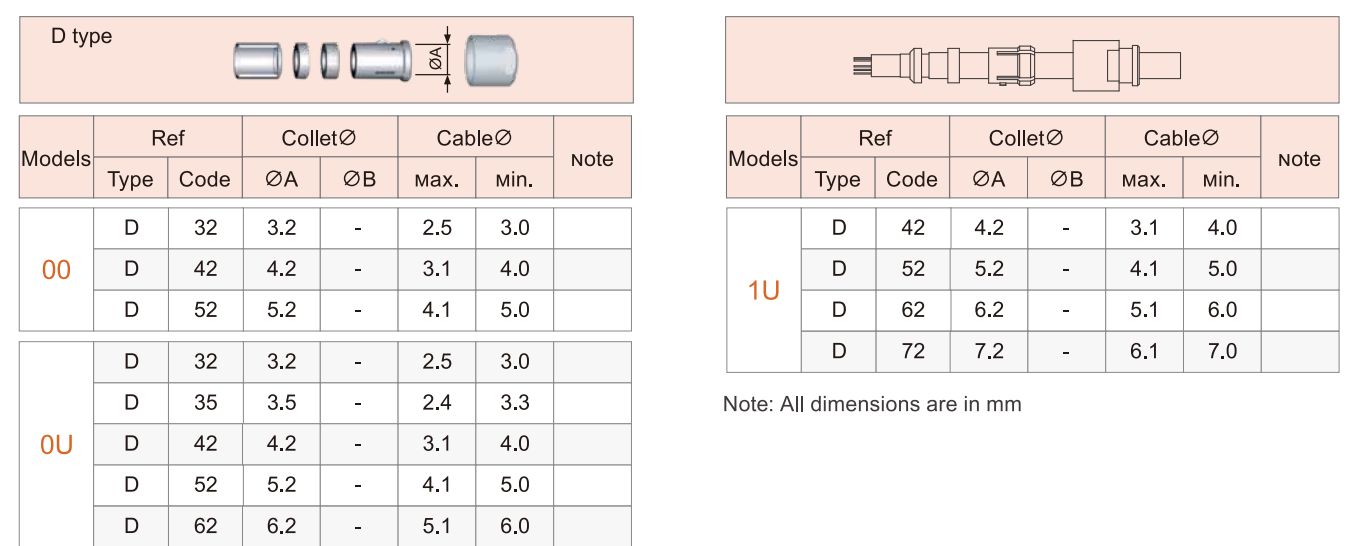

Cable Clamp for U series mil spec plug

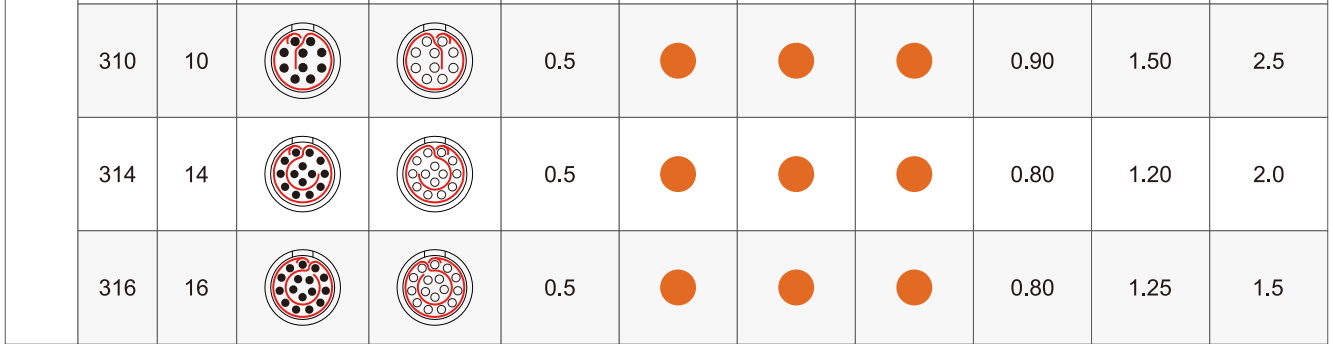

Contact Insert for U series mil spec plug

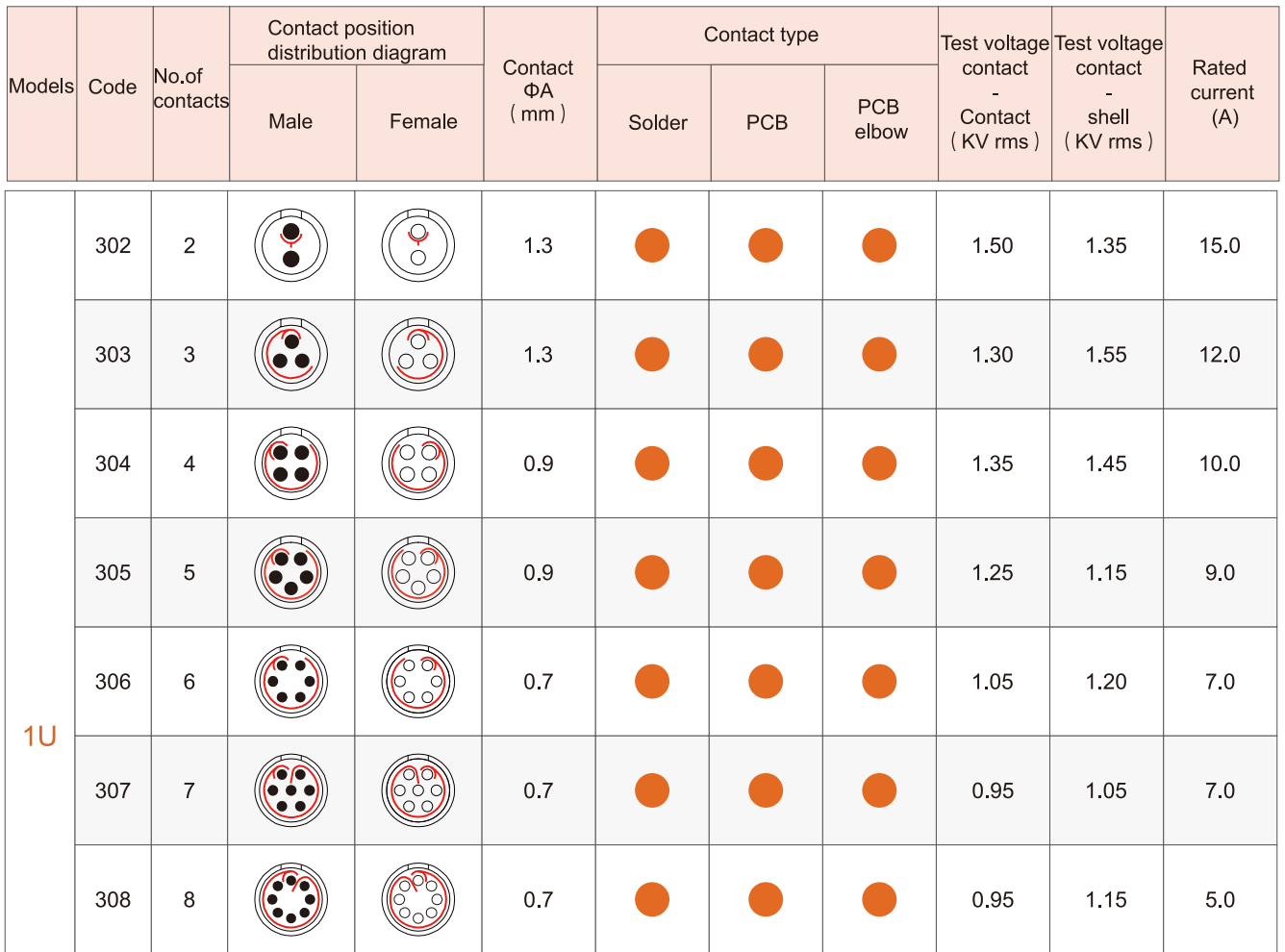

1U Contacts Inserts mil spec plug
