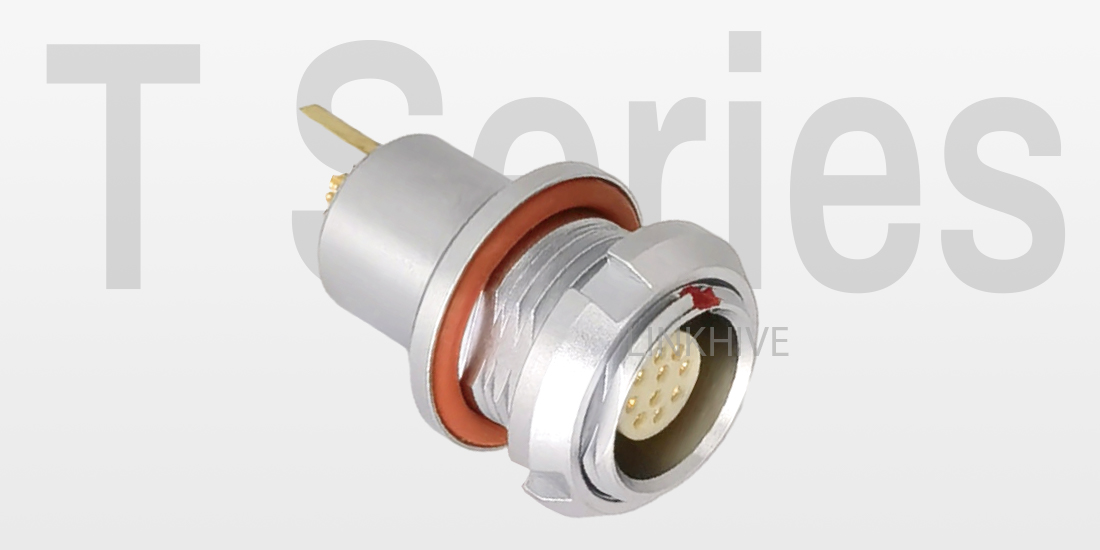

T series HMG 00T 0T 1T 2T 3T Circular Watertight Socket

What is HMG 00T 0T 1T 2T 3T Circular Watertight Socket?

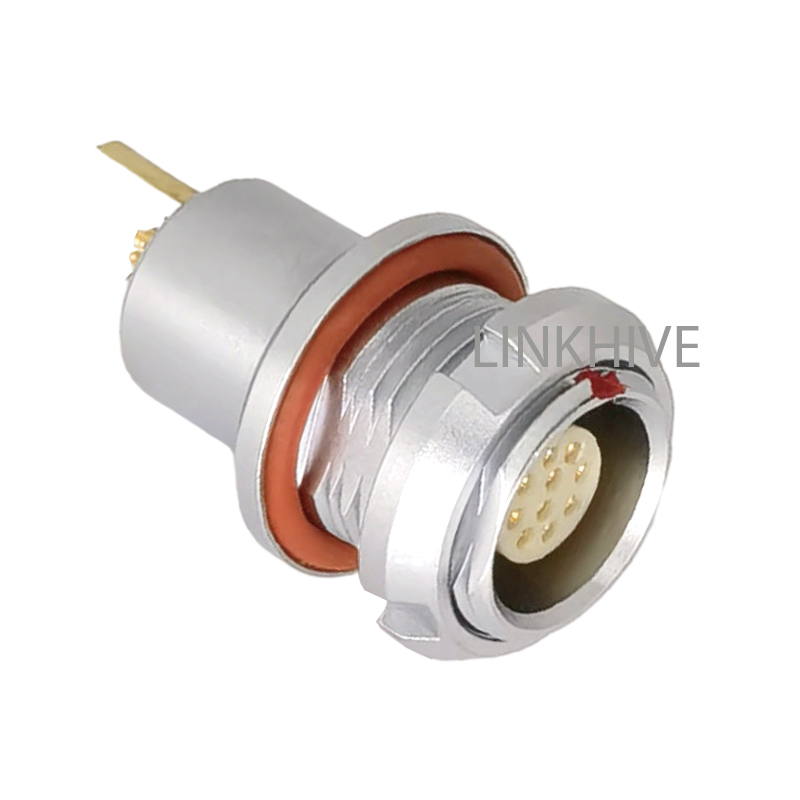

The HMG 00T to 3T Circular Watertight Socket is a high-reliability circular metal socket designed for harsh environments where sealing and durability are critical. It features a rugged, compact housing with IP68 sealing, making it a trusted watertight socket for applications exposed to water, dust, or sterilization processes. For high-purity or controlled environments, this series also offers vacuumtight socket versions. Widely used in medical equipment, instrumentation, and industrial systems, the medical socket provides safe, secure connections with push-pull latching mechanisms. Available in multiple sizes from 00T to 3T, the HMG series offers a versatile solution for engineers requiring compact, sealed, and water resistant socket performance.

Key Advantages

• Safe push-pull self-locking system

• Solder and PCB pin contacts (straight and angled).

• High-density mounting, space-saving, with cutout sizes M9/M12/M15/M18.

• 360-degree shielding provides comprehensive EMC protection (electromagnetic interference resistance).

• Reliable watertight sealing — Ensures IP68‑grade waterproof performance for harsh environments.

• Medical‑grade compatibility — Suitable for diagnostic, imaging, and laboratory devices.

• High‑density configurations — Supports up to 32 contacts for complex system integration.

• Durable metal shell  for vaccumtight socket — Corrosion‑resistant construction for long‑term field use.

• Vaccumtight socket Versatile applications — Ideal for medical, instrumentation, and outdoor equipment.

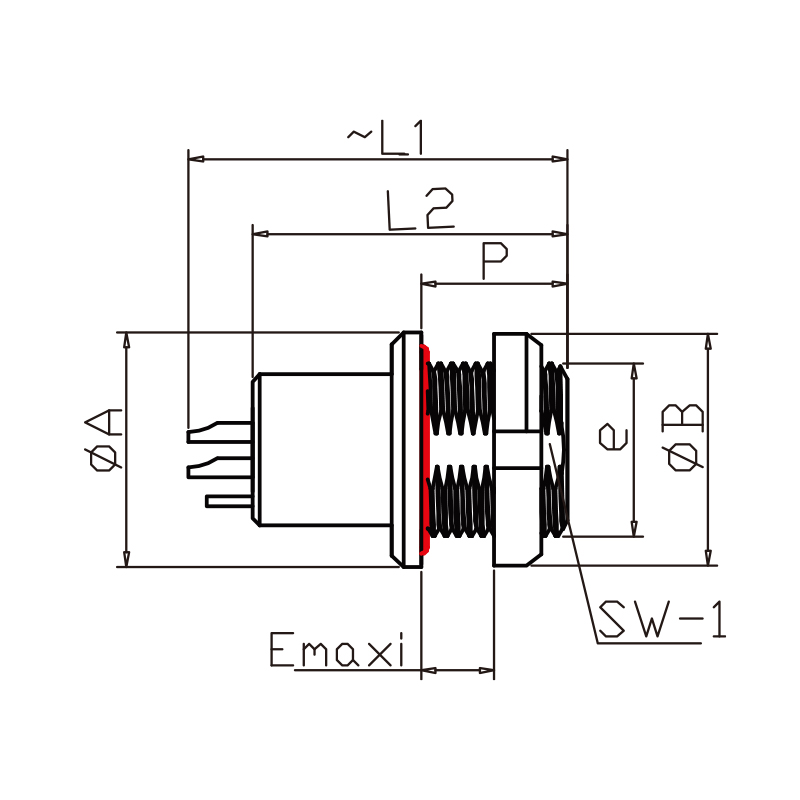

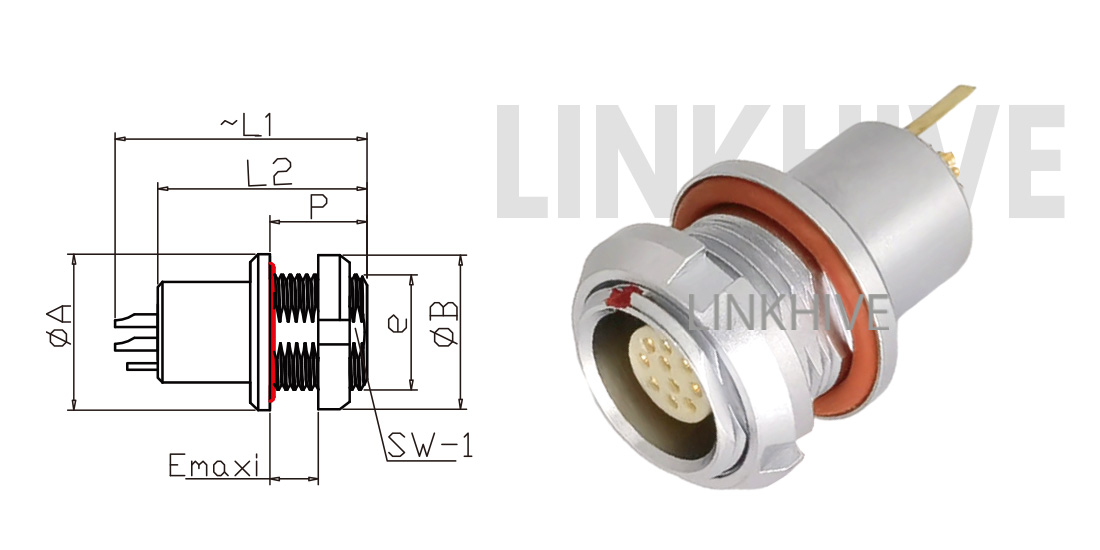

Diamensions

How to Select the Right Pins for T Series HMG 00T / 0T / 1T / 2T / 3T Circular Watertight Sockets

Choosing the correct socket configuration ensures full compatibility with your T Series plugs and reliable sealing in harsh environments.

1. Confirm Plug Compatibility:
   Ensure the selected HMG socket matches the corresponding T Series plug (FGG / TGG) in size (00T / 0T / 1T / 2T / 3T), insert configuration, and keying (e.g., G key).

2. Determine Contact Requirements:
   Identify the number of contacts required for your application (e.g., 2–32 pins), based on your power and signal distribution needs.

3. Check Contact Diameter (øA):
   Match the pin diameter to the expected current load and signal transmission. Refer to the pin configuration chart for available options.

4. Verify Cable & Panel Fit:
   Ensure the socket supports your cable outer diameter and meets panel-mounting dimensions for your enclosure.

5. Consider Sealing & Standards:
   Confirm the connector meets IP68 sealing when mated and complies with IEC / RoHS requirements for long-term reliability.

Tip: Use the model selection table below to quickly find the right watertight socket for your plug. Each model lists insert type, contact count, cable diameter, and typical applications.

HMG 00T 0T 1T 2T 3T Circular Watertight Socket Selection

Sub-miniature Size MMG 00T Circular Metal Socket Selection

Mode	MMG.00T.302.CGLM	MMG.00T.303.CLL.M	MMG.00T.304.CLL.M	MMG.00T.305.CLL.M	MMG.00T.306.CLL.M
Inserts
Contacts	2 contacts	3 contacts	4 contacts	5 contacts	6 contacts
Application	Medical socket for compact devices	water resistant socket for instruments	vaccumtight socket for labs	Circular metal socket for medical tools	Waterproof socket for outdoor equipment

Minature Sizes HMG 0T Circular Watertight Socket  Selection

Mode	MMG.0T.302.CLA.22	MMG.0T.303.CGA.32	MMG.0T.304.CLA.42	MMG.0T.305.CLA.52	MMG.0T.306.CLA.56	MMG.0T.309.CLA.56	MMG.0T.309.CLA.56	MMG.0T.312.CLA.56
Inserts
Contacts	2	3	4	5	6	7	9	12
Cable Ø	2.2 mm	3.2 mm	4.2 mm	5.2 mm	5.6 mm	5.6 mm	5.6 mm	5.6 mm
Application	Medical socket for compact devices	Watertight socket for portable instruments	vaccumtight socket for laboratory use	Circular metal socket for medical tools	water resistant socket for outdoor equipment	Watertight socket for control systems	Medical‑grade socket for diagnostic equipment	Waterproof socket for field devices

Medium size HMG 1T Circular Watertight Socket  Selection

Mode	MMG.1T.302.CLA.31	MMG.1T.303.CGA.52	MMG.1T.304.CLA.52	MMG.1T.305.CLA.62	MMG.1T.306.CLA.72	MMG.1T.307.CLA.52	MMG.1T.308.CLA.52	MMG.1T.310.CLA.52	MMG.1T.314.CLA.52	MMG.1T.316.CLA.52	MMG.1T.106.CLA.52
Inserts
Contacts	2	3	4	5	6	7	8	10	14	16	6
Cable Ø	3.2 mm	4.2 mm	5.0 mm	5.6 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Application	Medical socket for handheld devices	water resistant socket for diagnostic tools	Vaccumtight socket socket for laboratories	Circular metal socket for medical electronics	water resistant socket  for portable instruments	water resistant socket for outdoor systems	medical socket for control equipment	Medical socket for medical imaging tools	Medical  socket for labs	Waterproof socket for industrial devices	Watertight socket for compact instruments

Small Size HMG 2T Circular Watertight Socket Selection

Mode

MMG.2T.302.CLA.21

MMG.2T.303.CGA.32

MMG.2T.304.CLA.42

MMG.2T.305.CLA.52

MMG.2T.306.CLA.62

MMG.2T.307.CLA.72

MMG.2T.308.CLA.52

MMG.2T.310.CLA.52

MMG.2T.314.CLA.52

MMG.2T.316.CLA.52

MMG.2T.318.CLA.52

MMG.2T.319.CLA.52

MMG.2T.332.CLA.52

TEG.2B.514.CLA.52

Inserts

Contacts

2

3

4

5

6

7

8

10

14

16

18

19

32

8

Cable Ø

2.2 mm

3.2 mm

5.2 mm

5.2 mm

6.2 mm

7.2 mm

5.2 mm

5.2 mm

5.2 mm

5.2 mm

5.2 mm

5.2 mm

5.2 mm

5.2 mm

Application

Medical socket for compact devices

water resistant socket for instruments

vaccumtight socket for lab use

Watertight socket for medical tools

Circular metal socket for portable systems

water resistant socket for outdoor gear

Watertight socket for control systems

medical socket for imaging tools

Waterproof socket for labs

medical socket for diagnostic devices

water resistant socket  for field equipment

Watertight socket for industrial tools

High‑density watertight socket for complex systems

Watertight socket for multipurpose use

Quality & Test Control

Material Inspection — Strict incoming inspection of brass shells and PPS insulators.

Circular metal socket Waterproof Testing — IP68 immersion and pressure tests for every production batch.

Electrical Tests — Dielectric withstand voltage and insulation resistance verification.

Dimensional Accuracy — 100% gauge inspection to ensure mating compatibility.

Lifecycle Testing for vaccumtight socket — Mating/unmating cycles validated to meet >5000 operations.

Product main Performance

Contact Termination	Solder
R (max)	4.8 mOhm
Insert configuration value	Low Voltage
Insulator	PEEK/PPS
Rated current	10 A
Test voltage(kV DC)	1.6
Wire Size	AWG30 - 22
Contact	2 to 47

Material&Environment

Part No	HMG:fixed soket with earth tag,nut fixing,back panel mount
Gender	vaccumtight socket
Series	T Series- HMG socket
Plug material	chrome plated brass shell and back nut.  nickel plated brass inner latch sleeve and other pieces.
Push PULL	circular push pull socket
Keyways	Key G/A/B/C/D/E/F/J/K/L/M/Y/R
90 degree cable connector Contact	2 to 48
Endurance	5000 mating cycles
Temperature range	-55°C / +250°C
Shielding at 10 MHz	>75 dB (10 MHz)
Shielding at 1 GHz	>40 dB
Shock Resistance	100 g [ 6 ms]
Resistance to Vibration	15g(10Hz-2000Hz)
Climatical Category	50/175/21
Humidity	<=95% [at 60 deg C /140 F]
Mating cycles	5000
Sealing	IP68
Salt Spray Corrosion	>1000 hr

T Series Alignment Key

T Series Panel Cut outs

T Series Cable Clamp

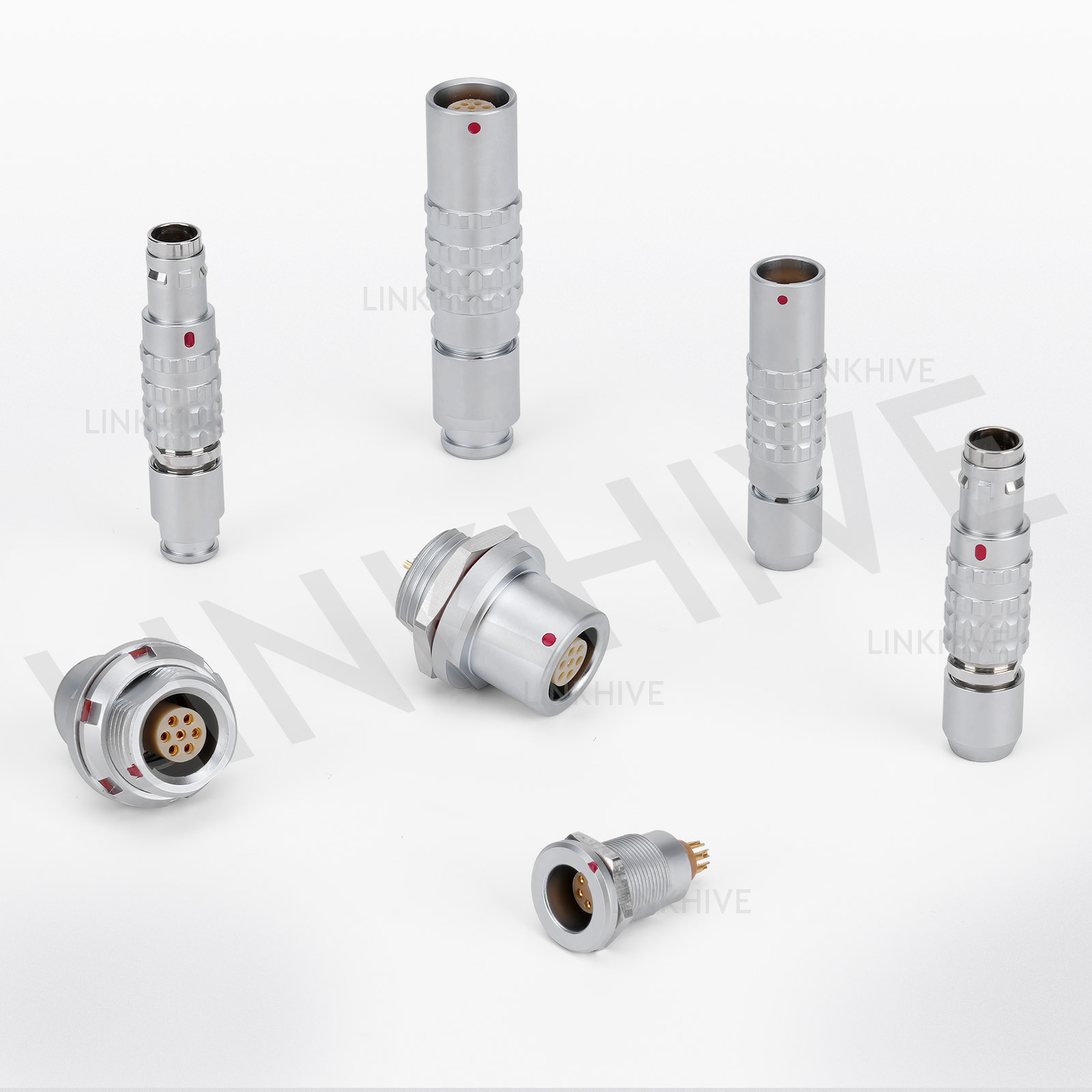

Straight plug	Fixed socket	vaccumtight socket	Free socket
FGG,cable collet	EGG	HGG circular metal socket	PHG
FGG,cable collet,with bend relief	EEG	HEG	PHG
FGG, non-lacthing		HMG
