This rugged miniature circular connector is engineered for extreme environments, offering a robust break away mechanism for quick disconnect. Waterproof when mated and unmated, it ensures reliable signal integrity and EMI shielding. Fully compatible with AMC Easy Clean systems.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.
The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.

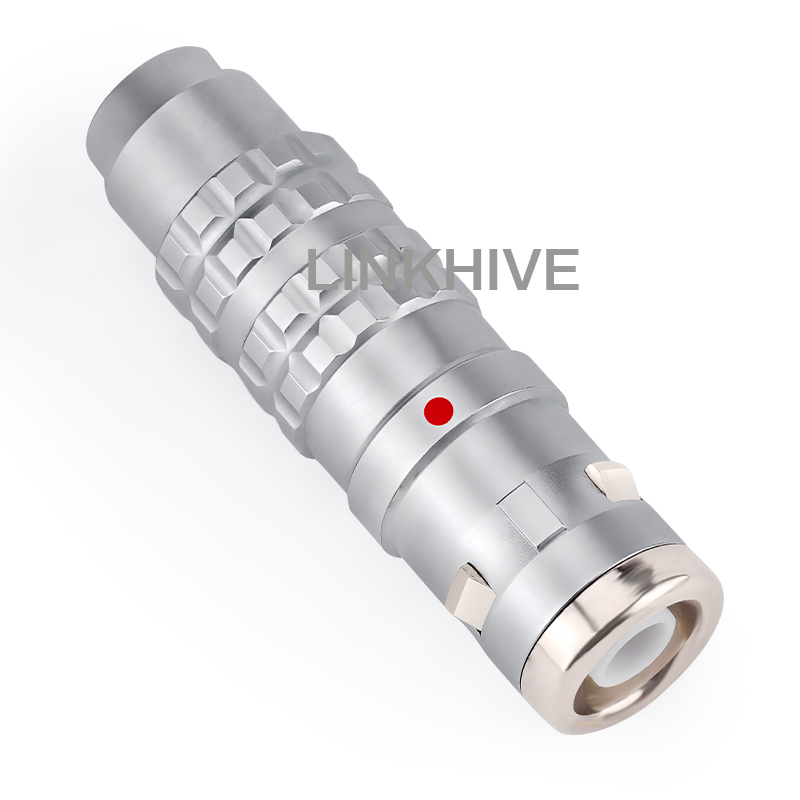

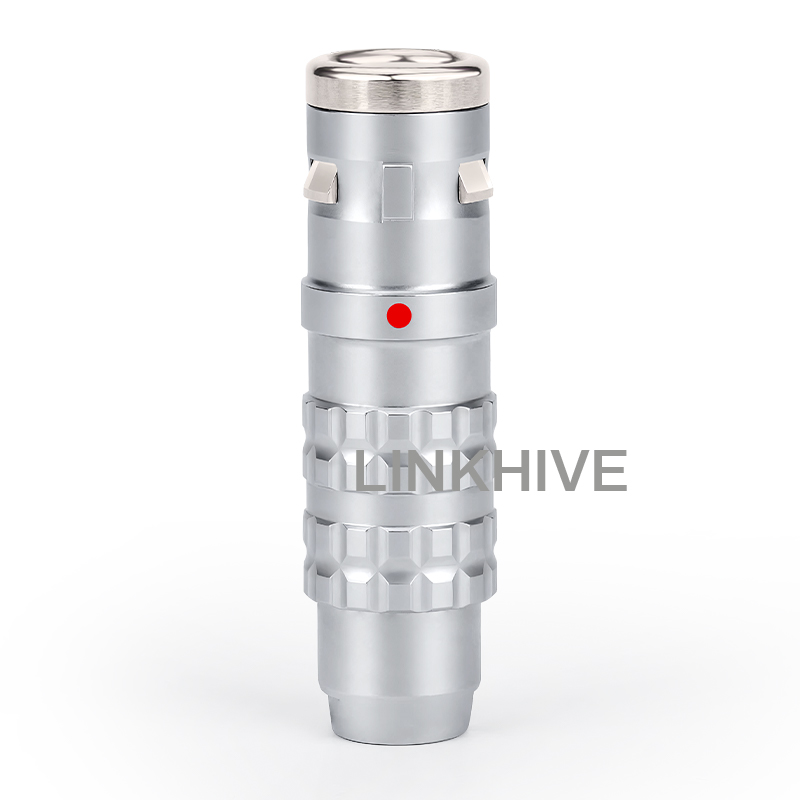

The LINKHIVE K Series FGG connectors are precision-engineered circular push pull connectors designed for outdoor and exposed environments. Featuring rugged full-metal construction and IP68 sealing, these watertight brass connector protect against water, dust, and mechanical shock, making them ideal for mission-critical applications.
This IP68 connector ensures complete sealing against water ingress, even during temporary submersion. Its robust housing is ideal for use in rain, mud, and chemically aggressive environments, commonly encountered in defense, medical, and broadcast fields.
The LINKHIVE K Series incorporates a proven self-latching connector mechanism that guarantees secure and quick mating/unmating. This makes it ideal for systems requiring repeated disconnections under time-sensitive or high-vibration conditions.
Our Key Advantages
Versatile
the connector accepts B-series inserts and offers a wide range of electrical configurations, including high-density signal, coaxial, fluidic, and hybrid layouts. This ensures flexible intGG.ation into existing platforms without redesigning the interface.
Rugged Construction & Multi-Keying
GG.neered for performance in harsh conditions, the connector supports multiple mechanical keying positions to prevent mismating. The robust housing and ergonomic design (chocolate pattern grip) allow for glove-friendly handling during field operations.
Application Flexibility
Available in straight, elbow, vacuum-tight, and overmolded cable assemblies, the K Series FGG connectors serve a wide spectrum of industries—from medical imaging and laboratory systems to outdoor surveillance and military communications.
Multi-pin types ranging from 2 to 48 pins
High-density installation for space-saving

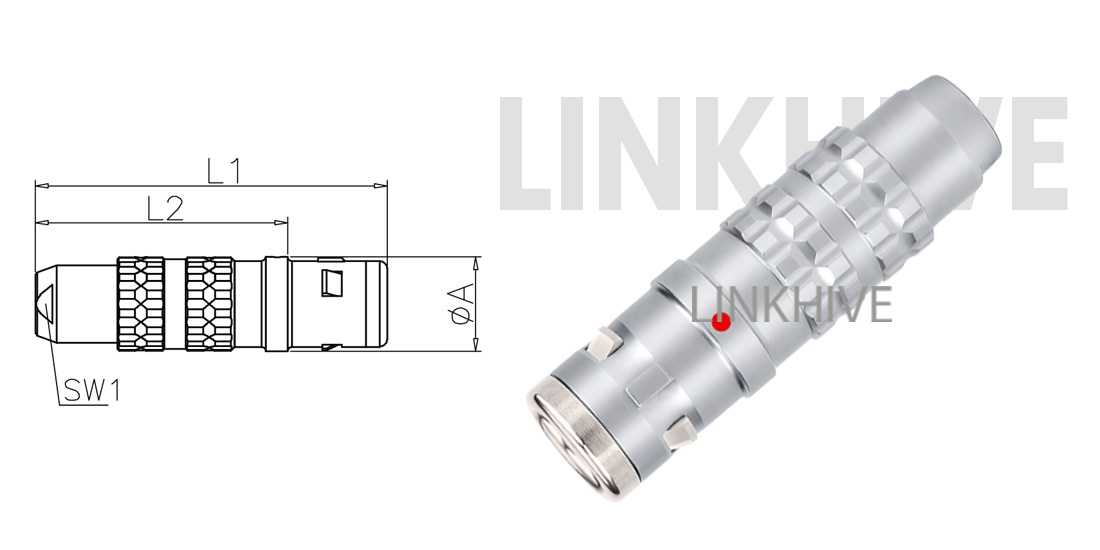

Dimensions
| Reference | Diamensions(mm) | ||||
| series | model | A | L1 | L2 | SW1 |
| 0K | FGG 0K | 11 | 26 00 | 25 | 7 |
| 1K | FGG 1K | 13 | 42 | 28 | 9 |
| 2K | FGG 2K | 16 | 52 | 36 | 12 1 |
| 3K | FGG 3K | 19 | 61 | 41 | 15 |
| 4K | FGG 4K | 25 | 71 | 50.5 | 19 |
How to Select the Correct Pins for K Series
Define the Application: Determine if your connector is for signal, power, or hybrid usage.
Select Contact Count: Choose from 2–32 contacts based on system requirements.
Check Cable Ø: Ensure the connector supports your cable’s outer diameter & AWG range.
Consider Environment: Select IP68 variants for outdoor, industrial, or medical use.
Match System Compatibility: Ensure it aligns with K Series specifications for seamless integration.
Use the model selection tables below to quickly find the right connector.
Each model includes insert layout, contact count, and recommended application, making it easy to match your requirements.
FGG Metal Circular Front Seal Plug 0K/1K/2K/3K Selection
Minature Size FGG 0K Series IP68 circular push pull watertight brass connector
| Mode | TGG.0K.302.CLA.10 | TGG.0K.303.CGA.15 | TGG.0K.304.CLA.20 | TGG.0K.305.CLA.25 | TGG.0K.305.CLA.30 | TGG.0K.305.CLA.35 | TGG.0K.305.CLA.40 | TGG.0K.305.CLA.45 |
| Inserts |  |  |  |  |  |  |  |  |
| Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 9 | 12 |
| Cable Ø | 1.0 mm | 1.5 mm | 2.0 mm | 2.5 mm | 3.0 mm | 3.5 mm | 4.0 mm | 4.5 mm |
| Application | Compact camera connector for portable sensors | Rugged push pull connector for outdoor devices | Sealed connector for signal instruments | camera connector for industrial electronics | Watertight push pull connector for measurement devices | Rugged circular connector for communication systems | Waterproof circular connector for control panels | Push pull connector for outdoor testing devices |
Small Size FGG 1K SSeries FGG IP68 circular push pull watertight brass connector
| Mode | TGG.1K.302.CLA.15 | TGG.1K.303.CGA.20 | TGG.1K.304.CLA.25 | TGG.1K.305.CLA.30 | TGG.1K.306.CLA.35 | TGG.1K.307.CLA.40 | TGG.1K.308.CLA.45 | TGG.1K.310.CLA.50 | TGG.1K.314.CLA.55 | TGG.1K.316.CLA.60 | TGG.1K.106.CLA.85 |
| Inserts | | | | | | |  | |  |  |  |
| Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 14 | 16 | 6 |
| Cable Ø | 1.5 mm | 2.0 mm | 2.5 mm | 3.0 mm | 3.5 mm | 4.0 mm | 4.5 mm | 5.0 mm | 5.5 mm | 6.0 mm | 6.5 mm |
| Application | hermetically sealed connectors for medical instruments | Waterproof circular connector for laboratory devices | Rugged push pull for industrial sensors | Compact circular connector for automation systems | hermetically sealed connectors for data acquisition devices | Waterproof circular connector for control systems | Rugged circular connector for outdoor analyzers | hermetically sealed connectors for industrial testing | hermetically sealed connectors r for measurement equipment | Rugged circular connector for signal transmission | hermetically sealed connectors for specialized equipment |
Medium size FGG 2K Series FGG IP68 circular push pull brass connector
| Mode | TGG.2K.302.CLA.15 | TGG.2K.303.CGA.20 | TGG.2K.304.CLA.25 | TGG.2K.305.CLA.30 | TGG.2K.306.CLA.35 | TGG.2K.307.CLA.40 | TGG.2K.308.CLA.45 | TGG.2K.310.CLA.50 | TGG.2K.314.CLA.55 | TGG.2K.316.CLA.60 | TGG.2K.318.CLA.65 | TGG.2K.319.CLA.70 | TGG.2K.332.CLA.75 | TGG.2K.514.CLA.95 |
| Inserts | |  |  |  | |  |  |  | |  |  |  |  |  |
| Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 14 | 16 | 18 | 19 | 32 | 8 |
| Cable Ø | 2.0 mm | 2.5 mm | 3.0 mm | 3.5 mm | 4.0 mm | 4.5 mm | 5.0 mm | 5.5 mm | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 8.5 mm |
| Application | Watertight brass connector for industrial machines | Rugged circular connector for portable medical devices | hermetically sealed connectors for data systems | Waterproof push pull for test equipment | hermetically sealed connectors for measurement instruments | Compact watertight brass connectorfor field analyzers | Rugged connector for signal devices | Waterproof circular connector for communication systems | Sealed push pull for automation tools | Rugged connector for control stations | IP68 circular connector for defense devices | Watertight connector for aerospace instruments | Rugged push pull connector for complex equipment | Waterproof circular connector for data transfer units |
Large size FGG 3K Series Series FGG IP68 circular push pull brass connector
| Mode | TGG.3K.302.CLA.30 | TGG.3K.303.CGA.35 | TGG.3K.306.CLA.40 | TGG.3K.307.CLA.45 | TGG.3K.308.CLA.50 | TGG.3K.310.CLA.55 | TGG.3K.316.CLA.60 | TGG.3K.318.CLA.65 | TGG.3K.320.CLA.70 | TGG.3K.322.CLA.80 | TGG.3K.324.CLA.85 | TGG.3K.326.CLA.90 | TGG.3K.330.CLA.95 | TGG.3K.332.CLA.15 |
| Inserts | | | | | |  | |  |  |  |  |  |  |  |
| Contacts | 3 | 4 | 6 | 7 | 8 | 10 | 16 | 18 | 20 | 22 | 24 | 26 | 30 | 32 |
| Cable Ø | 3.0 mm | 3.5 mm | 4.0 mm | 4.5 mm | 5.0 mm | 5.5 mm | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 8.5 mm | 9.0 mm | 9.5 mm |
| Application | hermetically sealed connectors for large industrial equipment | Rugged circular connector for communication hubs | IP68 push pull for control panels | Waterproof circular connector for measurement systems | Rugged push pul connectorl for field devices | Watertight brass connector for medical machinery | Compact circular connector for transportation systems | Rugged IP68 connector for defense stations | Waterproof circular connector for automation controllers | hermetically sealed connectors for power systems | Rugged circular connector for industrial analyzers | Watertight connector for monitoring devices | IP68 push pull connector for complex machinery | Rugged circular connector for data-intensive systems |
Product main Performance
| type | FGG:straight plug,key （G）or key (A...M),watertight or vacuumtight(watertight when mated) |
| part number coding | FGG2K306CLA52Z |
| Series | K series FGG plug |
| Shell material | Chrome-plated brass plug |
| Insulation material | PPS/PEEK/PTFE/PPSU |
| Humidity(max) | 〈=95%[at60 dGG.C/140 F] |
| Shielding | 75dB(10MHz)40dB(1GHz) |
| SaltS pray Corrosion | 96hr |
| Working Temperature | 200*C~-40℃ |
| IP Rating | ip68 when mated |
| Series | k series FGG plug |
| shock Resistance | 100g 6ms |
| Resistance to Vibration | 15g(10Hz-2000Hz) |
| Endurance | ≥5000 |
| Insert configuration | 304 |
| Contact Dia | 0.7 |
| mQ)Contact resistance | 6.5 |
| (A)Rated currend | 7 |
| TestVoltoge(contoct-contoct) | 1450 |
| TestVoltoge(contoct-shell) | 1000 |
| Insulation resistance | ≥5000MQ 600V DC) |
| Gender: | plug |
K Series Shell Material
K Series Panle Cutouts
K Series Cable Clamp
K Series watertight connectors Models
| Straight plug | Fixed socket | Fixed socket | Faccum tight/watertight socket | Free socket |
FGG plug | socket |
EHG |
HGG.watertight socket |
PHG Free socket |
FGG plug |
ENG socket |
EGG.socket |
HGG watertight socket |
PHG Free socket |
FGG plug |
EGG.socket |
PKG socket |
PHG Free socket | |
Elbow plug FHG | EGG.socket | |||
Q1: What materials are used in K Series connectors?
A: Chrome-plated brass shells with PPS/PEEK high-temperature insulators ensure strength and durability.
Q2: How is waterproof performance ensured?
A: Each connector is tested for IP68 sealing under submersion and dust ingress conditions.
Q3: How reliable are these connectors?
A: Designed for over 5000 mating cycles and tested for vibration (15g) and shock resistance (100g).
Q4: Are these connectors compliant with international standards?
A: Yes, they are RoHS compliant and meet IEC safety requirements for circular connectors.
Linkhive Waterproof self-latching Push pull connector IP68 connector selection
Use the comparison table below to explore the four main self-latching push pull connector series in the IP68 Outdoor range and find the model best suited to your specific application needs.
K Series Outdoor keyed -Waterpfoof circular push pull connector |
E Series Outdoor keyed–- Waterpfoof circular push pull connector with stepped inserts click for more info |
T Series Outdoor keyed– Heavy-Duty Waterproof Connectors click for more info |
C Series Outdoor keyed – The C Series features a slotted latching sleeve, compatible with MINI SNAP F Series click for more info | |
| Description | LINKHIVE watertight connectors with Push Pull locking for Outdoor Harsh environments | LINKHIVE Economical watertight connectors offering reliable performance and robust sealing for general outdoor use. | LINKHIVE Rugged watertight connectors designed for high-vibration, high-impact environments with IP68 sealing. | LINKHIVE C Series metal circular connectors are engineered for outdoor and industrial applications requiring secure and sealed connections. |
| locking Mechanism |

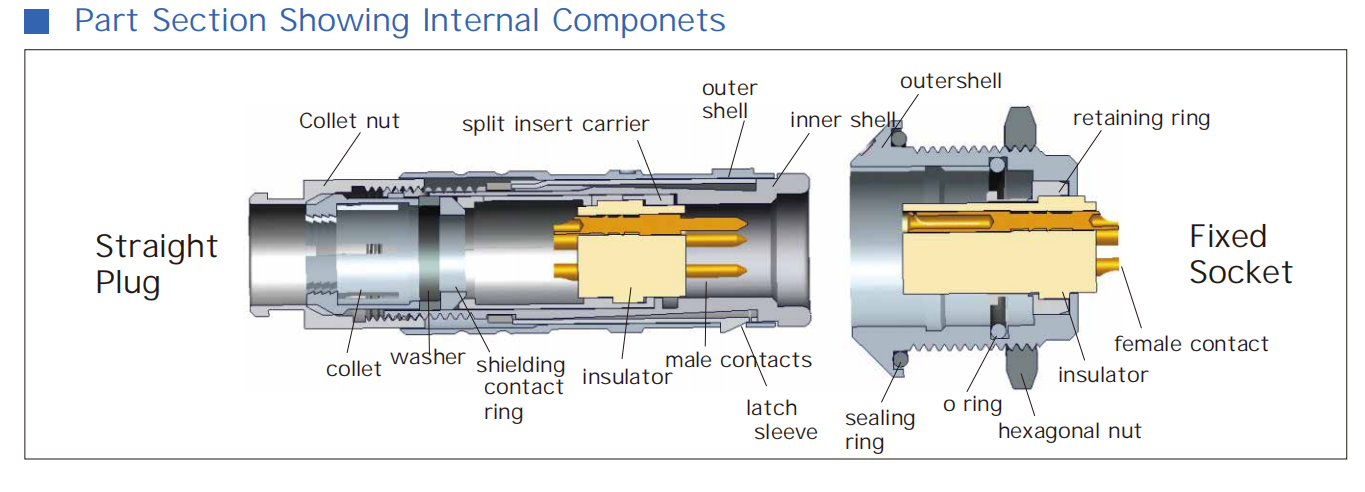

1, just push the plug axially into the socket to lock |
2.pulling the cable or any other part will not disconnect unless the outer release sleeve is pulled. |
3. the connector is disengaged by pull on the release sleeve, which first releases the locking latches and then whithdraws the plug . |
|
| Locking methods | self-latching Push pull connector | self-latching Push pull connector | self-latching Push pull connector | self-latching Push pull connector |
| plug diameter | 8 sizes from ø 11 to ø 25.0 mm (plugs) | 8 sizes from ø 11 to ø 25 mm (plugs) | 8 sizes from ø 7 to ø 18.8 mm (plugs) | 7 sizes from ø 9.5 to 18mm (plugs) |
| Alignment Key | key G/A/B/C/D/E/F/J/K/L/M/Y/R | 1 (circular connector with half moon connector ) | key G/A/B/C/D/E/F/J/K/L/M/Y/R | key G/A/B/C/D/E/F/J/K/L/M/Y/R |
| length | 8 sizes from 36mm to 71mm | 8 sizes from 26 mm to 61mm | 8 sizes from 32.7 mm to 62mm | 7 sizes from 37mm to 59mm |
| Insulator | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 |
| Shell Material | Chrome-plated Brass | Chrome-plated Brass | Chrome-plated Brass | Chrome-plated Brass |
| Salt Spray Corrosion | 96hr | 96hr | 96hr | 96hr |
| Cable ø | 1.0 to 23.5 mm | 1.0 to 23.5 mm | 2.4 to 15 mm | 1.0 to 15 mm |
| No.of PINS | 2 to 48 | 1 to 18 | 2 to 32 | 2 to 48 |
| Contact types | Multipole Contact /Coax Contact / Fibre Optic Contact/ Fluidic Contact/ High Voltage Contact/ hybrid Contact/ Thermocouple Contact | Mono Contact/ Multipole Contact / Coax /tri-coxial /Fluidic Contact / hybrid Contact | Multipole Contact /Coax Contact / Fluidic Contact/ hybrid Contact | Multipole Contact /Coax Contact / Fluidic Contact/ hybrid Contact |
| Sealing | Silicone/Epoxy | Silicone/Epoxy | Silicone/Epoxy | Silicone/Epoxy |
| Data Protocols | USB 2.0 / Eth Cat6 | USB 2.0 / Eth Cat6 | USB 2.0 / Eth Cat6 | USB 2.0 / Eth Cat6 |
| Sealing Level | IP68 connector | IP68 connector | IP68 connector | IP68 connector |
| Temperature Range | -55°C to 250°C | -55°C to 250°C | -55°C to 250°C | -55°C to 250°C |
| Mating Cycles | > 5000 | > 5000 | > 5000 | > 5000 |
