EGG 0k 1k 2 k 3k 4K series circular industrial plug metal socket

Brand: LINKHIVE
Product origin: CHINA
Delivery time: 2 WEEKS
Supply capacity: Ample Stock

The LINKHIVE EGG 0k 1k 2 k 3k 4K Series 304 Circular Waterproof Socket and avionics connectors are ideal for connecting medical imaging equipment and ECG cables. These waterproof sockets offer excellent waterproof performance, ensuring stable transmission and safe use in medical environments. LINKHIVE medical imaging connectors are widely adopted by medical equipment manufacturers worldwide due to their superior quality and reliability. With ample stock, they meet the needs of various medical applications

EGG 0k 1k 2 k 3k 4K series circular industrial plug metal socket

The LINKHIVE EGG 0K/1K/2K/3K/4K series circular industrial plug metal socket is a high-performance, durable connector solution, widely used in indoor equipment, precision instruments, automation systems, and industrial machinery. Built with a full metal housing, the connector ensures robust shielding, anti-mismating capability, and excellent mechanical stability, making it a reliable circular socket for stable signal transmission.

Our Key Advantages

Push-Pull Self-Latching Mechanism: Enables fast and secure mating/unmating, preventing accidental disconnection and improving operational safety.
Metal Housing: Offers superior impact resistance, corrosion resistance, and EMI shielding, ideal for harsh industrial environments.

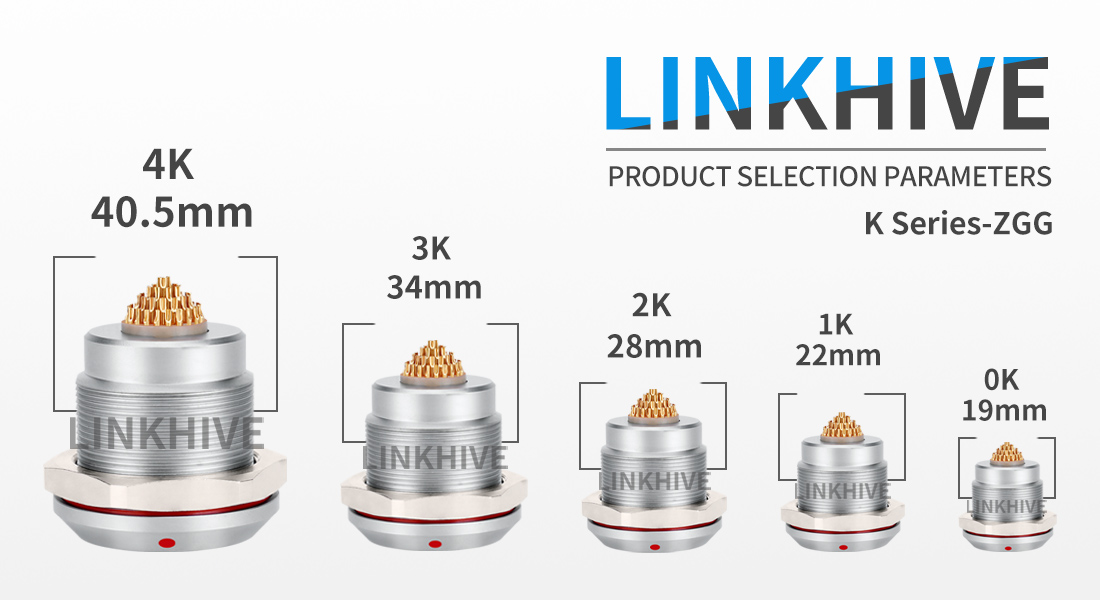

Wide Size Range: Available in 0K to 4K shell sizes with multiple contact configurations to meet diverse wiring needs.

Versatile Applications: This Industrial circular socket is suitable for automation equipment, test instruments, electrical cabinets, and other indoor socket installations.
Waterproof connection (IP66/IP68)
Multi-pin types ranging from 2 to 48 pins

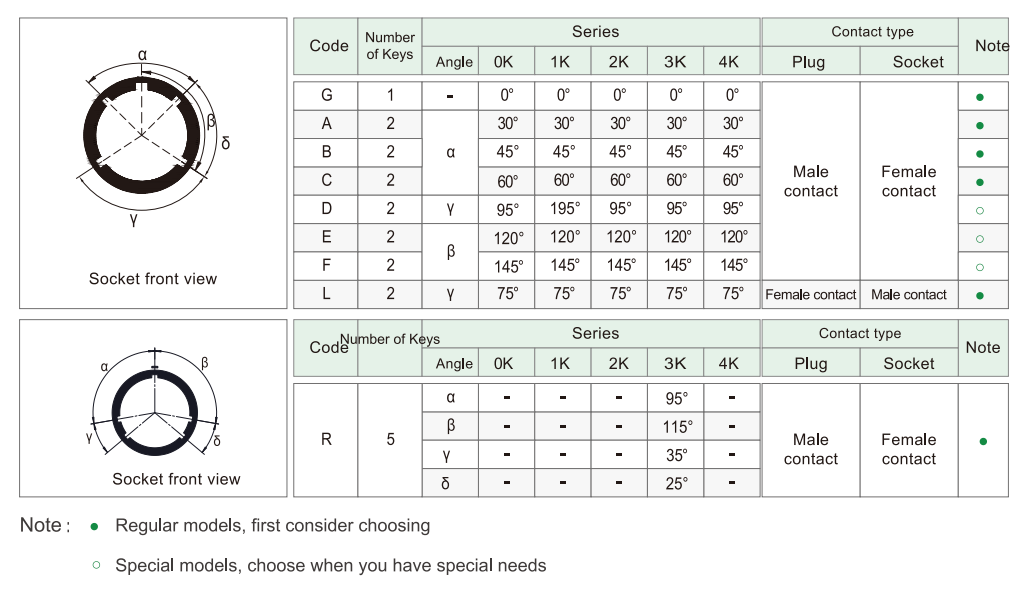

keying system
Solder and PCB mount contacts (straight and right-angle)

360-degree shielding for comprehensive EMC protection
High-density installation for space-saving
Robust housing design suitable for harsh working environments

circular socket

Technical Specification

Insulation Resistance: > 5000 MΩ (at 500V)
Mating Cycles: > 5000 times
Withstanding Voltage: AC 1500V / 60s
Operating Temperature: -40°C to +125°C
Protection Rating: IP50 (indoor use)
Materials: Nickel-plated brass housing + PPS high-performance insulator
Mounting Options: Front panel with nut or rear-mount versions available

Industrial circular socket

Applications

The EGG K series metal socket is widely adopted in industrial automation, laboratory test setups, medical electronics, and communication devices. As an Industrial circular socket solution, it ensures high-reliability connections between systems. Its compact Metal socket design supports dense panel layouts and space-constrained applications, making the LINKHIVE Industrial plug socket ideal for integration into modern control systems and complex instrumentation setups.

For technical drawings, STEP files, or sample requests, please contact the LINKHIVE engineering team. We offer customized circular socket solutions to support your industrial connectivity projects with efficiency and precision.Choosing the correct Multi-contact socket configuration is essential for ensuring reliable performance.

How to Select the Right Pins for ZGG Series Circular Metal Socket?

Confirm Plug Compatibility:
Ensure the selected ZGG socket matches the corresponding K Series plug (FGG / TGG) in size (00K / 0K / 1K / 2K / 3K), insert configuration, and keying (e.g., G key).

Determine Contact Requirements: Identify how many contacts you need for power and signal transmission (e.g., 2–32 pins).
Check Contact Diameter (øA): Ensure the selected pin diameter meets your current-carrying and signal needs using our pin chart.
Match Cable Size: Verify that the circular socket supports your cable’s outer diameter and conductor size (AWG range).
Metal socket Application Fit: Choose between solder, crimp, or PCB contacts depending on your installation type and performance requirements.
Consider Environment & Standards: Ensure High-current socket meets IP ratings and complies with IEC/RoHS for safe and long-term use.

Use the model selection tables below to quickly find the right connector.
Each model includes insert layout, contact count, and recommended application, making it easy to match your requirements

Model Selection Table

Miniature Size ZGG 0K Circular Metal Socket Selection

Mode	ZGG.0K.302.CLL.M	ZGG.0K.303.CGL.M	ZGG.0K.304.CLL.M	ZGG.0K.305.CLL.M	ZGG.0K.306.CLL.M	ZGG.0K.307.CLL.M	ZGG.0K.309.CLL.M	ZGG.0K.312.CLL.M
Inserts
Contacts	2 contacts	3 contacts	4 contacts	5 contacts	6 contacts	7 contacts	9 contacts	12 contacts
Application	Compact circular socket for instrumentation	Industrial circular socket for compact devices	Metal socket for medical monitoring systems	Multi-pin socket for industrial control	Circular socket for portable instruments	Push pull socket for testing devices	Industrial plug socket for control panels	Multi-pin socket for lab automation

Small Size ZGG 1K Circular Metal Socket Selection

Mode	ZGG.1K.302.CLL.M	ZGG.1K.303.CLL.M	ZGG.1K.304.CLL.M	ZGG.1K.305.CLL.M	ZGG.1K.306.CLL.M	ZGG.1K.307.CLL.M	ZGG.1K.308.CLL.M	ZGG.1K.310.CLL.M	ZGG.1K.314.CLL.M	ZGG.1K.316.CLL.M	ZGG.1K.106.CLL.M
Inserts
Contacts	2 contacts	3 contacts	4 contacts	5 contacts	6 contacts	7 contacts	8 contacts	10 contacts	14 contacts	16 contacts	6 contacts
Application	Circular metal Multi-pin socket for sensors	Multi-pin socket for signal transmission	Metal socket for medical equipment	Industrial socket for lab instruments	Push pull socket for test benches	Multi-contact socket for control panels	Compact Multi-pin socket t for communication devices	Industrial circular socket for automation	Multi-pin socket for medical imaging	High-density socket for industrial electronics	Mini circular socket for compact controllers

Medium Size ZGG 2K Circular Metal Socket Selection

Mode

ZGG.2K.302.CLL.M

ZGG.2K.303.CLL.M

ZGG.2K.304.CLL.M

ZGG.2K.305.CLL.M

ZGG.2K.306.CLL.M

ZGG.2K.307.CLL.M

ZGG.2K.308.CLL.M

ZGG.2K.310.CLL.M

ZGG.2K.314.CLL.M

ZGG.2K.316.CLL.M

ZGG.2K.318.CLL.M

ZGG.2K.319.CLL.M

ZGG.2K.332.CLL.M

ZGG.2K.514.CLL.M

Inserts

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Contacts

Application

Industrial plug socket for testing rigs

Compact Multi-pin socket for portable devices

circular Multi-pin socket for automation

Meta lMulti-pin socket for data acquisition

Industrial circular socket for power control

Multi-pin socket for medical tools

Push pull socket for control units

Circular socket for lab equipment

Multi-contact socket for monitoring systems

High-current socket for industrial machinery

High-density socket for automation

Multi-pin socket for communication systems

Large multi-pin socket for testing setups

Industrial socket for high-contact applications

Large Size ZGG 3K Circular Metal Socket Selection

Mode

ZGG.3K.303.CLL.M

ZGG.3K.305.CLL.M

ZGG.3K.306.CLL.M

ZGG.3K.307.CLL.M

ZGG.3K.308.CLL.M

ZGG.3K.309.CLL.M

ZGG.3K.310.CLL.M

ZGG.3K.312.CLL.M

ZGG.3K.316.CLL.M

ZGG.3K.318.CLL.M

ZGG.3K.320.CLL.M

ZGG.3K.322.CLL.M

ZGG.3K.324.CLL.M

ZGG.3K.330.CLL.M

ZGG.3K.332.CLL.M

Inserts

Multi-pin socket

Industrial circular socket

Multi-pin socket

circular socket

Multi-pin socket

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Multi-pin socket

Contacts

Application

Circular metal socket for automation

Multi-pin socket for test instruments

Industrial circular socket for control panels

High-pin-count socket for monitoring systems

Multi-contact socket for robotics

Push pull socket for high-reliability connections

Industrial socket for control boxes

Multi-pin socket for energy management

High-current socket for industrial applications

Multi-pin circular socket for defense systems

Compact circular socket for data-intensive applications

High-density socket for advanced systems

Industrial multi-pin socket for power distribution

Large socket for industrial machines

High-pin-count socket for automation

Extra-large Size ZGG 4K Circular Metal Socket Selection

Mode

ZGG.4K.303.CLL.M

ZGG.4K.305.CLL.M

ZGG.4K.306.CLL.M

ZGG.4K.307.CLL.M

ZGG.4K.308.CLL.M

ZGG.4K.309.CLL.M

ZGG.4K.310.CLL.M

ZGG.4K.312.CLL.M

ZGG.4K.316.CLL.M

ZGG.4K.318.CLL.M

ZGG.4K.320.CLL.M

ZGG.4K.322.CLL.M

ZGG.4K.326.CLL.M

ZGG.4K.330.CLL.M

ZGG.4K.332.CLL.M

Inserts

Multi-pin socket

Industrial circular socket

Multi-pin socket

circular socket

Multi-pin socket

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Multi-pin socket

circular socket

Industrial circular socket

Multi-pin socket

Contacts

Application

Extra-large socket for power applications

Multi-pin socket for industrial automation

High-current socket for control units

Multi-contact socket for energy systems

Industrial circular socket for communication networks

Push pull socket for data systems

Large metal socket for automation control

High-reliability socket for monitoring

Multi-contact socket for industrial defense

Multi-pin circular socket for advanced robotics

Large Push pull socket for high-current applications

Multi-contact socket for factory automation

Industrial-grade Push pull socket for heavy-duty control

Large multi-pin socket for defense

Extra-large Push pull socket for power management

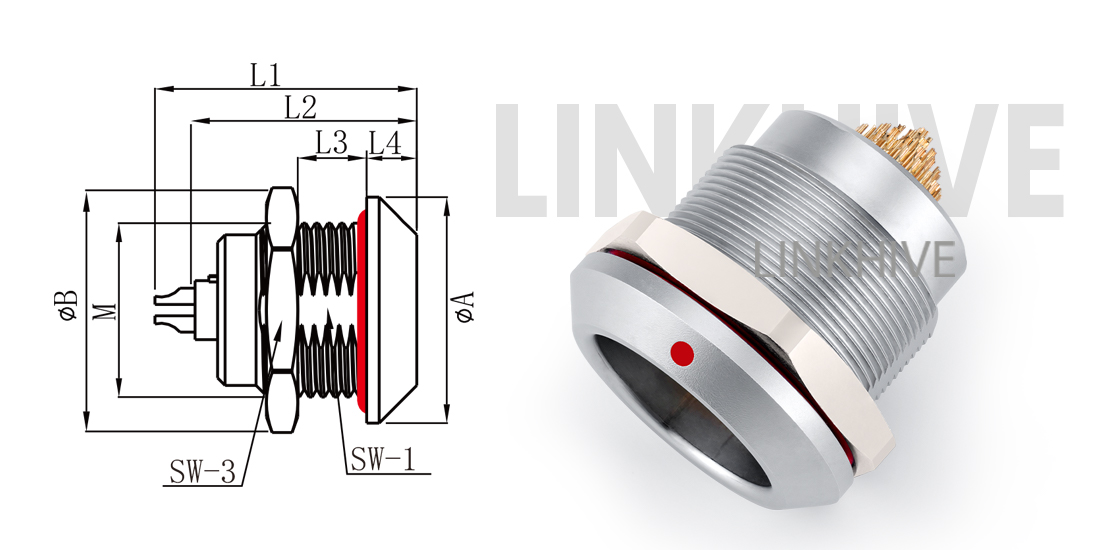

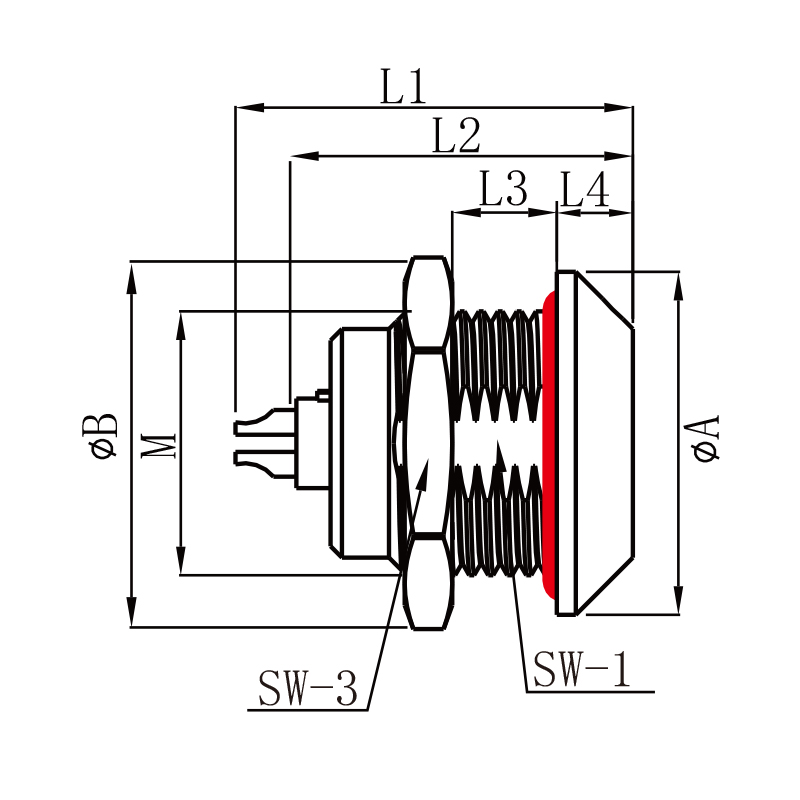

Dimensions

circular socket

Reference		K Series EGG socket Diamensions(mm)
series	model	A	B	M	L1	L2	L3	L4	SW1	SW3
0K	EGG	18	19	M14*1.0	21.3	20	6	4	12.5	17
1K	EGG	20	22	M16*1.0	27.8	25	9	4.5	14.5	19
1K	EGG	20	22	M16*1.0	27.8	25	9	4.5	14.5	19
2K	EGG	25	28	M20*1.0	29	28	9	5	18.5	24
3K	EGG	31	34	M24*1.0	36.1	33.6	11	6	22.5	30
4K	EGG	37	40.5	M30*1.0	40.2	38.6	9	6.5	28.5	36

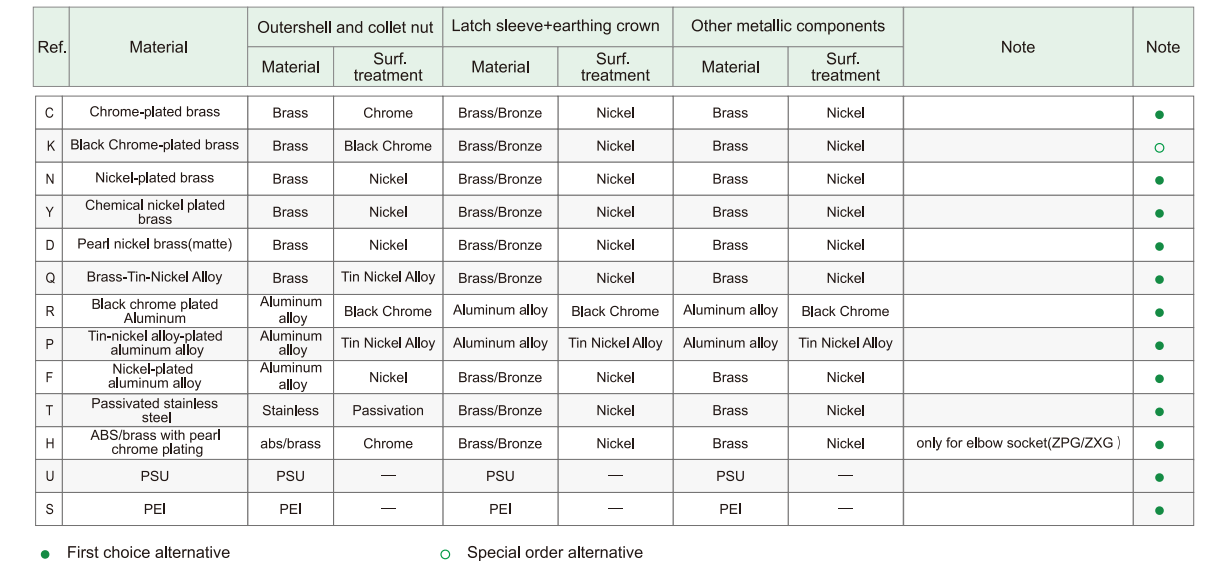

K Series Shell Material

Industrial circular socket

K Series Panle Cutouts

Multi-pin socket

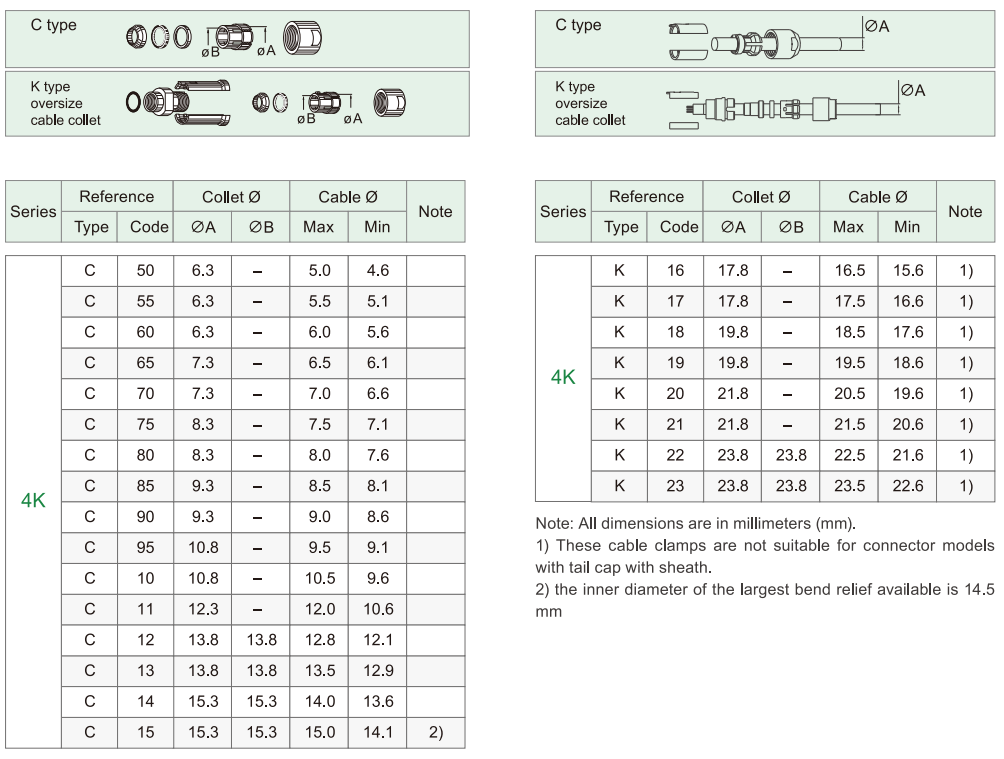

K Series Cable Clamp

circular socket

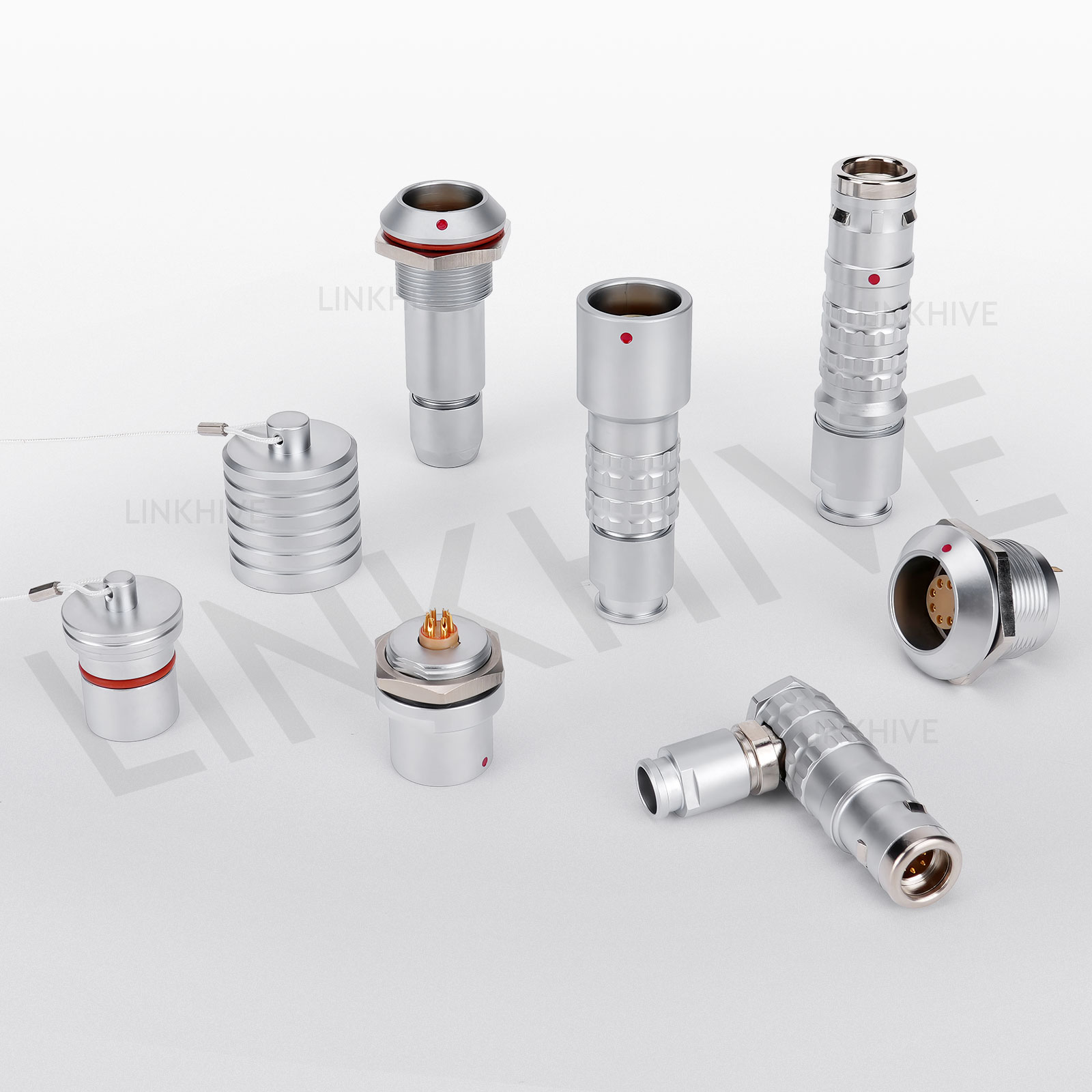

K Series Watertight Connectors Models

Straight plug

Fixed socket

Faccum tight/watertight socket

Free socket

Industrial circular socket

FGG plug

Multi-pin socket

EGG socket

circular socket

EHG

Industrial circular socket

HEG watertight socket

Multi-pin socket

PHG

Free socket

circular socket

FGG plug

Industrial circular socket

ENG socket

Multi-pin socket

EEG socket

circular socket

HGG watertight socket

Industrial circular socket

PHG

Free socket

Multi-pin socket

FGG plug

circular socket

EEG socket

Industrial circular socket

PKG socket

Elbow plug

Multi-pin socket

FHG

circular socket

PHG

Free socket

Quality & Test

Q1: What materials are used in the ZGG series circular metal socket?
A1: The Metal socket are made of chrome-plated brass, and the insulators use high-performance PPS/PEEK/PTFE/PPSU for excellent heat and chemical resistance.

Q2: What is the protection level of these Industrial circular socket?
A2: When properly mated, the ZGG Multi-contact socket series achieves IP68 protection, providing dustproof and waterproof performance for harsh industrial environments.

Q3: What durability and environmental tests have been conducted?
A3: The Push pull socket have passed over 5000 mating cycles, 96-hour salt spray corrosion tests, and vibration resistance up to 15g (10Hz–2000Hz) and shock resistance up to 100g, ensuring long-term reliability.

Q4: What are the rated voltage and current?
A4: Metal socket support a rated current of up to 7A, withstand 1450V (contact-to-contact) and 1000V (contact-to-shell), with an insulation resistance of ≥5000MΩ (600V DC).

Q5: Are these connectors compliant with international standards?
A5: Yes, the ZGG series Industrial circular socket comply with IEC and RoHS standards, ensuring safe and reliable use in industrial, laboratory, and communication applications.
