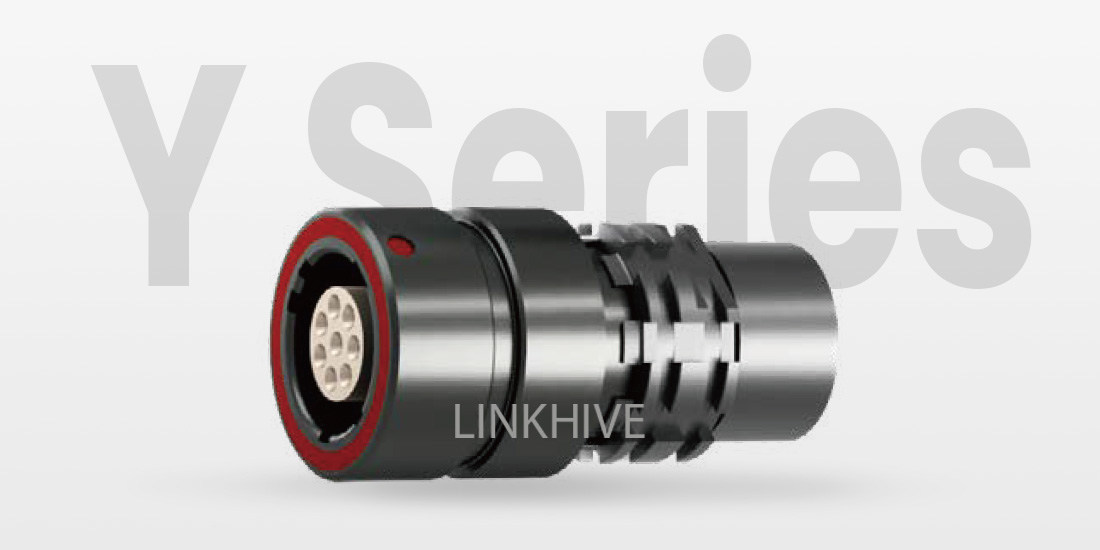

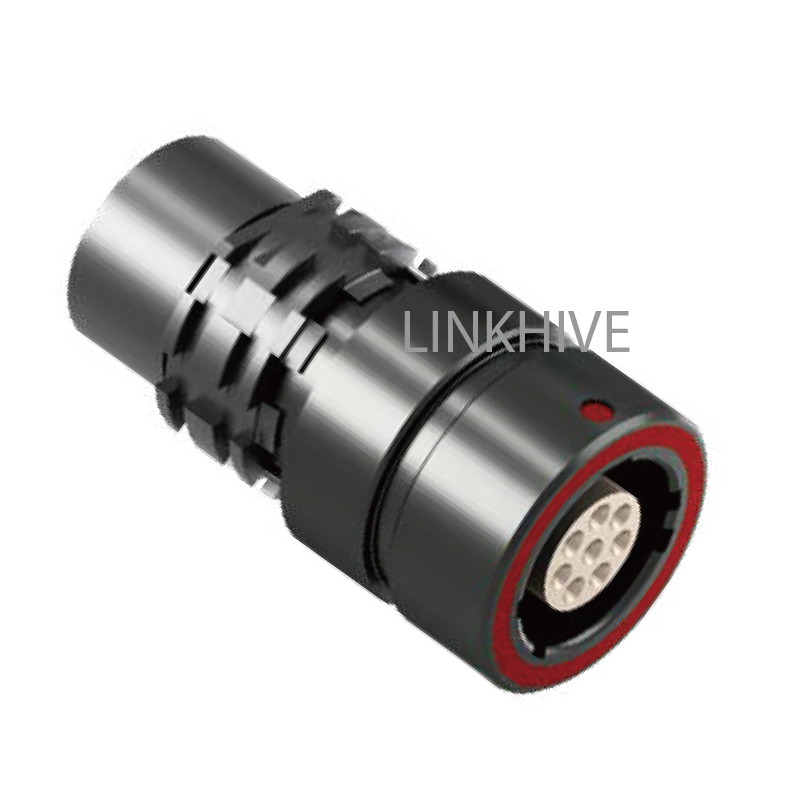

The Replacement AMC Series Y K1 In line Receptacle is a compact, high-reliability military connector engineered for field-deployable systems and tactical communication devices.
Replacement AMC Series Waterproof Y K1 in line receptacle
K1 Military connector Key Features
In line receptacle design for cable-to-cable connections
Fully intermateable with AMC Series Y
IP68-rated waterproof socket, resistant to dust and moisture
Rugged circular metal connector with gold-plated contacts
Compact, lightweight form factor for soldier-worn systems
Supports hybrid configurations: signal, power, coaxial, and fluidic
Suitable for harsh environments and frequent mating/unmating
AMC Y Series SELECTION
| AMC Y SERIES | Series | Locking | Description | Application |
 | AMC Y SERIES S1 | Push-pull connector | Miniature push-pull circular connector with high-contact density for compact devices | Used in portable radios, communication terminals |
 | AMC Y SERIES A1 | Break-away connector | Rugged break-away circular connector for military-grade reliability | Ideal for field-deployed communication equipment |
 | AMC Y SERIES GW | Panel connector | Panel-mounted metal circular connector for secure fixed installations | Used in base stations and communication racks |
 | AMC Y SERIES GK | Waterproof socket | IP68 waterproof circular socket for harsh environments | Suitable for outdoor communication systems |
 | AMC Y SERIES G8 | Waterproof socket | High-reliability watertight socket for ruggedized military applications | Used in armored vehicles and defense electronics |
 | AMC Y SERIES K1 | In-line receptacle | Compact inline circular connector with enhanced EMI shielding | For mobile command centers and field instruments |
K1 Military connector Applications
Tactical radios & communication headsets
UAVs, military robots, and ground vehicles
Wearable soldier electronics
Field instrumentation and defense-grade systems
Manufactured by LINKHIVE using precision CNC machining and strict quality control. Large inventory ensures fast global delivery and supports custom requirements.
K1 Military connector Specification
Maximum Humidity: | up to 95% at 60°/140°F |
Locking type: | push pull self-latching type |
Endurance: | 5000 cycles |
Shock resistance: | 100g,6ms |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -55°~+200° |
Connector Series: | AMC Y Series k1 in line receptacle |
Gender: | receptacle |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Chrome-plated brass |
Test Voltage (contact-contact): | 1450 |
Test Voltage (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP68 |

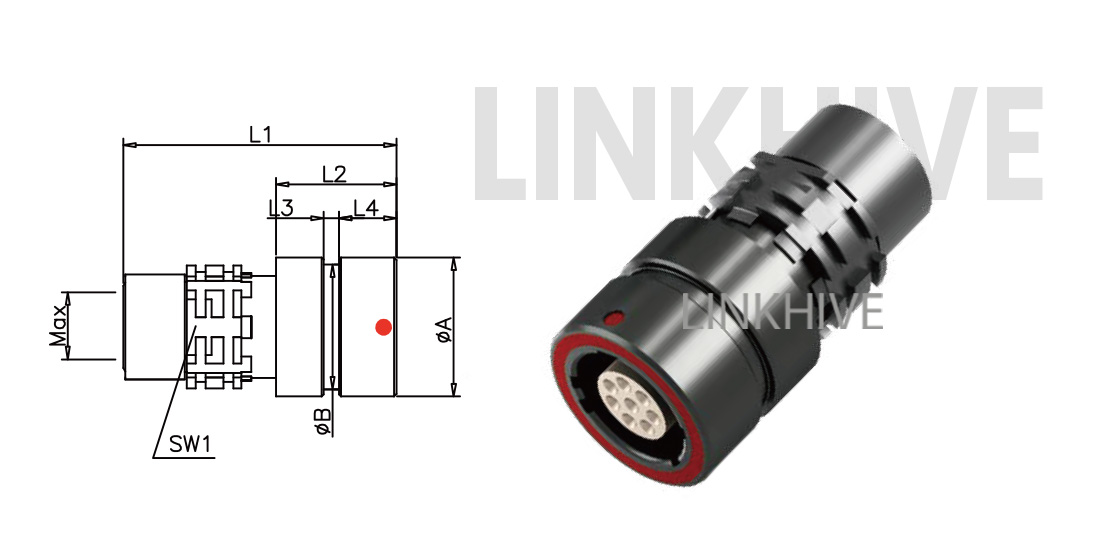

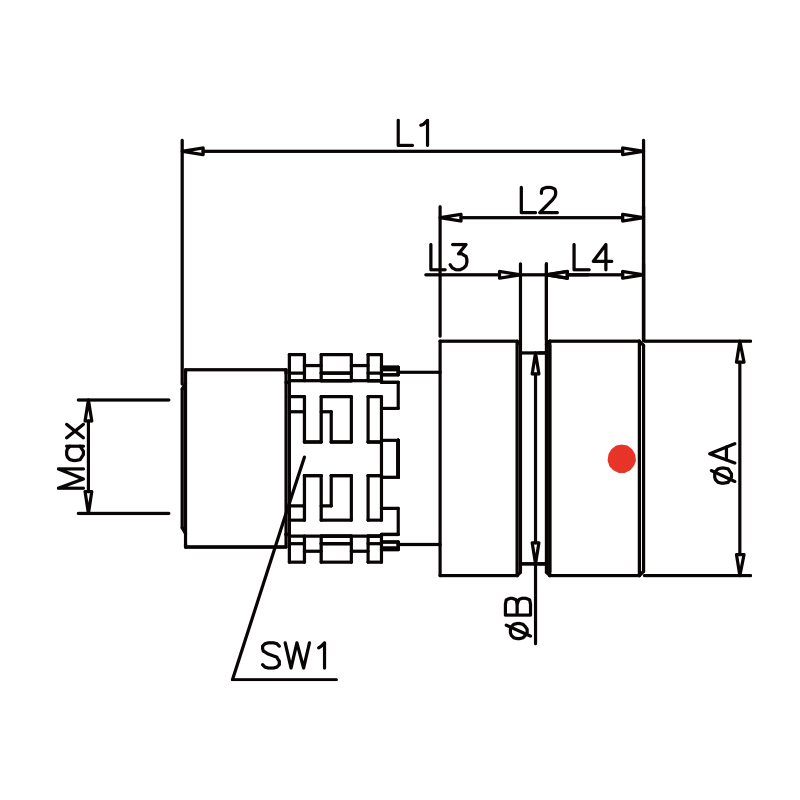

K1 Military connector Dimensions
Size | Dimensions(mm) | ||||||||
A | B | L1 | L2 | L3 | L4 | Max | SW1 | ||
0Y waterproof socket | in line receptacle | 11.9 | 10.5 | 25.0 | 13.0 | 1.5 | 5.8 | 5.5 | 9.0 |
1Y waterproof socket | in line receptacle | 13.9 | 12.5 | 27.0 | 12.1 | 1.5 | 5.8 | 6.5 | 11.0 |
AY waterproof socket | in line receptacle | 15.9 | 14.5 | 27.0 | 12.0 | 1.5 | 5.8 | 12 | 12.0 |
2Y waterproof socket | in line receptacle | 17.6 | 16.2 | 30.0 | 15.0 | 1.5 | 5.8 | 14 | 14.0 |

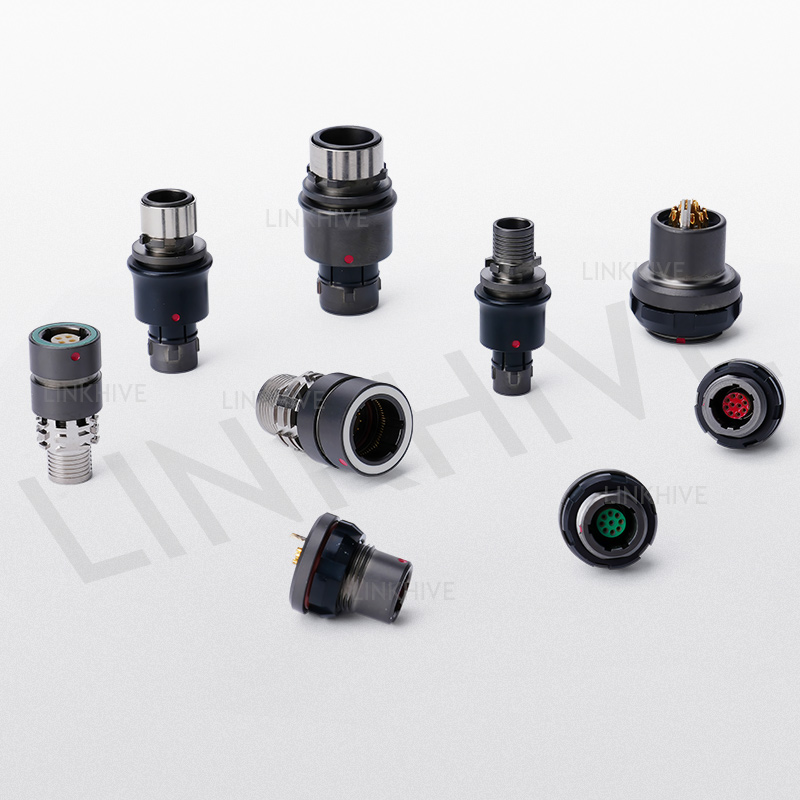

Linkhive AMC Series Circular Miniature Connector Connector Selection
AMC (Y) |
AMC High Density (W) |
AMC EASY CLEAN( Y) |
MINI SNAP ( F) |
- Pin-and-groove mechanical coding - Breakway / push pull - high-speed data transmission -IP68 rated for harsh environment protection -rugged circular miniature connector | - Extremly Minature connector and Compact - high-contact density design. - Supports high-speed data - Break-Away - optional dual-locking. - IP6K8 rated. | - Spring-loaded contacts for easy cleaning and dirt resistance. - Break-Away function. - Rated IP6K8 / IP6K9K for harsh environments. -rugged and solid miniature connector | - Push-pull self-latching connector with durable metal housing - Multiple contact configurations and custom combinations available - IP50/IP68 protection for harsh enviroment. - rugged circular miniature connector |
