This rugged miniature circular connector is engineered for extreme environments, offering a robust break away mechanism for quick disconnect. Waterproof when mated and unmated, it ensures reliable signal integrity and EMI shielding. Fully compatible with AMC Easy Clean systems.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.
The AMC High Density A1 plug combines extremely compact size with maximum electrical performance, making it ideal for military and rugged field applications. Designed for quick-disconnect (break-away) functionality, IP68 waterproof sealing, and up to 40 contacts in a single unit, it ensures signal integrity and mechanical resilience even under the most demanding conditions. This miniature solid connector is tested to MIL standards, offering robust protection against vibration, dust, and moisture, while its color-coded mechanical keying guarantees secure and intuitive mating.

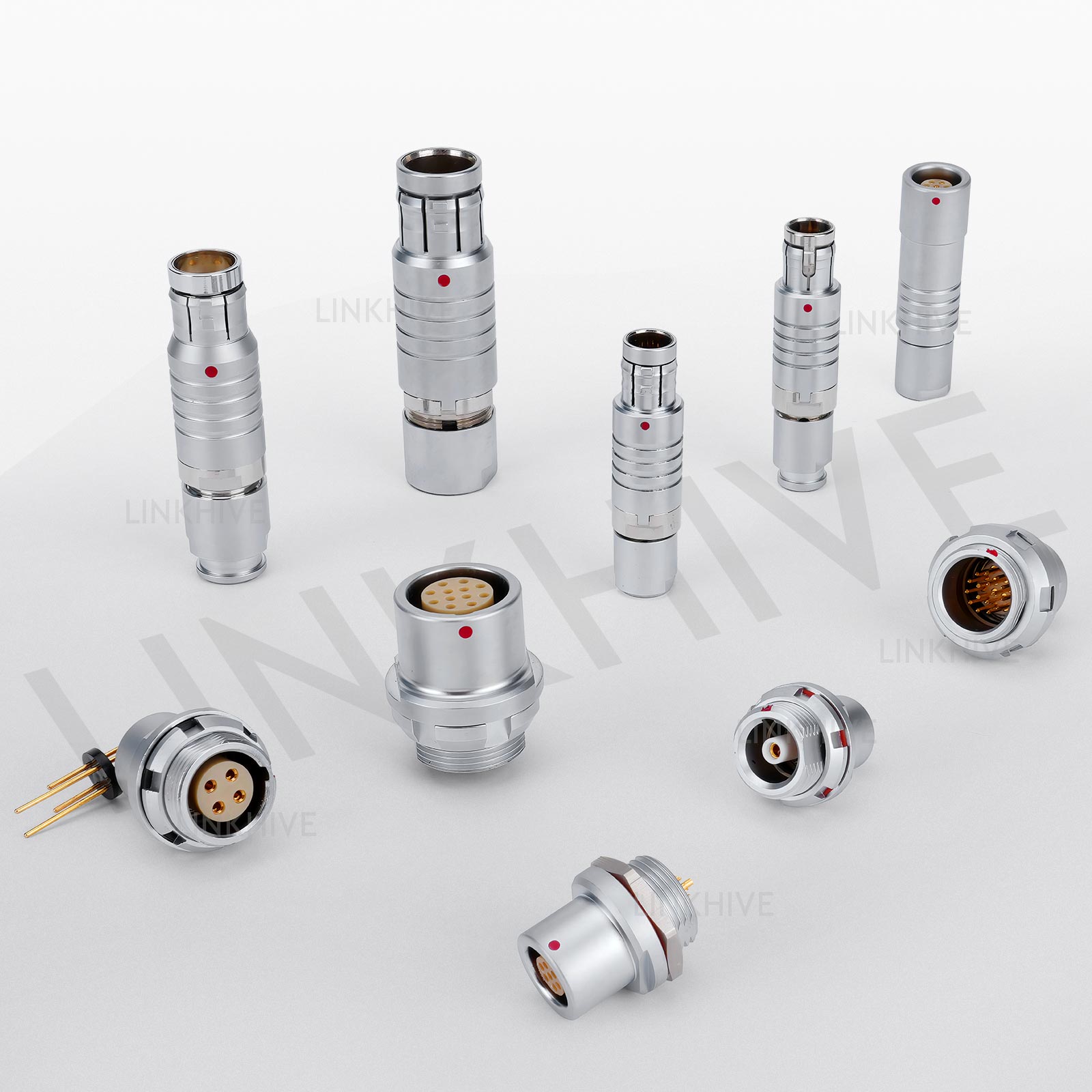

C Series Push Pull Circular Connector Mini Style 3 Snap b Series

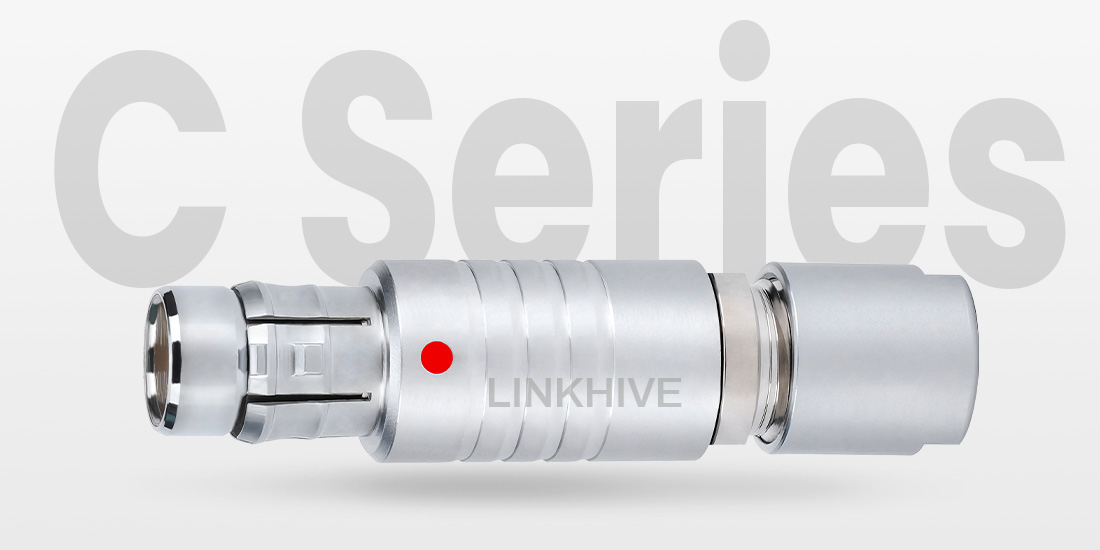

The C Series S3 Watertight Push Pull Circular Connector is a high-performance solution designed for compact devices requiring secure and sealed connections. This model features a robust push pull circular connector locking system and pin-and-groove keying, ensuring precise alignment and reliable mating. Fully compatible with MINI SNAP Series B S3, it offers seamless integration in OEM applications.
With multiple configurations including 2 to 30 contacts, up to 4 shell sizes, and options for solder, crimp, or PCB terminations, the C Series S3 supports a wide range of system needs. It is built to IP68 waterproof circular connector standards, making it ideal for use in harsh environments requiring watertight Rugged connector, such as medical equipment, outdoor sensors, marine devices, and industrial automation.
Our key feature

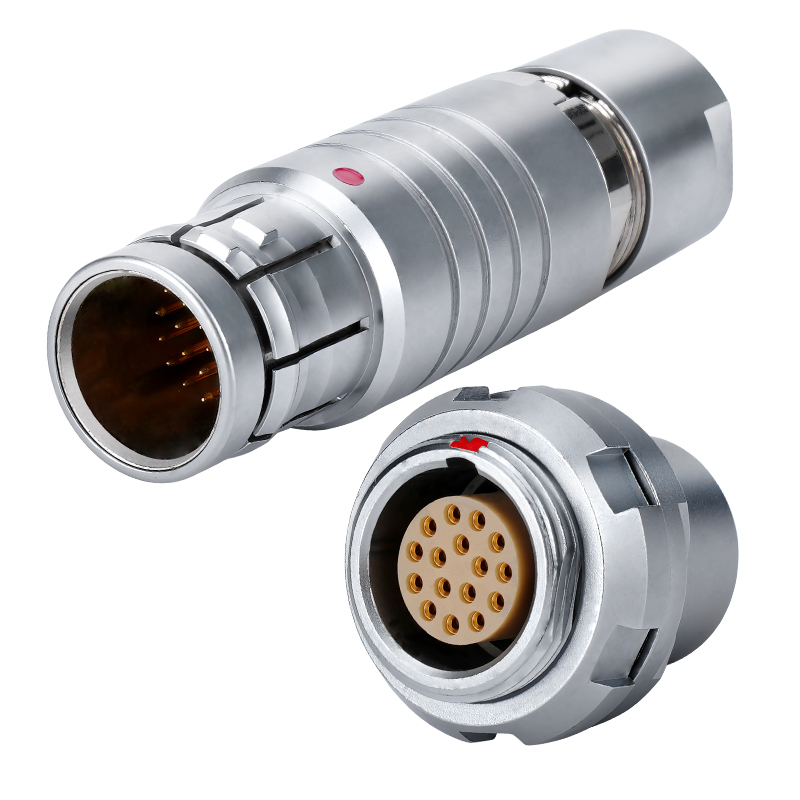

The C Series features a slotted latching sleeve, ensuring secure push-pull self-locking，
Multi-pin options ranging from 2 to 48 pins
High-density mounting for space-saving.
EMC protection
keying over pin and groove
Socket with vacuum-sealed structure, suitable for equipment requiring airtightness.
Available in up to 4 shell sizes
Multiple contact inserts: signal, power, or mixed
Termination types: solder, crimp, or PCB
Straight and right-angle plug options
Metal housing, customizable shell finishes
Material: Chrome-plated brass shells, PPS high-temperature insulators.
Testing: 100% electrical continuity, insulation resistance, IP68 sealing & pressure testing, durability up to 5000 mating cycles.
Compliance: RoHS compliant, meeting IEC standards for push pull circular connectors.

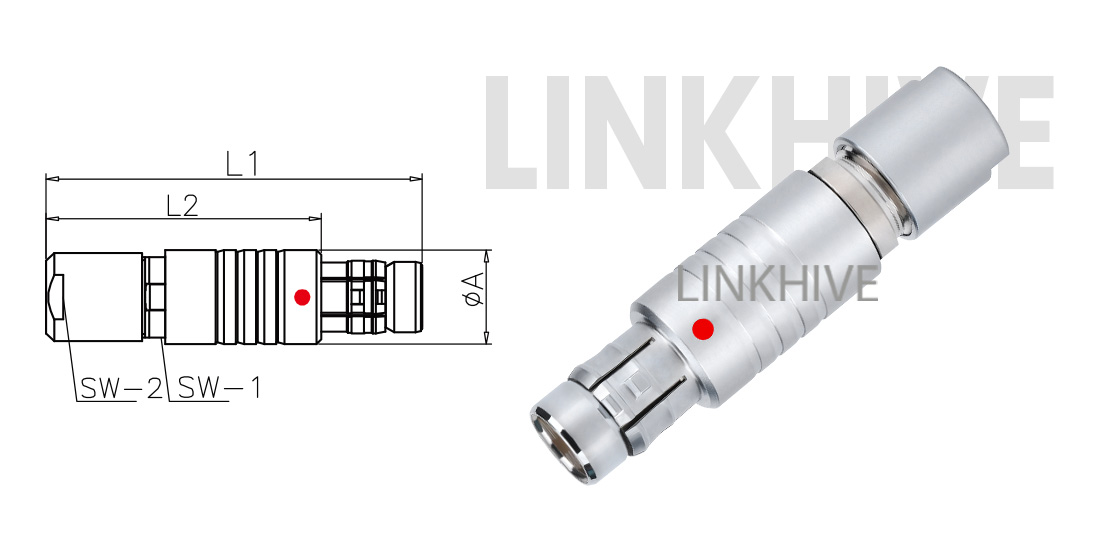

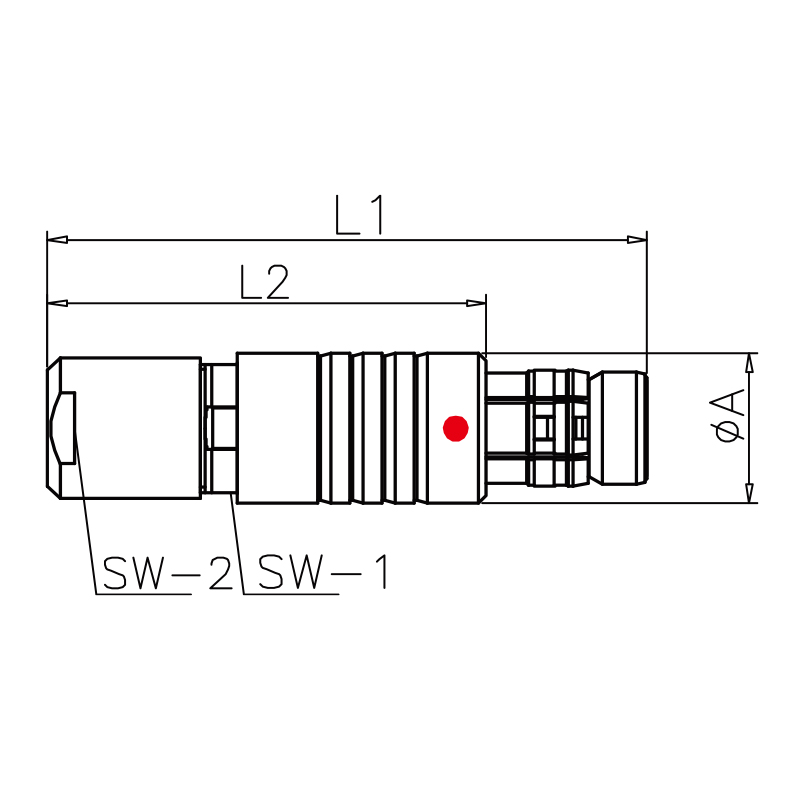

Diamensions
| Reference | Dimensions ( mm ) | |||||
| series | model | A | L1 | L2 | SW1 | SW2 |
| 0C | TGG | 9.5 | 37 | 27 | 8 | 8 |
| 1C | TGG | 12 | 45 | 34 | 10 | 9 |
| 2C | TGG | 15 | 51 | 39 | 13 | 13 |
| 3C | TGG | 18 | 59 | 44 | 16 | 15 |
How to Select the Right Pin Configuration for C Series Watertight Circular Connectors
Selecting the correct pin configuration ensures that your C Series watertight Rugged connector perform reliably in demanding applications. Follow these key steps:
Define Your Application
Identify if the watertight circular male connector will be used in medical devices, industrial equipment, outdoor systems, or communication tools.
Consider environmental needs such as IP68 waterproofing, dustproofing, and vibration resistance.
Choose the Connector Type
Straight Plug (FGG S3/S4) – Ideal for cable collet or bend relief requirements.
Rugged connector (G4/G8) – Perfect for sealed panel-mount applications.
In-line Receptacle (K3/K4) – Designed for cable-to-cable connections.
Select the Right Series & Size
0C: Miniature for compact devices.
1C: Small size for medical and portable equipment.
2C: Medium size for industrial and field applications.
3C: Large size for high-density contact configurations.
Determine the Number of Contacts
Check the pin count (2–32 contacts) based on your signal and power transmission needs.
Verify Cable Compatibility
Match the connector to your cable’s outer diameter (see Cable Ø in our selection tables).
Check Standards & Testing
All connectors undergo electrical continuity, insulation resistance, sealing, and durability tests to meet IEC and RoHS compliance standards.
Tip: Use our Pin Configuration & Dimension Tables to quickly identify the ideal combination of contact count, insert type, and connector style for your project.

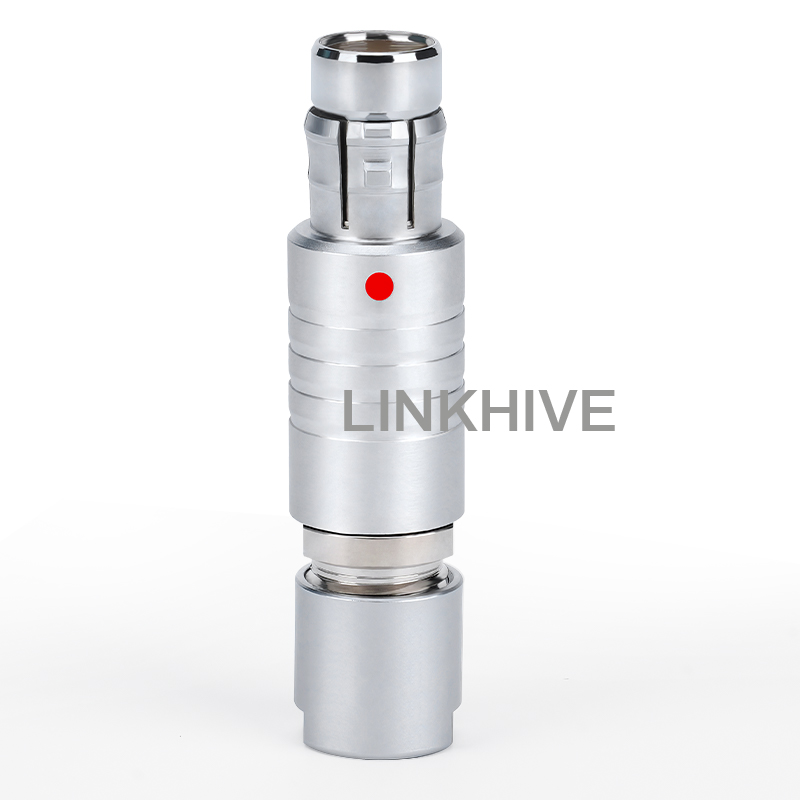

C Series Minature Size FGG 0C Push Pull Circular Connector
| Mode | TGG.0C.302.CLA.10 | TGG.0C.303.CGA.15 | TGG.0C.304.CLA.20 | TGG.0C.305.CLA.40 | TGG.0C.306.CLA.45 | TGG.0C.307.CLA.55 | TGG.0C.309.CLA.60 | TGG.0C.312.CLA.65 |
| Inserts |  |  |  |  |  |  |  |  |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 5 contacts | 6 contacts | 7 contacts | 9 contacts | 12 contacts |
| Cable Ø | 1.0 mm | 1.5 mm | 2.0 mm | 4.0 mm | 4.5 mm | 5.5 mm | 6.0 mm | 6.5 mm |
| Application | waterproof push pull circular connectors for portable devices | watertight circular male connector for compact instruments | Rugged push pull circular connector for industrial sensors | metal circular connector for communication equipment | Watertight push pull circular connectors for testing devices | waterproof Rugged connector for outdoor gear | push pull circular connectors for medical equipment | watertight circular male connector for control systems |
C Series Small Size FGG 1C Push Pull Circular Connector
| Mode | TGG.1C.302.CLA.15 | TGG.1C.303.CGA.25 | TGG.1C.304.CLA.30 | TGG.1C.305.CLA.40 | TGG.1C.306.CLA.45 | TGG.1C.307.CLA.50 | TGG.1C.308.CLA.55 | TGG.1C.310.CLA.60 | TGG.1C.314.CLA.65 | TGG.1C.316.CLA.70 | TGG.1C.106.CLA.75 |
| Inserts | | | | | | |  | |  |  |  |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 5 contacts | 6 contacts | 7 contacts | 8 contacts | 10 contacts | 14 contacts | 16 contacts | 6 contacts |
| Cable Ø | 1.5 mm | 2.5 mm | 3.0 mm | 4.0 mm | 4.5 mm | 5.0 mm | 5.5 mm | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm |
| Application | watertight IP68 push pull connector for compact medical tools | Rugged watertight circular male connector for portable devices | Watertight circular Rugged connector connector for sensors | metal circular connector for communication devices | Rugged Watertight circular Rugged connector for industrial tools | Waterproof push pull connector for outdoor systems | watertight circular male connector for lab equipment | metal circular connector for medical devices | Rugged waterproof circular connector for testing equipment | watertight circular male Rugged connector for portable systems | push pull circular connector for compact instruments |
C Series Medium Size FGG 2C Push Pull Circular Connector
| Mode | TGG.2C.302.CLA.20 | TGG.2C.303.CGA.25 | TGG.2C.304.CLA.30 | TGG.2C.305.CLA.35 | TGG.2C.306.CLA.40 | TGG.2C.307.CLA.45 | TGG.2C.308.CLA.50 | TGG.2C.310.CLA.55 | TGG.2C.314.CLA.60 | TGG.2C.316.CLA.65 | TGG.2C.318.CLA.70 | TGG.2C.319.CLA.75 | TGG.2C.332.CLA.65 | TGG.2B.514.CLA.55 |
| Inserts | | | | | | | | | | |  |  |  |  |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 5 contacts | 6 contacts | 7 contacts | 8 contacts | 10 contacts | 14 contacts | 16 contacts | 18 contacts | 19 contacts | 32 contacts | 8 contacts |
| Cable Ø | 2.0 mm | 2.5 mm | 3.0 mm | 3.5 mm | 4.0 mm | 4.5 mm | 5.0 mm | 5.5 mm | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 6.5 mm | 5.5 mm |
| Application | waterproof push pull circular connectors for portable devices | Watertight push pull connector for lab instruments | Rugged watertight circular male connector for testing equipment | metal circular connector for communication devices | watertight circular male connectorfor industrial sensors | waterproof Rugged connector for outdoor gear | Watertight push pull circular connectors for medical systems | Rugged metal circular connector for lab devices | IP68 push pull circular connectors for testing systems | watertight circular male connector for communication tools | Rugged metal circular connector for portable devices | waterproof circular connector for industrial equipment | High-density waterproof connector for control panels | Watertight Rugged connector for compact devices |
C Series Large Size FGG 3C Push Pull Circular Connector
| Mode | TGG.3C.302.CLA.30 | TGG.3C.303.CGA.35 | TGG.3C.304.CLA.40 | TGG.3C.307.CLA.45 | TGG.3C.308.CLA.50 | TGG.3C.309.CLA.55 | TGG.3C.310.CLA.60 | TGG.3C.316.CLA.65 | TGG.3C.318.CLA.70 | TGG.3C.320.CLA.75 | TGG.3C.322.CLA.80 | TGG.3C.324.CLA.85 | TGG.3C.326.CLA.90 | TGG.3C.330.CLA.95 | TGG.3C.332.CLA.55 |
| Inserts | | | | | | | | | |  |  |  |  |  | |
| Contacts | 2 contacts | 3 contacts | 4 contacts | 7 contacts | 8 contacts | 9 contacts | 10 contacts | 16 contacts | 18 contacts | 20 contacts | 22 contacts | 24 contacts | 26 contacts | 30 contacts | 32 contacts |
| Cable Ø | 3.0 mm | 3.5 mm | 4.0 mm | 4.5 mm | 5.0 mm | 5.5 mm | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 8.5 mm | 9.0 mm | 9.5 mm | 5.5 mm |
| Application | IP68 watertight circular male connector for communication devices | Rugged metal circular connector for portable devices | watertight circular male connectorfor industrial instruments | Watertight circular Rugged connector for medical tools | watertight circular male connector for testing devices | waterproof Rugged connector for outdoor systems | metal circular connector for control panels | Watertight connector for communication systems | waterproof circular connector for portable instruments | Watertight circular connector for testing systems | Rugged push pull connector for industrial devices | IP68 waterproof circular connector for lab instruments | Watertight push pull connector for outdoor ge | Rugged push pull connector for industrial devices | IP68 waterproof circular connector for lab instruments |
Material&Environment
| Part No | TGG ,key(G)or keys (A..L),cable collet, with standard back nut |
| Gender | watertight circular male connector |
| Series | MINI Snap B series S3 plug |
| Plug material | chrome plated brass shell |
| Push PULL | circular push pull connector |
| Keyways | Key G/A/B/C/D/E/F/J/K/L/M/Y/R |
| 90 degree cable connector Contact | 2 to 48 |
| Endurance | 5000 mating cycles |
| Temperature range | -55°C / +250°C |
| Shielding at 10 MHz | >75 dB (10 MHz) |
| Shielding at 1 GHz | >40 dB |
| Shock Resistance | 100 g [ 6 ms] |
| Resistance to Vibration | 15g(10Hz-2000Hz) |
| Climatical Category | 50/175/21 |
| Humidity | <=95% [at 60 deg C /140 F] |
| Mating cycles | 5000 |
| Sealing | IP68 |
| Salt Spray Corrosion | >1000 hr |
C series Key Alignment
C series Panel Cutouts
C series Panel Cutouts
C Series watertight connectors Models
| Straight plug | Watertight Receptacle | IN-LINE Receptacle |
FGG S3,cable collet |
G4 |
K3 |
FGG S4, bend relief |
G8 |
K4 |
FGG |
Linkhive Waterproof self-latching Push pull connector IP68 connector selection
Use the comparison table below to explore the four main self-latching push pull connector series in the IP68 Outdoor range and find the model best suited to your specific application needs.

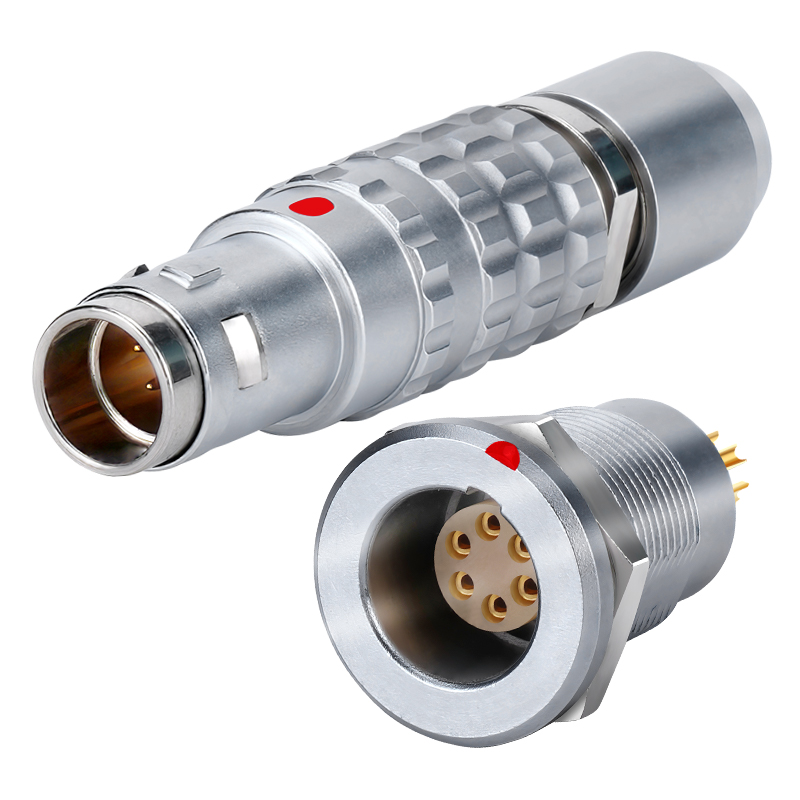

K Series Outdoor keyed -Waterpfoof circular push pull connector |

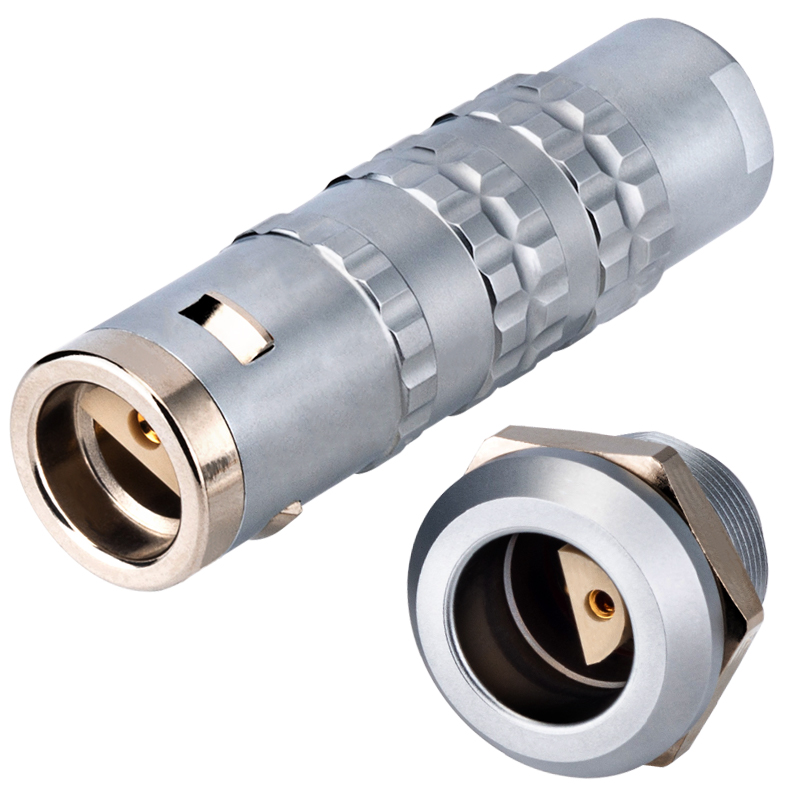

E Series Outdoor keyed–- Waterpfoof circular push pull connector with stepped inserts click for more info |
T Series Outdoor keyed– Heavy-Duty Waterproof Connectors click for more info |
C Series Outdoor keyed – The C Series features a slotted latching sleeve, click for more info | |
| Description | LINKHIVE watertight connectors for Outdoor Harsh environments | LINKHIVE Economical watertight connectors offering reliable performance and robust sealing | LINKHIVE Rugged watertight connectors designed for high-vibration, high-impact environments with IP68 sealing. | LINKHIVE C Series metal circular connectors for outdoor and industrial applications |
| locking Mechanism |
1. just push the plug axially into the socket to lock |
2. pulling the cable or any other part will not disconnect unless the outer release sleeve is pulled. |
3. the connector is disengaged by a single pull on the release sleeve, which first releases the locking latches and then whithdraws the plug . |
|
| Locking methods | self-latching Push pull connector | self-latching Push pull connector | self-latching Push pull connector | self-latching Push pull connector |
| plug diameter | 8 sizes from ø 11 to ø 25.0 mm (plugs) | 8 sizes from ø 11 to ø 25 mm (plugs) | 8 sizes from ø 7 to ø 18.8 mm (plugs) | 7 sizes from ø 9.5 to 18mm (plugs) |
| Alignment Key | key G/A/B/C/D/E/F/J/K/L/M/Y/R | 1 (circular connector with half moon connector ) | key G/A/B/C/D/E/F/J/K/L/M/Y/R | key G/A/B/C/D/E/F/J/K/L/M/Y/R |
| length | 8 sizes from 36mm to 71mm | 8 sizes from 26 mm to 61mm | 8 sizes from 32.7 mm to 62mm | 7 sizes from 37mm to 59mm |
| Insulator | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 |
| Shell Material | Chrome-plated Brass | Chrome-plated Brass | Chrome-plated Brass | Chrome-plated Brass |
| Salt Spray Corrosion | 96hr | 96hr | 96hr | 96hr |
| Cable ø | 1.0 to 23.5 mm | 1.0 to 23.5 mm | 2.4 to 15 mm | 1.0 to 15 mm |
| No.of PINS | 2 to 48 | 1 to 18 | 2 to 32 | 2 to 48 |
| Contact types | Multipole Contact /Coax Contact / Fibre Optic Contact/ Fluidic Contact/ High Voltage Contact/ hybrid Contact/ Thermocouple Contact | Mono Contact/ Multipole Contact / Coax /tri-coxial /Fluidic Contact / hybrid Contact | Multipole Contact /Coax Contact / Fluidic Contact/ hybrid Contact | Multipole Contact /Coax Contact / Fluidic Contact/ hybrid Contact |
| Sealing | Silicone/Epoxy | Silicone/Epoxy | Silicone/Epoxy | Silicone/Epoxy |
| Data Protocols | USB 2.0 / Eth Cat6 | USB 2.0 / Eth Cat6 | USB 2.0 / Eth Cat6 | USB 2.0 / Eth Cat6 |
| Sealing Level | IP68 connector | IP68 connector | IP68 connector | IP68 connector |
| Temperature Range | -55°C to 250°C | -55°C to 250°C | -55°C to 250°C | -55°C to 250°C |
| Mating Cycles | > 5000 | > 5000 | > 5000 | > 5000 |
