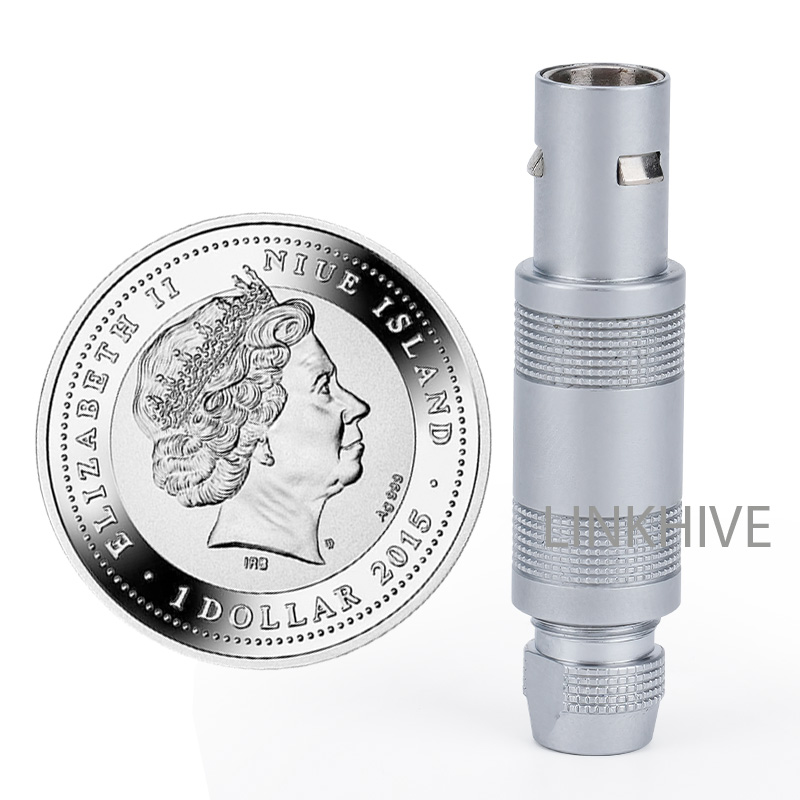

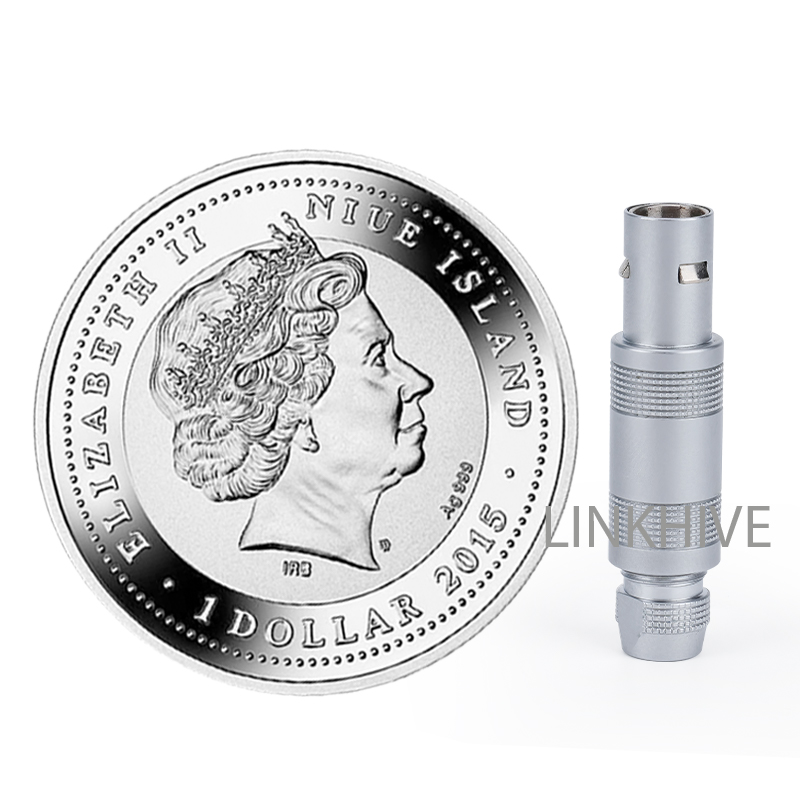

The FFA 00 micro  miniature circular coaxial push pull connector is engineered for high-density applications requiring compact size, secure locking, and superior signal integrity. This miniature connector features a push-pull self-latching system, ensuring safe and quick mating and unmating without compromising performance.

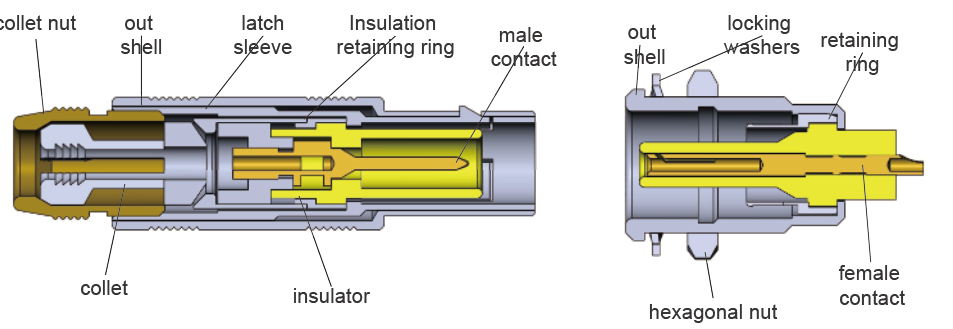

Mechanical & Construction Features

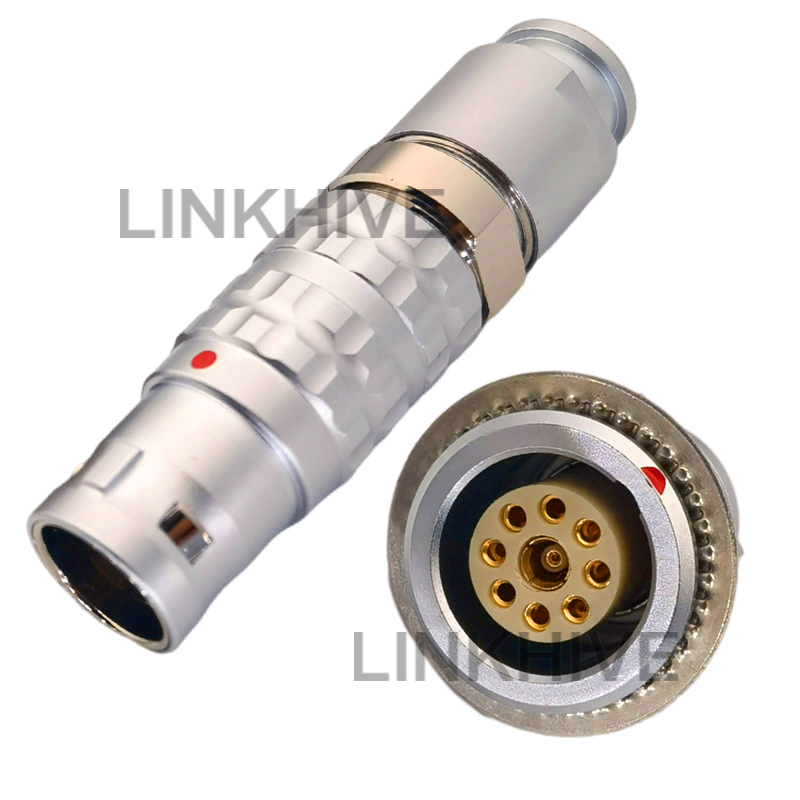

• Design: Circular push pull connectors with ergonomic cubic pattern for better grip

• Form Factor: Miniature circular body, ideal for limited-space installations

• Shell Options: Available in metallic and plastic versions for various applications

• Locking: Self-latching push pull mechanism for quick and secure connections

• Ingress Protection: Rated IP50 for protected indoor use; optional watertight models available

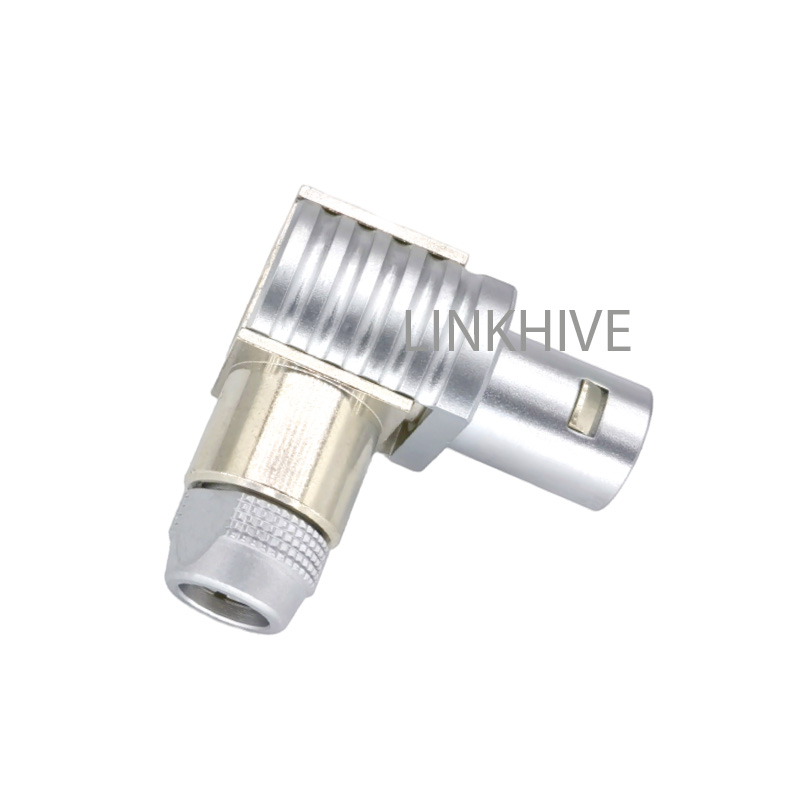

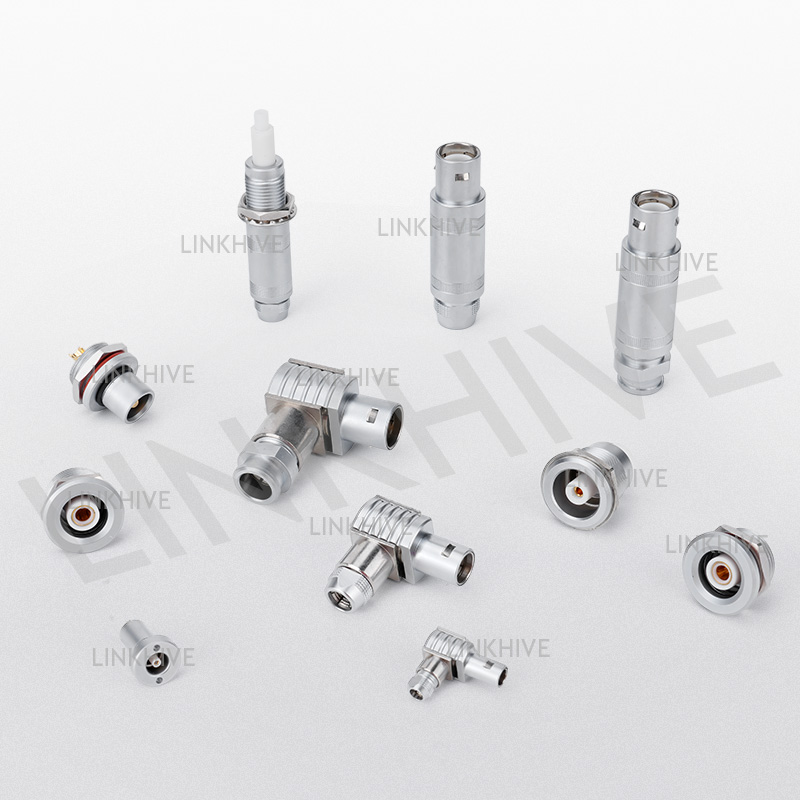

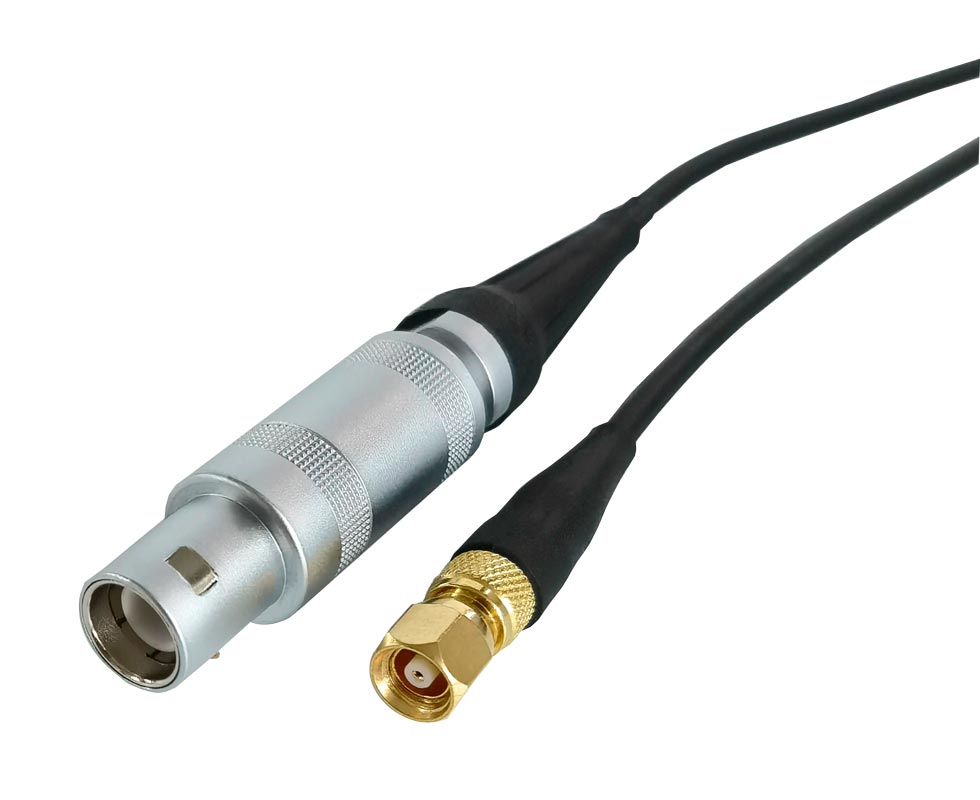

• Model Variety: Available in straight, elbow plug, sealed, and vacuum-tight variants

• Welding and Printed Circuit Board Contacts (Straight and Angled)

• 360-Degree Shielding

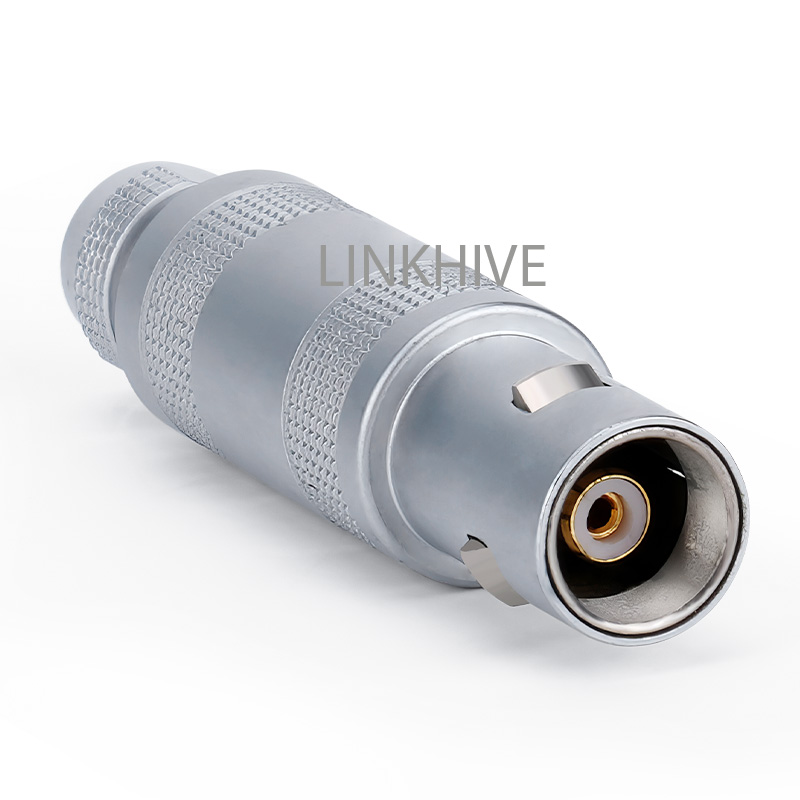

• coxial inserts Contacts : 250 coaxial inserts,Verify the fitting to your cable and cable wire

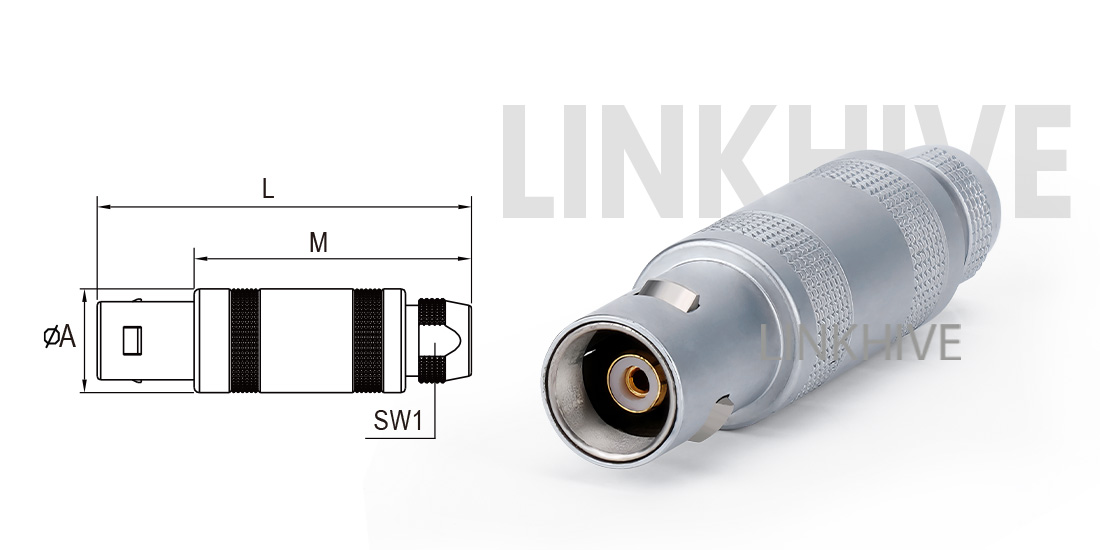

Diamensions

How to Select 00 Series Mini Coax Connectors

Selecting the right 00 series circular coaxial or push-pull connector requires evaluating the following factors:

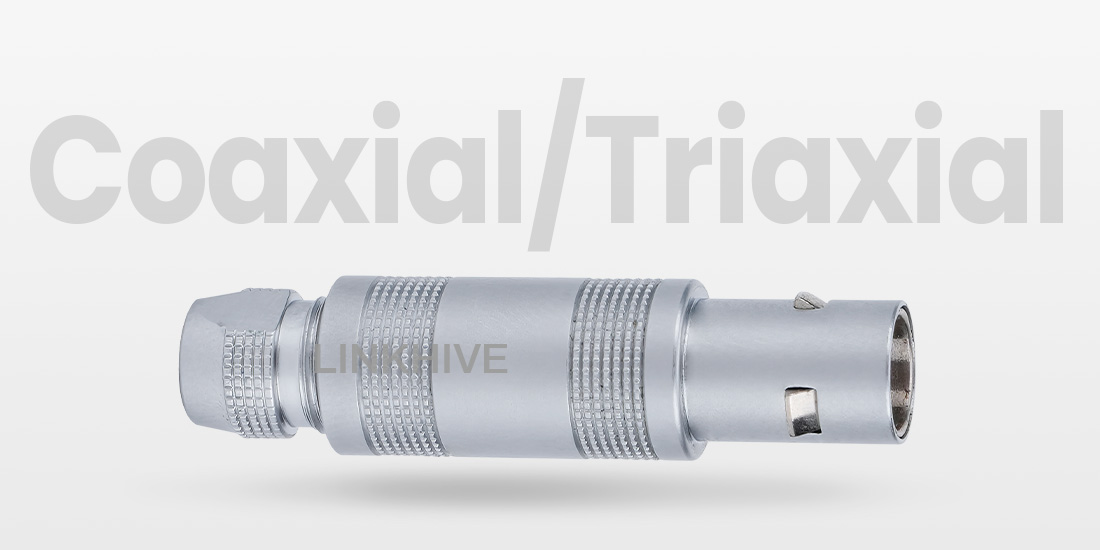

1. Contact Type & Pin Configuration – Identify whether you need coaxial (for high-frequency signals), plug type, or micro push-pull connectors.

2. Application Environment – For medical applications (e.g., diagnostic imaging, surgical tools), choose connectors with enhanced shielding and medical-grade materials.

3. Locking Mechanism – Select the push-pull locking style for quick connection and secure retention in portable or frequently connected devices.

4. Cable Compatibility – Check the Max Cable Ø to ensure the connector accommodates your cable dimensions.

5. Signal Integrity & Frequency – For high-frequency or signal-critical applications, select coaxial connectors with premium shielding.

6.


FLA/FFA 00 Series Miniature Circular Coaxial Push Pull Connectors Selection

Parameter	FFA.00.250.CLA 27	FFA.00.250.CGA 27	FFA.00.250.CTA 42	TLA. 00.250. PCL.31	TLA.00. 250 CNA 31	FLA.00.250.CGA. 22	TLA.00.250.CLA 31
Connector Type	Circular miniature connector	Circular miniature connector	Circular miniature connector	Circular miniature connector	Micro circular push pull connector	Micro circular push pull connector	mini coax connectors
Contact Type	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial plug
No. of Contacts	1	1	1	1	1	1	1
Locking Type	Push-pull	Push-pull	Push-pull	Push-pull	Push-pull	Push-pull	Push-pull
Description	Miniature coaxial connector for high-frequency medical and instrumentation use	High-performance coaxial connector with indoor keyed locking	Indoor coaxial miniature connector for precise signal transmission	Indoor coaxial connector with enhanced shielding	Right-angle push pull coaxial connector for compact devices	Straight push pull coaxial connector	Coaxial plug connector for miniature devices
Application	Used in imaging equipment and lab diagnostic modules	Suitable for medical monitoring devices	For laboratory instrumentation and compact diagnostic devices	Ideal for portable medical diagnostic systems	Used in micro medical instruments and dental equipment	For surgical tools and portable diagnostic units	Applied in compact instrumentation systems
Insert
Mode

Why Choose Our 00 Series Connectors

• Medical-Grade Reliability – All connectors are manufactured using biocompatible materials, making them safe for medical devices and laboratory use.

• Precision Push-Pull Design – Ensures quick, secure connections, ideal for high-cycle applications like diagnostic equipment and surgical instruments.

• Compact & Versatile – Miniature form factor allows integration into portable and space-constrained devices.

• Excellent Signal Integrity – Coaxial and multi-signal designs maintain high-frequency performance and low signal loss.

• Custom Solutions – Available in various pin counts, cable diameters, and keyed versions to meet your specific project requirements.

Electrical Characteristics

• Contact Type: Coaxial connectors with 50 Ohm impedance

• Contact Options: Wide range of coaxial contact configurations

• Shielding: Full 360° screening for maximum EMC protection

• Frequency Range: Suitable for RF and analog signal transmission

Applications

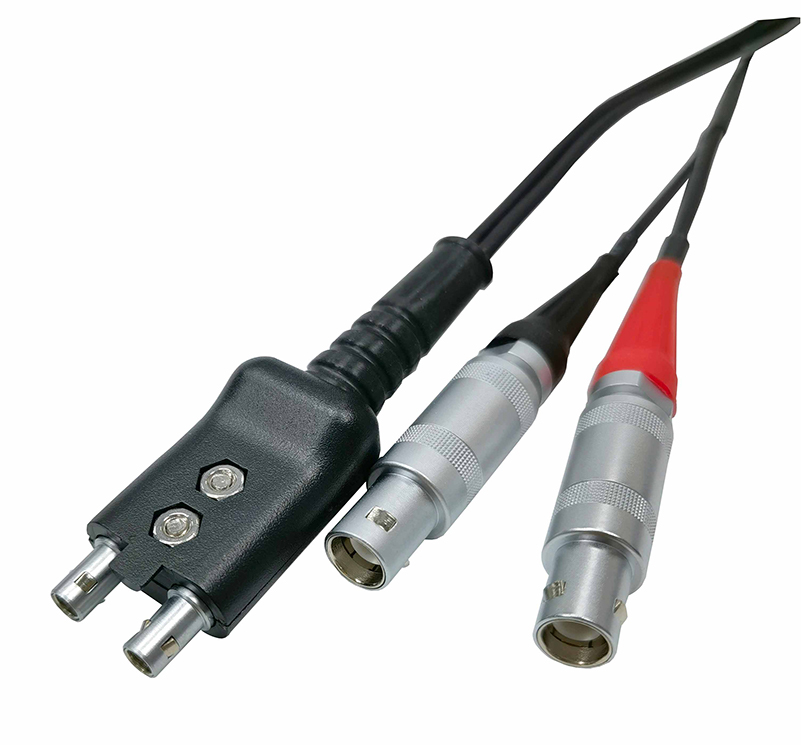

• Test and measurement instruments

• Semiconductor equipment

• Medical and imaging devices

• Broadcast (audio/video) systems

• Defense and aerospace modules

 Compatibility & Integration

• Fully compatible with standard FFA 00 panel sockets and cable plug receptacles

• Designed for integration in micro systems requiring miniature connector performance

• Ideal where coaxial connectors must maintain high performance in small circular housings

This FFA 00 micro connector is part of our miniature coaxial connector range, offering flexible installation options and high reliability in professional-grade applications.
