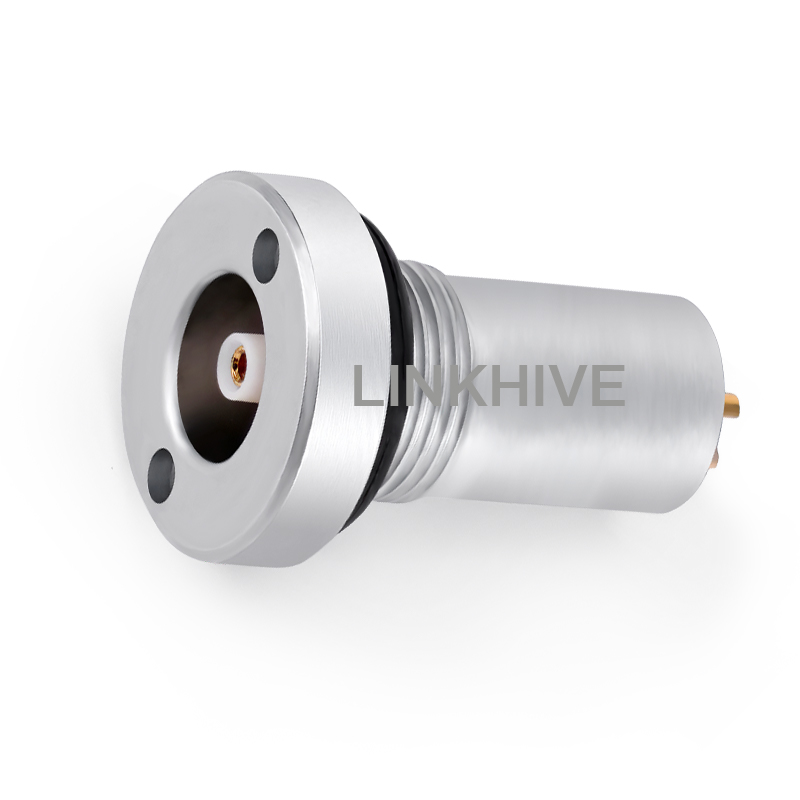

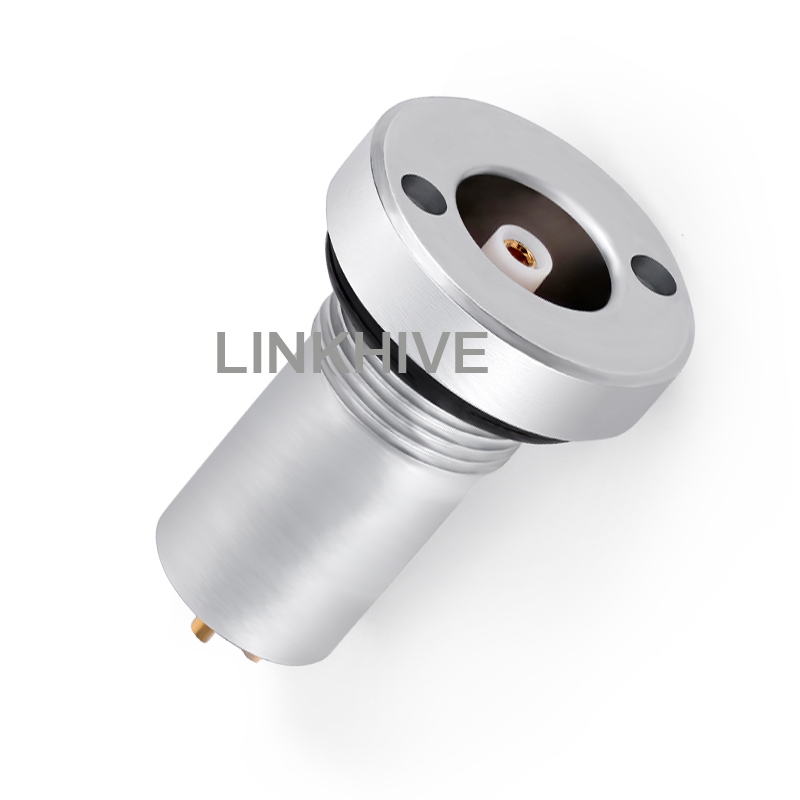

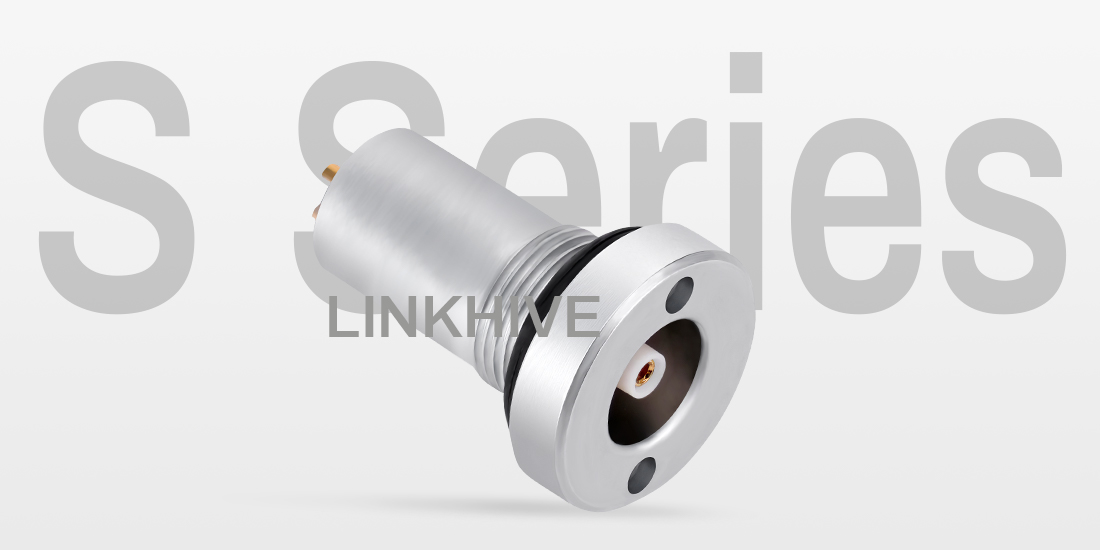

00 Series EWV Watertight Miniature Coaxial Cable Socket

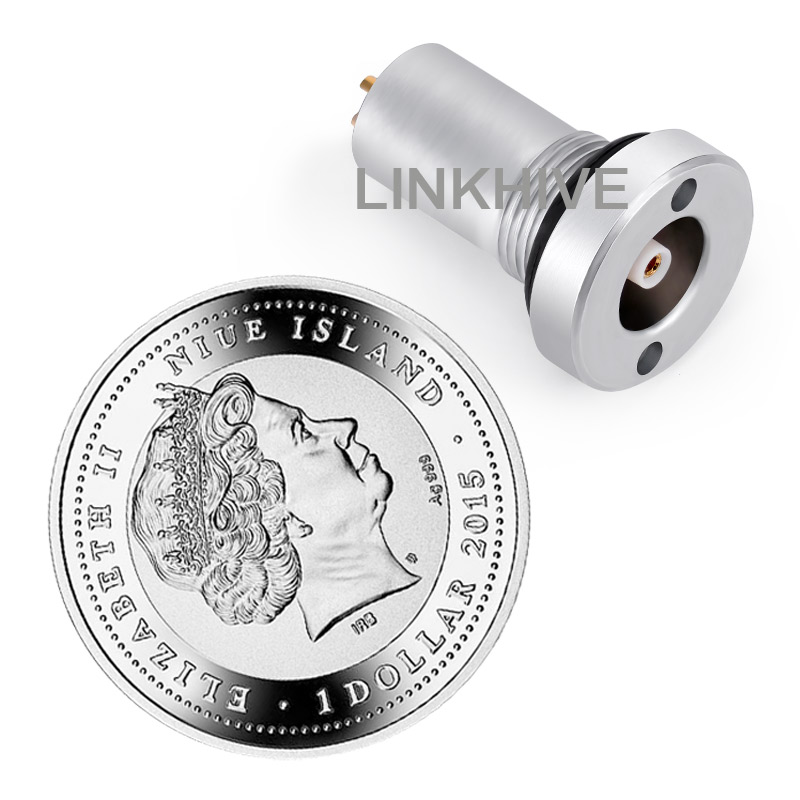

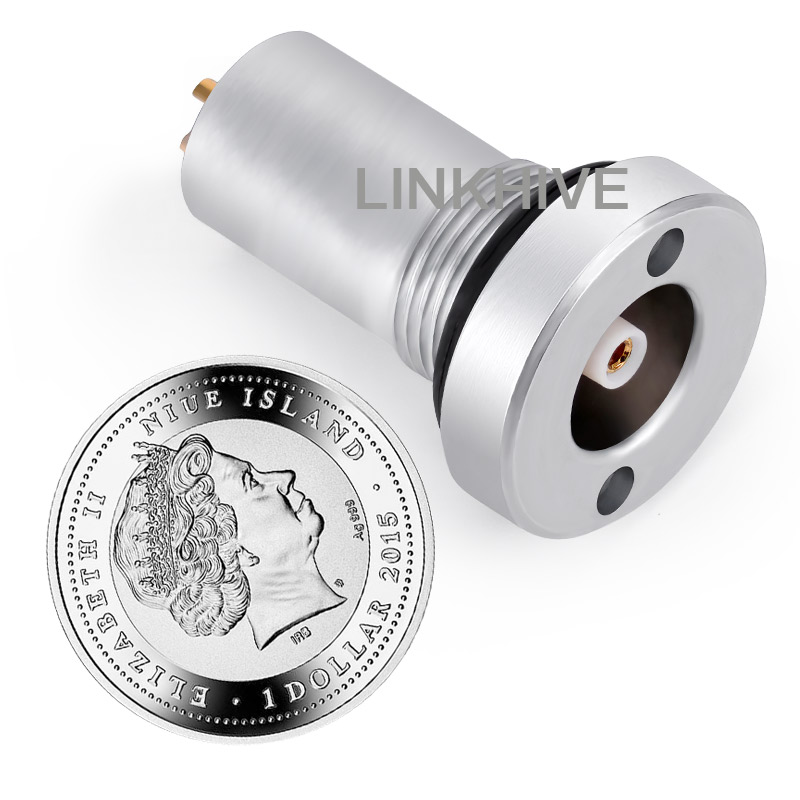

The FFA 00 Series EWV Watertight Miniature Push-pull RF Coaxial Socket is a high-performance miniature socket designed for RF applications in space-constrained and harsh environments. With its compact body and robust push-pull self-latching mechanism, it ensures fast, secure, and vibration-resistant connections.
This watertight coaxial cable socket is engineered with an advanced sealing structure, offering IP68 protection against dust and water ingress. It is ideal for outdoor or rugged systems where both compact s
ize and environmental sealing are critical.
Our key Advantages of Coaxial Watertight socket
Impedance: 50 Ohm
Connector Type: Watertight miniature push-pull RF coaxial socket
Locking System: Push-pull self-latching for reliable vibration resistance
Shielding: Full 360° EMC shielding for consistent signal integrity
Housing Material: Nickel- or chrome-plated brass or stainless steel
Contact Material: Gold-plated beryllium copper
Insulation: High-temperature PPS or PEEK
coxial inserts Contacts : 250 coaxial inserts,Verify the fitting to your cable and cable wire
Electrical Performance of Coaxial Watertight socket
Frequency Range: DC to 3 GHz
VSWR: < 1.15 (typical)
Contact Resistance: ≤ 5 mΩ
Insulation Resistance: ≥ 5000 MΩ
Mating Cycles: ≥ 5000
Applications of Coaxial Watertight socket
Outdoor RF communication systems
Medical imaging and diagnostic equipment
Military and aerospace signal interfaces
Harsh-environment monitoring devices
Waterproof RF instrumentation

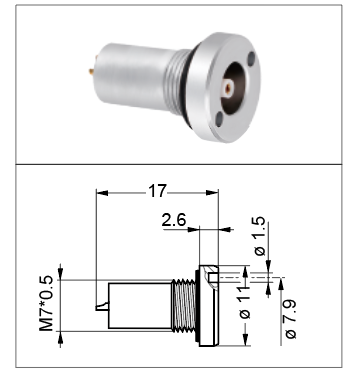

Diamensions of Coaxial Watertight socket
Compatible with standard EWV 00 coaxial connectors and ideal for use as a 50 Ohm panel mount socket in dense RF systems. Coaxial Watertight socket small form factor and precision performance make Coaxial Watertight socket a top choice in compact high-frequency designs.
 | Reference | EWV 00 Dimensions ( mm ) | |||||||||
series | model | A | B | M | L1 | L2 | L3 | L4 | SW1 | SW3 | |
00 | EWV 00 Socket | 8 | 10.2 | M7*0.5 | 8.5 | 10.5 | 6.5 | 1.0 | 6.3 | 9 | |
Define Application Requirements
Identify the application environment (e.g., outdoor communication, medical equipment, testing instruments) and select based on protection and durability needs.
Choose Contact Configuration of Coaxial Watertight socket
Select the appropriate coaxial contact type (250 coaxial) and installation style (panel mount or cable connector) according to system requirements.
Consider Cable & Space Constraints
Verify the maximum cable diameter and ensure compatibility with the device’s interface and available installation space.
Select Housing & Mounting Options
Choose between micro connectors or panel mount sockets for better integration with your equipment, ensuring IP protection and corrosion resistance.
Check Compatibility
Ensure the selected connector is compatible with LEMO 00 series or existing interface systems for seamless integration.
Use the table below to choose the right pins.
EWV 00 Series Watertight Miniature Push-pull RF socket coaxial Selection
| Parameter | EWW.00.250.CLL | EWW.00.250.CGL | EWW.00.250.CTL | EWW.00.250.CNL | EWW.00.250.PCL | ERA. 00. 250. CTL |
 | Watertight socket coaxial | Outdoor coaxial cable socket | Panel mount socket coaxial | Outdoor coaxial cable socket | Outdoor socket coaxial | Outdoor coaxial cable socket |
| Contact Type | Coaxial plug connector | 250 coaxial socket | 250 coaxial socket | 250 coaxial socket | 250 coaxial socket | 250 coaxial socket |
| Mounting | Micro connector | Panel mount socket | Panel mount socket | Panel mount socket | Panel mount socket | Panel mount socket |
| Description | Miniature socket coaxial connector designed for compact devices with IP-rated sealing | Outdoor coaxial cable socket with rugged housing for harsh environments | Panel-mount miniature socket with enhanced sealing | Outdoor coaxial socket optimized for mobile/portable systems | Compact coaxial outdoor connector with high reliability | Ruggedized coaxial panel socket for demanding outdoor applications |
| Application | Used in portable communication devices and outdoor measuring instruments | Ideal for outdoor signal transmission, medical equipment, and field monitoring systems | Applied in base stations, test instruments, and diagnostic devices | Suitable for outdoor communication hubs and mobile systems | Designed for industrial control, outdoor broadcast, and diagnostic modules | Best for defense communication devices and outdoor telecom applications |
High Reliability:
Built with precision 250 coaxial contacts, delivering stable performance for high-frequency signal transmission.
Ruggedized Outdoor Design of socket coaxial
Outdoor-rated housing with waterproof, dustproof, and corrosion-resistant properties for demanding environments.
Versatile Mounting Options for socket coaxial
Available in both panel mount and micro connector styles to meet diverse integration needs.
Wide Application Coverage:
Suitable for outdoor communication hubs, portable medical devices, and field diagnostic equipment.
LEMO-Compatible:
Fully compatible with LEMO 00 series, supporting easy upgrades and replacements without system changes.

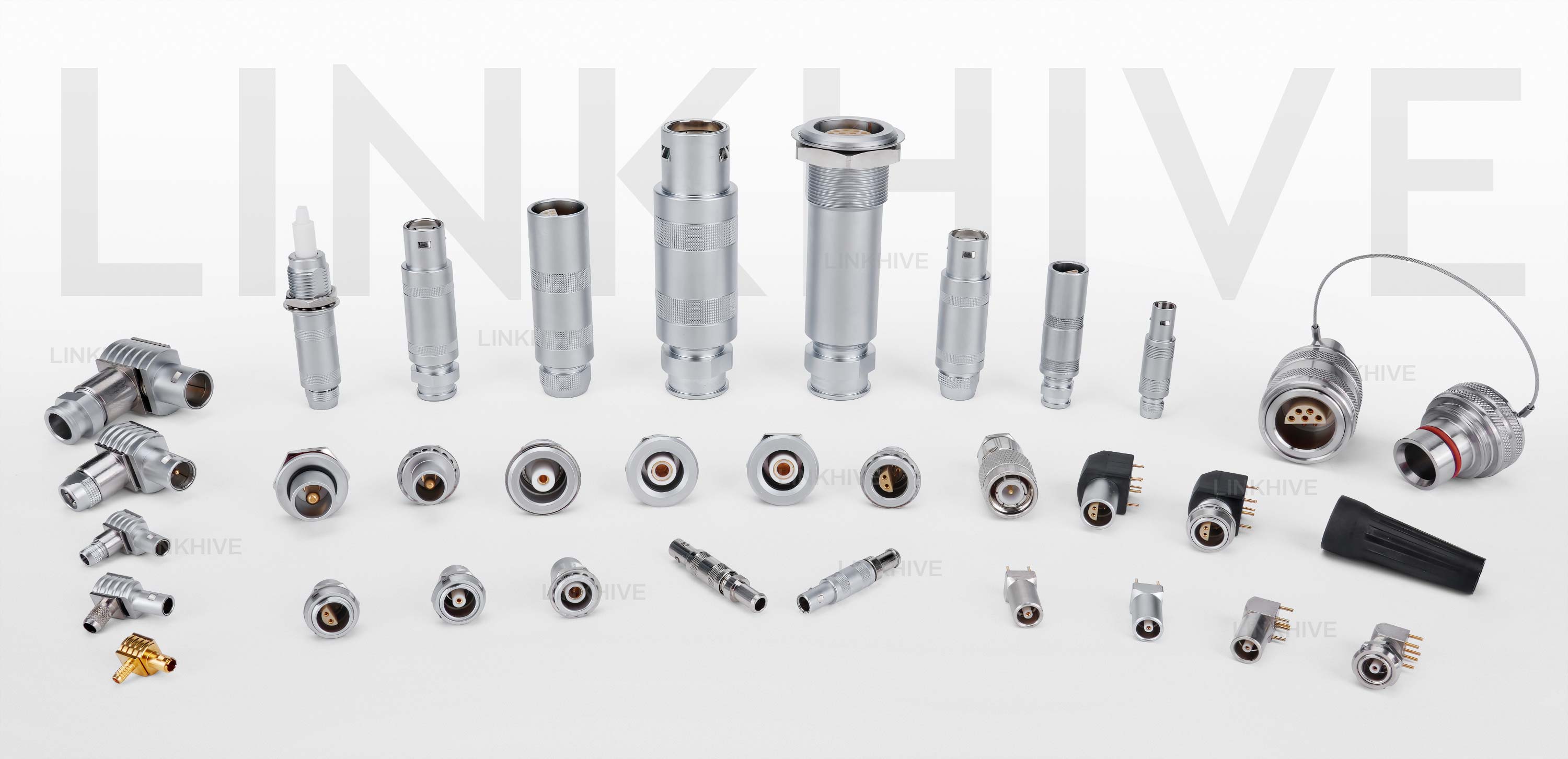

LINKHIVE 00 Series Micro Miniature Circular socket coaxial
LINKHIVE ffa 00 Series Miniature Circular Coaxial Connectors Overview
| Straight plug | fixed socket | Elbow socket | Free socket |
FFA plug miniature connector | ERA socket miniature socket | EPL socket miniature socket | PCA Free socket,cable collet |
|
|
|
|
FFA plug miniature connector | ERD socket miniature socket | EXP Elbow socket for PCB with 2 nut | PCA Free socket,cable collet with bend relief |
|
|
|
|
FFA plug miniature connector | ERN socket socket coaxial | watertight socket EWV socket coaxial | FLS Elbow plug elbow 90 °plug |
|
|
|
|
FLA Elbow plug elbow 90 °plug. | EEP socket socket coaxial | ||
Elbow plug
|
| ||
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.
LINKHIVE offers IP50/IP68-rated coaxial and triaxial push pull connectors with robust self-latching design, excellent EMC shielding, and broad compatibility. Ideal for RF, broadcast, medical, and outdoor applications. Compatible with B, S, K, and E series interfaces.
The LINKHIVE FFA 00 micro connector is a compact, miniature connector designed for coaxial signal transmission in tight spaces. With a secure push-pull locking system and circular construction, it ensures stable, high-frequency performance in protected (IP50) environments.
The LINKHIVE E Series FFA waterproof male coaxial cable connector features a rugged shell, push-pull locking, and IP68 sealing. This coaxial cable connectors ensures stable transmission and shielding in harsh environments, making it ideal for outdoor coaxial cable plug applications.
