LINKHIVE IP50/IP68 Coaxial/Trixial Push Pull Connector Selection
Coaxial connector | Triaxial connector | Hybrid Push Pull Connectors

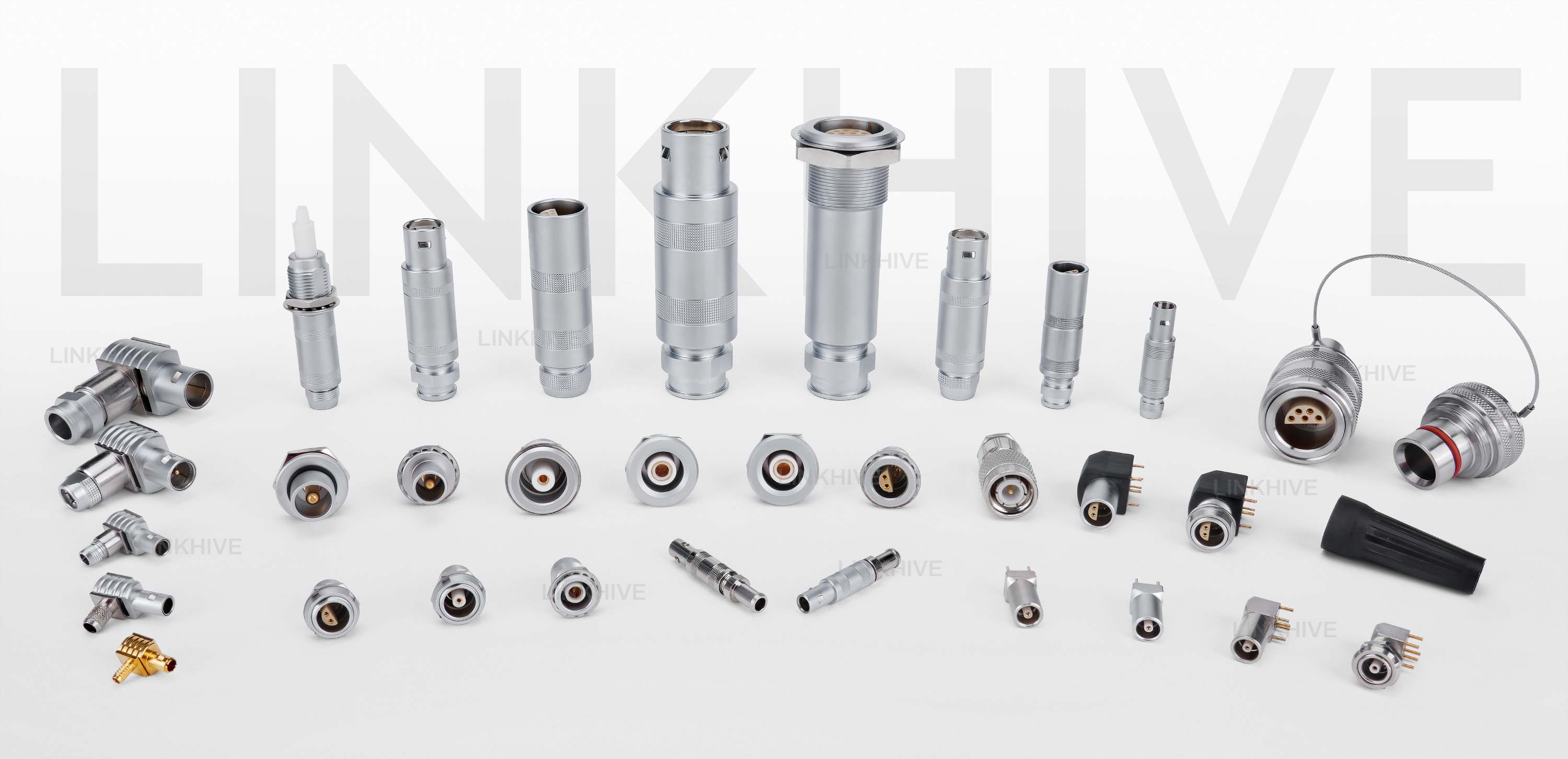

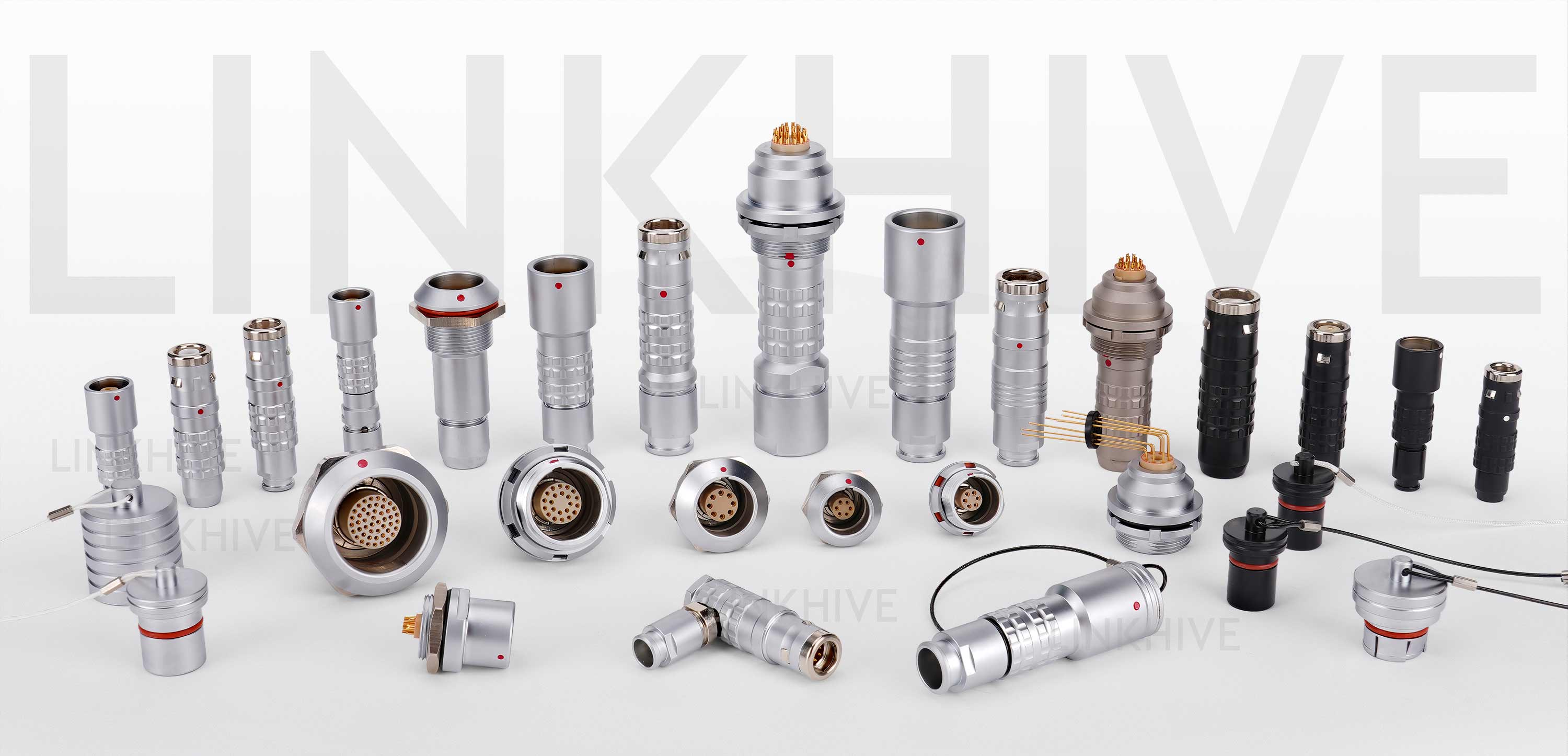

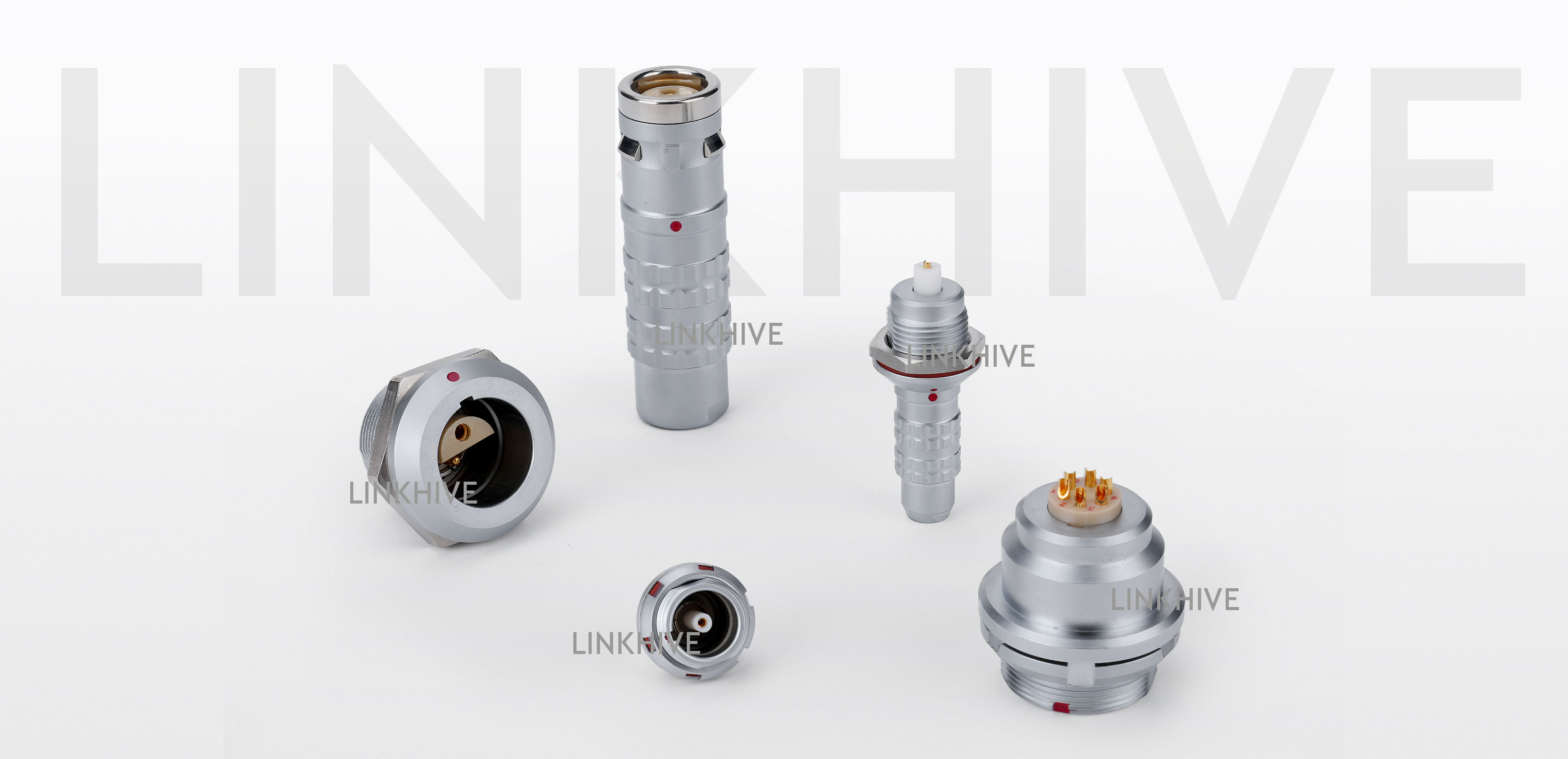

This catalogue presents a comprehensive range of coaxial, triaxial, and hybrid push pull connectors designed for secure, high-frequency signal transmission.
Hybrid configurations available with coaxial + low-voltage contacts
Supports multi-coaxial layouts for complex systems
Designed for cable-to-cable and cable-to-device integration

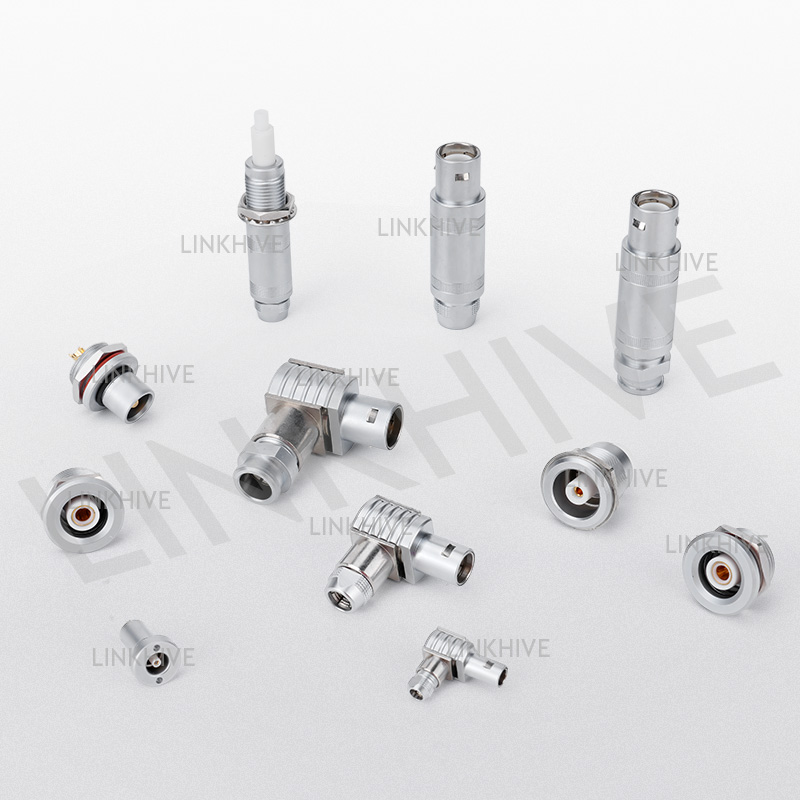

Coaxial Connector/Trixial Push Pull Connector Series Coverage
Our coaxial and triaxial cable connectors are available across the following series:
B Series – IP50 Standard indoor coaxial applications
S Series – IP50 Compact form factor for dense panel layouts
K Series – IP68 waterproof solution for outdoor use
E Series – IP68 waterproofRugged, sealed for harsh environments
00 Series – Miniature triaxial connector for space-limited setups
All models are compatible with standard round coaxial or triaxial cables.
00 Series
Push-pull self-latching locking mechanism
Excellent EMC shielding with 360° screening
Low shell-to-contact resistance
Long service life: >5000 mating cycles
Optional surface treatments: nickel, gold, chrome plating
Operating temperature: -55°C to +200°C
RF Communication & Signal Transfer
Medical Imaging Systems (e.g., Ultrasound, MRI)
Broadcast & Audio/Video Equipment
Aerospace and Defense Electronics
Laboratory Test & Measurement Instruments
LINKHIVE IP50 S Series Circular Coaxial Connector/Triaxial Connector Models ▶Overview | LINKHIVE IP50 B Series circularCoaxial Connector/Triaxial Connector Models ▶Overview | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LINKHIVE E Series IP68 watertight Coaxial Connector/Triaxial Connector Models ▶Overview | LINKHIVE K Series IP68 watertight Coaxial Connector/Triaxial Connector Models ▶Overview | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||
LINKHIVE IP50/IP68 Coaxial Connector/Trixial Push Pull Connector Selection
Use the comparison table below to explore the three main coxial and trixial push pull connector series in the IP50 and IP68 range and find the model best suited to your specific application needs.
B Series Indoor keyed -coax/triax cable connector,Compatible with |
S Series Indoor keyed- circular coxial/triax cable connector click for more info |
k Series Outdoor keyed- IP68 coxial/triax cable connector. click for more info |
E Series Outdoor keyed- IP68 coxial/triax cable connector with stepped inserts. click for more info | |
| Description | LINKHIVE Coaxial Push Pull Connector and triaxial connector for protected indoor environments | LINKHIVE Coaxial Push Pull Connector and triaxial connector for indoor environments | IP68 waterproof Coaxial Push Pull Connector and triaxial connector for outdoor use | E - Outdoor keyed Coaxial Push Pull Connector and triaxial connector with steped insert |
| Locking methods | Triaxial/Coaxial Push Pull Connector | Triaxial/Coaxial Push Pull Connector | Triaxial/Coaxial Push Pull Connector | Triaxial/Coaxial Push Pull Connector |
| plug diameter | 8 sizes from ø 6.5 to ø 35.0 mm (plugs) | 8 sizes from ø 6.4 to ø 17.8.0 mm (plugs) | 8 sizes from ø 6.5 to ø 35.0 mm (plugs) | 7 sizes from ø 14.0 (plugs) |
| Alignment Key | key G/A/B/C/D/E/F/J/K/L/M/Y/R | Triaxial/Coaxial connector | key G/A/B/C/D/E/F/J/K/L/M/Y/R | 1 Coaxial connector with half moon insert ) |
| Insulator | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 | PPS/PEEK/PTEE/PA66 |
| Shell Material | Chrome-plated Brass | Chrome-plated Brass | Chrome-plated Brass | Chrome-plated Brass |
| Salt Spray Corrosion | 96hr | 96hr | 96hr | 96hr |
| Cable ø | 1.4 to 25 mm | 1 to 30 mm | 1-23.5mm | 1.7 to 7.9 mm |
| No.of PINS | 2 to 48 | 2 to 18 | 2 to 48 | 1 to 14 |
| Contact types | Multipole Contact /Coax Contact / Fibre Optic Contact/ Fluidic Contact/ High Voltage Contact/ hybrid Contact/ Thermocouple Contact | Mono Contact/ Multipole Contact / Coax /tri-coxial /Fluidic Contact / hybrid Contact | Multipole Contact /Coax Contact / Fibre Optic Contact/ Fluidic Contact/ High Voltage Contact/ hybrid Contact/ Thermocouple Contact | Multipole Contact/coxial Contact |
| Sealing | Silicone/Epoxy | Silicone/Epoxy | Silicone/Epoxy | Silicone/Epoxy |
| Data Protocols | USB 2.0 / USB 3.1 / Eth Cat6 | USB 2.0 / USB 3.1 / Eth Cat6 | ||
| Sealing Level | IP50 | IP50 | IP50 | IP50 |
| Temperature Range | -55°C to 250°C | -55°C to 250°C | -55°C to 250°C | -55°C to 250°C |
| Mating Cycles | > 5000 | > 5000 | > 5000 | > 5000 |
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.

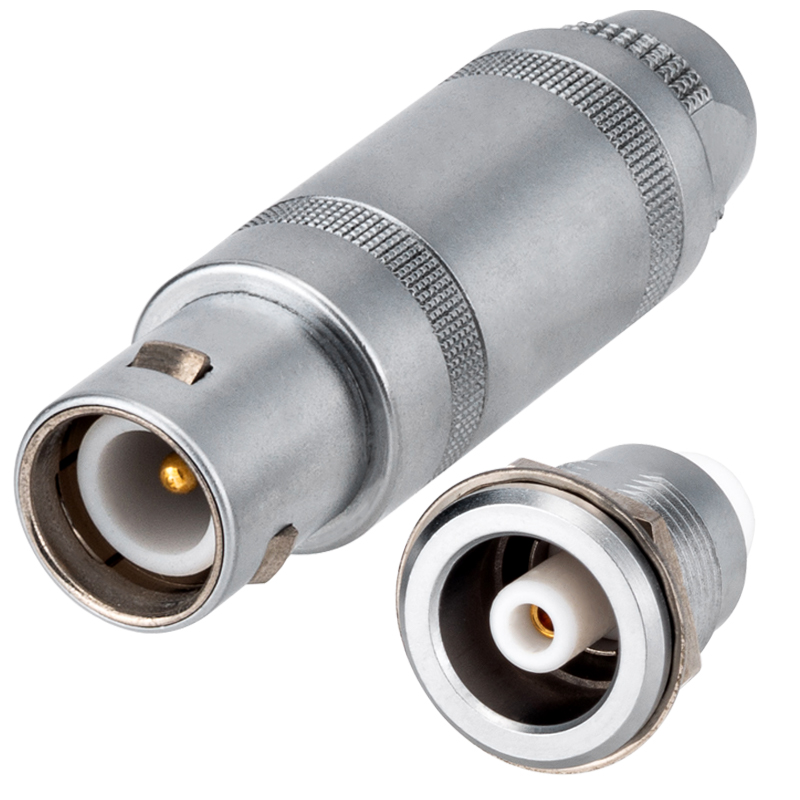

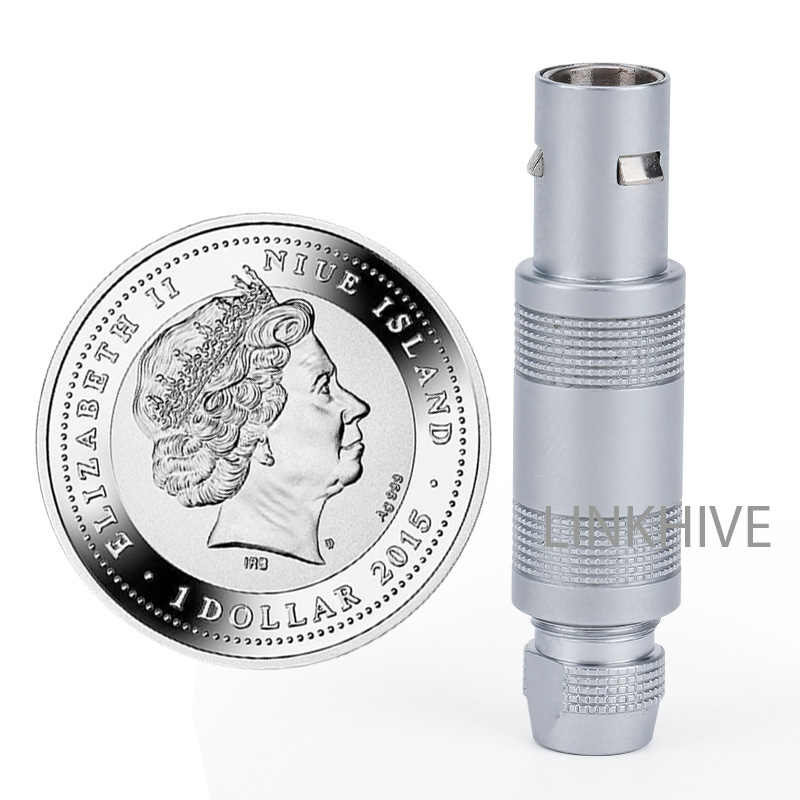

The LINKHIVE FFA 00 micro connector is a compact, miniature connector designed for coaxial signal transmission in tight spaces. With a secure push-pull locking system and circular construction, it ensures stable, high-frequency performance in protected (IP50) environments.
The LINKHIVE 00 Series EWV Watertight Miniature Coaxial Cable Socketis a compact, high-precision coaxial cable socket designed for stable RF signal transmission in space-limited systems. With its push-pull locking mechanism, it ensures quick, secure connections while preventing accidental disconnection.

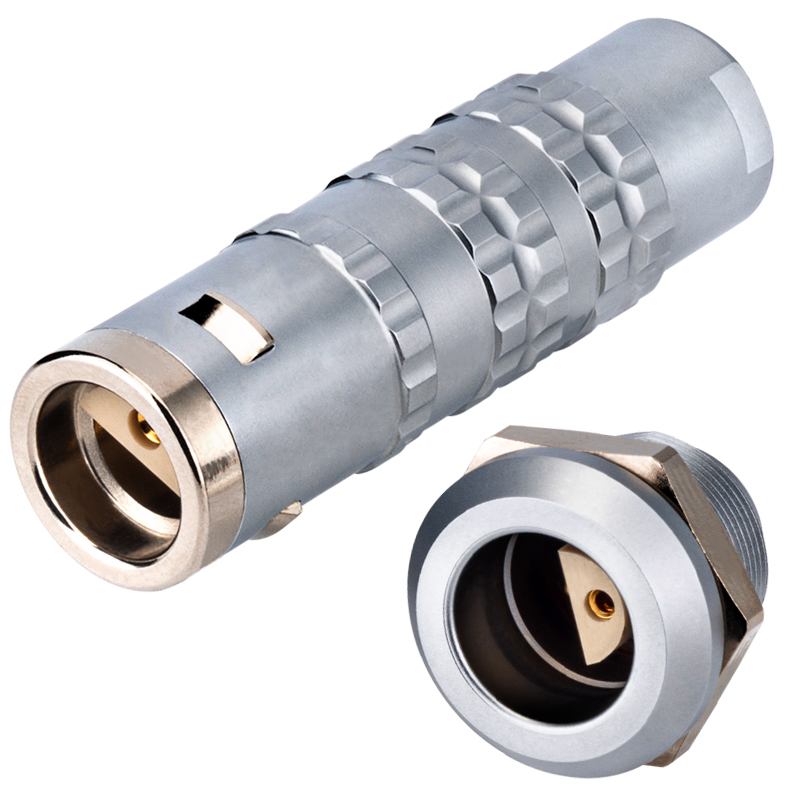

The LINKHIVE E Series FFA waterproof male coaxial cable connector features a rugged shell, push-pull locking, and IP68 sealing. This coaxial cable connectors ensures stable transmission and shielding in harsh environments, making it ideal for outdoor coaxial cable plug applications.
