What is Mini S1 Snap F Series ?

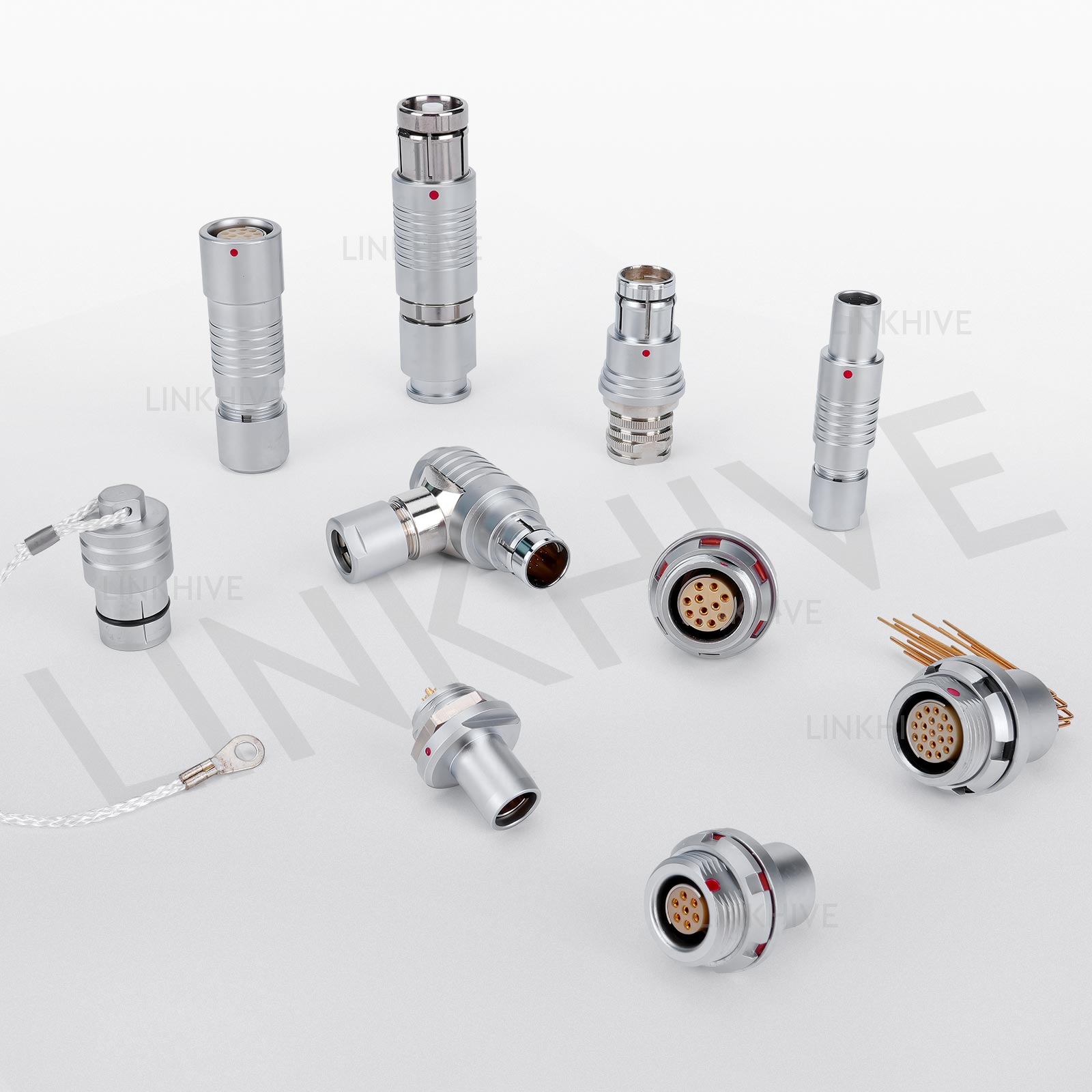

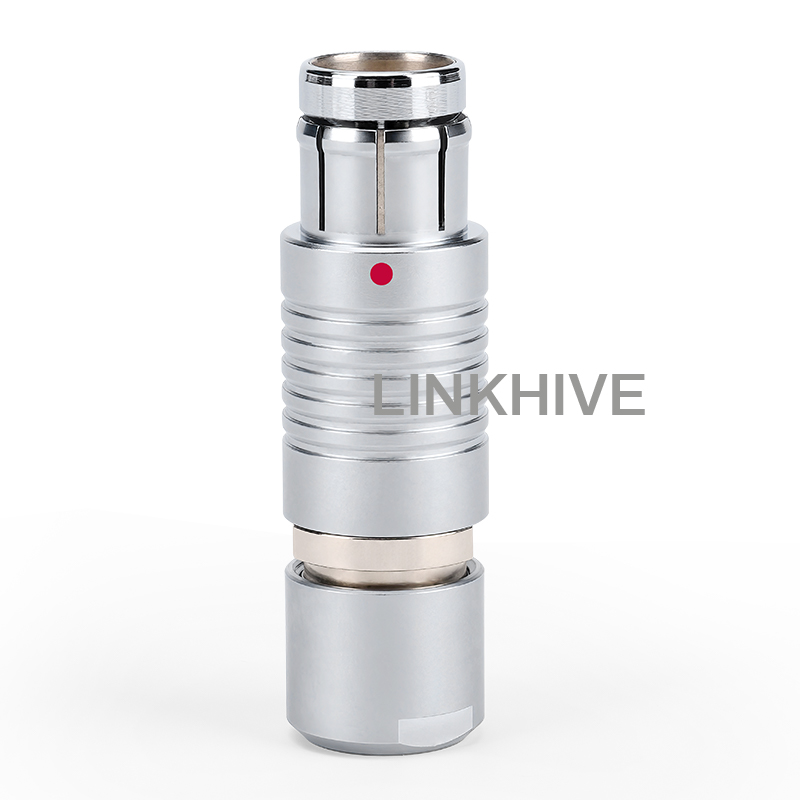

The Mini S1 Snap F Series IP68 High Speed Circular Push Pull Connector is a compact, hermetic circular connector solution ideal for applications demanding high speed signal transmission and rugged durability. Engineered with a robust metal shell and a reliable push-pull locking system, this high speed circular connector ensures secure mating.Compatible with Mini-Snap F Series, it offers excellent vibration resistance, IP68 waterproof sealing, and long service life.
The LINKHIVE Mini S1 Snap F Series adopts half-shell mechanical coding and is designed for applications requiring high-performance push-pull circular connectors. With a broad range of sizes, termination types, and contact configurations, this series supports flexible customization and reliable operation in demanding environments.
Whether for military-grade equipment, industrial automation, or data-critical sensor systems, this high speed data connector guarantees exceptional performance in the harshest environments.
Target Applications
Medical Devices – diagnostic equipment, imaging systems
Industrial Automation – sensors, robotics, machine control
Test & Measurement – precision instruments, lab setups
Defense & Security – communication units, tactical systems
Automotive – in-vehicle systems, testing platforms
Effortless push-pull connection for quick mating and unmating
Reliable blind mating in tight or hard-to-reach installation spaces
Compact design minimizes footprint on host devices
Half-shell coding design for precise alignment
Robust self-locking mechanism prevents accidental disconnection
Easy-to-clean housing design supports hygienic environments
Available with standard and custom cable assembly options
Available with 2 to 27 contacts for versatile applications.
The push-pull locking mechanism offers a highly intuitive and secure user experience.

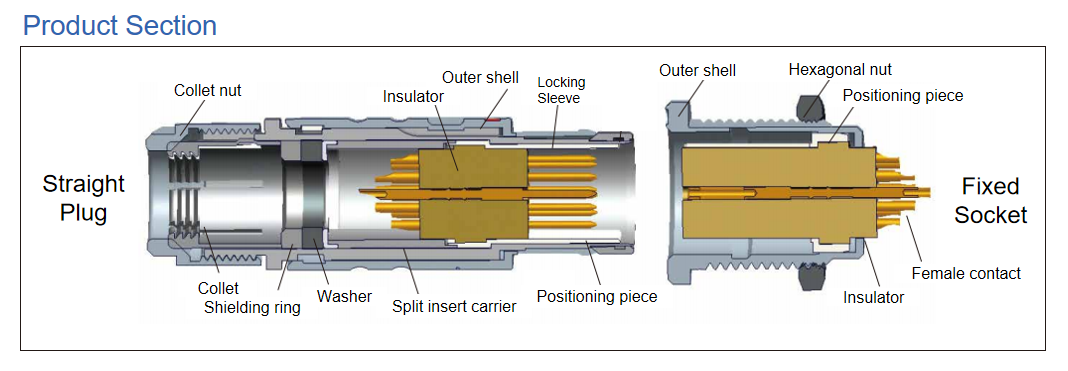

When the plug is inserted into the receptacle, its locking fingers automatically engage, creating a stable and reliable connection. This self-latching system ensures that the connector cannot be disconnected by simply pulling the cable, which protects against accidental release. Disconnection is only possible by pulling back the outer housing, providing a controlled and intentional release action.
LINKHIVE push-pull connectors are available in five standard sizes, covering diameters from 9.4 mm to 18 mm, to suit various space and performance requirements in compact or demanding environments.

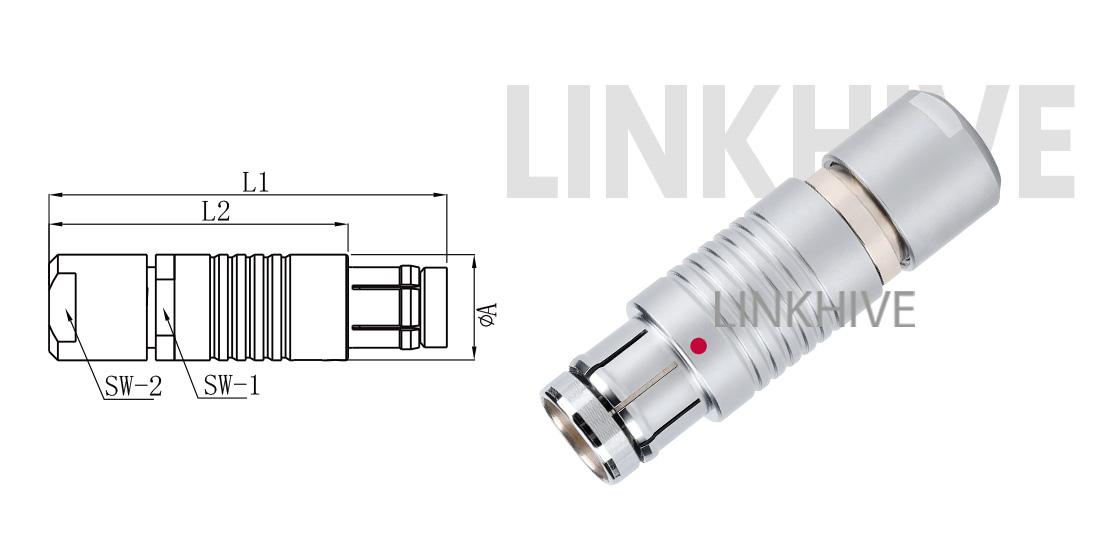

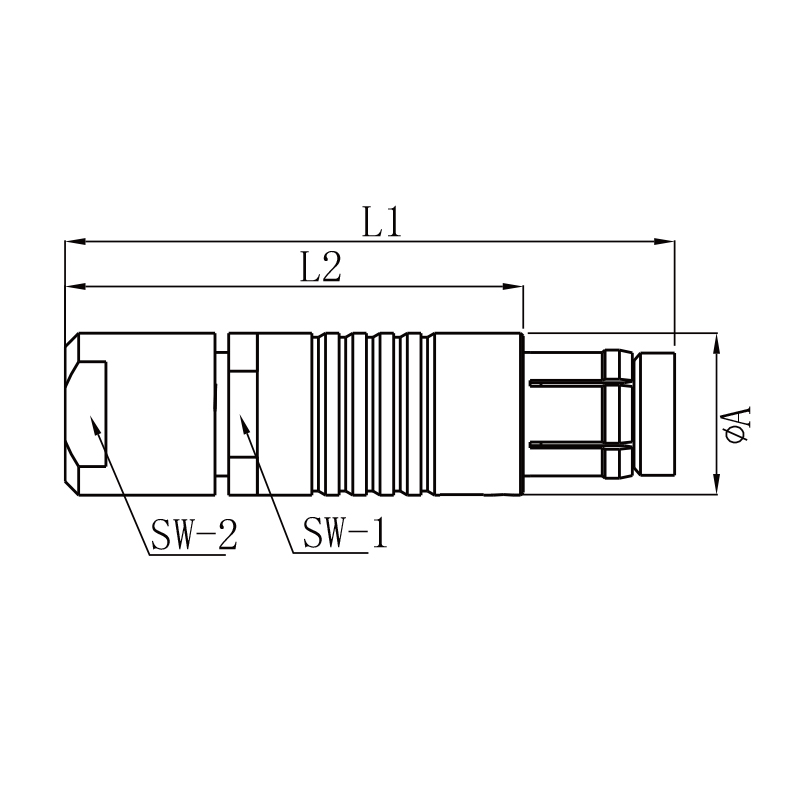

Dimensions
Size | Dimensions(mm) | ||||
A | L1 | L2 | SW1 | SW2 | |
0F | 9.5 | 35 | 25 | 8 | 8 |
1F | 12 | 46 | 35 | 10 | 9 |
AF | 12.5 | 49 | 39 | 11 | 11 |
2F | 15 | 51 | 39 | 13 | 13 |
3F | 18 | 62 | 47 | 16 | 15 |
How to Select the mil spec connectors Right Pins
Choosing the correct pin configuration is crucial for ensuring optimal performance:
Determine Contact Requirements
– Define the number of contacts based on your application (e.g., 2–27 pins) for power, data, or signal transmission.
Check Contact Diameter (ΦA)
– Select the pin diameter according to current-carrying capacity and signal requirements.
Match Cable Size
– Ensure compatibility with the cable’s outer diameter and conductor size (AWG).
Select the Right Contact Type
– Choose between solder, PCB, or PCB elbow contacts depending on installation and design needs.
Consider Application Environment
– Take into account sealing levels (IP ratings), vibration resistance, and compliance with IEC/RoHS for durability in harsh environments.
By carefully evaluating these factors and cross-referencing with the selection tables below, you can confidently choose the ideal F SERIES connector for your application.
102F Series mil spec connectors Specifications
| Mode | TG01.102F.A051.CLA.21 | TG01.102F.A052.CLA.27 | TG01.102F.A053.CLA.36 | TG01.102F.A054.CLA.42 | TG01.102F.A056.CLA.52 | TG01.102F.A059.CLA.55 | TG01.102F.A060.CLA.52 |
| Insert Code | 102A/Z051 | 102A/Z052 | 102A/Z053 | 102A/Z054 | 102A/Z056 | 102A/Z059 | 102A/Z060 |
| Insert |  |  |  |  |  |  |  |
| No. of Contacts | 2 | 3 | 4 | 5 | 7 | 9 | 10 |
| Contact Ø (mm) | 0.9 | 0.9 | 0.7 | 0.7 | 0.5 | 0.5 | 0.5 |
| Cable Ø(mm) | 2.1 | 2.7 | 3.6 | 4.2 | 5.2 | 5.9 | 6 |
| Contact Type | Solder / PCB / PCB Elbow | Solder / PCB / PCB Elbow | Solder / PCB / PCB Elbow | Solder / PCB / PCB Elbow | Solder / PCB / PCB Elbow | Solder / PCB / PCB Elbow | Solder / PCB / PCB Elbow |
| Application | High speed circular connector for communication systems | High speed data connector for compact devices | hermetic circular connector for medical equipment | Circular push pull connector for testing instruments | High speed circular connector for industrial automation | High speed data connector for sensor networks | Self-locking circular connector for control panels |
103F Series Mil spec connectors Specifications
| Mode | TG01.103F.A051.CLA.22 | TG01.103F.A052.CLA.32 | TG01.103F.A053.CLA.42 | TG01.103F.A054.CLA.52 | TG01.103F.A056.CLA.62 | TG01.103F.A057.CLA.72 | TG01.103F.A058.CLA.58 | TG01.103F.A010.CLA.60 | TG01.103F.A061.CLA.60 |
| Parameter | 103A/Z051 | 103A/Z052 | 103A/Z053 | 103A/Z054 | 103A/Z056 | 103A/Z057 | 103A/Z058 | 103A/Z010 | 103A/Z061 |
| Insert |  | | | | |  |  |  |  |
| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 |
| Contact Ø (mm) | 1.3 | 1.3 | 0.9 | 0.9 | 0.7 | 0.7 | 0.7 | 0.5 | 0.5 |
| Cable Ø(mm) | 2.2 | 3.2 | 5.3 | 5.4 | 5.6 | 5.7 | 5.8 | 6 | 6 |
| Application | High speed circular connector for industrial communication | High speed data connector for control devices | hermetic circular connector for test equipment | Circular push pull connector for medical devices | High speed circular connector for military applications | High speed data connector for automation systems | Self-locking circular connector for laboratory instruments | Circular push pull connector for embedded systems | High speed data connector for communication panels |
1031F Series Mil spec connectors Specifications
| Mode | TG01.1031F.A010.CLA.22 | TG01.1031F.A012.CLA.32 | TG01.1031F.A019.CLA.62 |
| Insert code | 1031A/Z010 | 1031A/Z012 | 1031A/Z019 |
| Insert |  |  |  |
| No. of Contacts | 10 | 12 | 19 |
| Contact Ø (mm) | 0.7 | 0.7 | 0.5 |
| 2.2 | 3.2 | 6.2 | |
| Application | Circular push pull connector for defense electronics | High speed circular connector for field devices | hermetic circular connector for complex control systems |
104F Series High Speed Mil spec connectors Specifications
| Mode | TG01.104F.A051.CLA.22 | TG01.104F.A040.CLA.32 | TG01.105F.A037.CLA.42 | TG01.104F.A087.CLA.52 | TG01.104F.A053.CLA.62 | TG01.104F.A065.CLA.72 | TG01.104F.A054.CLA.82 | TG01.104F.A066.CLA.92 | TG01.104F.A055.CLA.42 | TG01.104F.A056.CLA.52 | TG01.104F.A057.CLA.62 | TG01.104F.A086.CLA.72 | TG01.104F.A092.CLA.72 |
| Parameter | 104A/Z051 | 104A/Z040 | 104A/Z037 | 104A/Z087 | 104A/Z053 | 104A/Z065 | 104A/Z054 | 104A/Z066 | 104A/Z055 | 104A/Z056 | 104A/Z057 | 104A/Z086 | 104A/Z092 |
| Insert |  |  |  |  |  |  |  |  |  |  |  |  |  |
| No. of Contacts | 2 | 3 | 4 | 4 | 5 | 6 | 7 | 8 | 1+8 | 11 | 12 | 16 | 19 |
| Contact Ø (mm) | 1.6 | 1.6 | 1.3 | 2.3 / 0.9 | 1.3 | 0.9 | 0.9 | 0.9 | 1.3 / 0.9 | 0.9 | 0.7 | 0.7 | 0.7 |
| Cable Ø (mm) | 2.2 | 3.2 | 4.2 | 5.2 | 6.2 | 7.2 | 8.2 | 4.2 | 5.2 | 6.2 | 7.2 | 7.2 | 7.2 |
| Application | High speed circular connector for power equipment | High speed data connector for communication panels | hermetic circular connector for automotive systems | Circular push pull connector for high-current industrial tools | High speed data connector for robotics | High speed circular connector for avionics | Self-locking circular connector for industrial automation | Circular push pull connector for sensors | High speed circular connector for dual-purpose systems | Self-locking circular connector for rail systems | High speed data connector for medical imaging | Circular push pull connector for military-grade devices | High speed data connector for complex control units |
105F High Speed Circular Connector
| Mode | TG01.105F.A051.CLA.32 | TG01.105F.A087.CLA.32 | TG01.105F.A052.CLA.42 | TG01.105F.A053.CLA.42 | TG01.105F.A054.CLA.52 | TG01.105F.A0.CLA.52 | TG01.105F.A001.CLA.62 | TG01.105F.A062.CLA.62 | TG01.105F.A069.CLA.72 | TG01.105F.A004.CLA.72 | TG01.105F.A058.CLA.82 | TG01.105F.A110.CLA.82 | TG01.105F.A038.CLA.92 | TG01.105F.A093.CLA.10 | TG01.105F.A102.CLA.12 |
| Insert code | 105A/Z051 | 105A/Z087 | 105A/Z052 | 105A/Z053 | 105A/Z054 | 105A/Z067 | 105A/Z101 | 105A/Z062 | 105A/Z069 | 105A/Z104 | 105A/Z058 | 105A/Z110 | 105A/Z038 | 105A/Z093 | 105A/Z102 |
| Insert | | |  | | |  |  |  |  |  |  |  |  |  |  |
| No. of contacts | 2 | 2 | 3 | 4 | 6 | 7 | 1+8 | 10 | 12 | 10+3 | 14 | 4+12 | 18 | 24 | 27 |
| Contact ΦA (mm) | 2 | 3 | 2 | 2 | 2.0 / 1.3 | 1.3 | 2.0 / 1.3 | 1.3 | 1.3 | 1.3 | 0.9 | 1.6 / 0.7 | 0.9 | 0.7 | 0.7 |
| Cable Ø (mm) | 3.2 | 4.2 | 5.2 | 6.2 | 7.2 | 8.2 | 4.2 | 5.2 | 7.2 | 7.2 | 8.2 | 9.2 | 1 | 1.2 | 1.2 |
| Application | High speed circular connector for industrial automation | High speed circular connector for defense systems | Self-locking connector for signal transmission | Circular push pull connector for communication | High speed data connector for test instruments | Rugged circular connector for medical devices | High speed connector for military communication | Self-locking connector for network systems | Circular push pull connector for control panels | High speed connector for industrial robotics | Waterproof connector for harsh environments | High speed data connector for broadcast systems | Self-locking connector for lab equipment | Circular push pull connector for measurement systems | High speed circular connectorfor automation devices |
Hermetic circular connector Quality & Test
Our high-speed circular push-pull connectors undergo rigorous quality testing to guarantee reliability in critical applications:
IP68 Sealing: Waterproof performance when mated.
Mechanical Endurance: ≥5000 mating cycles.
Shock & Vibration Resistance:
Shock: 100 g / 6 ms
Vibration: 15 g (10 Hz–2000 Hz).
Temperature Range: –40 ℃ to +200 ℃ (material-dependent).
Electrical Performance:
Insulation resistance: ≥5000 MΩ (at 600 V DC).
Contact resistance: ≤1–15 mΩ (depending on pin count).
Test voltage: 0.8–3.0 kV rms (contact/shell).
Salt Spray Corrosion: 96 hours minimum.
Compliance: Meets IEC, RoHS, and military-grade requirements.
Hermetic circular connector Specification
Maximum Humidity: | up to 95% at 60°/140°F |
Locking type: | circular push pull connector |
Endurance: | 5000 cycles |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -55°~+125° |
Connector Series: | MINI S1/S2/S4/S4 Snap F series |
Gender: | Plug |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Chrome-plated brass/BLACK Chrome-plated brass |
Test Voltage (contact-contact): | 1450 |
Test Voltage (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP50/IP68 |

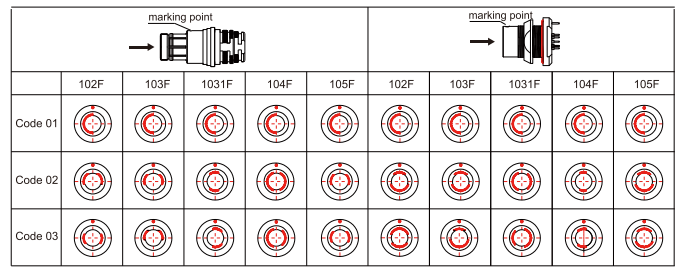

Hermetic circular connector connector Alignment key

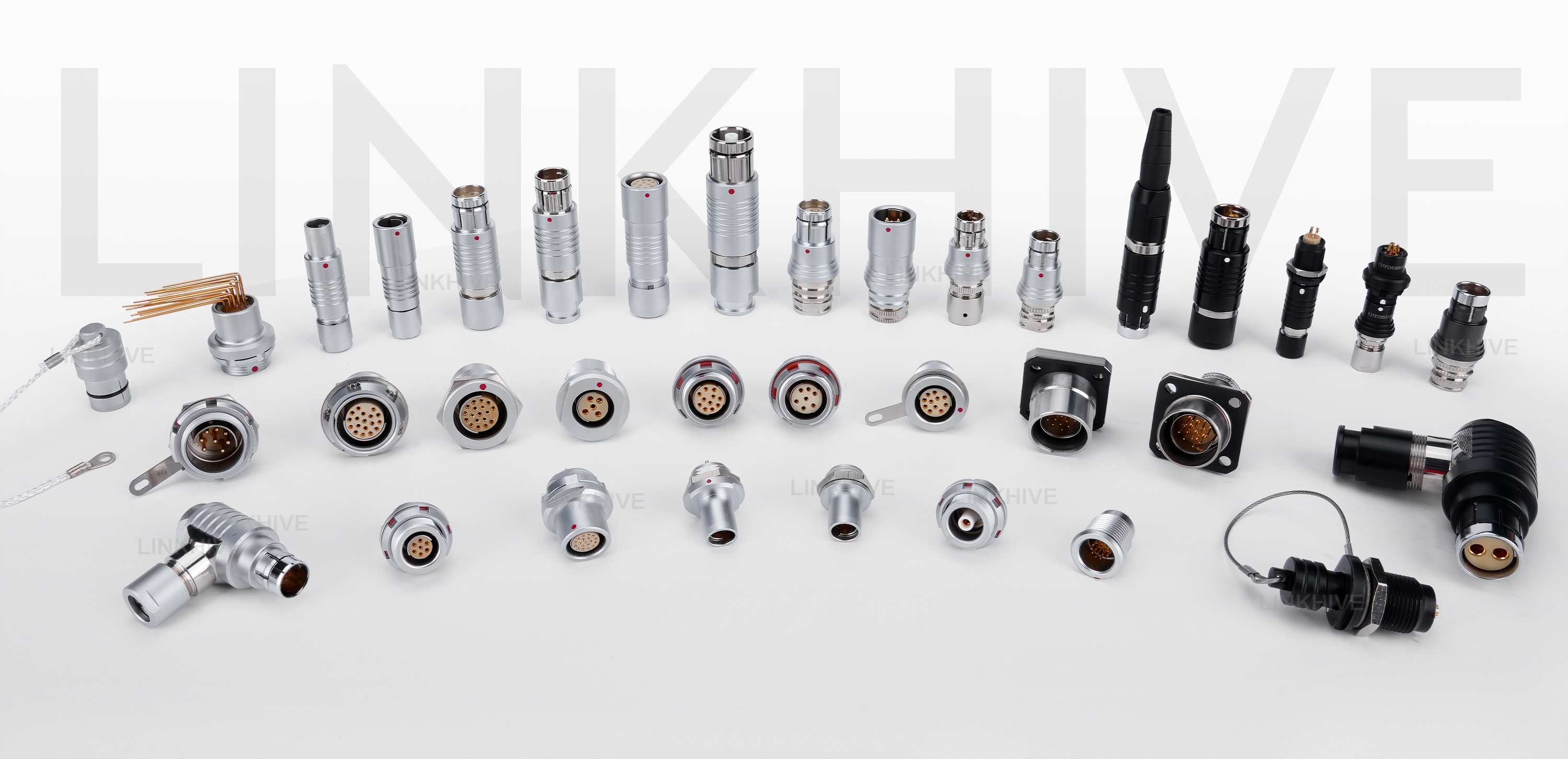

F series Metal Housing connector
straingt plug high speed circular connector | PANEL MOUNTED PLUG high speed circular connector | RIGHT-ANGLED PLUG high speed circular connector | Super shorty push pull plug high speed circular connector |
IP50 S1 high speed data connector | IP50 AA self-locking circular connector | P50 W1 high speed data connector | IP68 SS high speed data connector |
 |  |  |  |
IP50 S2 self-locking circular connector | IP68 AD self-locking circular connector | IP68 W2 high speed data connector | IP68 AS high speed data connector |
|
|
|
|
IP68 S3 high speed data connector | Lenyard Release plug IP68 TQ | IP68 W3 self-locking circular connector | |
|  |
| |
IP68 S4 high speed data connector | IP68 W4 Black chrome-plated brass | ||
| s |
Linkhive AMC Series Circular Miniature Connector Connector Selection
AMC (Y) |
AMC High Density |
AMC EASY CLEAN |
MINI SNAP F |
- Pin-and-groove mechanical coding - Breakway / push pull - high-speed data transmission -IP68 rated for harsh environment protection -rugged circular miniature connector | - Extremly Minature connector and Compact - high-contact density design. - Supports high-speed data - Break-Away - optional dual-locking. - IP6K8 rated. | - Spring-loaded contacts for easy cleaning and dirt resistance. - Break-Away function. - Rated IP6K8 / IP6K9K for harsh environments. -rugged and solid miniature connector | - Push-pull self-latching connector with durable metal housing - Multiple contact configurations and custom combinations available - IP50/IP68 protection for harsh enviroment. - rugged circular miniature connector |
