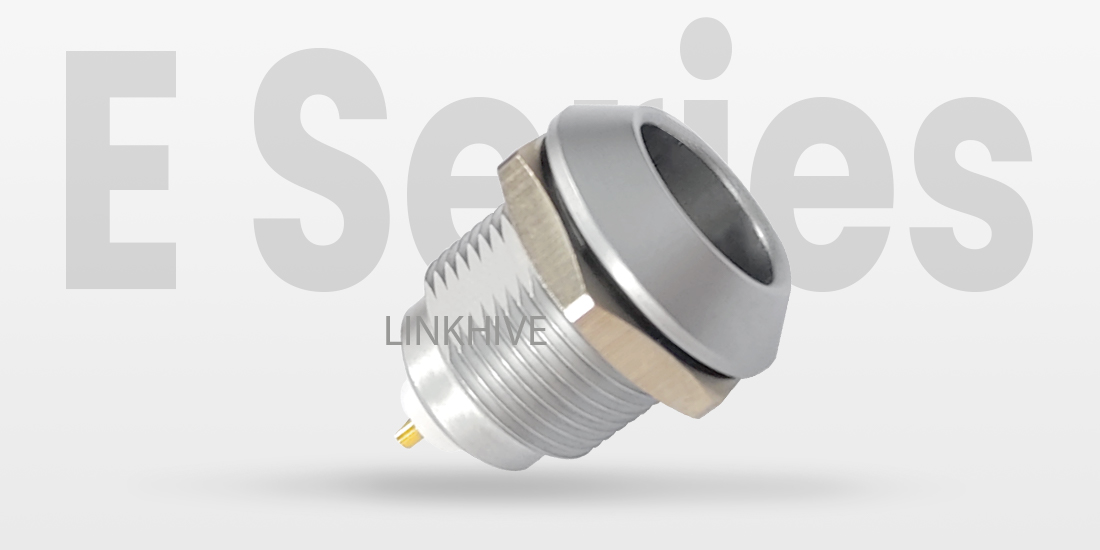

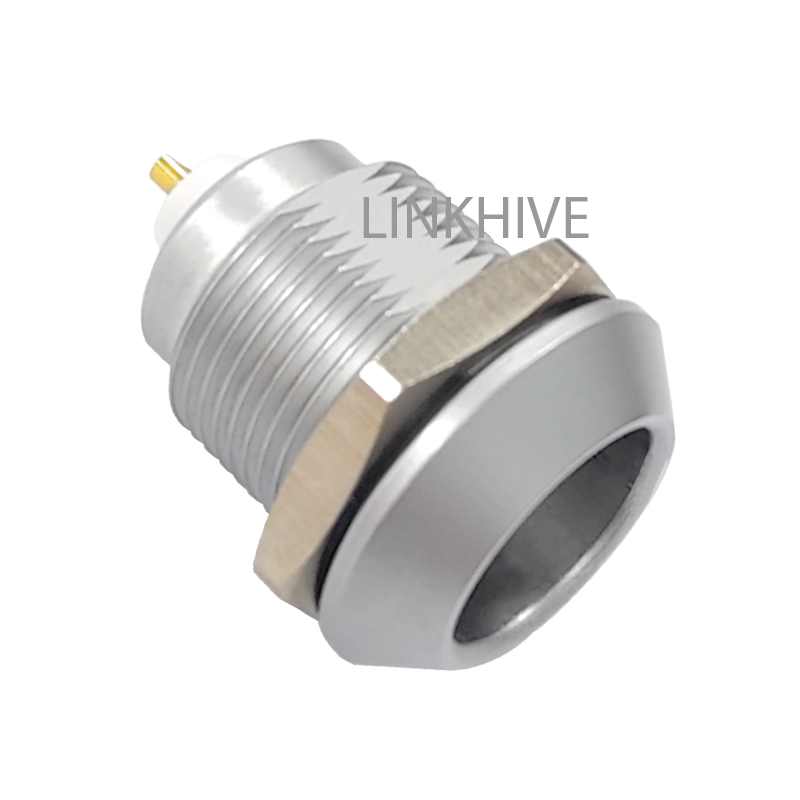

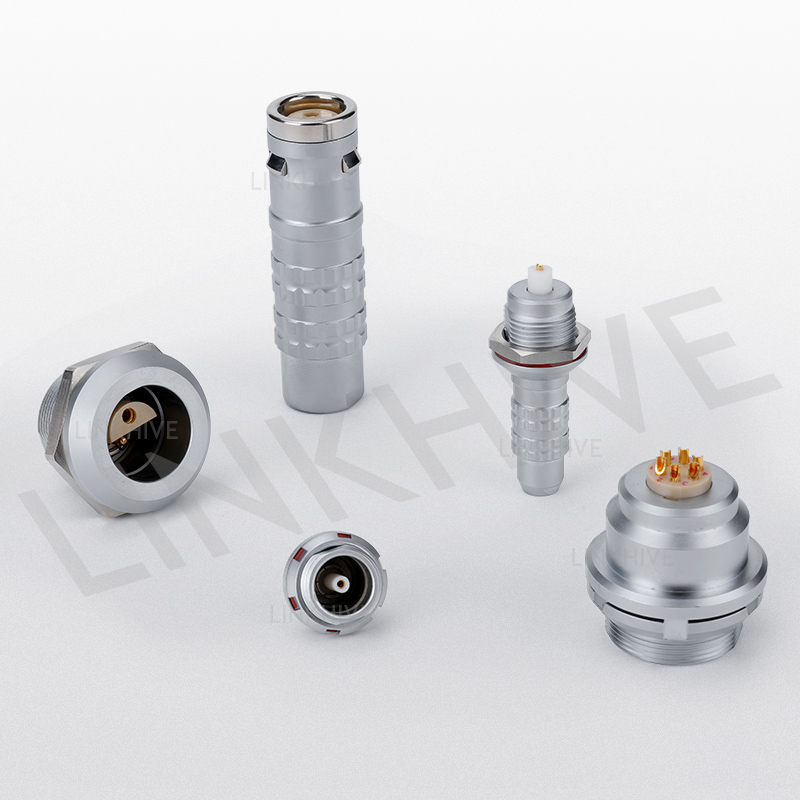

The LINKHIVE ERA Series is a female circular connector socket featuring a fixed mounting style and an advanced push-pull self-locking mechanism, it provides a professional-grade solution for multi-pin connections in demanding industrial and electronic environments. Designed to withstand repetitive insertions and rough handling, the ERA connector socket delivers both electrical performance and structural durability.
This connector socket is available in various shell sizes and contact arrangements, including unipole and multi-pin socket configurations, suitable for signal, power, coaxial, or mixed setups. The compact structure and reliable locking system make it ideal for panel integration and field-deployed equipment.
Applications
The ERA Series female connector socket is widely used in:
Instrumentation: Test & measurement devices requiring reliable multi-pin socket connections
Medical Equipment: Imaging, diagnostic, and surgical instruments with compact connector interfaces
Industrial Automation: PLCs, motion control systems, and robotics
Military & Aerospace: Rugged field-grade equipment needing secure and quick-disconnect functionality
Broadcast & AV Systems: Multi-signal transmission via circular plug socket formats
Key Advantages
Push-Pull Self-Latching Mechanism: Enables quick and secure mating/unmating without tools.
Female Multi-Pin Socket: Offers flexible contact configurations for complex applications.
Circular Plug Socket Design: Space-saving and compatible with industry-standard circular connectors.
Durable Metal Housing: Provides excellent EMI shielding and resistance to physical impact.
Fixed Socket Structure: Ideal for front or rear panel mounting, ensuring firm installation.
Versatile Interface: Accepts solder, crimp, or PCB contacts for customized assembly.

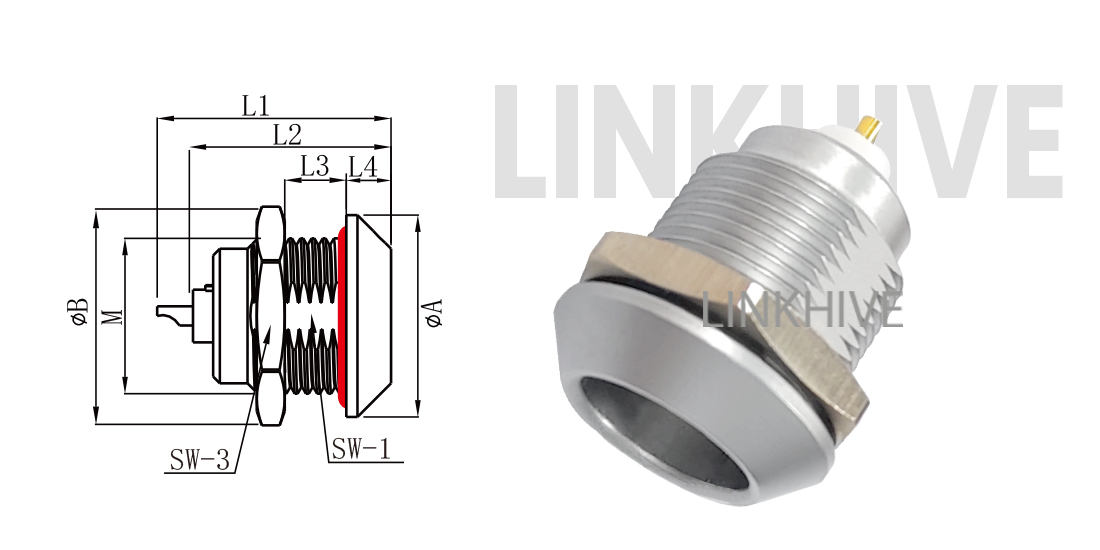

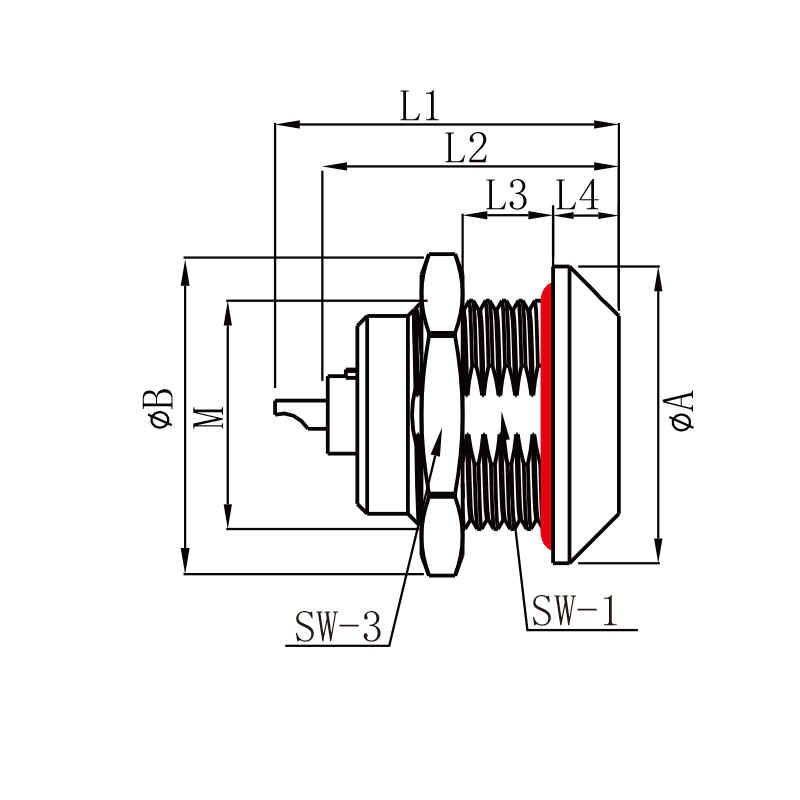

Diamensions
| Reference | Diamensions(mm) | |||||||||
| series | model | A | B | M | L1 | L2 | L3 | L4 | SW1 | SW3 |
| 0E | ERA 0E | 18 | 19 | M14*1.0 | 21.3 | 20 | 6 | 4 | 12.5 | 17 |
| 1E | ERA 1E | 20 | 22 | M16*1.0 | 27.8 | 25 | 9 | 4.5 | 14.5 | 19 |
| 2E | ERA 2E | 25 | 28 | M20*1.0 | 29 | 28 | 9 | 5 | 18.5 | 24 |
| 3E | ERA 3E | 31 | 34 | M24*1.0 | 36.1 | 33.6 | 11 | 6 | 22.5 | 30 |
Choosing the correct socket configuration ensures full compatibility with your T Series plugs and reliable sealing in harsh environments.
Confirm Plug Compatibility:
Ensure the selected HMG socket matches the corresponding E Series plug (FGG / TGG) in size (00E / 0E / 1E / 2E / 3E), insert configuration, and keying (e.g., G key).
Determine Contact Requirements:
Identify the number of contacts required for your application (e.g., 2–32 pins), based on your power and signal distribution needs.
Check Contact Diameter (øA):
Match the pin diameter to the expected current load and signal transmission. Refer to the pin configuration chart for available options.
Verify Cable & Panel Fit:
Ensure the socket supports your cable outer diameter and meets panel-mounting dimensions for your enclosure.
Consider Sealing & Standards:
Confirm the connector meets IP68 sealing when mated and complies with IEC / RoHS requirements for long-term reliability.
Tip: Use the model selection table below to quickly find the right watertight socket for your plug. Each model lists insert type, contact count, cable diameter, and typical application
ERA 0E Miniature-size /1E Small Size Female Multi-Pin Push-Pull Circular Connector Socket
| Mode | ZRA.0E.302.CLL | ZRA.0E.303.CLL | ZRA.0E.304.CLL | ZRA.1E.302.CLL | ZRA.1E.303.CLL | ZRA.1E.304.CLL | ZRA.1E.305.CLL | ZRA.1E.306.CLL |
| Inserts | half-moon | half-moon | half-moon | half-moon | half-moon | half-moon | half-moon | half-moon |
| Insert layout |
|
|
|
|
|
|
|
|
| Contacts | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 4 |
| Application | Miniature female socket for compact devices | Multi-pin female connector for signal equipment | Compact female socket for medical tools | Small-size socket for aviation devices | Multi-contact circular socket for instrumentation | Watertight socket for control systems | Push-pull female socket for testing devices | Rugged waterproof female socket for portable tools |
Medium size E series ERA 2E Female Multi-Pin Push-Pull Circular Connector Socket Selection
| Mode | ZRA.0E.302.CLL | ZRA.0E.303.CLL | ZRA.0E.304.CLL | ZRA.1E.302.CLL | ZRA.1E.303.CLL | ZRA.1E.304.CLL | ZRA.1E.305.CLL | ZRA.1E.306.CLL |
| Inserts | hermaphroditic | hermaphroditic | hermaphroditic | hermaphroditic | hermaphroditic | hermaphroditic | hermaphroditic | hermaphroditic |
| Insert layout |
|
|
|
|
|
|
|
|
| Contacts | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 4 |
| Application | Miniature female socket for compact devices | Multi-pin female connector for signal equipment | Compact female socket for medical tools | Small-size socket for aviation devices | Multi-contact circular socket for instrumentation | Watertight socket for control systems | Push-pull female socket for testing devices | Rugged waterproof female socket for portable tools |
Large size E series ERA 3E Female Multi-Pin Push-Pull Circular Connector Socket Selection
| Mode | ZRA.3E.302.CLL | ZRA.3E.304.CLL | ZRA.3E.305.CLL | ZRA.3E.306.CLL | ZRA.3E.307.CLL | ZRA.3E.308.CLL | ZRA.3E.310.CLL | ZRA.3E.312.CLL | ZRA.3E.313.CLL | ZRA.3E.314.CLL | ZRA.3E.316.CLL | ZRA.3E.318.CLL |
| Inserts | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert | Stepped Insert |
| Insert layout |
|
|
|
|
|
|
|
|
|
|
|
|
| Contacts | 2 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 13 | 14 | 16 | 18 |
| Application | Large-size push-pull female socket for power equipment | High-current waterproof socket for control panels | Multi-pin connector for industrial automation | Push-pull socket for robotic systems | Rugged female connector for testing devices | Watertight socket for outdoor systems | High-pin-count socket for medical equipment | Large-size connector for laboratory devices | Multi-contact waterproof socket for instruments | Circular socket for heavy-duty applications | High-density socket for communication panels | Multi-pin female connector for outdoor control cabinets |
Performance Parameters
| Parameter | Specification |
|---|---|
| Type | Fixed socket, nut fixing, Key (A–F & R) |
| Part Number Example | ERA1E250CTL |
| Series | E series |
| Shell Material | Chrome-plated brass |
| Insulation Material | PPS/PEEK/PTFE/PPSU |
| IP Rating | IP68 (mated) |
| Working Temperature | -40℃ ~ +200℃ |
| Humidity | ≤95% (at 60℃) |
| Salt Spray Resistance | 96 hours |
| Shielding | 75dB (10MHz), 40dB (1GHz) |
| Shock Resistance | 100g, 6ms |
| Vibration Resistance | 15g (10Hz–2000Hz) |
| Endurance | ≥5000 mating cycles |
| Insert Configuration | 304 |
| Contact Diameter | 0.7mm |
| Contact Resistance | 6.5 mΩ |
| Rated Current | 7A |
| Test Voltage (Contact-Contact) | 1450V |
| Test Voltage (Contact-Shell) | 1000V |
| Insulation Resistance | ≥5000MΩ (600V DC) |
E Series Panel Cutouts
E Series Cable Clamp
E Series Cable Clamp for 4E
LINKHIVE E Series Watertight Connectors Models
| Straight plug | Fixed socket | Fixed socket | vaccum tight/watertight socket | Free socket |
FFA |
ERA |
PSA t |
HGPt |
PCA |
FFA |
ERN |
EEP
|
PCA | |
FFA oversize | Elbow plug
FLA | |||
