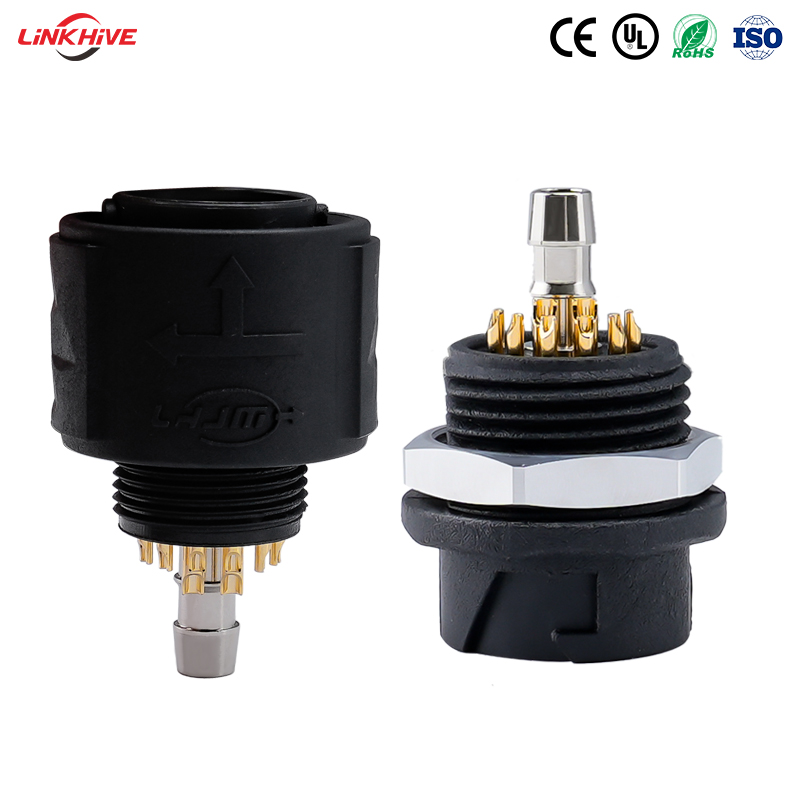

3Q Series High-Density Waterproof Aviation Connector | 108/208 Pin IP68 Anti-Salt Spray Corrosion 96H | 950V AC Quick Connect

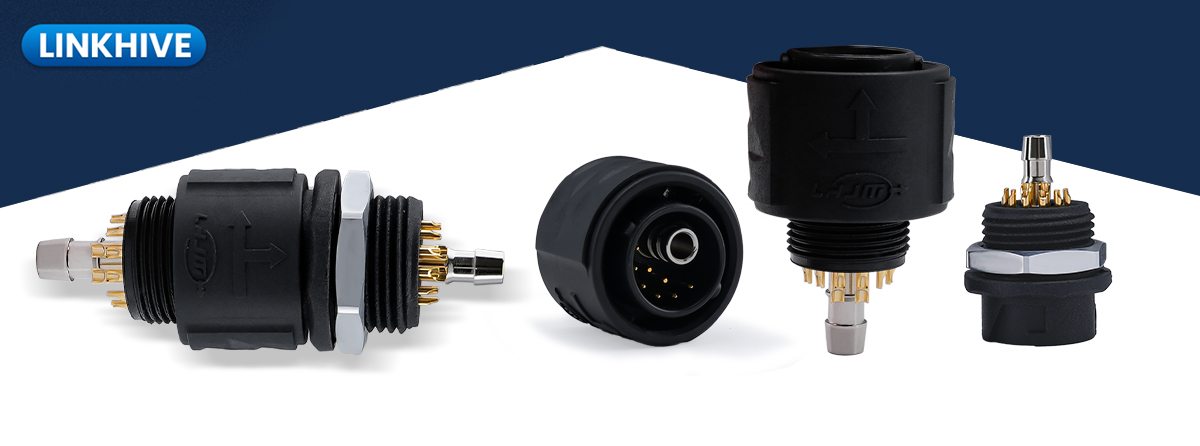

🚀 Product Overview
In extreme environments, the reliability of the connector is the cornerstone of system operation. This 3Q Series high-density circular aviation connector is specifically designed for marine engineering, medical treatment, shipboard electronics, and harsh outdoor conditions. It features IP68 top-level waterproofing and has passed a 96-hour salt spray corrosion test, capable of confidently meeting severe challenges such as high humidity, high salt fog, and strong corrosion.

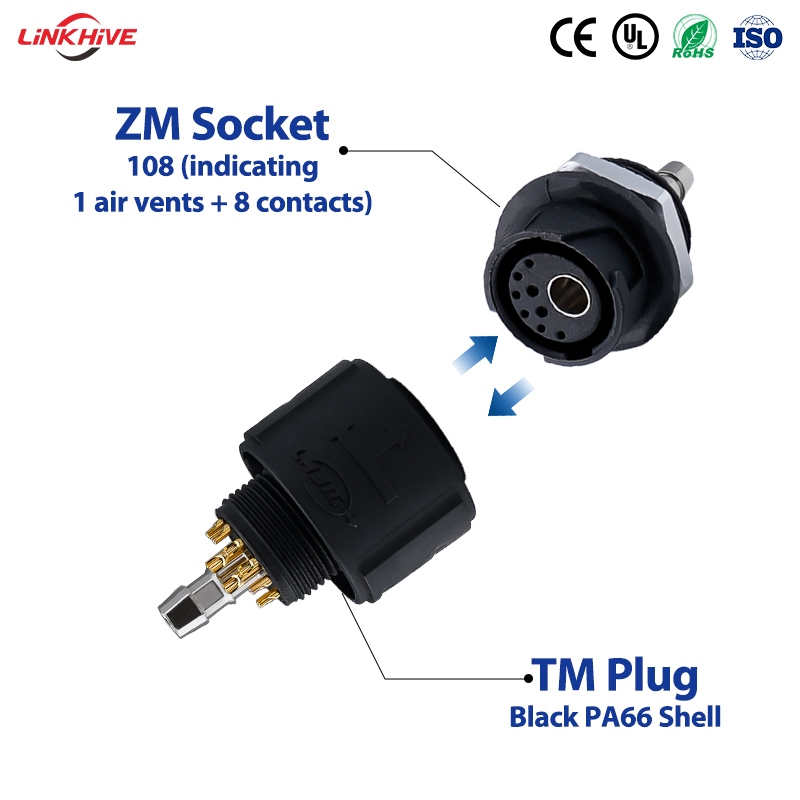

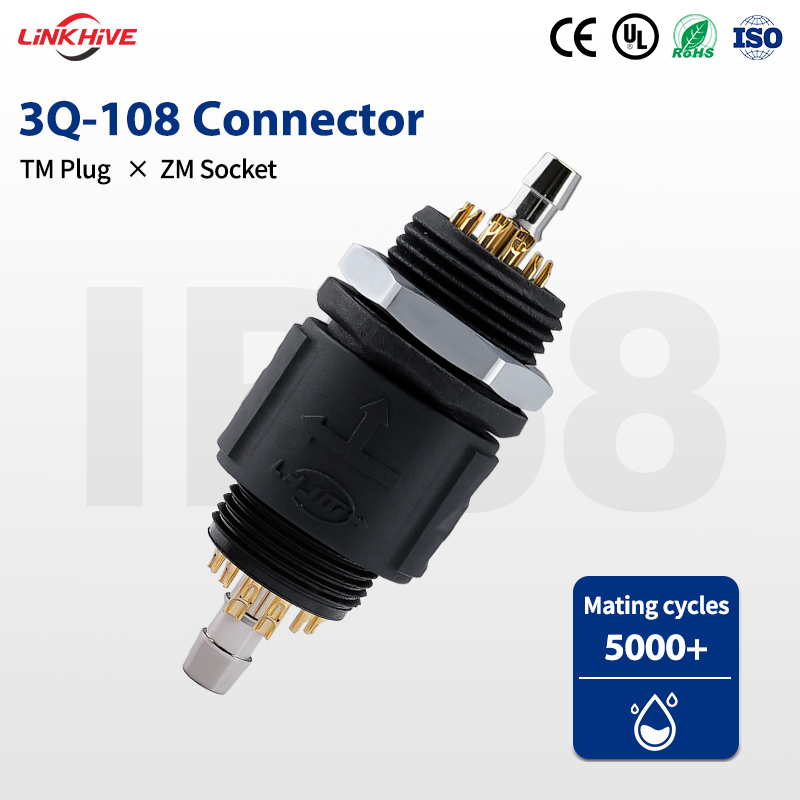

This connector supports two high-density contact configurations: 108 pins and 208 pins, enabling efficient transmission of massive signals within a limited space. Its compact housing design, combined with a quick bayonet locking mechanism, ensures both efficient and convenient connection while preventing loosening due to vibration. With a rated voltage of up to 950V AC, it is also competent for signal control and power transmission tasks in high-voltage scenarios.

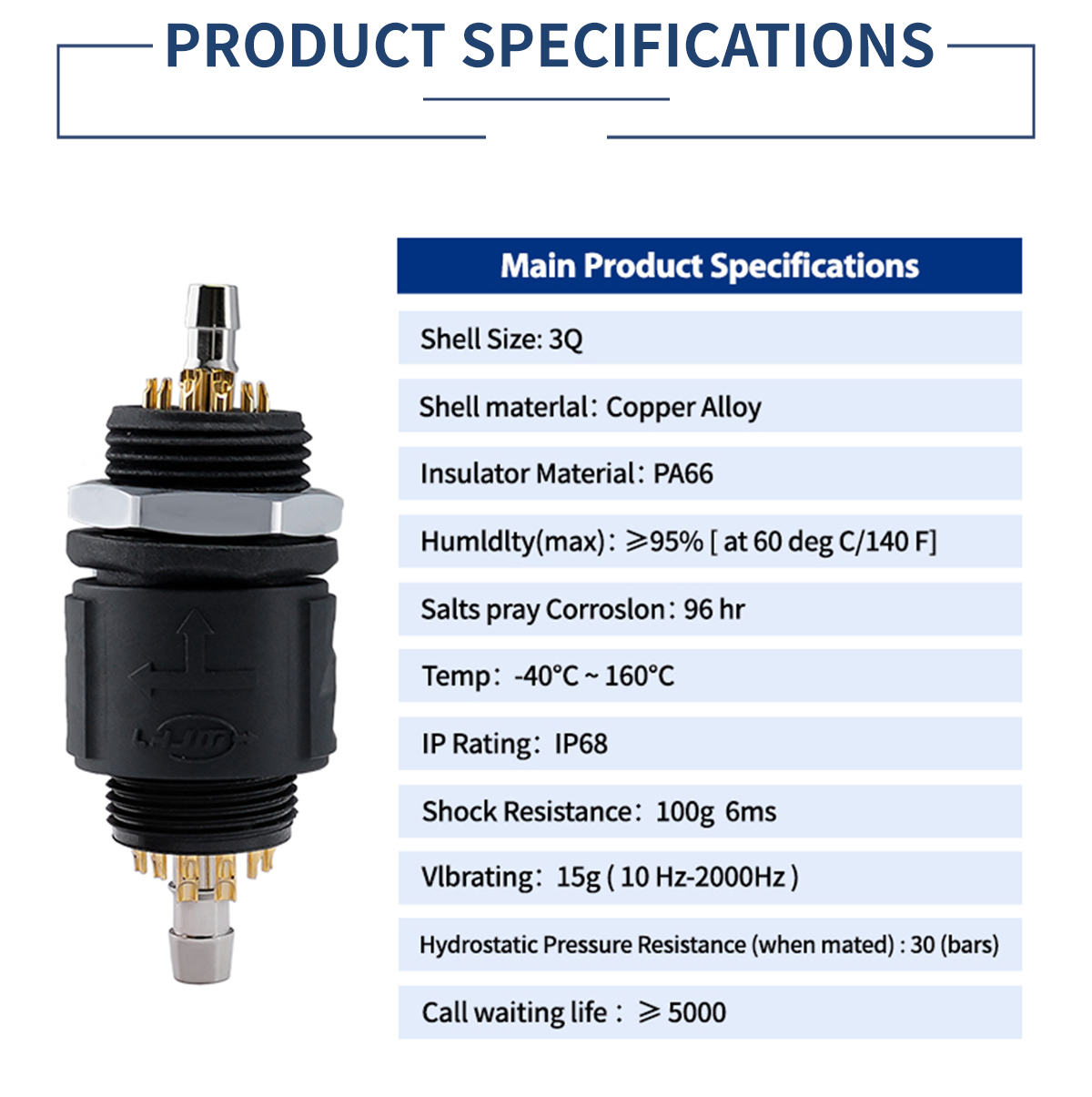

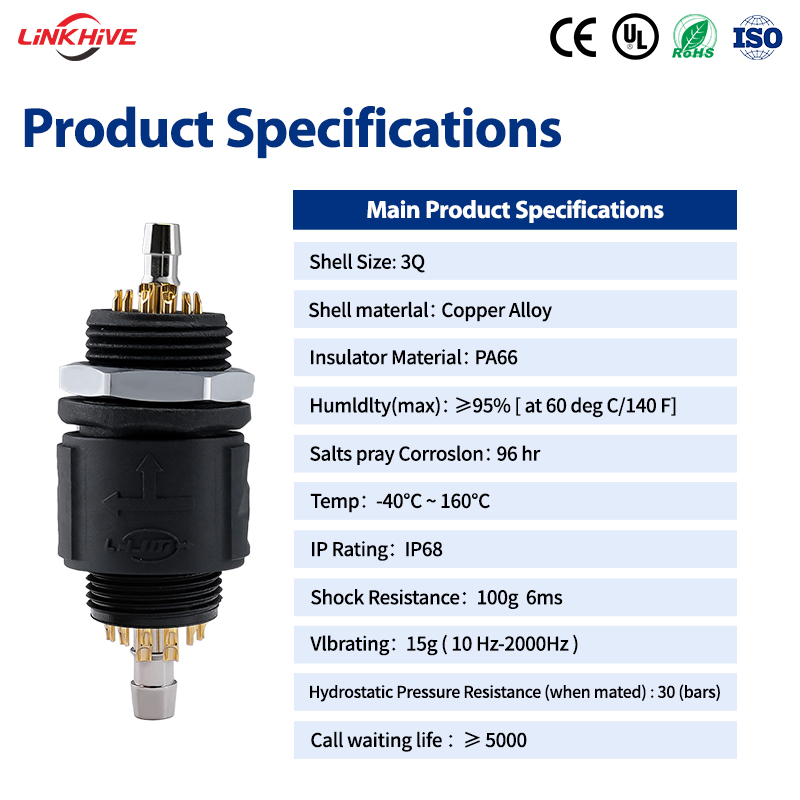

🔧 Technical Specifications
⚙️ Core Advantages
1. Top-Level Protection, Fearless of Corrosion

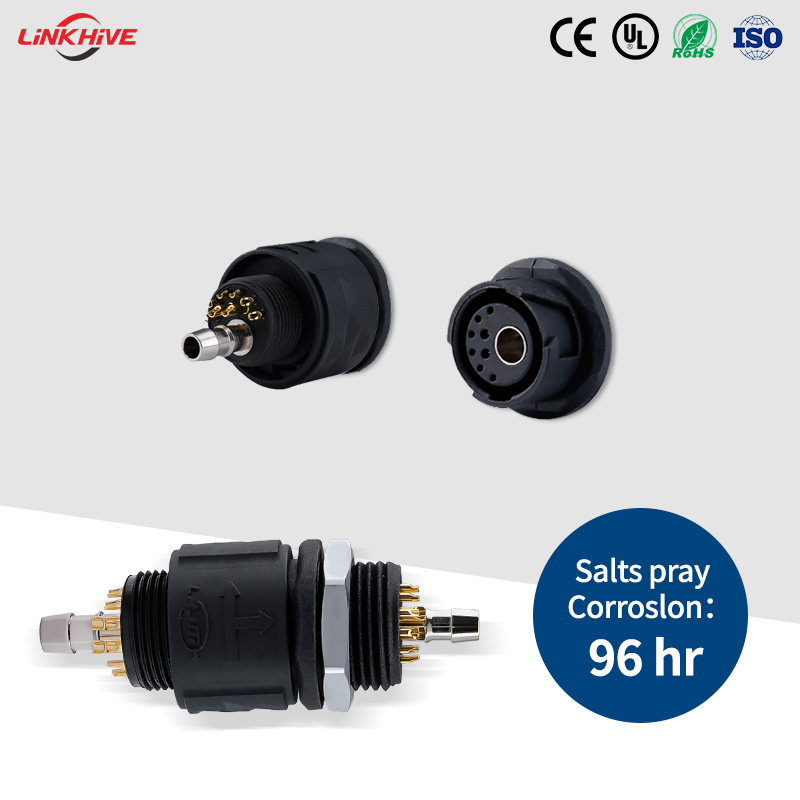

Certified with both IP68 waterproofing and 96-hour salt spray testing. Whether deployed long-term in humid environments or exposed to salt-laden coastal air, this connector keeps the internal circuits absolutely dry and clean, effectively preventing rust on metal components and significantly extending equipment lifespan in coastal or marine applications.
2. High-Density Integration, Saves Space
Offers 108-pin and 208-pin high-density contact arrangements. Compared to traditional connectors, it integrates more signal channels within the same mounting space, making it particularly suitable for applications with extreme requirements for equipment miniaturization and lightweight design, such as underwater robots and portable inspection devices.
3. Quick Connect Combined with High Withstand Voltage
The unique bayonet locking structure enables "lock upon insertion, release upon pulling" quick operation, greatly enhancing on-site wiring and maintenance efficiency. Simultaneously, the 950V AC high rated voltage ensures electrical safety margins for high-power signal transmission or high-voltage control circuits.
4. Military-Grade Reliability Design

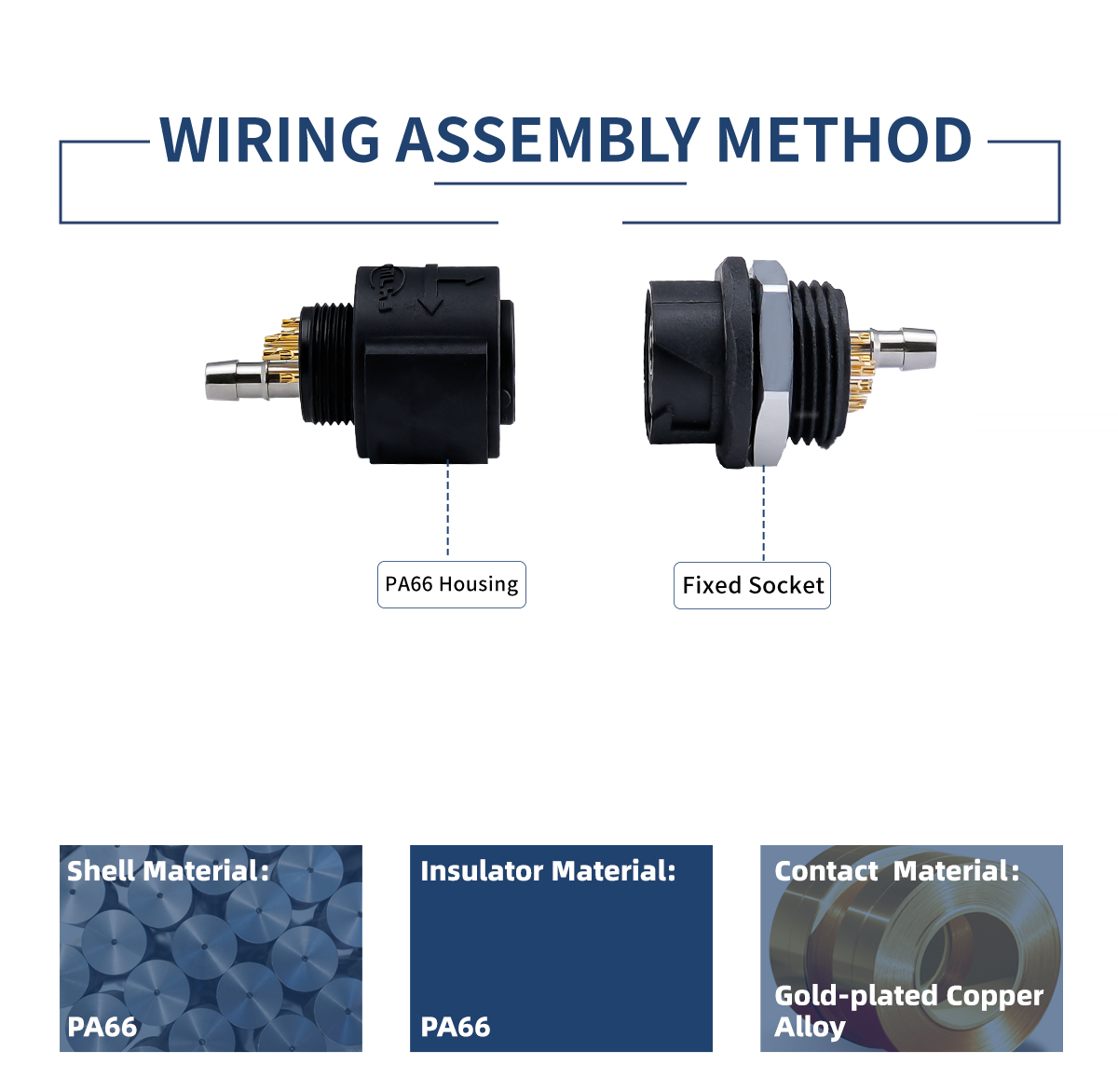

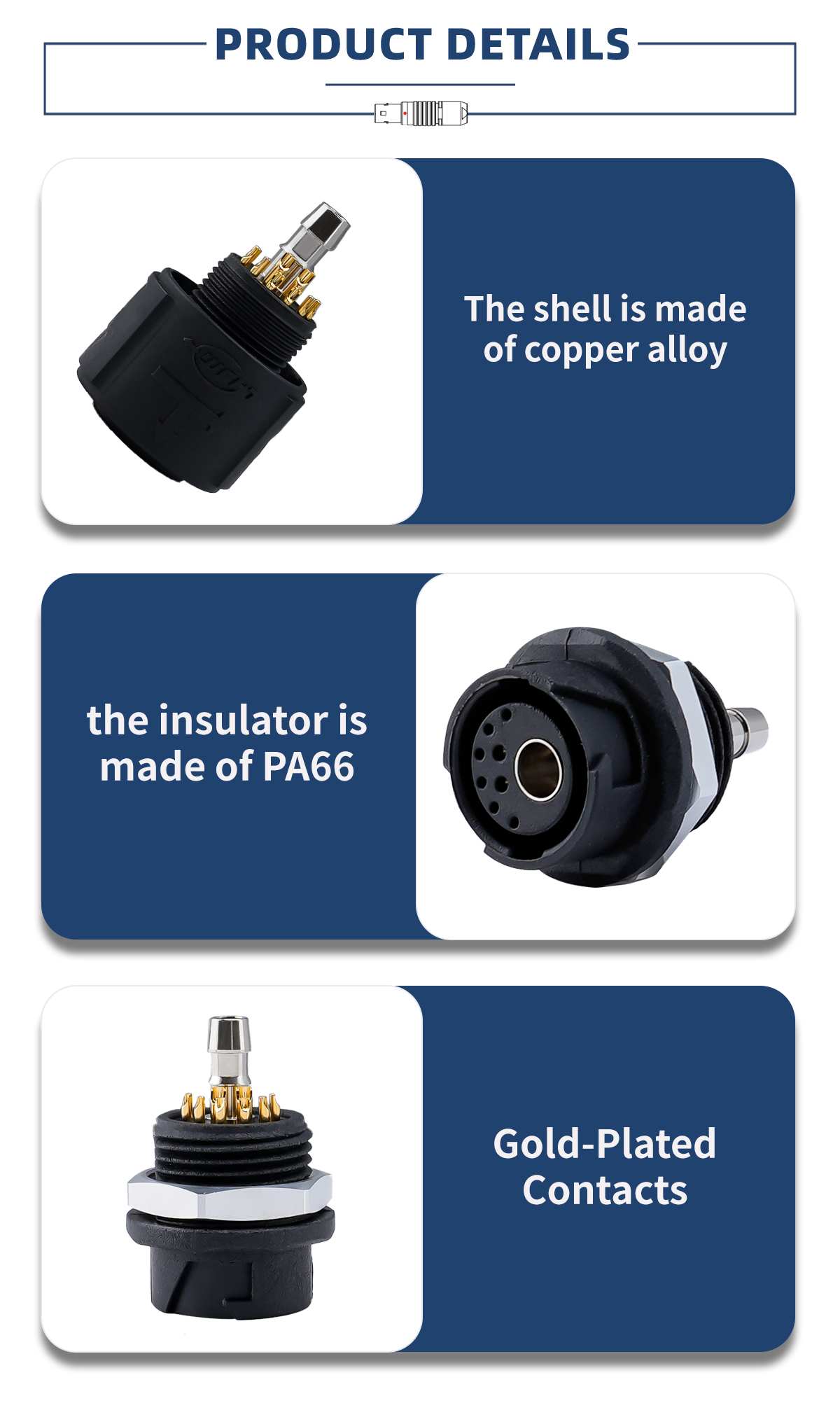

From precision mold forming of the insulator to low contact resistance control of the gold-plated pins, every detail adheres to high-reliability standards. It ensures zero-error signal transmission even under strong vibration and shock.
🏭 Application Areas
This high-performance connector is an ideal choice for numerous high-end manufacturing and special operation fields:
Marine Engineering: Underwater sensor networks, submersible equipment connections, shipborne navigation, and communication systems.
New Energy & Power: Photovoltaic inverters, wind turbine generators, high-voltage variable frequency control cabinets.
Outdoor Industrial Equipment: Outdoor LED displays, security surveillance PTZ cameras, oil drilling equipment.
Military & Aerospace: Ground radar systems, portable military communication equipment.
Rail Transit: Train signal control systems, inter-vehicle jumpers.
✅ Why Choose Us?
Rigorous Testing, Quality Assurance: All products undergo airtightness testing, withstand voltage testing, and contact resistance testing before leaving the factory, ensuring every connector is capable of performing in harsh environments.
Customization Services: We offer customization for contact plating thickness, backshell types (straight/angled/cable-equipped), and special markings to perfectly match your equipment interfaces.
Technical Support: Our professional engineering team can provide selection advice and technical consultation, ensuring you choose the right product and avoid future issues.
Choose the strongest "connection bridge" for your critical equipment. Inquire or order now!

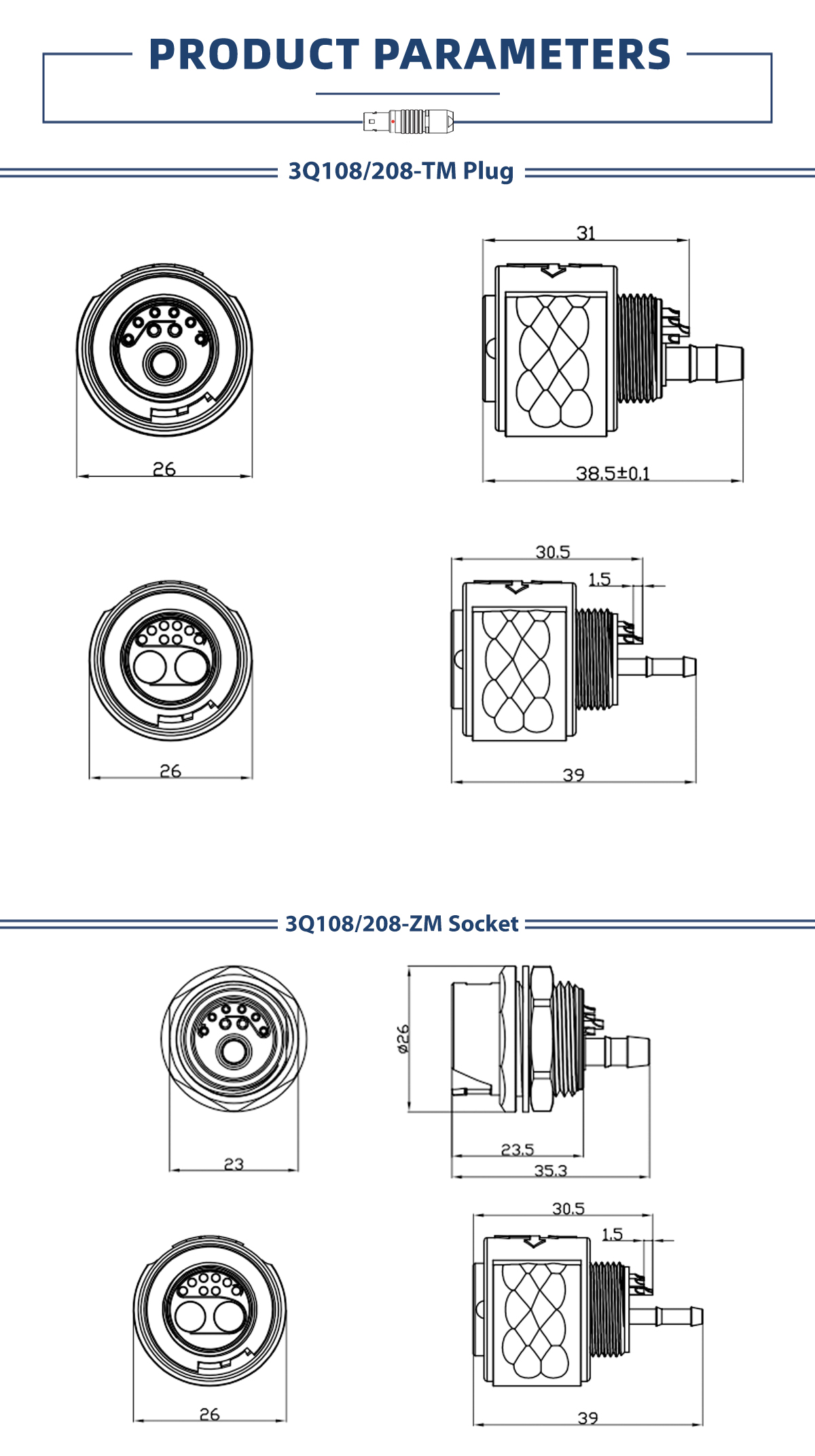

Note: For specific dimension drawings, 3D models, and detailed specification sheets, please contact our online customer service or send an email.
