Linkhive 4-in-1 Breakout Cable Aseembly Solution

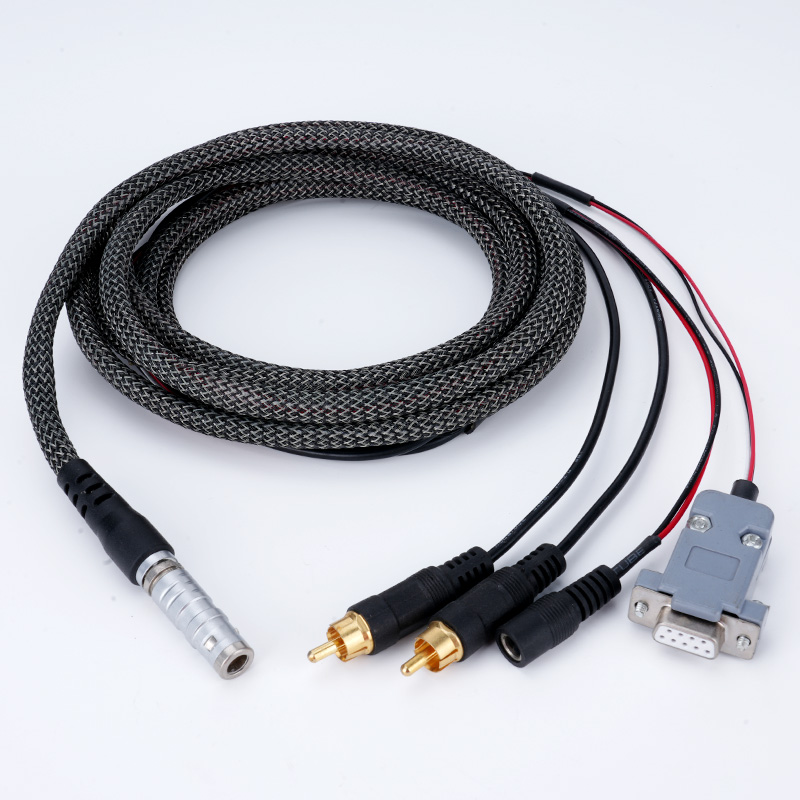

LINKHIVE 4-in-1  Push-Pull Connector to Dual RCA, DC Power, and DB9 Breakout Cable with Braided Sheath for Audio/Power/Signal Applications

Product Profile

This cable assembly is a multi-termination cable assembly, designed for connecting various types of devices and interfaces in a versatile and organized manner. It provides multiple types of terminations within one unified structure, catering to specific industrial and medical applications where different signal and power connections are essential.

Components Breakdown:

Outer Sheath:

The cable is encased in a braided sleeve,  made from durable materials such as nylon, which enhances flexibility, abrasion resistance, and wear protection. This braided jacket offers superior shielding and enhanced protection, making it suitable for harsh environments and applications with frequent use, such as in automation or aerospace sectors. This sheath ensures the assembly remains organized and easy to handle.

Connectors:

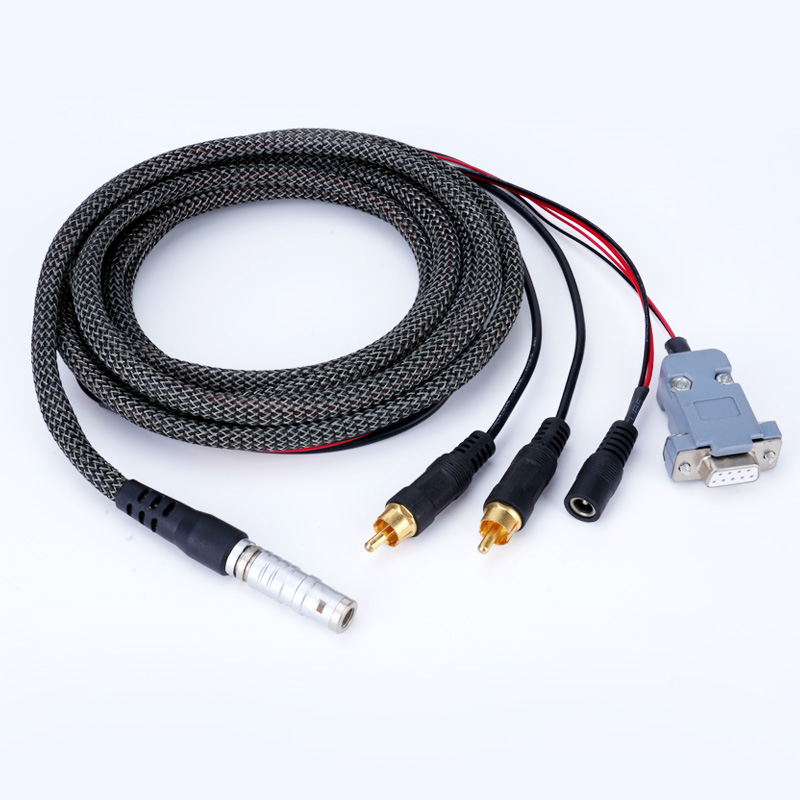

• Push-Pull Circular Connector (Left): This silver, push-pull circular connector is ideal for quick and secure connections, common in medical devices, industrial machinery, and audio-video systems. The push-pull mechanism enables easy disconnection, which is beneficial for applications that require frequent connection cycles. The design provides reliable engagement while ensuring signal integrity and resilience to vibrations.

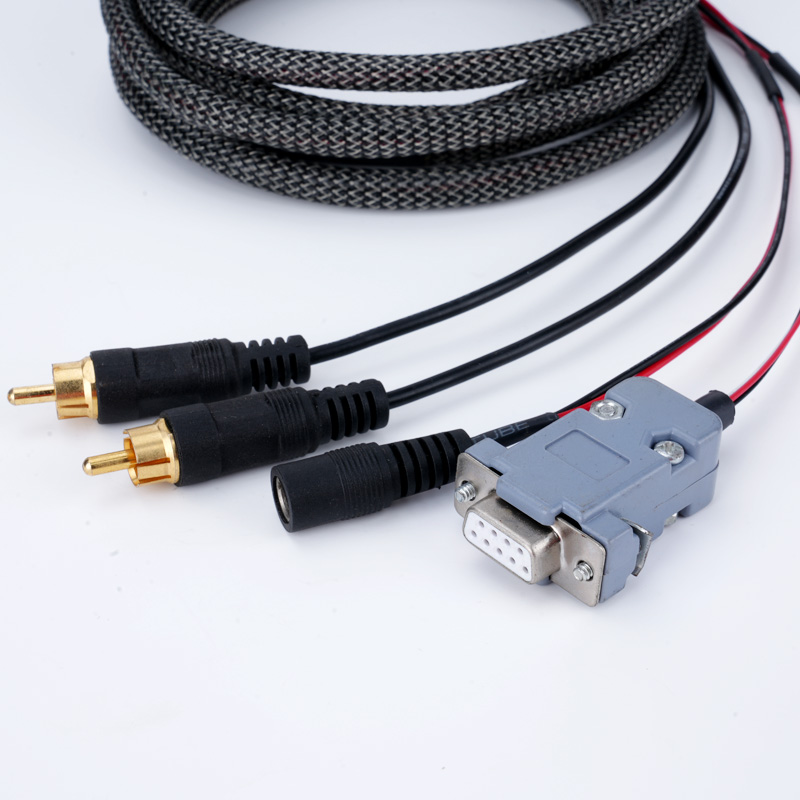

• RCA Connectors (Middle): Positioned centrally are two RCA connectors (one red and one yellow), which are typically utilized for analog audio and video signal transmission. RCA connectors are popular in consumer electronics and audio-visual equipment where low-frequency signal transmission is required. This setup allows the assembly to handle high-quality audio and video signals effectively.

• DC Power Connector (Middle Right): This DC barrel connector supplies power to connected devices, typically at a specific voltage. It is commonly used in setups requiring dedicated power inputs, such as monitoring equipment or data communication devices.

• DB9 Connector (Far Right): The DB9 connector, a 9-pin interface, supports RS-232 serial communication, commonly found in legacy computer systems, industrial equipment, and specialized control systems. It enables reliable data transfer for serial applications, making this assembly compatible with older machinery or devices requiring serial port connections







Wiring and Configuration

Each connector is paired with its own cable, likely to handle separate types of signals independently—from power supply to data transmission and analog signals. The combination of multi-connector design and individual cables allows the assembly to meet diverse connection needs within a single, organized solution

Key Features:

• Multi-termination design for versatile applications

• Push-pull circular connector for quick, secure connections in medical and industrial environments

• Durable braided sheath for enhanced abrasion resistance, flexibility, and wear protection

• Combination of signal and power connectors to meet diverse connection requirements within one assembly

• Supports high-frequency data transmission and low-frequency analog signals

Possible Applications

This custom multi-termination cable assembly is ideal for industrial control systems, medical devices, and audio-video setups where a variety of connections are needed in a single, organized assembly. It minimizes cable clutter and optimizes installation efficiency by reducing the number of separate cables required for different devices.

This assembly is especially beneficial for custom applications where varied connectivity (e.g., RS-232 serial communication, analog RCA signals, DC power) is required in an organized, space-efficient manner. It is designed for scenarios where multiple device connections need to be routed through a single, robust assembly—offering streamlined installation, easy management, and professional organization.

 Customized solution

Our cable assemblies are fully customizable to meet your specific connection needs. While we offer a standard 4-in-1 cable configuration, we can also customize the assembly to 5-in-1 cable , 6-in-1 cable, or even higher configurations based on your requirements. This flexibility allows us to integrate multiple connectors within a single cable, providing a streamlined solution for complex setups. Whether you need additional connectors for power, data, or audio/video interfaces, we can tailor the assembly to fit seamlessly with your application.

Let us know your specific needs, and we’ll work to create the ideal multi-termination cable assembly for you!
