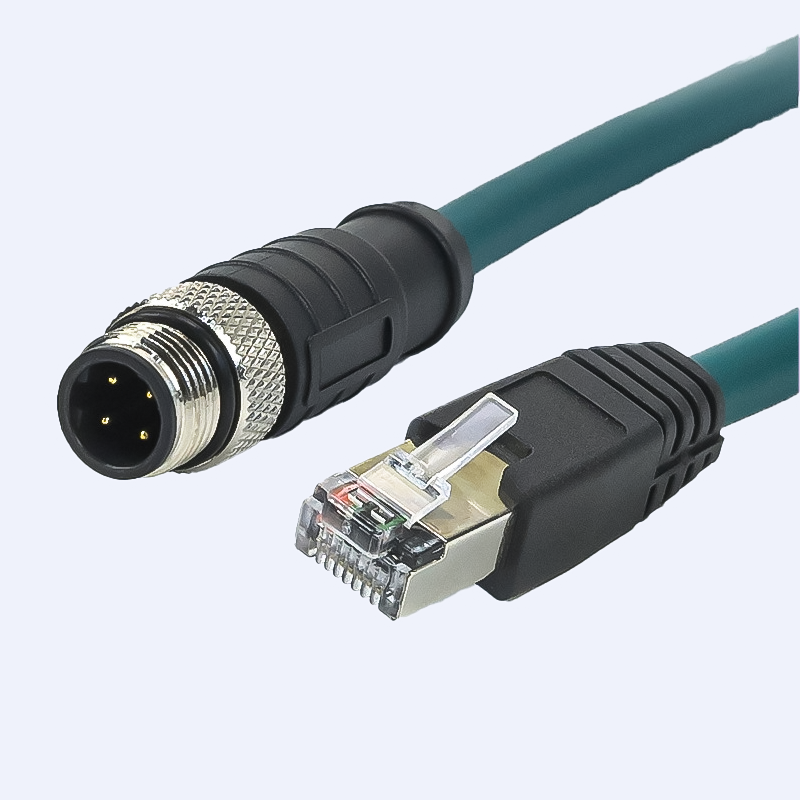

Title: M12 to RJ45 Industrial Ethernet Cable Assembly Solution
Product Description:
This M12 to RJ45 Industrial Ethernet Cable Assembly is a robust and reliable solution designed to meet the rigorous demands of industrial environments. One end of the cable features a 4-pin M12 connector, widely recognized for its durability and secure connections in harsh conditions. The M12 connector is threaded with a knurled metal housing, ensuring a tight, vibration-resistant connection. This design is ideal for applications in automation, industrial networking, and rugged environments where standard connectors may fail.
On the other end, the cable has a standard RJ45 connector—a widely used interface in Ethernet systems for data transmission. The RJ45 connector is compatible with Ethernet cable assemblies and supports connections with various network devices, making it perfect for integrating industrial equipment into Ethernet networks. This connector supports CAT 5e data transmission standards, allowing for high-speed, reliable data transfer with minimal interference.
The cable itself is encased in a durable, industrial-grade jacket, which provides excellent resistance to environmental factors such as moisture, dust, and chemicals. This patch cable Ethernet solution is engineered for longevity, ensuring consistent performance in demanding applications and extended usage. The jacket’s flexibility also allows for easy routing and installation in tight or complex spaces, while its rugged construction makes it resistant to abrasion, making it suitable for moving machinery or high-stress environments.

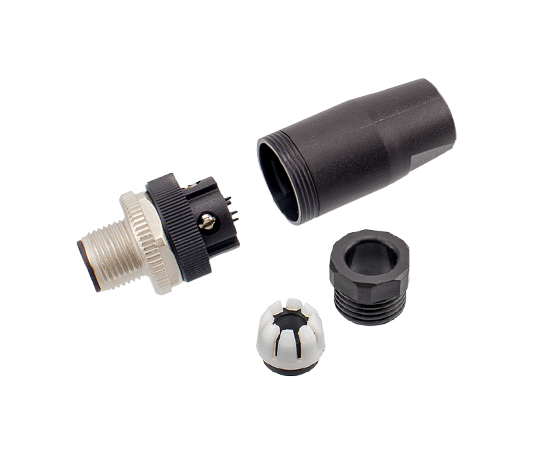

High-Quality M12 4-Pin Connector: Ensures a stable and secure connection for data transmission in industrial environments, with knurled metal housing for easy handling and secure fit.
Standard RJ45 Connector: Supports Ethernet cable assemblies for seamless network integration, compatible with standard LAN equipment, switches, and other Ethernet-enabled devices.
CAT 5e Compatibility: Compliant with cable Ethernet CAT 5e standards, offering reliable data transfer rates suitable for industrial applications that require efficient data communication.
Industrial-Grade Jacket: The cable is protected with a tough, flexible jacket that resists environmental stressors, including moisture, chemicals, and abrasion, extending the cable’s lifespan.
Patch Cable Ethernet Solution: Ideal for connecting industrial equipment to network systems, this cable functions as a patch cable Ethernet link, enabling reliable communication in Industrial IoT, automation, and other networked systems.
This M12 to RJ45 Ethernet Cable Assembly is an essential component for industrial networking, providing a ruggedized and dependable ethernet cable assembly solution that ensures optimal data transmission and device integration in demanding environments.
Connector option
M12 Connector Type:
push pull connector:Push Pull Connector Options for RJ45 Industrial Ethernet Cable Assembly
M12 Connector Material:
RJ45 Connector Shielding:
Cable Type and Length
Cable Category: Available in CAT 5e, CAT 6, or CAT 6a
Custom Cable Length
Cable Type and Length:
Cable Category: Available in CAT 5e, CAT 6, or CAT 6a
Custom Cable Length: Tailor the cable length to suit your setup, from short 0.5m options for compact spaces
Cable Jacket Material:
Standard PVC Jacket: Suitable for general industrial applications, providing a balance between flexibility and durability.
PUR (Polyurethane) Jacket: Offers enhanced flexibility and resistance to oils, chemicals, and abrasions
TPE (Thermoplastic Elastomer) Jacket
Shielding Options:
Unshielded: Ideal for environments with minimal electromagnetic interference (EMI).
Foil or Braided Shielding: For applications with high levels of EMI, select foil shielding or braided shielding to maintain data integrity, ensuring reliable signal transmission even in challenging environments.
Boot Style for RJ45 Connector:
Standard Boot: Provides basic strain relief for regular industrial use.
Slim Boot: Offers a more compact profile for easier routing in tight spaces.
Right-Angle Boot: For applications where the cable needs to run in limited space or against walls, the right-angle boot provides better cable management and protection.
Color Coding:
Custom cable jacket colors (e.g., green, blue, black) are available to help with cable identification and organization within complex setups.
Color-coded connectors or strain reliefs can be added for quick visual identification of different cables in a network.
Temperature Range Options:
Standard Temperature Rating: For general industrial environments.
High-Temperature Rating: For extreme temperature environments, high-temperature-rated cables are available, capable of withstanding temperatures up to 105°C or higher.
Hybrid Cable Options:
Hybrid Data and Power Cable: Combine Ethernet and power lines within a single cable to power remote devices while maintaining data communication. This is ideal for IoT applications, reducing the need for separate power cables.
Hybrid Pneumatic/Electrical Cable : For advanced applications, hybrid cables can be customized to include pneumatic lines along with Ethernet data lines, providing both data and pneumatic control in one solution.
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.

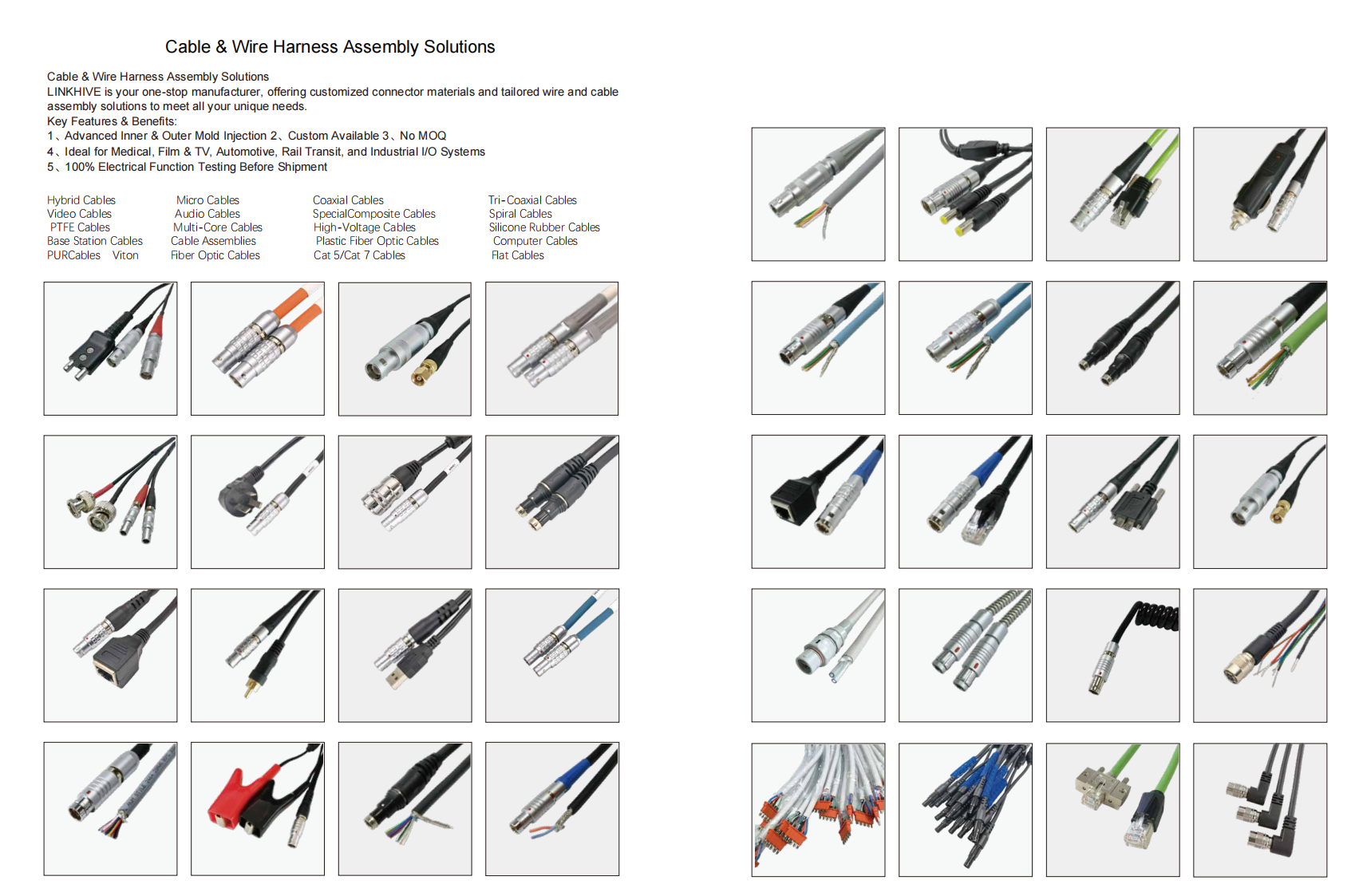

Our Tailored Cable Assembly Solution,High Speed Data Cable Assembly Solutions,Custom RF Coxial Cable Assembly Solution,Mil Spe High Temperature Teflon Shield Cable Assembly,Ethernet Cable Assembly Solution,Flexible Shielded Data Cable Assembly(PVC),Flexiable Shielded Control Cable Assembly(PUR),Medical Hybrid Cable Assembly Solution
