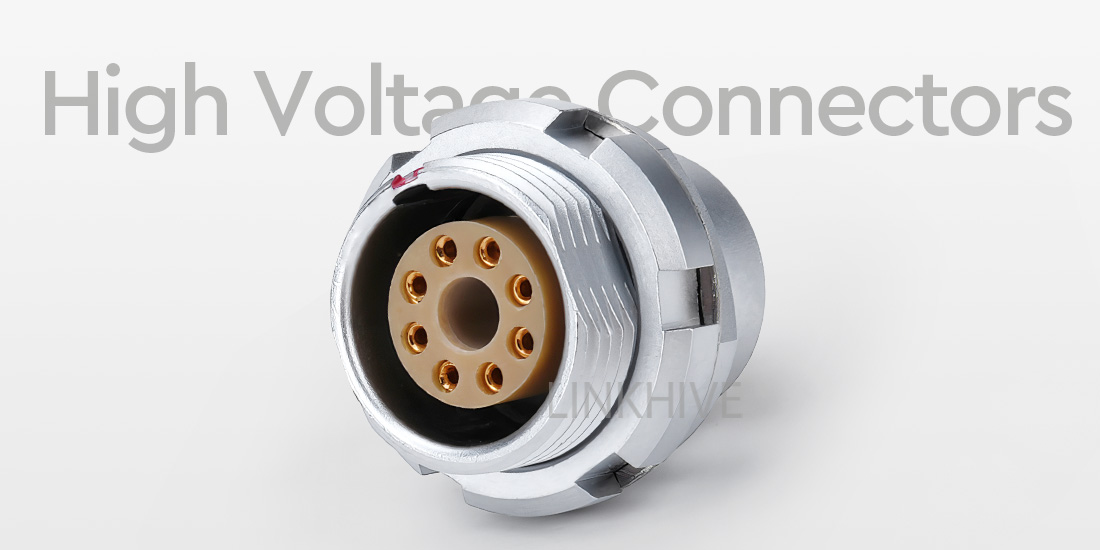

LINKHIVE Circular Metal High Voltage Socket
The LINKHIVE high voltage circular socket is engineered for safe and stable power delivery in high-potential applications. Designed with high-performance insulation geometry and precision-machined contacts, it ensures excellent dielectric strength, creepage distance, and user safety.
This model supports up to 7 high-voltage contacts (as shown) arranged in a circular layout, with optimized spacing to prevent arc-over. Its robust metal housing offers EMI shielding and IP68-rated sealing against water and dust, even in harsh environments.
Combined with the LINKHIVE push-pull plug, this socket enables fast, secure, and tool-free connection—ideal for portable devices, power supplies, imaging systems, and more.
Key Features
Supports up to 5 kV depending on pin layout
7-pin multipole high-voltage configuration
PTFE or high-grade polymer insulation for superior dielectric strength
Push-pull locking system for quick and secure mating
Metal shell with IP68 rating, offering excellent shielding and protection
Red alignment indicator for error-free connection
Ideal for medical equipment, test benches, laser systems, and industrial HV setups
Independently insulated high voltage contacts.
The voltage can reach up to 23KV.
High Packing Density: Designed to save space while maintaining performance.
360-degree shielding provides all-round EMC protection (anti-electromagnetic interference).
Internal semicircular ring positioning to avoid wrong insertion.
Specification
Maximum Humidity: | up to 95% at 60°/140°F |
Locking type: | high voltage push pull connector |
Endurance: | 5000 cycles |
Shock resistance: | 100g,6ms |
Salt spray corrosion test: | 96hr |
Resistance to Vibration: | 15g[10Hz~2000Hz] |
Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
Working Temperature: | -55°~+125° |
Connector Series: | High Voltage |
Gender: | high voltage socket/high voltage receptacle |
Oreentation type: | Straight |
Insulation material: | PPS/PEEK/PTFE/PPSU |
Shell material: | Chrome-plated brass/high voltage circular metal socket |
Test Voltage (contact-contact): | 1450 |
Test Voltage (contact-shell): | 1000 |
Insulation resistance: | ≥5000MQ 600V DC |
Contact resistance: | 6.5 |
IP rating: | IP68 |
Application Areas
Power industry:
high voltage socket is used for equipment connection in places such as high-voltage transmission lines, substations, and power plants. In the process of high-voltage power transmission and distribution,high voltage receptacle ensures the safety and reliability of the connection.
Industrial manufacturing:
high voltage connector Suitable for the connection of industrial equipment such as high-voltage motors, transformers, and high-voltage switchgear. Provide stable high-voltage power supply for industrial production, improve production efficiency and equipment reliability.
Scientific research experiments:
In scientific research laboratories, high voltage circular metal socket is used to connect high-voltage experimental equipment. Provide safe and accurate high-voltage connections for scientific researchers to facilitate the smooth progress of scientific research.
Communications field:
high voltage socket can be used for the connection of high-voltage communication equipment, such as base stations, antennas, etc. Ensure the normal operation of communication equipment in a high-voltage environment and improve communication quality and stability.
Linkhive Circular High Voltage Push Pull Connector
MINI SANP F Series high voltage connector high voltage receptacle | MINI SANP F Series high voltage connector high voltage receptacle | MINI SNAP L high voltage connector high voltage receptacle |
high voltage push pull connector |  high voltage push pull connector |  high voltage push pull connector |
|
|
|
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.
