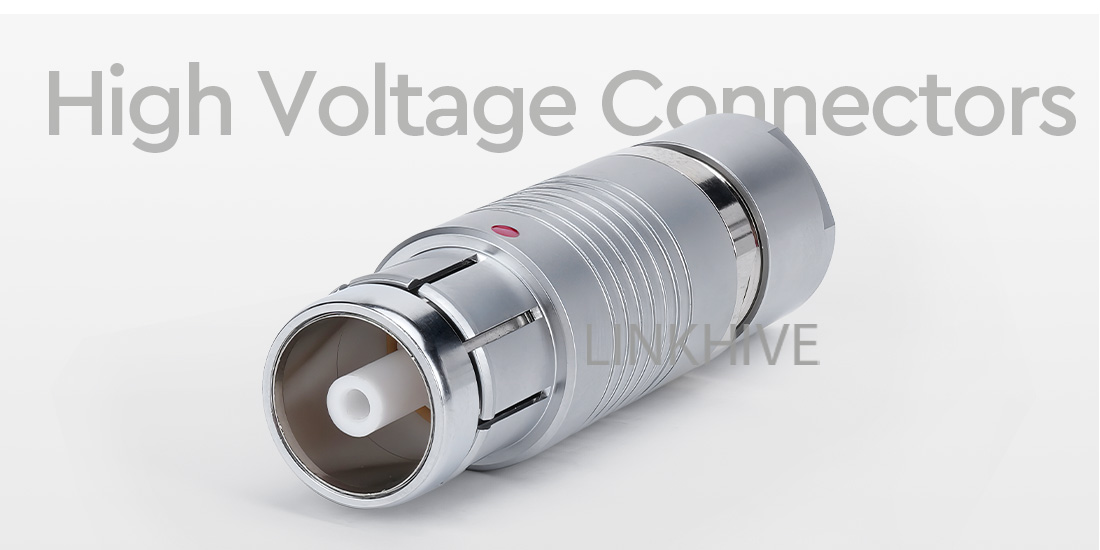

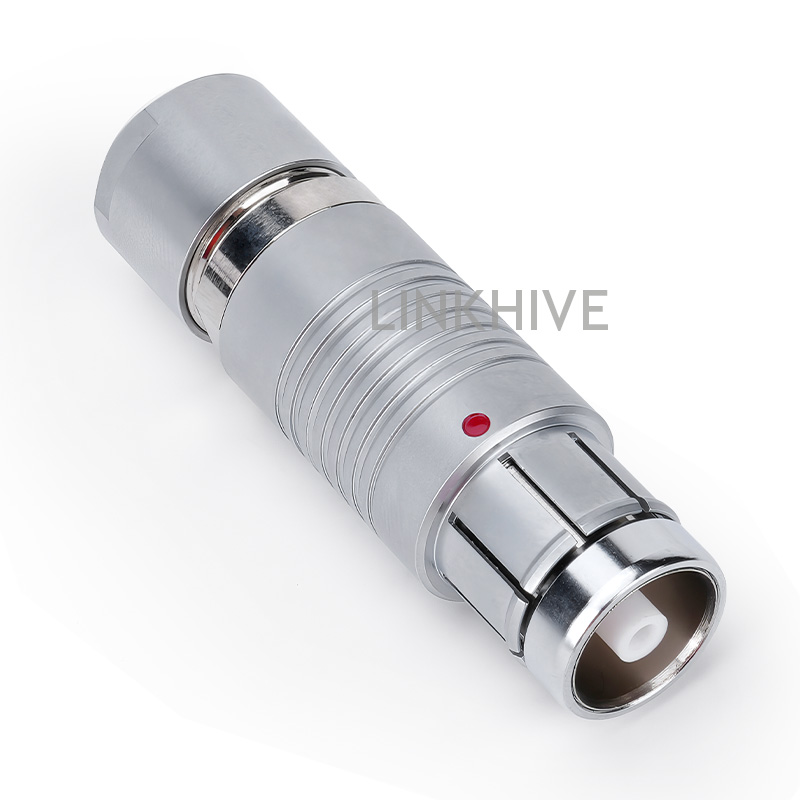

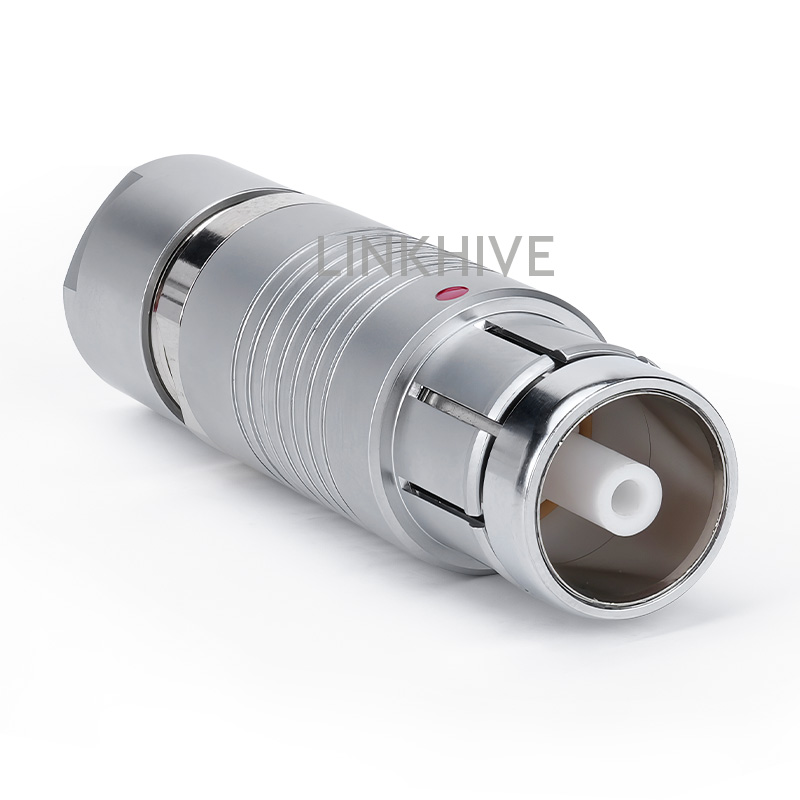

Linkhive High Voltage Push Pull Straight Connector
LINKHIVE high voltage circular connectors are designed for applications requiring secure, high-insulation and compact power connections. Available in coaxial or multipole versions, these connectors deliver excellent dielectric strength and user safety.
The push-pull locking mechanism ensures secure mating and quick disconnection, minimizing risk in high-voltage setups. The metal shell provides 360° shielding and rugged mechanical protection, while the insulator geometry guarantees safe creepage and clearance distances.
Key Advantages
Rated for high-voltage applications up to 23 kV depending on configuration
Available in coaxial, single-pole, and multipole variants
Push-pull self-latching system for secure and fast mating
Robust metal shell with enhanced shielding
High-performance insulation to prevent breakdown and arc-over
Ideal for medical imaging, test & measurement, and industrial power supply systems
Optimized insulation system ensures electrical safety
Customizable pin layouts for specific applications
Metal Plug Applications
X-ray equipment
High-voltage power supplies
Laboratory test benches
Electric propulsion systems
Laser systems and high-voltage pulse devices
Metal Plug Specification
| Maximum Humidity: | up to 95% at 60°/140°F |
| Locking type: | push pull connector |
| Endurance: | 5000 cycles |
| Shock resistance: | 100g,6ms |
| Salt spray corrosion test: | 96hr |
| Resistance to Vibration: | 15g[10Hz~2000Hz] |
| Shielding Efficiency: | 75dB(10MHz) 40dB(1GHz) |
| Working Temperature: | -55°~+125° |
| Connector Series: | High Voltage |
| Gender: | high voltage plug |
| Oreentation type: | Straight |
| Insulation material: | PPS/PEEK/PTFE/PPSU |
| Shell material: | Chrome-plated brass |
| Test Voltage (contact-contact): | 1450 |
| Test Voltage (contact-shell): | 1000 |
| Insulation resistance: | ≥5000MQ 600V DC |
| Contact resistance: | 6.5 |
| IP rating: | IP68 |

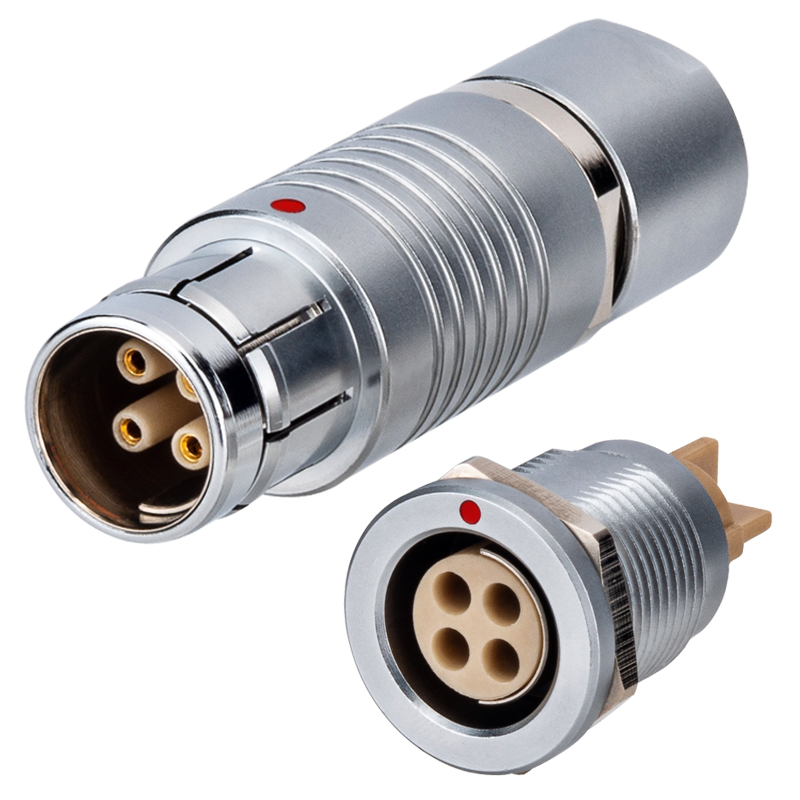

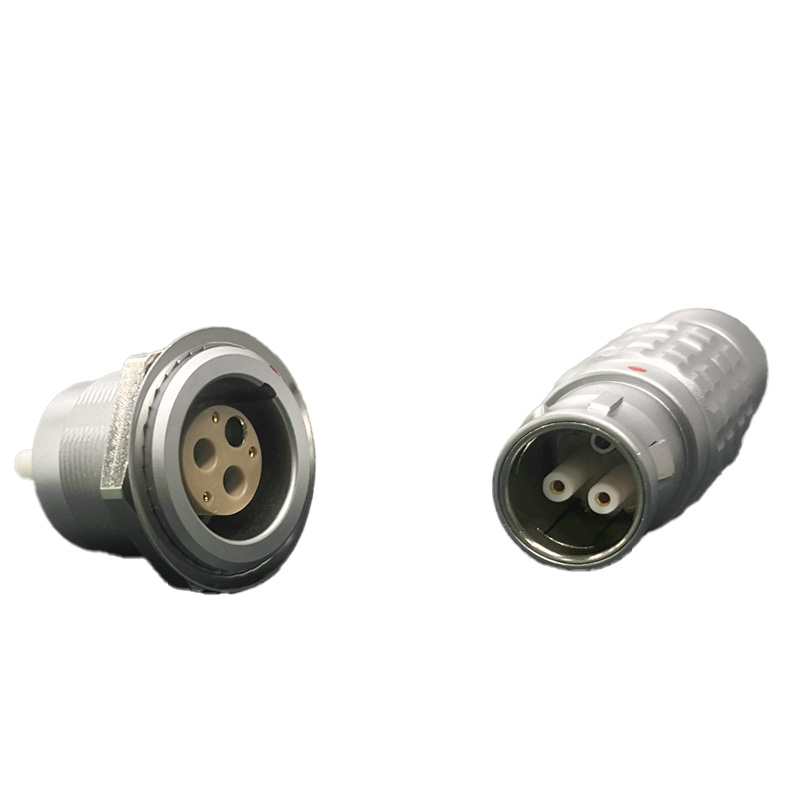

Linkhive Circular High Voltage Metal Plug
| F series | F series | F series |
|  |  high voltage plug |
| high voltage plug | high voltage plug | high voltage plug |
|
|
|
