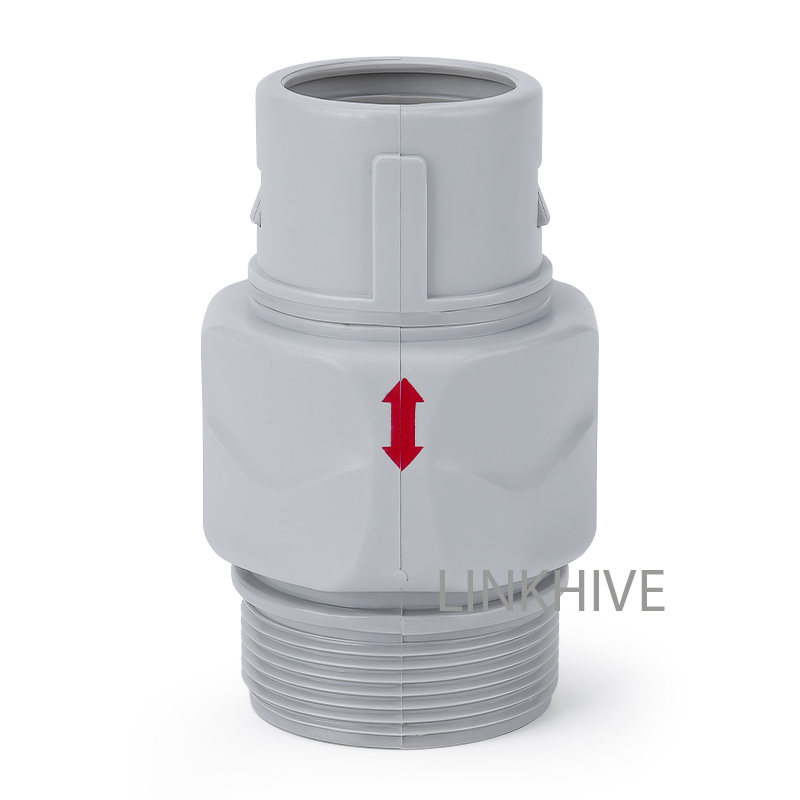

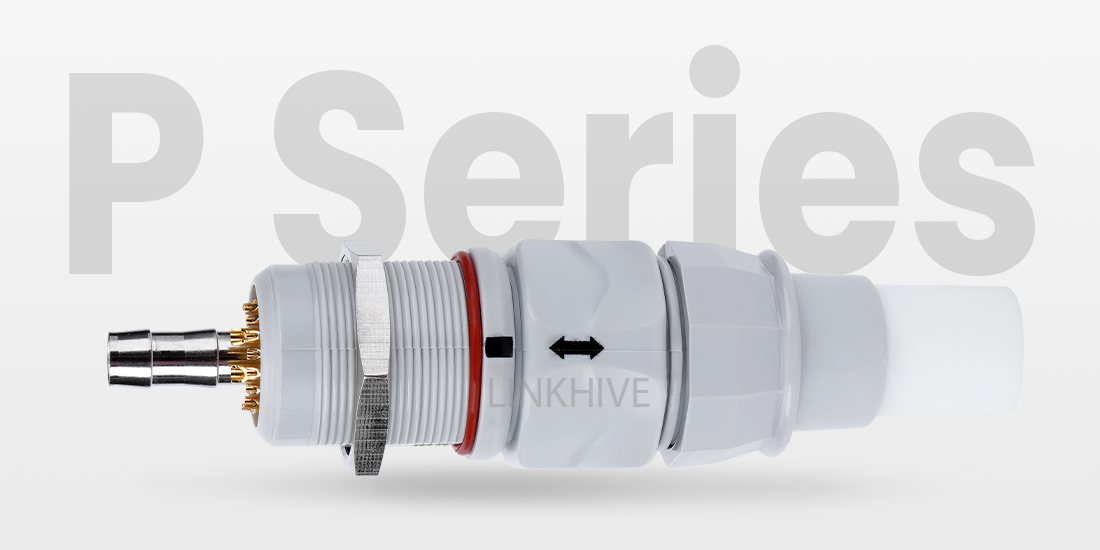

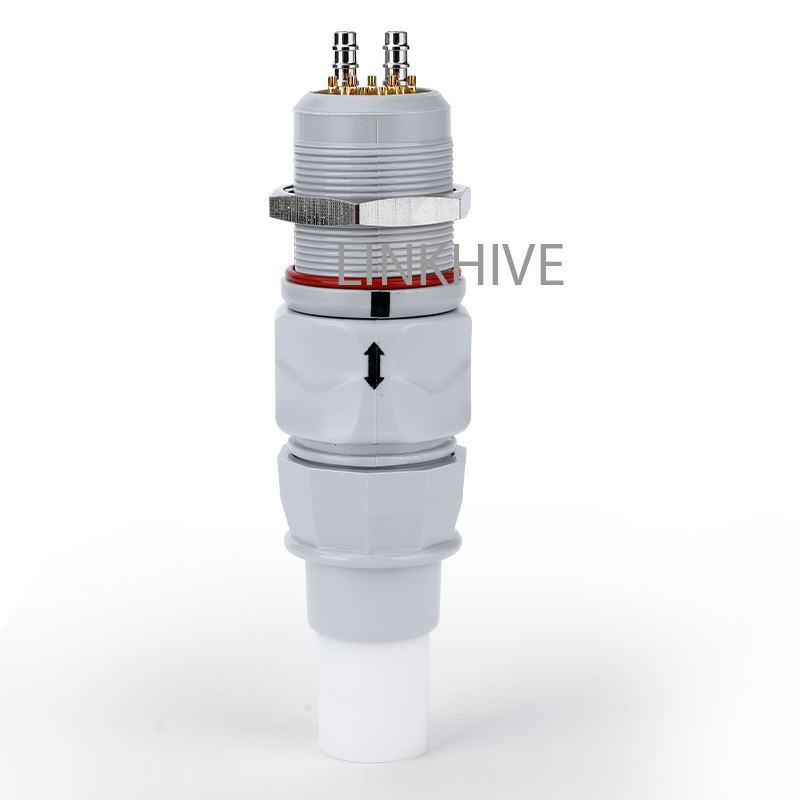

FGG 4P Plastic fluidic/pneumatic circular push pull connector
The FGG 4P Plastic Fluidic/Pneumatic Circular Push Pull Connector is designed for high-precision environments where fluid, gas, or hybrid signal transmission is required in a compact form factor. This connector features a rugged yet lightweight plastic housing resistant to sterilization methods such as autoclave, ETO, or gamma radiation.
Equipped with a reliable push-pull self-latching system, the connector guarantees secure connections while allowing for quick and effortless mating/unmating, reducing wear and operator error. The coaxial tube design ensures reliable flow alignment and pressure stability, supporting fluidic channels up to 2 bar and electrical signal paths with coaxial shielding.
plastic medical connectors Overview
| Straight plastic plug | fixed socket |
|  |
| FGG Plastic plug | EGG |
 |  |
| FGG plastic plug | EGG |
| Fluidic configuration | |
Technical Features
Connector Type: Push Pull, circular
Contact Type: Multipole / Hybrid / Coaxial / Fluidic
Number of Channels: 4P (up to 4 fluid or pneumatic lines)
Ingress Protection: IP50 / IP64 (Splash proof)
Operating Environment: Indoor use
Temperature Range: -50°C to +150°C (PPSU material)
Termination Style: Solder or Crimp
Cable Diameter Compatibility: 8.5 mm to 11.2 mm
Material & Durability
High-performance PSU housing (PPSU or PBT)
Resistant to autoclave, ETO, and gamma sterilization
2000 mating cycles
Applications
Medical instruments (fluid management, blood pressure tubing, ECG)
Pneumatic and gas sampling devices
Coaxial signal + fluid hybrid applications
Laboratory equipment and diagnostic analyzers
Whether you're routing coaxial cable signals or delivering fluids through a controlled environment, the FGG 4P Plastic Push Pull Connector ensures long-term, sterile, and secure performance.
Diamensions
 |
|

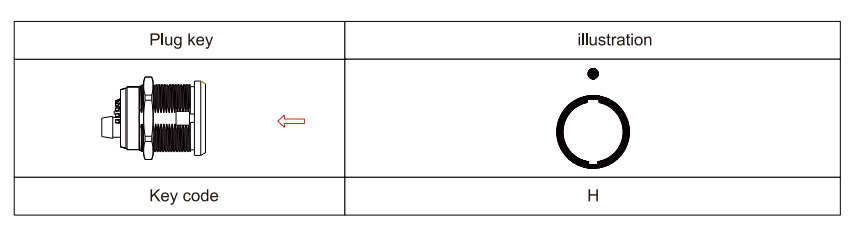

Alignment key
How to Select the Right Plug for Your Application
Define Functional Requirements:
Determine required number of electrical contacts and fluidic channels (e.g., 13+1 or 9+2).
Select Fluidic Channel Dimensions:
Choose based on tubing size: OD7–8mm for main fluid supply or OD4mm for precision dosing.
Assess Mechanical Requirements:
Consider push-pull engagement for frequent connections or low-profile housings for compact designs.
Verify Compatibility:
Ensure connector matches mating receptacles (EGG series fluidic circular sockets).
Large Size FGG 4P Plastic fluidic/pneumatic circular push pull connector Selection
| Model | No. of Contacts | Fluidic Channels | Contact Size (mm) | Fluidic Tube Size | Description | Application | |
|---|---|---|---|---|---|---|---|

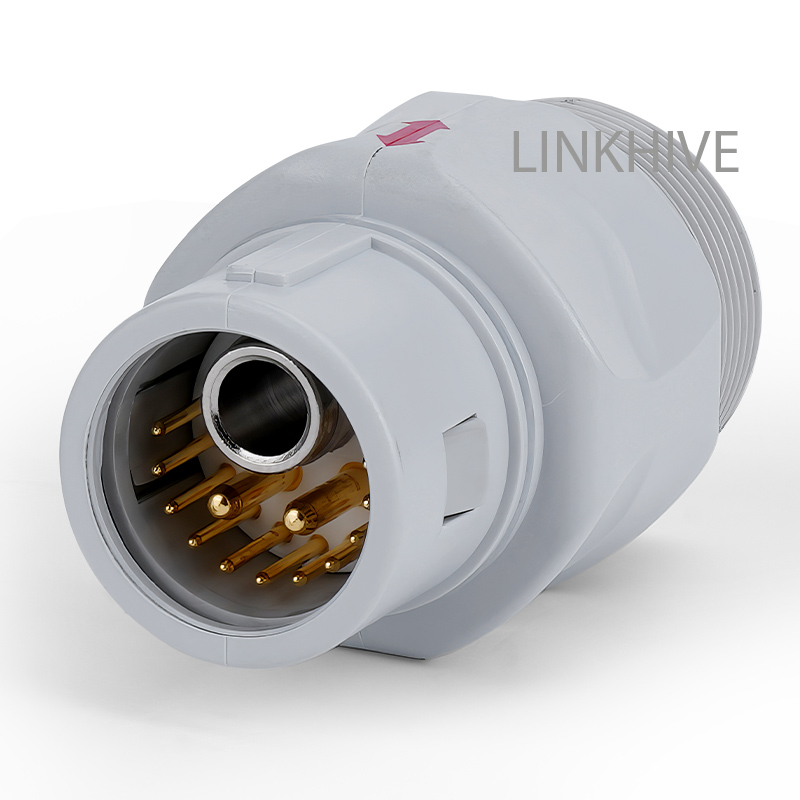

| FGG.4P.113.PLW D95G |  | 13 + 1 | Single channel | Ø0.9–1.3 | OD7.0 / ID5.0 & OD8.0 / ID6.0 | High-reliability fluidic/pneumatic plastic connector for combined electrical and fluid applications | Diagnostic instruments, lab analyzers |

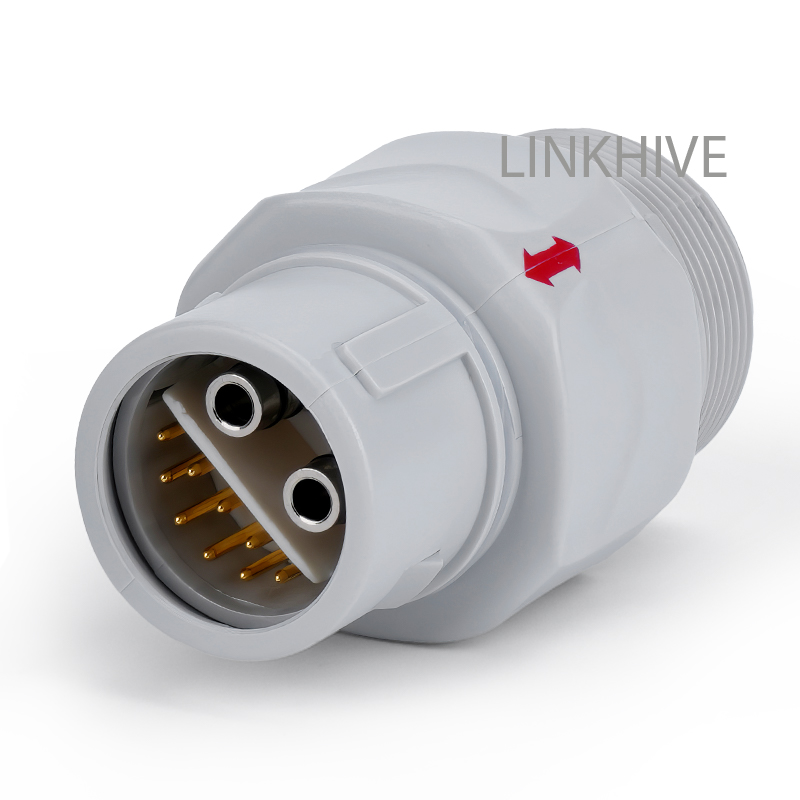

| FGG.4P.209 PLW D85G |  | 9 + 2 | Dual channel | Ø0.9 | OD4 / ID2.5 (x2) | Multi-channel plastic push-pull connector with 9 electrical contacts and 2 fluidic channels | Dialysis machines, multi-fluid medical systems |
Expertise in Fluidic + Electrical Integration – Specialized in pneumatic and electrical hybrid connectors for complex medical and industrial systems.
Custom Engineering Solutions – Full customization for contact layout, fluidic tube dimensions, and material selection.
Reliable Performance – All connectors undergo rigorous hermetic sealing, durability, and cycling tests to ensure safety in critical applications.
Fast Delivery & Global Support – Two-week lead time and technical support for seamless integration into your systems.
🔷 Metal fluidic connector
BP12 and BP15 are widely used in medical equipment, instrumentation and duct interconnection, etc., and can achieve quick connection and disconnection
📊LINKHIVE FGG 4P Plastic fluidic cable connectors – Series Overview
 |  |  |  |  |  | |
| Series | 2A | 0P | 1P | 2P | 3P | 4P |
| small size | sub-miniature size | miniature size | small size | Medium size | large size | |
| Environment | Indoor / Splash proof | Indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof | indoor / Splash proof |
| Ingress Protection | IP67 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 | IP50 / IP64 |
| Temperature Range | -50°C to +200°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C | PSU: -50آ°C to +150آ°C |
| Latching | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors | Push Pull connectors |
| Insulator Type | Multipole | Fluidic | Multipole, Power, Fluidic | Multipole, Coaxial,Fluidic Hybrid | Multipole,Hybrid , Coaxial , Fluidic | Multipole,Hybrid , Coaxial, + Fluidic |
| Contact Type | Solder / Crimp | Solder / Crimp | Solder / Crimp | Solder / Crimp / PCB | Solder / Crimp | Solder / Crimp |
| Cable Diameter | 6.0mm-9.0mm | 1.5mm-4.2mm | 4.2 mm to 6.5mm | 5.2 mm to 9.2 mm | 8.5 mm to 11.2 mm | 9.5 mm to 13mm |
| Collet Sizes | 42/52/62/72mm | 42/52/62/72 | 42/52/62/72 | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) | 85 = (cable ⌀ 7.6 mm – 8.5 mm) 95 = (cable ⌀ 8.6 mm – 9.5 mm) 105=(cable ⌀ 9.6 mm – 10.5 mm) 115=(cable ⌀ 10.6 mm – 11.5 mm) 125=(cable ⌀ 11.6 mm –12.5 mm) | |
| Keying Options | halfshell | G | 4 keyways | Cust | H |
Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.

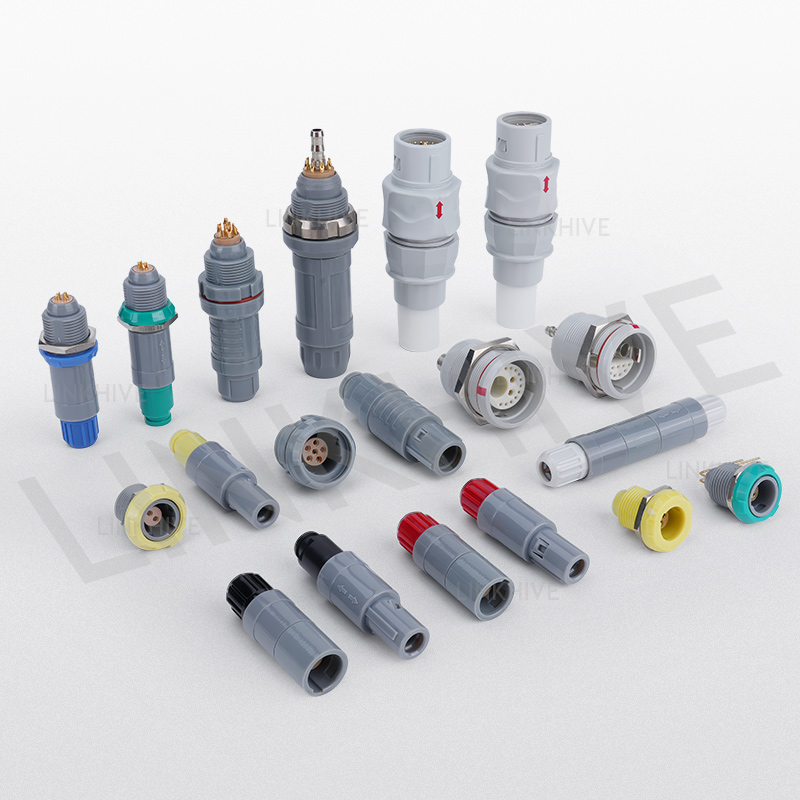

LINKHIVE's circular plastic push pull connectors offer a reliable and lightweight solution for demanding applications in medical, diagnostic, and industrial equipment. Designed with a robust self-latching mechanism, these plastic connectors ensure safe and secure connections while allowing quick and effortless disconnection. The housings are made from high-performance thermoplastic materials, providing excellent resistance to sterilization, chemicals, and mechanical stress. Available in multiple sizes, color codes, and contact layouts, our plastic push pull connectors are ideal for applications requiring frequent mating cycles and uncompromised electrical or fluidic performance. A trusted choice for modern circular plastic connectors and laboratory systems.
