Product Description:

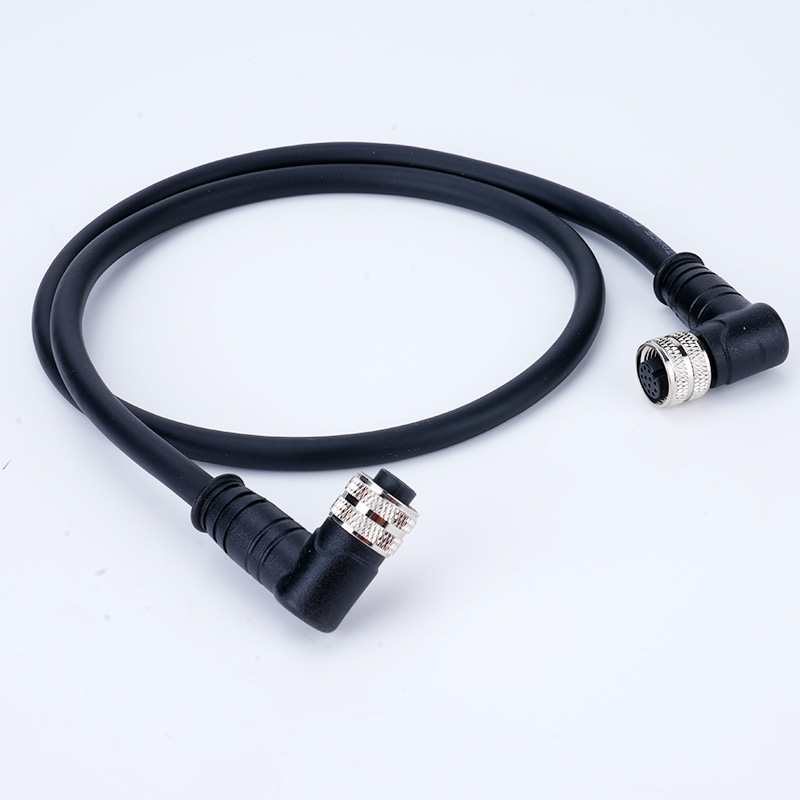

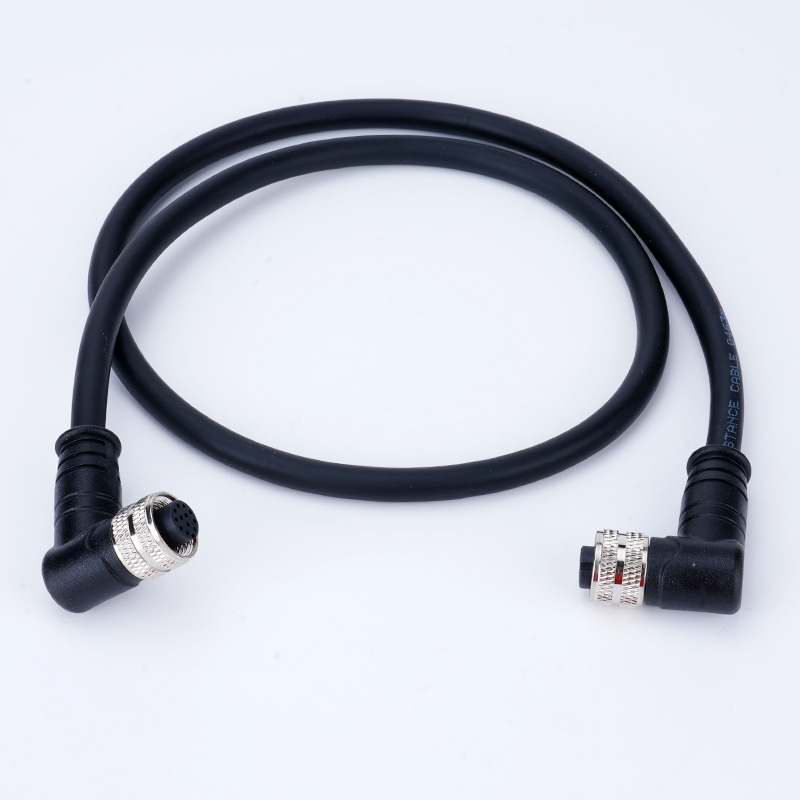

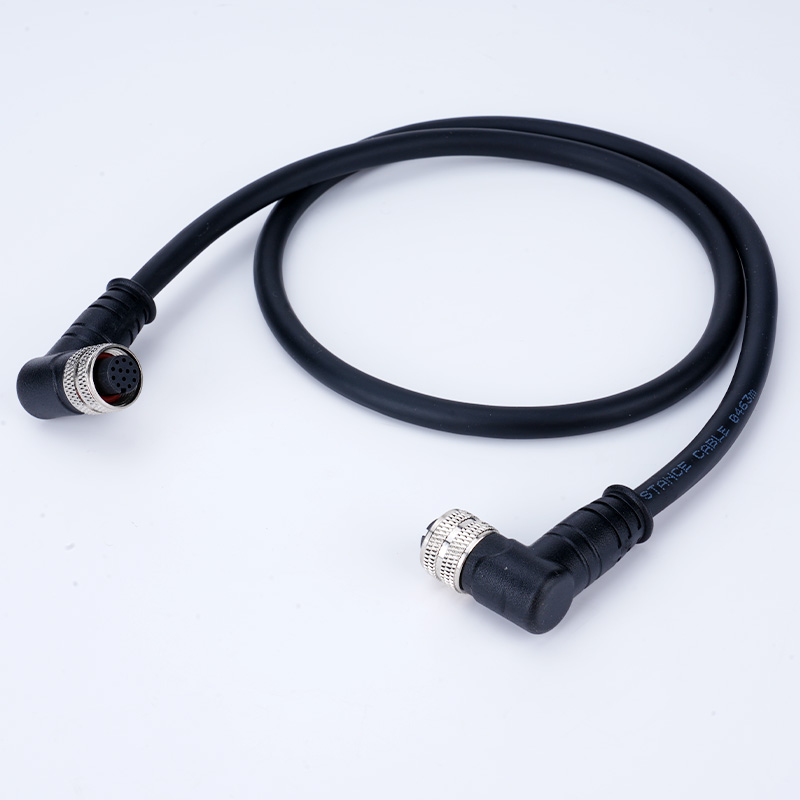

The M Series Double Ended Cable Assembly utilizes advanced thermoplastic injection molding solutions to deliver a highly durable and flexible connection. This overmolded cable assembly features dual-end connectors, each designed with a right-angle configuration for optimized space-saving in tight installations. The thermoplastic molding not only provides a seamless, protective layer but also enhances the cable’s resilience in industrial environments requiring frequent movement and reliable connectivity.
Product Description
Connector Design: Both connectors on this double-ended cable assembly are right-angle types, designed to facilitate installation in restricted spaces by allowing the cable to run perpendicular to the connector interface.
Dual-End Molding: Each end of the cable is crafted with dual-end molding through precise thermoplastic injection molding processes. The plastic injection molding services used in manufacturing add an additional layer of protection, ensuring the cable assembly's durability over prolonged use.
Connector Interface: Featuring a female pin configuration, the circular connector interface is designed to establish stable and reliable connections, with multiple contact points securely housed within the connector shell.
Cable Material: The cable is insulated with a durable black coating, typically composed of thermoplastic materials chosen for their flexibility, abrasion resistance, and environmental protection.
Key Advantages of Double Ended Thermoplastic Injection Molding Cable Assembly
Durable Overmolded Design
Space-Saving Right-Angle Connectors
Enhanced Strain Relief
Environmental Resilience
Stable Performance Under Vibration
Secure Connection with Precision Fit
Cost-Effective Molding Solution
Versatile Across Industries
.
Applications: This M Series Double Ended Cable Assembly, utilizing thermoplastic molding and plastic injection molding services, is well-suited for use in industrial, automotive, and instrumentation environments. The overmolded cable design with dual-end molding ensures reliability and stability, making it ideal for applications where frequent movement or limited space may present challenges. The right-angle connectors and rugged molding solutions enhance durability, making this assembly a preferred choice for high-performance industrial applications.

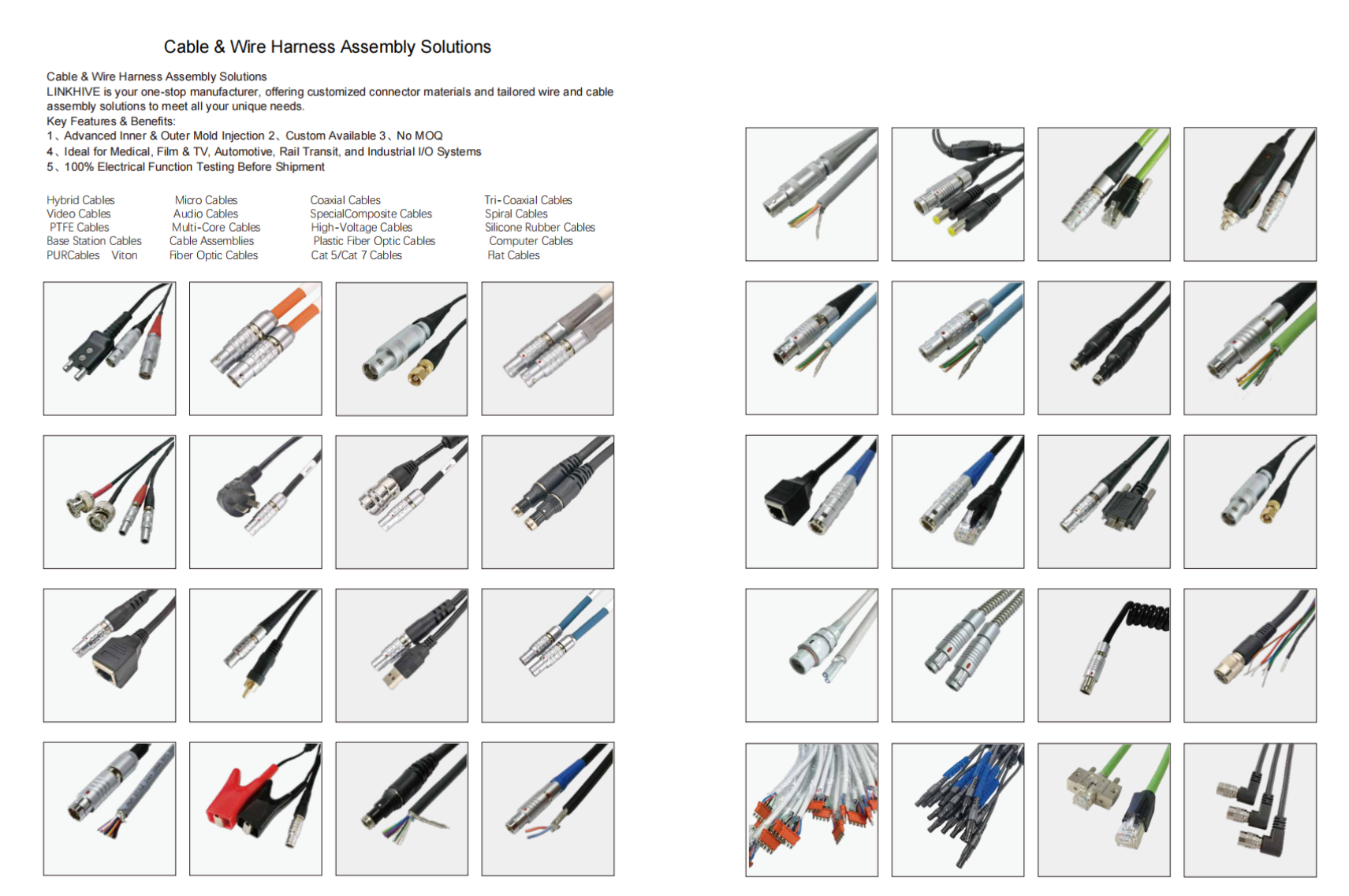

Cable & Wire Harness Assembly Solutions
LINKHIVE is your one-stop manufacturer, offering customized connector materials and tailored wire and cable
assembly solutions to meet all your unique needs.
Key Features & Benefits:
1、Advanced Inner & Outer Mold Injection 2、Custom Available 3、No MOQ
4、Ideal for Medical, Film & TV, Automotive, Rail Transit, and Industrial I/O Systems
5、100% Electrical Function Testing Before Shipment

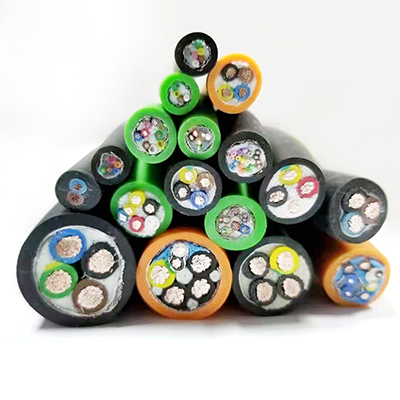

Hybrid Cables Micro Cables Coaxial Cables Tri-Coaxial Cables
