Product Description:

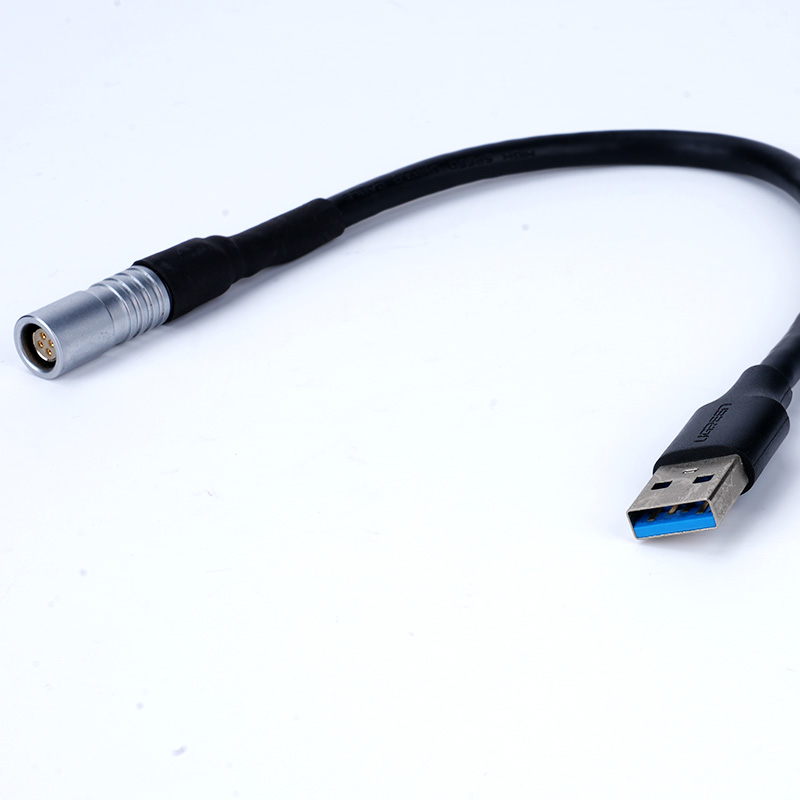

This USB 3.0 to Push Pull Connector Cable Assembly is a high-quality, superspeed USB cable designed for fast data transfer and reliable connections. Ideal for use in industrial, medical, and specialized environments, this cable offers a durable and secure solution for connecting USB-enabled devices to equipment with a push-pull connector. Built by custom cable manufacturers with a focus on precision, this cable ensures stable performance and compatibility for critical applications.
The precision cable assembly process includes options for customization, allowing you to tailor the connector type, cable length, and insulation material to meet specific requirements. This flexibility makes it suitable for users who need high-quality USB to connector solutions that can withstand demanding conditions and deliver consistent results.
Whether you're looking for a solution that supports rapid data transfer, secure connectivity, or unique specifications, this USB 3.0 cable is designed to meet diverse application needs.
Detailed Description:

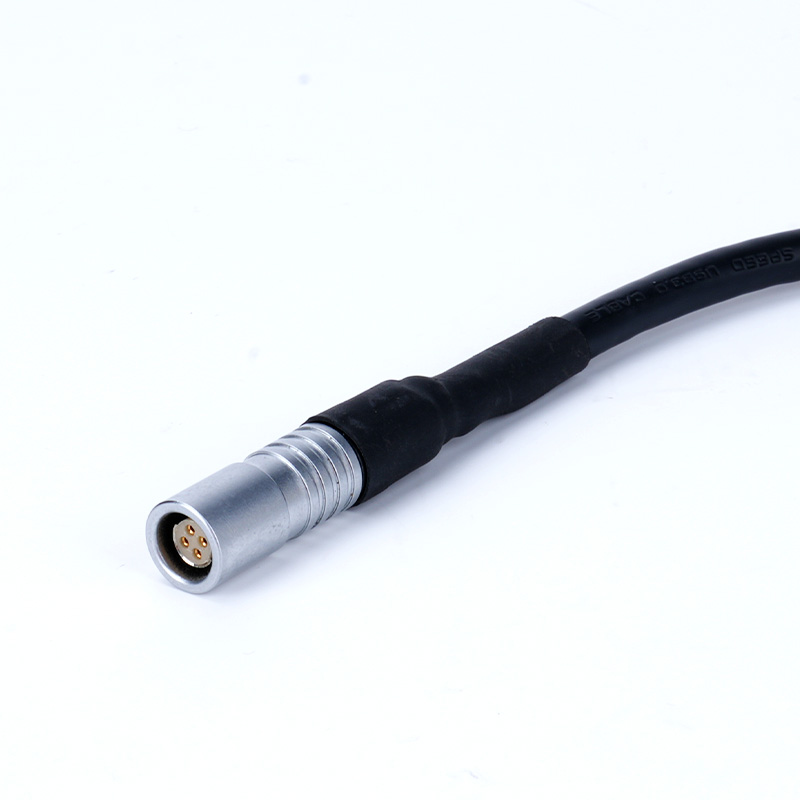

Push-Pull Circular Connector End:
Material: The circular connector appears to be made from a durable metal, likely aluminum or stainless steel, which provides excellent resistance to corrosion and physical wear.
Connector Design: It is designed with a push-pull locking mechanism, which allows for secure, quick connections and disconnections.
Pins: The circular connector has visible contact pins inside, arranged in a multi-pin configuration.

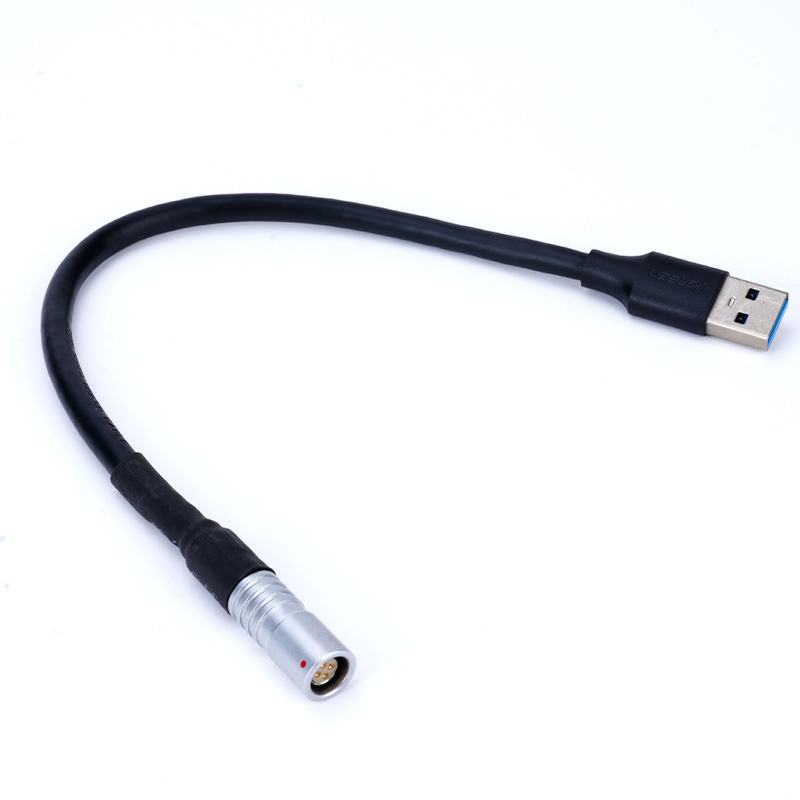

Indicator Mark: A small red dot on the connector helps with alignment, ensuring easy and precise connection to the mating port.
USB-A Connector End:
Type: This is a standard USB-A 3.0 connector, identifiable by its blue plastic insert. USB 3.0 provides high-speed data transfer, making this cable ideal for data-intensive applications.
Construction: The USB end has a reinforced joint, providing strain relief to prevent bending or damage, especially during repeated use.
Cable and Insulation:
Material: The cable itself is coated with a black, flexible insulation, likely made from PVC or TPE, which offers protection and flexibility for various installations.
Length: While the exact length is not visible, the cable is long enough to provide flexibility without excess, suitable for connecting devices at a moderate distance.
Custom Wire Harness
Customizable Options for USB to Push-Pull Circular Connector Cable:
Connector Customization:
Pin Configuration:
Connector Material:
Push-Pull Mechanism
Cable Length:
Length Options:
Cable Insulation and Shielding:
Insulation Materia
Shielding Options
USB Connector Type
USB Variants: Customize the USB connector to different types, such as USB-A, USB-B, USB-C, or USB 3.0/3.1 or r USB 2.0 versions, based on your device’s compatibility and data transfer needs.
Data and Power Capabilities:
Power and Data Requirements: Customize the cable to handle various power levels or data transfer speeds, including high-power options or high-speed data transmission for applications like HD video transfer or rapid data acquisition.
Color Coding and Labeling:
Color Options: Select different colors for the cable sheath or connectors for easy identification in complex setups.
Custom Labeling: Add custom labeling or tags for better organization and quick identification, especially useful in industrial and medical environments.
Application:
cables like this one with a USB-A to push-pull circular connector are used to link:
Medical devices (e.g., monitoring equipment) to computers for data transfer
Industrial automation equipment for control and diagnostics
Cameras or sensors in setups requiring stable connections
Audio or video devices that need secure, high-speed data transmission

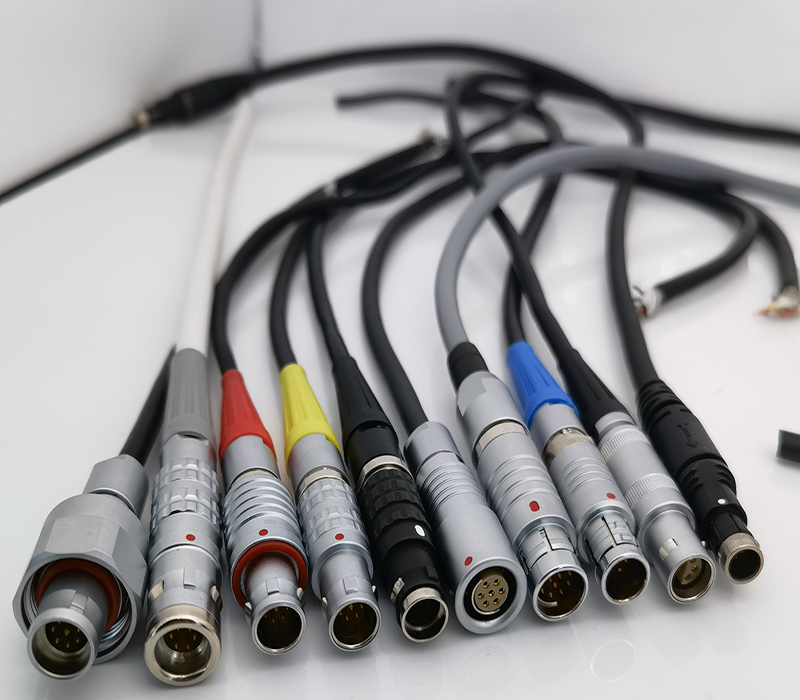

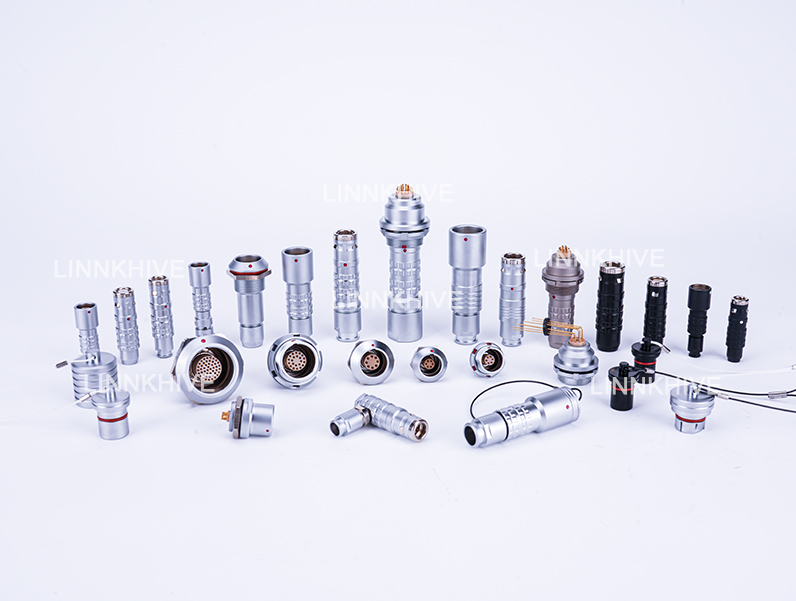

Push-pull connectors, military connectors, hybrid connectors, bayonet connectors, custom connectors, cable assembly, and etc.
We are manufacturer of connectors and cables with 10 years experience.
If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.
International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing.
The quality and structure of the cable, cabling process, and cable length are critical factors that directly influence the performance of your interconnect solution. The interface between the cabled connector and the device’s transmitter and receiver is also essential to ensure that the entire system meets your industry standards and operational requirements.

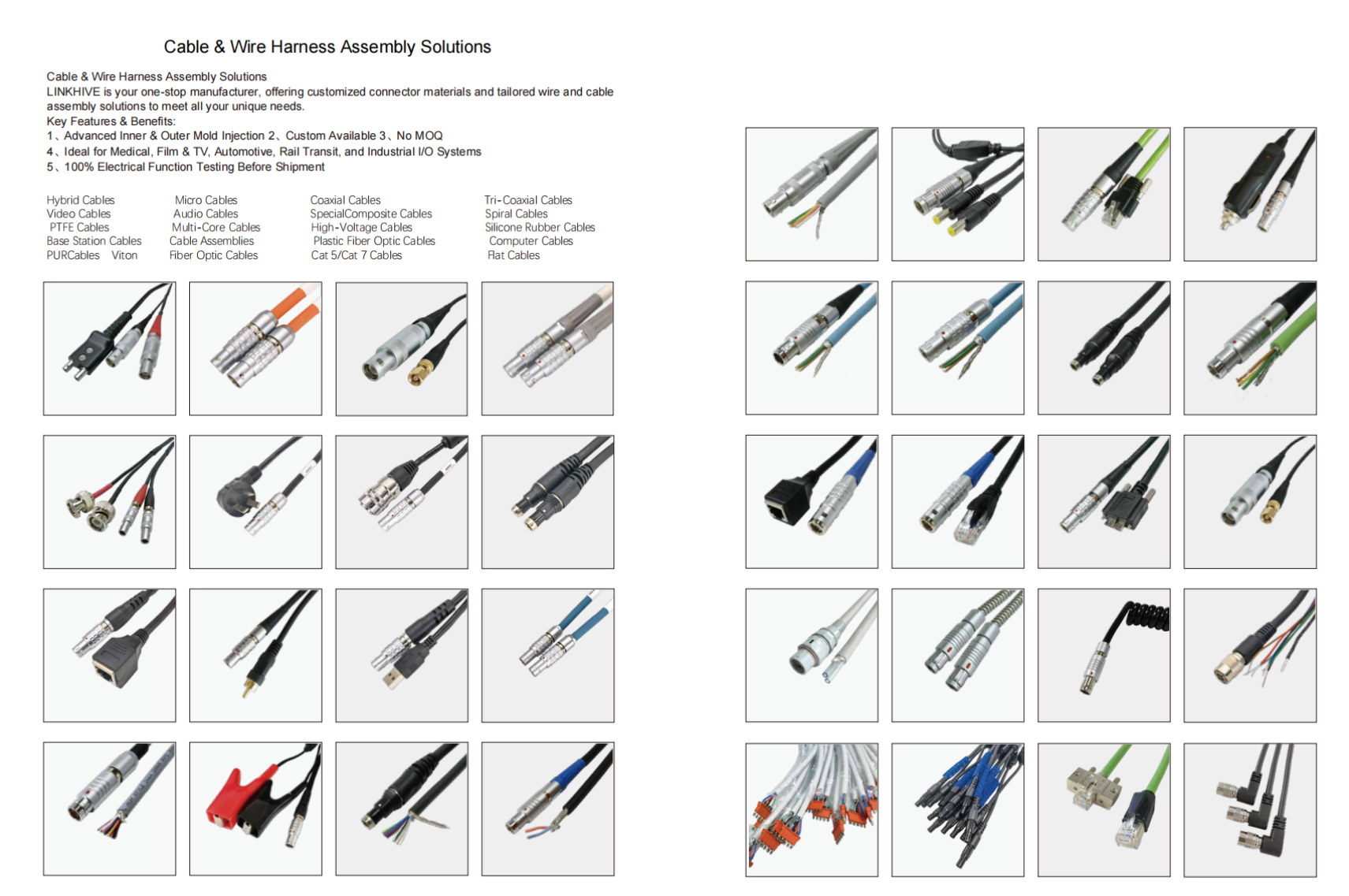

Our Tailored Cable Assembly Solution,High Speed Data Cable Assembly Solutions,Custom RF Coxial Cable Assembly Solution,Mil Spe High Temperature Teflon Shield Cable Assembly,Ethernet Cable Assembly Solution,Flexible Shielded Data Cable Assembly(PVC),Flexiable Shielded Control Cable Assembly(PUR),Medical Hybrid Cable Assembly Solution
