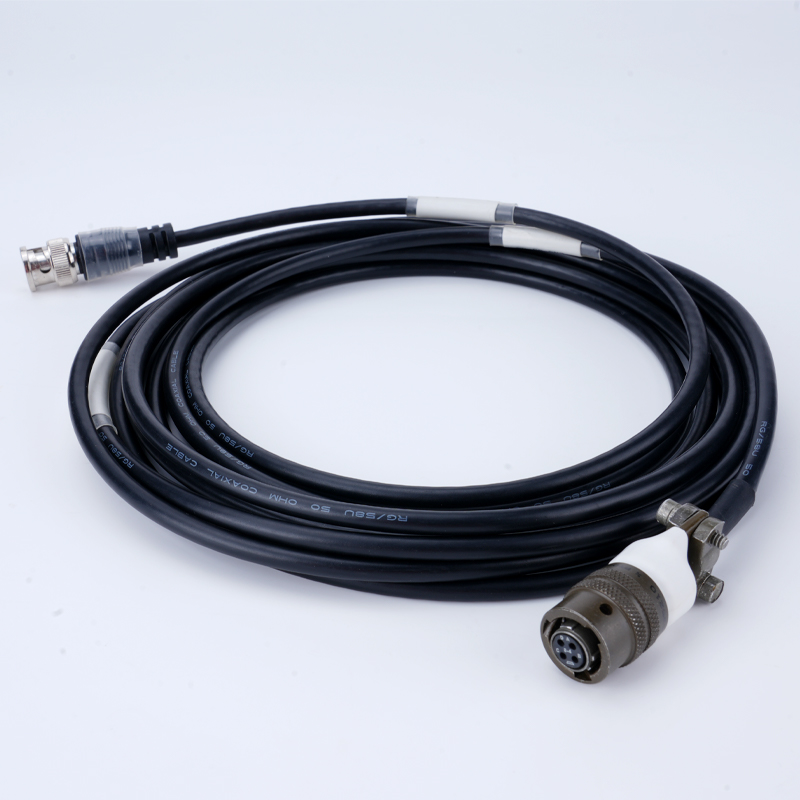

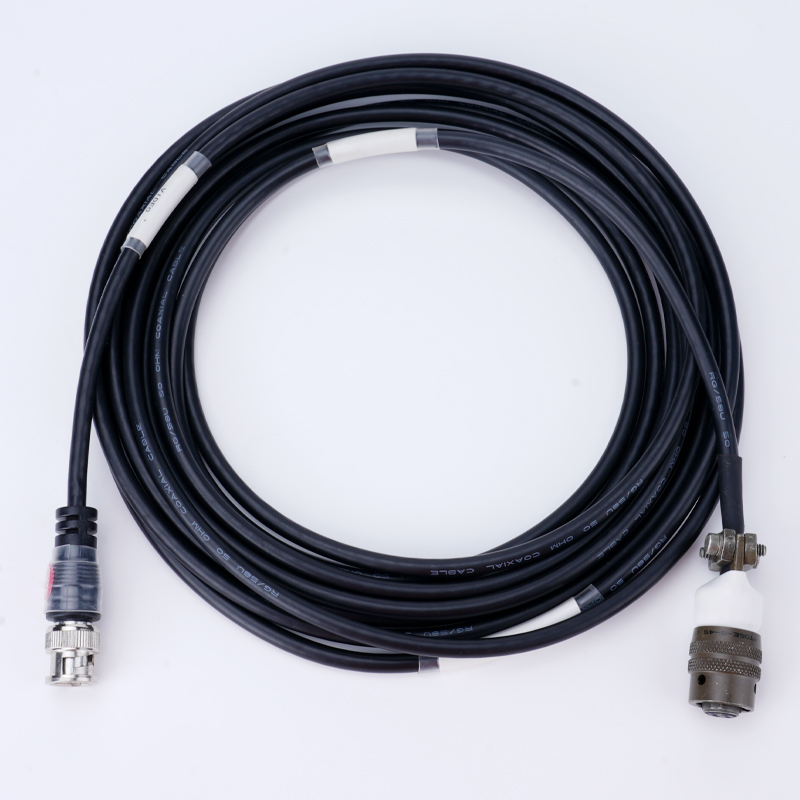

Custom BNC to Push Pull Connector RF Cable Assembly
This RF cable assembly solution is a custom-designed, high-quality cable with robust connectors, perfect for demanding applications. The black, thickly insulated cable is designed for durability and reliability, ideal for industrial or outdoor environments requiring secure data or signal transmission. As a custom RF cable product, this assembly features precision-engineered connectors to ensure stable connectivity and minimal signal loss.
With our expertise as wire and harness manufacturers, we ensure this RF cable assembly meets the highest quality standards, making it suitable for fields like military, aviation, and industrial automation. Our RF cable assemblies are designed to withstand harsh conditions, providing dependable performance and secure connectivity tailored to meet specific industry requirements.
Connectors

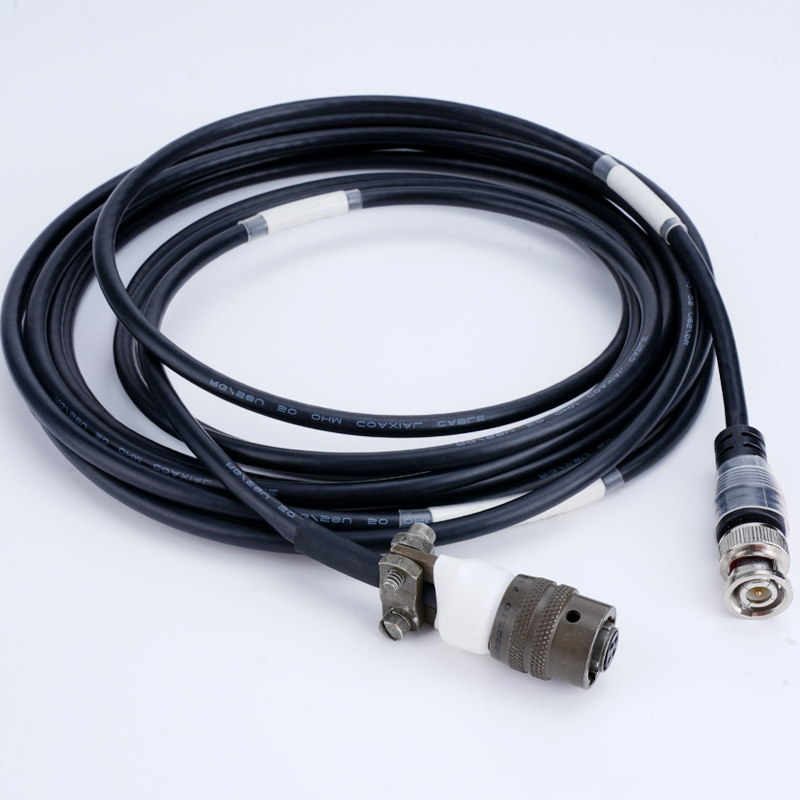

The first connector on the left is a BNC connector, commonly used in RF applications, video signal transmission, and high-frequency data connections. Its secure locking mechanism ensures a stable connection, making it a reliable BNC cable choice for sensitive applications.
The second connector is a circular push-pull type, often used in demanding environments. Its metallic finish and two mounting holes make it suitable for panel-mounted setups, providing a reliable, fixed connection.
Product Features:
Custom RF Cables – Tailored for high-frequency applications, ensuring optimal performance and reliability.
RF Cable Assemblies – Durable and low-loss, ideal for critical industries like telecom and military.
BNC Connector – Secure, efficient connection for RF and video signals with a reliable locking mechanism.
BNC Cable – Stable, compatible with diverse BNC interface devices.
Wire and Harness Manufacturing – High-quality, custom solutions from experienced manufacturers for reliable performance in any environment.
Custom rf Cables
This RF cable assembly solution represents the high standards and versatility we bring to custom RF cables. With years of experience as wire and harness manufacturers, we specialize in crafting reliable RF cable assemblies for a wide range of applications, from high-frequency data transmission to secure signal pathways in demanding environments.
Our extensive expertise enables us to produce almost any type of RF cable you may need. Whether it’s a BNC connector or other specialized RF connectors, we provide customized solutions that ensure minimal signal loss and consistent performance. This assembly features a BNC cable connection for stable and efficient signal transmission and a circular push-pull connector, designed for durability in industrial and outdoor applications.
.
Application Areas:
Telecommunications – Reliable signal transmission for network infrastructure and data centers.
Military and Defense – Secure and durable connections for communication and data transfer in harsh environments.
Aerospace – High-performance RF connections for navigation, control systems, and avionics.
Automotive Diagnostics – Efficient data and signal connections for vehicle diagnostics and testing equipment.
Industrial Automation – Robust cable solutions for machinery, robotics, and control systems.
Broadcasting – Stable video and audio signal transmission for professional broadcast equipment.
Medical Equipment – Precise signal transfer for diagnostic and imaging devices.
Research and Testing – Reliable connectivity for laboratory equipment and scientific instruments.

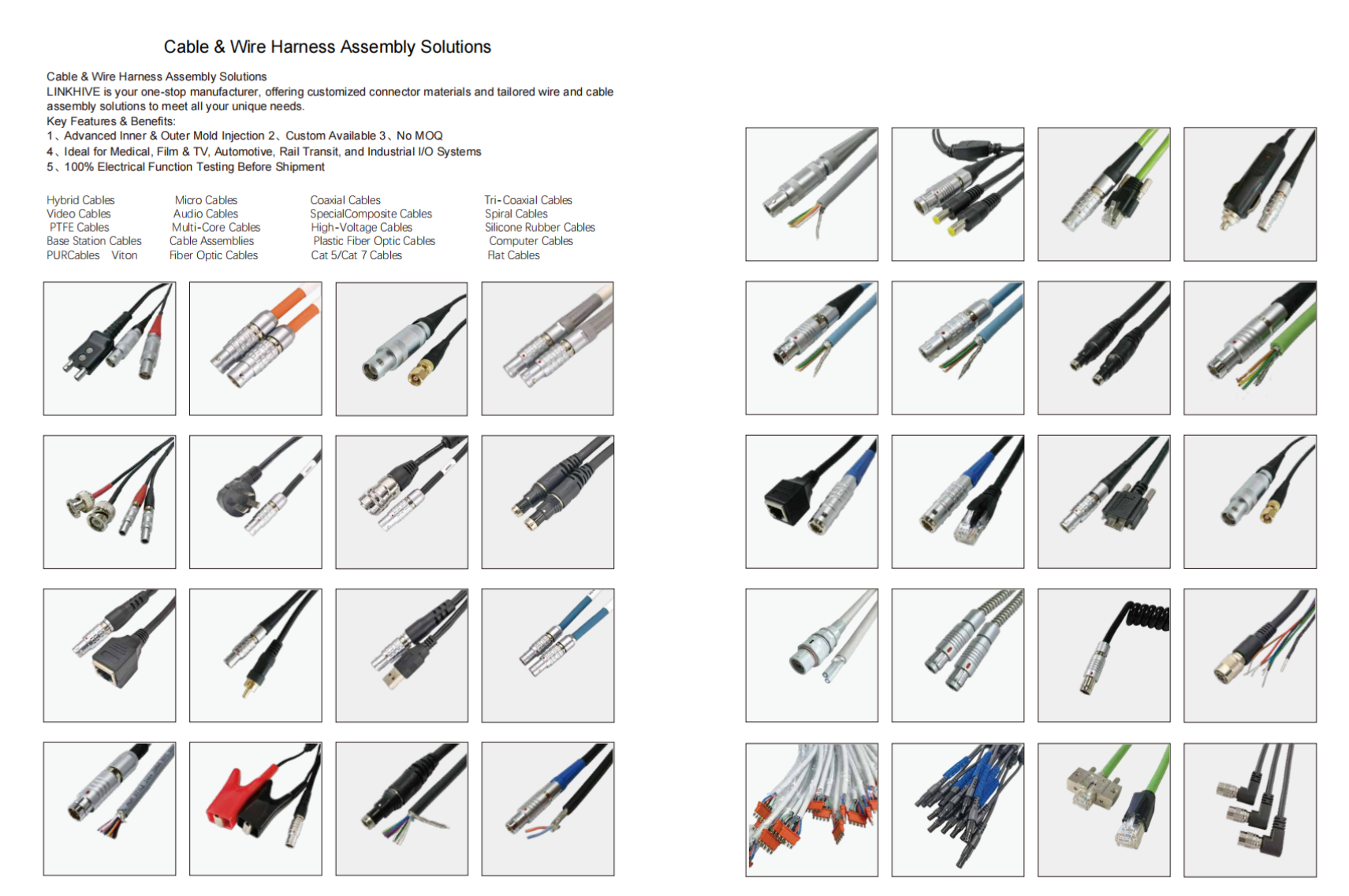

Cable & Wire Harness Assembly Solutions
LINKHIVE is your one-stop manufacturer, offering customized connector materials and tailored wire and cable
assembly solutions to meet all your unique needs.
Key Features & Benefits:
1、Advanced Inner & Outer Mold Injection 2、Custom Available 3、No MOQ
4、Ideal for Medical, Film & TV, Automotive, Rail Transit, and Industrial I/O Systems
5、100% Electrical Function Testing Before Shipment

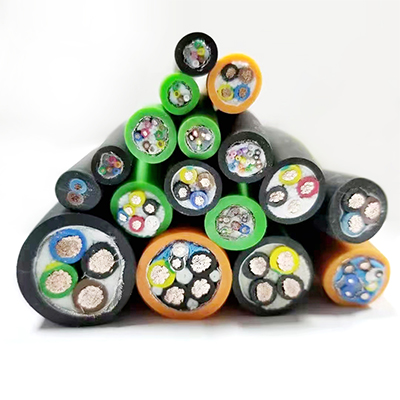

Hybrid Cables Micro Cables Coaxial Cables Tri-Coaxial Cables
