Detailed Description:

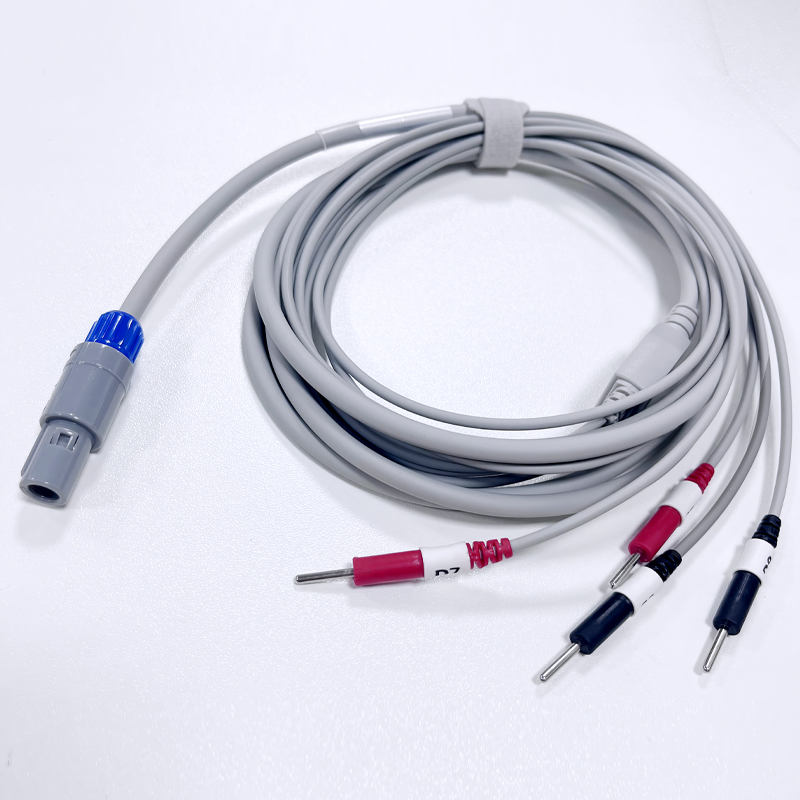

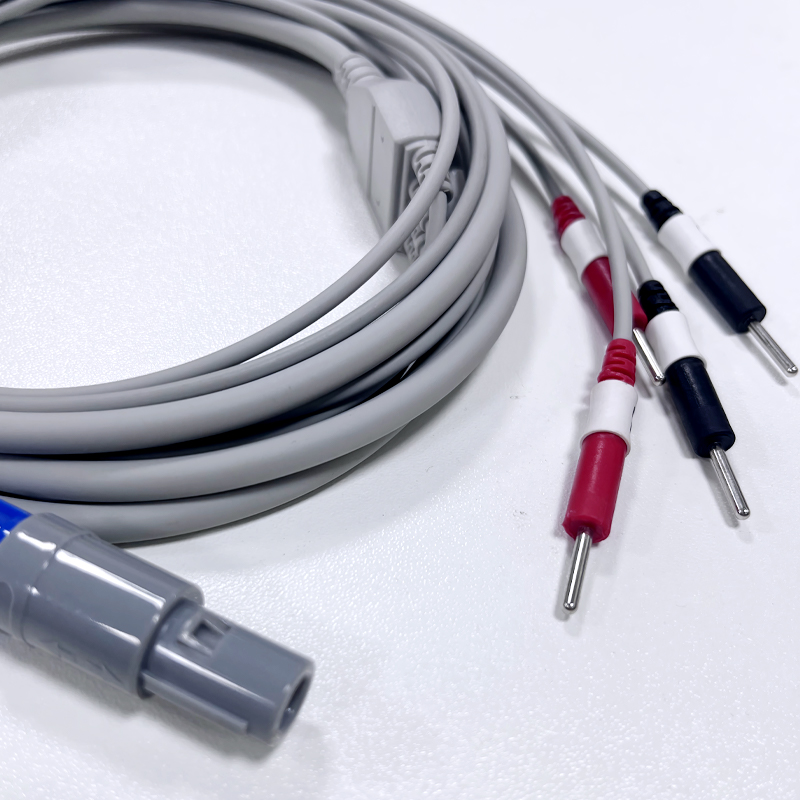

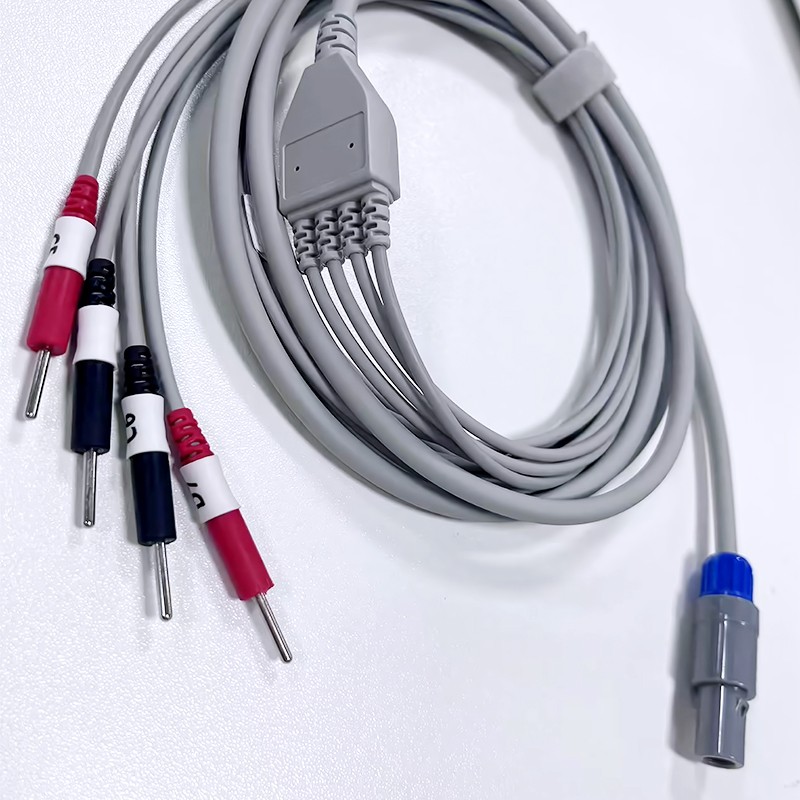

The 5-Lead Medical ECG Monitoring Cable Assembly is a high-quality, professional-grade cable specifically designed for accurate and reliable ECG (electrocardiogram) monitoring. This cable is ideal for use in hospitals, clinics, and healthcare environments where precise monitoring is essential, particularly for continuous patient observation. Here’s a detailed breakdown of its key features:
This 5-Lead Medical ECG Monitoring Cable Assembly can be customized to meet various healthcare and diagnostic needs. Here’s a breakdown of the available customization options for each part of the cable:
End Connector Options:
Push-Pull Connector: Available as the standard connector, offering secure locking and easy quick-release functionality, ideal for critical healthcare environments.
Hybrid Connectors : Choose hybrid connectors that combine electrical and pneumatic functionalities, allowing for data transmission and additional functionalities (e.g., fluid or air transfer) in a single connection.
Latching Connectors: For applications requiring even stronger attachment, latching connectors are available to prevent accidental disconnections in high-movement environments.
Plastic Push-Pull Connector:
Lightweight and Cost-Effective: The plastic option is lighter and often more cost-effective, making it ideal for applications where the cable assembly needs to be easily portable or cost-sensitive.
Screw-Type Connectors: This option provides a more secure, fixed connection suitable for situations where the cable remains stationary for extended periods.
Lead Options:
3 Lead ecg , 4 Lead ecg, and 5 Lead ecg cable Configurations: Customize the number of leads based on specific monitoring needs. While this model is configured as a 5-lead ECG cable, options are available for 3-lead and 4-lead setups to suit different monitoring applications.
Lead Length: Each individual lead can be customized in length, allowing for flexibility in arranging electrode placements on the patient. This ensures optimal fit and comfort for various monitoring setups.
Lead Tip Options: The lead tips can be configured with standard banana plugs or other connectors as needed. Additional options include snap connectors or clip connectors to accommodate various types of ECG electrodes or monitoring setups.
Wire Options:
Standard Electrical Conductors: High-quality electrical conductors, typically copper, are used for efficient signal transmission, suitable for general ECG monitoring.
Hybrid Wires : Choose hybrid wires that allow for combined pneumatic and electrical functions, which is advantageous for complex monitoring or therapeutic systems where both data signals and air/fluid transmission are needed within the same cable.
Shielded Wires: For environments with high electromagnetic interference, shielded wires are available to ensure signal integrity. This is particularly useful in hospital settings with multiple electronic devices.
Wire Gauge Options: Different wire gauges can be selected depending on the current requirements of the connected equipment, ensuring safe and optimal performance for various medical devices.
The 5-Lead Medical ECG Monitoring Cable Assembly is a precision-engineered solution for accurate cardiac monitoring. With its 5-lead design, color-coded banana plugs, medical-grade insulation, and secure push-pull connector, this cable provides healthcare professionals with a dependable and user-friendly tool for critical ECG monitoring. Its customizable features and high-quality materials ensure it meets the demanding standards of medical environments, making it a versatile, efficient, and reliable choice for ECG and patient monitoring applications.
Cable & Wire Harness Assembly Solutions
LINKHIVE is your one-stop manufacturer, offering customized connector materials and tailored wire and cable
assembly solutions to meet all your unique needs.
Key Features & Benefits:
1、Advanced Inner & Outer Mold Injection 2、Custom Available 3、No MOQ
4、Ideal for Medical, Film & TV, Automotive, Rail Transit, and Industrial I/O Systems
5、100% Electrical Function Testing Before Shipment

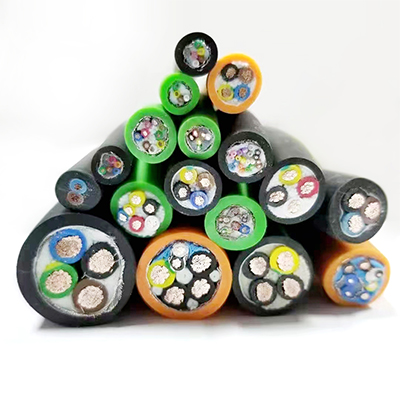

Hybrid Cables Micro Cables Coaxial Cables Tri-Coaxial Cables
