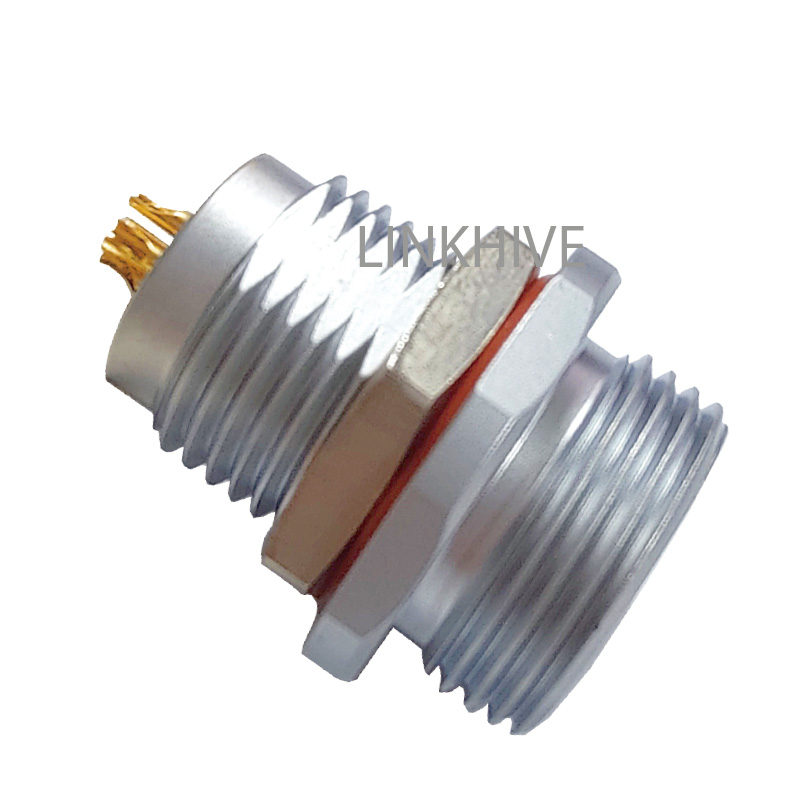

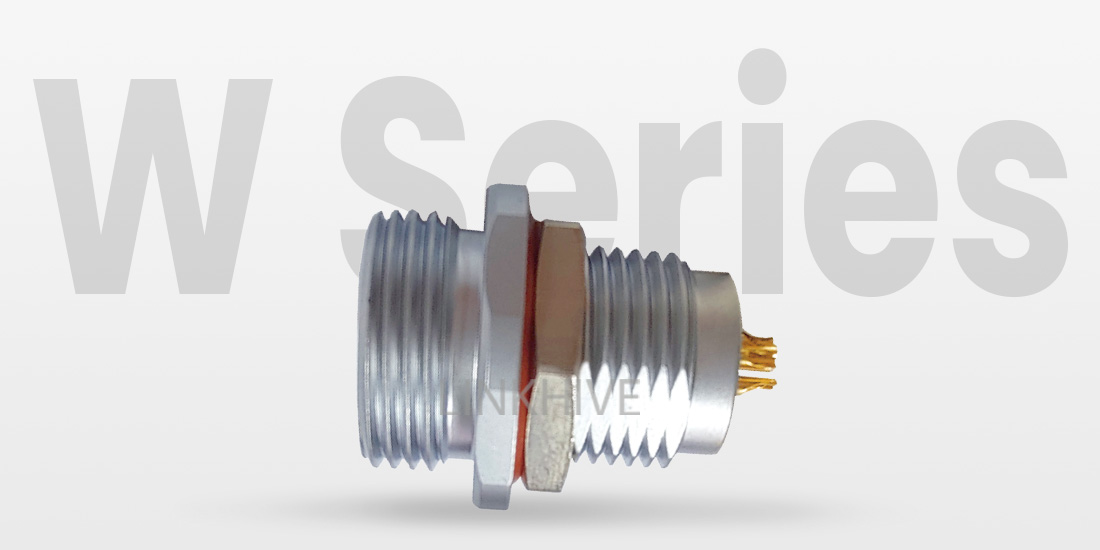

The W Series HRG 0W Electrical waterproof electrical socket is a high-performance sealed receptacle and metal socket developed for underwater and subsea applications where reliability is non-negotiable. Featuring a rugged metal socket and IP68 waterproof sealing, this electrical circular plug socket ensures uninterrupted signal or power transmission under full submersion or in wet, corrosive environments. Compatible with W Series, the HRG 0W socket is built with:
High resistance to corrosion, vibration, and saltwater for metal socket
Female connector Secure circular locking interface for strong mating even in dynamic conditions
Full sealing protection for both mated and unmated states of the sealed receptacle
Long life span and low maintenance for field-deployed systems

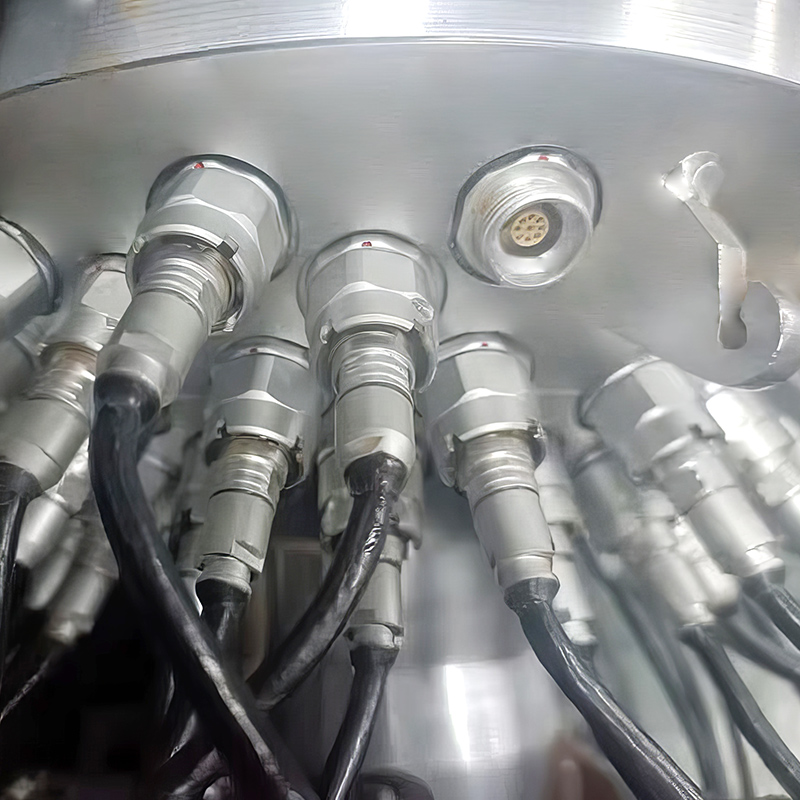

Whether used in marine electronics, offshore energy, or defense systems, this underwater connector offers a dependable solution for harsh-condition connectivity.
Sealed receptacle Subsea sensors and instrumentation
ROVs (Remotely Operated Vehicles)
Marine data loggers
Underwater lighting systems
Oil & gas exploration tools
Military diving and communication systems
Environmental monitoring equipment
Marine Buoy Systems
Underwater Sensor Arrays
Key Features
Secure screw-locking: Ensures reliable connection.
Wide Range of Contacts: 2 to 64 contacts for various applications.
Sealed receptacle Flexible Contact Options: Solder or PCB contacts, straight or elbow configurations.
High Packing Density: Saves space while maintaining performance.
Sealed receptacle Waterproof: Up to 50 meters.
Four Positioning Modes: Available for versatile usage.
Hard Shell Design: Built for harsh environments.
360° Shielding: Provides EMC protection.

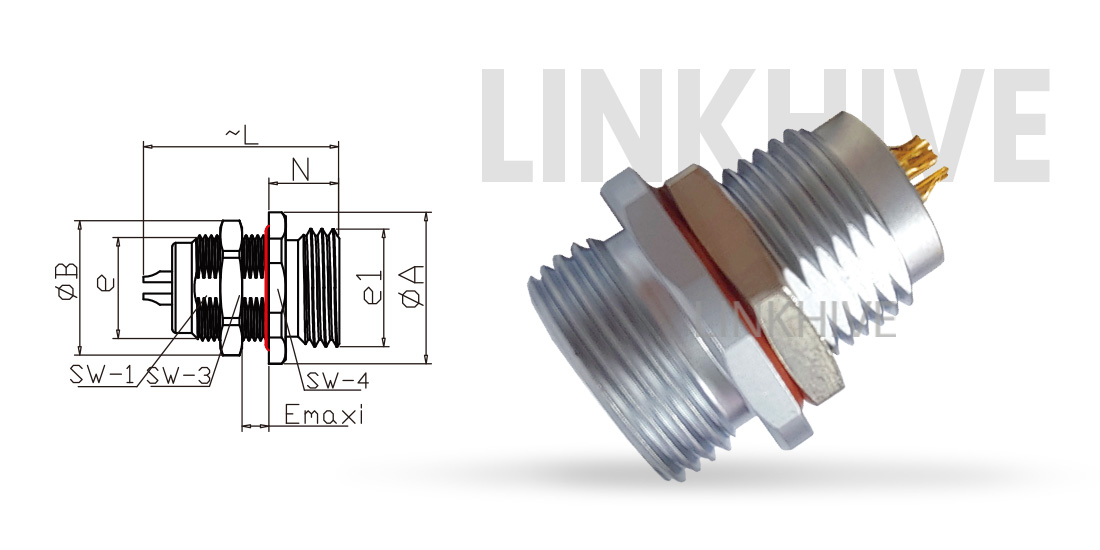

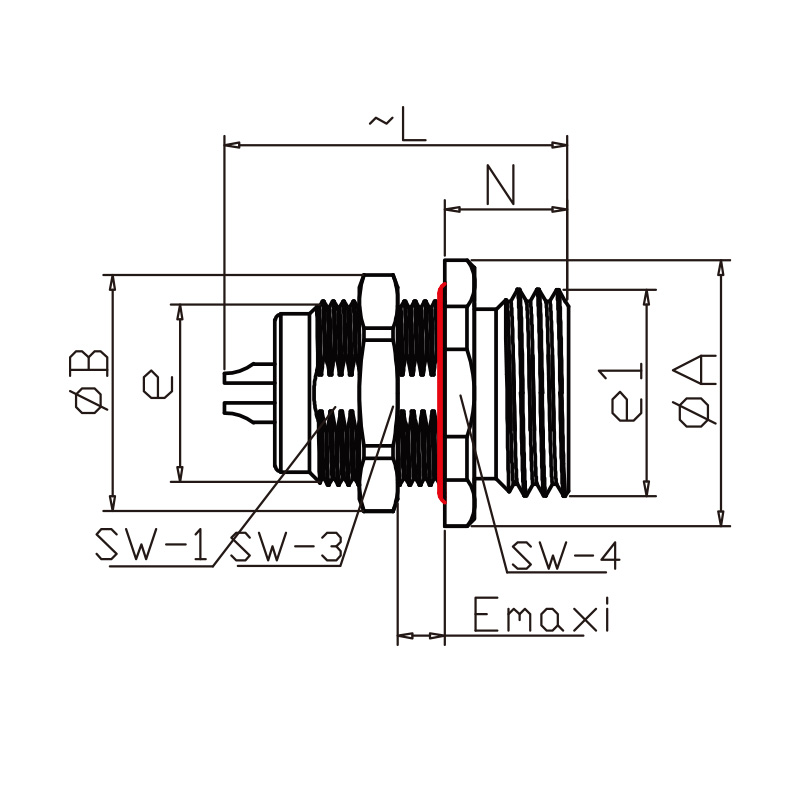

Dimensions
Size | Dimensions(mm) | |||||||||
A | B | e | e1 | L | N | E | SW1 | SW3 | SW4 | |
0W | 18 | 16 | M12*1.0 | M14*1.0 | 24.1 | 8 | 5.5 | 10.5 | 14 | 17 |
Our Underwater female connector Advantages:
The LINKHIVE W Series Underwater female connector is specifically developed for extreme underwater and marine conditions requiring resistance to high hydrostatic pressure — supporting depths of up to 300 meters (5 to 60 bar, depending on the socket type). These robust circular connectors use a threaded coupling mechanism to ensure watertight performance even during prolonged saltwater exposure.
With multiple keying options available, the W Series sealed receptacle enables dense multi-contact configurations while minimizing the risk of mismating. It is perfectly suited for mission-critical applications in offshore energy, subsea exploration, nuclear systems, chemical processing, marine instrumentation, and aerospace technology.
Wide range of insert configurations and shell sizes
Optional EMC shielding for signal integrity in harsh environments
Sealed receptacle Tested for field performance in real-world underwater deployments
Multiple mounting options to suit varied integration needs
IP68 circular plug socket
Designed for durability and precision, LINKHIVE W connectors provide a reliable interface for underwater systems that demand the highest standards in sealing and electrical performance.
Use the table bolow to Choose the right pins
0W Series HRG Waterproof Electrical Socket Mode Selection
| MRG.0W.302.CLL.M | MRG.0W.303.CGL.M | MRG.0W.304.CLL.M | MRG.0W.305.CLL.M | MRG.0W.306.CLL.M | MRG.0W.307.CLL.M | MRG.0W.309.CLL.M | MRG.0W.312.CLL.M | |
| Contacts |  |  |  |  |  |  |  |  |
| Description | 0W 2 pin Compact sealed circular plug socket with high corrosion resistance and circular locking. | 0W 3 pin waterproof electrical socket with secure contact interface and high durability. | 0W 4 pin underwater circular plug socket IP68 waterproof socket for reliable marine use. | 0W 5 pin Rugged circular plug socket with enhanced electrical isolation. | 0W 6 pin IP68 waterproof electrical socket with reinforced sealing ring. | 0W 7pin underwater Sealed receptacle for secure multi-signal transmission. | 0W 9 pin Heavy-duty subsea circular plug socket for offshore energy control. | 0W 12 pin Sealed receptacle underwater for mission-critical connectivity. |
| Application | Ideal for shallow water communication and marine sensors. | Suitable for female connector applications in ROVs. | Designed for waterproof electrical socket needs in harsh saltwater environments. | Used in field-deployed subsea systems requiring signal integrity. | Perfect for underwater female connector solutions in oil & gas platforms. | Suitable for complex IP68 waterproof socket configurations. | Deployed in naval, offshore and underwater connector applications. | Ideal for high-density sealed receptacle configurations under deep-sea use. |
Underwater connector Specification:
| Gender: | IP68 waterproof female connector |
| Oreentation type: | Straight |
| Insulation material: | PEEK |
| Shell material: | Chrome-plated brass |
| Test Voltage (contact-contact): | 1450 |
| Test Voltage (contact-shell): | 1000 |
| Insulation resistance: | ≥5000MQ 600V DC |
| Contact resistance: | 6.5 |
| IP rating: | IP68 |
Circular plug socket Quality Assurance & Testing
At LINKHIVE, every W Series underwater subsea circular metal socket undergoes a strict quality assurance process to ensure performance, durability, and safety in the most demanding environments. Our quality management system complies with international standards and is implemented throughout all stages of production — from raw material inspection to final product testing.
Our quality control procedures include:
Female connector 100% visual inspection for surface integrity, sealing components, and assembly accuracy
Pressure testing under simulated high hydrostatic environments up to 60 bar
Subsea circular socketSalt spray corrosion tests for long-term resistance in marine environments
Electrical continuity and insulation resistance testing to verify signal reliabilityf for waterproof electrical socket
Mechanical endurance tests including mating/unmating cycles and locking mechanism strength
Female connector Dimensional inspection with precision measuring tools to ensure tight tolerances
Every batch is traceable with serialized production records, and our in-house QA team performs statistical sampling and audits to maintain batch consistency.
By combining rigorous testing with advanced manufacturing, LINKHIVE guarantees that each W Series female connector meets the highest standards for underwater performance and long-term reliability.

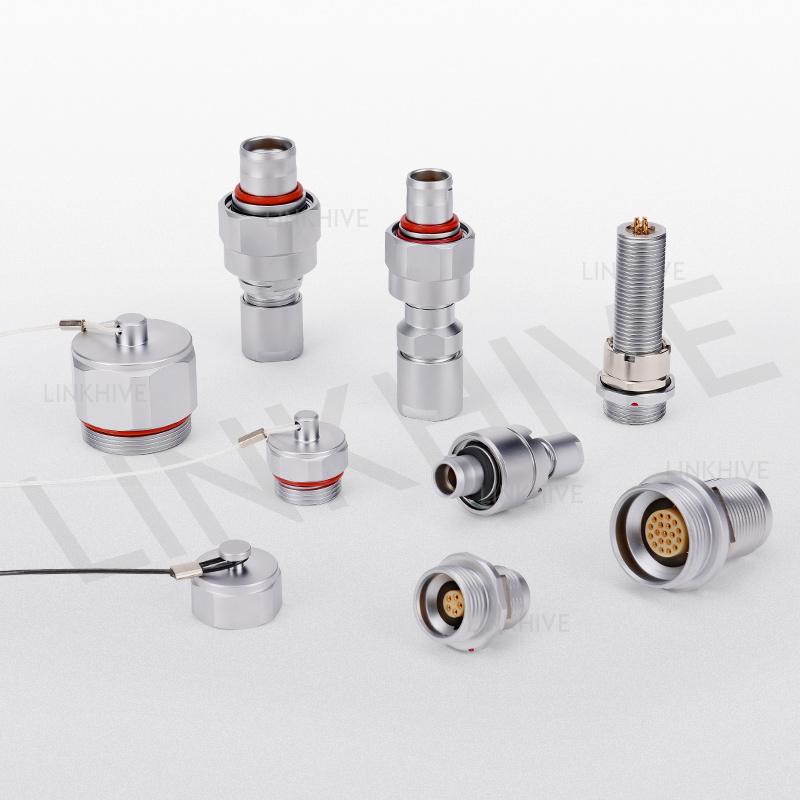

W Series Underwater Connectors Metal Housing Models
| Straight plug | Fixed socket | IP68 waterproof socket |
 |  |  |
| FVG (Chrome-plated brass) | EVG | HRG subsea circular socket |
 |  | |
| FVG (Stainless steel) | HVG | |
 |  | |
| FVG (Chrome-plated brass) | ||
