M25 2+16 Pin Waterproof Circular Aviation Connector | 950V AC Quick-Connect Flange Socket | Bayonet Locking

📌 Product Overview

In modern industrial applications, the reliability of the connector directly determines the stability of the entire system. This M25 size 2+16 core waterproof circular connector is a high-performance aviation socket that integrates high-power transmission with multi-signal control. It features a classic bayonet quick-locking mechanism and flange mounting method, providing stable and safe electrical connections in harsh environments such as those with vibration, moisture, and dust.

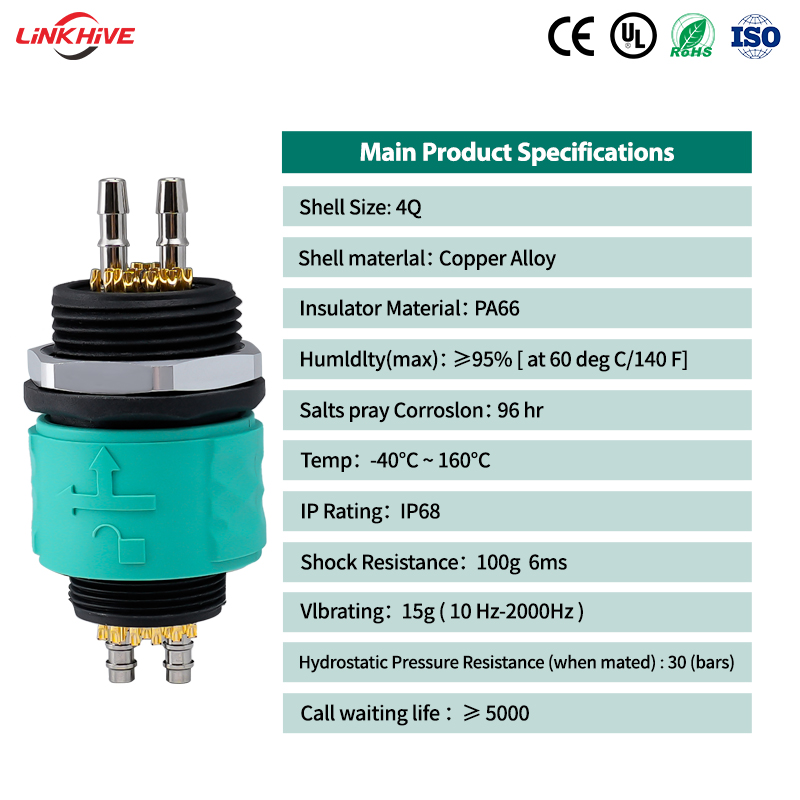

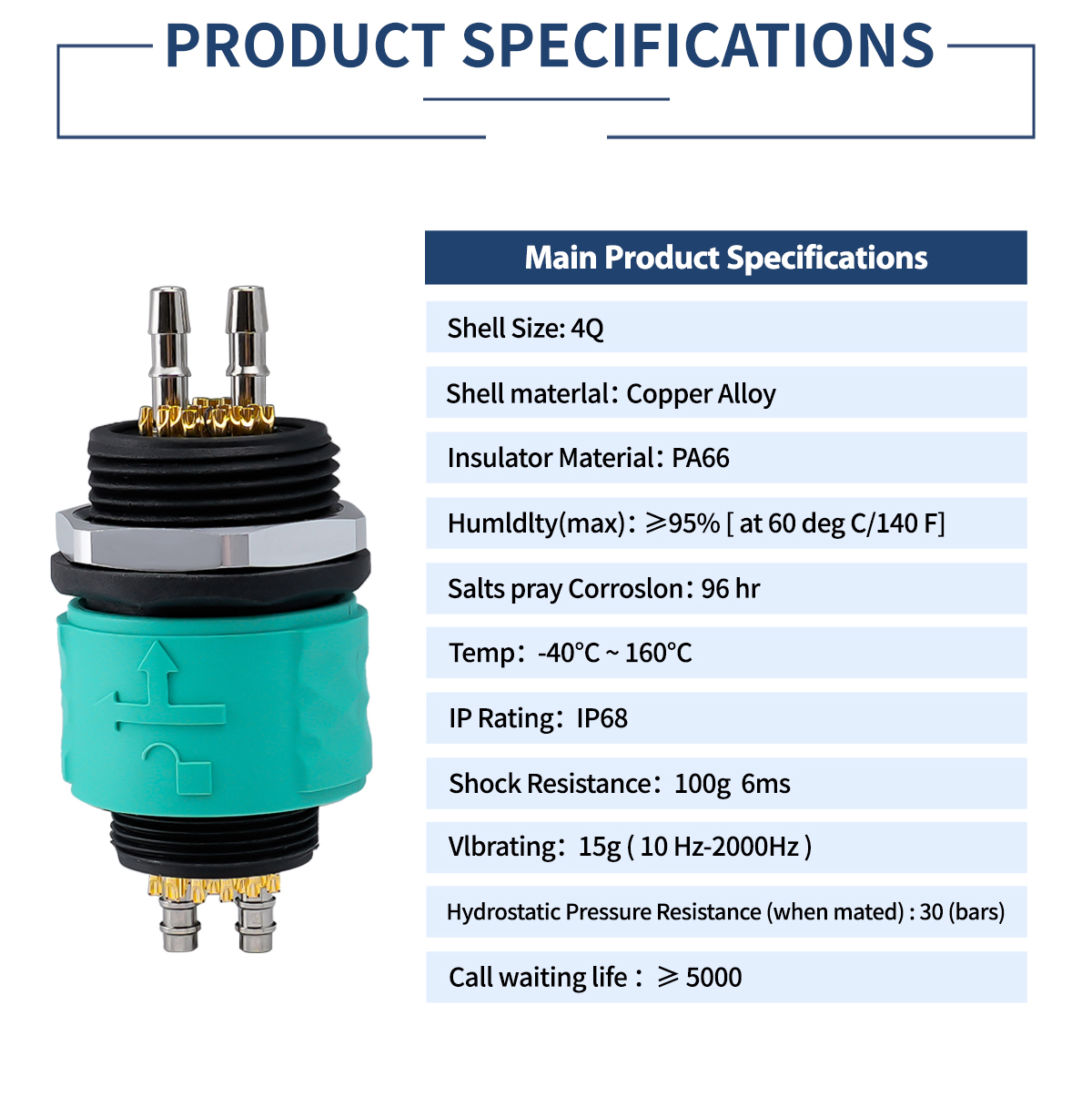

🔧 Technical Specifications

To help you understand the product's suitability more intuitively, here are the detailed technical specifications:

⚙️ Core Advantages

1. Perfect Integration of Power and Signal

The innovative 2+16 core hybrid layout features 2 thick pins dedicated to high-voltage power transmission (950V AC) and 16 thin pins for signal control or data transmission. This design reduces the number of openings required on the equipment, making wiring simpler and more efficient.

2. Quick Bayonet Locking, Safer Anti-Loosening

Compared to traditional threaded connections, the bayonet connection only requires a gentle push and twist to lock. This not only significantly improves on-site installation efficiency but also effectively prevents the connector from loosening or falling off due to equipment vibration, ensuring operational safety.

3. High Protection in Demanding Environments

Whether it's wind and rain outdoors or oil dust in factory workshops, the IP67 protection level ensures the interior of the connector remains unaffected by erosion. Combined with precisely machined sealing rings, it maintains stable electrical performance even in humid, salt-spray, and other harsh environments.

4. 950V AC High Withstand Voltage Design

Specifically designed for high-voltage applications, reinforced insulation is used between the pins to meet the requirements of 950V AC transmission, making it suitable for applications like frequency converters, servo motors, and high-voltage power supply systems.

🏭 Application Areas

The robust compatibility of this aviation socket makes it widely applicable in the following scenarios:

• Industrial Automation: Robot wiring harnesses, power and signal feedback for servo motors, PLC control cabinet interfaces.

• Construction Machinery: Outdoor wiring connections for heavy equipment like excavators and cranes.

• New Energy Industry: Charge/discharge interfaces for photovoltaic inverters, wind turbine generators, and energy storage equipment.

• Outdoor Lighting: Waterproof power connections for LED street lights, landscape lighting projects.

• Specialized Equipment: Stage lighting and audio, medical equipment, rail transit.

•


•


✅ Why Choose Us?

• Professional Customization: We offer various wiring methods (solder/crimp/PCB mount) and support non-standard customization for contact plating, housing material, and backshell accessories.

• Quality Assurance: From raw materials to finished products, each unit undergoes rigorous withstand voltage testing, insulation testing, and waterproof testing to ensure compliance with ROHS and CE standards.

• Stock Availability: Regular models are kept in ample stock for quick shipment.

•


Purchase Now to provide the most reliable connection protection for your equipment!

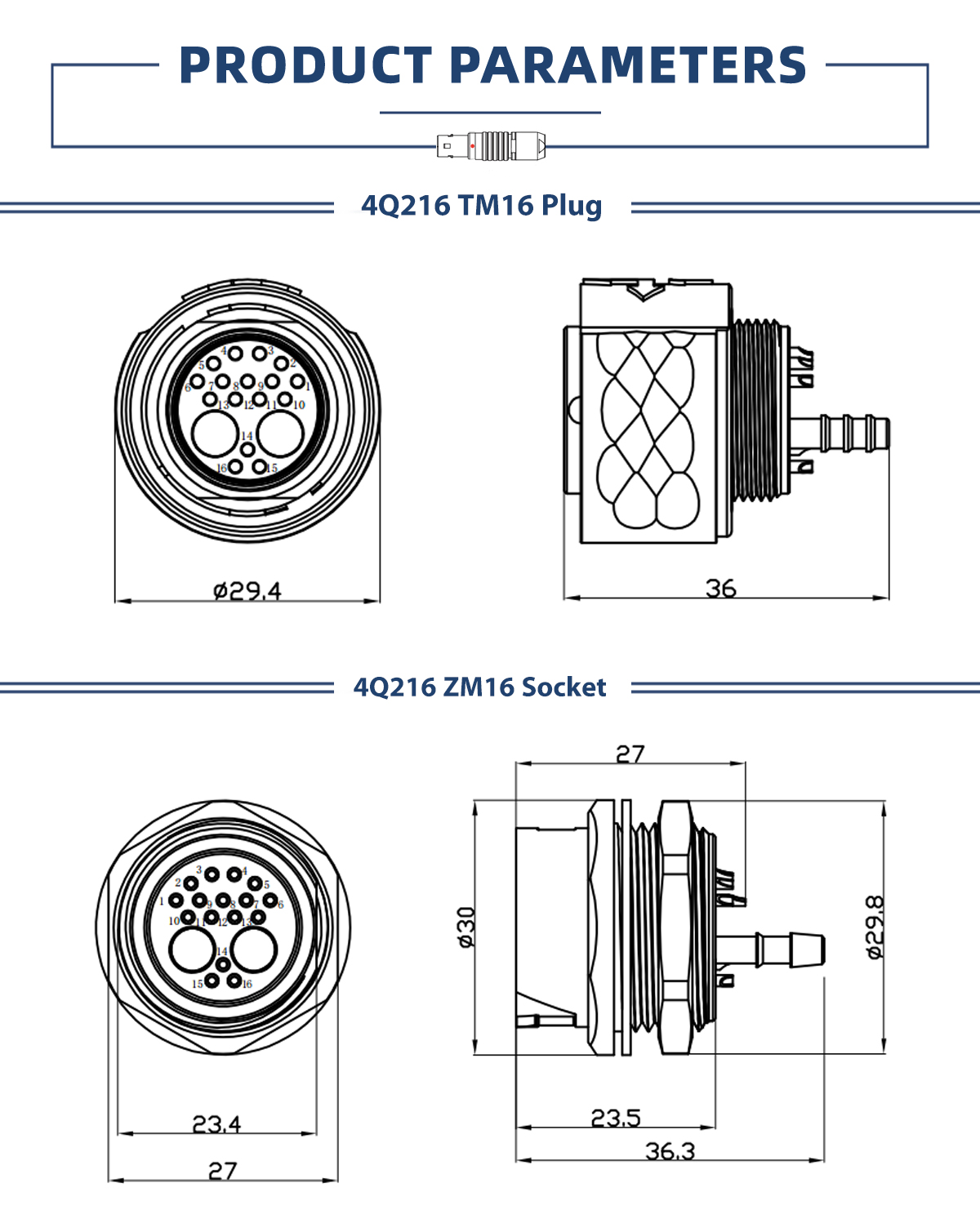

Note: Please refer to the images on the detail page or contact customer service for 3D drawings regarding product pictures and specific dimensions.
