In modern electronic devices and industrial applications, connectors are key components to ensure the stability of power and signal transmission. With the advancement of technology, push pull connectors have gradually become the first choice for many industries due to their unique operation mode, reliable connectivity and wide range of application scenarios. So, what are push pull connectors? How to identify and select suitable push pull electrical connectors?
This article will focus on the theme of "What are push pull connectors?" and analyze in detail the definition, working principle, structural characteristics, main application areas and how to select suitable push pull connectors of push pull connectors.

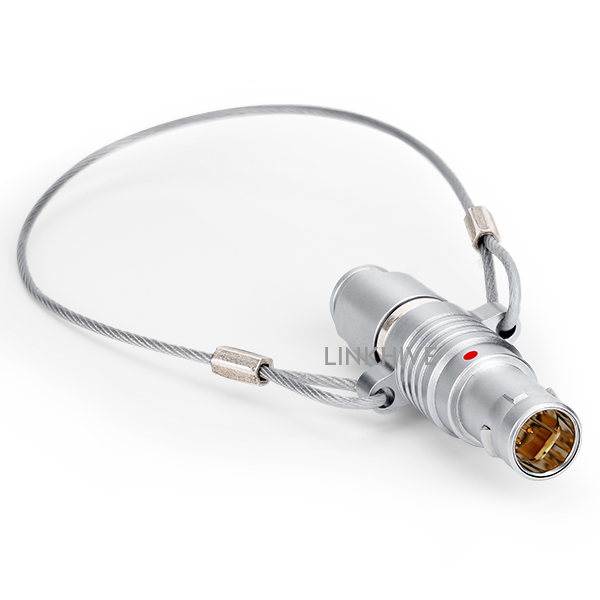

What is a push pull connector?
What is a push pull connector? Push pull connectors are electronic connectors that use a push-pull self-locking mechanism for connection and separation. Compared with traditional screw connections or snap connections, push pull electrical connectors do not require rotation or additional fixings during operation. They can be locked by simply pushing in and unlocked by pulling out, which greatly improves the convenience and reliability of the connection. Push pull connectors are often used in application scenarios that require quick plugging and unplugging, high-frequency connections or installation in small spaces, such as medical equipment, industrial automation, communication equipment and military fields.

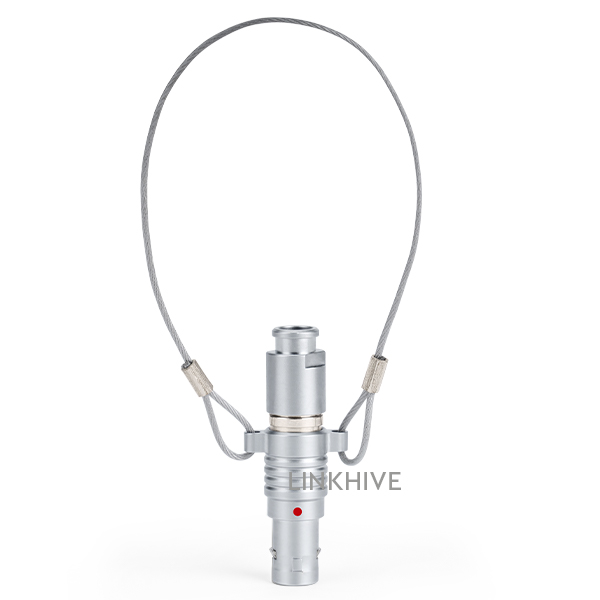

How do push pull connectors work?
To better understand what push pull connectors are, you need to understand how they work. The core mechanism of push pull connectors is their push-pull self-locking structure, which is usually composed of a shell, a pin (male end), a socket (female end), a spring locking device, and an insulating component. When the plug is inserted into the socket, the internal spring locking device automatically snaps in to ensure that the connector is firmly connected. When separation is required, just gently pull the shell or a dedicated unlocking component to release the locking device, so that the connector can be quickly unplugged.
The working principle of push pull connectors can be roughly divided into the following steps:
● Insertion connection: When the plug is aligned with the socket and pushed inward, the spring locking mechanism inside the connector will automatically bite to ensure a stable connection.
● Locking and fixing: After insertion is completed, the locking mechanism will automatically lock to prevent the connector from accidentally falling off or loosening.
● Unplug and unlock: When it is necessary to unplug, the user only needs to pull the shell back, and the locking mechanism will automatically release, so that it can be quickly unplugged.
Due to its special locking design, push pull connectors can not only provide an efficient and convenient operating experience, but also maintain stability in harsh environments such as vibration and high-frequency plugging and unplugging.

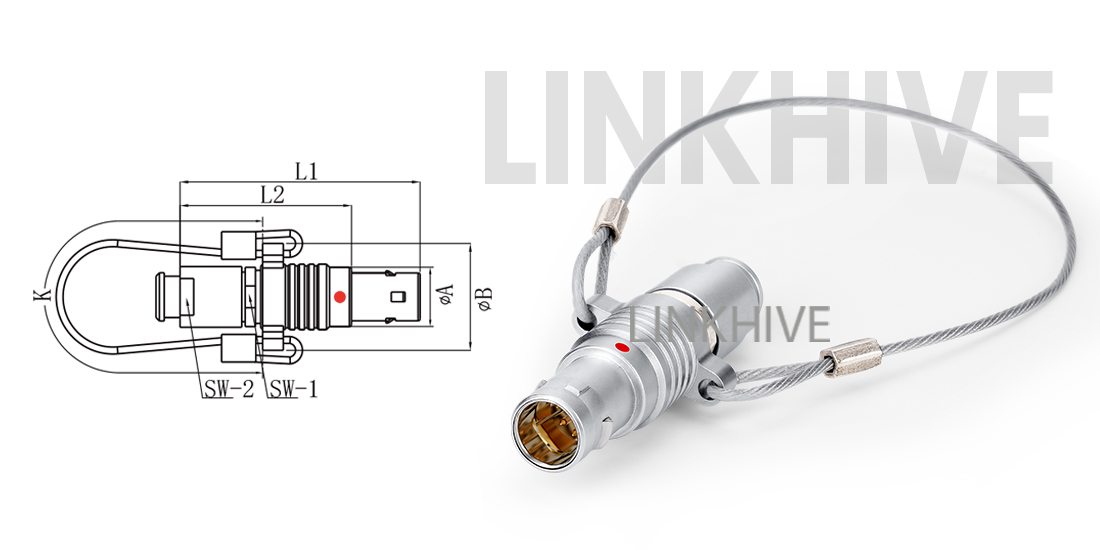

What are the structural characteristics of push pull connectors?

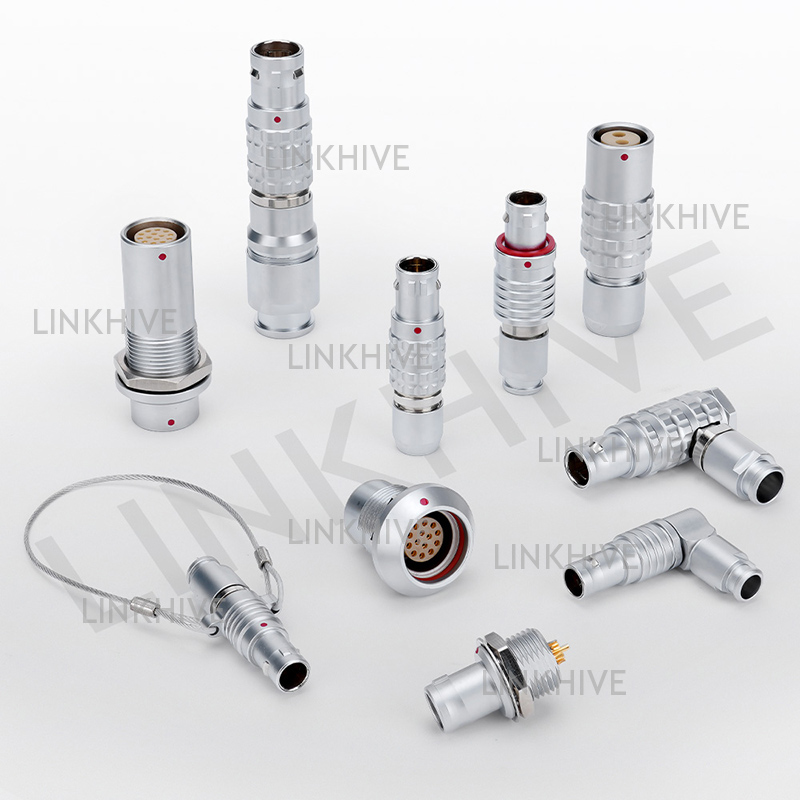

What are push pull connectors? Structurally, push pull electrical connectors are mainly composed of the following key parts:
1. Shell
The shell is usually made of high-strength metal (such as stainless steel or aluminum alloy) or high-durability plastic, which can provide good impact resistance, dustproof and waterproof performance. The shell is usually designed with a non-slip texture to facilitate users to operate with wet hands or wearing gloves.
2. Pins and sockets (Contacts)
The pins and sockets of push pull connectors determine its signal or power transmission capacity. Pins are generally made of gold-plated copper or silver-plated materials to improve conductivity and anti-oxidation ability. Different models of push pull connectors may support different numbers of pins, ranging from a few pins to dozens of pins, suitable for various application requirements.
3. Insulator
Insulators are used to isolate different signal channels to prevent short circuits and signal interference. Common insulating materials include PBT (polybutylene terephthalate) or PEEK (polyetheretherketone), which can withstand environmental influences such as high temperature and chemical corrosion.
4. Locking Mechanism
The core of push pull connectors is its push-pull self-locking mechanism, which is usually composed of springs and slots. This mechanism ensures that the connector will not loosen due to vibration or accidental pulling after insertion, and ensures that it can be quickly unlocked when it needs to be unplugged.
5. Shielding
In applications with high-frequency signals or high anti-interference requirements, push pull connectors are usually equipped with metal shielding layers to reduce electromagnetic interference (EMI) and radio frequency interference (RFI) to ensure signal integrity and stability.
What are the main application areas of push pull connectors?
In order to explore what are push pull connectors in more depth, it is necessary to understand its application in different fields. Because push pull connectors have the characteristics of high reliability, fast plug-in and pull-out, and high durability, they are widely used in the following fields:
1. Medical equipment
Push pull connectors are widely used in the medical field, such as electrocardiogram (ECG), ultrasonic equipment, surgical instruments, diagnostic equipment, etc. Its stable signal transmission, high sealing and antibacterial materials make it an ideal choice for the medical industry.
2. Industrial automation
In the field of industrial automation, push pull connectors are widely used in robots, PLCs (programmable logic controllers), sensors, motor control systems and other equipment. Its waterproof and dustproof design ensures that the connector can operate stably in harsh industrial environments.
3. Aerospace
In the field of aerospace, push pull electrical connectors are mainly used for flight data recorders, navigation systems, communication systems, etc. Due to the extremely high requirements for reliability in aerospace, the high-strength materials and anti-vibration design of push pull connectors have been widely used in this field.
4. Communications and electronics
In communications and electronic equipment, push pull connectors are used for wireless communication equipment, data transmission equipment, broadcasting systems, etc. Because it can effectively reduce electromagnetic interference, it also has important applications in 5G base stations and fiber optic communications.
5. Military and defense
In the military field, push pull connectors are often used in radar systems, tactical communication equipment, drone control systems, etc. Its high reliability and anti-environmental interference ability enable it to meet the strict requirements of military standards.
How to choose the right push pull connectors?
After clarifying what push pull electrical connectors are?, the following key factors need to be considered when choosing the right push pull connectors:
● Number of pins: Select the appropriate number of contact points according to the needs of the device.
● Current and voltage requirements: Ensure that the connector can withstand the power requirements of the device.
● Material and durability: Select the appropriate metal or plastic material according to the application environment.
● Protection level (IP level): If used outdoors or in harsh environments, products with IP67 or higher protection levels must be selected.
● Anti-electromagnetic interference ability: In high-frequency signal transmission applications, push pull connectors with shielding layers must be selected.
