TAG-00B Gold-Plated Male Audio Connector Launched as High-Performance Replacement Solution for Professional Audio Equipment
——Featuring push-pull locking, multi-contact configurations, and full interchangeability with industry-standard B-series connectors、
A new high-reliability audio connector, designated TAG-00B, has been officially introduced to the global market, offering a premium replacement option for audio professionals, system integrators, and industrial equipment manufacturers.
Engineered with a gold-plated contact system and a robust push-pull latching mechanism, this male connector is designed to meet the stringent demands of studio recording, live sound reinforcement, broadcast infrastructure, and industrial control applications where signal integrity and connection security are paramount.
Superior Gold-Plating for Uncompromised Signal Fidelity

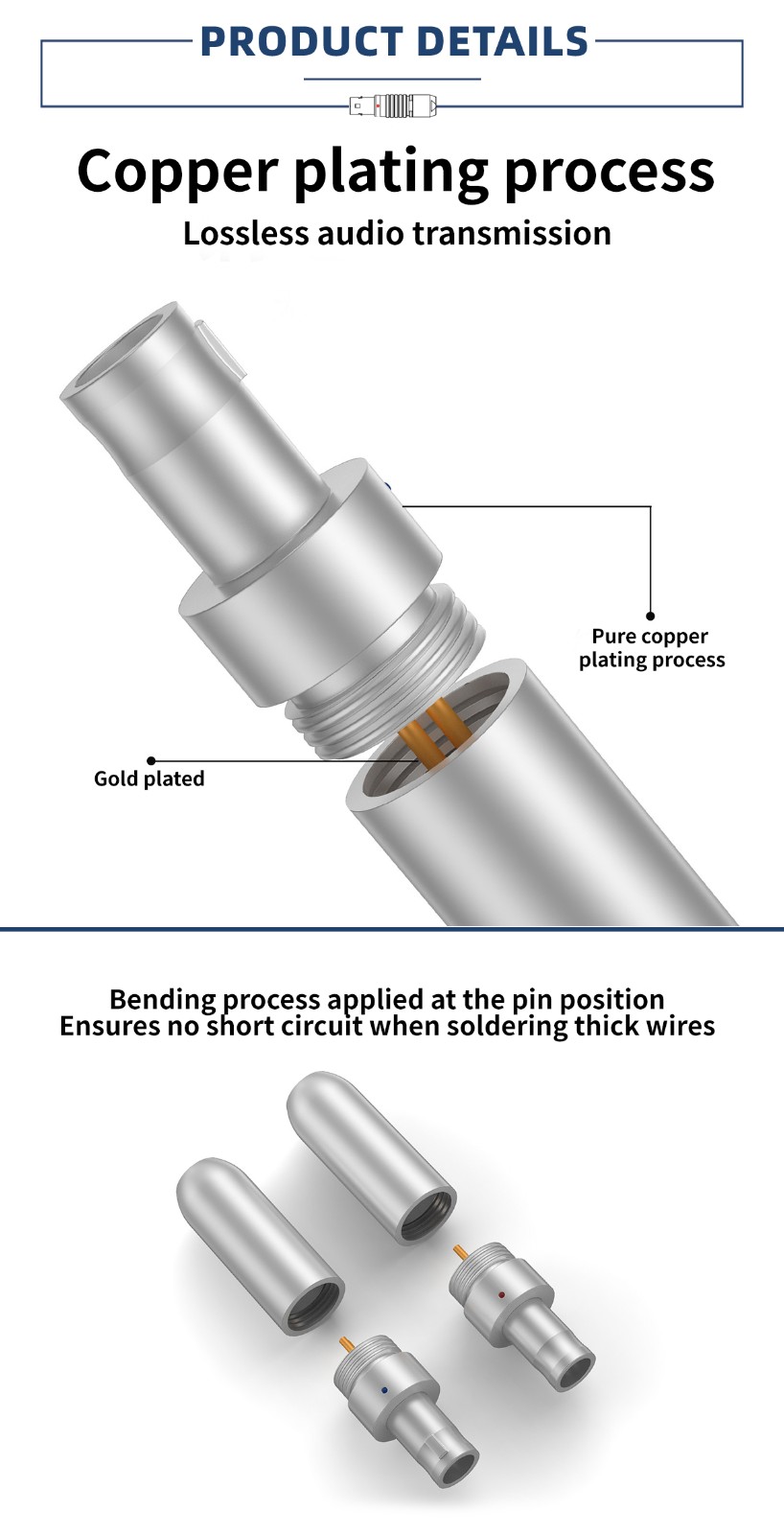

At the heart of the TAG-00B lies a precision-machined copper alloy contact core, finished with a thick, hard-gold electroplating layer. This noble-metal coating delivers several critical advantages over standard tin or nickel-plated alternatives.
First, it drastically reduces contact resistance to below 5 milliohms, ensuring that audio signals — whether analog or digital — pass through with minimal attenuation and virtually no insertion loss.
Second, the gold layer provides exceptional resistance to oxidation, tarnishing, and corrosive atmospheres (including humidity and sulfur-containing environments), which is especially valuable for equipment used in touring, outdoor events, or coastal regions.
Third, the low and stable contact resistance remains consistent over thousands of mating cycles, preserving the original sonic character of high-end microphones, instruments, and line-level equipment.
This makes the TAG-00B an ideal drop-in replacement for worn or damaged original connectors on mixing consoles, equalizers, patch bays, and active speakers.
Push-Pull Locking Mechanism for Quick, Secure Engagement

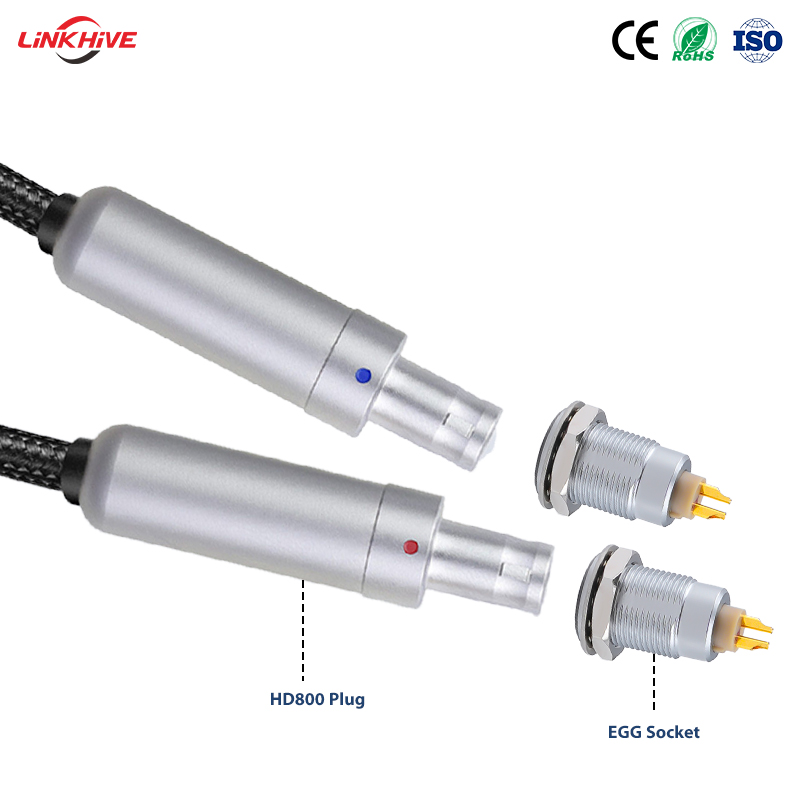

The TAG-00B belongs to the B-series family of metal-shell push-pull circular connectors, with a shell size of 00B (M7 thread diameter).
Its ingenious push-pull design allows for one-handed, blind-mating insertion and extraction — simply push the plug into the receptacle until an audible click confirms full locking, and pull back on the knurled sleeve to release.
This self-latching system eliminates the need for threaded couplings or additional locking screws, drastically reducing setup and teardown time in fast-paced production environments.
More importantly, the locking mechanism provides a consistent axial retention force of ≥60 N, preventing accidental disconnection caused by cable tension, stage vibrations, or inadvertent tugs.
The outer shell is manufactured from high-strength brass with a sleek nickel-chrome finish, offering excellent electromagnetic shielding (effective up to 10 GHz) and rugged durability against mechanical impact and abrasion.
Multiple Contact Configurations for Versatile Signal Routing
To accommodate a wide range of audio and control applications, the TAG-00B is available in 2-pin, 3-pin, 4-pin, 5-pin, and even 6-pin variants (custom options upon request).
The 2-pin version is typically used for mono unbalanced audio or DC power transmission; the 3-pin configuration supports balanced audio (XLR-equivalent pinout) with dedicated ground; 4-pin and 5-pin models are ideal for stereo balanced signals, intercom systems, or multi-channel headphone distribution; while the 6-pin option can carry mixed audio + data signals, such as AES/EBU digital audio alongside remote control voltages.
All contacts are arranged in a highly reliable insulator insert made from high-temperature-resistant PBT (polybutylene terephthalate) with UL94 V-0 flammability rating, ensuring dimensional stability even under continuous heavy-duty use.
The solder cups are generously sized to accept cable gauges from 26 AWG up to 20 AWG, and the strain-relief clamp accommodates cable diameters from 3.5 mm to 6.5 mm, providing a secure termination that prevents wire breakage at the solder joint.
Full Interchangeability with Major Brand B-Series Connectors
One of the standout features of the TAG-00B is its complete mechanical and electrical interchangeability with B-series push-pull connectors from leading European manufacturers, including those from Switzerland and Germany.
This means that users can directly replace original connectors on legacy equipment or new builds without any modification to panel cutouts, mounting dimensions, or pin assignments. The connector mates perfectly with all standard B-series receptacles (fixed or floating), ensuring backward compatibility and saving costly re-engineering efforts.
For maintenance teams and rental houses, this interoperability significantly reduces spare-part inventory complexity — a single TAG-00B can serve as a universal substitute for multiple branded connectors, streamlining logistics and lowering total cost of ownership.
Comprehensive Electrical and Mechanical Specifications
The TAG-00B is engineered to exceed industry performance standards. Electrical ratings include: contact resistance ≤5 mΩ (initial), insulation resistance ≥1000 MΩ at 500 V DC, and dielectric strength of 500 V AC for 1 minute between adjacent contacts.
Working voltage is rated at 200 V AC/DC, with current-carrying capacity up to 5 A per contact (depending on pin size and ambient temperature).
Mechanically, the connector guarantees a minimum of 5,000 mating/unmating cycles without significant degradation in contact force or electrical continuity.
The push-pull mechanism undergoes rigorous life testing to verify latching reliability, and the shell passes a 48-hour salt-spray test per ASTM B117, confirming its corrosion resistance for maritime or tropical environments.
Operating temperature ranges from -40 °C to +85 °C, making it suitable for outdoor broadcast vans, cold-weather festivals, and hot studio control rooms alike.
Diverse Application Scenarios Across Professional and Industrial Sectors
The TAG-00B audio connector is not confined to traditional audio gear; its robust design and wide bandwidth make it valuable in numerous fields.
In professional audio, it excels in microphone cables, line-level interconnects, speaker links, and digital snake systems. In film and television production, it is frequently used for on-camera shotgun microphones, boom pole connections, and portable field mixers. Live sound engineers appreciate its quick-lock feature during fast changeovers at concerts and corporate events.
Beyond entertainment, the connector finds application in medical imaging equipment (where reliable signal transmission is critical), test and measurement instrumentation, aviation headsets, and even robotic control systems that require compact, shielded, and vibration-resistant cabling.
Its gold-plated contacts also ensure low-noise performance in high-impedance circuits, such as piezoelectric sensors and condenser microphone bias lines.
Quality Assurance and Manufacturing Excellence
Each TAG-00B connector is produced under strict ISO 9001:2015 and IATF 16949 quality management systems, with 100% electrical inspection and dimensional verification before packaging.
The plating thickness is controlled to a minimum of 0.5 μm of gold over 1.5 μm of nickel underplate, as confirmed by X-ray fluorescence (XRF) testing. Insulation resistance and high-potential (hipot) tests are performed on every batch to guarantee zero defects.
The supplier also offers full traceability through lot-number coding, enabling rapid root-cause analysis in case of field issues. For volume orders, customized cable assemblies with pre-terminated connectors are available, reducing installation time and soldering errors.
Packaging, Availability, and Technical Support
The TAG-00B is supplied in anti-static, moisture-barrier bags, with individual connectors protected by plastic caps to prevent contact damage during storage. Bulk packaging (100 pieces per box) and small-quantity retail packs are both offered to suit OEMs, system integrators, and individual technicians.
Samples are available for evaluation, and comprehensive dimensional drawings, 3D step files, and soldering instructions can be downloaded from the manufacturer’s online portal.
A dedicated technical support team provides application assistance, pinout customization, and rapid prototyping services.
Market Outlook and Value Proposition
As the global professional audio market continues to expand — driven by renewed demand for live events, streaming infrastructure, and high-resolution home studios — the need for reliable, interchangeable, and cost-effective connector solutions has never been greater.
The TAG-00B answers this call by combining premium materials, proven design, and full brand compatibility at a competitive price point. For engineers and technicians seeking a durable, high-fidelity replacement that reduces downtime and simplifies maintenance, the TAG-00B represents a smart investment.
Now available through authorized distributors worldwide, this connector is poised to become a staple in toolkits and racks across the audio industry. For further information, pricing, or to request a sample, please contact the supplier directly via the product listing page or official sales channels.
