K Series Connector: The Ultimate IP68 Waterproof Solution for Outdoor and Harsh Environments?
In an era where the Internet of Things , industrial automation, and new energy technologies are rapidly advancing, electronic devices are no longer confined to comfortable indoor settings. From autonomous drones patrolling borders to robotic dogs performing disaster recovery in rain-soaked rubble, and from precision sensors on wind farms to mobile monitoring stations in polar regions, the demand for reliable performance under extreme conditions has never been higher. At the heart of these mission-critical systems lies a seemingly humble but absolutely vital component: the connector. When the environment turns hostile, can ordinary connection solutions withstand the test? The K Series circular push-pull connector, specifically engineered for outdoor and harsh environments with robust IP68 waterproof protection, is emerging as the definitive answer to this pressing challenge.
The "Outdoor Gene": Born for Extremes
Unlike standard connectors that are merely adapted for occasional outdoor use, the K Series is purpose-built from the ground up for demanding outdoor applications . Its design philosophy centers on one core principle: absolute reliability when conditions are at their worst. This "outdoor gene" is embedded in every aspect of its rugged construction.
The cornerstone of the K Series' resilience is its proven IP68 protection level . This international standard rating signifies that the connector is not just dust-tight (the "6" in IP68), protecting internal contacts from even the finest particulates found in deserts or construction sites. More importantly, it guarantees waterproofness (the "8"), meaning the connector can withstand continuous immersion in water beyond 1 meter depth . This is achieved through a sophisticated design featuring an inner metal sleeve and dual sealing mechanisms . When the plug and receptacle mate, these components compress to form an impenetrable barrier, ensuring that moisture, rain, snow, or even high-pressure washdowns cannot compromise the electrical connection .
Beyond Waterproofing: A Fortress of Performance
IP68 protection is just the beginning. The K Series is a fortress of engineering, designed to laugh in the face of a wide spectrum of environmental assaults.
A Material Masterclass: The connector's housing is typically machined from high-strength brass alloy and finished with a chrome or nickel plating . This combination provides exceptional structural integrity and outstanding corrosion resistance, capable of withstanding over 144 hours of salt spray testing—a critical feature for offshore, coastal, or de-icing applications . The contacts themselves are gold-plated copper alloy, ensuring stable conductivity and preventing oxidation over thousands of mating cycles .
Built to Last in Extreme Temperatures: Whether it's the scorching heat of an open-pit mine or the bitter cold of a high-altitude weather station, the K Series operates flawlessly across an astonishing temperature range. Depending on the model and manufacturer, it can reliably function in conditions spanning from -55°C to +200°C or -45°C to +125°C . This thermal resilience makes it suitable for applications ranging from cryogenic storage monitoring to engine compartment connections.
Vibration and Shock Resistance: In the world of heavy machinery, robotics, and transportation, vibration is the silent killer of connections. The K Series employs a secure push-pull self-latching system . This mechanism locks the connector firmly in place with a simple push, preventing accidental disconnection even under intense vibration (tested from 10 to 2000 Hz at 15g) and mechanical shock (up to 100g for 6ms) . With a durability rating of over 5,000 mating cycles, it's designed for the long haul .
Signal Integrity with 360° Shielding: In today's data-intensive world, protecting sensitive signals from electromagnetic interference (EMI) is paramount. The K Series features comprehensive 360° EMC shielding . This creates a Faraday cage around the contacts, effectively blocking external electromagnetic noise that could corrupt data signals, ensuring clean transmission for sensors, cameras, and communication links.
A Universe of Configurations for Limitless Applications

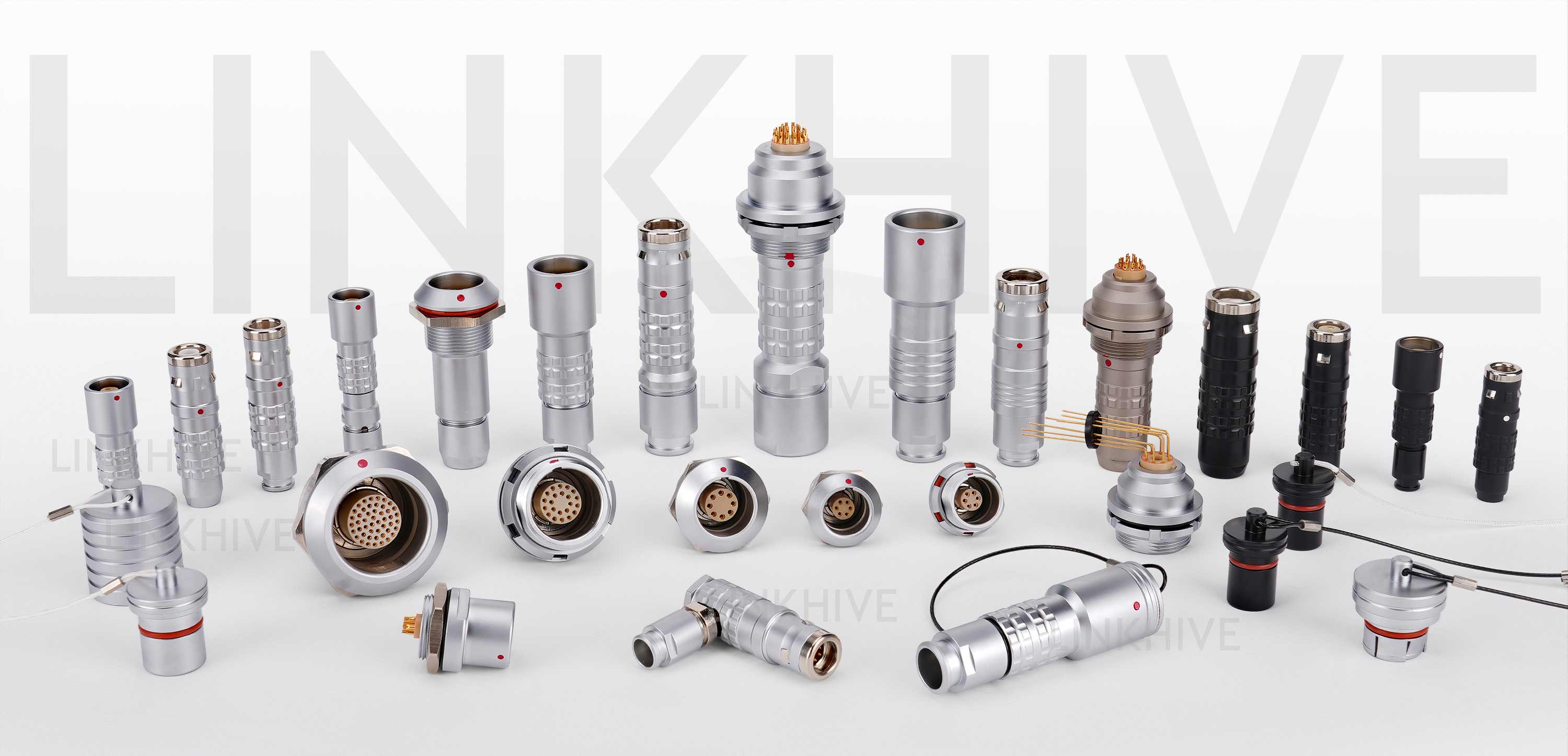

True to its "series" name, the K Series is not a one-size-fits-all product but rather a versatile platform. It is available in multiple shell sizes—commonly 0K, 1K, 2K, 3K, and 4K—and offers a staggering range of pin counts from 2 to 48 contacts, accommodating everything from simple power delivery to complex, high-density signal transmission .
The true power of its modularity is unlocked through the variety of contact types it supports. The K Series utilizes the same high-performance inserts found in the popular B Series, offering a vast selection including :
Low Voltage Multipole: For countless sensors, control signals, and data lines.
Coaxial and Triaxial: For high-frequency video, RF signals, and precision measurements.
Fiber Optic: For high-bandwidth, interference-free data transmission over long distances.
Fluidic: For pneumatic or liquid cooling systems in medical or industrial tools.
High Voltage and Thermocouple: For power delivery and direct temperature sensing.
Furthermore, a multi-keying system with up to 9 or more keyway options prevents mismating between different connectors on the same panel, a critical feature in complex equipment . Termination options include solder, crimp, and PCB contacts (straight or right-angled), providing design flexibility for manufacturers .
Transforming Industries: Real-World Applications
With this unparalleled combination of ruggedness, versatility, and protection, the K Series IP68 waterproof connector is the driving force behind reliability in a multitude of sectors:
Industrial Automation & Robotics: In factories, robotic arms, machine tools, and servo motors are subjected to coolants, metal shavings, and constant motion. The K Series ensures uninterrupted operation in these harsh manufacturing environments . It's ideal for connecting sensors, actuators, and vision systems on assembly lines.
New Energy & Outdoor Infrastructure: For solar inverters, wind turbine monitoring systems, and battery energy storage stations located in remote, exposed areas, the K Series provides a weatherproof and corrosion-resistant link, ensuring maximum uptime for green energy generation .
Outdoor Mobile Equipment: Autonomous ground vehicles like robotic dogs, robotic wolves, and drones used for inspection, security, or logistics face constant exposure to dust, rain, and vibration. The K Series' lightweight yet durable construction and secure latching make it the perfect choice for these cutting-edge platforms .
Defense, Aerospace, and Communication: From portable military communication gear to radar systems and satellite ground stations, the K Series meets stringent military standards (such as MIL-PRF-39012 and MIL-STD-202F for related series), guaranteeing high reliability and stability under extreme conditions .
Medical & Test Equipment: In portable or mobile medical devices used in ambulances or field hospitals, the K Series' robust waterproofing allows for easy decontamination, while its EMC shielding protects sensitive patient-monitoring signals .
Transportation & Heavy Machinery: Railway systems, agricultural machinery, and construction equipment all benefit from the K Series' ability to withstand constant shock, vibration, and exposure to the elements .
Conclusion
As technology pushes into every conceivable corner of our world—from the factory floor to the desert, from the ocean shore to the urban jungle—the demand for connectors that can endure has become non-negotiable. The K Series circular push-pull connector, with its foundation in IP68 waterproofing and a superstructure of robust mechanical design, extreme temperature tolerance, and unparalleled configurable versatility, stands as the definitive solution. It is more than just a connector; it is the guarantee of performance that allows engineers to confidently design the next generation of equipment for the world's most challenging environments.
