Rugged Protection, Unyielding in Extreme Environments
The F Series features a precision sealing structure that achieves an IP68 protection rating, guaranteeing complete protection against dust ingress and maintaining internal dryness even during continuous immersion. Whether in coastal salt spray, heavy rain, or Gobi sandstorms, the F Series provides an impregnable barrier, significantly extending equipment maintenance cycles.
Secure Self-Locking: Stability Meets Operational Ease
Equipped with a secure split push-pull self-locking system, the new connector generates strong axial retention force through the engagement of multi-lobed claws with the locking groove upon mating. This reliably withstands strong vibration and accidental pulling. Simultaneously, unlocking is achieved by simply pulling back the outer sleeve in a straight line, enabling blind mating and blind unmating—ideal for confined spaces or obstructed field installations.

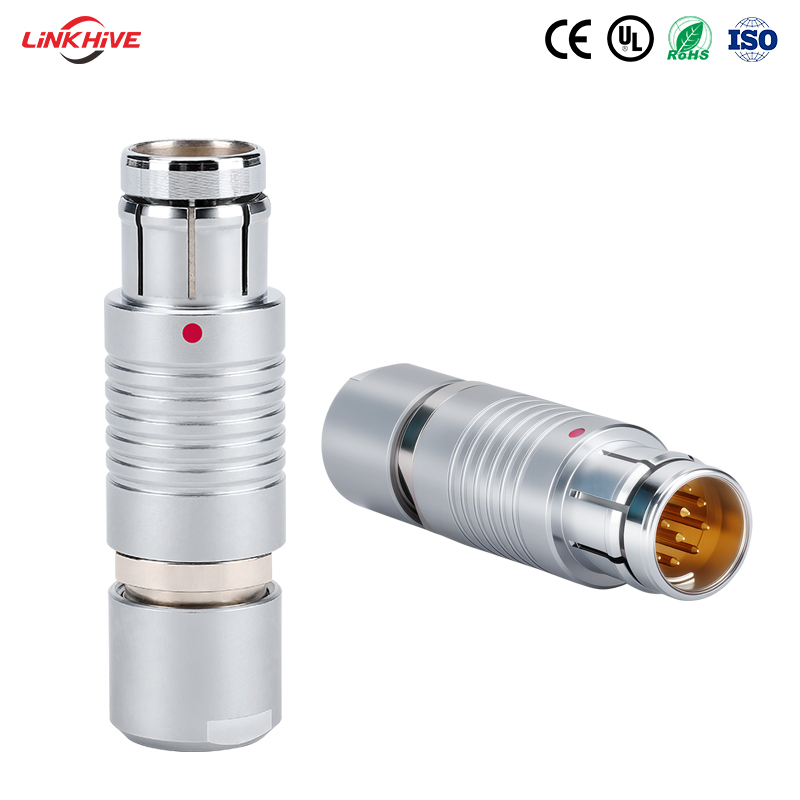

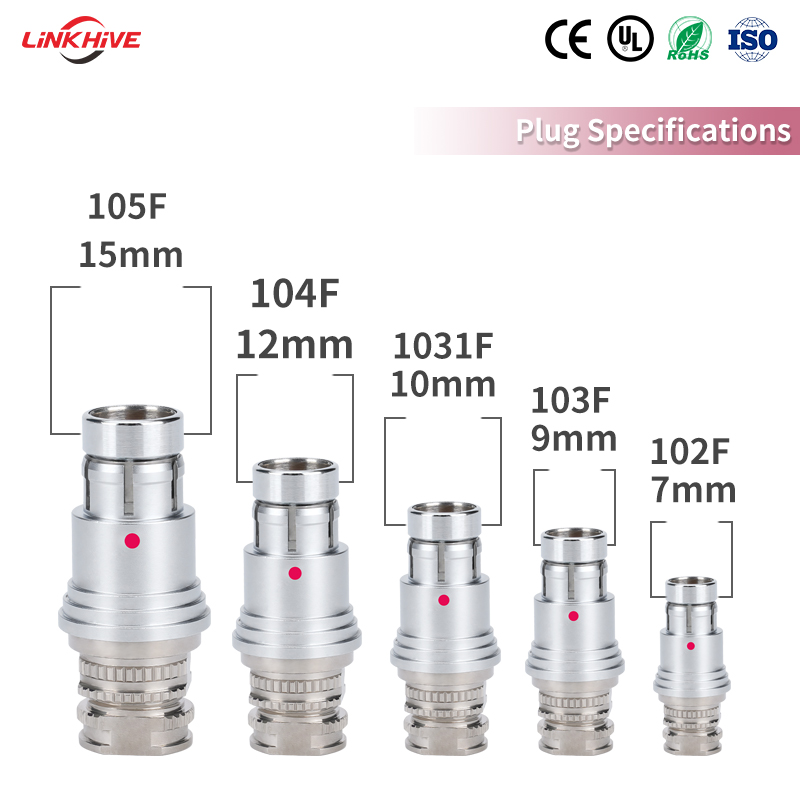

TN Plug

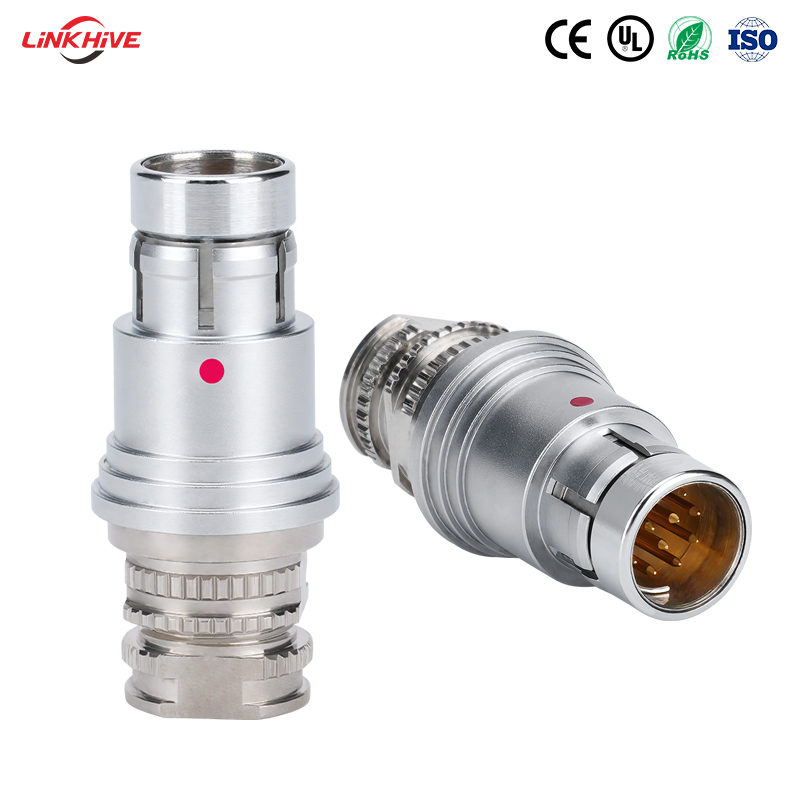

TC Plug

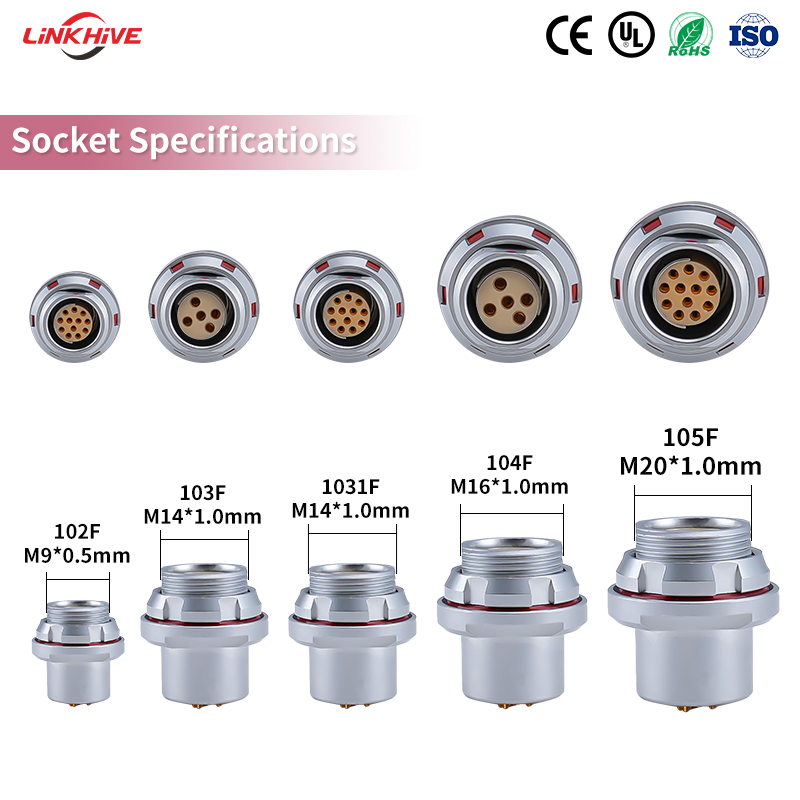

ZC socket
ME socket
High-Density Design and Anti-Mating Errors
The F Series incorporates an internal semi-circular keying mechanism. A semi-circular key on the housing's inner wall mates with a corresponding keyway on the plug, ensuring each connection is uniquely matched and completely eliminating mismating risks. Furthermore, the housing design prioritizes high-density installation. By optimizing insulator layouts and contact spacing, the series integrates up to 27 cores within a limited panel area, saving valuable space for multi-signal transmission equipment
Flexible Termination Options for Diverse Processes

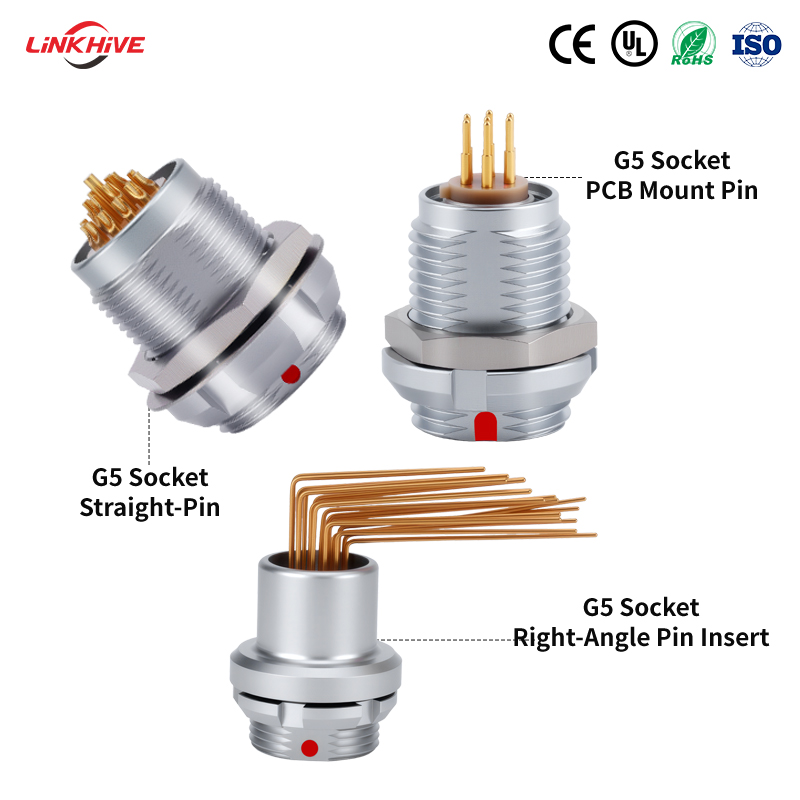

To accommodate various assembly preferences and PCB design requirements, the F Series offers extensive contact termination options: Solder cup contacts are suitable for manual assembly or field repairs. PCB contacts (straight and right-angle) can be directly soldered onto printed circuit boards, enabling modular and standardized electrical interconnection. Whether for point-to-point wiring or board-to-board connections, the F Series adapts seamlessly
360° Uninterrupted Shielding for Signal Integrity
In increasingly complex electromagnetic industrial environments, the F Series integrates a 360° full shielding structure. Continuous contact between the metal shell and the shielding layer creates a Faraday cage effect, effectively suppressing the ingress of external EMI and preventing internal signal radiation leakage. This feature is critical for applications demanding high signal integrity, such as 5G communications, precision measurement, and high-definition video transmission.
Typical Applications
Outdoor Security Surveillance: Connections for PTZ cameras, thermal imaging cameras.
LED Lighting: Landscape lighting, point light sources, bridge lighting projects.
Transportation & Communication: Intelligent traffic signal control, base station RRU/AAU interfaces.
New Energy & Industry: Photovoltaic inverters, energy storage systems, automated production lines.
The Linkhive F Series Outdoor Semi-Circular Keying Connector is now open for sample requests, with mass production shipments scheduled to begin this month. Linkhive invites customers from all industries to experience the evolution of outdoor connection technology firsthand.
