As a vital component of electronic equipment, the performance of the electrical wire connector directly affects the stability and reliability of the equipment. In some specific application environments, the electrical connector will be exposed to water, moisture or other liquids. Moisture entering the connector can cause short circuits, signal distortion, equipment damage or even complete equipment failure.
Therefore, how to prevent water from entering the electrical wire connector has become an important task in many industries. In order to ensure the reliability of electronic equipment in harsh environments, it is particularly important to design waterproof electrical connectors and waterproof measures.
What are the hazards of water to electrical connectors?
Before discussing how to prevent water from entering the electrical connector, we need to understand the potential hazards caused by water to the electrical connector. The impact of moisture on the electrical connector is mainly reflected in the following aspects:
● Short circuit: The entry of moisture may cause a short circuit at the internal contact point of the electrical connector, disrupting the normal operation of the circuit. Water is usually conductive, which means that even very small water droplets can cause circuit instability or failure.
● Corrosion: Moisture can cause corrosion of metal parts inside the electrical connector, especially for metal parts that are not treated with corrosion protection. Corrosion can reduce the electrical conductivity between contact surfaces, increase contact resistance, and even eventually make the device unusable.
● Signal interference: When water enters the connector, it may affect the signal transmission of the electrical connector, resulting in signal loss, distortion or delay. This effect is particularly significant for high-frequency signals and precision electronic equipment.
● Equipment damage: In extreme cases, the intrusion of water may cause damage to the insulation material of the electrical wire connector, thereby affecting the performance of the entire device or even causing complete damage to the device.
Based on the above hazards, it is particularly important to prevent water from entering the electrical connector, especially in some extreme environments such as industrial equipment, communication facilities, automobiles, outdoor electronic products, etc.
What is the design concept for preventing water from entering the electrical connector?
In order to prevent water from entering the electrical connector, the design needs to consider the sealing of the connector, the corrosion resistance of the contact point, and the firmness of the overall structure. The design concept of waterproof electrical connectors usually includes the following aspects:
Sealing design
Sealing is the core of preventing water from entering the electrical connector. Connectors usually use seals such as O-rings, gaskets, silicone seals, etc. to ensure the waterproofness of the contact part. The quality of the sealing design directly affects the waterproof ability of the connector. There are several types of waterproof designs for electrical wire connectors:
● O-ring seal: O-ring is the most common sealing design and is widely used in waterproof electrical connectors. It can be located between the socket part and the plug of the connector to provide sealing protection when inserting and removing the connector.

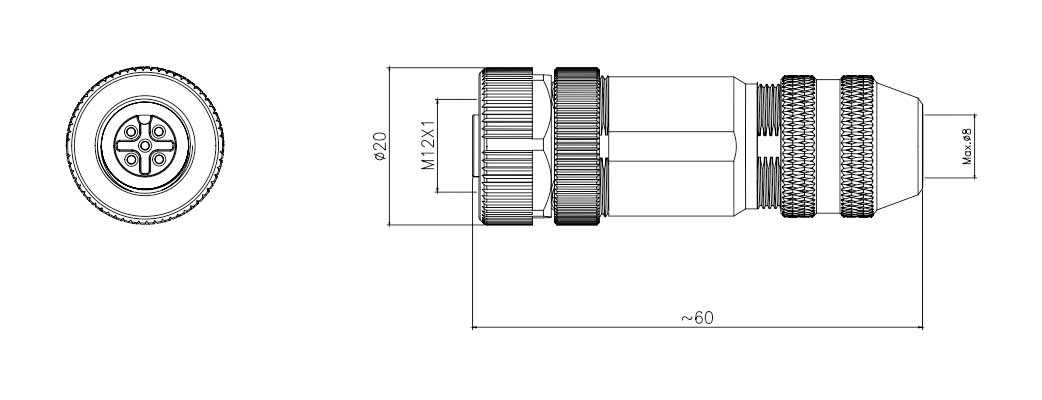

● Thread seal: The thread seal design connects the plug and the socket together by rotating, and forms a seal by the compression of the thread. This design is suitable for occasions that require frequent connection and disconnection.
● Bayonet lock: The bayonet lock design maintains the connection through the bayonet method of the plug and the socket, thereby providing a certain sealing effect.
● Elastic sealing ring: Elastic sealing ring materials (such as silicone and fluororubber) have excellent waterproof performance and elasticity, and can adapt to temperature changes, external forces and frequent plugging and unplugging operations.
Use waterproof materials
The waterproof ability of the electrical wire connector depends not only on the sealing design, but also on the selected materials. The shell material, contact point material and sealing ring material of the waterproof electrical connector must all have waterproof performance. Common waterproof materials include:
● Plastic shell: Plastic is a common shell material for waterproof connectors. In order to improve water resistance and corrosion resistance, engineering plastics such as polyamide (PA), polyurethane (PU) or polycarbonate (PC) are usually selected. These materials can effectively prevent moisture and pollutants from invading the interior.

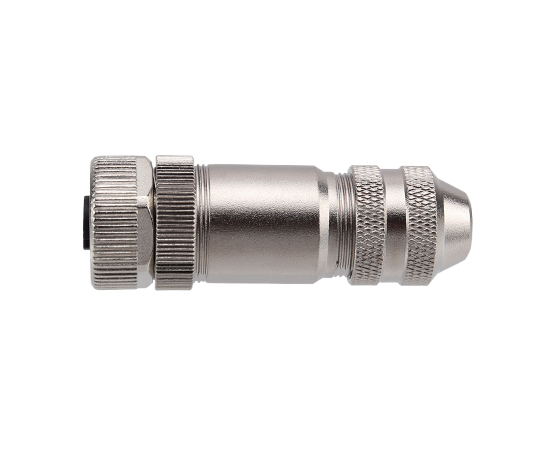

● Metal shell: Metal shell is an important choice for those who require a higher level of protection. Common metal materials include stainless steel and aluminum alloy, which are corrosion-resistant and high-temperature-resistant and can provide additional protection for electrical wire connectors.
● Waterproof sealing ring materials: Common waterproof sealing ring materials for electrical wire connectors include silicone, rubber, fluororubber, etc. These materials have excellent sealing performance and can maintain good performance under various environmental conditions.
Waterproof grade certification
The waterproof performance of electrical connectors is usually indicated by the "IP (Ingress Protection)" grade. The IP grade standard consists of two numbers, the first number indicates the dustproof grade, and the second number indicates the waterproof grade. Common waterproof grades for electrical wire connectors include:
● IP67: It can be completely dustproof and can be immersed in 1 meter of water for 30 minutes without damage.
● IP68: Able to be immersed in deeper water and withstand long-term water immersion, suitable for extreme water environments.
To ensure that the electrical connector can work properly in a water environment, the design should refer to the appropriate waterproof level and ensure that the electrical wire connector has undergone the corresponding waterproof test.
What are the ways to prevent water from entering the electrical connector?
Even if the electrical connector is designed with waterproof measures in mind, incorrect operation during installation may cause moisture to enter the connector. To ensure that water does not enter the electrical connector, some key steps and best practices should be followed during installation.
Proper connection and locking

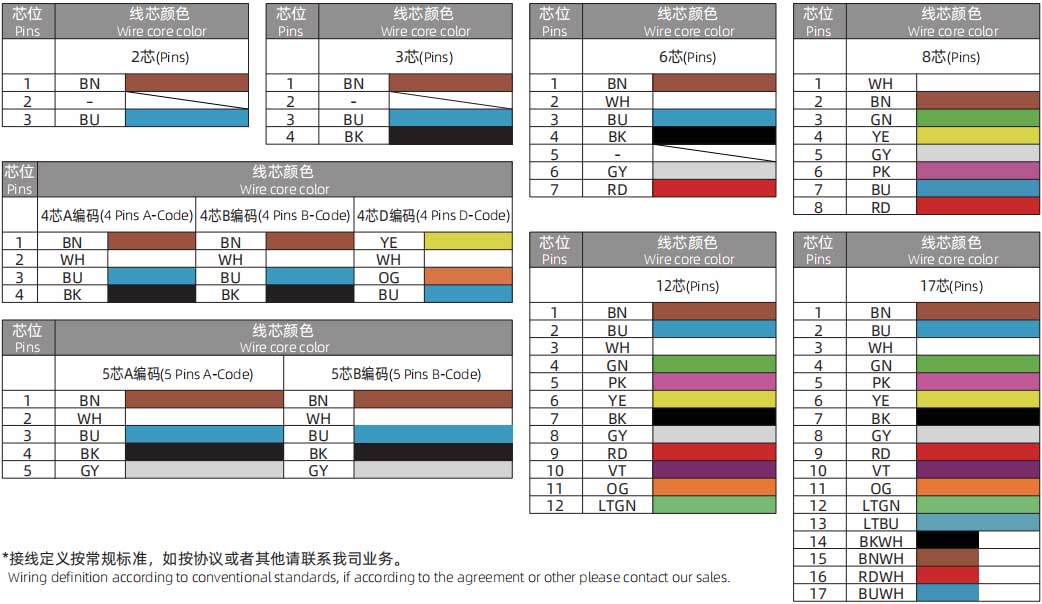

During the installation of the electrical wire connector, ensure that the plug and socket are fully inserted and properly locked. Incompletely inserted or loose connectors are prone to moisture ingress. During installation, the correct tools should be used to ensure that the electrical wire connector is firmly and reliably connected to avoid moisture penetration caused by improper plugging and unplugging.
Use appropriate sealing materials

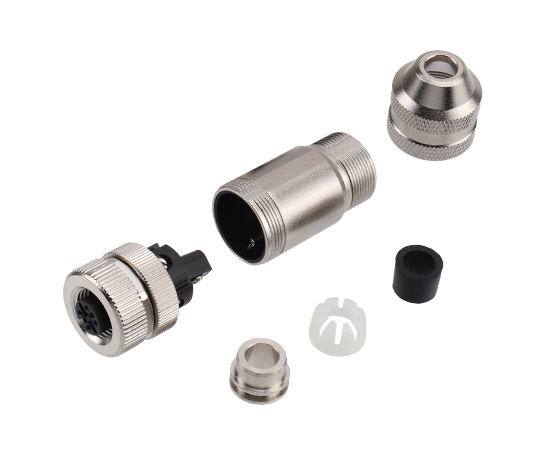

During installation, ensure that the seal ring, O-ring or other sealing material is intact and the seal is tightly fitted with the contact part of the electrical wire connector. If the seal is damaged or aged, moisture can easily enter the connector through the damaged part. Therefore, during the installation of the electrical wire connector, check whether the seal is in place and use appropriate sealing materials.
Avoid improper operating environment
When installing the electrical connector, avoid exposing the connector to excessive humidity, strong water flow or water vapor. For outdoor equipment, it should be protected in appropriate places to avoid exposure to strong weather conditions. If the equipment needs to be exposed to water for a long time, consider using additional protection measures, such as external waterproof covers or underwater protective covers.
Check the seals regularly
Sealing parts such as seals and O-rings may wear, age or damage after long-term use. Regularly checking these seals and replacing them in time will help ensure the waterproof performance of the electrical wire connector. Especially for equipment exposed to harsh environments for a long time, more frequent inspections should be carried out.
Clean the electrical wire connector
It is also very important to clean the electrical wire connector. Contaminants such as water, dirt, and salt may adhere to the outside of the connector and affect its sealing performance. Use appropriate cleaning methods (such as compressed air, wet cloth, etc.) to regularly clean the surface of the electrical wire connector to avoid contaminants blocking the seal, thereby reducing the risk of water intrusion.
Waterproof measures for electrical connectors in different environments
Outdoor environment
Outdoor electrical connectors are often exposed to factors such as rain, moisture, dust, and temperature changes. The following measures are recommended:
● Select waterproof connectors with IP67 or higher rating.
● Use weather-resistant materials such as UV-protected plastics or corrosion-resistant metal housings.
● Use waterproof sealing sleeves and protective covers to reduce the risk of external moisture intrusion.
Underwater applications
Electrical wire connectors for underwater applications need to withstand long-term immersion and water pressure, so it is recommended to:
● Use waterproof connectors with IP68 or higher rating.
● Select high-strength metal housings and use double-layer O-rings.
● Use potting processes or watertight connections to ensure reliability under long-term immersion conditions.
Industrial environment
Electrical connectors in industrial equipment are often used in high humidity, chemical or oily environments, so:
● Select corrosion-resistant and high-waterproof connectors.
● Use sealants and waterproof coatings for additional protection.
● Regularly check and replace aging sealing materials to maintain long-term stability.
