How to Choose a Good LINKHIVE Push Pull Circular Connector
Understanding Push Pull Circular Connector Technology

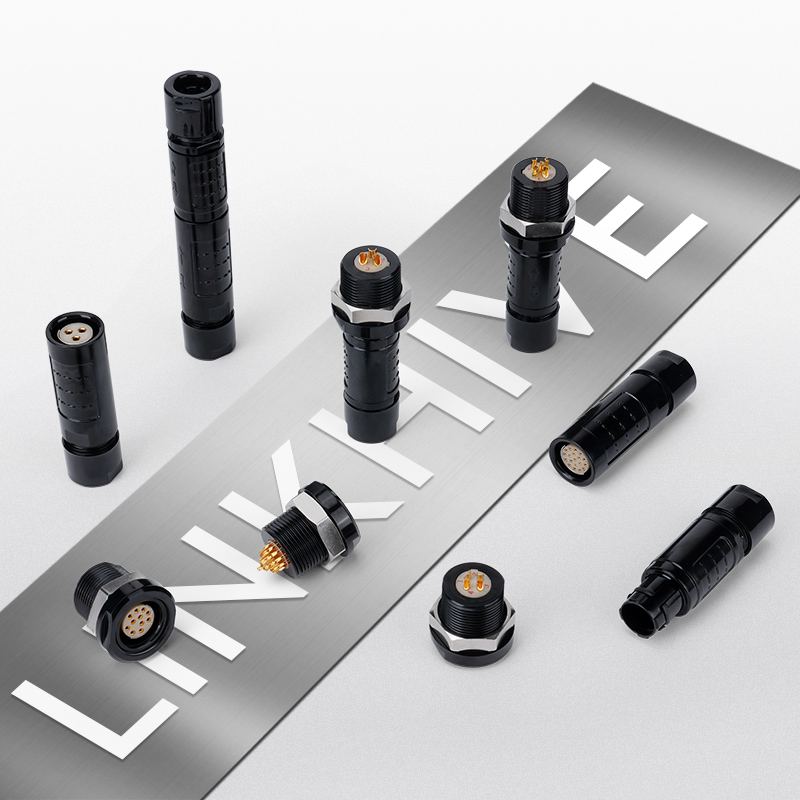

The push pull circular connector is a precision-engineered interconnection system designed for secure and efficient electrical and signal transmission. Unlike screw-type or bayonet connectors, the push-pull mechanism ensures quick mating and unmating with a self-locking structure. Once mated, the connector resists accidental disconnection even under vibration, making it ideal for medical connectors, industrial connectors, and military connectors.
The LINKHIVE push pull connector family is engineered according to international interface standards, maintaining compatibility with well-known brands such as LEMO and ODU. Each circular connector combines mechanical reliability, compact structure, and environmental sealing for long-term stability in demanding conditions.
LINKHIVE Push Pull Connector Engineering Advantages
The LINKHIVE circular connector range is developed with precision CNC machining, high-density insulators, and gold-plated contacts to guarantee low contact resistance and extended mating cycles (typically > 5000 operations).
Key engineering advantages include:
Self-locking mechanism: Push-pull latch for instant connection and release.
Hermetic sealing: Waterproof performance up to IP68 (depending on model).
Mechanical durability: Robust brass or stainless-steel shell with chrome plating.
Electrical stability: Contact resistance below 5 mΩ; dielectric strength > 1500 V.
Versatility: Available in signal, power, coaxial, triaxial, and fluidic versions.
The LINKHIVE push pull connector series covers multiple shell sizes and configurations to meet the needs of medical devices, test instrumentation, sensors, industrial automation, and aerospace systems.
Key Factors in Selecting the Right LINKHIVE Circular Connector
Choosing the correct LINKHIVE push pull circular connector involves evaluating electrical, mechanical, and environmental requirements to ensure optimal performance.
Electrical & Mechanical Parameters of LINKHIVE Push Pull Connectors
Engineers should define:
Current & Voltage Ratings – Select contacts sized appropriately for operating current (1 A – 25 A) and rated voltage (≤ 1000 V DC).
Signal Integrity – Use gold-plated contacts to ensure low resistance and noise immunity.
Mating Cycles – LINKHIVE connectors typically achieve > 5000 cycles without degradation.
Mechanical Tolerances – ± 0.01 mm precision machining guarantees interchangeability.
Waterproof and Environmental Sealing Levels in LINKHIVE Circular Connectors
Sealing is defined by IEC 60529 IP ratings:
IP50: Indoor, dust-resistant.
IP66: Splash-proof, suitable for laboratory or industrial use.
IP68: Fully waterproof; immersion protection for > 24 hours at 1 m depth.
The LINKHIVE K Series is the recommended waterproof circular connector for outdoor or medical sterilization environments. Each connector includes double O-ring sealing between plug, socket, and back-nut interfaces.

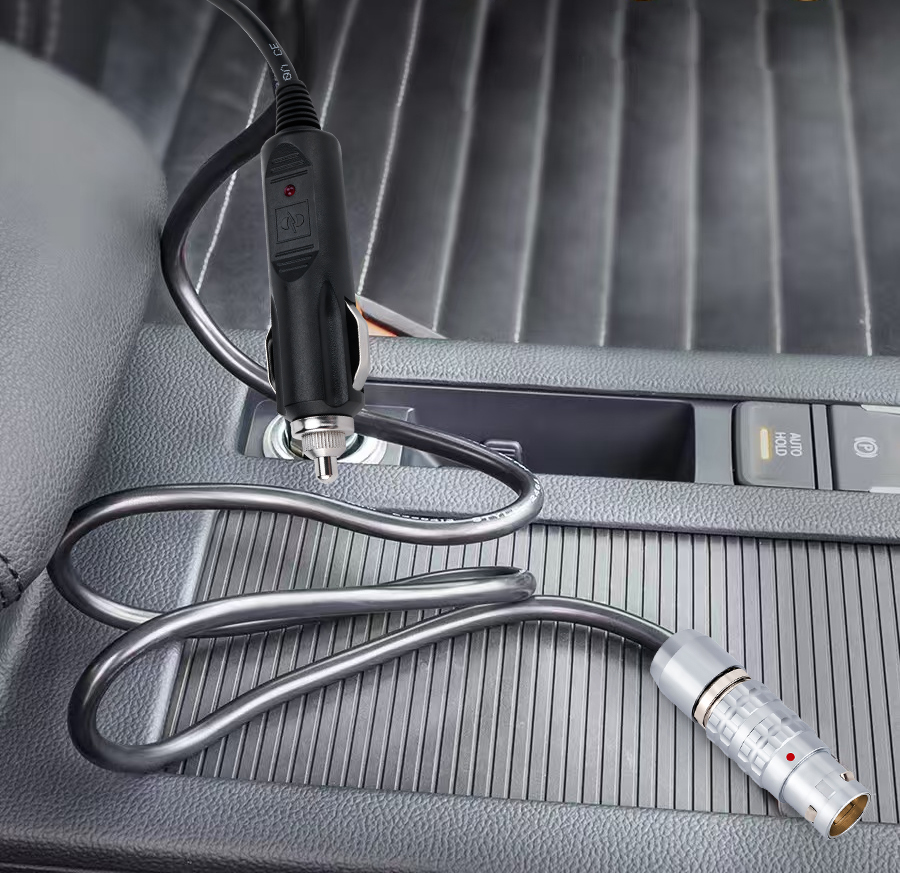

Size and Pin Layout for Miniature Push Pull Connectors
Miniature connectors are selected by shell size (0 – 4 series) and pin count:
0 series → 5 – 7 pins (diameter ≈ 9 mm)
1 series → 2 – 10 pins (diameter ≈ 12 mm)
2 series → 2 – 14 pins (diameter ≈ 15 mm)
3 series → up to 19 pins (> 18 mm diameter)
These configurations cover applications from medical sensors to high-density data transmission.
Connector Shell and Insulator Materials — Brass, Stainless Steel, PEEK
Material selection determines both appearance and durability:
| Material | Typical Series | Key Features |
|---|---|---|
| Brass (Nickel/Chrome Plated) | B / S Series | Excellent electrical shielding; high strength |
| Stainless Steel (316L) | K Series | Superior corrosion resistance; IP68 use |
| PPSU / PBT Medical Plastic | P Series | Autoclavable; lightweight; non-conductive |
| PEEK / PEI High-Temp Insulator | All Series Optional | Withstands 200 °C; chemical resistance |
LINKHIVE utilizes lead-free brass and medical-grade PPSU to meet RoHS and REACH standards.
Cable Assembly and Strain Relief Options for LINKHIVE Connectors
For vibration resistance, choose appropriate:
Cable Clamp Size: Must match outer jacket diameter.
Strain Relief: Over-molded TPU or silicone bend relief recommended.
Termination: Solder cup, crimp, or PCB mount types.
Shielding: 360° ground connection for EMC protection.
The LINKHIVE cable assembly division provides turnkey harness solutions compliant with ISO 13485 (Medical) and IATF 16949 (Automotive).

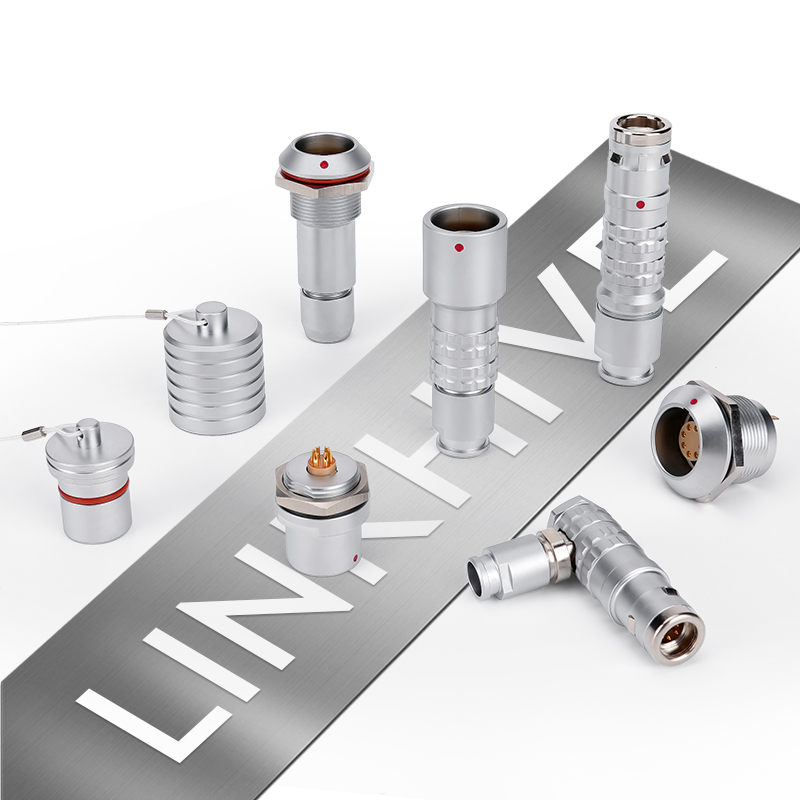

Comparison of LINKHIVE Push Pull Connector Series (B / K / S / P / Fluidic)
| Series | Shell Material | Sealing Level | Typical Application | Compatibility |
|---|---|---|---|---|
| B Series Push Pull Connector | Brass Chrome | IP50 | Instrumentation, Audio | LEMO B / ODU Mini-Snap L |
| K Series Waterproof Connector | Stainless Steel | IP68 | Outdoor, Medical Sterilization | LEMO K / ODU AMC |
| S Series Circular Connector | Brass Nickel | IP50 | Indoor Industrial, Control Systems | LEMO S Series |
| P Series Medical Connector | PPSU Plastic | IP66 | Medical Devices / Autoclavable | LEMO REDEL P |
| Fluidic Series Hybrid Connector | Brass / SS | IP66-68 | Pneumatic / Gas / Fluid Lines | LEMO Fluidic / ODU Mediline |
Application Guidelines for LINKHIVE Circular and Waterproof Connectors
Medical Connector Applications
In medical systems such as patient monitors, endoscopes, and surgical tools, LINKHIVE P and K Series connectors provide autoclavable designs, chemical resistance, and secure latching under sterilization pressure. Silicone over-molds and PEEK insulators support temperatures up to 200 °C.
Industrial and Automation Connector Applications
The B and S Series circular connectors are used in CNC machines, sensors, robotics, and data acquisition modules. Their brass shells ensure excellent shielding and grounding. Optional hybrid configurations can combine signal and power contacts within a single housing.
Defense and Field Equipment Connector Applications
LINKHIVE K and Fluidic Series offer rugged designs with IP68 waterproof sealing and high vibration resistance, meeting MIL-spec interface requirements. These are ideal for communication radios, portable power units, and field sensors.
LINKHIVE Manufacturing Quality and Reliability Control
LINKHIVE Connectors Co., Ltd. applies strict process controls at each manufacturing stage:
Material Inspection: Brass composition checked via XRF spectrometry.
CNC Machining Precision: Dimensional tolerance ± 0.01 mm.
Plating Thickness Control: Nickel > 5 μm, Chrome > 0.3 μm.
Insertion/Withdrawal Force Testing: 100 % QC for every connector batch.
Electrical Testing: Insulation Resistance > 5000 MΩ @ 500 VDC.
Each LINKHIVE push pull connector meets international standards such as IEC 60603, RoHS, REACH, and ISO 9001 quality system requirements.
Global Supply and Affordable Shipping for LINKHIVE Push Pull Connectors
To support global buyers and distributors, LINKHIVE has established a professional logistics network with 4PX Economic Line (S1185) for affordable international delivery.
This service provides:
Tracked shipping to 31 countries.
Average transit time of 8 – 15 days.
Rates up to 70 % lower than DHL/UPS for light parcels.
Damage-proof packaging for high-precision connectors.
Thus, customers ordering sample quantities of LINKHIVE push pull connectors can receive them quickly and economically anywhere in the world.
Conclusion — Selecting a Reliable LINKHIVE Push Pull Circular Connector
Choosing the right LINKHIVE push pull circular connector ensures optimal performance, reliability, and lifecycle value.
By evaluating:
Electrical and mechanical parameters,
Environmental sealing (IP50–IP68),
Connector size and pin configuration, and
Material and assembly requirements,
engineers can select a solution perfectly aligned with their application.
LINKHIVE Connectors combines precision engineering with global logistics support to deliver world-class push pull connectors, circular connectors, and miniature connectors for medical, industrial, and defense systems.
LINKHIVE CONNECTORS CO., LTD. — Your trusted partner for professional push pull circular connection solutions.
